FANLESS IPC J1900/J6412 i3 i5 i7 Industrial Panel PC with IP65 Rating in Stock for AGV Controllers Machine Vision and Factory
- Category: >>>
- Supplier: Shenzhen Cloud Embedded Technology Limited
Share on (1601272145258):
Product Overview
Description
CESIPC Product Introduce
Product Spec
CESIPC UTC-S1062A is an intelligent, fanless panel PC, 10" Panel PC equipped with an Intel® Bay Trail processor. Meeting the demands of harsh environments, in addition, the dual GbE LAN, 3 x serial ports, 6 x USB ports, make device
connection and integration easy
connection and integration easy

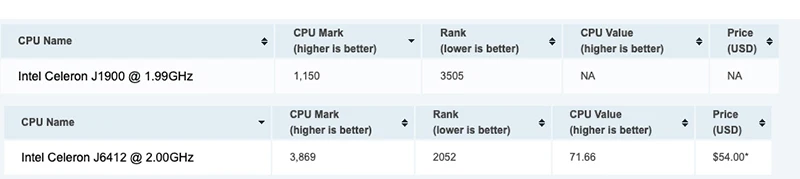

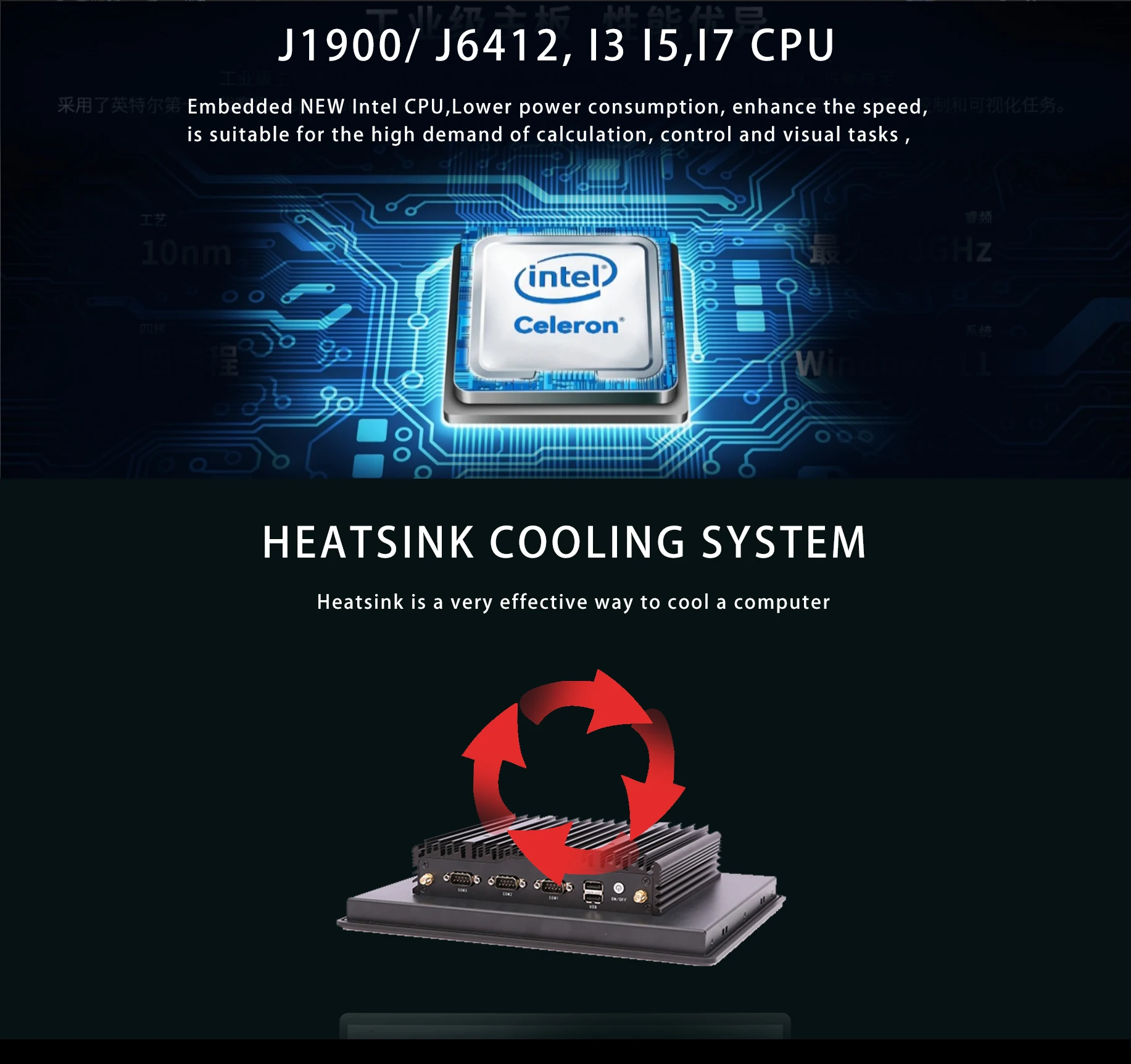

Processor | CPU | Intel Baytrail-D Celeron J1900, 2.0~2.42GHz, 4cores, 4threads, 2M cache, 22nm,TDP 10W |
Cooling System | Fanless | |
Memory | Single Socket, 4GB-8GB DDR3L | |
Storage | mSATA SSD Full Size | |

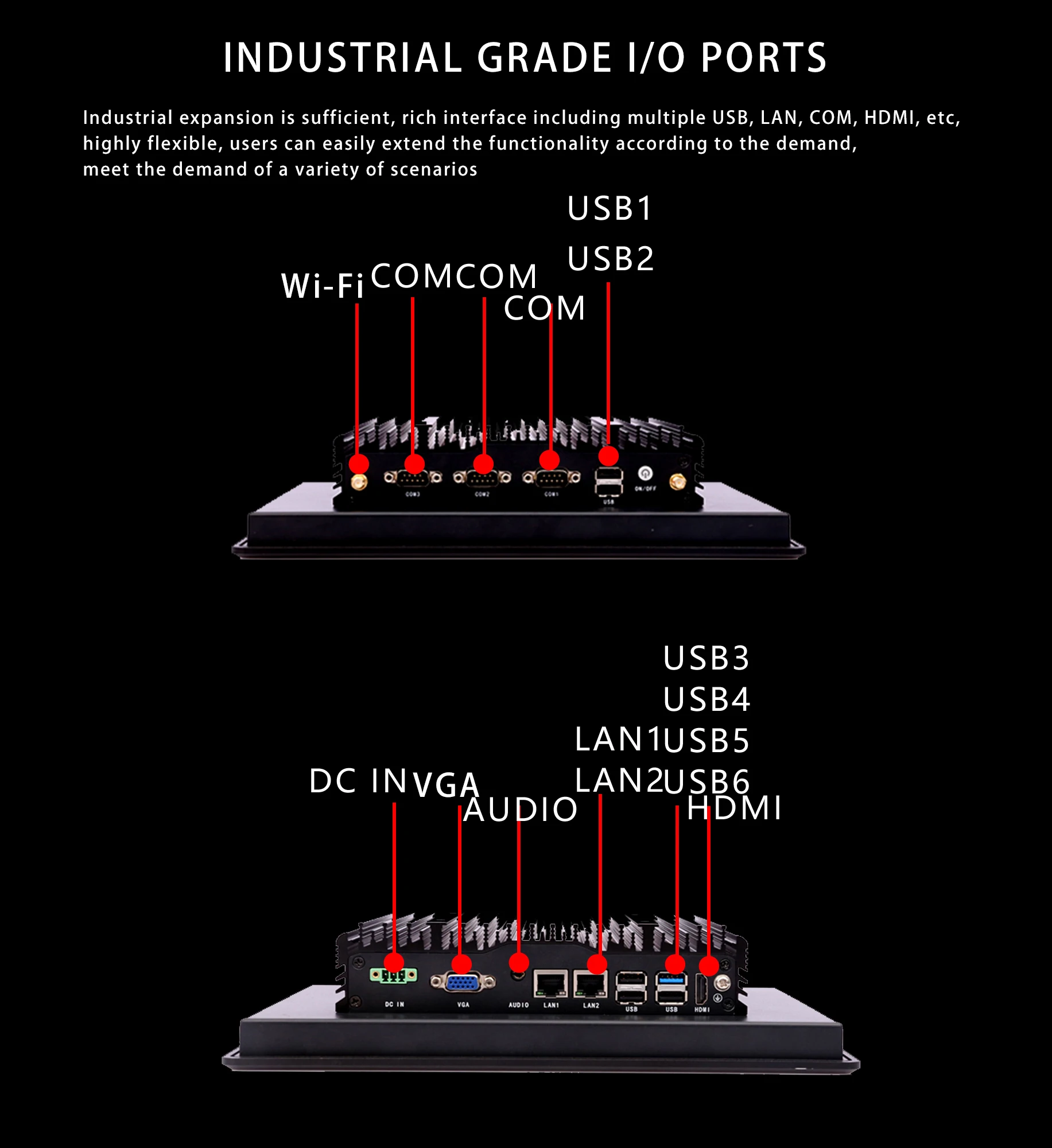

I/O ports | 1xUSB3.0+5xUSB2.0, Type-A | |
COM: 3xRS232, DB9, 2*RS485/RS422 optional | ||
Dual Display: 1xHDMI (1920*1200 @30Hz) 1xVGA (1920*1200 @30Hz) | ||
Audio: 1×Mic-in, 1x Line-out | ||
Expansion: MINI-PCIE | ||
Network(LAN) | 2x 10/100/1000Mbps Ethernet | |
Input Voltage | Input Voltage | 12V DC (3 Pin Phoenix Connector) , optional 9V-36V DC |
Control SW/LED | Power Button, AT & ATX Model | |
LCD Display | Display Type: | 10 inch TFT LED Panel( LED Backlight) |
Max. Resolution: | 1024x768 / 4:3 | |
Luminance(cd/㎡) | 300nits | |
Touchscreen | Touch Type | Capacitive / Resistive Touch |
OS Support | OS Support | Windows 7/ Windows 10/ Linux |
Environment | Operating Temperature | 0℃～50℃(14~ 140 °F)(extend temperature optional) |
Storage Temperature | -10℃～60℃(-4 ~ 158 °F) | |
Front Panel Protection | IP65 compliant | |
Mechanical | Dimensions | (W*H*D): 252.8x200x64.8mm cutout size: 241.5*186mm |
Weight | 2.6 KG (N.W.) | |
Color | Black | |
Material | Aluminum | |
Certification | CE / RoHS | |
Custom Service | Custom Service | Custom BIOS, System Encryption, Custom LOGO |

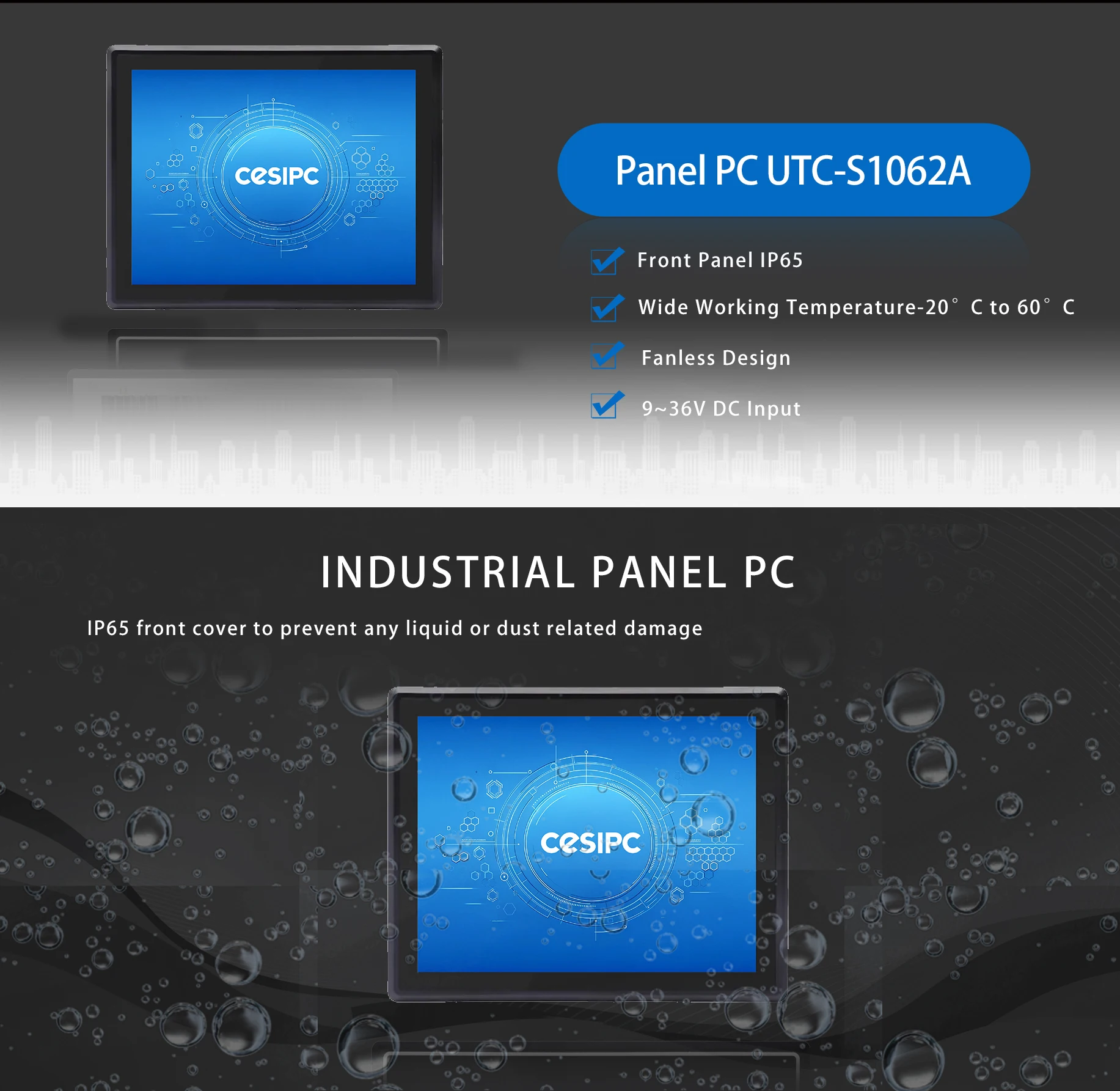

UTC- S1062A
* IP65 Front panel waterproof
* Self-developed motherboard,
* Cable-less and fanless design,
* Boot on auto,
* All in one IPC,
* Run 7/24 without shutting down,

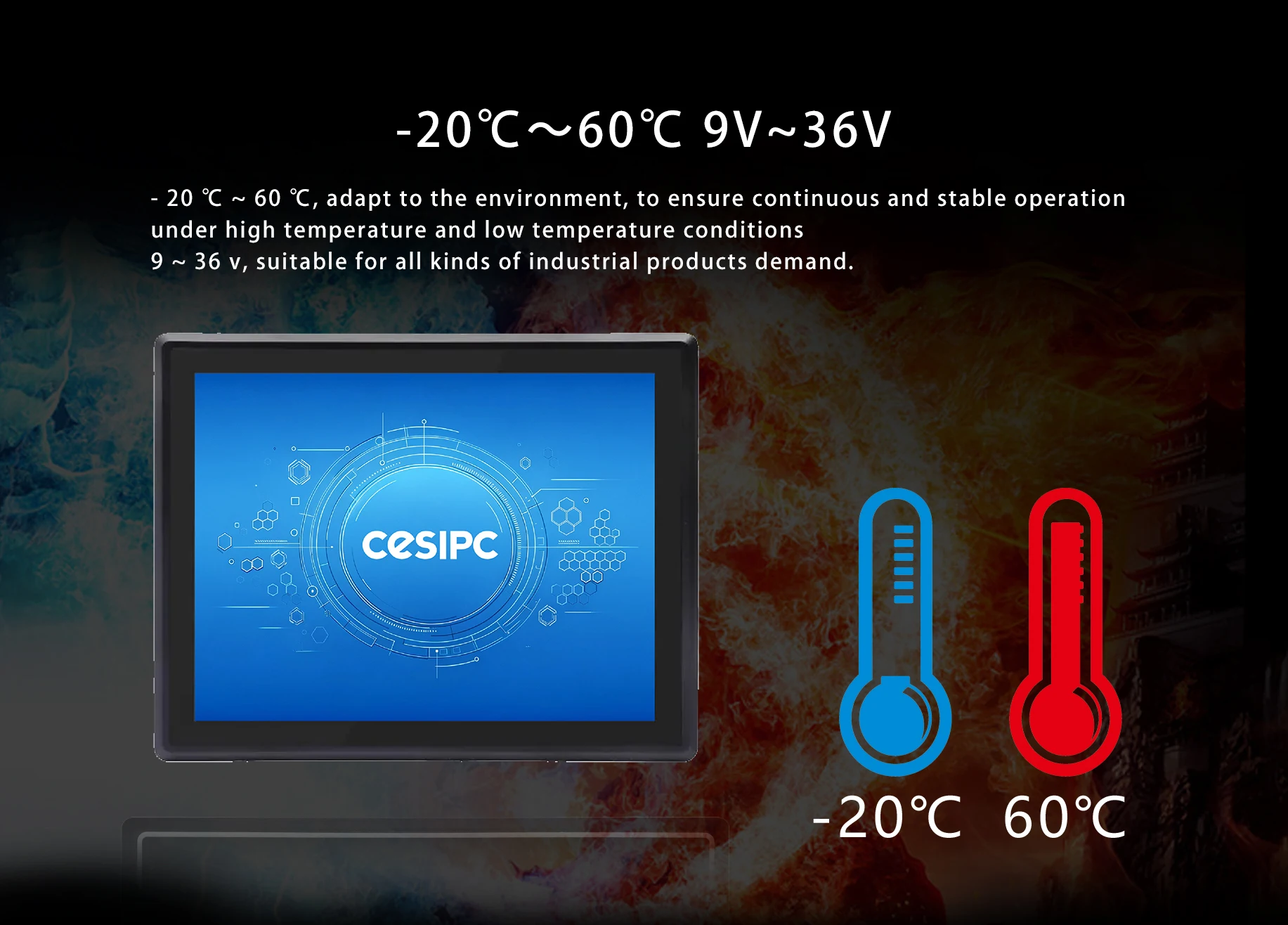

* Operating temperature support -40 to 60 degree,
* Input voltage support 9~36V
* Self-developed motherboard,
* Cable-less and fanless design,
* Boot on auto,
* All in one IPC,
* Run 7/24 without shutting down,
* Operating temperature support -40 to 60 degree,
* Input voltage support 9~36V

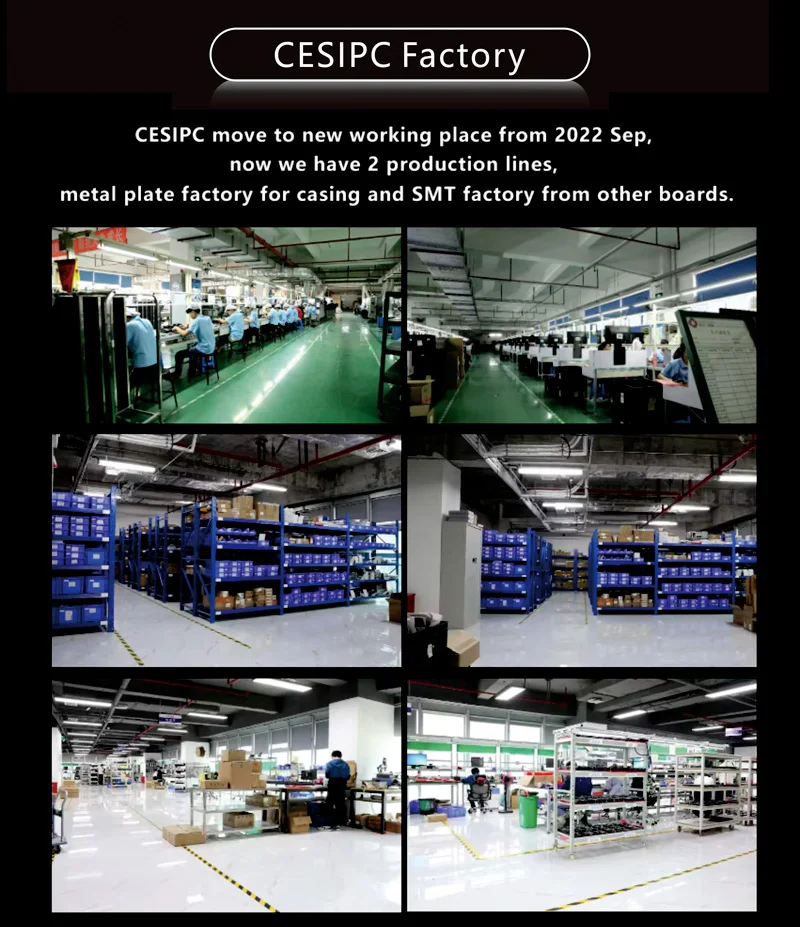

CESIPC Factory
CESIPC was established in 2009, We design and manufacture all-in-one industrial grade computers, rugged mini box PCs, and rugged tablets PCs.
All of our products are green, energy-saving, and easy to install and maintain, saving energy and lower ownership cost.
As technology and computer components evolve over time, CESIPC continues to develop innovative computing solutions that deliver the power and performance expected of the fastest technology, while minimizing the physical footprint. We maintain exceptional product line continuity in the all-in-one technology space because that is our central focus.
Throughout the years, we have maintained that focus to provide consistent quality, reliability, and the best personalized support in the industrial all-in-one computing solutions.
All of our products are green, energy-saving, and easy to install and maintain, saving energy and lower ownership cost.
As technology and computer components evolve over time, CESIPC continues to develop innovative computing solutions that deliver the power and performance expected of the fastest technology, while minimizing the physical footprint. We maintain exceptional product line continuity in the all-in-one technology space because that is our central focus.
Throughout the years, we have maintained that focus to provide consistent quality, reliability, and the best personalized support in the industrial all-in-one computing solutions.
FAQ
Q1: Can we accept sample order ?
A1: Yes, samples are always available and can be dispatched to you very quickly.
Q2: Whether your industrial panel pc support the OEM / ODM ?
A2: Yes. The motherboards are all designed and produced by ourselves. So the customization include size, I/O ports, structure
design are welcome.
Q3: Are you real factory ?
A3: We are real factory with PCB factory and whole product assembling production lines.
Q4: What is our the warranty policy ?
A4: 24 months warranty lifetime free maintenance except the human damage and force majeure factor.
A1: Yes, samples are always available and can be dispatched to you very quickly.
Q2: Whether your industrial panel pc support the OEM / ODM ?
A2: Yes. The motherboards are all designed and produced by ourselves. So the customization include size, I/O ports, structure
design are welcome.
Q3: Are you real factory ?
A3: We are real factory with PCB factory and whole product assembling production lines.
Q4: What is our the warranty policy ?
A4: 24 months warranty lifetime free maintenance except the human damage and force majeure factor.
