DN125 DN150 ST52 twin wall concrete pump elbow suitable for brands such as Putzmeister Schwing Sany Zoomlion CIFA XCMG XGMA.
- Category: >>>
- Supplier: Loudi Haite Technology Development Co. Ltd.
Share on (1601272151328):
Product Overview
Description

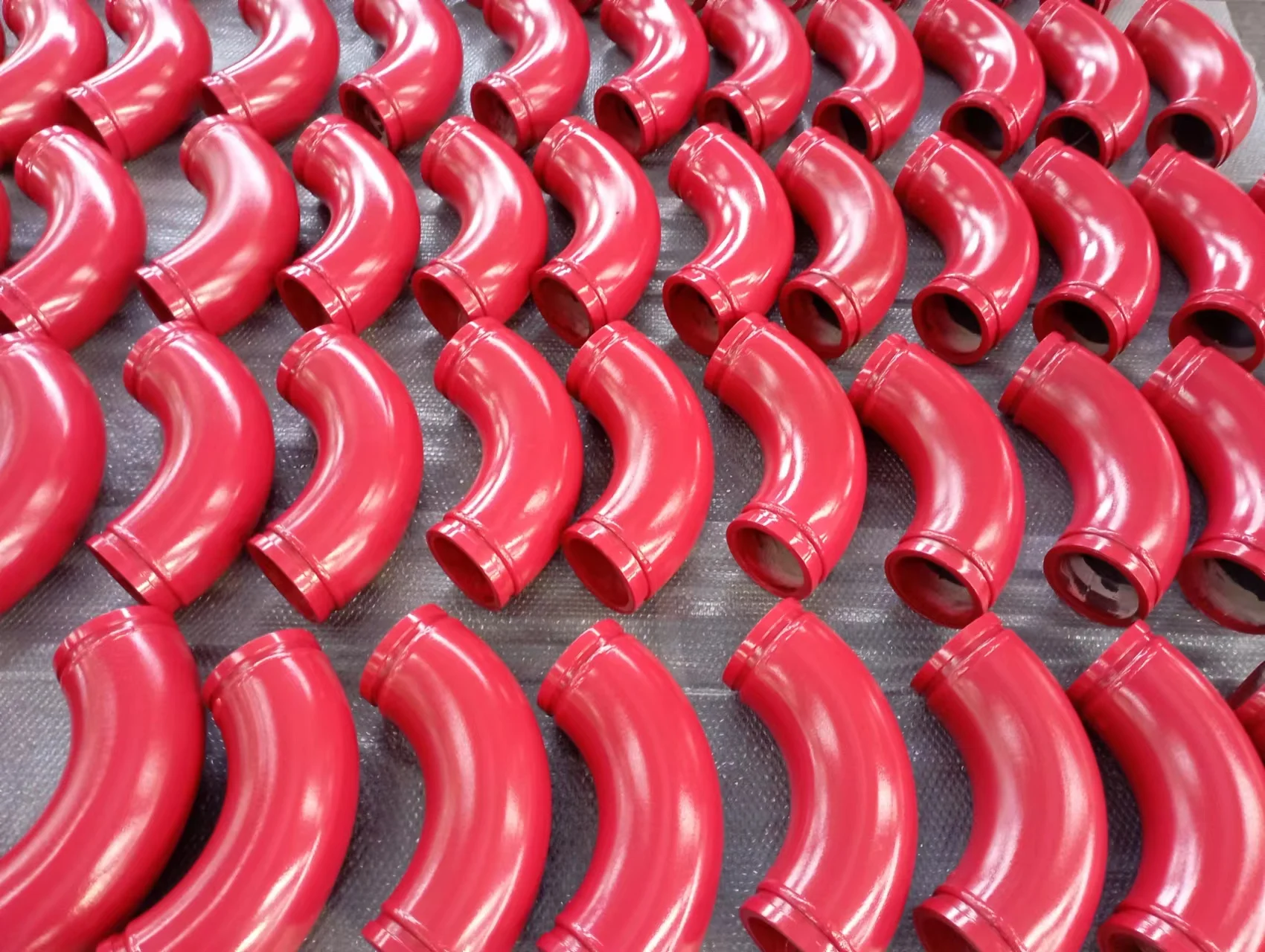

Putzmeister Cifa Twin wall concrete pump elbow dn125 dn150
Product Description
product number | Diameter | Radius | inner thickness | outer thickness | hardness | lifetime |
Tops 600-TW | DN125 | R180-R1500 | 5~10mm | 3.5mm | HRC:58-60 | ≥60000CBM |
Tops 800-TW | DN125 | R180-R1500 | 5~10mm | 3.5mm | HRC:62-64 | ≥80000CBM |
Features:
1.Working life can reach 80,000 cubic meters.
2.Double-layer structure,The inner tube is made of high chromium alloy.hardness reaches to HRC65~68 , high wear resistance.
2.Double-layer structure,The inner tube is made of high chromium alloy.hardness reaches to HRC65~68 , high wear resistance.
3.Tensile strength of outer tube>500MPa, safe and reliable

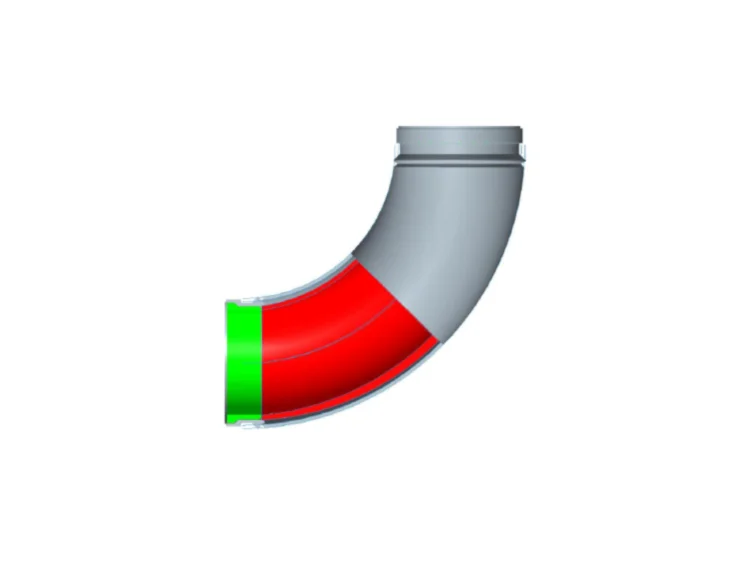

4.Wear-resistant sleeves at both ends are made of high-chromium alloy, with good local wear resistance
4.Wear-resistant sleeves at both ends are made of high-chromium alloy, with good local wear resistance

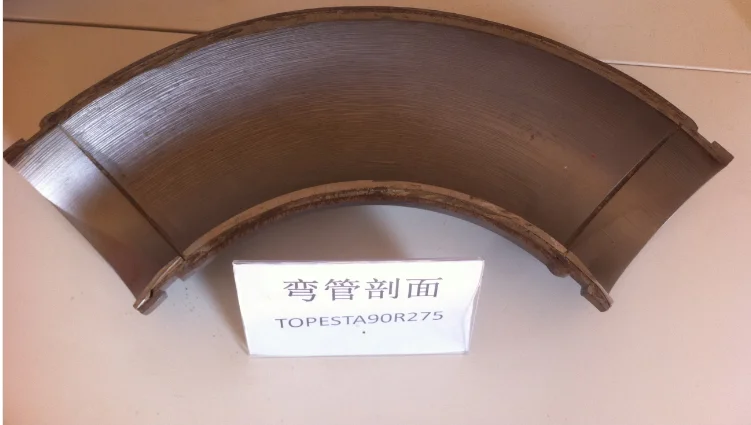

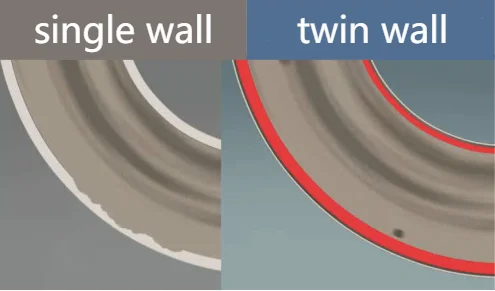

Double metal structure
safe, economic, wear-resistant, reliable and complete

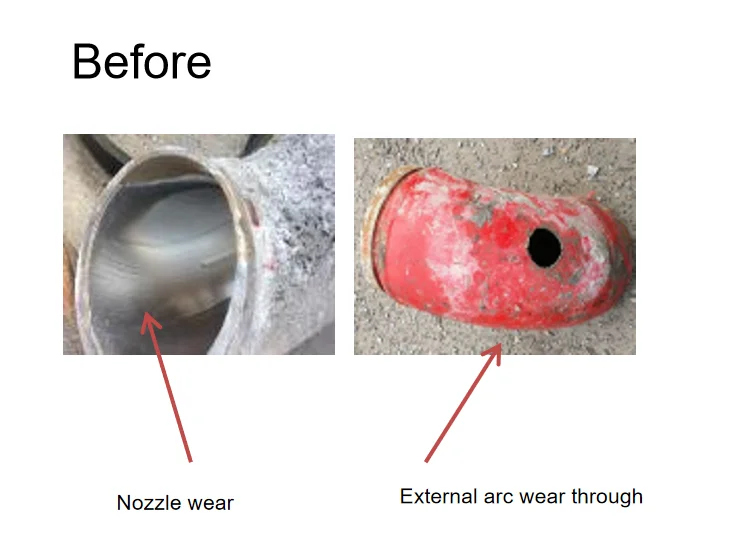

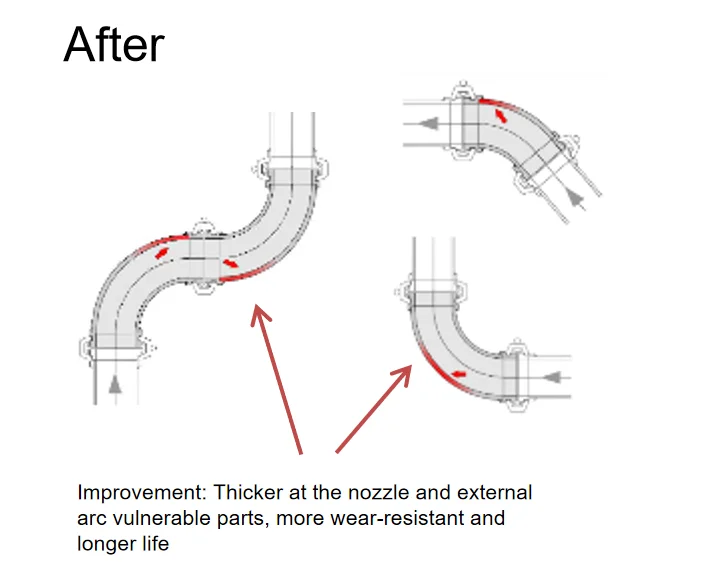

Elbow wear comparison

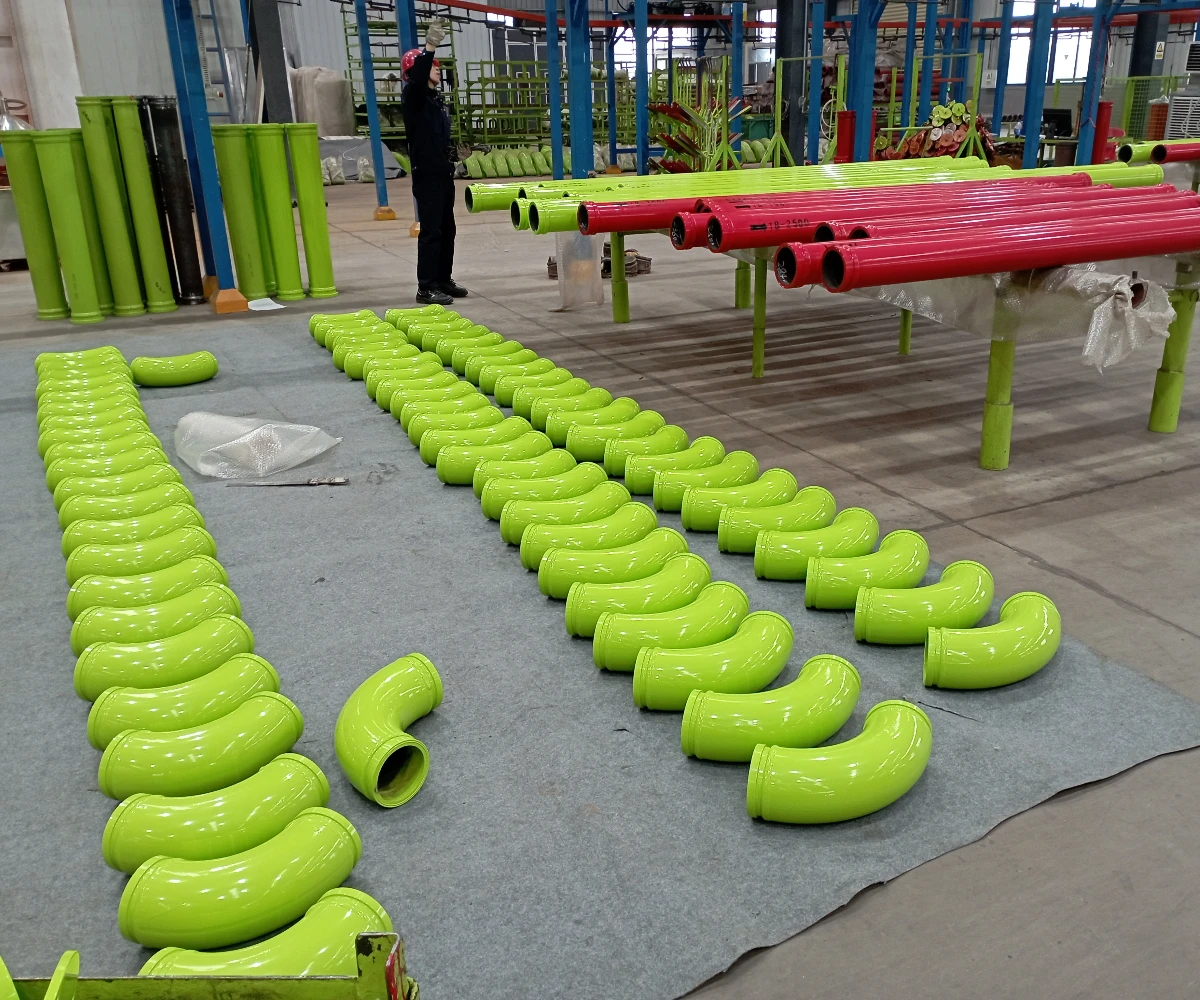

Factory show
