High Speed Plastic PVC PP PE Single Wall Corrugated Pipe Extrusion Making Machine Flexible Corrugated Pipe Production Line
- Category: >>>
- Supplier: Qingdao Wings Plastic Technology Co. Ltd.
Share on (1601272265382):
Product Overview
Description
Product Description
Wings Plastic High Speed Plastic Extruders Making Machine For Pp Pe Pvc Pa Single Wall Corrugated Pipe Extrusion Production Line
1. Single Wall Corrugated Pipe Extruder
2. Pvc PP PE Corrugated Pipe Machine
3. Pe Corrugated Pipe Machine

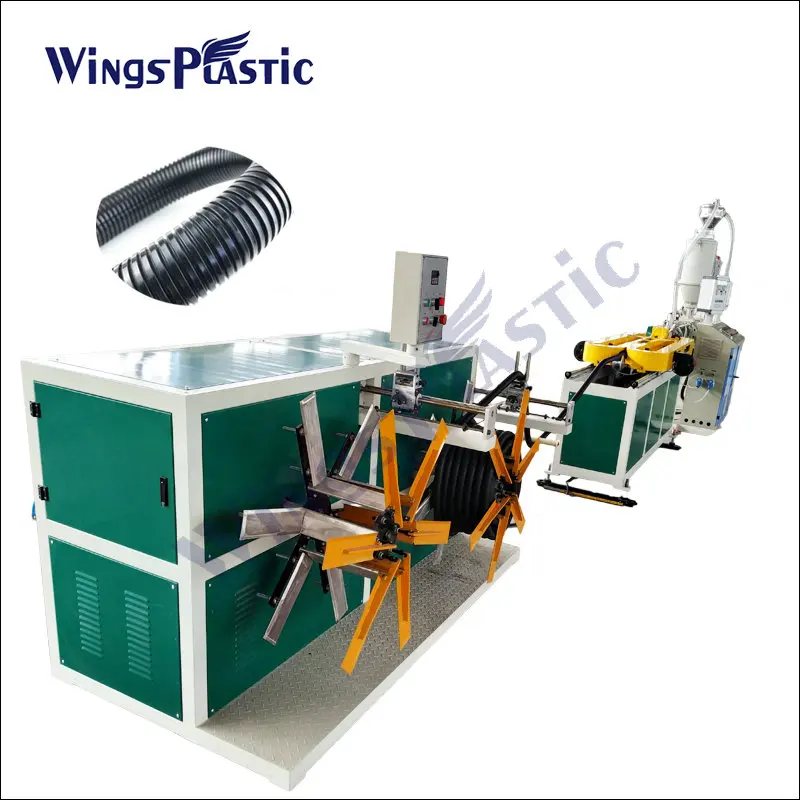

Production Flow: Raw material + master batches→mixing→vacuum feeding →material dryness →single screw extruder→extrusion mould→corrugation forming machine→meter measurer→double winder→finished product inspecting &packing
Features: High and stable extrusion capacity Corrugator mould one mould two size Good water cooling or air cooling system
1. Single Wall Corrugated Pipe Extruder
2. Pvc PP PE Corrugated Pipe Machine
3. Pe Corrugated Pipe Machine
Production Flow: Raw material + master batches→mixing→vacuum feeding →material dryness →single screw extruder→extrusion mould→corrugation forming machine→meter measurer→double winder→finished product inspecting &packing
Features: High and stable extrusion capacity Corrugator mould one mould two size Good water cooling or air cooling system
Configuration List of Single Wall Corrugated Tube Extrusion Machine: | ||
Automatic vacuum feeder | 1set | |
Dryer | 1set | |
Single-screw extruder | 1set | |
Corresponding single-wall corrugated pipe extruding die | 1set | |
Single-wall corrugated pipe molding machine | 1set | |
Coiling machine | 1set | |
Meter counter | 1set | |
Machine technical paraeters: 1. PE/PP corrugated pipe extrusion line | ||||||
Pipe size | Type | Extruder | Output | |||
9-32mm | Single wall | SJ65/30 | 40-60KG/H | |||
50-160mm | Single wall | SJ75/33 | 150-200KG/H | |||
2. PVC corrugated pipe extrusion line | ||||||
Pipe size | Type | Extruder | Output | |||
9-32mm | Single wall | SJZ45/90 | 40-60KG/H | |||
50-160mm | Single wall | SJZ55/110 | 150-200KG/H | |||
Single Screw Extruder
High production capacity of extrusion on the high quality basis. Lower temperature plasticizing design, ensure high quality PIPE extrusion. Material of screw and barrel: 38CrMoAlA, nitrogen quenched (0.4-0.7mm ), Rigidity of screw: >740 , Rigidity of barel >940, the surface of screw is chromeplated Feeding bush with water cooling system
Advantages:
All parts are high standard for exporting..use domestic and foreign well known brands Simens motor, ABB frequency converter, Guomao reducer, Omron temprature control,Demaji screw we will according to your pipe diameter and speed match suitable motor to
save energy ect.
All parts are high standard for exporting..use domestic and foreign well known brands Simens motor, ABB frequency converter, Guomao reducer, Omron temprature control,Demaji screw we will according to your pipe diameter and speed match suitable motor to
save energy ect.
Extrusion Die and The Core Bar and Mouth Mould
1)Material :40Cr , the surface of die is chromeplated, anti-corrosive which better quality than 45#steel
2)One set mold have two sizes design can save cost and easy change to another size of mold...this to meet different reqirements from customer.
3)Adopt 55 pairs of big block molds total length 3942 mm
3)Adopt 55 pairs of big block molds total length 3942 mm
The core bar and mouth mould
Wings Plastic new design,the core bar and mouth mould fit together,when change size,no like the old design change the core bar and mouthe separately,it will be save more than 1h for cleaning the waste material.
Wings Plastic new design,the core bar and mouth mould fit together,when change size,no like the old design change the core bar and mouthe separately,it will be save more than 1h for cleaning the waste material.
High Speed Forming Machine
Gear driven system with high precision modules and tracks. The track is water cooling system, it could meets 10-30m/min working speed.It is added water cooling and fan cooling two systems.
Forming machine with large cooling area .Temperature fast cooling down.This means the speed will be faster. we test for indian machine speed 20-25mm /minute.
Moulds Block
Materials of moulds block:40Cr. The moulds are made by CNC system, it is high precison and long service life.
It could be designed into one hole or two holes according to customers' request. We could print customers logo into moulds according request.
It could be designed into one hole or two holes according to customers' request. We could print customers logo into moulds according request.
Mould Advantage
1.One mould with two or three different sizes. When change size just up and down move forming machine. No need to unmount and reinstall. So will save more than two hours.
2.Can carve customer logo in the mould，replace the jet printer.
Automatic coiler
No of wheel: two wheels or one wheel according customer request. Useing delta inverter system, it is automatic adjustment of winding speed.
Double station rewinder Advantages:
1)It has induction device which used for adjust the rewind speed automatically.
2)adopt torque motor and frequency control and pneumatic self open - lock switching.
1)It has induction device which used for adjust the rewind speed automatically.
2)adopt torque motor and frequency control and pneumatic self open - lock switching.
Control Box
Temperature controller: OMRON
Contactor and replay: SIEMENS
Inverter: ABB or Delta Character
High precise temperature control.
Configurable alarm strategy.
Configurable alarm strategy.
All of the production data can be displayed electrical panel.
Very easy operation.
Running stability

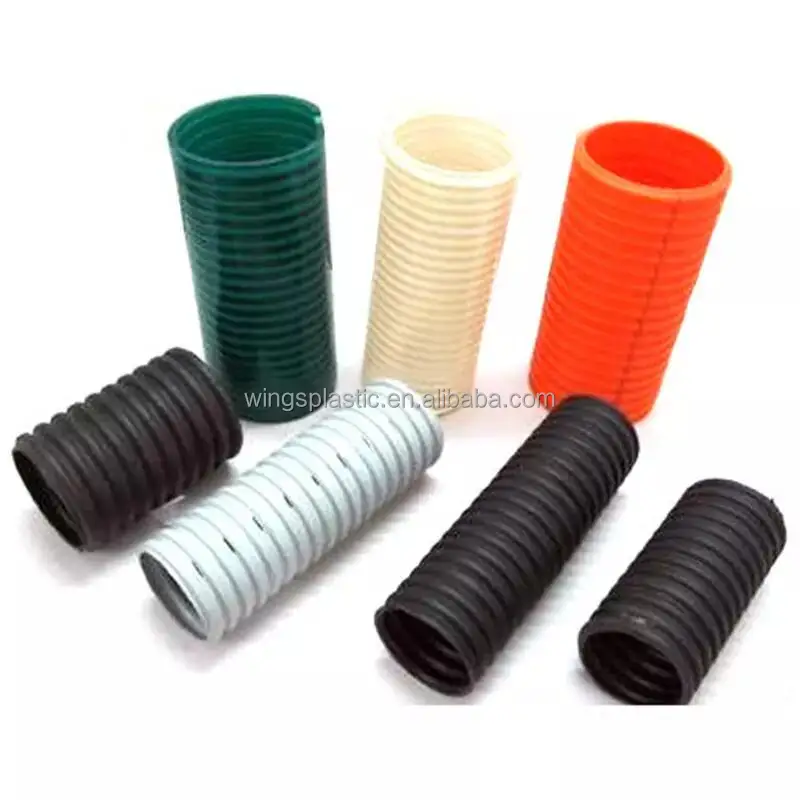

Final Product & Application
Our Advantage
A.We are specialized in the extruder making machine production line for 5 years, price is competitive.
B.We owned many experienced staff, who are on this field for no less than 7years, youthful and efficient.
C.We can meet any demands from our clients, different package, different design, different brand name, different
color.....Whatever you care, we can serve you the best.
D.We give our clients the word-- the best quality, while we can provide customers the competitive value.
E.We hold powerful production capacity. If you are urgent, please call us and we will take the least time to make it.
F.We are one of the best cooperator for you to choose.
B.We owned many experienced staff, who are on this field for no less than 7years, youthful and efficient.
C.We can meet any demands from our clients, different package, different design, different brand name, different
color.....Whatever you care, we can serve you the best.
D.We give our clients the word-- the best quality, while we can provide customers the competitive value.
E.We hold powerful production capacity. If you are urgent, please call us and we will take the least time to make it.
F.We are one of the best cooperator for you to choose.
Our Service
1.prefessional service team, high work efficiency. The machine price is reasonable and high quality. We can also make turnkey project for buyers. And we can provide best after sale service.
2. our company have 30 workers and 12 years’ experience in plastic machinery. We focus on machine design and updates. We have 3 engineers for oversea service, machine installation and teach buyers how to use it.
2. our company have 30 workers and 12 years’ experience in plastic machinery. We focus on machine design and updates. We have 3 engineers for oversea service, machine installation and teach buyers how to use it.
