360 Degree Touchless Automatic Car Wash Machine system self service Car Washer equipment brushless no contact touch free price
- Category: >>>
- Supplier: Hangzhou Kewande Cleaning Equipment Co. Ltd.
Share on (1601272440329):
Product Overview
Description
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Raillength | 6880mm |
2 | MinDimensions(L*W*H) | 8000mm*3600mm*3150mm |
3 | Maxcarwashsize(L*W*H) | 5900mm*2200mm*2000mm |
4 | PowerRequirement | 380 V/18 kVA 50 Hz |
5 | Totalmachinepower | 18 kW |
6 | Speed | 2~8Min/car (adjustable) |
7 | Shampooconsumption | 50~100ML/Car |
8 | Waxconsumption | 20~40ML/Car |
9 | Pre-soakconsumption | 20-50ML/Car |
10 | Electricityconsumption | Fastwash0.5kW-H/car Superwash0.75kW·H/car |
11 | Waterconsumption | Fastwash120L/car Superwash200L/car |
FEATURES AT A GLANCE
1.Waterproof shell;

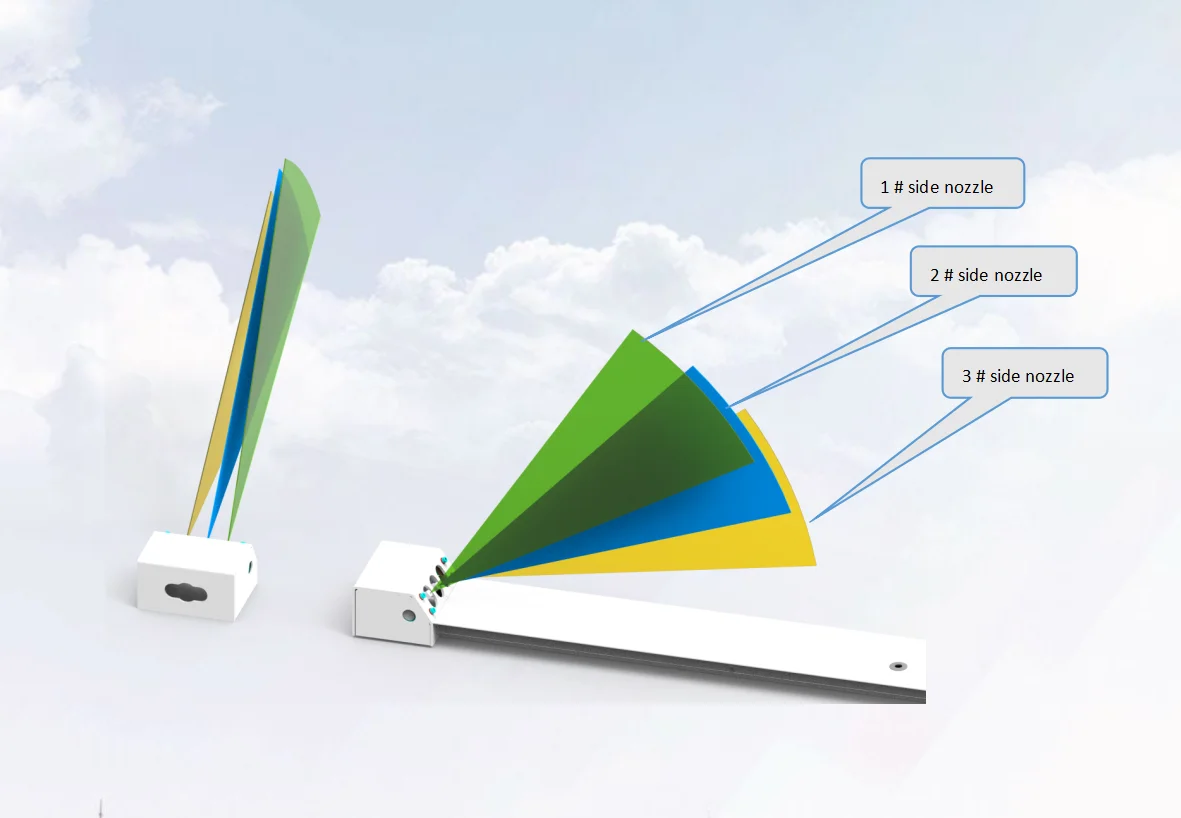

2.Anti-collision spray bar;
3.Free combination of car washing steps;
4.Modular design, easy installation;
5.Complete functions of foam, water wax,washing
2.Anti-collision spray bar;
3.Free combination of car washing steps;
4.Modular design, easy installation;
5.Complete functions of foam, water wax,washing

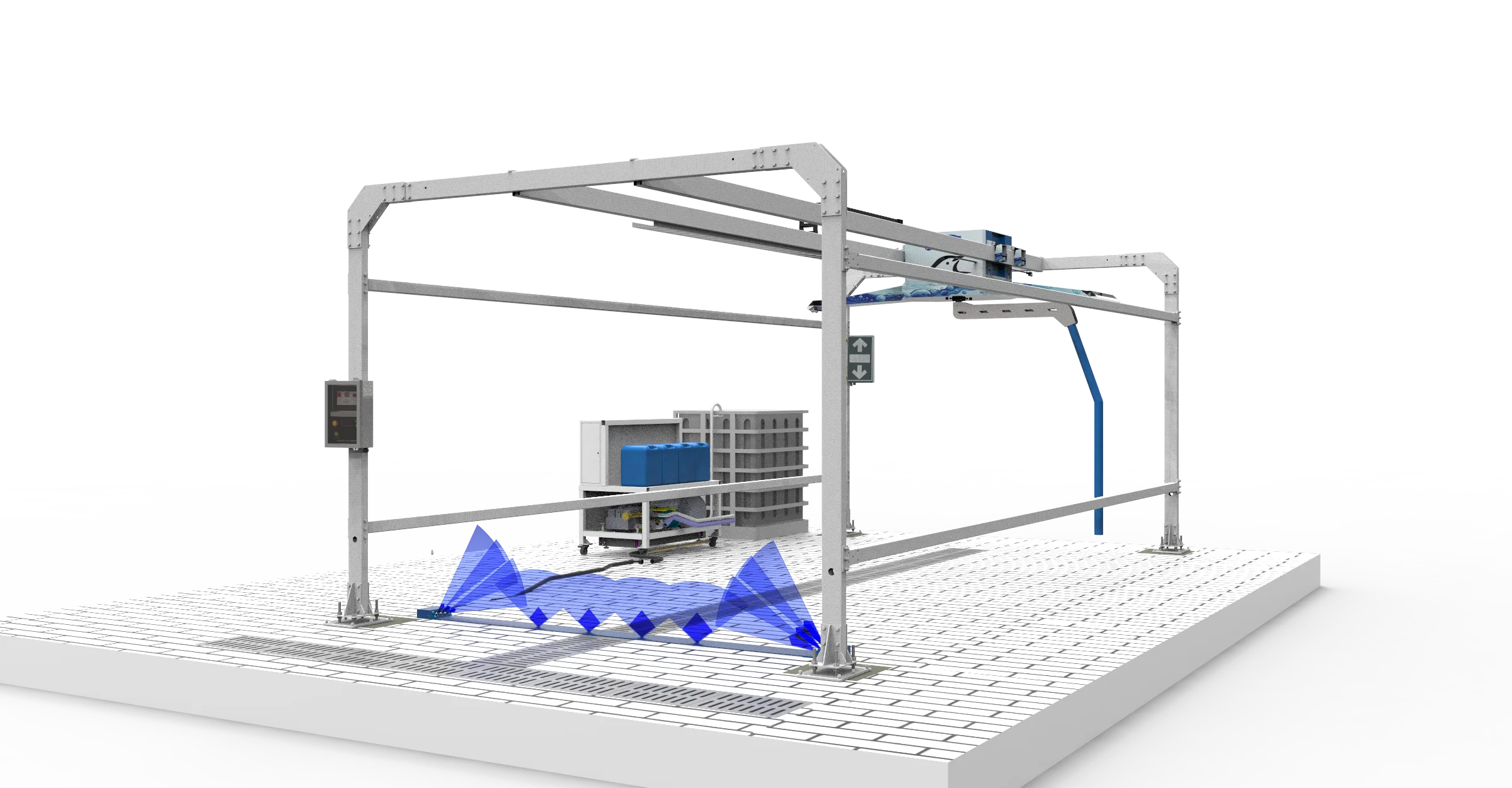

Module 1: Framework

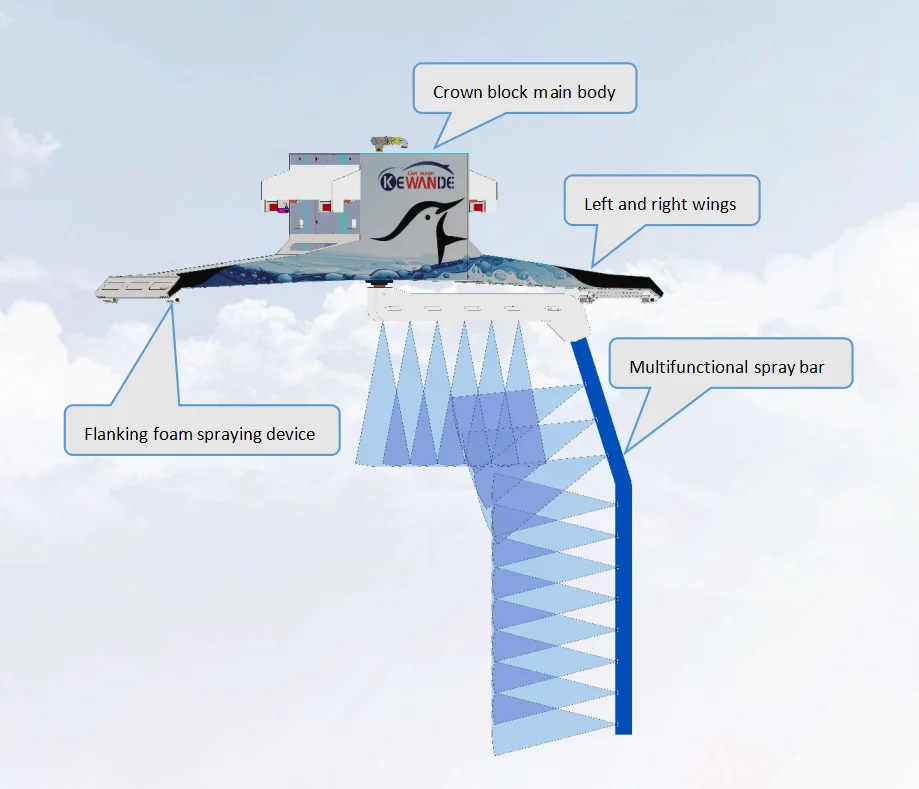

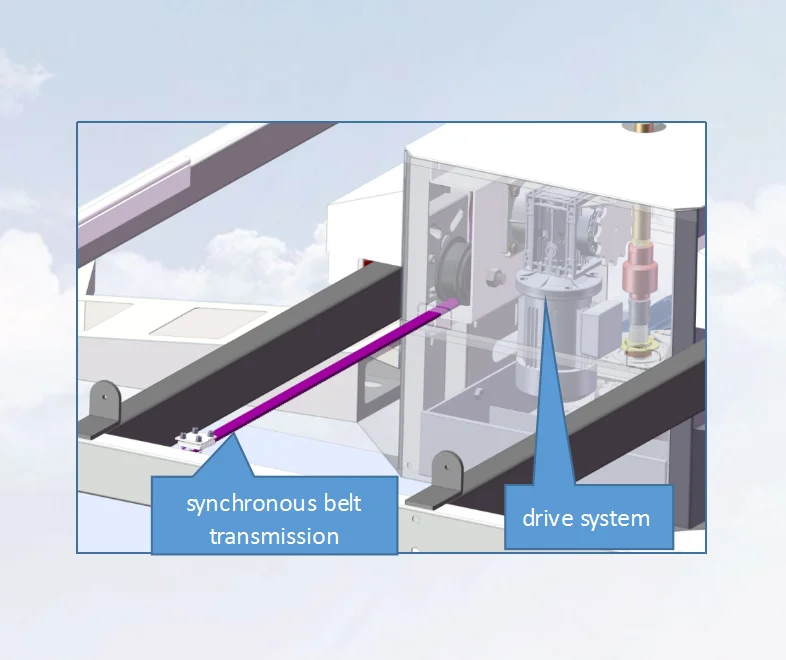

Module 2: Overhead bridge

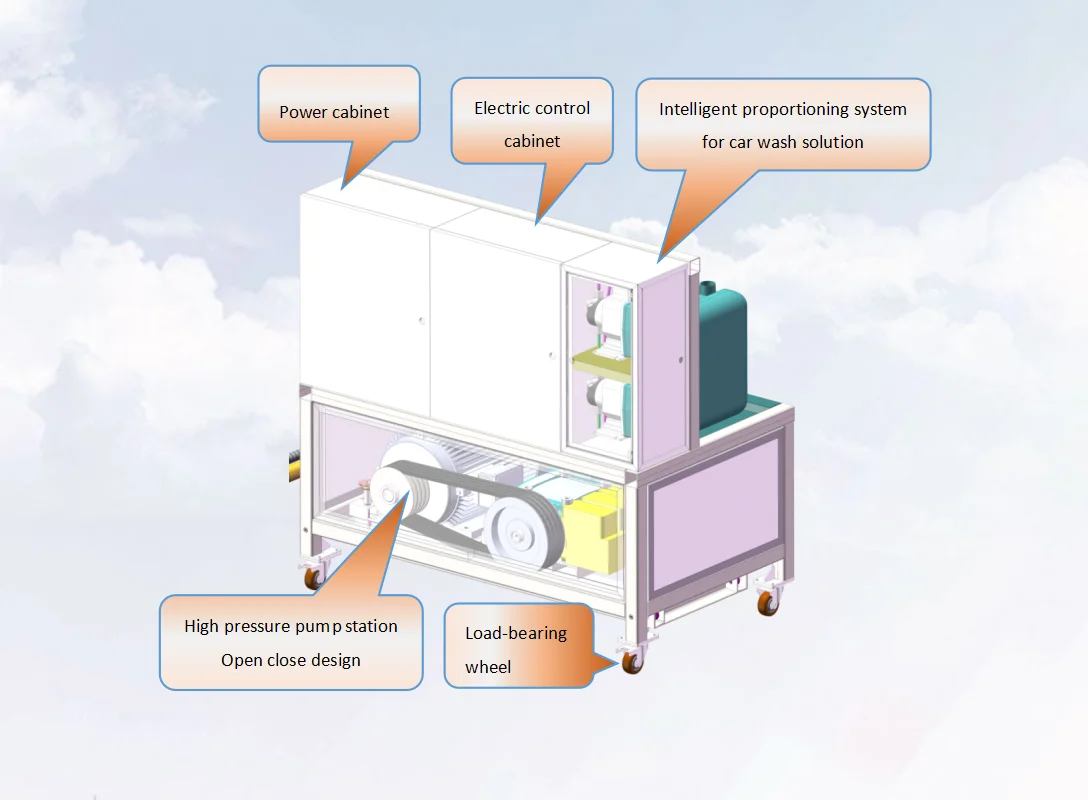

Module 3: Integrated workstation

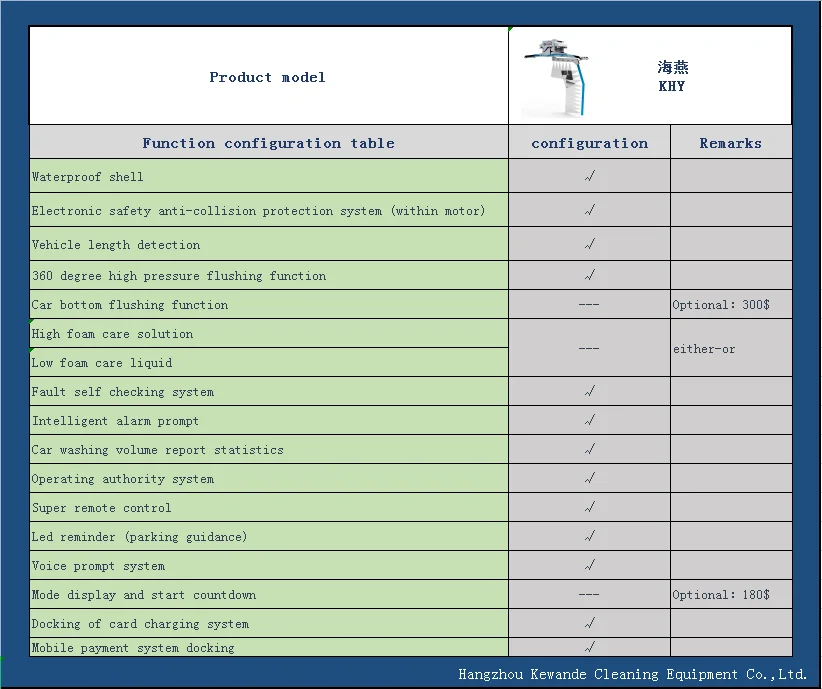

PRODUCT CONFIGURATION
Germany Siemens Bede Motor
German PinFL high-pressure plunger pump
French Schneider Electric components
German p+f ultrasound
Italian Modi proximity switch
AirTac pneumatic valve
DELTA PLC
DELTA Servo Motor
DELTA Frequency converter
Why Choose Us
Why do you have to choose Kewande？
1. Kewande integrates industry and trade, and its products are independently designed and produced, with over ten patents;
2.Support OEM and ODM, with the ability to meet customer customization needs;
3. The modular design of the product makes assembly very simple. Currently, products sold to countries around the world are installed by customers themselves;
4. Warranty commitment: The warranty period for the core components of the product is three years, with lifelong maintenance;
5. After sales service: Global after-sales service - respond within 2 hours on working days and 8 hours on non working days.
2.Support OEM and ODM, with the ability to meet customer customization needs;
3. The modular design of the product makes assembly very simple. Currently, products sold to countries around the world are installed by customers themselves;
4. Warranty commitment: The warranty period for the core components of the product is three years, with lifelong maintenance;
5. After sales service: Global after-sales service - respond within 2 hours on working days and 8 hours on non working days.
Recommend Products
FAQ
Q1.How does Kewande car wash machine complete on-site installation services for users?
A1.The entire series of Kewande car washing machine products adopt modular design, and in addition, they are almost completely installed when shipped. Therefore, on-site installation by users is very simple, and there is no need for Kewande to arrange technical personnel to install on site. Users can complete the installation of the equipment themselves according to the installation guidance documents provided by Kewande. This saves money and is efficient.
Q2.What is the maximum size of a car wash machine? (L× W× H)
A2.Maximum car wash size:5800 × 2200 × 2000 mm
Q3. What is the time for fine washing?
A3.The Kewande BOSN car washing machine takes 30seconds to run once (with adjustable speed), and the total time spent on the fine washing process is about 5 minutes.
Q4. What is the result of air drying?
A4.The air fluid mechanics principle is adopted to design and realize long-distance high-pressure cylinder,which can achieve 90% drying effect. Its stability and safety are much better than the profiling air drying in the brush washer.
Q5.What is the approximate cost of washing a car?
A5.The water consumption for washing a car is about 150L, the electricity consumption is about 0.75kWH, and the cost of car wash solution is about 1 yuan. In China, the cost of washing a car like this is approximately 2 yuan.
Q6. What power supply does the Kewande BOSN car wash machine require?
A6.The Kewande car wash machine uses athree-phase industrial power supply by default, with power parameters of 380V 50Hz 25kVA. If the on-site power parameters of the user are different from this, inform Kewande before placing an order to produce according to the user's requirements.
Q7. How to handle the after-sales service of Kewande car washing machine?
A7. Kewande has a professional after-sales service department that arranges a dedicated person to provide after-sales service to each user. Kewande promises to respond to global after-sales serviceneeds within 2 hours on working days and 8 hours on non working days;
Q8. What is the delivery time for Kewande BOSN automatic car wash?
A8.If the customer requests a three-phase industrial voltage of 380V/50Hz that is the same as the Chinese standard, we candeliver quickly within 2 weeks. If it is different from the Chinese standard, the delivery time will be extended by 15 days.
Q9.How to become a distributor of Kewande?
A9. We do not have special conditions for traditional distributors who do not have exclusive rights to operate. If you want to apply for exclusive distribution rights in your country or region, the first step is to purchase a demonstration machine to
showcase to customers there, and we need to reach an agreement with the annual minimum order quantity.
Q10. What do I need to prepare before installing a car wash machine?
A10. *Three phase industrial power supply, 25kVA;
*Water supply with water tank. (2000 liters) ;
*Air compressor with air volume greater than 0.67m ³/ Min, can provide a stable air pressure greater than 0.8Mpa.
*The thickness of the cement on the ground needs to be greater than 20 centimeters. If it is not enough, six concrete columns need to be made for installing the support frame, and the horizontal error of the ground should be less than 3 centimeters.
*Two scaffolding.
*One electric hammer.
*1 electric hand drill.
*Wrenches, screwdrivers, etc;
Q11. What is the warranty period for Kewande BOSN car washing machine?
A11.We provide a one-year warranty for the entire machine, including all spareparts; Provide a 3-year warranty for core
components; During the warranty period, if the parts fail, we will compensate for the new parts for free, but the warranty does not include shipping costs. Usually, we require customers to keep some spare parts for machine maintenance, and compensation spare parts will be sent together with the next batch of goods or through cheaper means, but
not through DHL. At the same time, the warranty is invalid in any of the following situations:
*Artificial damage or failure to follow instructions or operate the machine under abnormal circumstances.
*Damage caused by force majeure such as war, floods, earthquakes, lightning, and abnormal voltage.
Q2.What is the maximum size of a car wash machine? (L× W× H)
A2.Maximum car wash size:5800 × 2200 × 2000 mm
Q3. What is the time for fine washing?
A3.The Kewande BOSN car washing machine takes 30seconds to run once (with adjustable speed), and the total time spent on the fine washing process is about 5 minutes.
Q4. What is the result of air drying?
A4.The air fluid mechanics principle is adopted to design and realize long-distance high-pressure cylinder,which can achieve 90% drying effect. Its stability and safety are much better than the profiling air drying in the brush washer.
Q5.What is the approximate cost of washing a car?
A5.The water consumption for washing a car is about 150L, the electricity consumption is about 0.75kWH, and the cost of car wash solution is about 1 yuan. In China, the cost of washing a car like this is approximately 2 yuan.
Q6. What power supply does the Kewande BOSN car wash machine require?
A6.The Kewande car wash machine uses athree-phase industrial power supply by default, with power parameters of 380V 50Hz 25kVA. If the on-site power parameters of the user are different from this, inform Kewande before placing an order to produce according to the user's requirements.
Q7. How to handle the after-sales service of Kewande car washing machine?
A7. Kewande has a professional after-sales service department that arranges a dedicated person to provide after-sales service to each user. Kewande promises to respond to global after-sales serviceneeds within 2 hours on working days and 8 hours on non working days;
Q8. What is the delivery time for Kewande BOSN automatic car wash?
A8.If the customer requests a three-phase industrial voltage of 380V/50Hz that is the same as the Chinese standard, we candeliver quickly within 2 weeks. If it is different from the Chinese standard, the delivery time will be extended by 15 days.
Q9.How to become a distributor of Kewande?
A9. We do not have special conditions for traditional distributors who do not have exclusive rights to operate. If you want to apply for exclusive distribution rights in your country or region, the first step is to purchase a demonstration machine to
showcase to customers there, and we need to reach an agreement with the annual minimum order quantity.
Q10. What do I need to prepare before installing a car wash machine?
A10. *Three phase industrial power supply, 25kVA;
*Water supply with water tank. (2000 liters) ;
*Air compressor with air volume greater than 0.67m ³/ Min, can provide a stable air pressure greater than 0.8Mpa.
*The thickness of the cement on the ground needs to be greater than 20 centimeters. If it is not enough, six concrete columns need to be made for installing the support frame, and the horizontal error of the ground should be less than 3 centimeters.
*Two scaffolding.
*One electric hammer.
*1 electric hand drill.
*Wrenches, screwdrivers, etc;
Q11. What is the warranty period for Kewande BOSN car washing machine?
A11.We provide a one-year warranty for the entire machine, including all spareparts; Provide a 3-year warranty for core
components; During the warranty period, if the parts fail, we will compensate for the new parts for free, but the warranty does not include shipping costs. Usually, we require customers to keep some spare parts for machine maintenance, and compensation spare parts will be sent together with the next batch of goods or through cheaper means, but
not through DHL. At the same time, the warranty is invalid in any of the following situations:
*Artificial damage or failure to follow instructions or operate the machine under abnormal circumstances.
*Damage caused by force majeure such as war, floods, earthquakes, lightning, and abnormal voltage.
