Tie Down and Lock down Screw Packing Seal for Casing Head
- Category: >>>
- Supplier: Guangzhou JST Seals Technology Co. Ltd.Guangzhou Ltd.
Share on (1601272745897):
Product Overview
Description
Product Description

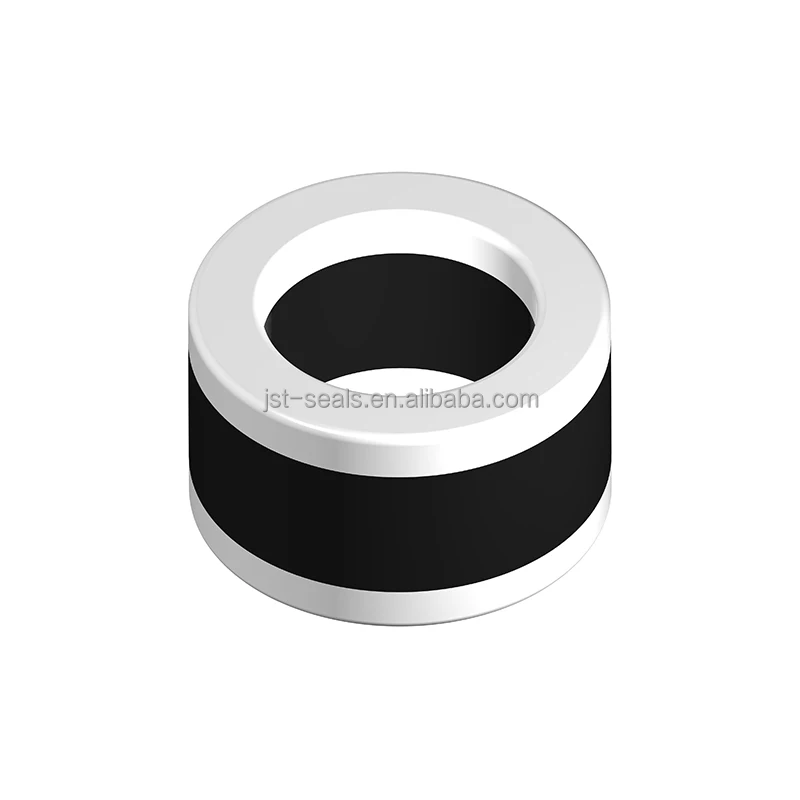

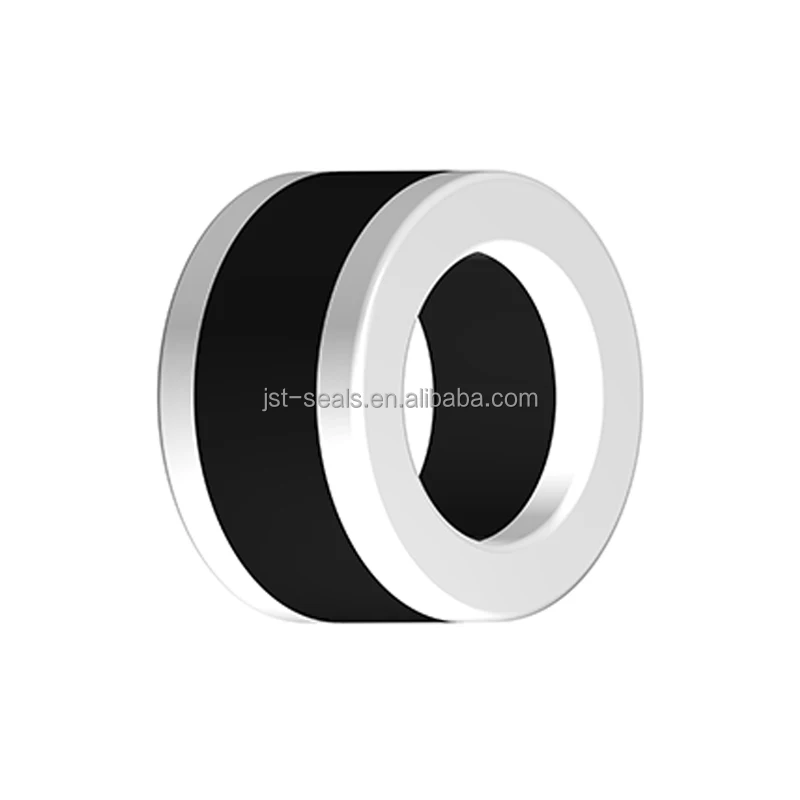

Tie down and lock-down screw packing seal for casing head
Lockdown screw seal is used mainly in geothermal applications, HNBR packing with stainless steel caps provide superior performance over metal pressure seals.

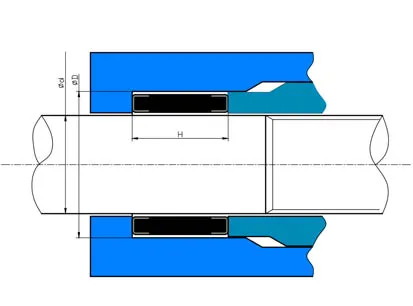

JST’s lockdown screw packing seal will effectively seal the bolts that secure and position tubing and casing hangers and joints.

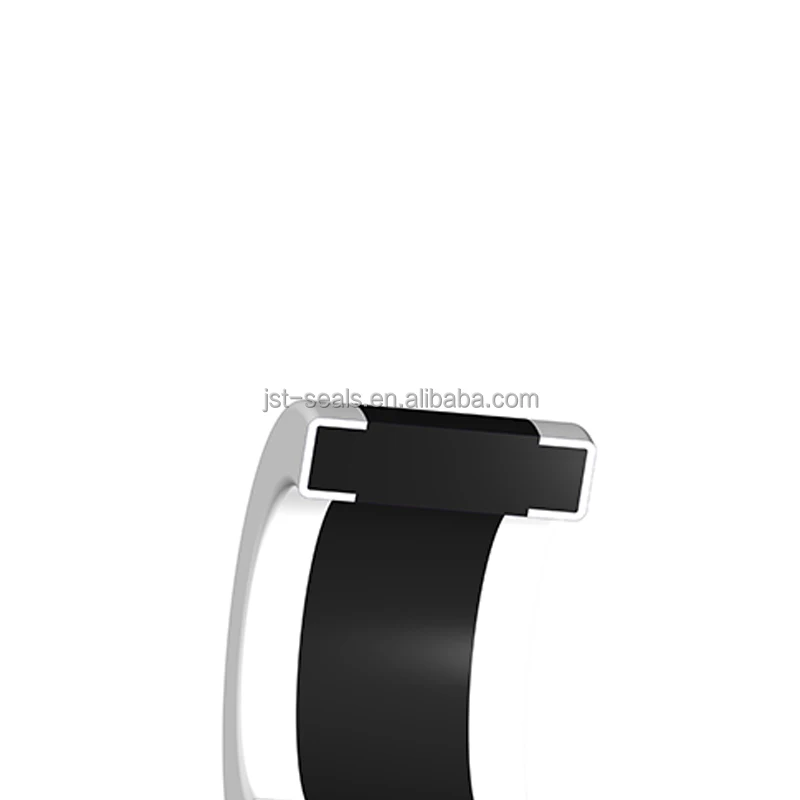

The U-shaped packing consists of a metal Jack firmly bonded to the NBR or HNBR or FKM / FPM filler.
It uses HNBR with metal end cap, which is suitable for L-X, HH, PSL 3
Size：
3-3/4"
4"
4-1/2"
5"
5-1/2"
6"
7-1/2"
4"
4-1/2"
5"
5-1/2"
6"
7-1/2"
Advantage:
1. Easy to install and remove
2. Replaces V packing
3. Excellent sealing performance
4. Good extrusion resistance
2. Replaces V packing
3. Excellent sealing performance
4. Good extrusion resistance
Working Conditions:
Temperature range: -46°C~177°C
Pressure: ≤20000 PSI
Medium: Oil, water, Gas, H2S, CO2 etc
Elastomer: NBR/HBNR/FKM
Metal: Stainless Steel
Pressure: ≤20000 PSI
Medium: Oil, water, Gas, H2S, CO2 etc
Elastomer: NBR/HBNR/FKM
Metal: Stainless Steel
Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | JST |
Model Number | ESD Series |
Temperature | -46°C~177°C |
Pressure | ≤20000 PSI |
Application | Casing Head & Tubing Hanger Seal |
Size | Custom Size |
Certificate | ISO9001:2008 |
Packing | Carton |
Payment | T/T |
Cost | Low |
Feature | good extrusion resistance |
Form | SD ring |
