Enzyme Digestion Hydrolysis Reactor High Temperature Reactor Chemical Reactor Stainless Steel Reaction Equipment Reaction Kettle
- Category: >>>
- Supplier: Shanghai Yaote Instrument Equipment Co. Ltd.
Share on (1601272987304):
Product Overview
Description
The double-layer stainless steel structure has the inner layer for material reaction, and the outer layer can pass through heatmedium or refrigerant to precisely control the reaction temperature. The reactor has good corrosion resistance and can adapt tothe reaction requirements of various chemical substances. The stainless steel material is easy to clean, ensuring the purity ofthe reaction and the product quality.
type | SCF-1L | SCF-2L | SCF-5L | ||
Capacity of Materials | 1L | 2L | 5L | ||
Material of the reaction kettle | 304/316 stainless steel | 304/316 stainless steel | 304/316 stainless steel | ||
Frame material | 304 stainless steel | 304 stainless steel | 304 stainless steel | ||
Mode of movement | Swivel caster | Swivel caster | Swivel caster | ||
Heating power | 2KW | 2KW | 3KW | ||
Heating mode | Circulating oil bath | Circulating oil bath | Circulating oil bath | ||
The discharge port is off the ground | 400mm | 400mm | 400mm | ||
Reaction temperature of the kettle body | 0-250℃ | 0-250℃ | 0-250℃ | ||
Design pressure | 0.4MPA | 0.4MPA | 0.4MPA | ||
Degree of vacuum | 0.098MPA | 0.098MPA | 0.098MPA | ||
Stirring speed | 0-600rpm | 0-600rpm | 0-600rpm | ||
Stirring power | 120W | 120W | 120W | ||
Voltage | 220V/50Hz | 220V/50Hz | 220V/50Hz | ||
Temperature display | PT100 sensor | PT100 sensor | PT100 sensor | ||
Discharge mode | Ball valve | Ball valve | Ball valve | ||
Opening of the kettle cover | Five openings | Five openings | seven openings | ||
Stirring rod | Three-blade stainless steel stirring rod | ||||
type | SCF-10L | SCF-20L | SCF-50L | ||
Capacity of Materials | 10L | 20L | 50L | ||
Material of the reaction kettle | 304/316 stainless steel | 304/316 stainless steel | 304/316 stainless steel | ||
Frame material | 304 stainless steel | 304 stainless steel | 304 stainless steel | ||
Mode of movement | Swivel caster | Swivel caster | Swivel caster | ||
Heating power | 4KW | 8KW | 8KW | ||
Heating mode | Circulating oil bath | Circulating oil bath | Circulating oil bath | ||
The discharge port is off the ground | 400mm | 400mm | 400mm | ||
Reaction temperature of the kettle body | 0-250℃ | 0-250℃ | 0-250℃ | ||
Design pressure | 0.4MPA | 0.4MPA | 0.4MPA | ||
Degree of vacuum | 0.098MPA | 0.098MPA | 0.098MPA | ||
Stirring speed | 0-600rpm | 0-600rpm | 0-600rpm | ||
Stirring power | 250W | 250W | 250W | ||
Voltage | 220V/50Hz | 220V/50Hz | 220V/50Hz | ||
Temperature display | PT100 sensor | PT100 sensor | PT100 sensor | ||
Discharge mode | Ball valve | Ball valve | Ball valve | ||
Opening of the kettle cover | Five openings | Five openings | seven openings | ||
Stirring rod | Three-blade stainless steel stirring rod | ||||

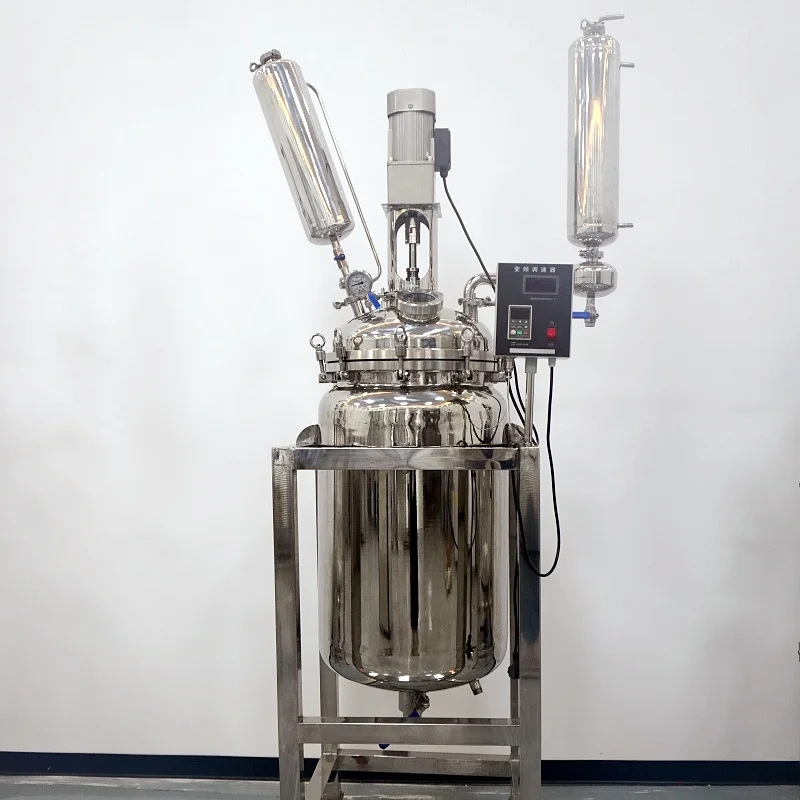

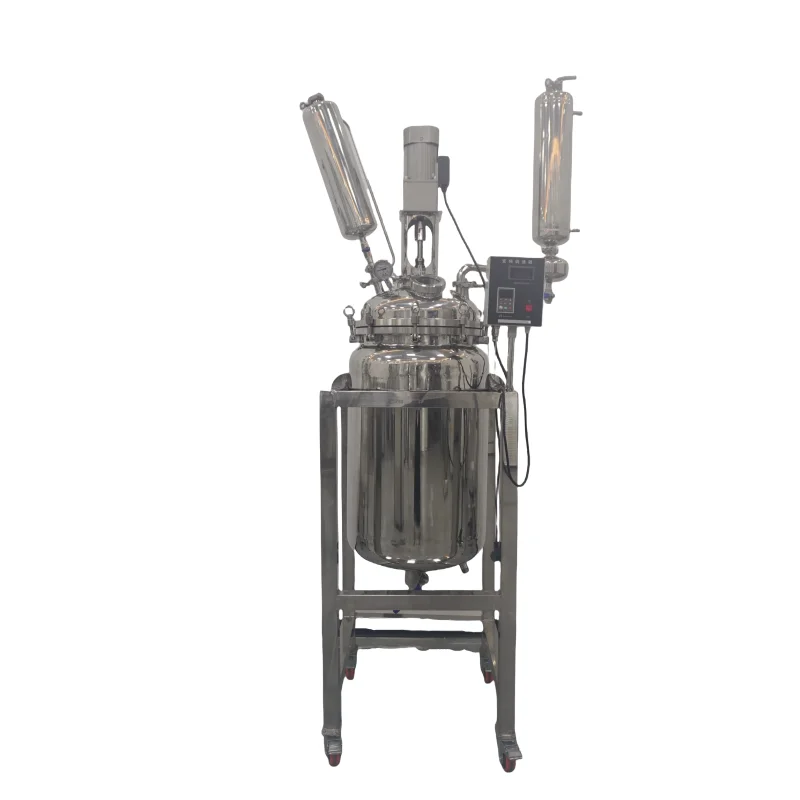

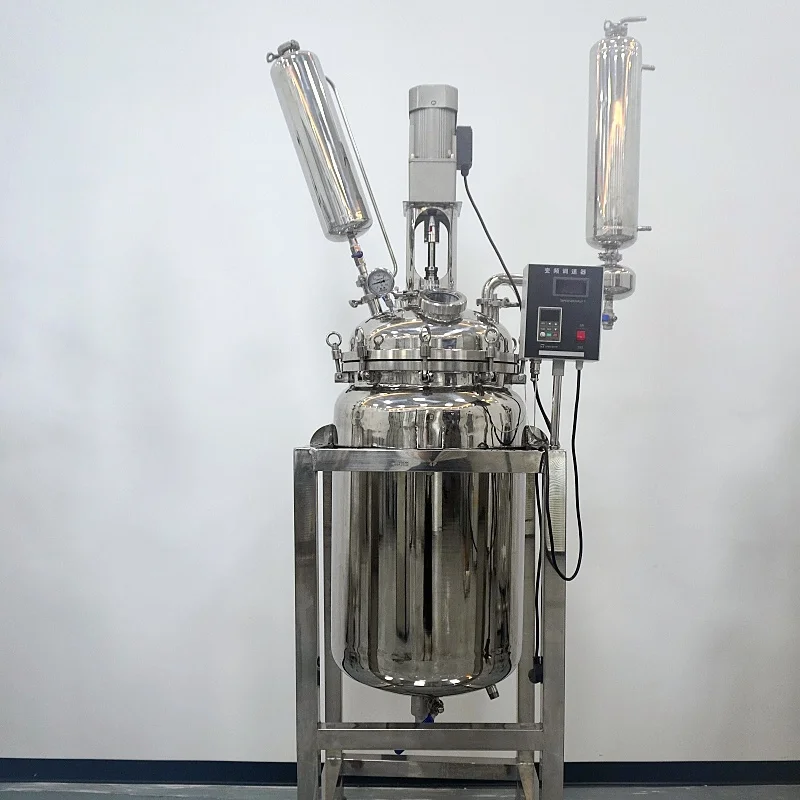

Double-layer stainless steel reaction kettle
The all-stainless steel frame and screws have strong supporting force and high hardness. The stirring seal adopts a new type ofpressure-bearing seal fixation, while ensuring no leakage during stirring.

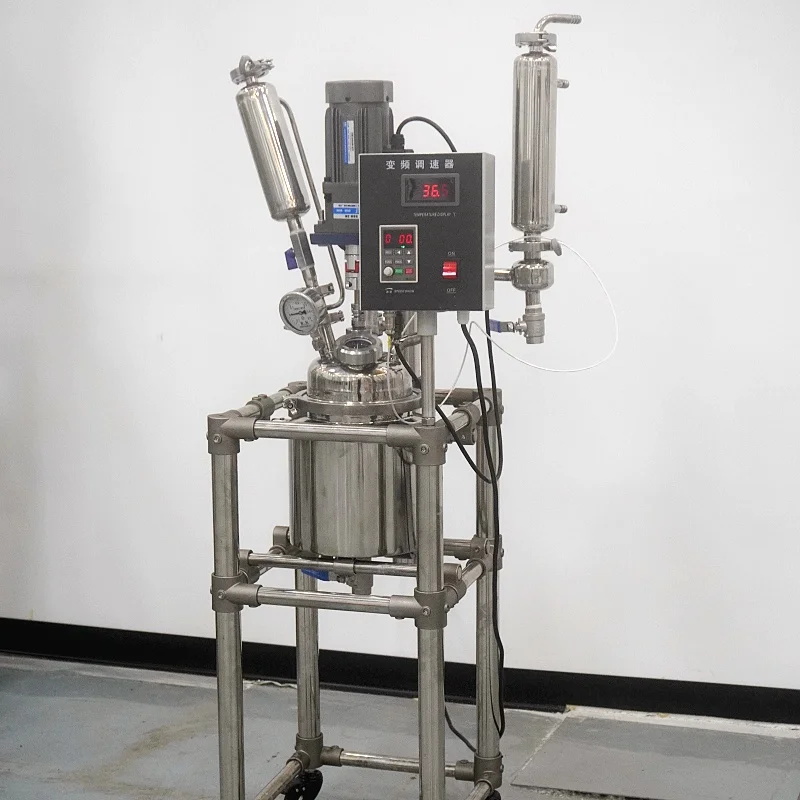

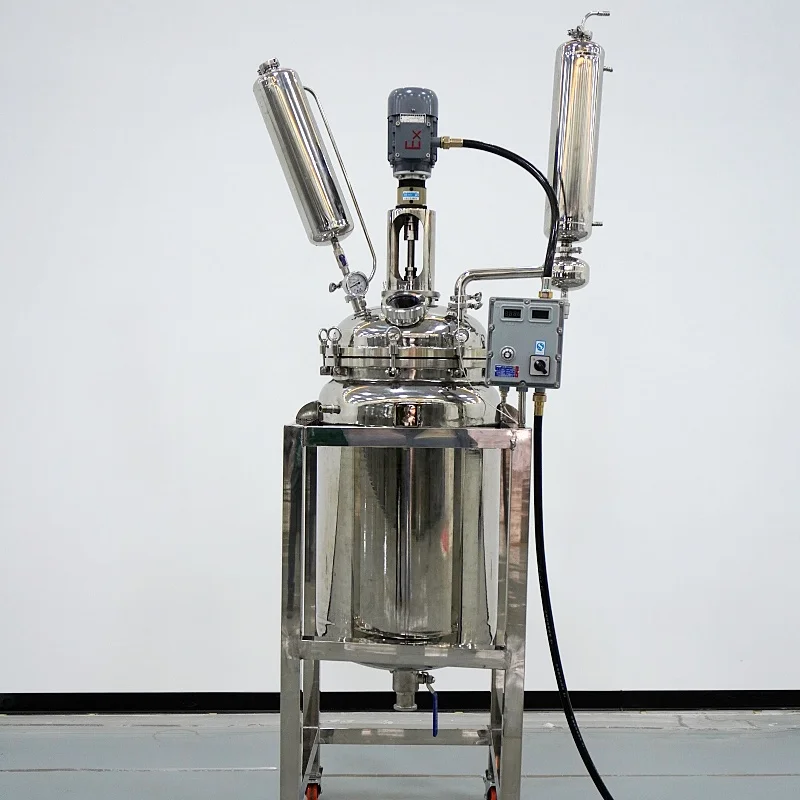

Explosion-proof double-layer stainless steel reaction kettle
The explosion-proof feature of this type of reaction kettle can effectively prevent potential explosion hazards, ensuring thesafety of personnel's lives and the integrity of production facilities.

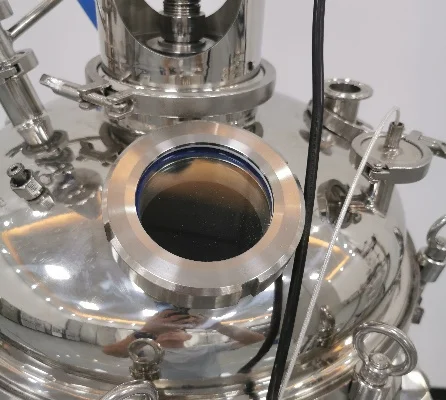

High-strength glass viewing window, with reserved lamp positions, large aperture for clearer vision

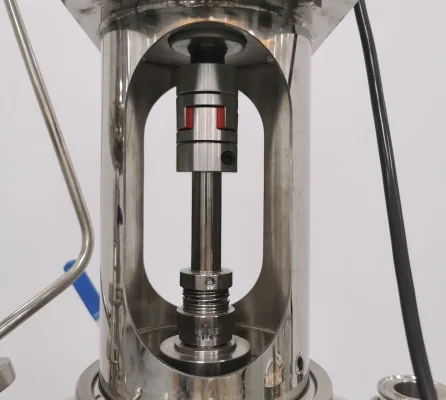

Strengthen the transmission
The design of strengthening and thickening the transmission shaft realizes powerful and uniform stirring and ensures stable
transmission operation.
transmission operation.

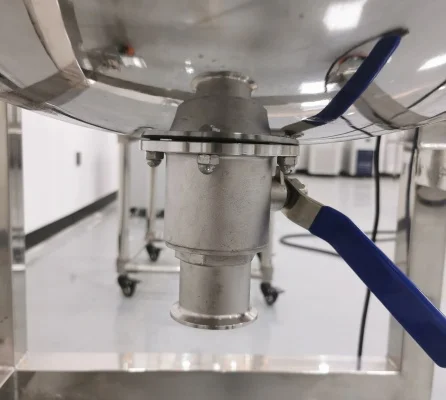

Integrated discharge valve
It is convenient and reliable to use, has stronger sealing performance, and features easy operation and maintenance.

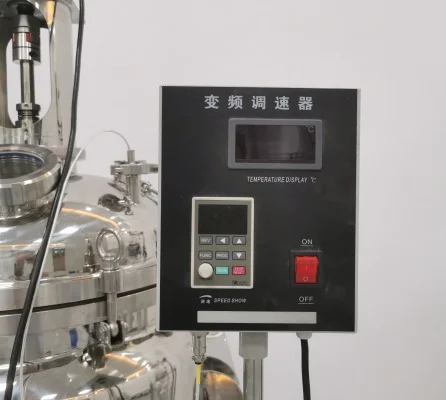

Double digital display of rotational speed and temperature. The independent large screen display is more eye-catching, and the
control is convenient and precise.
control is convenient and precise.

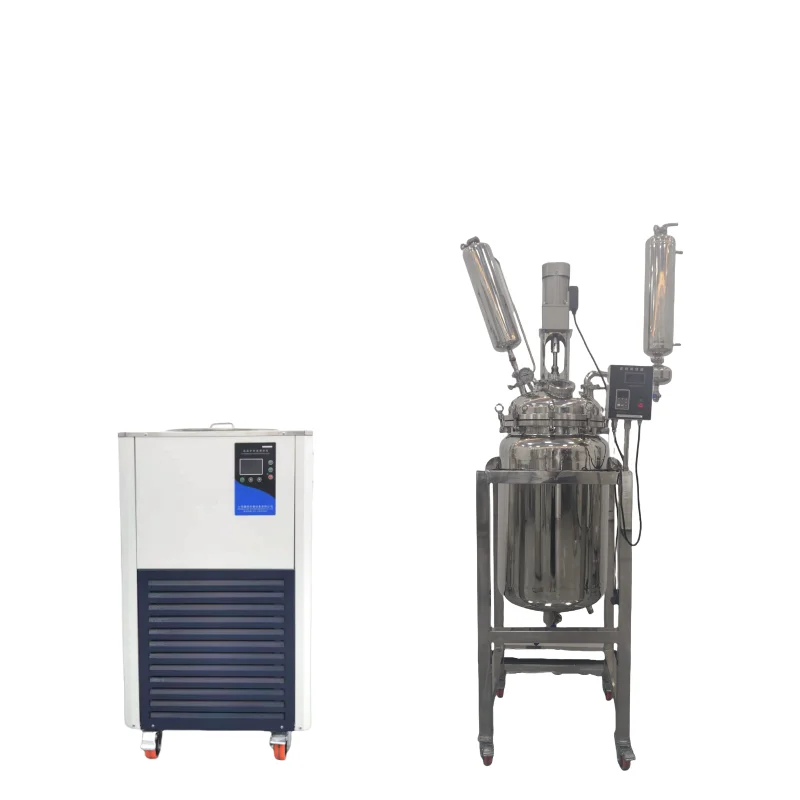

The stainless steel reaction kettle combined with the low-temperature coolant circulation pump can precisely and accuratelyachieve the state switch between high temperature and low temperature simultaneously.
