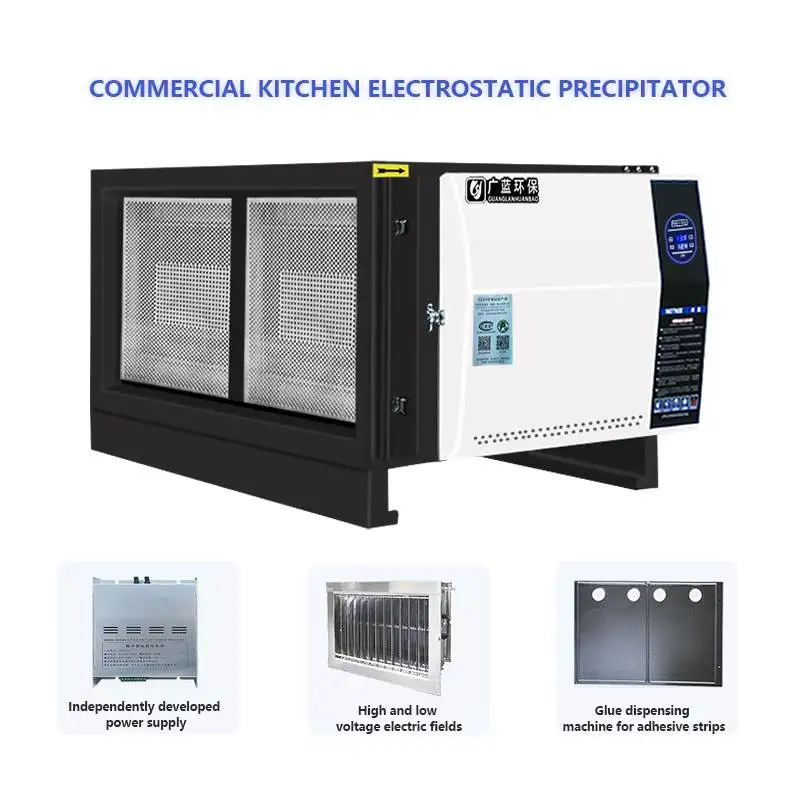

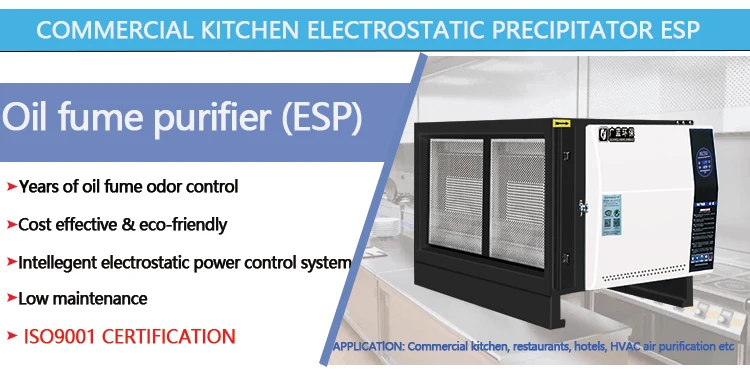

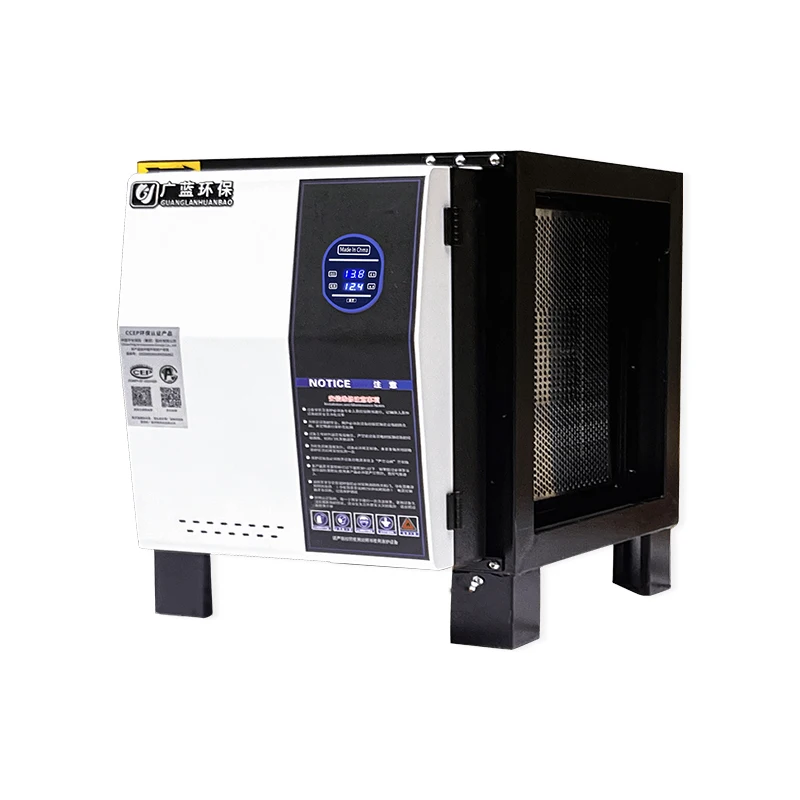

98% Purification Remove commercial kitchen Oil Fume Purifier electrostatic precipitator esp smoke air filter
- Category: >>>
- Supplier: Shenzhen Guanglan Environmental Protection Technology Co. Ltd.
Share on (1601273053142):
Product Overview
Description
Air pollution is cutting global life expectancy by an average of 1.8 years per person, making it the world’s top killer. While we cannot control outdoor air quality, we can choose to protect us and create a clean commercial kitchen. JINJELI Electrostatic Precipitator ESP's mission is to create healthy indoor commercial kitchen for people.
Removal Efficiency Rate:
Single Pass ESP series: >98% designed for high altitude air emission level .
Double Pass ESP series: >99% designed for low altitude air emission leve.
Single Pass ESP series: >98% designed for high altitude air emission level .
Double Pass ESP series: >99% designed for low altitude air emission leve.
Model | Airflow(M³/h) | Volume(mm)(L*W*H) | Flangesize(mm) | Weight (kg) | number of stoves | Power (w） |
GL-JD-3A | 3000 | 550*730*720 | 440*500 | 45 | 1 | 300W |

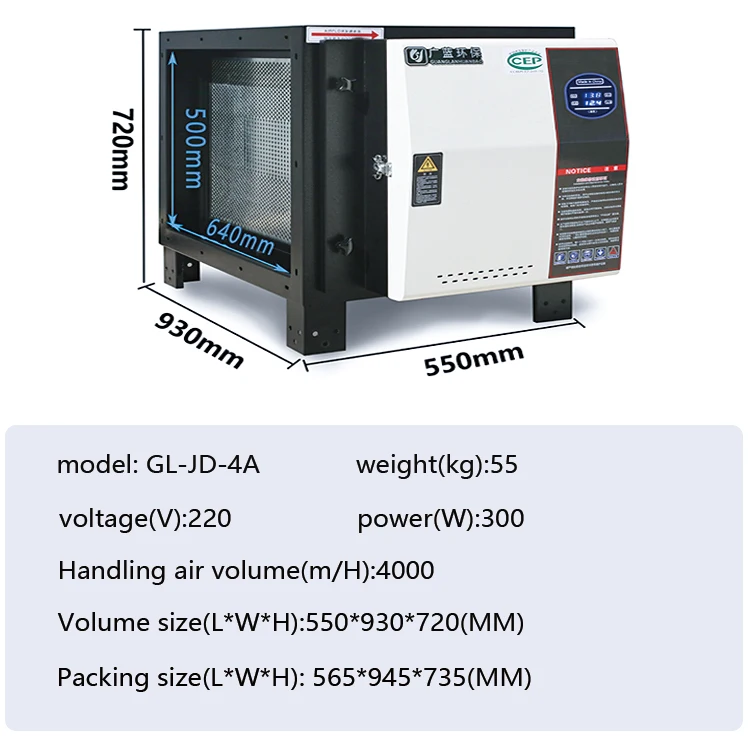

GL-JD-4A | 4000 | 550*930*720 | 640*500 | 55 | 1 | 300W |
GL-JD-6A | 6000 | 880*730*720 | 440*500 | 70 | 1~2 | 300W |
GL-JD-8A | 8000 | 880*920*720 | 640*500 | 86 | 2 | 300W |
GL-JD-10A | 10000 | 880*1020*720 | 740*500 | 97 | 2 | 300W |
GL-JD-12A | 12000 | 880*1240*720 | 960*500 | 118 | 3 | 600W |
GL-JD-16A | 16000 | 880*1640*720 | 1360*500 | 152 | 4 | 600W |
GL-JD-20A | 20000 | 880*1020*1320 | 740*1110 | 181 | 5 | 600W |

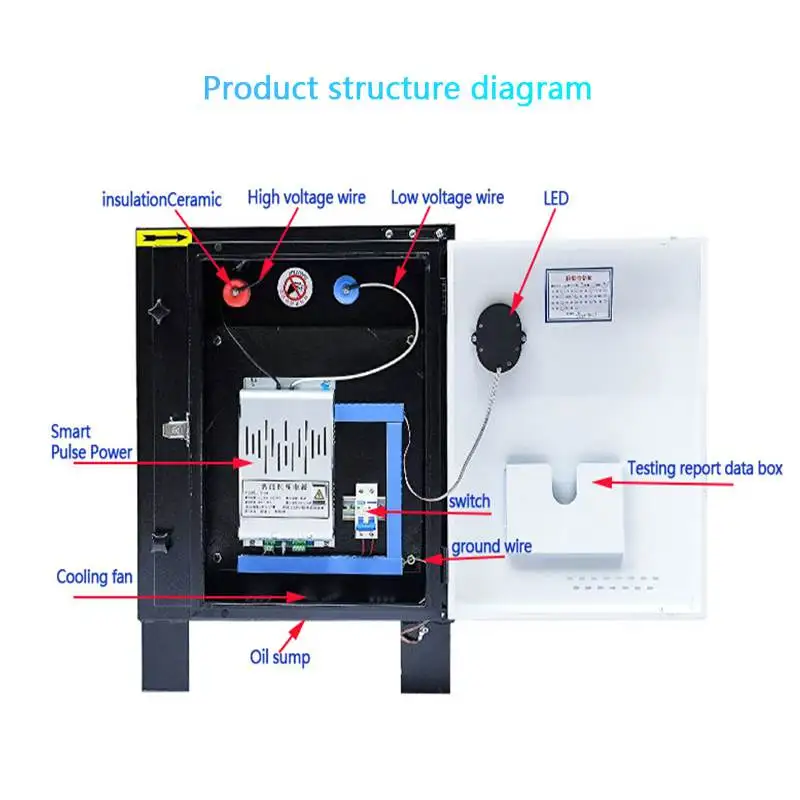

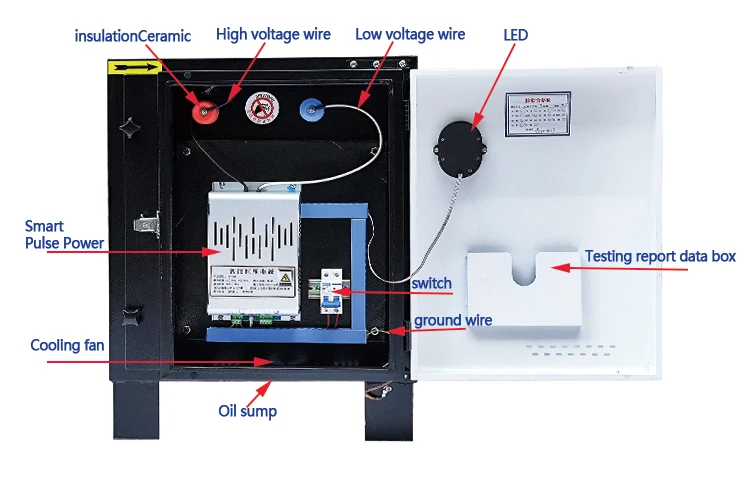

WORKING PRINCIPLE
1. The dirty air first passes through a pre-filter. Large particles of oil are filtered.

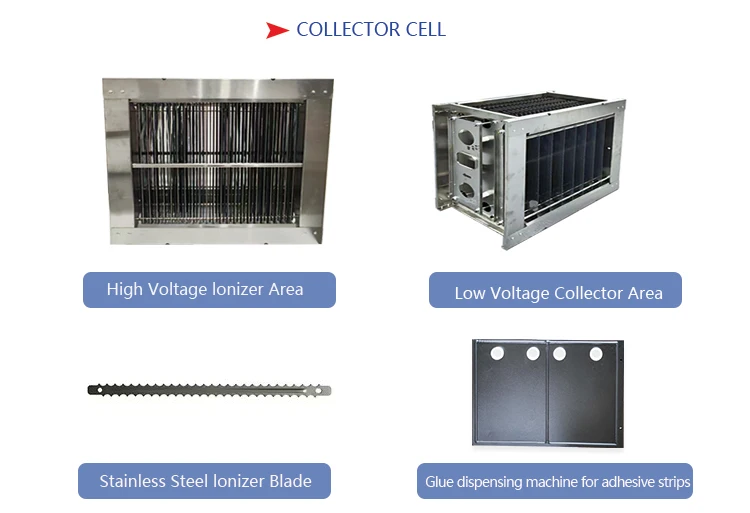

2. The air then passes into the high voltage ionise section where the particulates are charged to a positive potential. And then the air passes into low voltage collector cell section where the particulates are charged to a negative potential. So the particulates are attracted to the collector plates effectively.
3. The particulates remain on the plates or drain down in to the sump.
4 UVC-ultraviolet light produces OZONE and undergoes chemical processes such as Photolysis and Ozonolysis that breaks down grease and odour containing compounds produced during cooking.
5. The cleaned air exits through the cabinet.
2. The air then passes into the high voltage ionise section where the particulates are charged to a positive potential. And then the air passes into low voltage collector cell section where the particulates are charged to a negative potential. So the particulates are attracted to the collector plates effectively.
3. The particulates remain on the plates or drain down in to the sump.
4 UVC-ultraviolet light produces OZONE and undergoes chemical processes such as Photolysis and Ozonolysis that breaks down grease and odour containing compounds produced during cooking.
5. The cleaned air exits through the cabinet.
Product Advantage
1. Odor, smoke, oil control efficiently

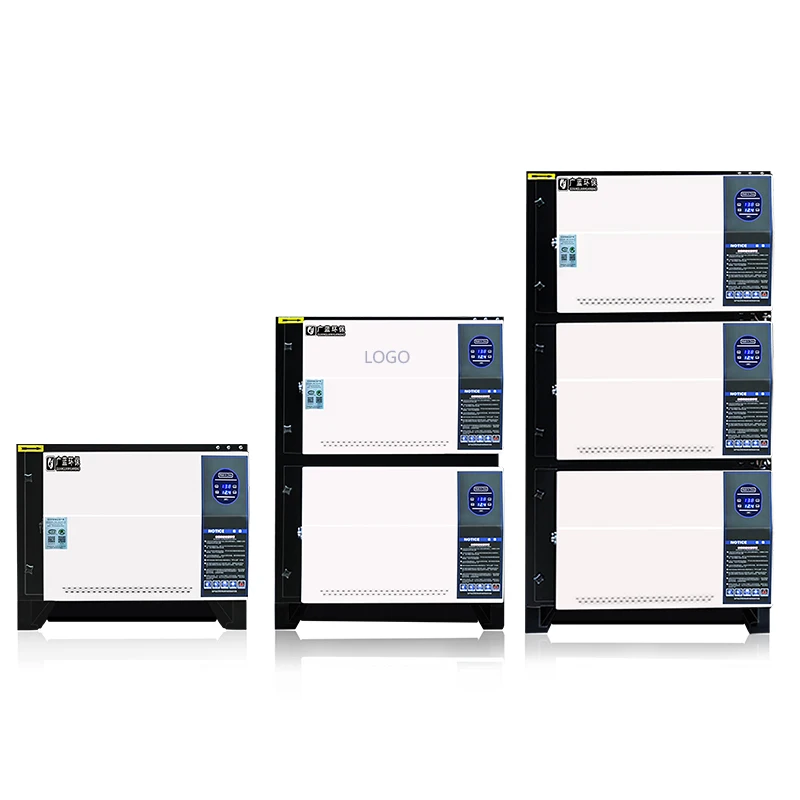

2. Modular in design: Modular units allow to vertical/horizontal stacking combination as per different air flow or removal efficiency rate request.

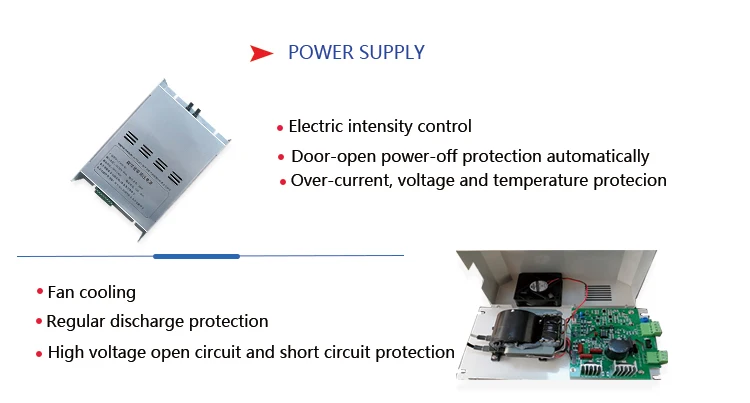

3. Intellegent electrostatic power control system Electric intensity auto-control function ensures the Kitchen ESP Collector unit maintains a high purification rate after a long time service.
4. Photolysis and odor removal: High power UV tube will remove food odor more efficiently.
5. Safety and Stability:Door-open power-off protection, Over-current, voltage, temperature protection, Fan cooling
2. Modular in design: Modular units allow to vertical/horizontal stacking combination as per different air flow or removal efficiency rate request.
3. Intellegent electrostatic power control system Electric intensity auto-control function ensures the Kitchen ESP Collector unit maintains a high purification rate after a long time service.
4. Photolysis and odor removal: High power UV tube will remove food odor more efficiently.
5. Safety and Stability:Door-open power-off protection, Over-current, voltage, temperature protection, Fan cooling
The First time choice for JINJELI ESP, Forever Trust ! Welcome order.
JINJELI ESp teams not only sell the products, we also offer perfect airpurification scheme and professional service for you! 100% protect yourorder.
