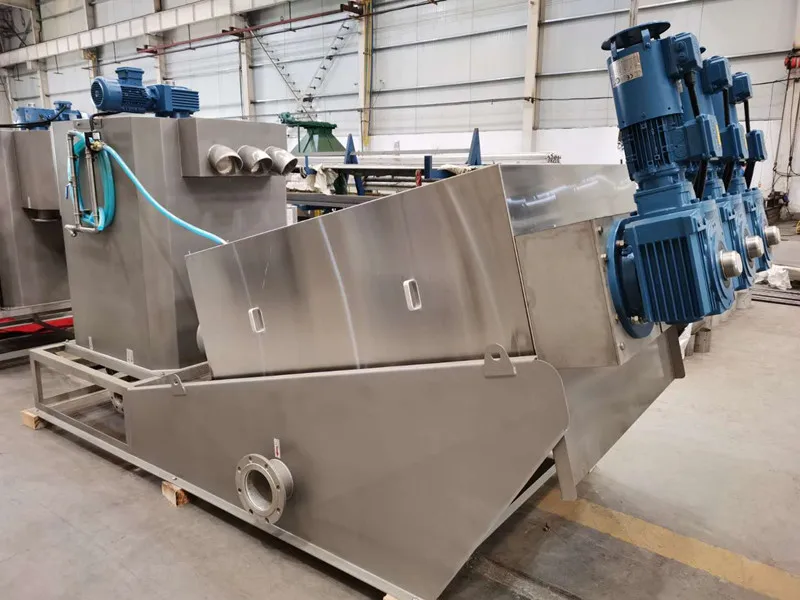

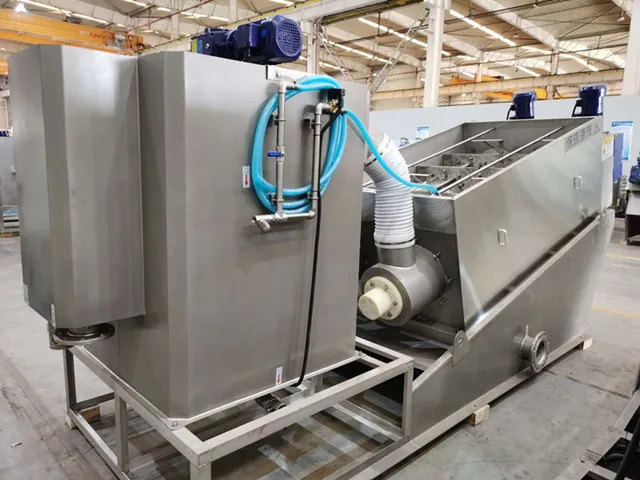

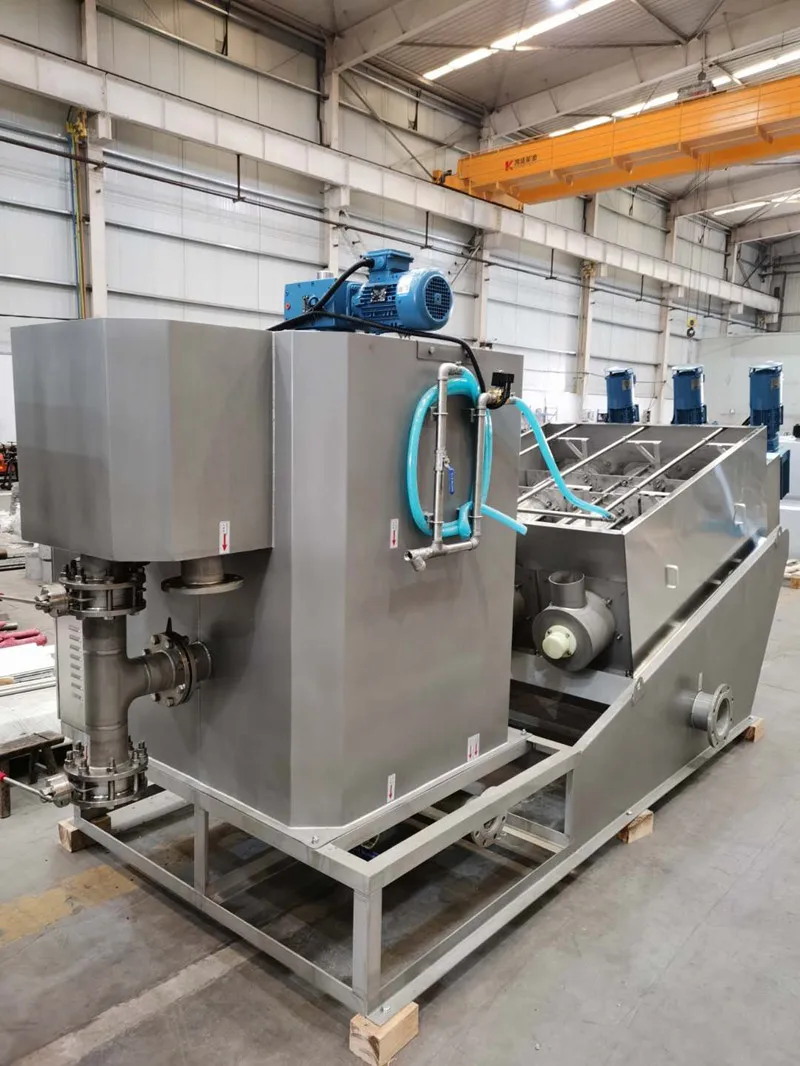

Screw Press Sludge Dewatering Machine Sludge Dehydrator For Sewage Treatment Equipment
- Category: >>>
- Supplier: Yangzhou Maoyuan Environmental Protection Technology Co. Ltd.
Share on (1601273256012):
Product Overview
Description
Product Description
Screw Press Sludge Dewatering Machine is widely used in municipal wastewater treatment engineering, petrochemical, light industry, chemical fiber, paper making, pharmaceutical, leather and other industries. The actual operation shows that the sludge dewatering can create considerable economic benefits and social benefits for the customers.
Model Selection
Model | Dry sludge Capacity | Capacity to Flow with different Solids Content | ||||||||
10000mg/L | 20000mg/L | 30000mg/L | 40000mg/L | 50000mg/L | ||||||
MYEP131 | 10~14KG/h | 1m³/h | 0.5m³/h | 0.4m³/h | 0.3m³/h | 0.26m³/h | ||||
MYEP201 | 15~20KG/h | 1.5m³/h | 0.75m³/h | 0.6m³/h | 0.5m³/h | 0.4m³/h | ||||
MYEP202 | 30~40KG/h | 3m³/h | 1.5m³/h | 1.2m³/h | 1m³/h | 0.8m³/h | ||||
MYEP301 | 50~70KG/h | 5m³/h | 2.5m³/h | 2m³/h | 1.5m³/h | 1.4m³/h | ||||
MYEP302 | 100~140KG/h | 10m³/h | 5m³/h | 4m³/h | 3m³/h | 2.8m³/h | ||||
MYEP303 | 150~210KG/h | 15m³/h | 7.5m³/h | 6m³/h | 4.5m³/h | 4.2m³/h | ||||
MYEP351 | 100~120KG/h | 10m³/h | 5m³/h | 4m³/h | 3m³/h | 2.4m³/h | ||||
MYEP352 | 200~240KG/h | 20m³/h | 10m³/h | 8m³/h | 6m³/h | 4.8m³/h | ||||
MYEP353 | 300~360KG/h | 30m³/h | 15m³/h | 12m³/h | 9m³/h | 7.2m³/h | ||||
MYEP401 | 130~160KG/h | 13m³/h | 6.5m³/h | 5m³/h | 4m³/h | 3.2m³/h | ||||
MYEP402 | 260~320KG/h | 26m³/h | 13m³/h | 10m³/h | 8m³/h | 6.4m³/h | ||||
MYEP403 | 390~480KG/h | 39m³/h | 19.5m³/h | 15m³/h | 12m³/h | 9.6m³/h | ||||
MYEP404 | 520~640KG/h | 52m³/h | 26m³/h | 20m³/h | 16m³/h | 12.8m³/h | ||||
Main Features
1) 24hours automatic and continuous running.
2) Good at dealing with Oily sludge.
3) Easy installation and maintenance.
4) Water and power saving.
Dewatering Principle
Sludge firstly will be thickened thickening zone. In the advancing process, with the decreasing spacing and smaller gap distance in dewatering zone, the screw body has giant pressure that the purpose of fully dewatering will be achieved.
Before & After Treat
Before Treatment
*Moisture Content Range: 99.8~92%
*Directly Treat Sludge in the tank
*No need for sludge thickening tank
After Treatment
*Oultet Moisture Content:75~85%
*Compacy design, simple structure
*Saving cost of civil engineering
Detailed Images

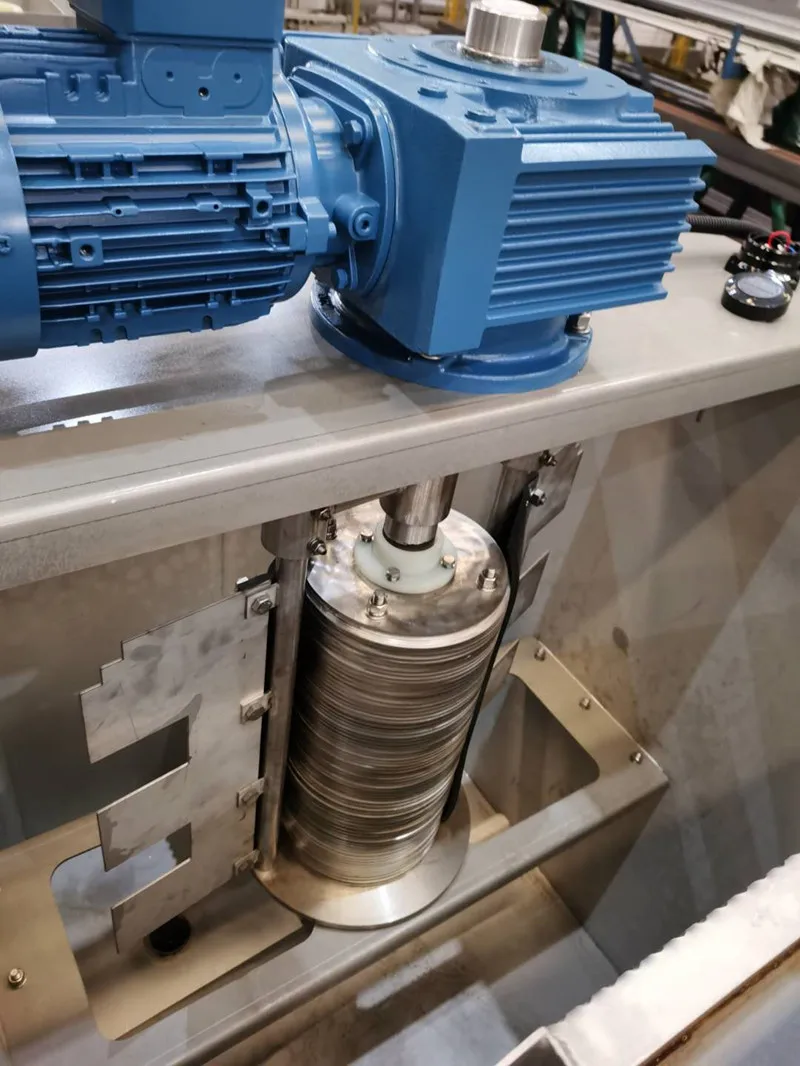

Screw Bodys
Mainly composed of fixed and moving rings.
Thickening and dewatering can be finished in one part.
Reducer & Motor
First class brand, SEW, NORD or other brands are optional due to your actual needs.
Excellent performance to ensure a long services lifespan.

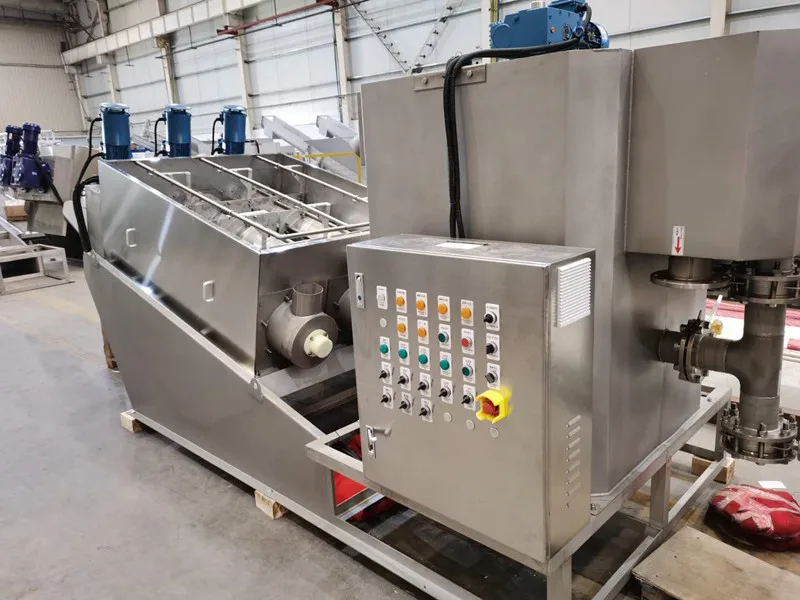

Electric Control Panel
High quality components.
Realize the switch of full automatic operation and manual operation.
Certifications
Packing & Delivery
Packaging | ||
Size | Different due to models | |
Weight | Different due to models | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Delivery | ||
Loading port | Shanghai port | |
Delivery time | One set usually 30~45 days | |
Our Workshop
Exhibition Show
