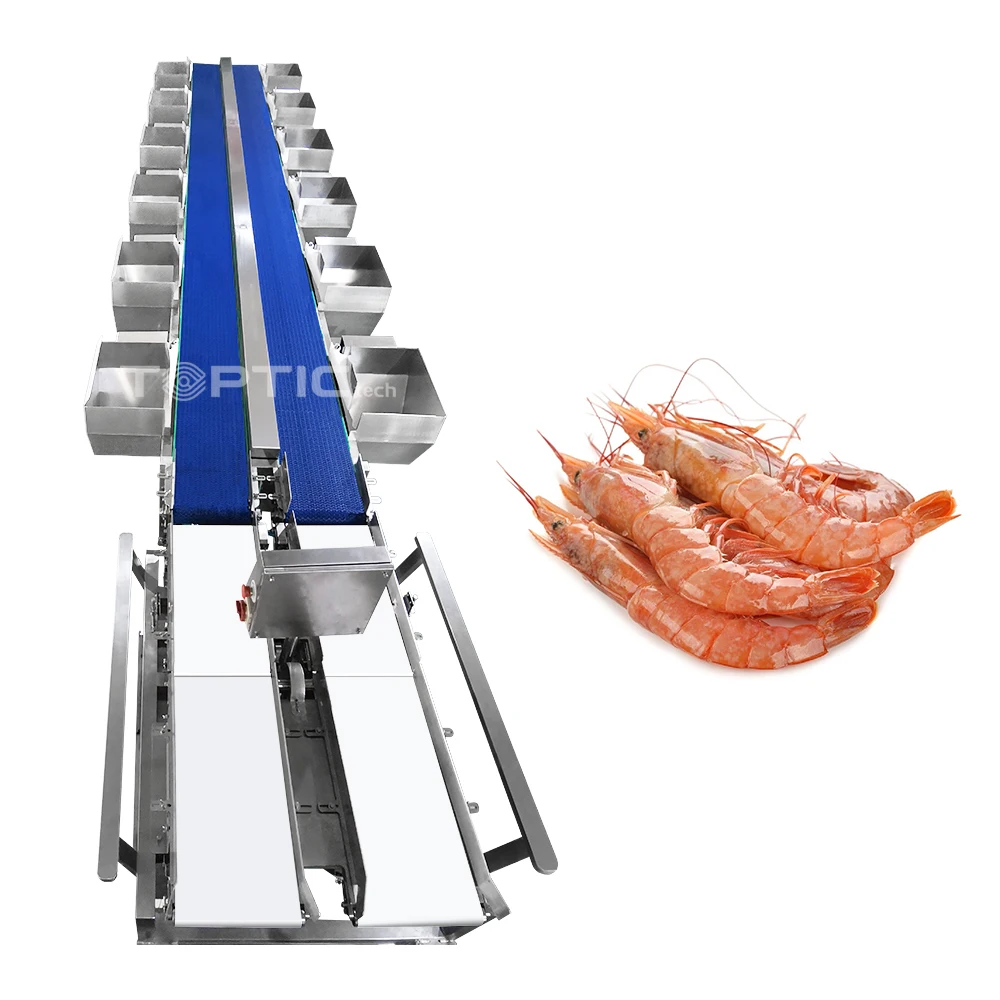

Weight Sorting Machine Grader Sorter Machinery Grading Machine Classifier for Shrimp Oyster Tilapia Seafood Abalone Processing

Product Overview

Description



Weight Sorting Machine Grader Sorter Machinery Grading Machine Classifier for Shrimp Oyster Tilapia Seafood Abalone Processing

Model	TT-WSM-02
Max.Sorting Weight(one time)	500g
Operation Mode	Touch Screen
Sensitivity	±1g to ±3g
Picking Accuracy	±3mm to ±4mm
Conveying Speed	40 to 140(Both side work)BPM
Available Sorted Products Dimension	≤200mm(length) x 130mm(width)
Checking Width	≤130mm
Infeed Hoppers Length	350mm
Infeed Hoppers Width	200mm
Control System	High Speed A/D Sampling Module
Preset Product Number	100
Power	AC220V±10% 50Hz/60Hz
The Working Environment	Temperature:0ºC~40ºC(with on-board air conditioner;Humidity:30%~95%(equipped with dehumidifier)
Rejection	Swing arm
Body Material	Stainless steel 304

Product Highlights:
1. Easy.
Large LCD touch screen display. Chinese and English interface, Language customized is available.
HMI program design can accomplish weight sorting with wide range of products.

2. Precision./High Speed.
High-precision load cell ensure high detection accuracy. Speed can be adjustable as per requirements
by frequency conversion control motor.

3. Real Time.
The graph shows the statistical distribution of the sorting results and grasps the sorting dynamics in real time.

4. Memory.
100 kinds of product sorting parameters can be preset, and different products parameters can be quickly switched.

5. Centralized Control.
One PC / HMI can control multiple sorting machines.

6. Customization.
Weight sorting grades can be customized according to customer's requirement.
The machine also can be customized as per the sizes, weight and characteristics of the materials sorted.
OEM service is available for us. Our professional designer would make your private idea into being.

7. Sturdy Structure.

This machine has good performance and is hygienic for its solid Stainless steel 304 structure.


8. Connection.

Interface can be connected with PC or other smart communication tools. It can connect external devices, such as labeling machines, printers, scanners, computers, etc.



9. Waterproof and Brand.
Waterproof design for anti-erosion from seawater.

IP 65 for all components which are imported from world famous supplier.



---------------------------------------------------------------------------------------------------

Please Click Here for More Details

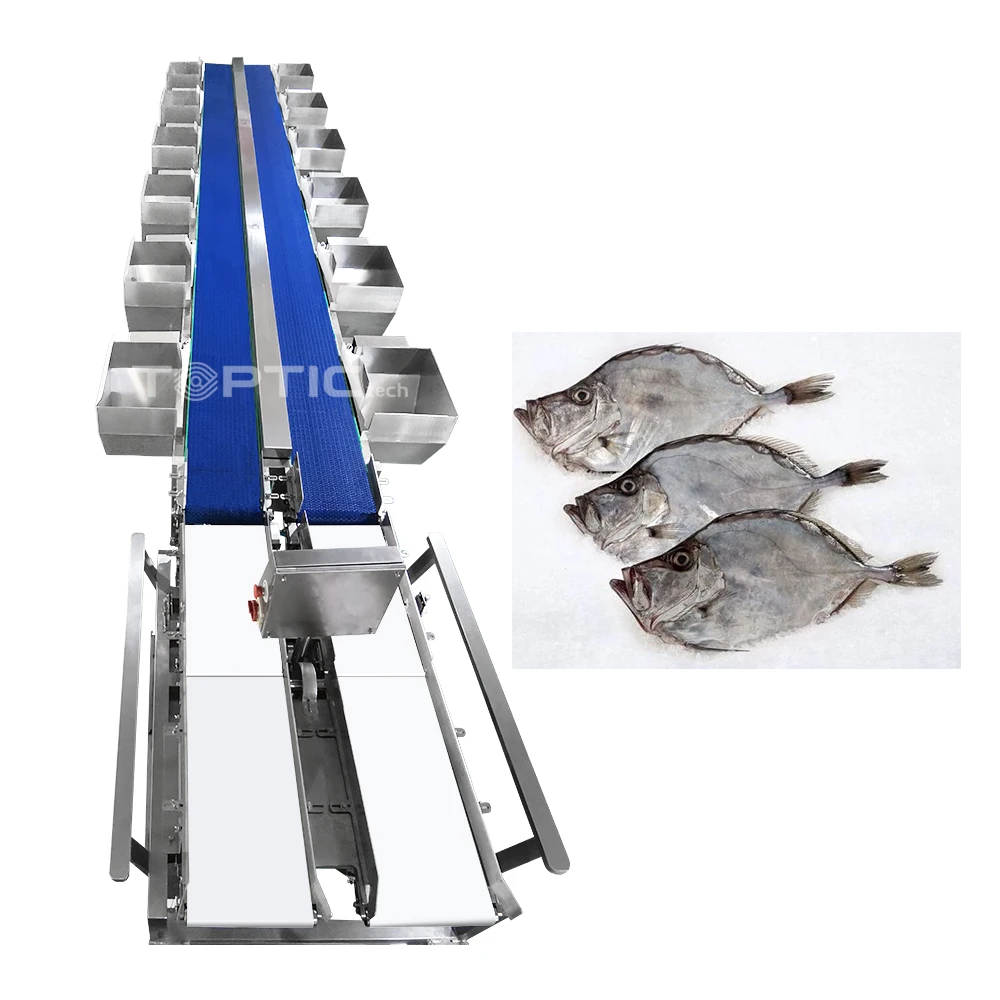

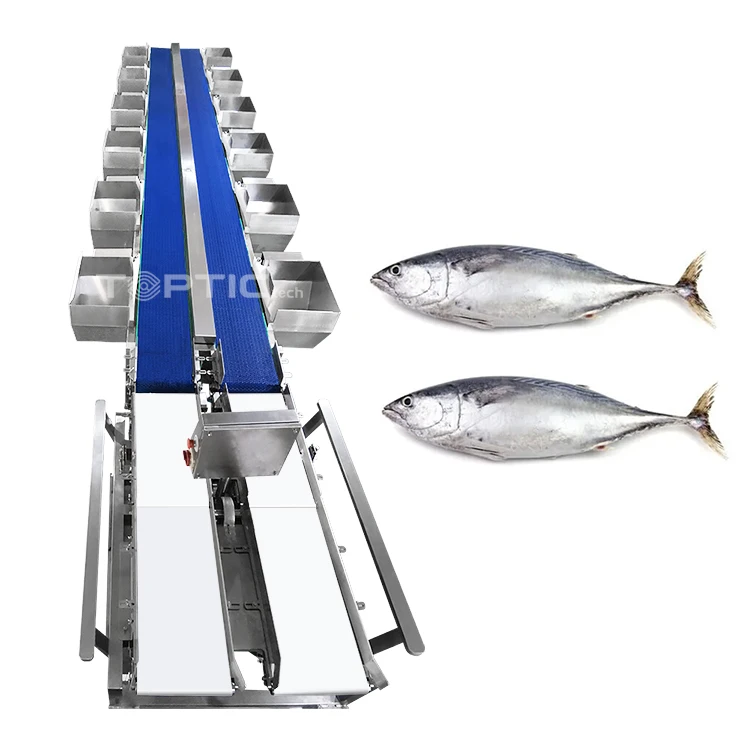

Your production process can be streamlined by our state-of-the-art dual lane weight grader.

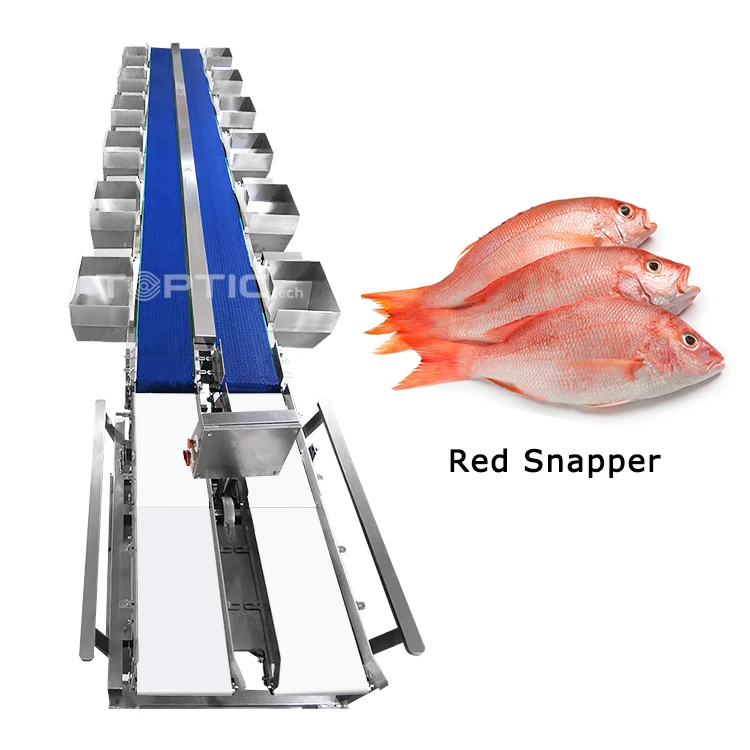

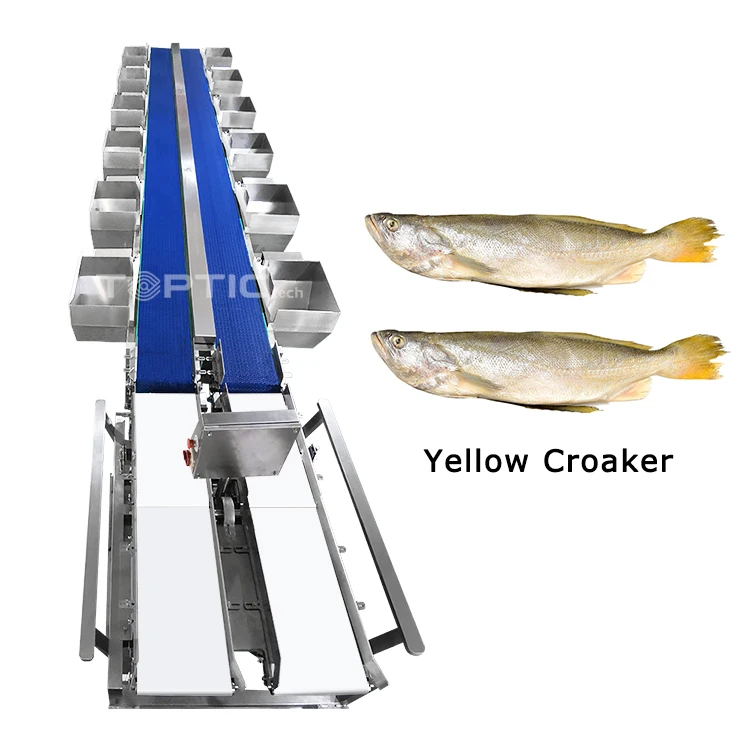

This weight sorting machine is a game-changer for sorting fruits, vegetables, seafood, poultry and frozen products such like lobsters, tilapia, golden pomfret, turkey, chicken and duck.
