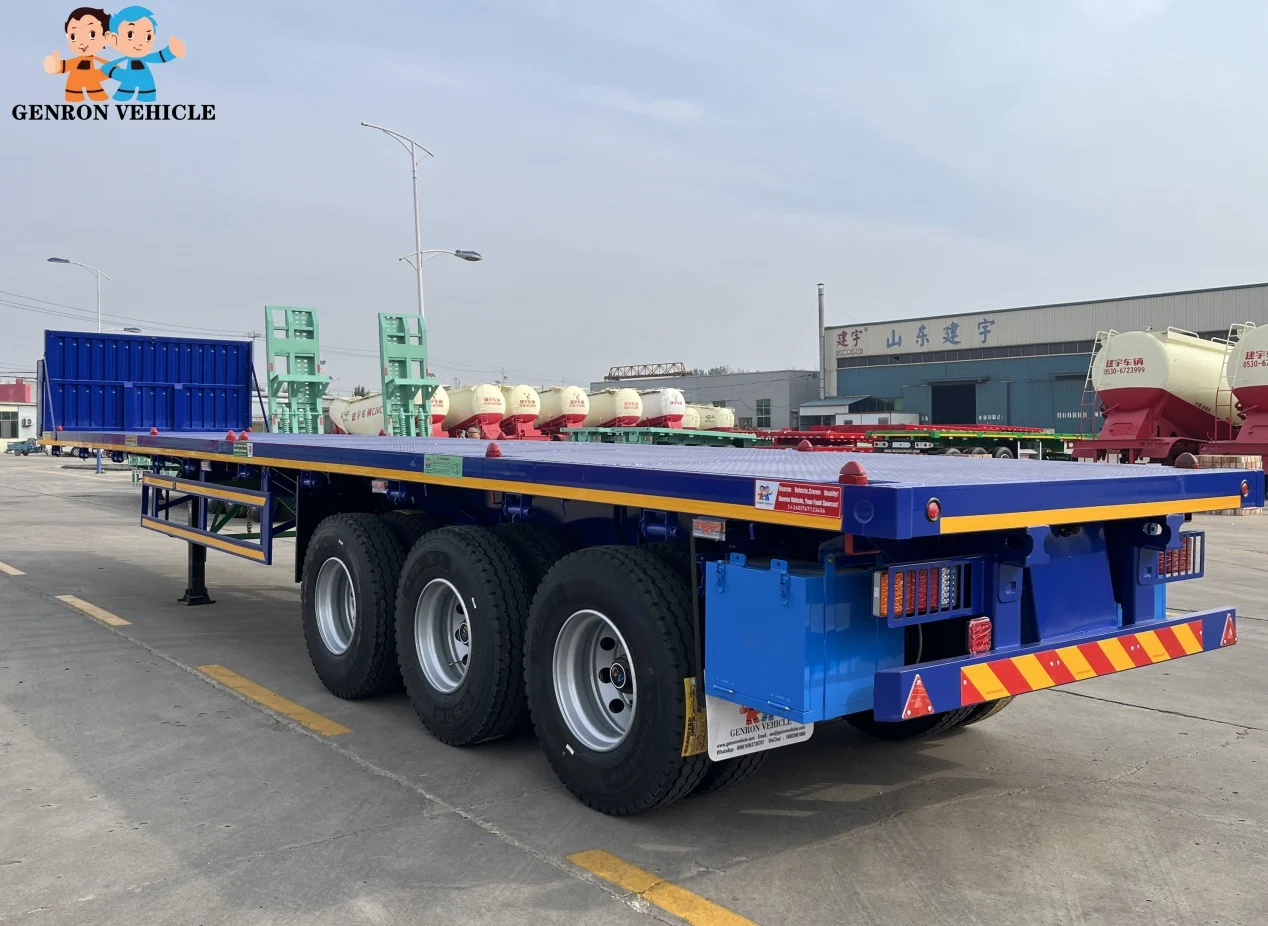

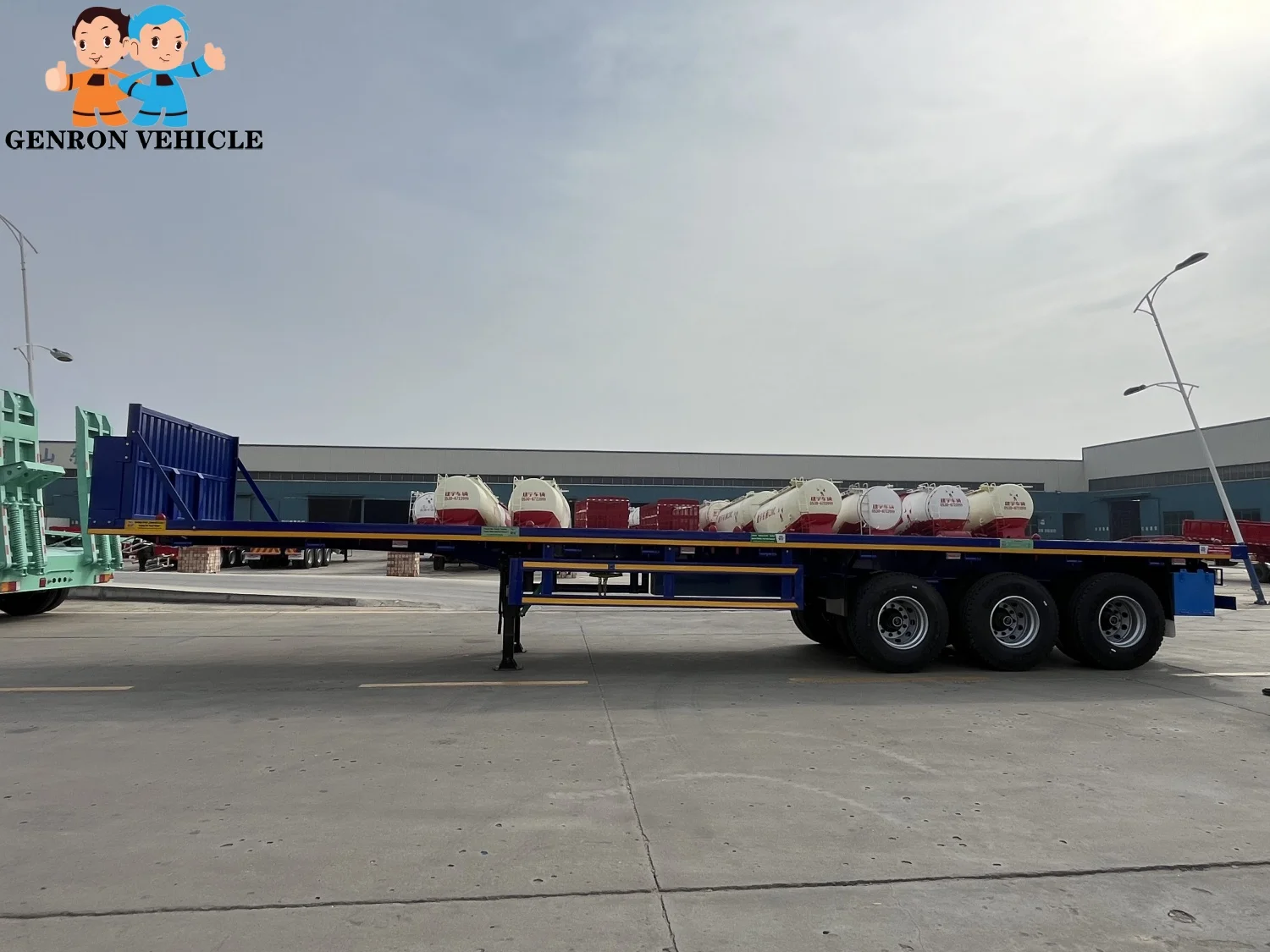

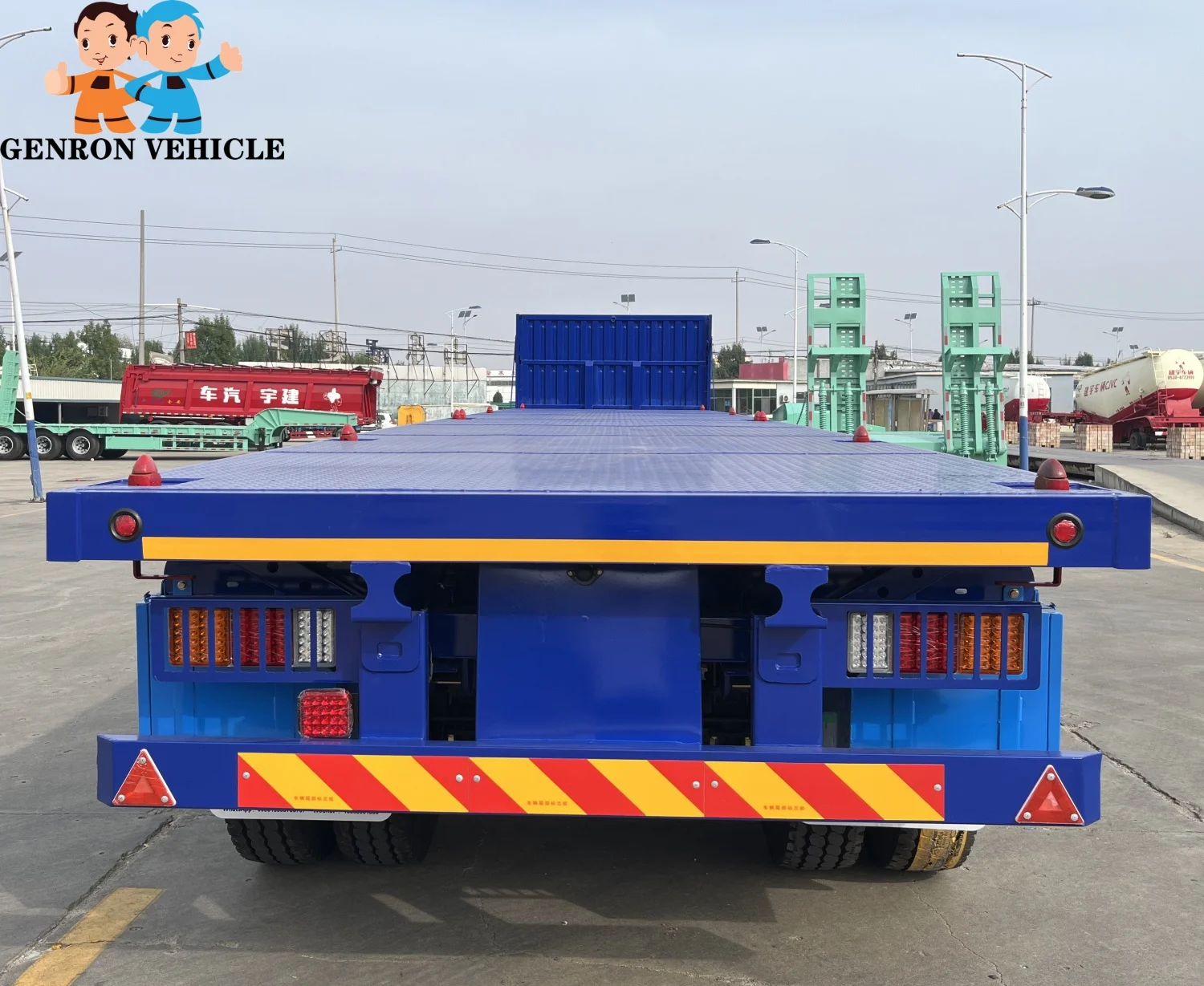

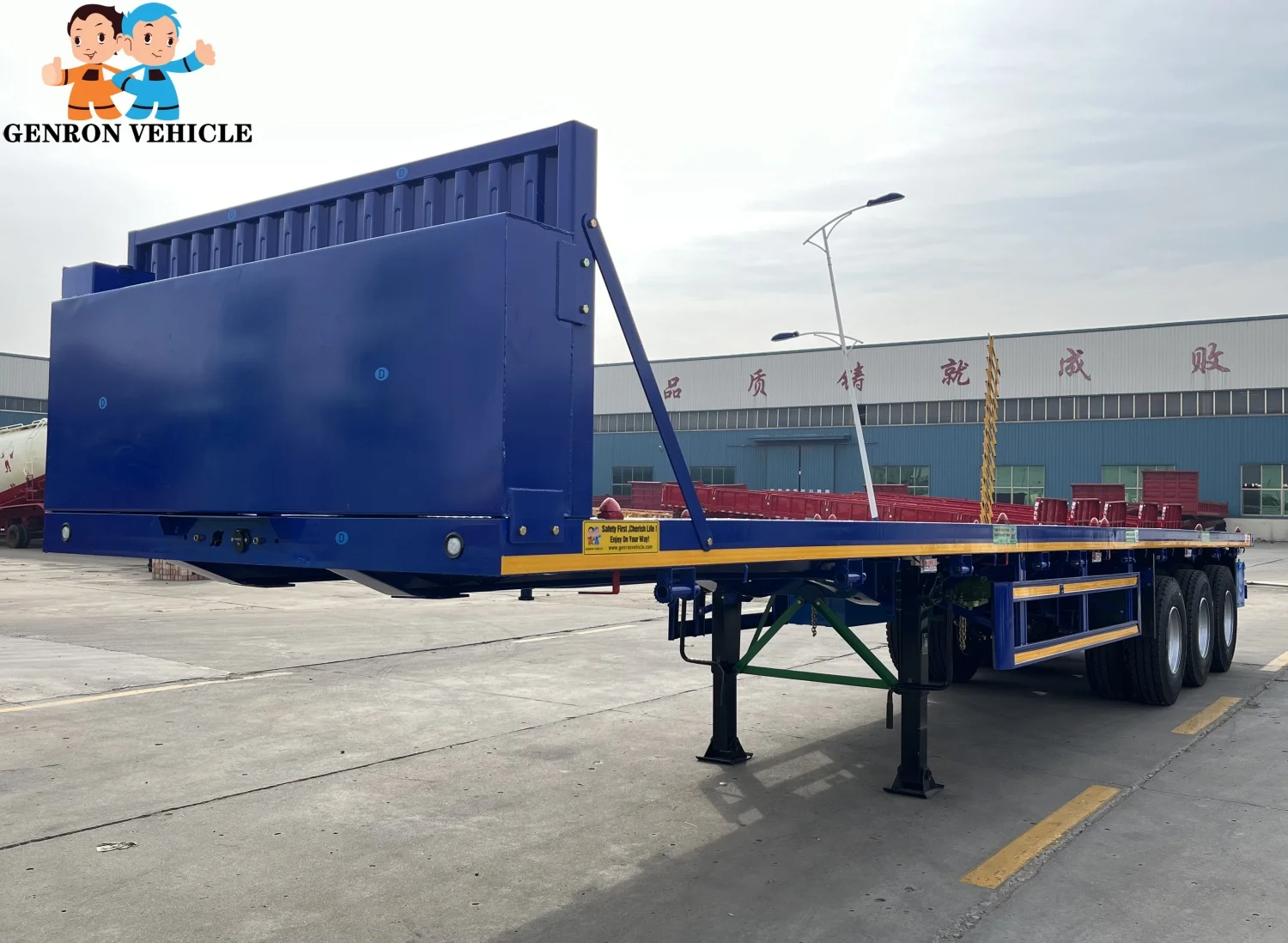

50 tons China three axles 13000x2500x2700 mm container transport/logistics flat bed semi trailer truck with oil tank
- Category: >>>
- Supplier: Qingdao Genron International Trade Co. Ltd.
Share on (1601273315508):
Product Overview
Description
Product Description
50 tons China three axles 13000x2500x2700 mm container transport/logistics flat bed semi trailer truck with oil tank
Specification
Factory price 4 axles flat bed semi trailer truck for transporting cement bags
We do manufacture high quality container flat bed semi trailers with low price. The flat bed with twist locks can load 20 ft and 40 ft containers and cement bags. It is very useful. We also could do OEM or manufacture as your requirement. Besides flat bed, our hot products are low bed semi trailers, dump trucks, oil fuel semi trailers and other semi trailer trucks. We can do video phone calls to see our factory. We also could find the best ship company. If there is any news, please contact us as soon as possible.
Dimension | 13000mm * 2500mm * 2700mm | |
Front Wall | 1000mm | |
Tare weight | About 7.7 tons | |
Loading capacity | ≤ 50 tons | |
Main Beams | Welding beam Design, Q345B carbon steel , Height: 500mm, upper plate is 14 mm Middle plate is 8 mm Down plate is 14 mm | |
Side beam | 16mm channel steel (Material is Q235steel). | |
Bottom Platform | 3mm diamond steel plate | |
Chassis | ||
Axle | 13T GV brand axles ,3 pcs | |
Suspension | Heavy duty mechanical suspension | |
Rim | 9.00-22.5 Steel China Brand 12+1 pcs | |
Tire | 13R22.5 Triangle brand 12+1 pcs | |
King Pin | 2.00 inch bolt-in king pin | |
Leaf Spring | Six units heavy duty spring，90(W)mm*13(Thickness)mm*10 Layer | |

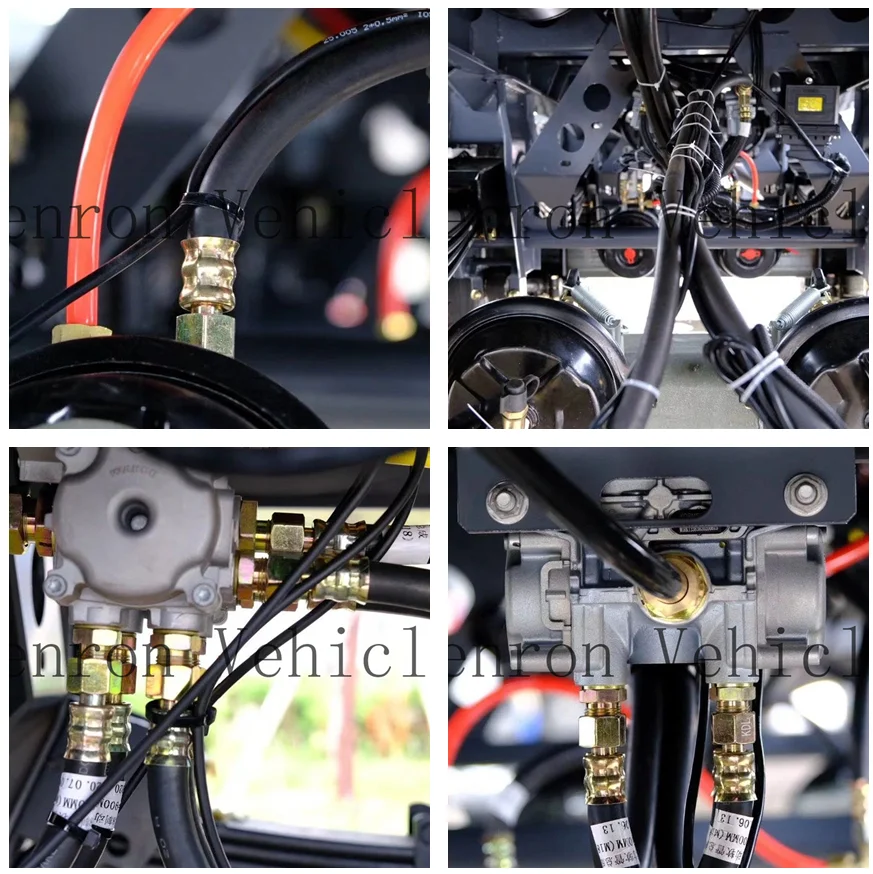

Valve | WABCO RE 6 relay valve; | |
Brake Chamber | T30/30 air brake chamber six pcs , china brand ， one piece of 45L air tanks | |
Twist Locks | 12 pcs lifting type | |
ABS | Optional | |
Light | LED light | |
Voltage | 24V | |
Receptacle | 7 ways (7 wire harness) | |
Tool box | 1000 mm× 500 mm× 500 mm Equipped with 2 units spare tire carrier | |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |
Shipping terms | By bulk cargo . Wax before shipping | |

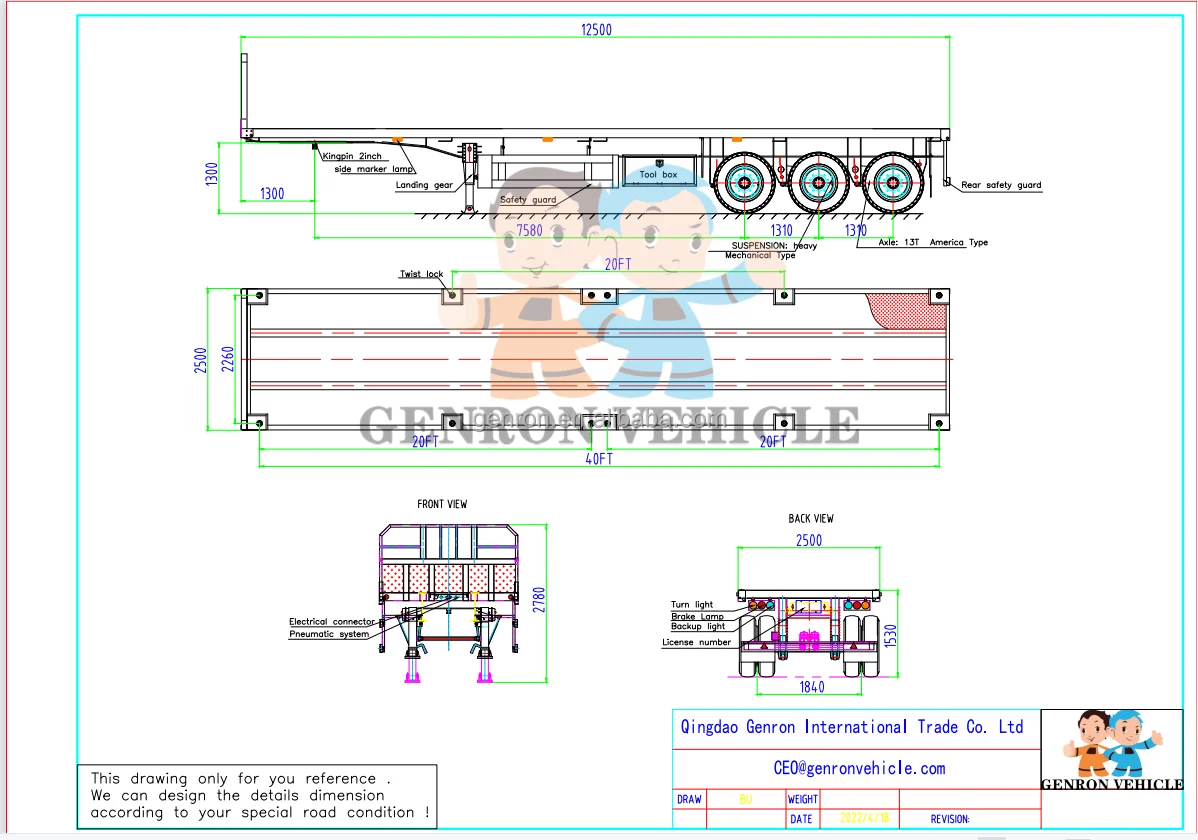

Drawing

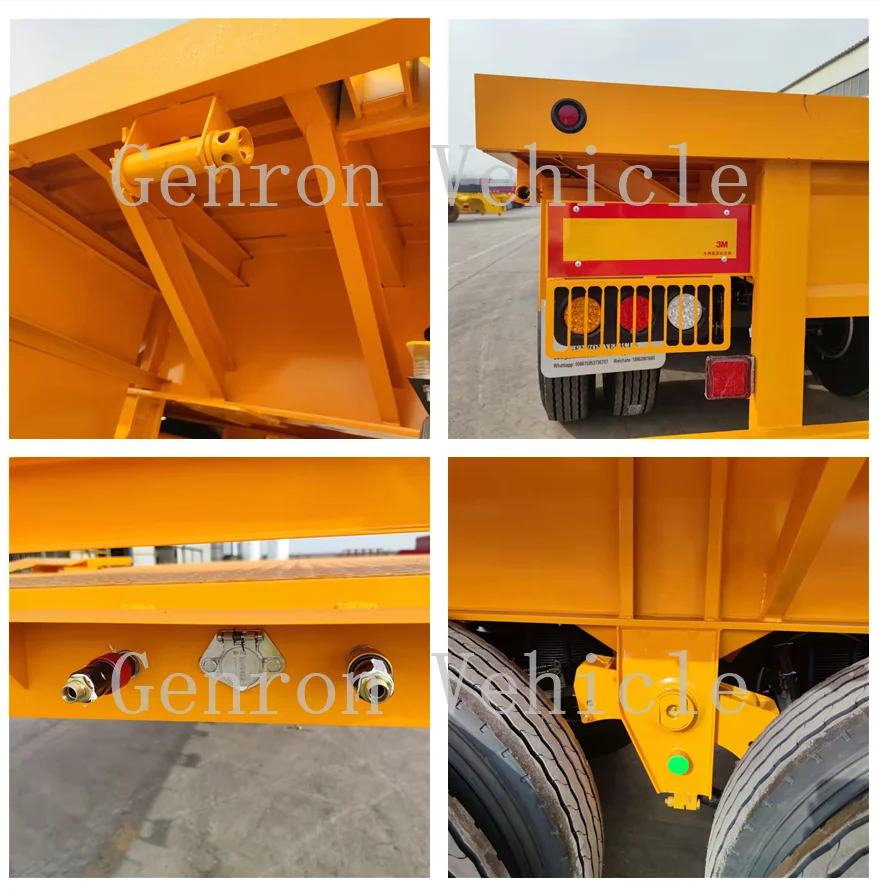

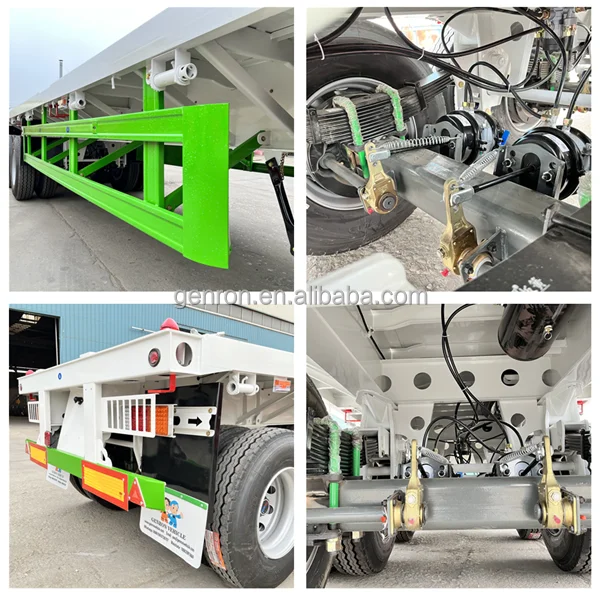

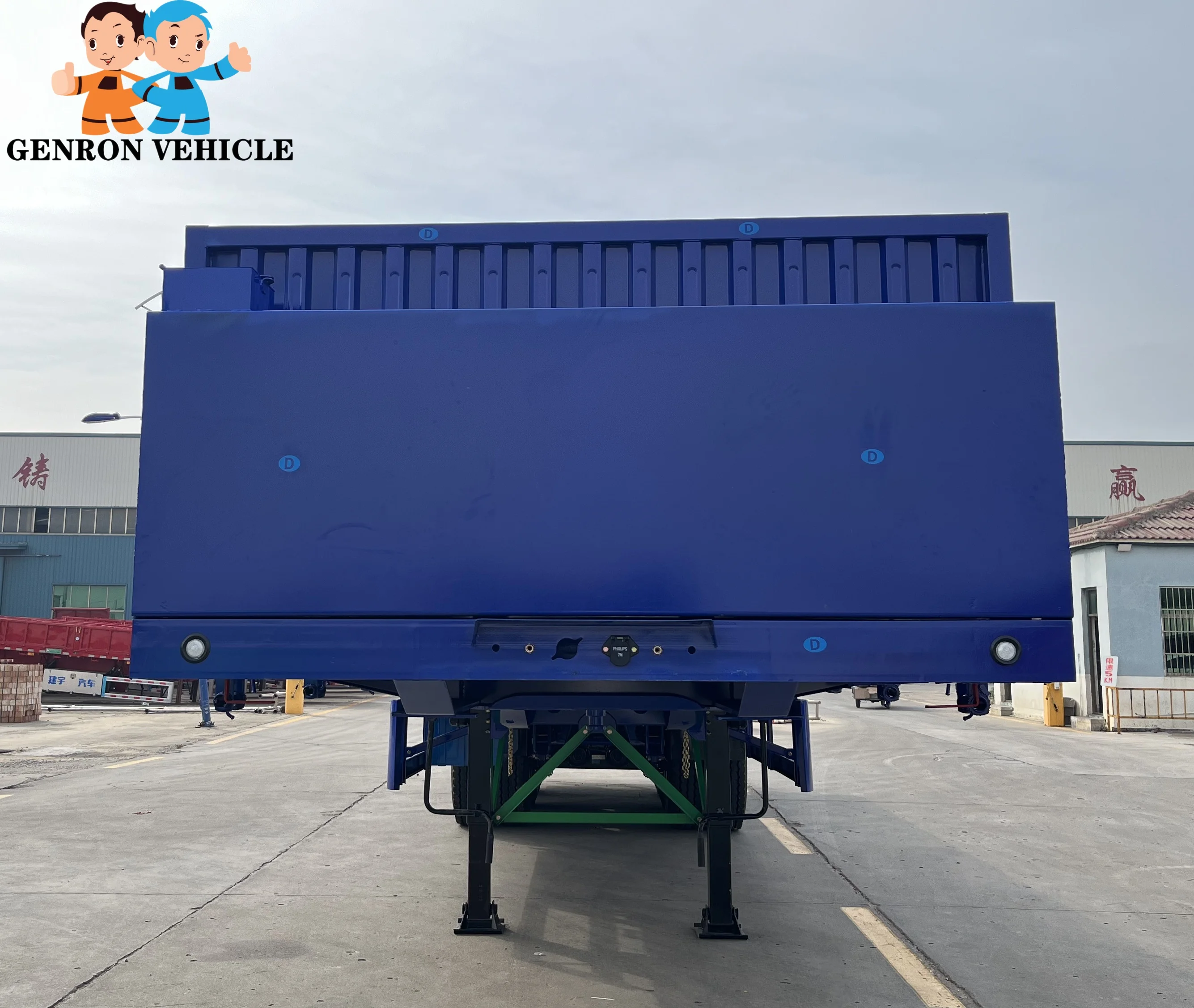

Details Images
Packing & Delivery
It can save the transport fee when the quantity is 2 pieces. When you choose bulk transport.
And please check the different ways of transportation.
