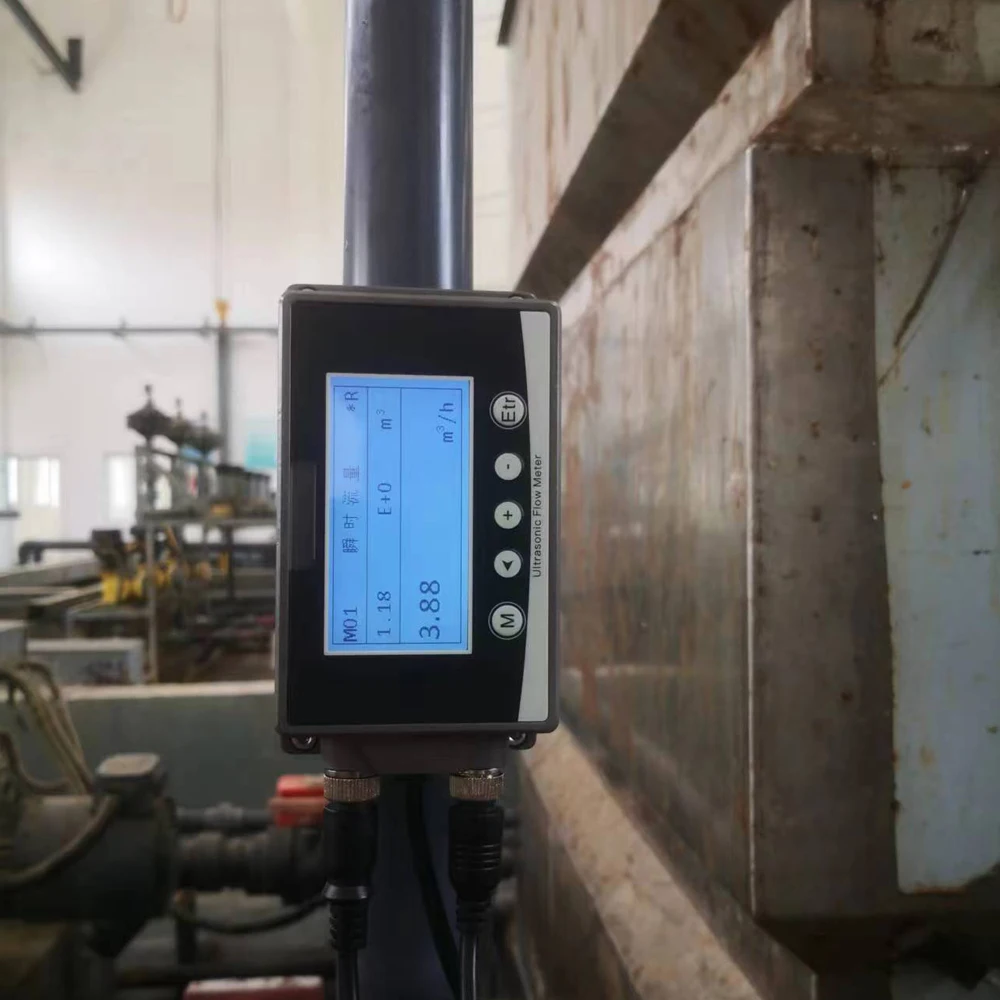

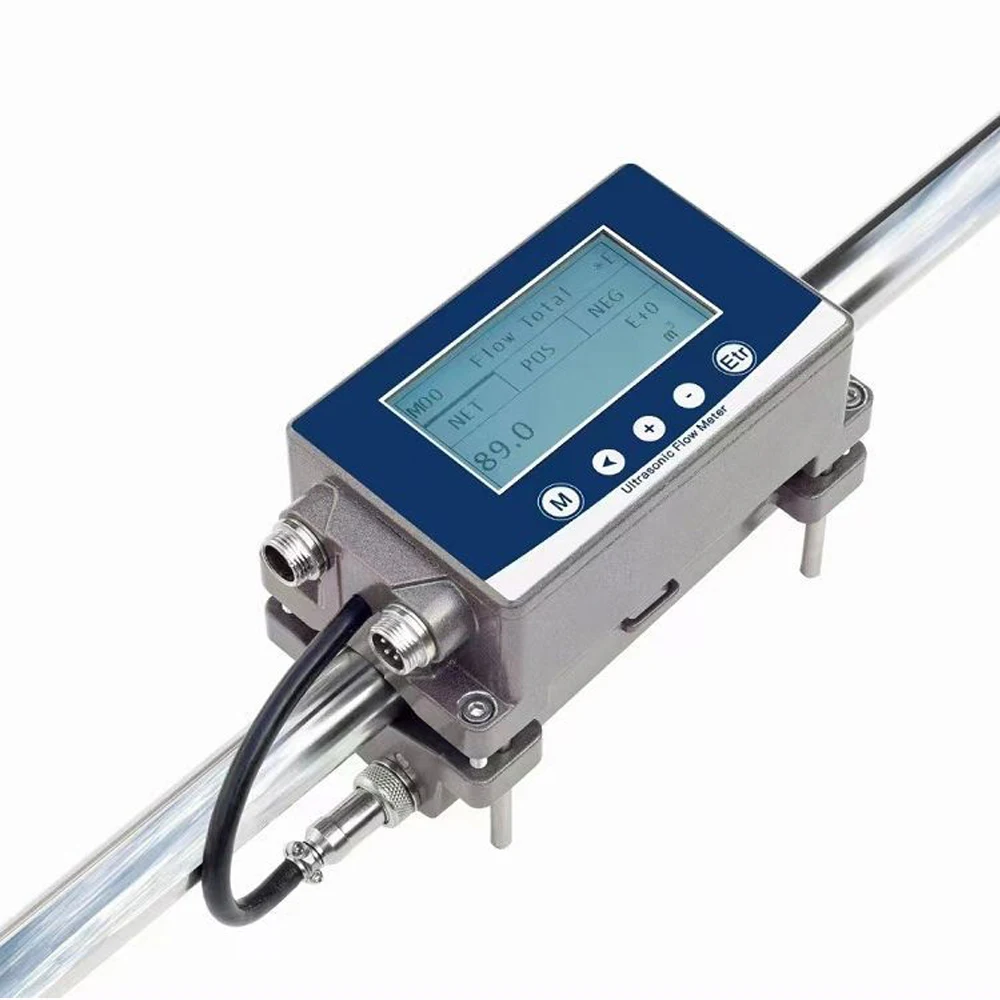

Shanghai CIXI 4 20mA RS485 External Card Flow Watch Snap Clamp On Ultrasonic Flow Meter Transducer Flowmeter
- Category: >>>
- Supplier: Shanghai Cixi Instrument Co. Ltd.
Share on (1601273394336):
Product Overview
Description
Product Description

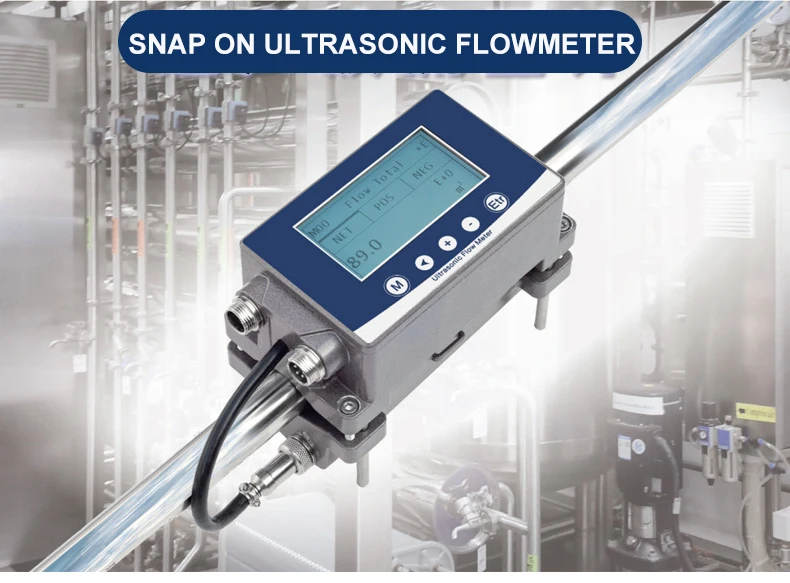

Product Name | Snap on ultrasonic flowmeter |

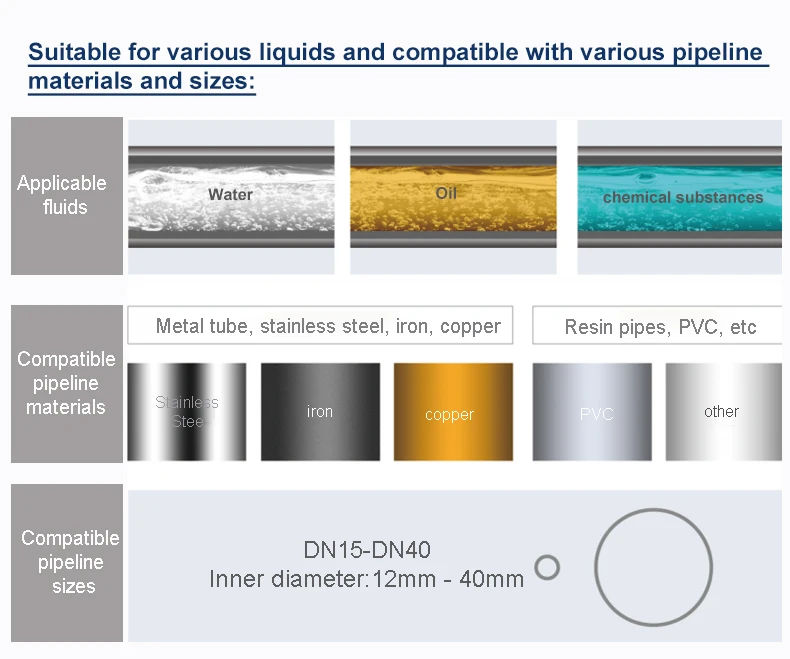

Supported pipeline materials | Metal/PVC, PP or PVDF and other hard plastic pipes |
Supported liquid medium | water/other (single - no solid particles and impurities) |
Supported medium temperature | 0-75 ° C (no surface freezing) |
Default low flow rate cutoff value | 0.1m/s |
Display method | 256 * 128 backlit LCD |
response time | 0.5~60 S |
Accuracy level | +2%, can reach+1% after calibration |
Data storage cycle | 300 milliseconds |
Memory backup | EEPROM (data storage length: over 10 years, data read/write frequency: over 1 million times) |
Power supply and I/O connector | M12 aviation plug |
output | 4-20mA |
communication | Modbus RS485 |
Power supply | 10-24V VDC |
Electrical power | Less than 3W |
protection circuit | Power reverse protection, power surge protection Short circuit protection for each output and surge protection for each output |
Shell protection level | IP65 |
ambient temperature | -10 to 60 ° C (without freezing) |
relative humidity | 35 to 85% RH (no condensation) |
Vibration resistance | 10 to 55Hz, double amplitude 1.5mm, 2 hours each on the XYZ axis |
Impact resistance | 100m/s216ms pulse, X Y. 1000 times for each Z-axis |
Material of the entire machine | Aluminum alloy, industrial plastic |
Cable length | Standard configuration 2 meters, (PT1000 standard configuration 9 meters) |
Product Feature

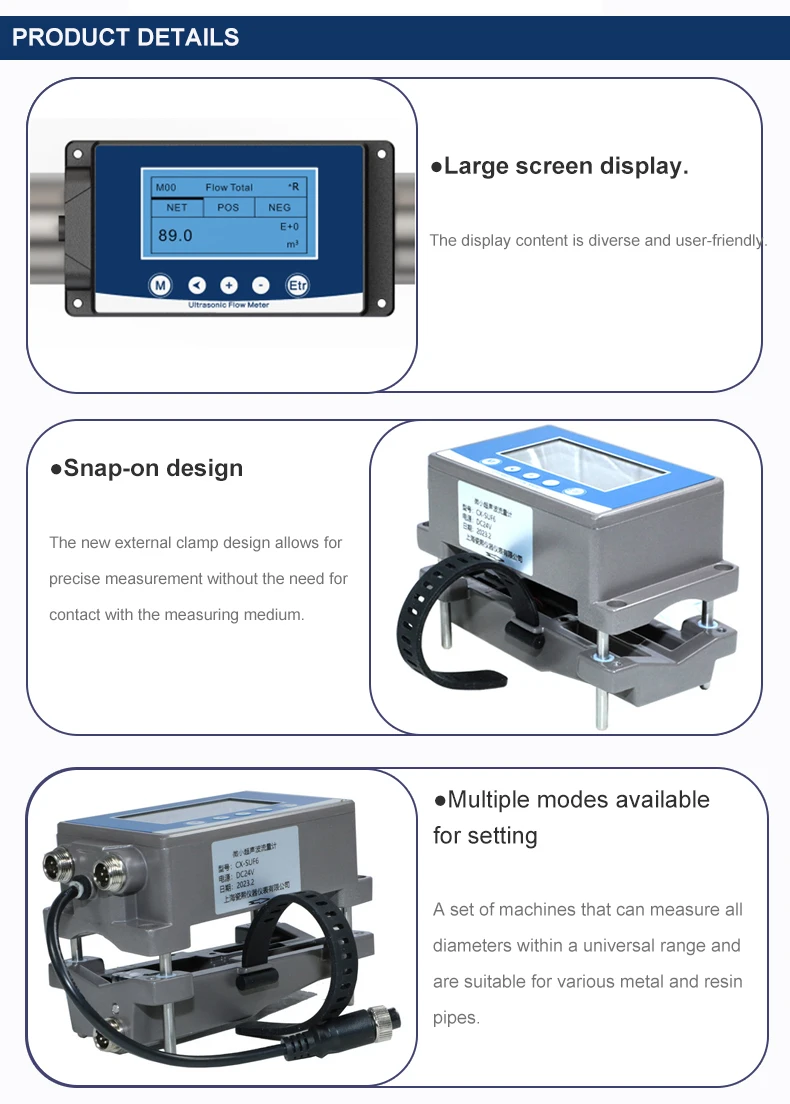

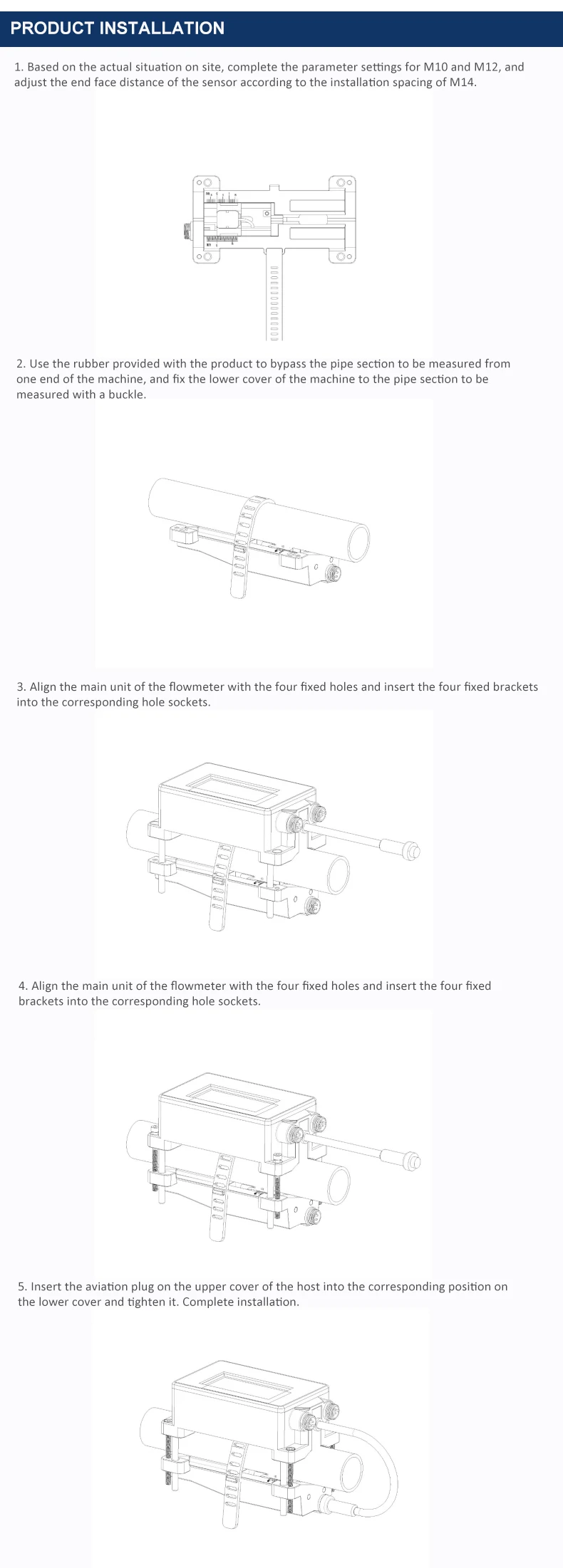

Easy installation and convenient operation. No need to break pipes or long downtime for construction, installation can be easily completed within a few minutes.

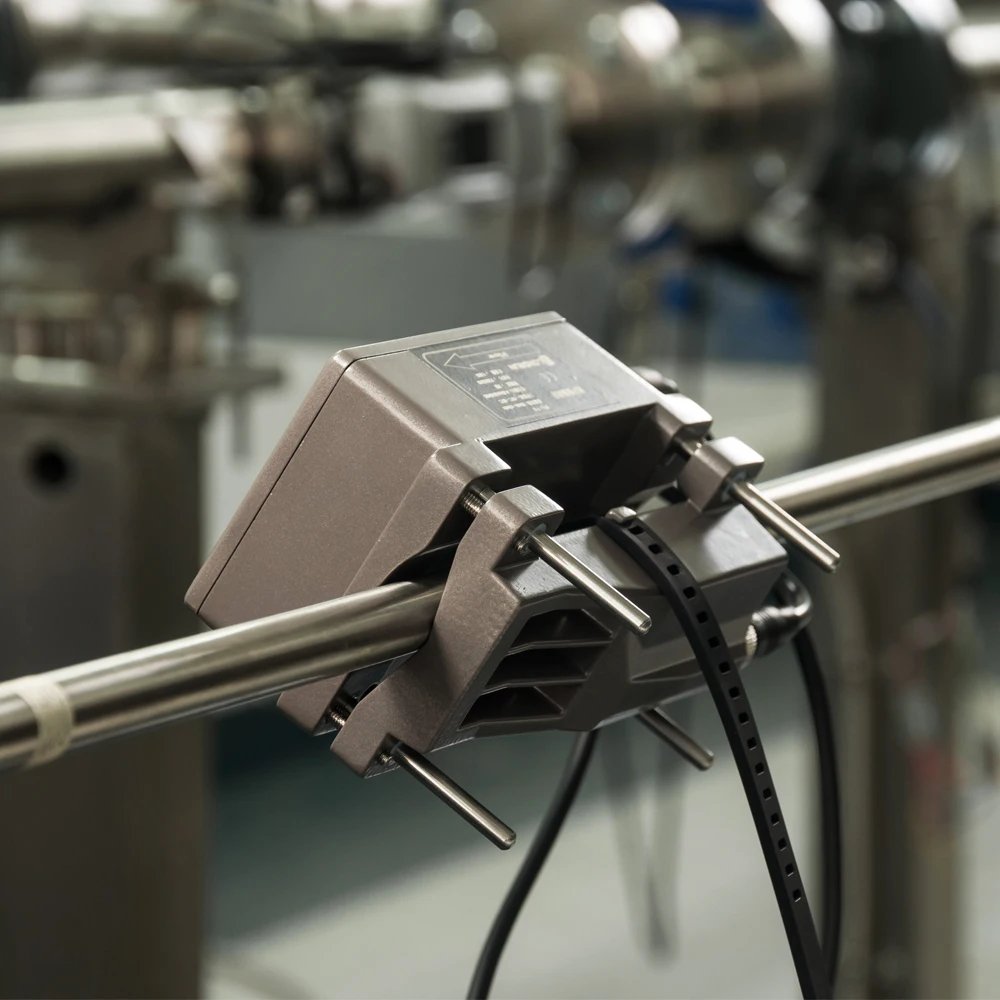

Adopting a brand new external clamp design, there is no need to contact the measuring medium. It can avoid pressure loss and medium pollution caused by traditional flow meters.
Multiple modes are available for setting, flexible and diverse. A set of machines that can measure all diameters within a universal range and are suitable for various metal and resin pipes.
Large screen display. The display content is diverse and user-friendly.

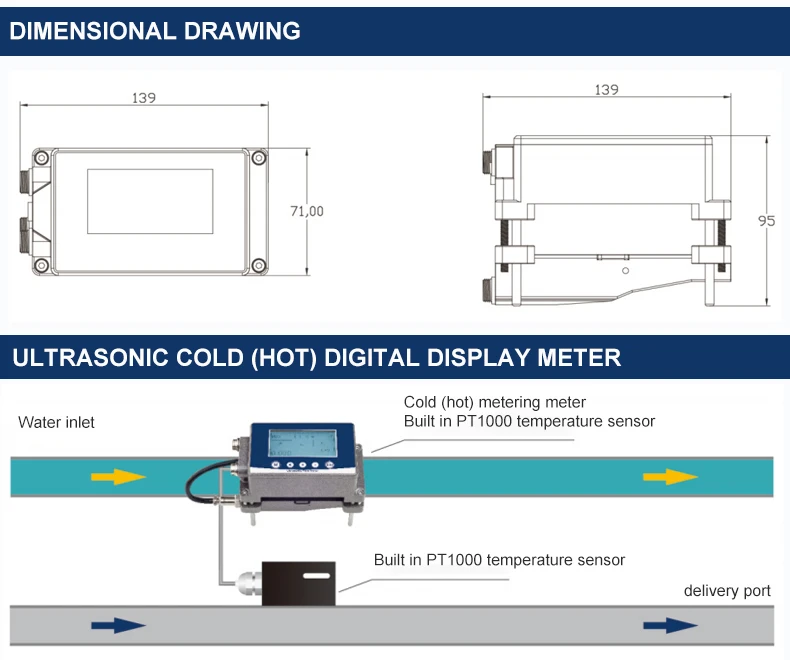

Optional configuration as an ultrasonic cold (hot) meter to achieve monitoring and measurement of energy consumption.
Adopting a brand new external clamp design, there is no need to contact the measuring medium. It can avoid pressure loss and medium pollution caused by traditional flow meters.
Multiple modes are available for setting, flexible and diverse. A set of machines that can measure all diameters within a universal range and are suitable for various metal and resin pipes.
Large screen display. The display content is diverse and user-friendly.
Optional configuration as an ultrasonic cold (hot) meter to achieve monitoring and measurement of energy consumption.

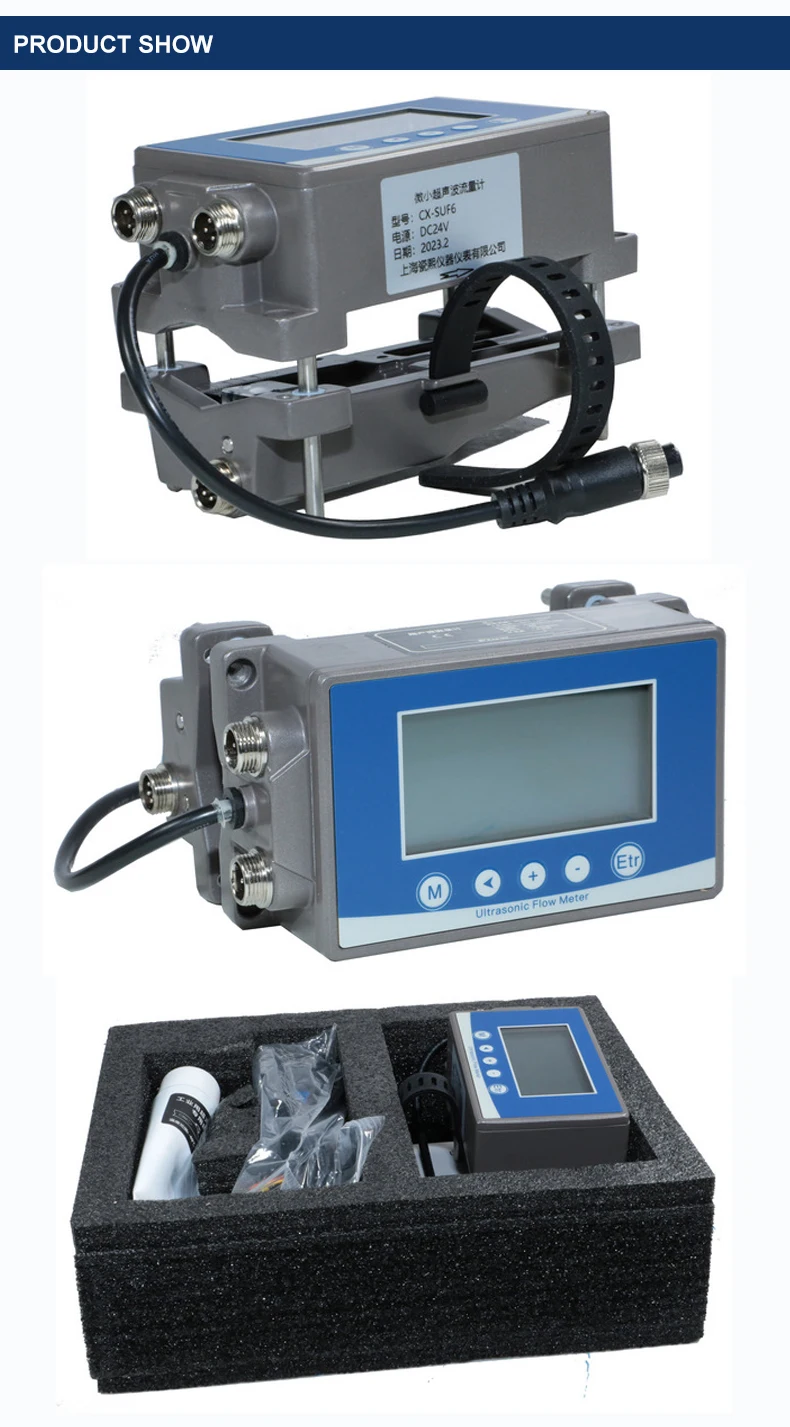

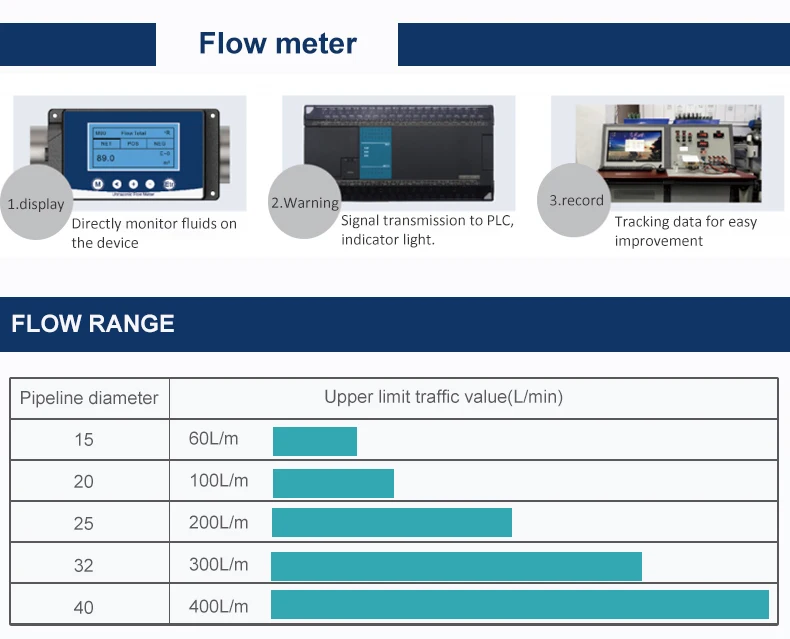

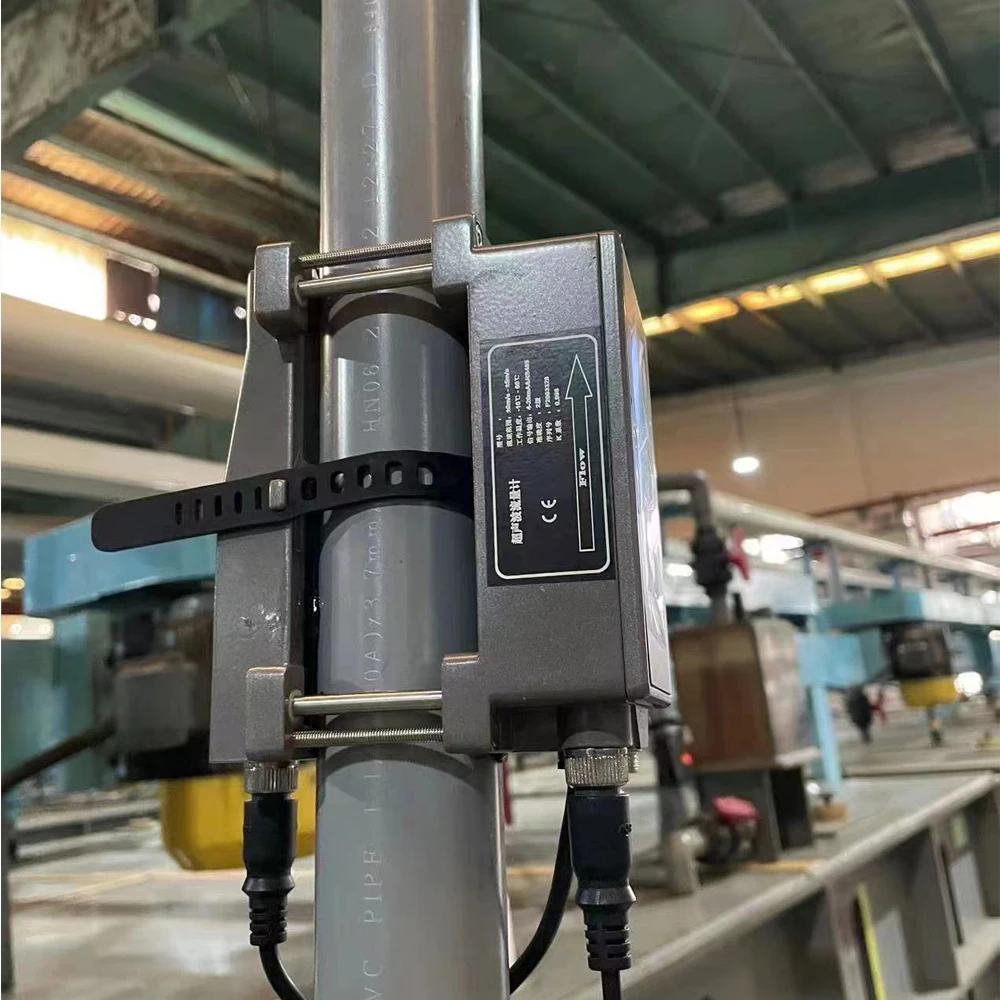

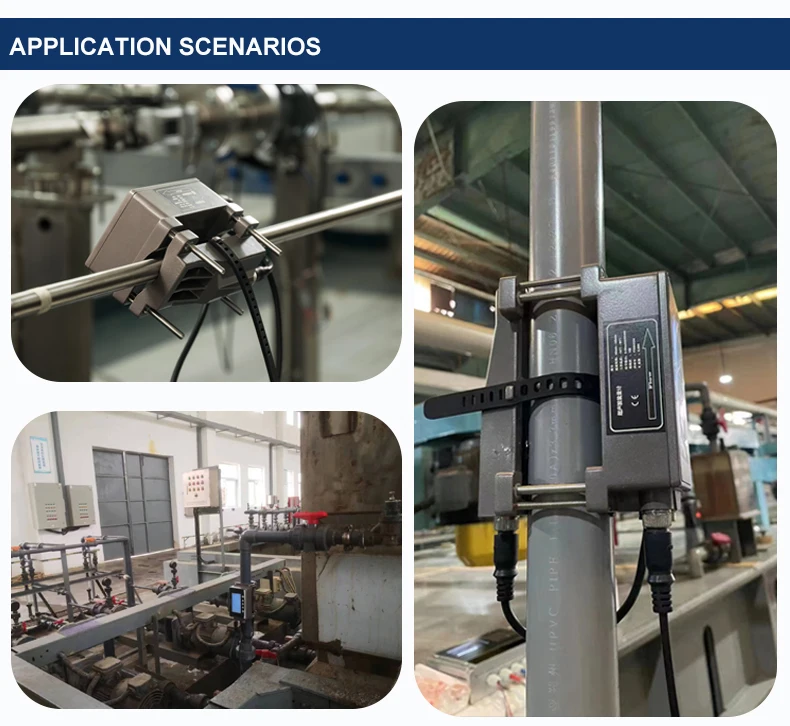

Product Show
Company Profile
FAQ
Q1.Are you a factory?
A1:We are based in Shanghai, China, start from 2011.Main production and sales of various industrial flow meters and other products.Welcome to visit!
Q2.what can you buy from us?
A2:We can provide one-stop flow meter services, providing sales of instruments such as flow meters, liquid level gauges, vacuum gauges, pumps, sensors, industrial thermometers, etc.
Q3.What is your terms of packing?
A3: Generally, JSN brand colorful cardboard boxes packing.OEM brandbrown cardboard boxes packing.
Q4. How about your delivery time?
Q4. How about your delivery time?
A4: Generally, standard type : 6-7 working days after confirm the order.non-standard type: 8-10 working days after confirm the order.
Q5. What's your MOQ?
A5: We have no MOQ demand, 1 piece for test purpose at first is acceptable.
Q6. How do you ensure good product quality?
A6: We have a complete quality control system; All of our products are fully checked by IQC, OQC departments before ship to our clients.
Q7. How long your quotation valid?
A7: Our quotation valid for 1 months.
Q8. Can you accept OEM brand?
A8: Yes, we can accept the OEM brand without extra charge.
Q9. How long is your product warranty?
A9: 7 days replacement and 12 months repair free of charge for quality problem.
Q10. Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
