CE Approved High End Electric Aluminum Alloy Work Platform Table Lifter

Product Overview

Description

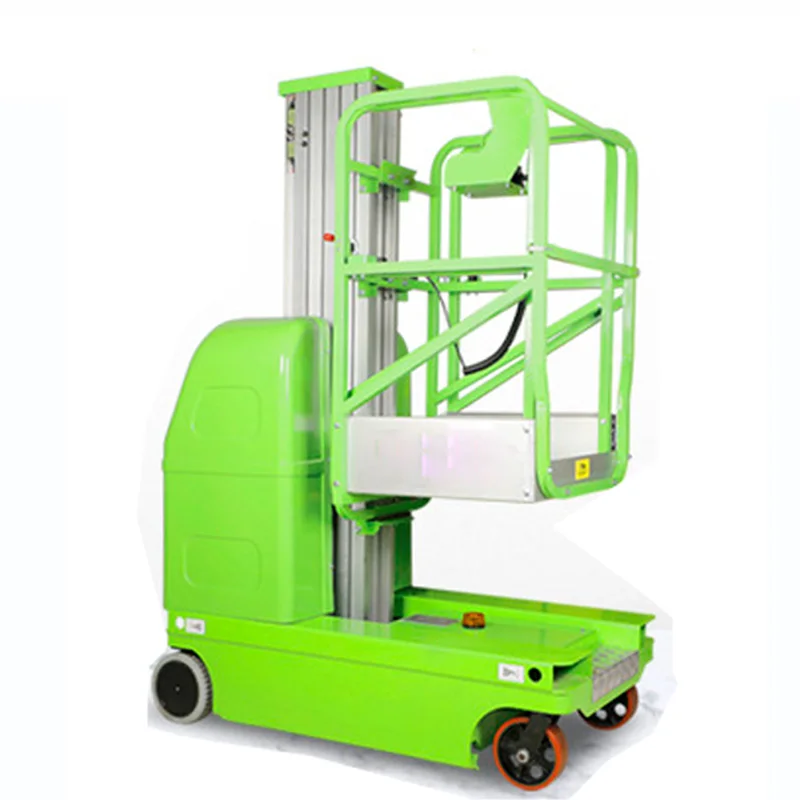

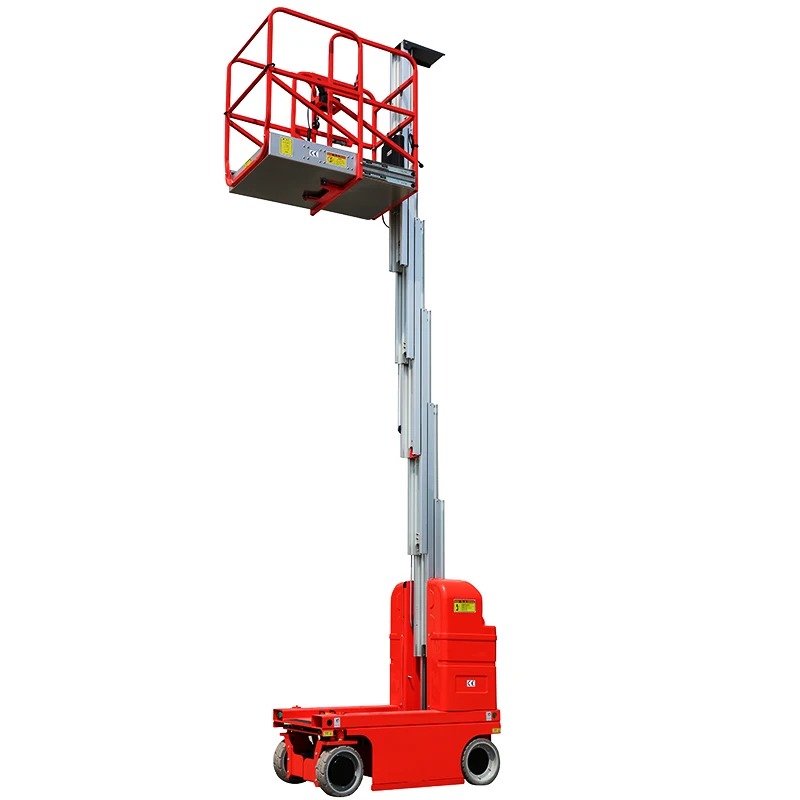

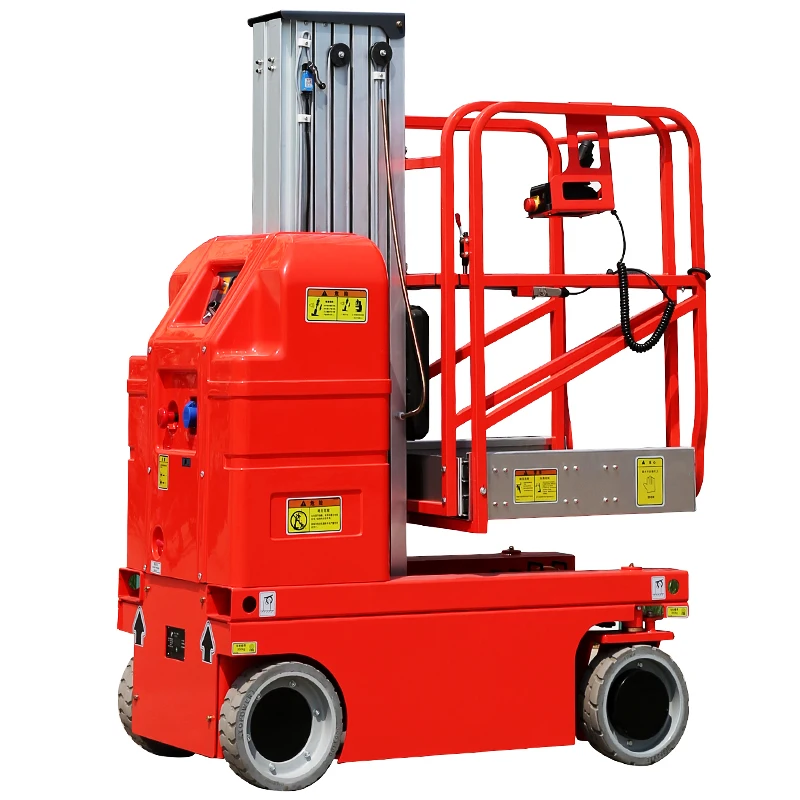

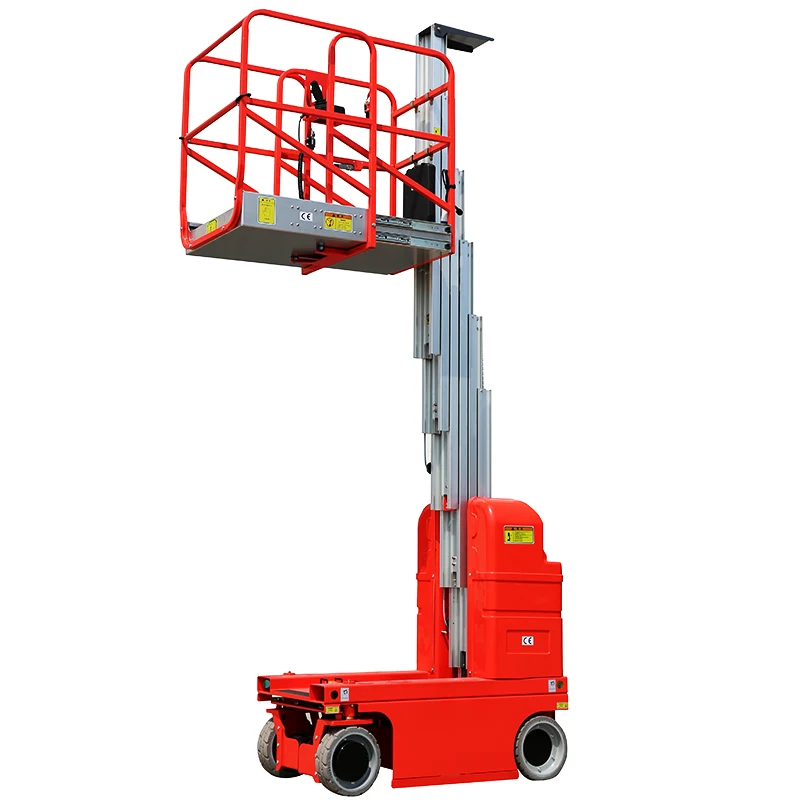

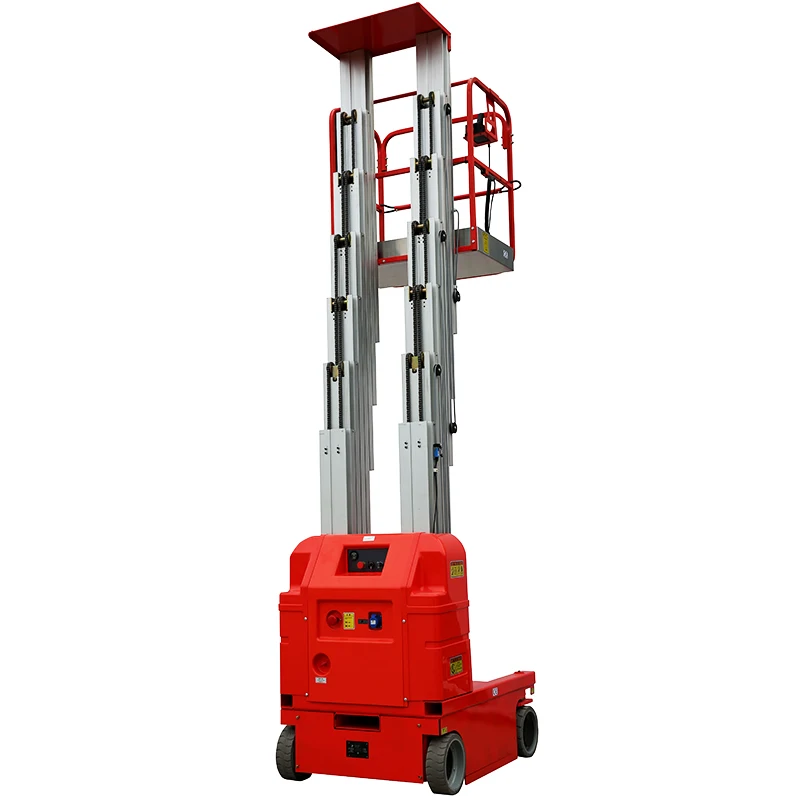

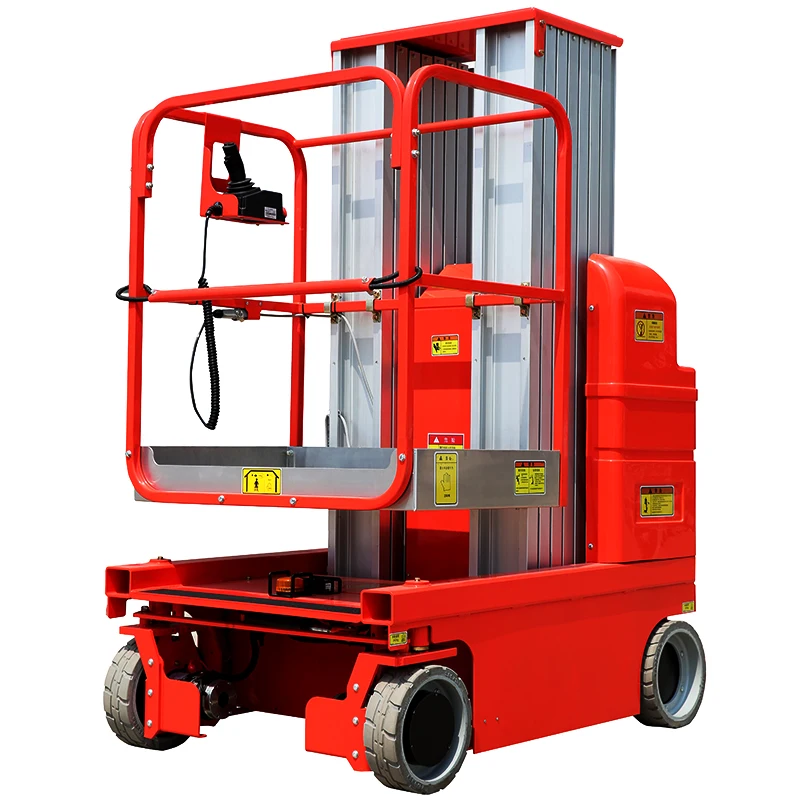

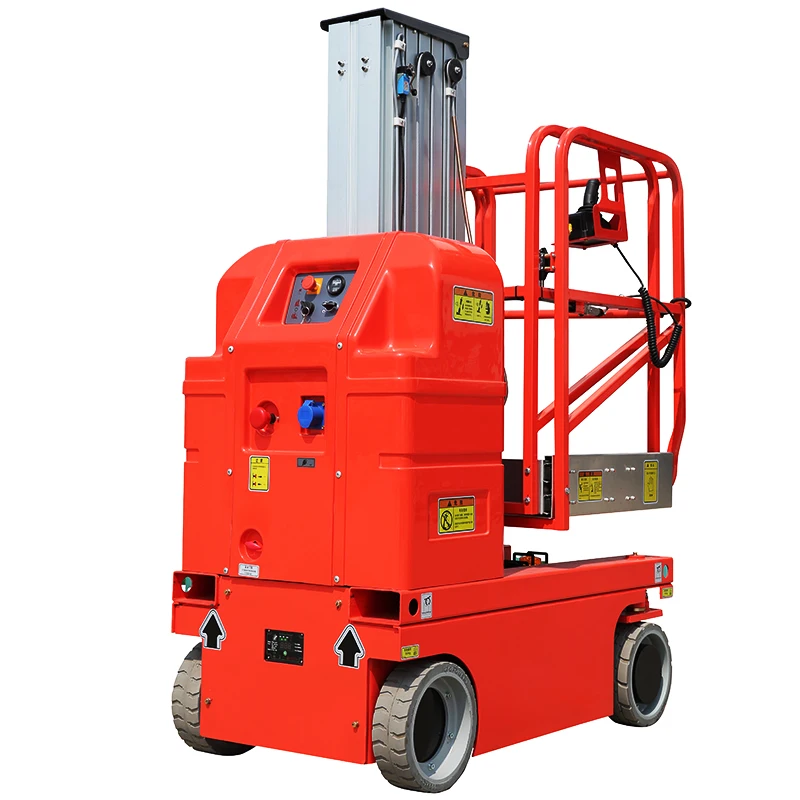

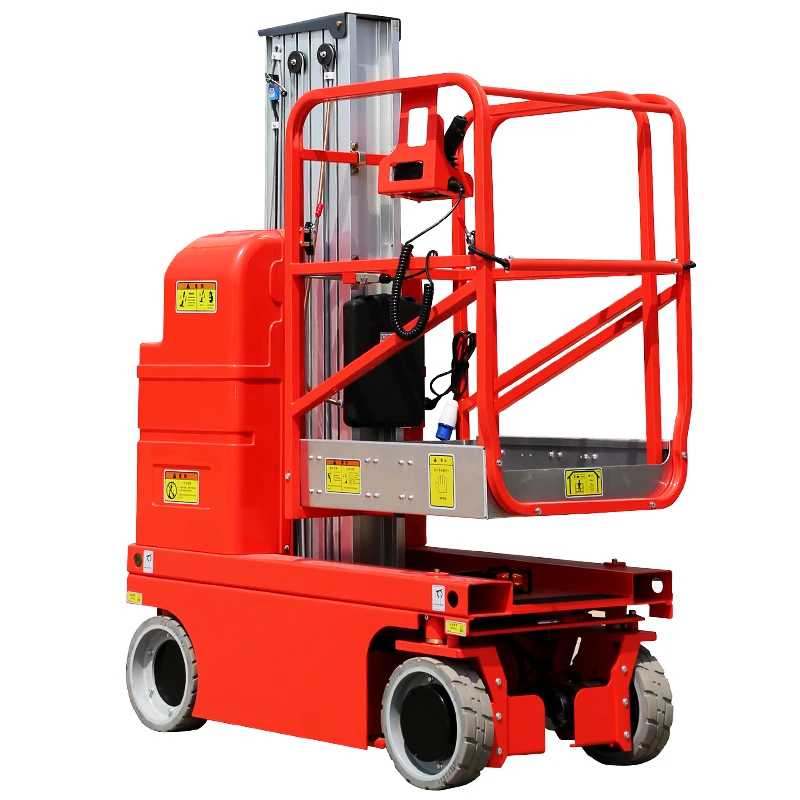

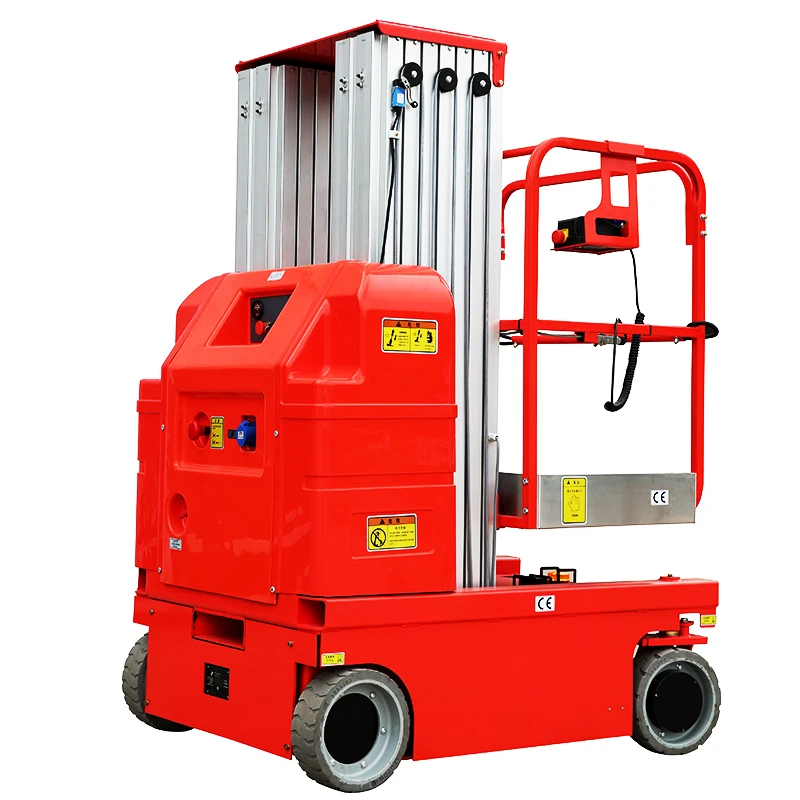

Self Propelled Aluminum Alloy Aerial Lift





Self Propelled

Self Propelled Single Mast Aluminum Lift moves around through electric power and doesn't require manual

application.

Find from below table information on lifting capacity, platform size and power unit. Different from other aluminum models, this automated type is controlled all by a joystick placed on platform rail.



Easy Transportation

It also has two rectangular pockets into which forklift feet can slide to lift onto vehicles, and its volume is compact just like aluminum peers.



Safe and Reliable

Multiple safety features, like other lifting equipment, include anti-burst valves which kicks in to maintain hydraulic pressure when hose is accidentally punctured and emergency decline mechanism which allows for emergency descent during power failure.

Application scenarios include warehouses, homes, hotels, airports and other venues.



Inexpensive

It is much more inexpensive than those produced by Western countries due to cheap labor in China, affordable to most clients.



		SPA-6	SPA-7.5
Max.Platform Height	mm	6000	7500
Max Working Height	mm	8000	9500
Load capacity	mm	125Kg
occupants	mm	1	1
Overall size	mm	1400*820*1980
Platform Size	mm	1260*700
Wheel Base	mm	1140
Max Drive Speed  (Platform Stowed)	Km/h	4
Max Drive Speed  (Platform Extended)	Km/h	1.1
Min Turn Radius	mm	0
UP/Down speed	/SEC	48/40SEC	43/35SEC
Driving Wheel Size	mm	Φ230X80
Battery	V/Ah	2X12VDC/85AH
Lifting motor	/	24VDC/2.2KW
Net weight	kg	1120	1356
Charger		24V/11A



Safety Precautions:
1. One Way Valve                               2. Adjustment Valve
3. Emergency decline valve              4. Overflow Valve
5. Emergency Stop Button                6. Support Legs Lock







Advantages:



1. Made of aluminum alloy material, the machine is lighter.
2. Strong chassis coupled with gradienter ensures operational stability.
3. It's equipped with overload protection system and 24V safe voltage control.
4. Durable and requires minimum attention for maintenance.
5.Equipped with Emergency decline valve, overflow valve, one way valve, adjustment valve to guarantee the overall safety of the lift platform.

6. Emergency stop present on platform and machine body.

7. Emergency decline available amid power failure.
9. Non-Marking PU Wheels.
