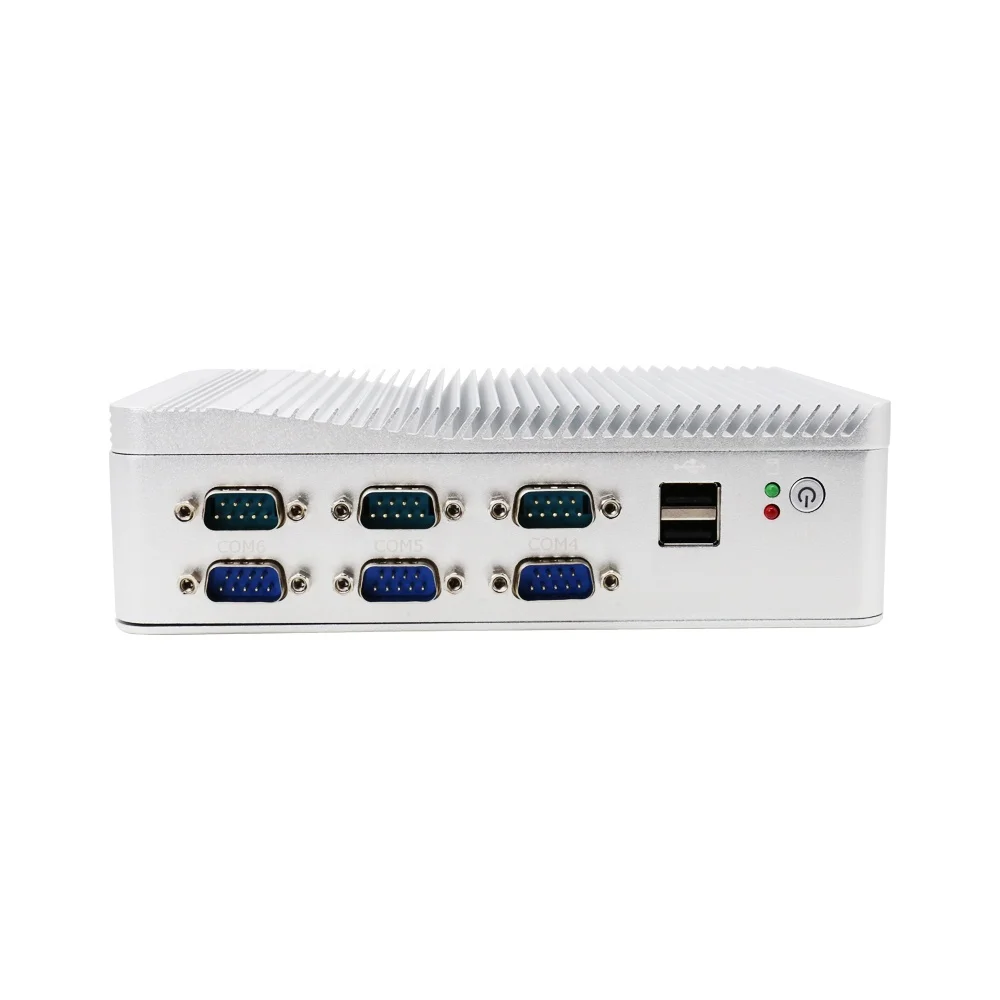

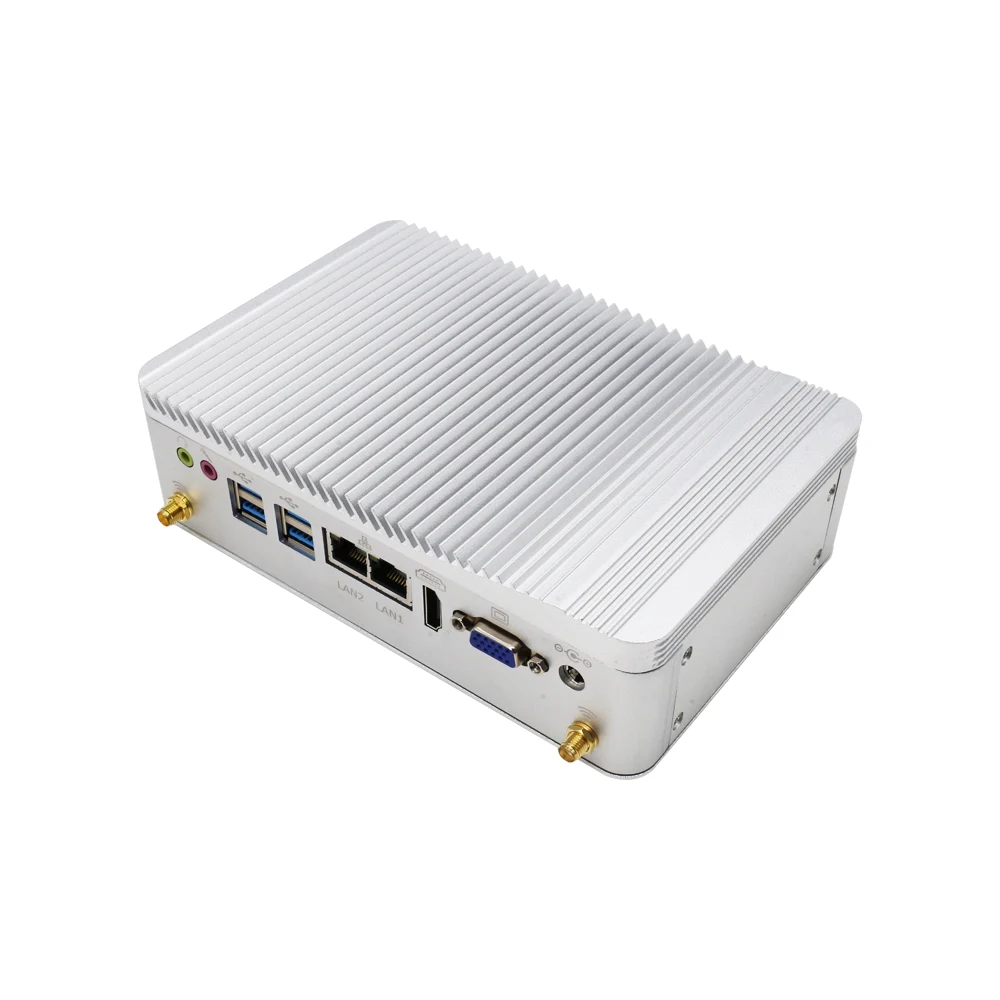

Industrial Fanless mini PC i7 4500U i5 4200u Rugged computer 2*i210/i211Giga Lans 6*RS232/485 COM HD VGA 8*USB 3G/4G module
- Category: >>>
- Supplier: Dongguan Mini Tree Computer Manufacturing Co. Ltd.
Share on (1601273554088):
Product Overview
Description
Product Description
Processor parameter for referance only:
1. Kaby Lake 14nm CPU Intel Core i5 4200U 2 cores 4 threads 1.6Ghz max 2.6GHz 3M cache TDP 15W Intel HD Graphics 4400.
2. Kaby Lake 14nm CPU Intel Core i7 4500U 2 cores 4 threads 1.8Ghz Max to 3.0Ghz 4M cache TDP 15W Intel HD Graphics 4400.
1. Kaby Lake 14nm CPU Intel Core i5 4200U 2 cores 4 threads 1.6Ghz max 2.6GHz 3M cache TDP 15W Intel HD Graphics 4400.
2. Kaby Lake 14nm CPU Intel Core i7 4500U 2 cores 4 threads 1.8Ghz Max to 3.0Ghz 4M cache TDP 15W Intel HD Graphics 4400.
Quick details
Feature
Industrial Mini PC Intel Core i7-4500U/5500U i5-4200U Processors,
support Windows 10, Windows 8.1, Windows 7, Linux &Ubuntu,
support dual storage 1*mSATA +1*2.5inch SATA SSD/HDD,
4*USB 3.0, 4*USB 2.0 ( total 8x USB prots ), Dual Intel Gigabit Ethernet LAN ports, Mini PCI-E WiFi 802.11b/g/n(Buletooth optional
), 6x RS232 Serial Ports ( 2x RS485 optional ), HDMI & VGA Dual Display,
Aluminum Chassis & Fanless passive Cooling & Zeor Noise & Energy saving, Watch Dog function, Auto power on, RTC Wake up,
Support 3G/4G module and SIM card
Industrial Mini PC Intel Core i7-4500U/5500U i5-4200U Processors,
support Windows 10, Windows 8.1, Windows 7, Linux &Ubuntu,
support dual storage 1*mSATA +1*2.5inch SATA SSD/HDD,
4*USB 3.0, 4*USB 2.0 ( total 8x USB prots ), Dual Intel Gigabit Ethernet LAN ports, Mini PCI-E WiFi 802.11b/g/n(Buletooth optional
), 6x RS232 Serial Ports ( 2x RS485 optional ), HDMI & VGA Dual Display,
Aluminum Chassis & Fanless passive Cooling & Zeor Noise & Energy saving, Watch Dog function, Auto power on, RTC Wake up,
Support 3G/4G module and SIM card
Specification
CPU | Intel Core i5 4200U/i7 4500U | |
Motherboard | 190mm x 150 mm customized size | |
BOIS | American Megatrends Inc. 5.6.5 | |
Chipset | Intel SOC | |
Memory | 1 x SO-DIMM DDR3L Slot, Support 4GB/8GB DDR3L 1333/1600 | |
OS | Windows 7/Windows 8/Windows 10/Linux | |
PXE | YES | |
Audio | ALC662 sound chip, 6-channel Intel Lynx Point-LP HD Audio Controller | |
Network | Onboard Intel i211 Gigabit Network Connection 2x10/100/1000Mbps BaseT LAN | |
Video | Intel HD Graphics4400 | |
Input/output port | ||
Switch | 1 x Power On/Off Switch | |
Power | 1 x 12V DC In | |
USB | 4 x USB2.0, 4 x USB3.0 | |
Display | 1 x VGA, 1 x HDMI | |
LAN | 2 x RJ45 Giga LAN | |
COM | 6 COM RS232, COM5 COM6 can change to RS485 from BIOS | |
Audio | 1 x MIC, 1 x SPK | |
Others | 1 x embedded 3G/4G SIM card slot onboard | |
Storage | ||
MSATA | 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s | |
SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s | |
Wi-Fi | ||
Module | 1 x mini PCIE-half port for Wi-Fi module 1 x mini PCIE-full port for 4G module | |
Antenna | 2 x inner RF cables and 2 x external antennas | |
Product Dimension & Details | ||
Size | 210*150*69mm | |
Weight | Net 1.8kg, Gross 2.5kg | |
Shell | Black/Silver color aluminum alloy | |
Mounting | 4 Mounting holes on case | |
Cooling Mode | Fanless | |
Functions | Watch dog, Auto power on, RTC, Wake-on-LAN | |
