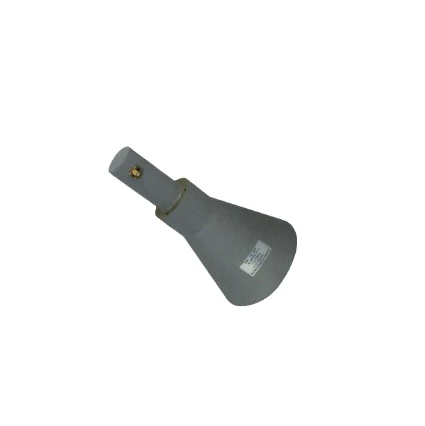

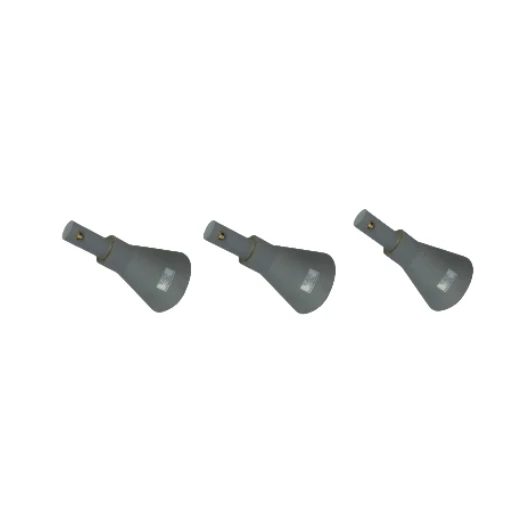

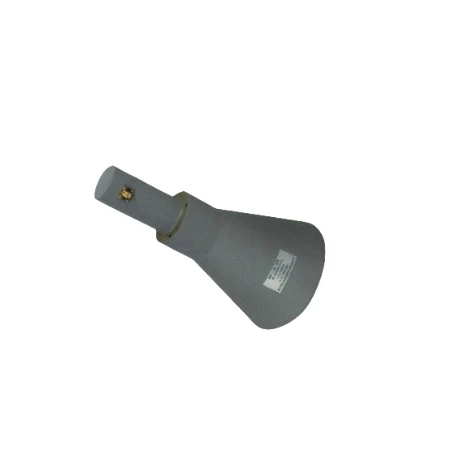

Double circularly polarized horn antenna (stepped diaphragm conical horn type)
- Category: >>>
- Supplier: Xian Winfine Telecom Technology Pte. Ltd.
Share on (1601273974286):
Product Overview
Description
Products Description
The dual circularly polarized stepped diaphragm conical horn antenna adopts a "dual port fed stepped diaphragm conical horn" to form a dual circularly polarized antenna. It is characterized by small size, narrow working bandwidth, good axial ratio index, and is suitable for low-frequency use.
Specification
Product Type | Frequency range(GHz) | Working bandwidth | Gain optional range X (dB) | axial ratio(dB) | VSWR | Polarization isolation | Size(mm) | Connector Type |
WF-32DCPTCHA10N | 2.6-4 | ≤10% | 10~20 | ≤1.5 | ≤1.5 | 28 | Φ170x380 | N-K |
≤20% | ≤2.5 | 25 | ||||||
WF-40DCPTCHA10N | 3.5-5 | ≤10% | 10~20 | ≤1.5 | ≤1.5 | 28 | Φ130x320 | N-K |
≤20% | ≤2.5 | 25 | ||||||
WF-48DCPTCHA10N | 4--6 | ≤10% | 10~20 | ≤1.5 | ≤1.5 | 28 | Φ110x280 | N-K |
≤20% | ≤2.5 | 25 | ||||||
WF-58DCPTCHA10N | 4.5-7 | ≤10% | 10~20 | ≤1.5 | ≤1.5 | 25 | Φ100x260 | N-K |
≤20% | ≤2.5 | 25 | ||||||
WF-70DCPTCHA10N | 5--8 | ≤10% | 10~20 | ≤1.5 | ≤1.5 | 28 | Φ90x240 | N-K |
≤20% | ≤2.5 | 25 |
