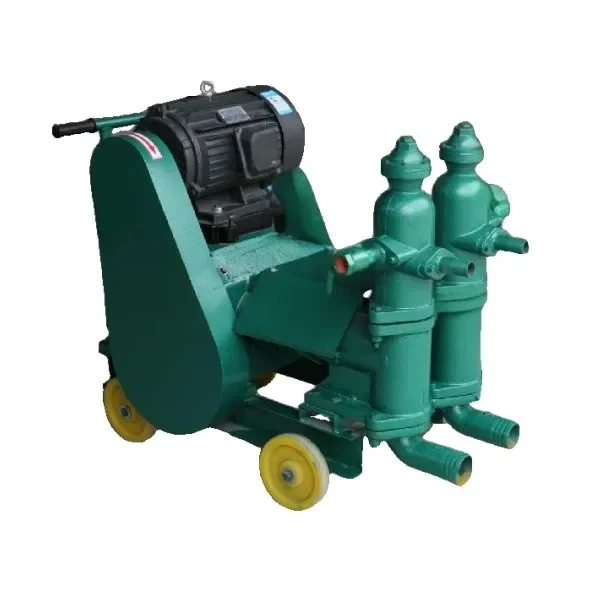

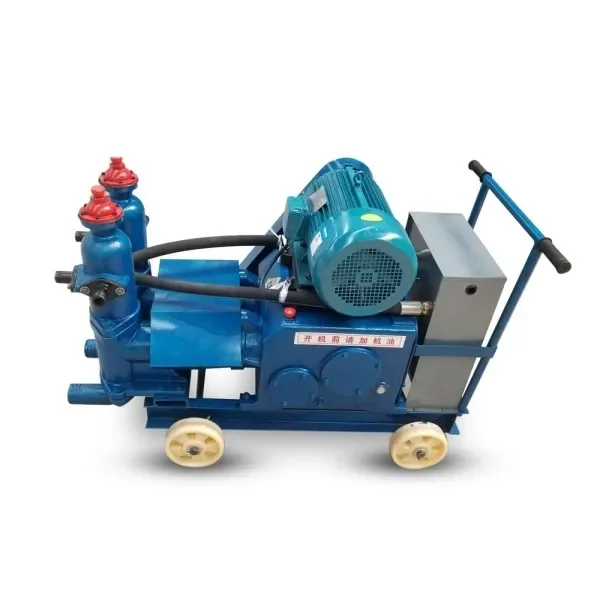

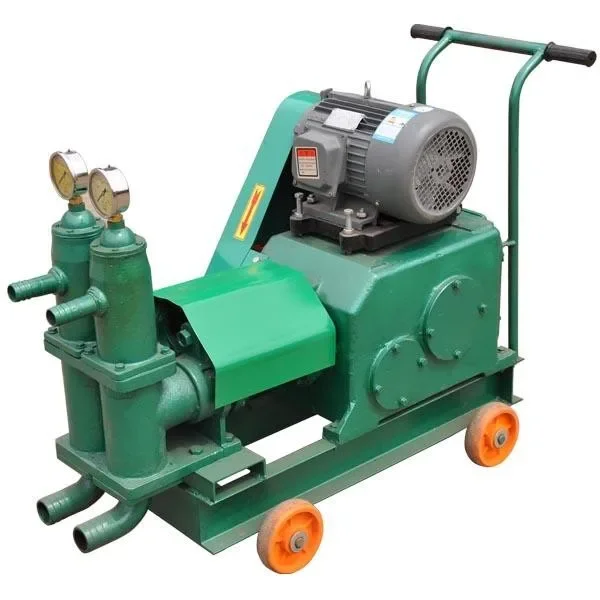

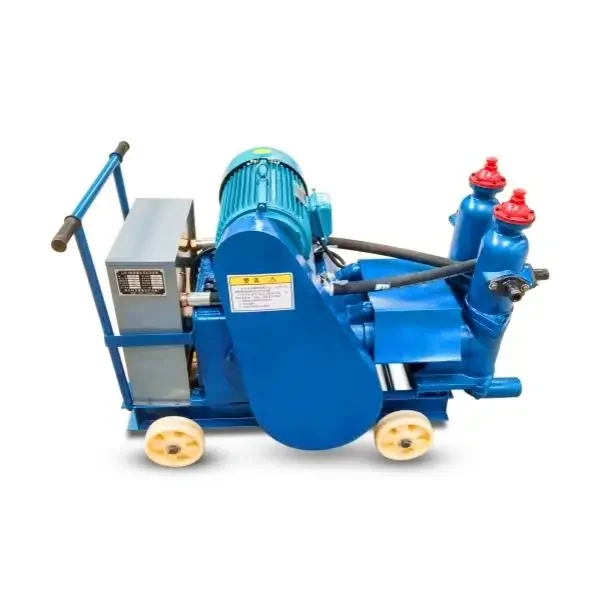

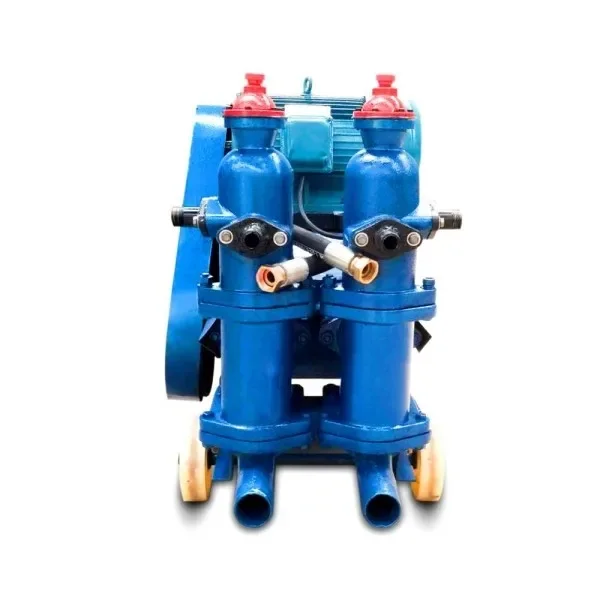

HJB-6 Cement grouting pump

The HJB-6 cement grouting pump is a horizontal double-acting reciprocating piston pump.The pump has two independent cylinders, two slurry suction ports and two slurry discharge ports. It can perform double-liquid grouting operations. The slurry discharge ratio is 1:1. The grouting speed is controlled by the gearbox and divided into 4 speeds, corresponding to different slurry discharge volumes. Since the two cylinders of the cement grouting pump output slurry at the same time, through the mixer, the mixing can achieve a more accurate mixing ratio, and the gel time of the slurry is easier to control, so that the diffusion radius of the slurry can be effectively controlled, thereby improving the quality of the grouting project and reducing the cost of the grouting project. The double-liquid variable cement grouting pump is mainly used for soft foundation reinforcement, tunnel grouting, water blocking and consolidation grouting of broken rocks.



FEATURES AT A GLANCE



1.Strong power, large displacement and pulse-free operation.
2.Pure copper motor: The motor is wrapped with pure copper inside, which has a longer service life.
3.Pressure gauge: It can realize automatic control and alarm for various gas and liquid media with measured pressure through the instrument.
4.Piston pump: adopts electrical automatic control safety device.
5.Double-cylinders: Supports simultaneous delivery of two liquids with dual inlet and outlet, large slurry output, high efficiency and time saving.


PRODUCT SPECIFICATIONS


Model
HJB-6
Cylinder number
2
Transportation volume (m3/h)
6
Motor power (KW)
4
Input speed (r/min)
1440
Size of suction pipe (mm)
51
Size of slurry discharge pipe (mm)
32/38
Outward Dimensions (L*W*H) (mm)
1250×430×850
Weight( Kg)
320


SIMILAR PRODUCTS




FAQ


Q1: How about the quality of machines?
A1: Our machines adopt CR-Steel and advanced technology. Moreover, we carry out strict supervision during production and make sure every finished product with high quality.

Q2: About the delivery time?
A2: Generally, if have in stock, the machine will be about 3-5 days after your deposit, which also will be on basis of your order.

Q3: As for the warranty?
A3: We provide 1-2 years for warranty according to the machine.

Q4: Which kind of payment is available for us?
A4: T/T, L/C and Western Union are common for us.

Q5: How about the service?
A5: Provide overseas installation, debugging and training the relating work.

Q6: Is there a discount on your price about this machine?
A6: Yes, we will give you a big discount about the machine.
