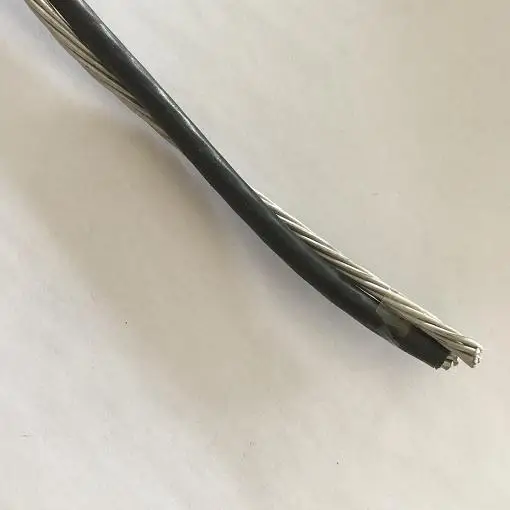

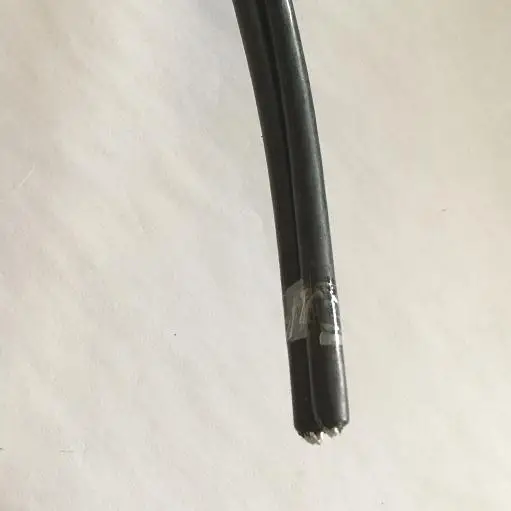

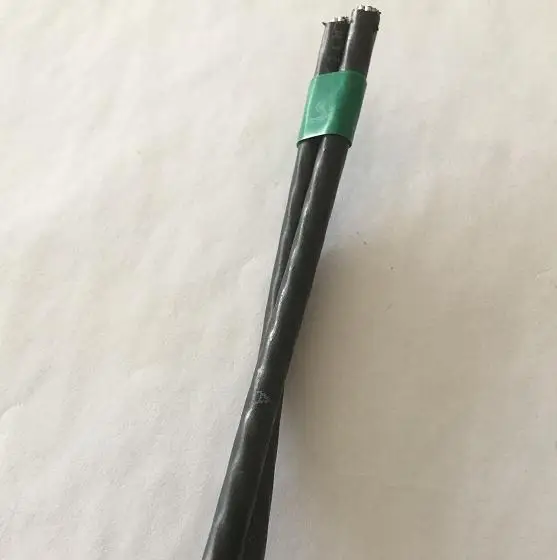

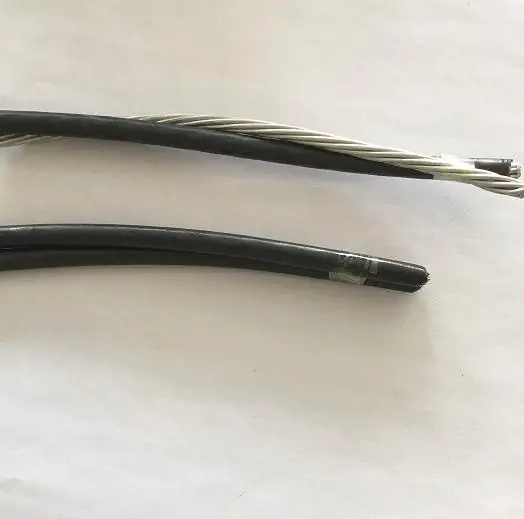

1 kV 1x16 16 Stranded Overhead ABC Cable Aluminum Conductor with XLPE & IEC Insulation Low Voltage Power Cable Heating MOQ 100m
- Category: >>>
- Supplier: Zhengzhou Aobest Electronic Technology Co. Ltd.
Share on (1601274246156):
Product Overview
Description
ABC CABLE (aerial bundle cable) supplier, one of the biggest cable manufactor in China. rated voltages up to and including 600 V
ABC aerial bundle cable; Service Drop Cable

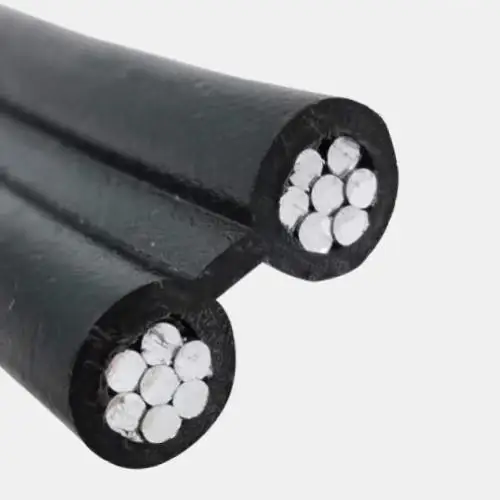

1 The basic construction is as follows:
three power cores consisting of standard aluminum conductors, insulated with XLPE
insulation + One sheath lighting aluminum conductor with XLPE insulation (optional) + One messenger Al-alloy conductor (bare or covered)
The messenger conductor can be of galvanized steel wire also.
The purpose of messenger wire is
A) It acts as load bearing wire.
B) It acts as earth or neutral conductor.
2 Application
To be used at cottages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLPE) insulated conductors.
It meets or exceeds the following specifications:
2.1. Aluminum Wire, 1350-H19 for Electrical Purposes.
2.2. Aluminum Conductors, Concentric-Lay-Stranded.
2.3. Aluminum Conductor, Concentric-Lay-Stranded, Coated Steel Reinforced(ACSR)
2.4. Concentric-Lay-Stranded 6201-T81 Conductors
2.5. Compressed Round Stranded Aluminum Conductors Using Single Input Wire.
It meets or exceeds all applicable requirements of ANSI/ICEA S-76-474
3.Types (ABC Aerial cable with ACSR messenger Core)

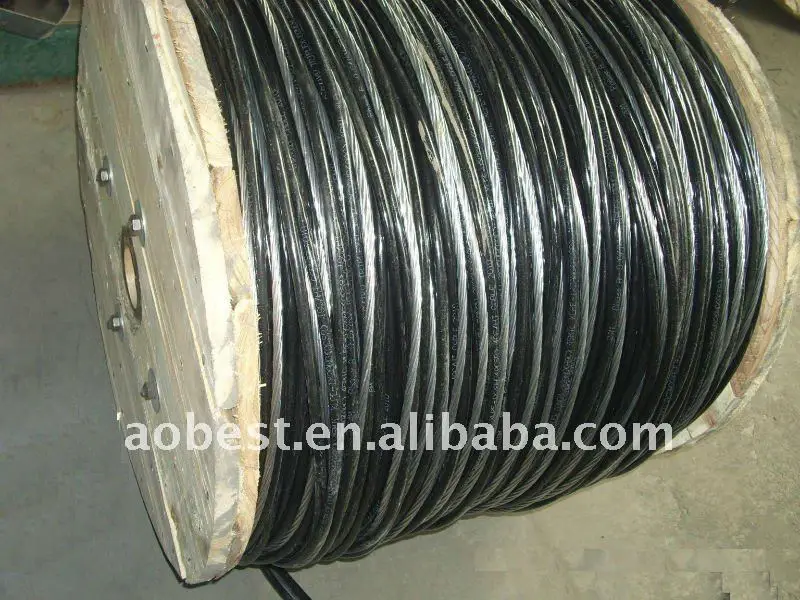

Nominal cross-section area (mm2) | Conductor structure | Insulation material | Insulation Thickness (mm) | Approx. Overall Diameter (mm) | Approx.weight (kg/km) | Packing meters per drum | ||
Phase (Compacted AL) | Neutral(bare ACSR) | |||||||
(No./mm) | Aluminum (No./mm) | Steel (No./mm) | ||||||
1x16+16 | 7/1.72 | 6/1.72 | 1/1.72 | XLPE | 1.2 | 12.5 | 121.9 | 250-4000m |
1x25+25 | 7/2.15 | 6/2.15 | 1/2.15 | XLPE
| 1.2 | 14.9 | 182.2 | 250-4000 |
1x35+35 | 7/2.54 | 6/2.54 | 1/2.54 | XLPE
| 1.4 | 17.5 | 254.7 | 250-3500m |
1x70+70 | 19/2.15 | 12/2.15 | 7/2.15 | XLPE
| 1.4 | 23.6 | 382.2 | 250-3000m |
1x95+95 | 19/2.54 | 12/2.54 | 7/2.54 | XLPE
| 1.6 | 27.6 | 528.2 | 250-3000m |
2x16+16 | 7/1.72 | 6/1.72 | 1/1.72 | XLPE
| 1.2 | 14.2 | 187.6 | 250-4000m |
2x25+25 | 7/2.15 | 6/2.15 | 1/2.15 | XLPE
| 1.2 | 16.7 | 273.8 | 250-3500m |
2x35+35 | 7/2.54 | 6/2.54 | 1/2.54 | XLPE
| 1.4 | 19.7 | 386.9 | 250-3500m |
2x70+70 | 19/2.15 | 12/2.15 | 7/2.15 | XLPE
| 1.4 | 26.1 | 617.2 | 250-3000m |
2x95+95 | 19/2.54 | 12/2.54 | 7/2.54 | XLPE
| 1.6 | 30.5 | 850.9 | 250-3500m |
3x70+70 | 19/2.15 | 12/2.15 | 7/2.15 | XLPE
| 1.4 | 29.7 | 1024.3 | 250-3000m |
3x95+95 | 19/2.54 | 12/2.54 | 7/2.54 | XLPE
| 1.6 | 34.6 | 1413.7 | 250-3000m |
We will provide you with High quality and reasonable price wire. welcome your trial order.
