High quality Earthmoving Machine Mini Small excavator 9051FZTS Crawler Excavator with good price
- Category: >>>
- Supplier: Caterbe Construction Equipment (Wuhan) Co. Ltd.
Share on (1601274543161):
Product Overview
Description
Products Description
overview
Details Images

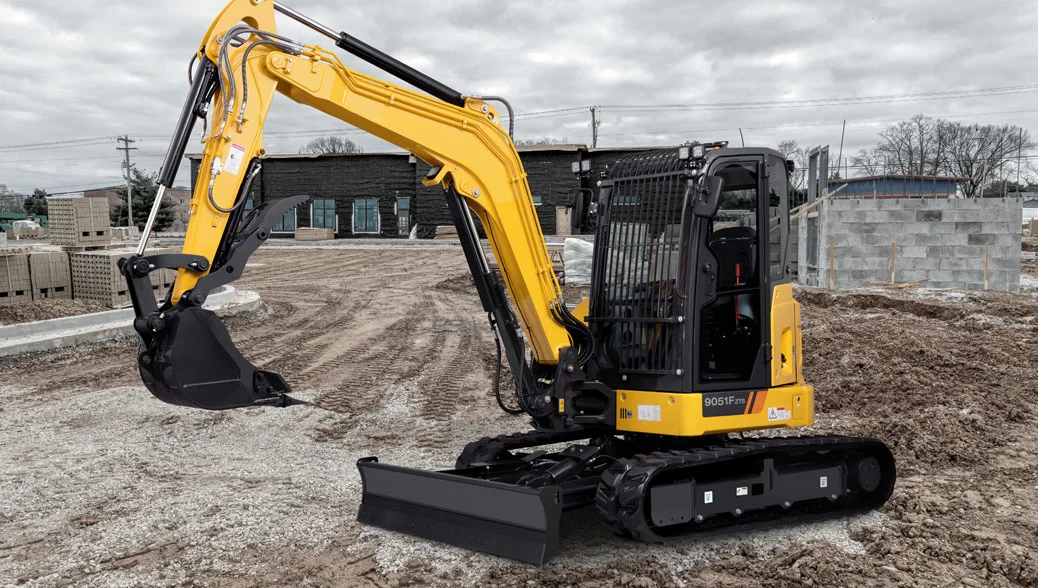

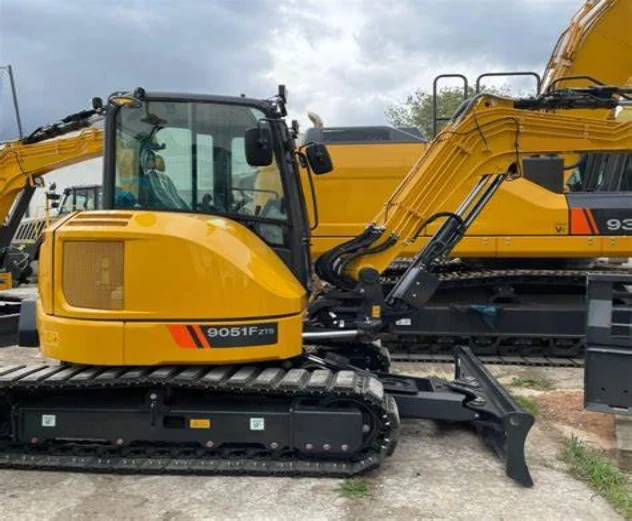

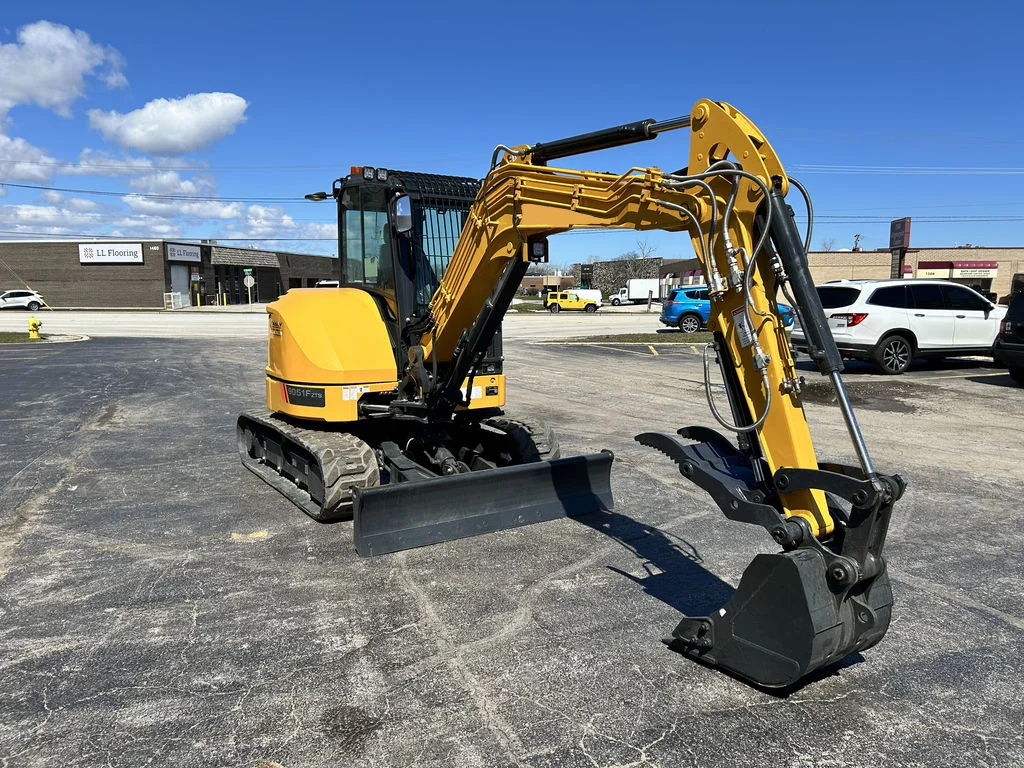

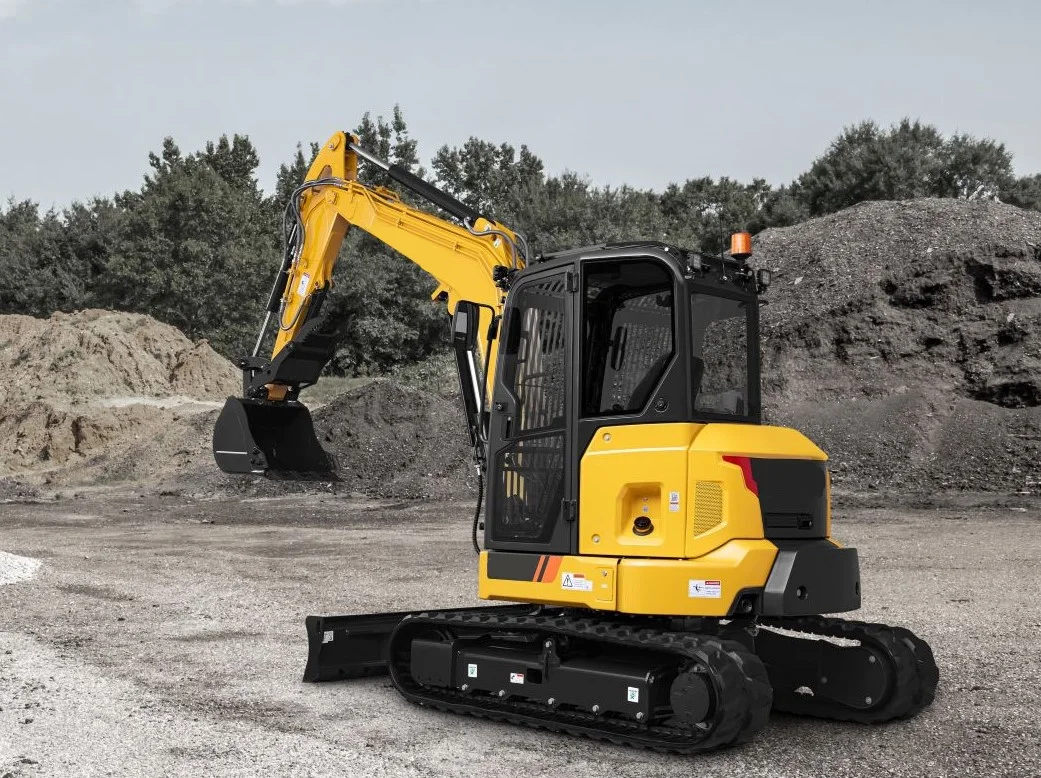

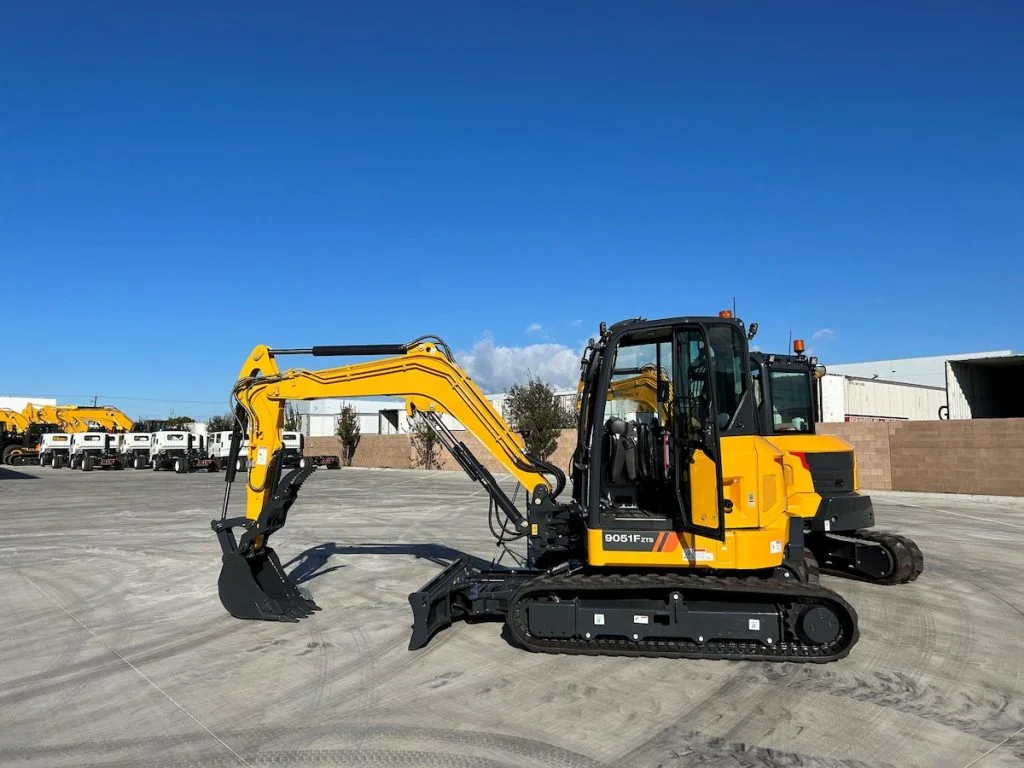

hot selling 5 ton small excavator 9051FZTS crawler excavator with good quality
* With zero tail swing (ZTS), our 5T range can work in confined spaces. This design significantly reduces the likelihood of collisions making for a safer working environment.
* From the ergonomically positioned non-slip pedals to the multi-functional joysticks, the cabin terior represents a masterclass in design.
* From the ergonomically positioned non-slip pedals to the multi-functional joysticks, the cabin terior represents a masterclass in design.
Product Paramenters
Operating Weight | 5,180 kg |
Rated Power | 35.5 kw |
Stadard Bucket Capacity | 0.14 m³ |
Bucket Capacity | 0.06-0.26 m³ |
Travel Speed (Hight/Low) | 4.2/2.4 km/h |
Swing Speed | 9.6 r/min |
Bucket Digging Force(ISO) | 37 kN |
Arm Digging Force(ISO) | 25 kN |
Shipping Length | 5,510 mm |
Shipping Width | 1,960 mm |
Shipping Height | 2,550 mm |
Shoe Width | 400 mm |
Max. Digging Reach | 5,850 mm |
Max. Digging Reach on Ground | 5,765 mm |
Max. Digging Depth | 3,450 mm |
Max. Vertical Wall Digging Depth | 2,510 mm |
Max. Cutting Height | 5,423 mm |
Max. Dumping Height | 3,880 mm |
Min. Front Swing Radius | 2,624 mm |
Emission Regulation | Stage V/ Tier 4F |
Main Pumps Total Flow | 149.6 L/min |
Relief Pressure, main | 27.4 MPa |
System pressure | 21.6 MPa |
