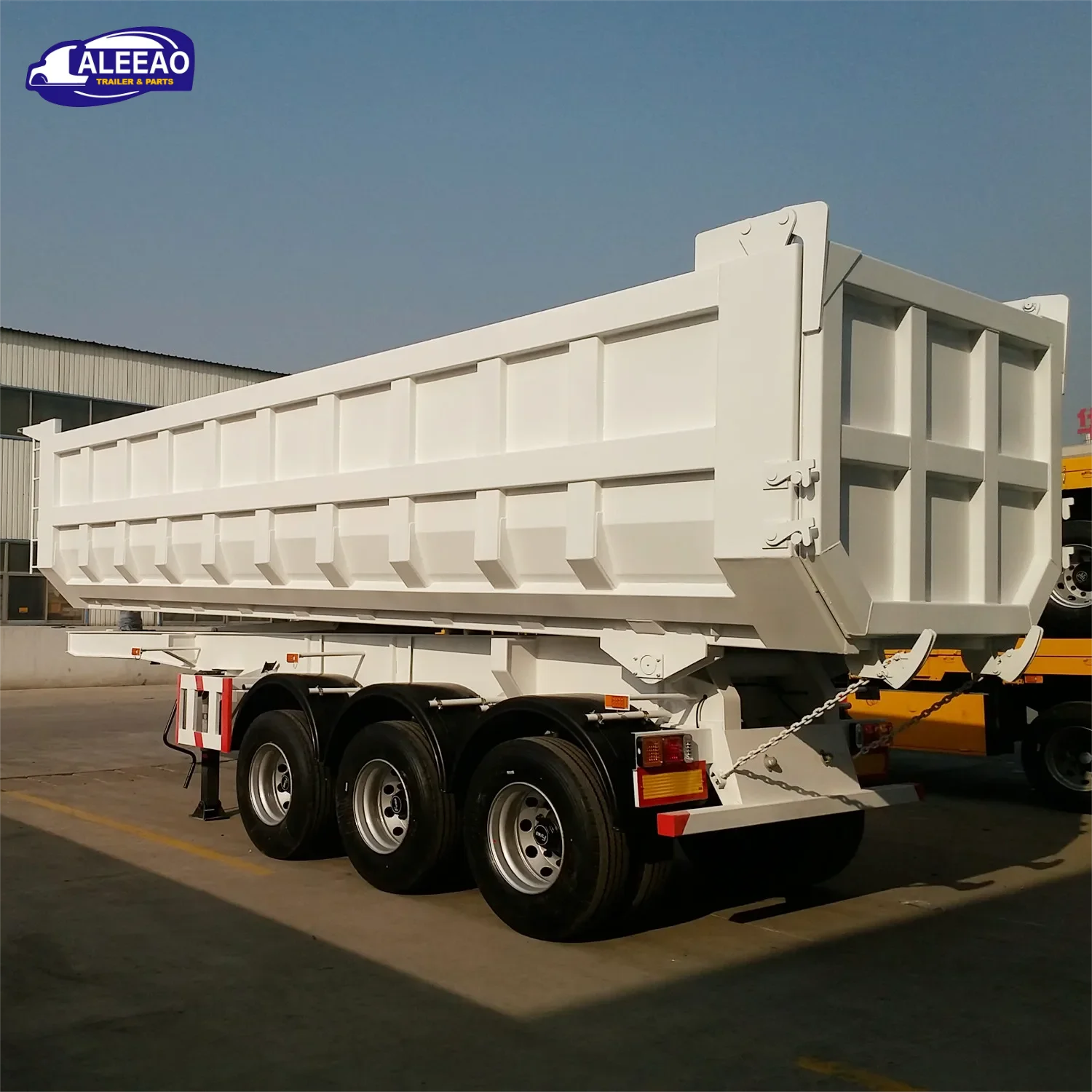

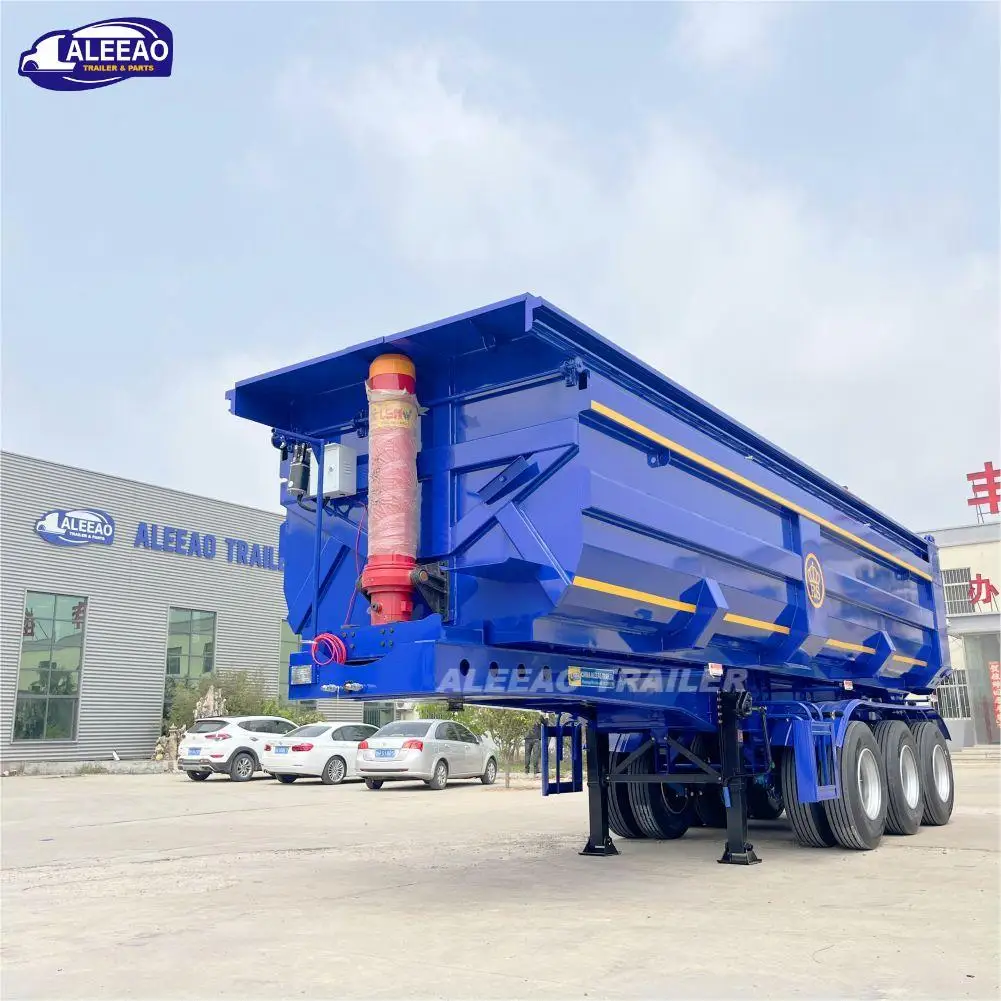

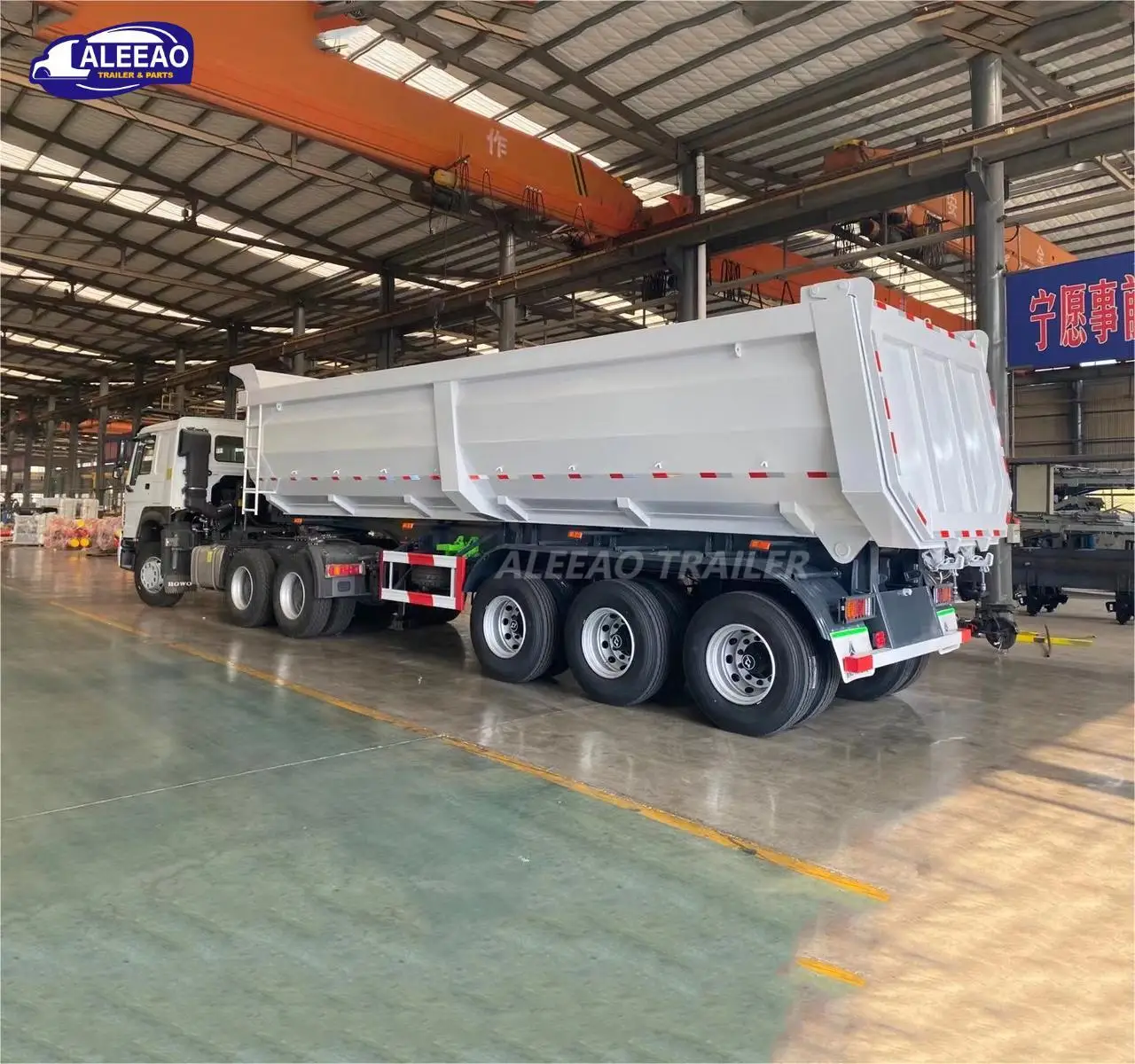

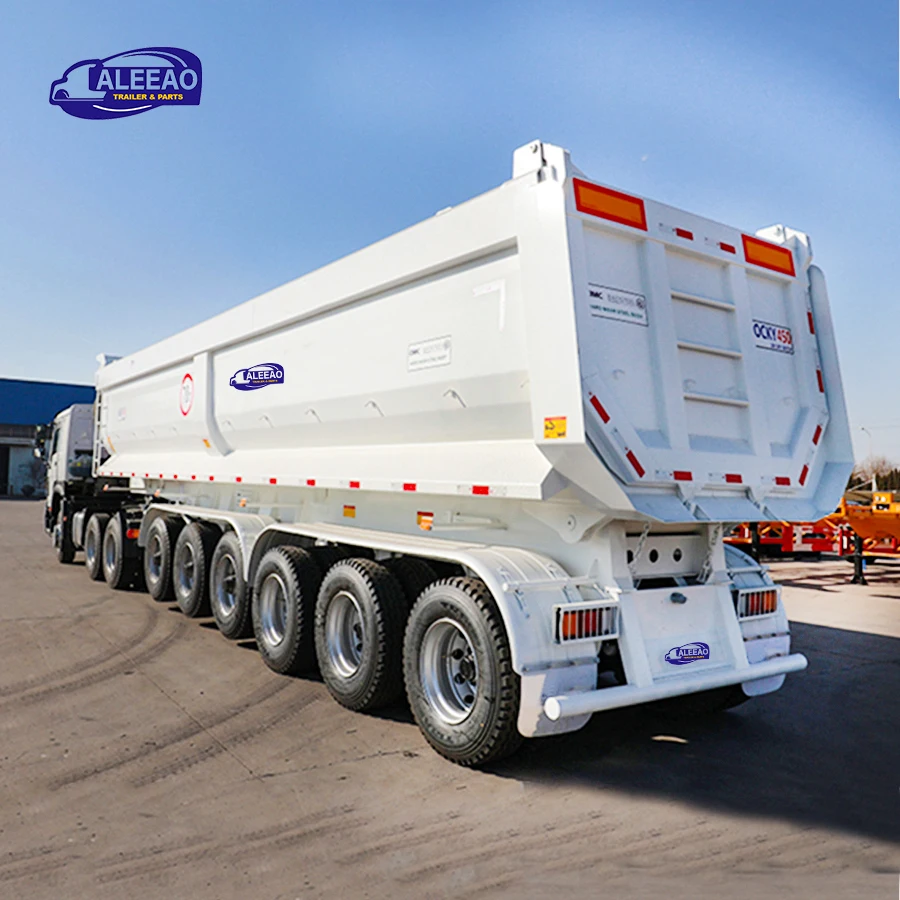

ALEEAO Hydraulic Tri Axle U Shape End Tipper Semi Trailer Dump Rear End Dump Semi Trucks Trailer For Sale
- Category: >>>
- Supplier: Liangshan Leao Machinery Co. Ltd.
Share on (1601274560609):
Product Overview
Description
ALEEAO 2/3/4/5/6 Axles Hydraulic Rear Dump Trailer
Liangshan LEAO Machinery factory has nearly 15 years of production experience in the trailer industry. Please believe that our professional technology and manufacturing experience can help your transportation be safer and more efficient. we can provide high quality products and competitive prices. Please contact me if necessary.
Our factory has passed the ISO9001 quality system certification. Our cooperation can be in ODM or OEM mode. Please contact us.
Specification

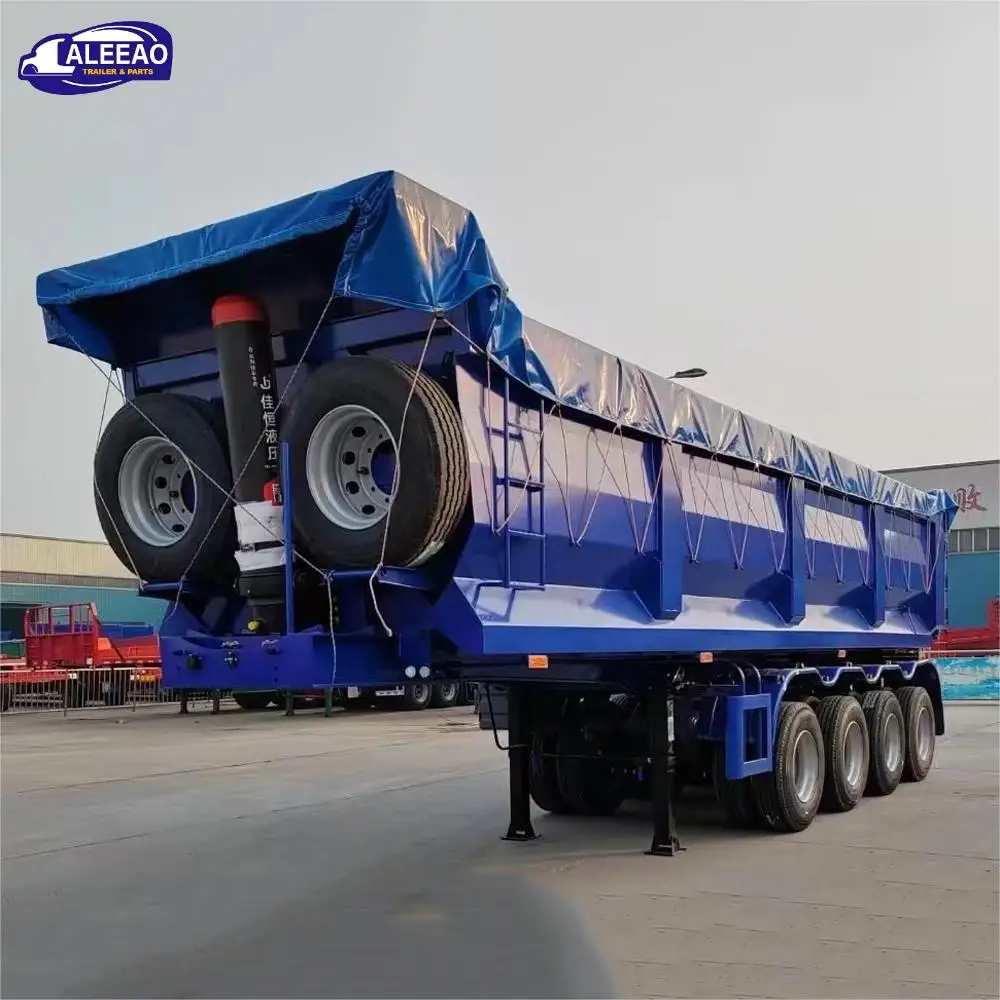

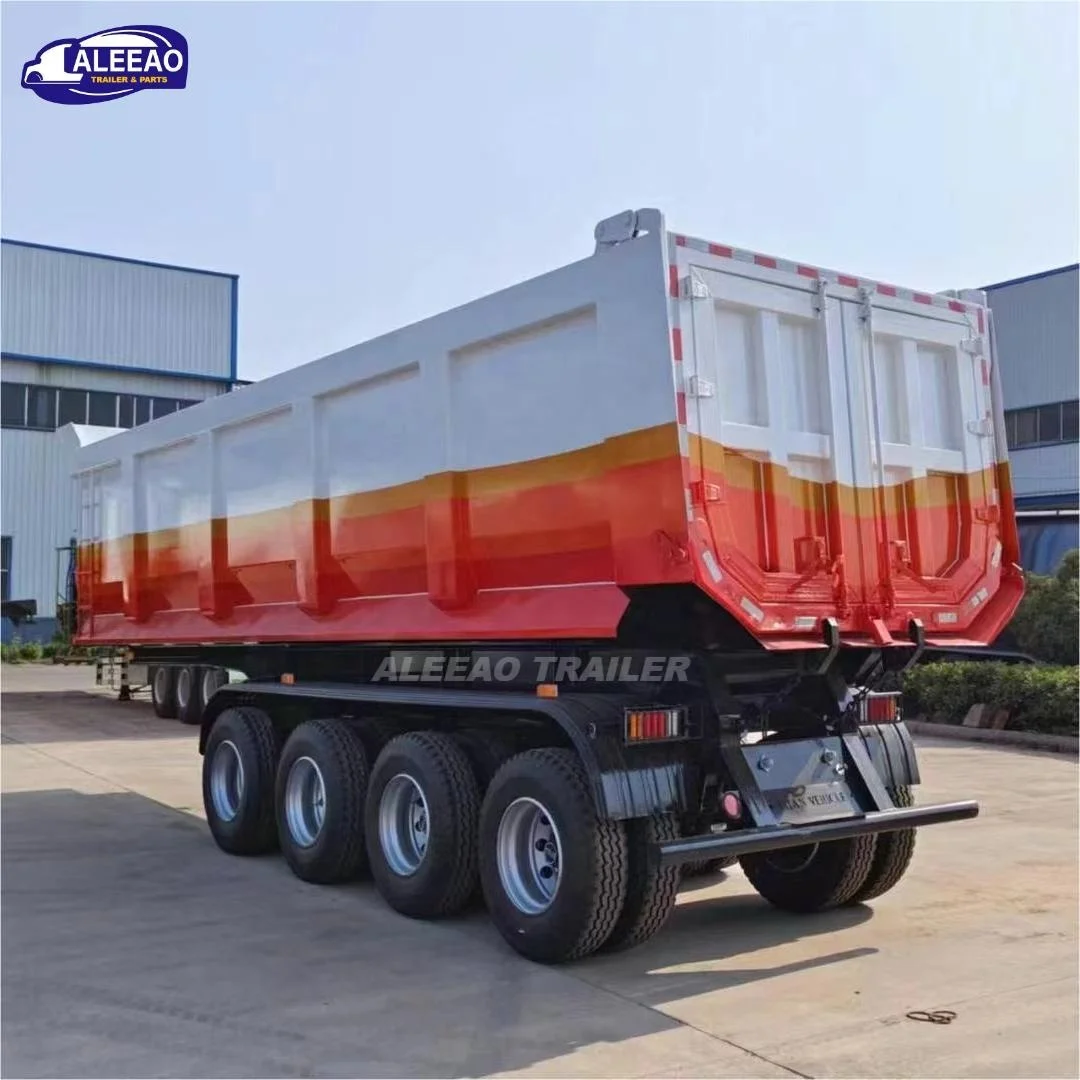

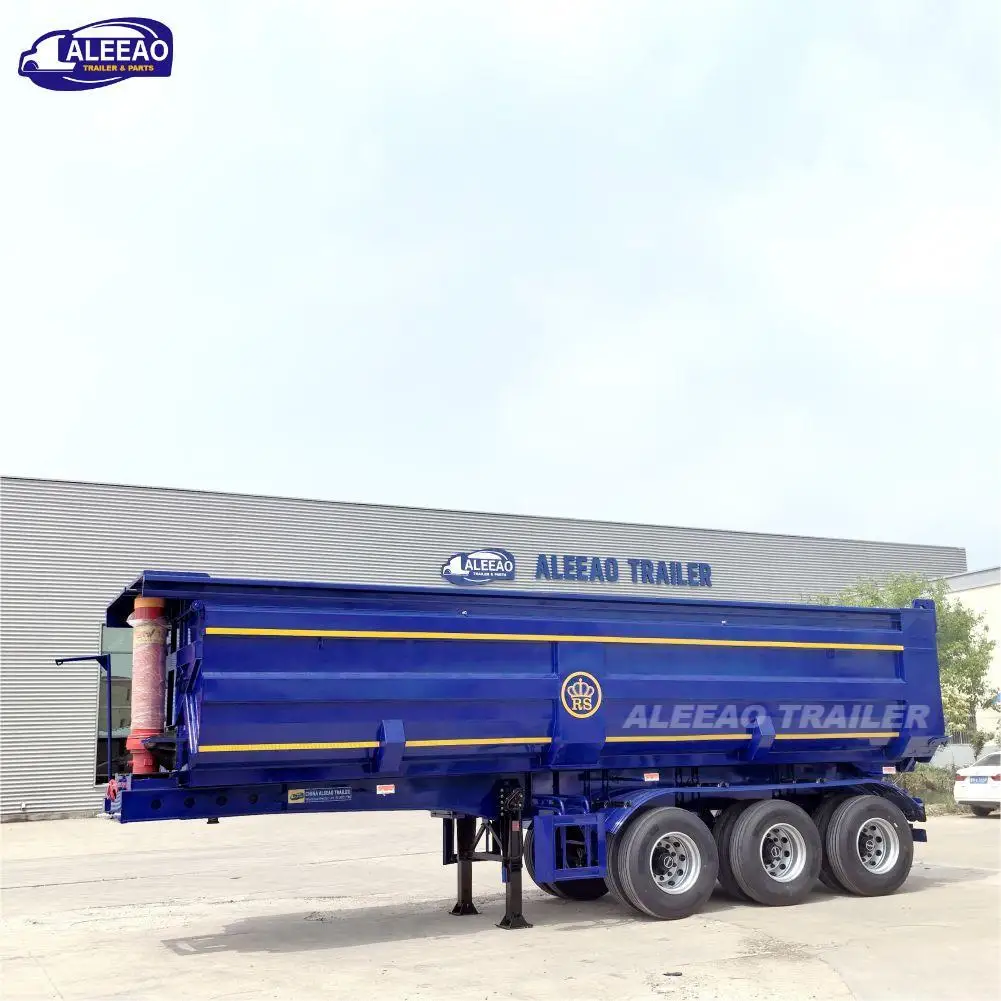

ALEEAO Rear Dump Tipping Semi Trailer

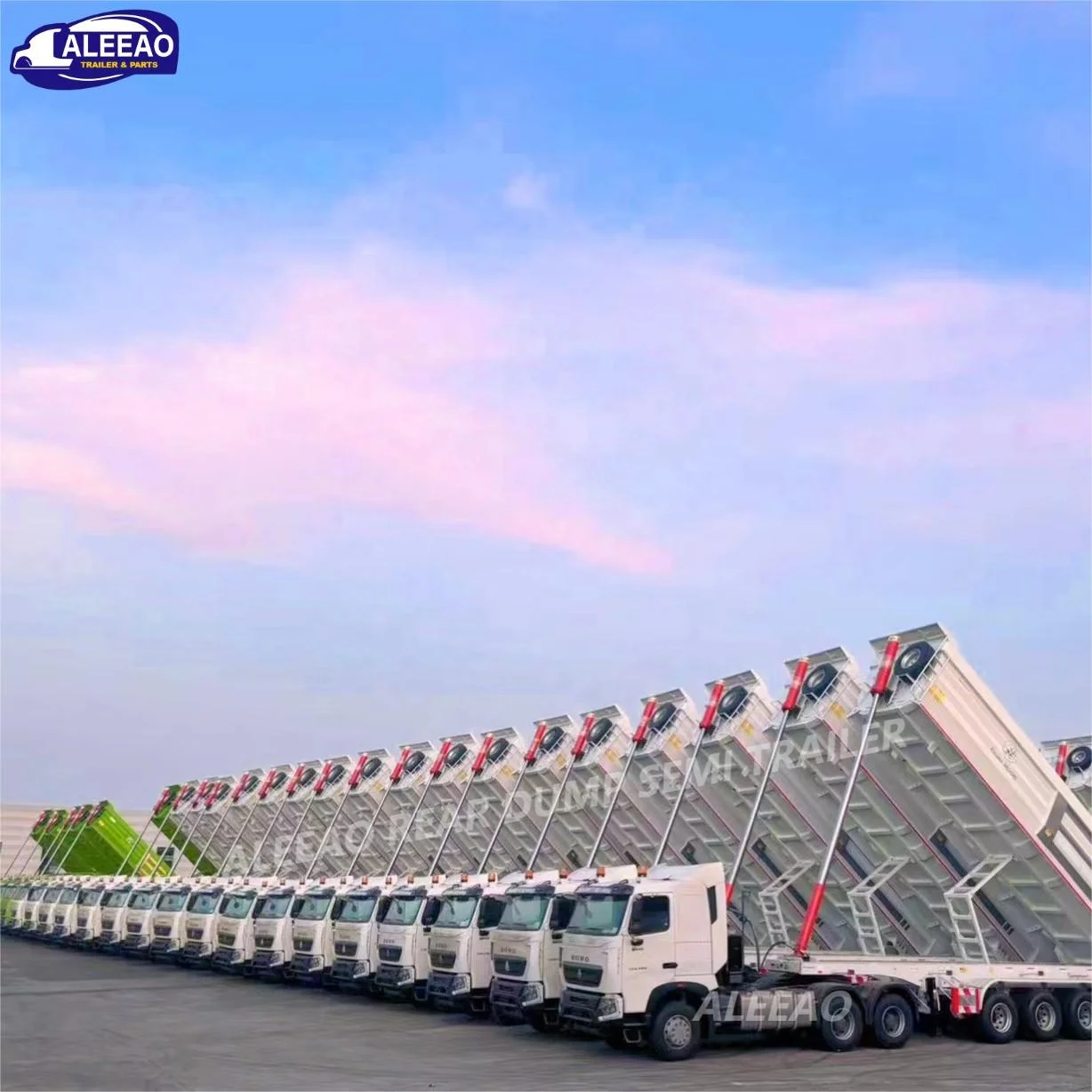

The end dump trailer is also called a tipper trailer or tipping trailer. They are used to load sand, stone, coal and other solid building materials or industrial raw materials. Rear dump semi-trailers are designed to make unloading easier. After the The back of the trailer is locked, sand can be loaded. When it arrives at the destination, the front side of the semi-trailer can be raised, which makes the goods drop from the back. The bucket of the trailer requires a thicker steel plate , because the goods are often hard materials, and the steel plate can prevent the cargo from damaging the trailer.
Hydraulic Dump truck trailer for sale can be customized from 15 tons to 80 tons semi tipper trailers for sale, 80 tons to 120 tons tipper tractor trailer, 120 tons-180 tons tipper semi trailer of different tonnage according to the different cargoes. The common volumes are 30 cubic meters semi tipper trailer, 32 cubic meters semi tipper for sale, 35 cubic meters, 45 cubic meters, 50 cubic meters, 60 cubic meters, 80 cubic meters and so on.

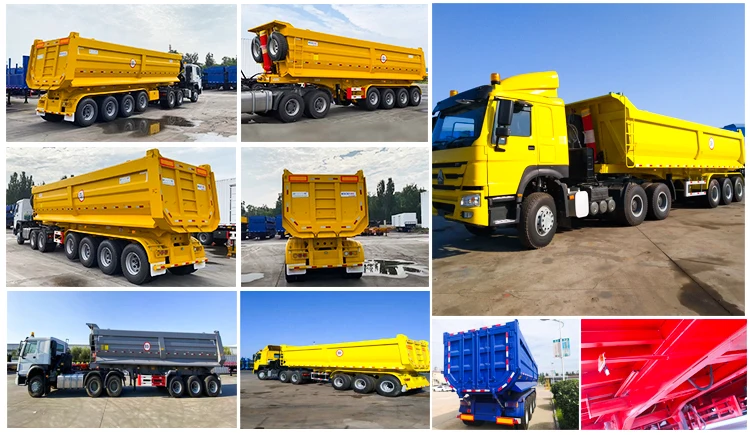

Product Display
1.The frame chassis of this series adopts the through-beam structure, and the frame structure includes straight and gooseneck types. The overall strength is high, the weight is light, the appearance is beautiful, and the use is safe and reliable.
2.The Dump Trailer is the main product of our company. It use high stength full thickness Steel, titanium content of 0.98‰, which ensure Beam and frame’s Toughness and strength. The strong Loading Capacity, 30-100 Tons Loading Range.
3.The whole frame of the dump trailer should be shot blasted to effectively eliminate welding residues. The vehicle body is electrophoretic coating, resistant to coating, and the coating effect can reach more than 10 years.
4.We adopt world famous brand of parts, like JOST, braking valve etc. And the main part is Hydraulic support system. It is stable and long service life, we choose HYVA brand.
5.Using advanced manufacturing technology, submerged arc automatic welding is used for longitudinal beams.
ALEEAO Rear Dump Tipper Semi Trailer | ||||||||
Application | Transport all kinds of Mineral/Coal/Stone/Sand/Cargo Loading | |||||||
Model | 2 axles tipper trailer | 3 axles tipper trailer | 4 axles tipper trailer | 5 - 6 axles tipper trailer | ||||
Bucket capacity | 25 cubic meters | 30/35/40 cubic meters | 40 cubic meters | 45 cubic meters | ||||

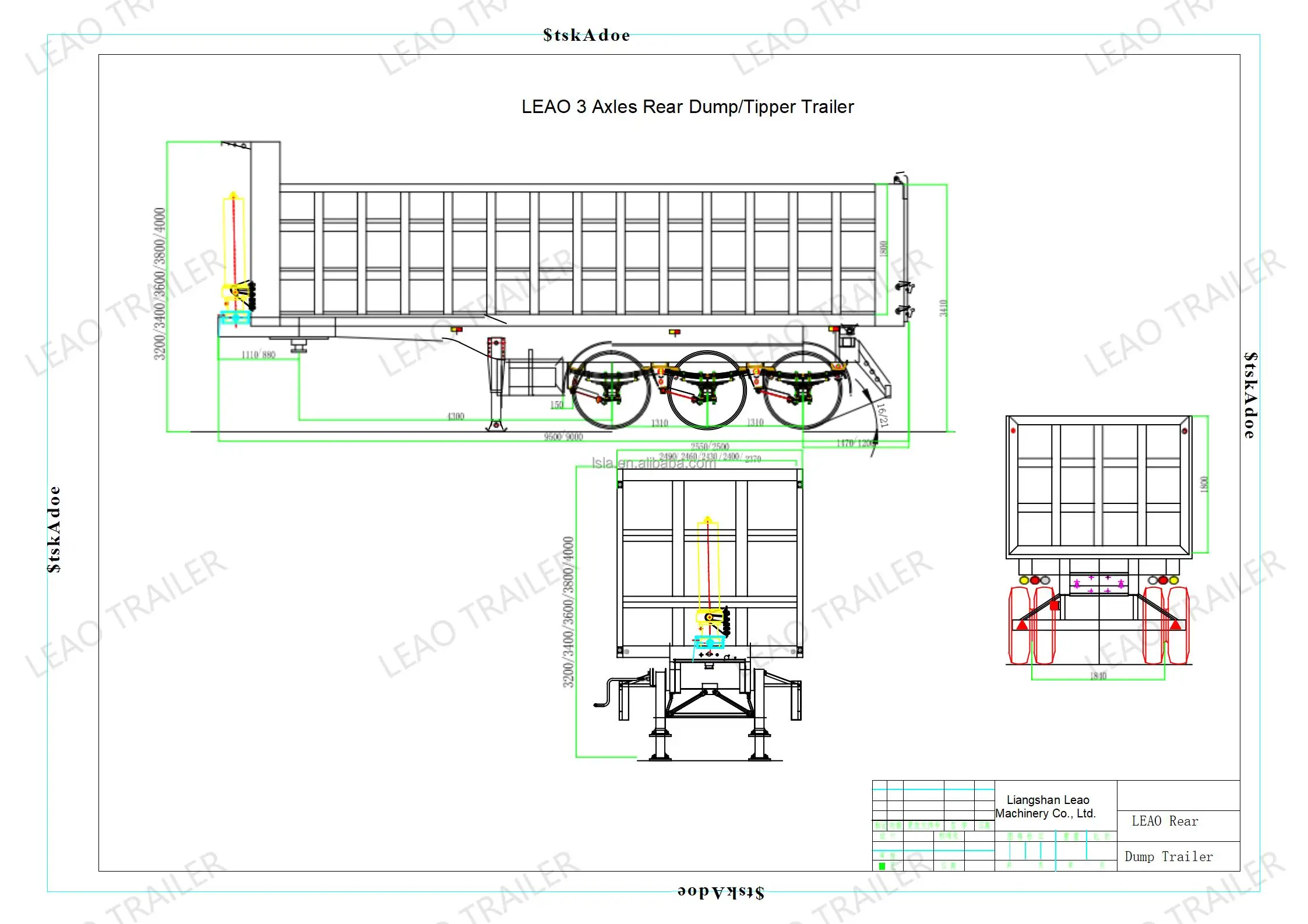

Dimension （mm） | 8500*2500*3500 | 10000x2500x3800 | 10500*2500*3900 | 11500*2500*3950 | ||||
Rim and tires | 12.00R22.5 tires 9.0-22.5 rims | 12.00R22.5 tires 9.0-22.5 rims | 315/80R22.5 tires 9.0-22.5 rims | 12.00R20 tires 9.0-20 | ||||
Lifting system | HYVA brand FE/FC type cylinders Diameter=191 mm | HYVA brand FE/FC type cylinders Diameter=191 mm | HYVA brand FE/FC type cylinders Diameter=202 mm | HYVA brand FE/FC type cylinders Diameter=214 mm | ||||
Tipping box | T700 / Hardox | |||||||
Main Beams | T700 / Q345B double plate | |||||||
Height:500mm | ||||||||
Upper Plate: 14mm | ||||||||
Middle Plate: 8mm | ||||||||
Lower Plate: 16mm | ||||||||
Axle | 13T/16T FUWA / BPW / LEAO Own Brand | |||||||
King Pin | JOST brand 2.0'' / 3.5'' bolt type king pin | |||||||
Landing Gear | 28T double speed JOST / TAIHUA brand | |||||||
Suspension | Heavy duty mechanical suspension / Air bag / Bogies | |||||||
Pneumatic Braking System | RE 6 relay valve T30/30 air brake chamber | |||||||
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 (special for export market ) | |||||||
Light | LED light,24V,7ways(7 wire harness) | |||||||
Tool Box | steel/aluminum One piece,1m*0.5m*0.5m(Size can be choose freely) | |||||||
Painting | 1 coat of anticorrosive prime, 2coats of final paint | |||||||
Any parts fitted could according to clients request, contact us to get more. | ||||||||
Details Images

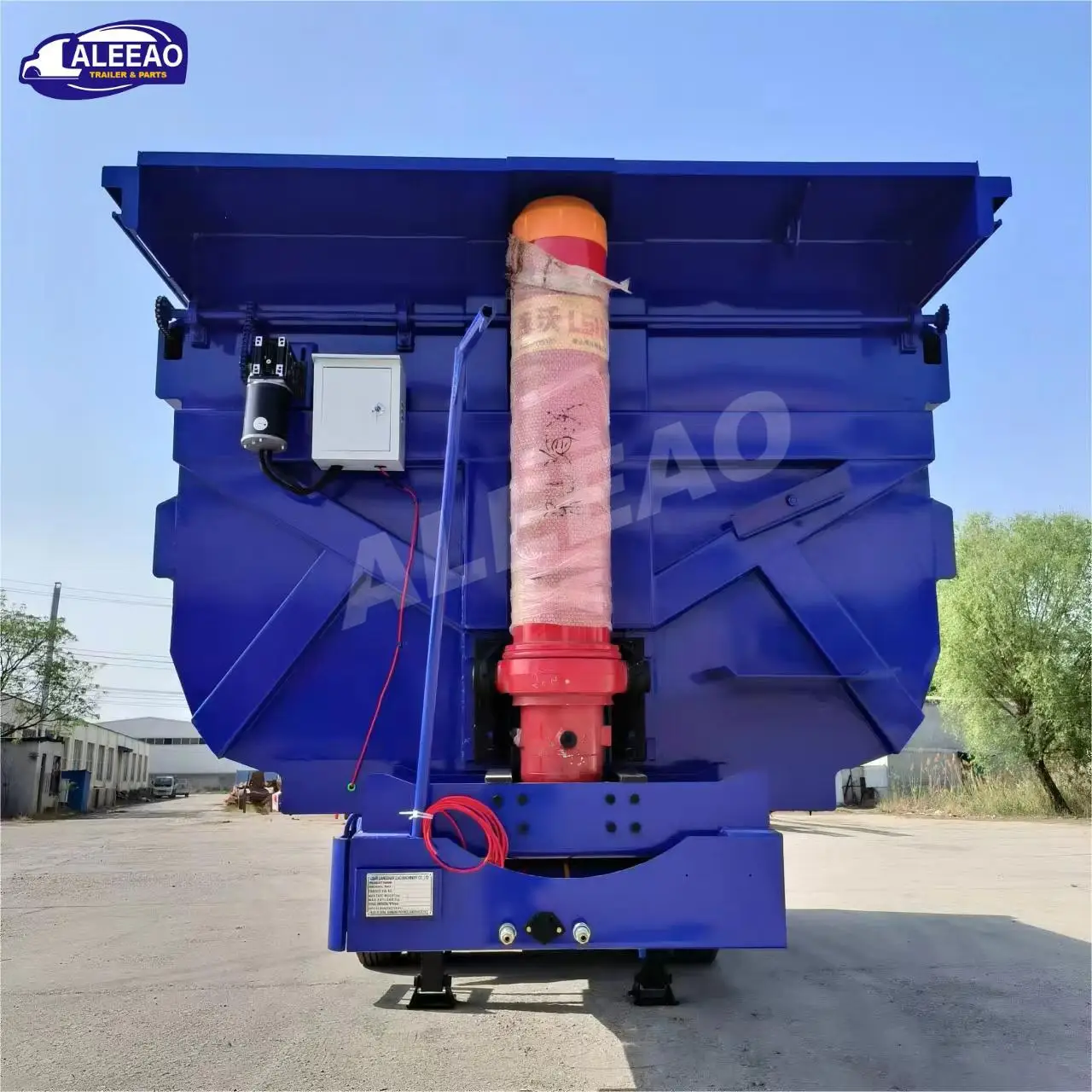

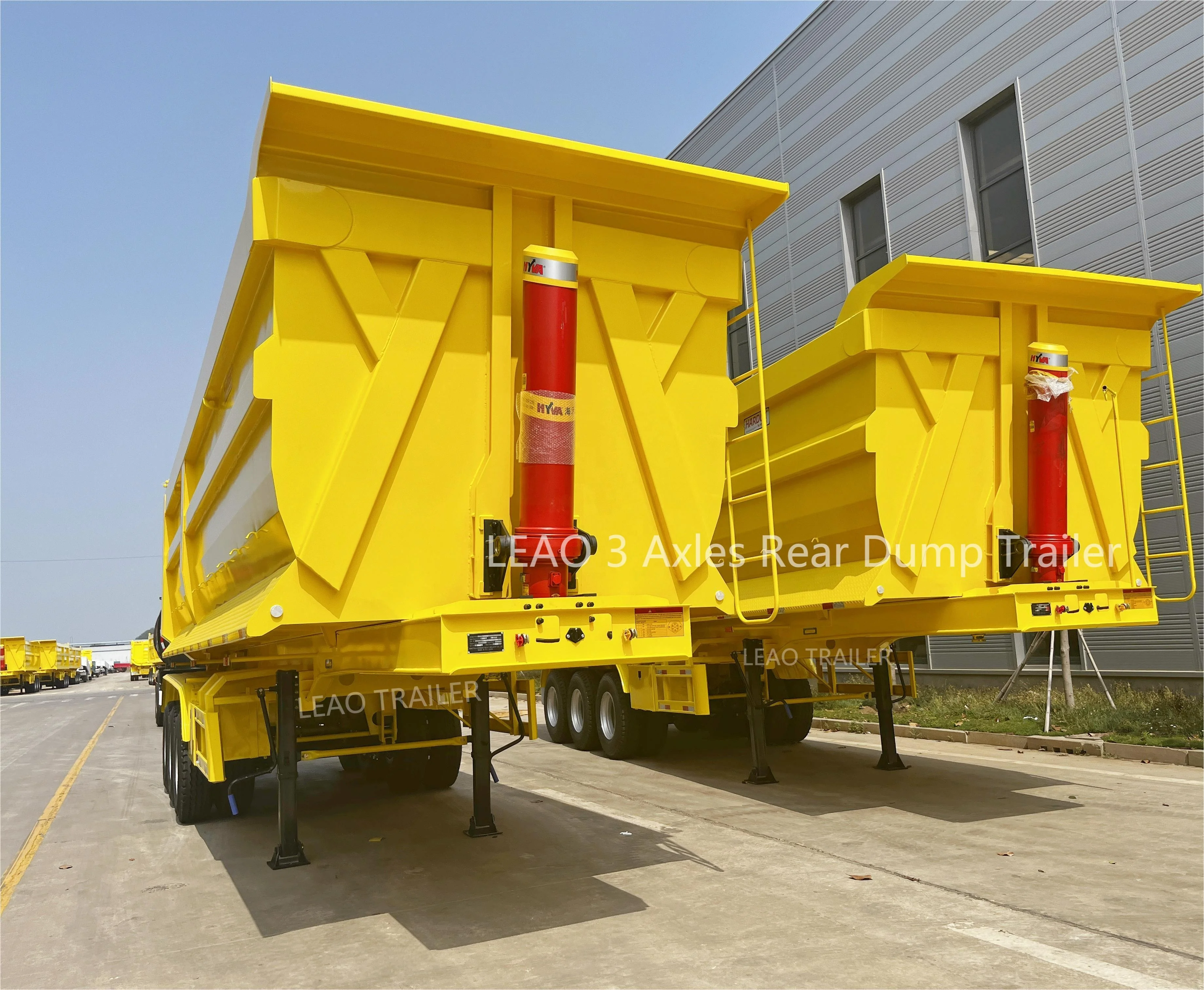

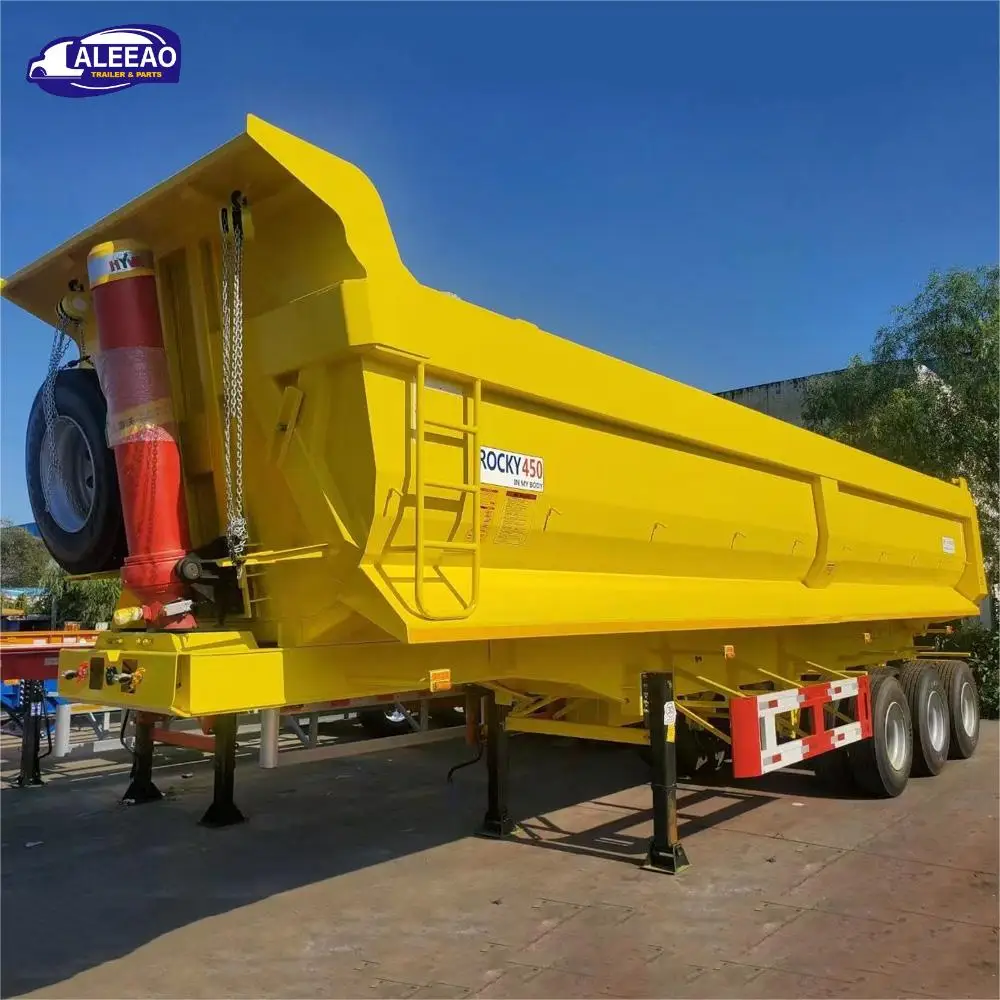

Well-known brand hydraulic cylinder: HYVA.(Model Choice According to Length of Tanker)
Landing Device
LEAO/JOST Landing Gear.Self R&D LEAO Aluminum or Steel Landing Gear Warranty come with above 5 Years long.Gear Box with low temperature premlum chassis lube rated for service from -30°C~120°C.
Brake System
From the point of view of safety, the vehicle with the air brake system needs both the service brake and the parking brake, so it must be equipped with a double-chamber air chamber.
Advanced Axle Performance LEAO/BPW/FUWA
Integrated Advanced Low-Alloy Axle Beam,Whole Axle Beam No Welding process.Strong Carrying Capacity and high bending Strength.Axle maintenance-free could reach 3 Year/400,000 kilometers.
Tire
LEAO/ Double-Coin/ LingLong/ Michelin/ Triangle/Bridgestone and other famous brand for choice.Better Performance in wear resistance.

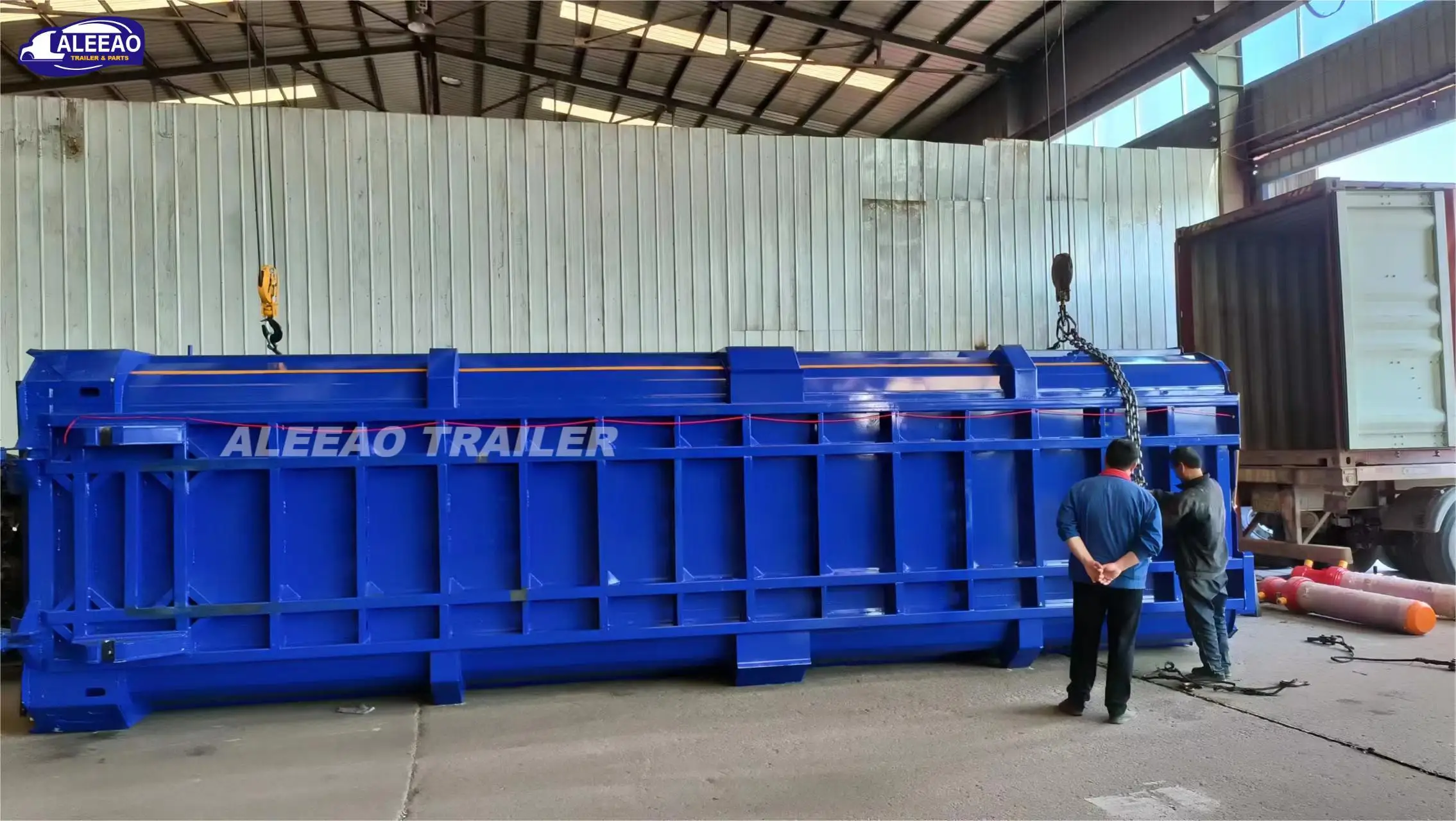

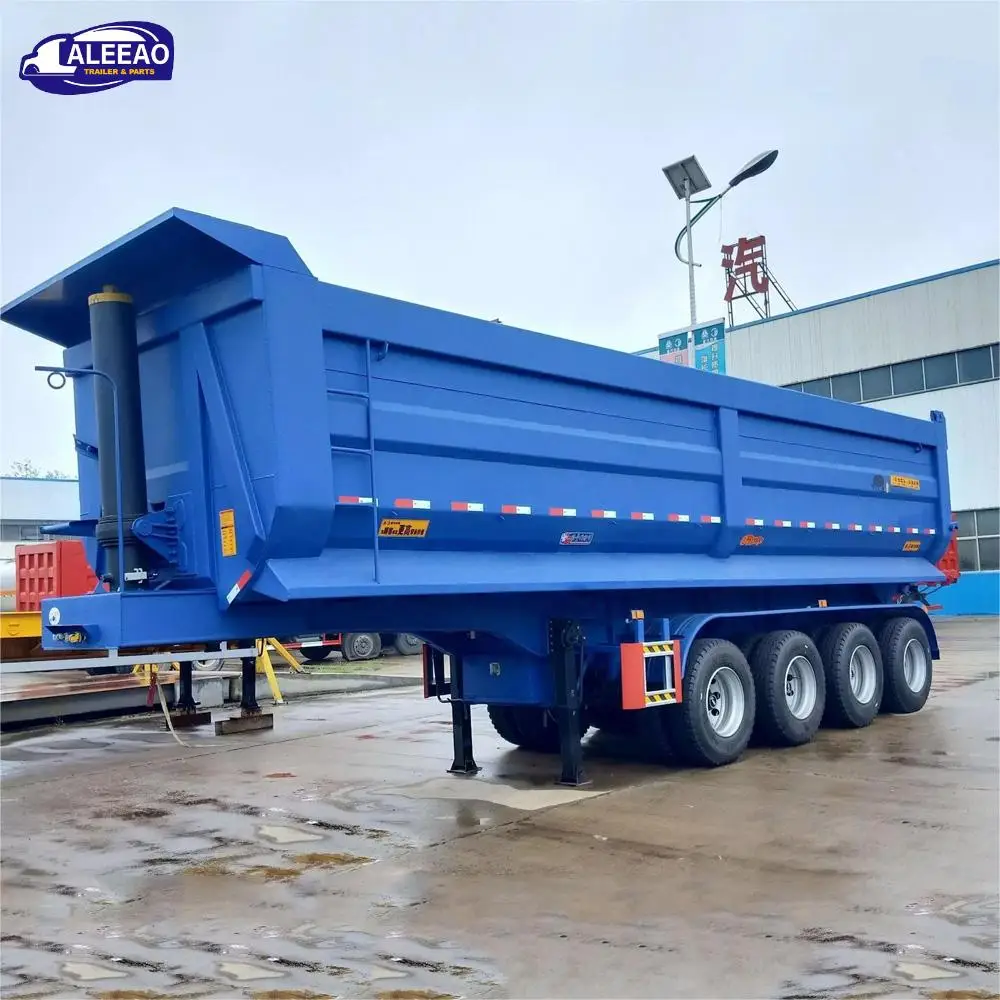

Sufficient Cargo space.U-shaped or Rectangular Tanker optional.Full thickness special steel, stronger carrying capacity.
Reinforcement ribs
18 strong reinforcing ribs are designed to ensure the safety and carrying capacity of the trailer.

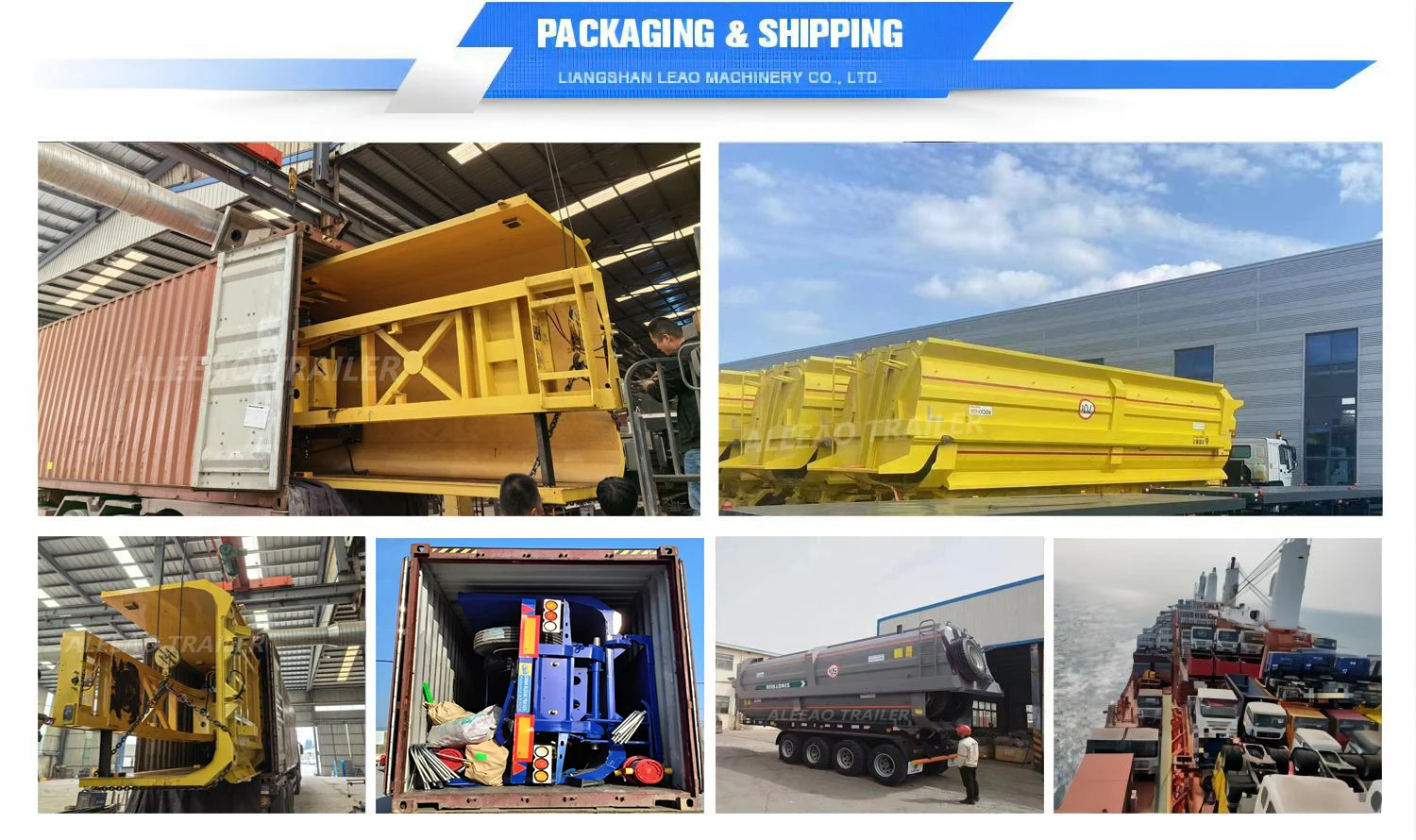

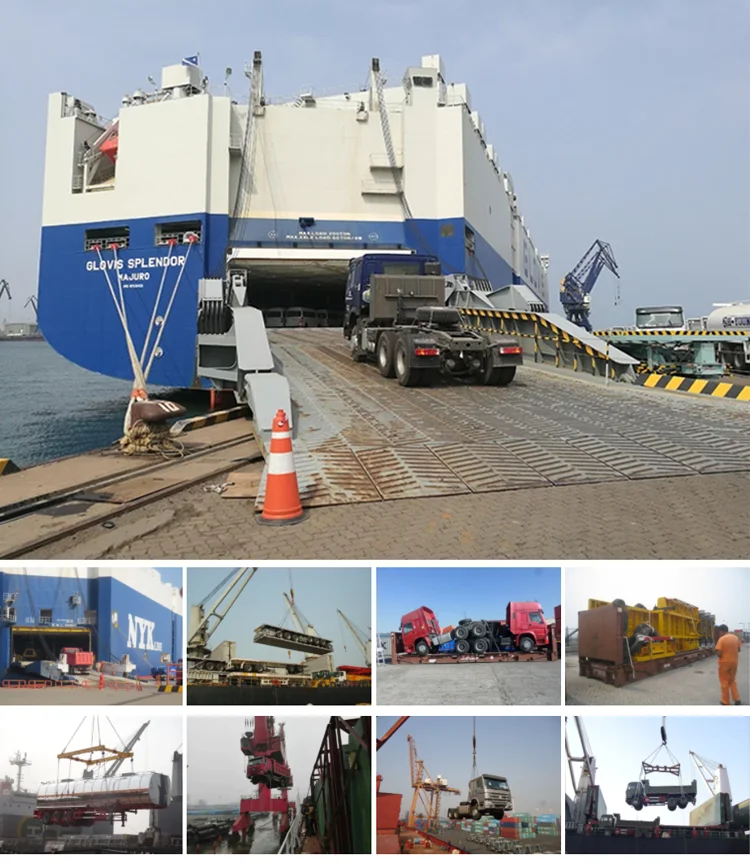

Packaging & Shipping

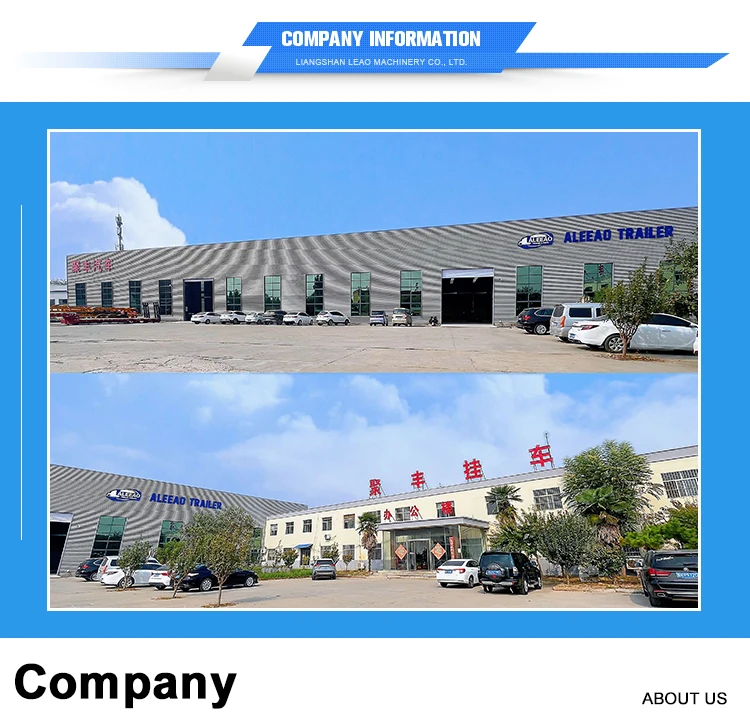

Company Profile
Liangshan LEAO Machinery Co., Ltd. has its own independent trailer factory - ALEEAO TRAILER, which is an enterprise integrating trailer manufacturing, design, trade, parts production and sales. LEAO has 15 years of experience in the production of semi-trailers and trailer parts. The company is located in Liangshan County, Shandong Province, and has passed IS09001-2000 certification and 3C certification.
LEAO's main products are flatbed trailers, low-bed trailers, cargo transport trailers, dump truck trailers, tanker trailers, car transport trailers, animal transport fence trailers and axle parts. They are exported to more than 30 countries in Africa, South America, Southeast Asian countries and the Middle East. country.
LEAO company has first-class trailer production equipment, mainly including CNC cutting machines, gantry automatic welding machines, large bending machines, shearing machines, etc. Leo has several professional engineers and more than 100 technical workers, with first-class technology, strict management and excellent team, making due contributions to the global transportation industry!
Beautiful Liangshan, Honest LEAO, we sincerely welcome customers at home and abroad to visit us for guidance.
LEAO's main products are flatbed trailers, low-bed trailers, cargo transport trailers, dump truck trailers, tanker trailers, car transport trailers, animal transport fence trailers and axle parts. They are exported to more than 30 countries in Africa, South America, Southeast Asian countries and the Middle East. country.
LEAO company has first-class trailer production equipment, mainly including CNC cutting machines, gantry automatic welding machines, large bending machines, shearing machines, etc. Leo has several professional engineers and more than 100 technical workers, with first-class technology, strict management and excellent team, making due contributions to the global transportation industry!
Beautiful Liangshan, Honest LEAO, we sincerely welcome customers at home and abroad to visit us for guidance.
