PC led light tube production line
- Category: >>>
- Supplier: Zhangjiagang Beierman Machinery Co. Ltd.
Share on (1601274583565):
Product Overview
Description
Product Description
China origin Zhangjiagang city Beiman Machinery various different types PC LED light tube or profile making line ,
specially designed for making PC tube/profile as LED light, with one color separated, or two different color,integral.

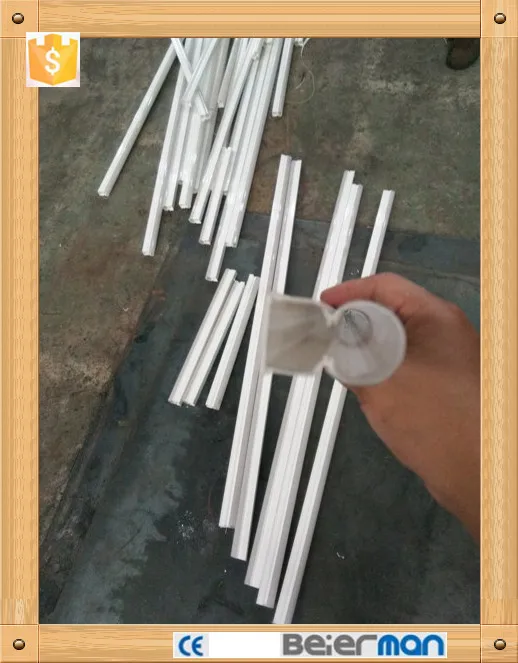

The final PC tube or profile is suitable to T3,T5,T8,T10,T12, etc models LED light.
if produce one color profile cover, need to equip 1set of single screw extruder will be enough, according to different width spefication will be equipped with corresponding single screw extruder SJ65, or SJ55, or SJ45.
if produce two different color pipe or profile , need to equip 2sets of single screw extruder to co-extrude, according to different width spefication will be equipped with corresponding single screw extruders SJ65+SJ55, or SJ55+SJ45, or SJ45+SJ45..
Major parts of PC LED light tube or profile production line:
No. | Major parts | Detail information |
1-1 | Vacuum loading machine | Driving motor:0.75KW,loading capacity:100kg/hour |
2-1 | Hopper dryer | Dryer volume:100L |

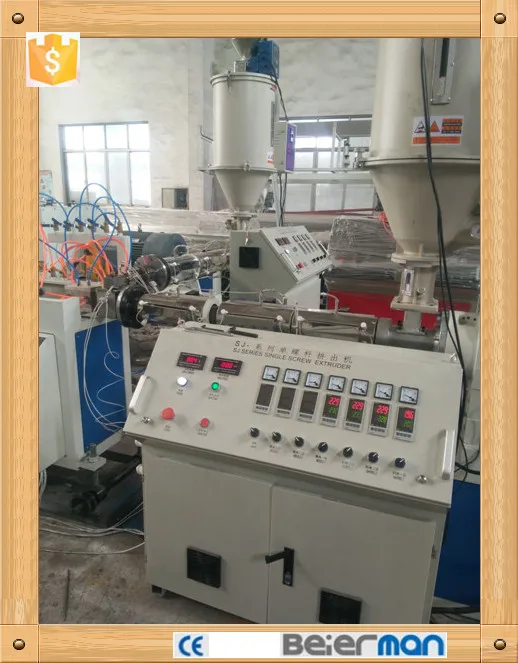

3-1 | SJ65/28 Single screw extruder | Driving motor:30KW, heating power:24KW,cooling power:1KW |
1-2 | Vacuum loading machine | Driving motor: 0.75KW |
2-2 | Hopper drying machine | electric heating power: 6KW, blower: 0.25KW |
3-2 | SJ55/28 Single screw extruder | Driving motor:15KW,heating power:16KW,cooling power:0.72KW. |
4 | Vacuum loading machine | Driving motor:0.75KW |
5 | Hopper drying machine | electric heating power:6KW, blower:0.25KW |
6 | SJ45/28 Single screw extruder | Driving motor: 11KW, heating power:12KW,cooling power:0.54KW. |

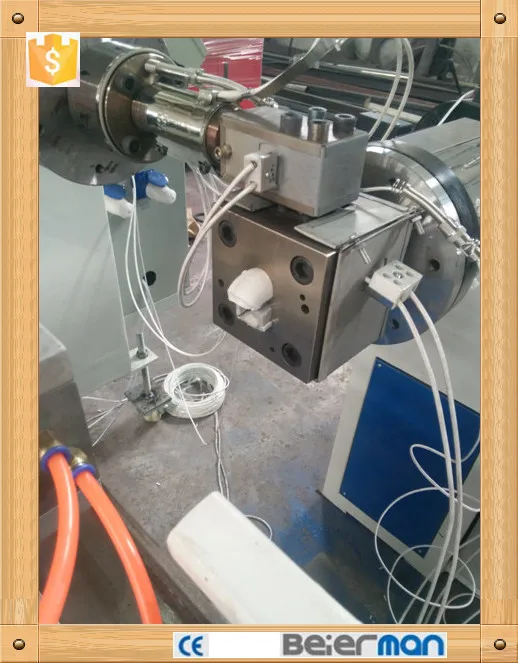

7 | PC LED integral cover and base mould | mould structure up to customer's sample or drawing dimension, such as integral 2color pipe or profile. |
8 | Vacuum forming tank | Tank length: 2500mm ,width:600mm. vacuum pump:1.5KW,1pc. water pump:1.5KW,1pc. table moving motor:0.55KW. stainless steel tank. |
9 | Haul off machine | haul power:1.5KW*2pcs; 2caterpillars |
10 | Cutting machine,include stacker and pile tank | Cutting motor:1.5KW, knife lift cutter. stacker:2000mm length,air cylinders. pile tank. |
