Price:$2,400.00 - $2,550.00

Quantity:


Product Overview

Description



Welcome to Dongguan Chenghao Machinery Co., Ltd


VR


Product Description

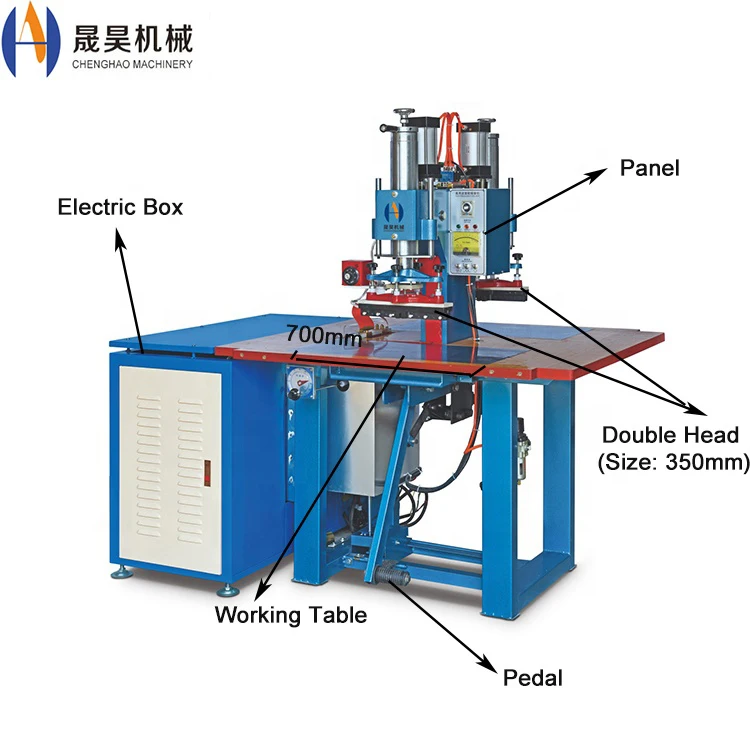

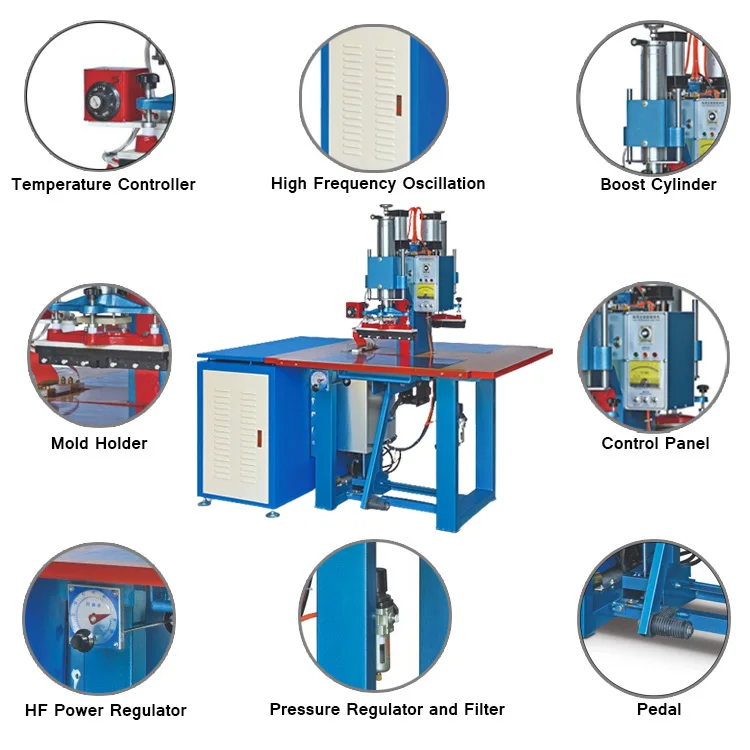

Machine Feature:
1.High frequency double head have air and oil pressure.
2.The machine is double-headed pedal-type structure, convenient for product alignment. Operators need to operate the equipment
with two feet, control the high-frequency pedal withe the left foot, and control the nose up and down with the right foot.
3.High frequency welding time is adjustable, two workshop are used alternately. The pressure of the machine head can be
arbitrarily adjusted to meet the demand of high frequency welding depth.
4. Mainly use for PVC product welding, Leather embossing, Stamping LOGO etc.


Model
CH-5KW
HF Power
5KW
HF Frequency
27. 12MHZ
Osclillation Tube
7T85RB
Anti Spark System
NL-5557 high sensitive
Rectifier
Silicon Diode
Voltage
AC 220V-440V 3Phases, can customize
Input Power
8KVA
Operations Mode
Pneumatic
Pneumatic Max. Pressure
500KG
Control Method
HMI Panel+Pedal control
Upper Electrode
120*290mm
Lower Platen
350*700mm
Heat Temp
Max. 200°
Standard
CE ISO Certificate
Packing Information
Machine Size: 1700*1070*1570mm;   Weight:450kg;   Wooden Packing: 3.5CBM

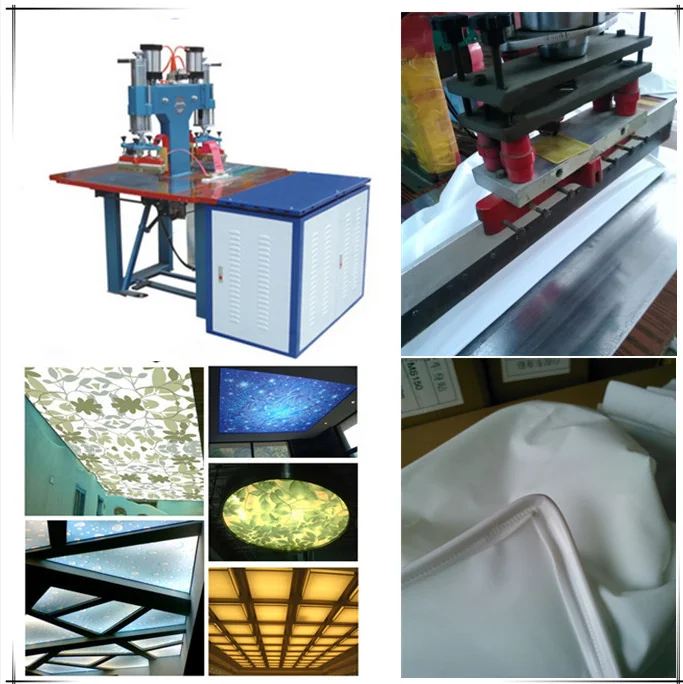

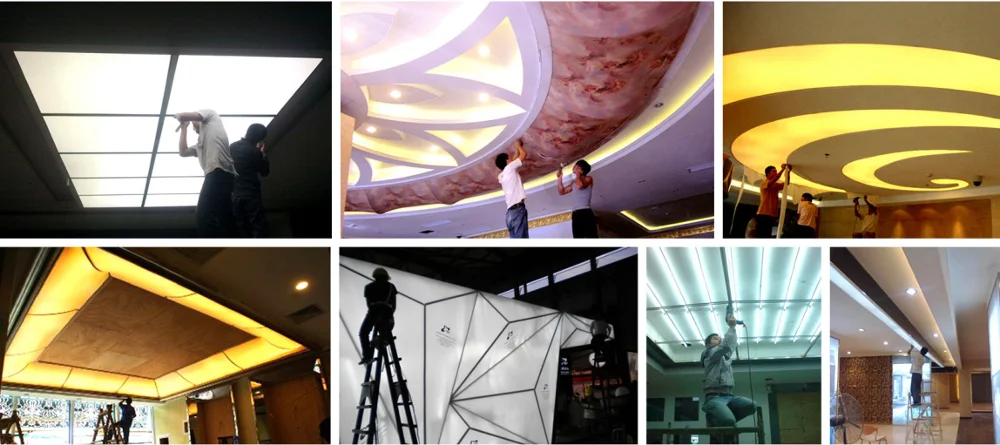

Appication Showing：

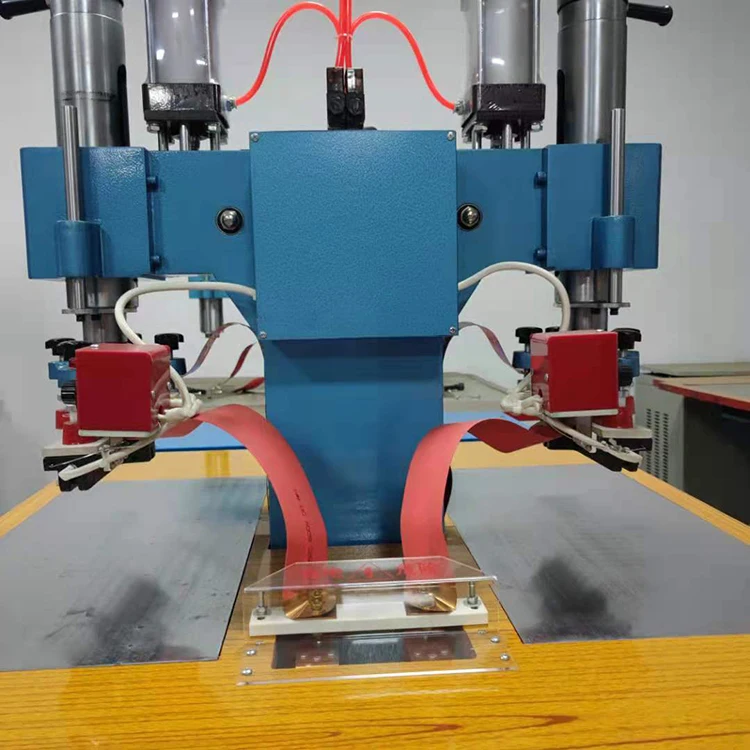

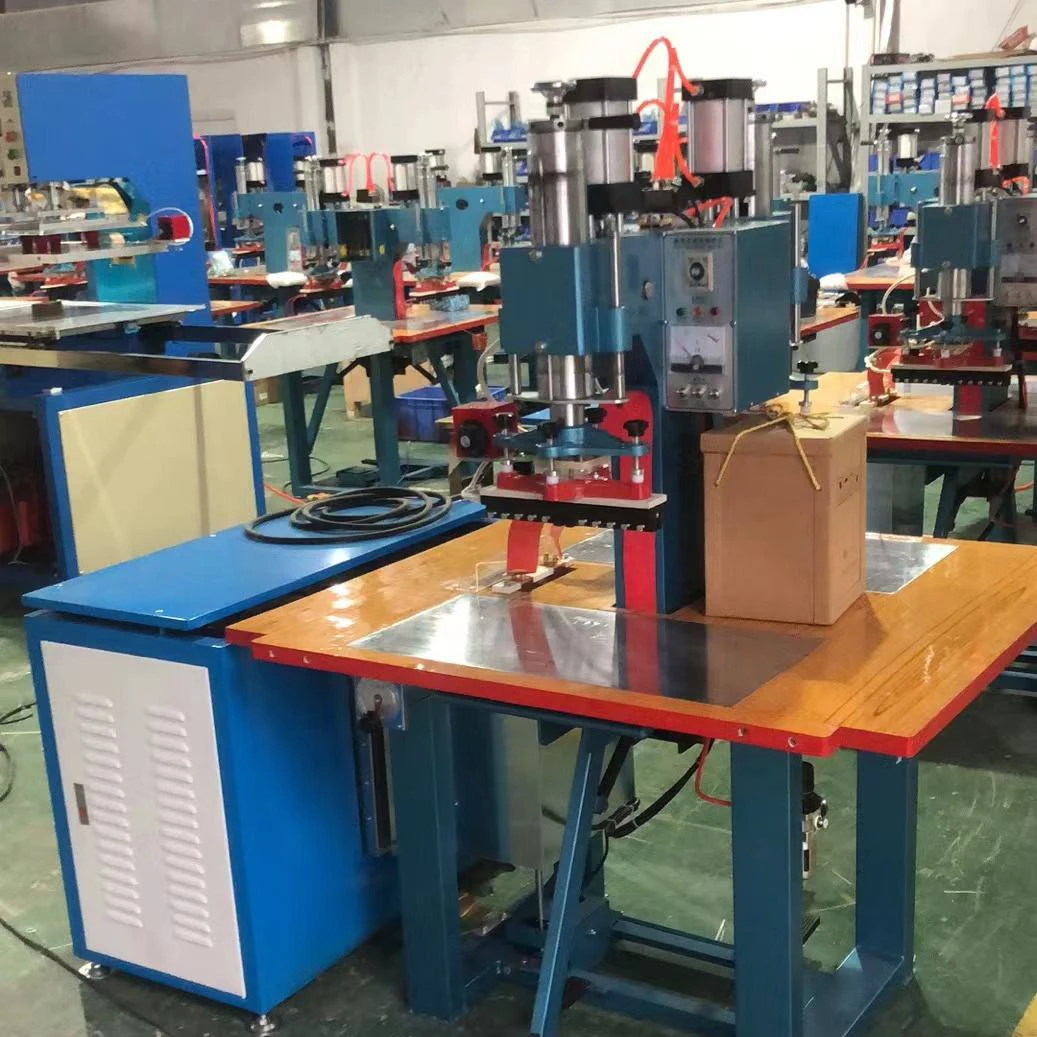

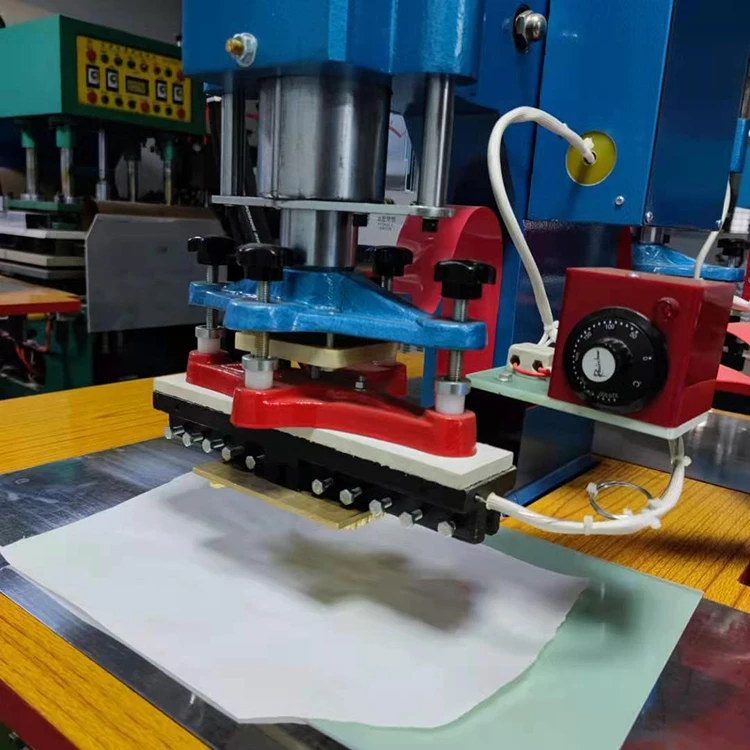

Machine Real Showing：

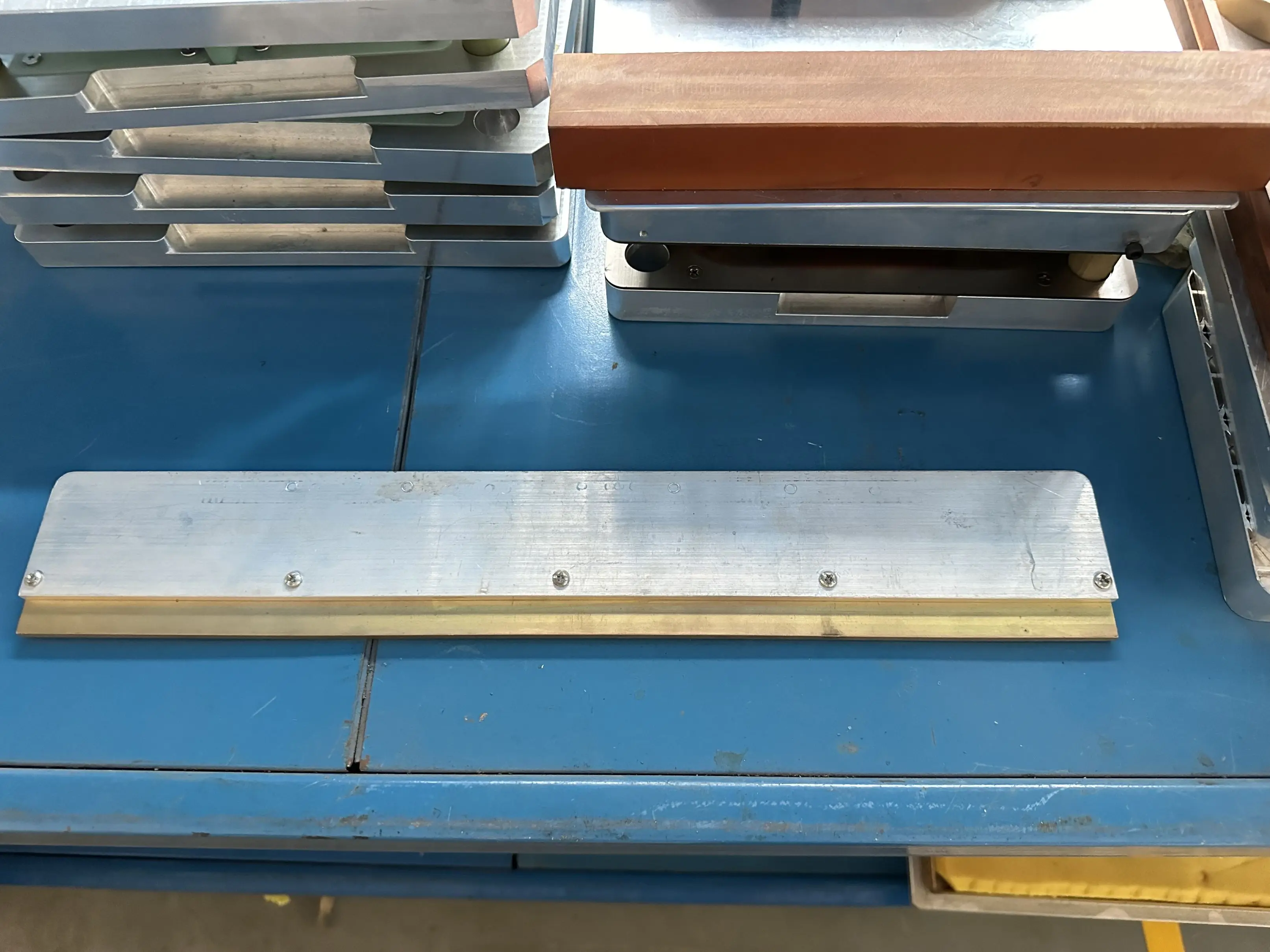

Moulding Workshop & Mold Showing


We have our own mold department and can make our own molds. Also, the molds are made of CNC engraved.








About Our Company






Donguan Chenghao Machinery CO.,LTD was establish in 2007, located in the"factory of the world" dongguan city, dongjiang river qishi town. The company had been committed to high frequency welding machine, high frequency packing machine, ultrasonic welding
machine, plastic thermoforming machine and so on.
Also, we have more than 17 years of technical experience on this industry and our machine exported to more than 70 countries and regions, well received by customers all over the world




Customer Visiting


Customers from Saudi Arabia
Customers from Argentina


Customers from India
Customers from Pakistan
Customers from Thailand


Certification




Shipping Machine To All Over The World


to France
to Vietnam
to Pakistan


to South Africa
to Australia
to Peru




FAQ


Q: Are you trading company or manufacturer ?
A:Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q:What about your warranty?
A:Our warranty is 1 year, machine's part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
