Products Description

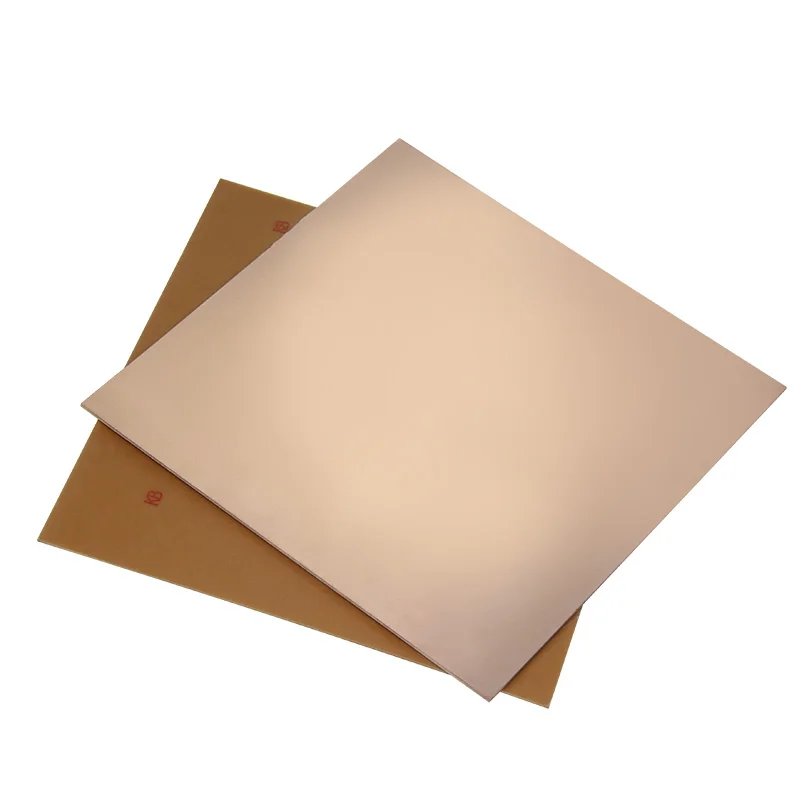

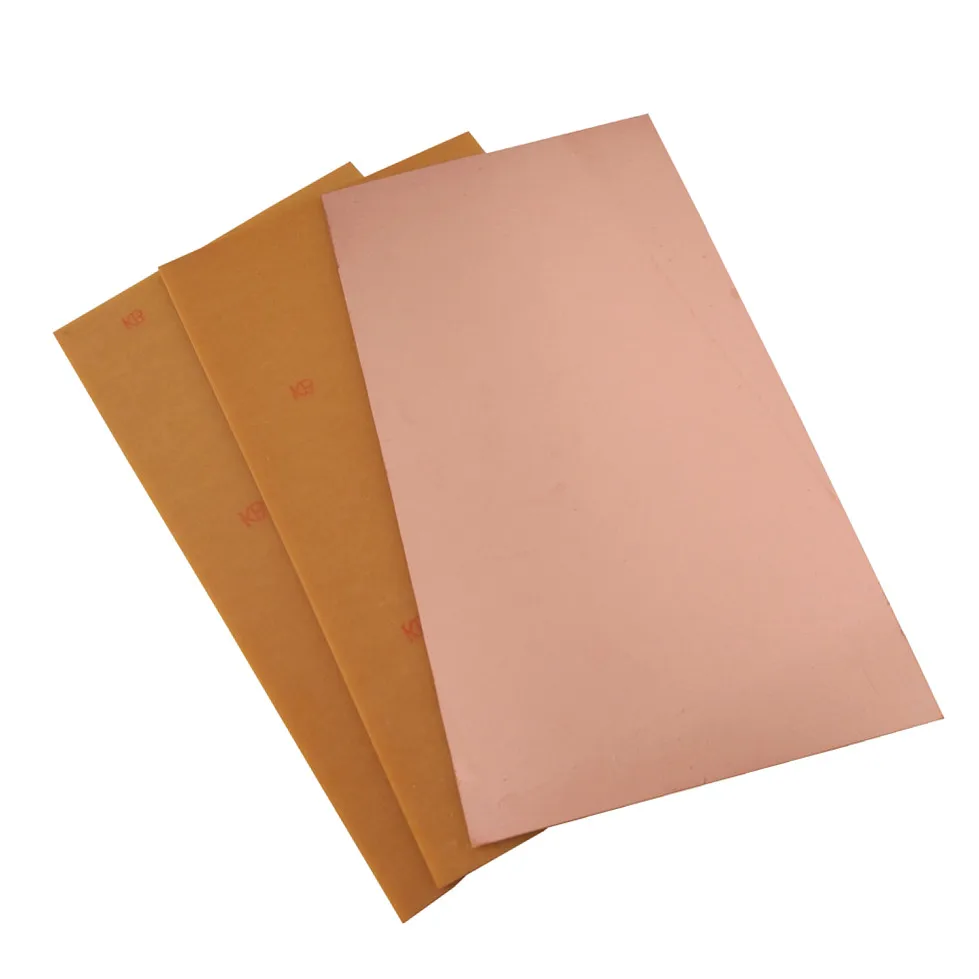

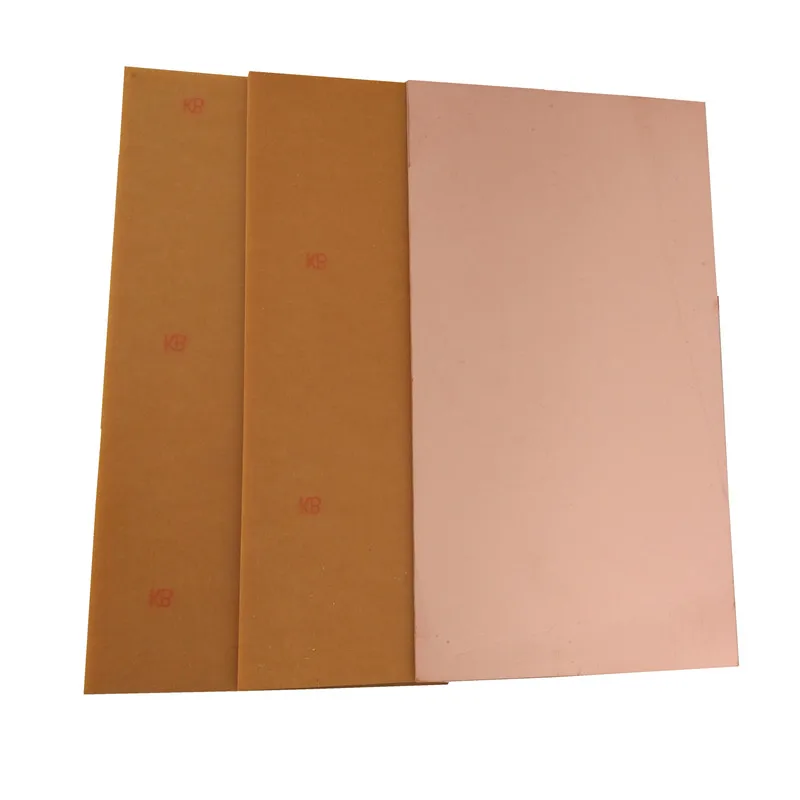

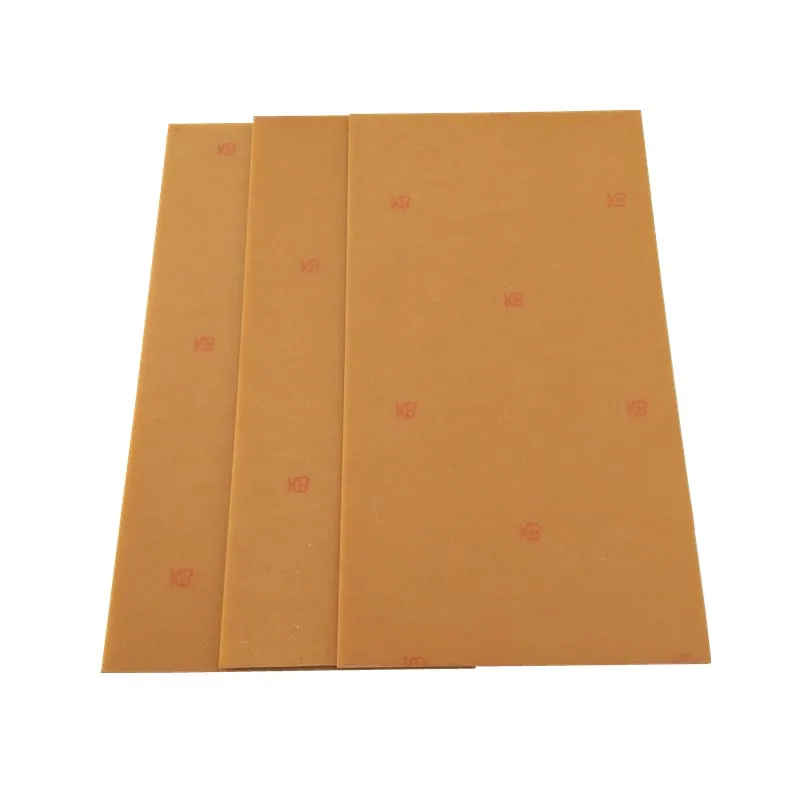

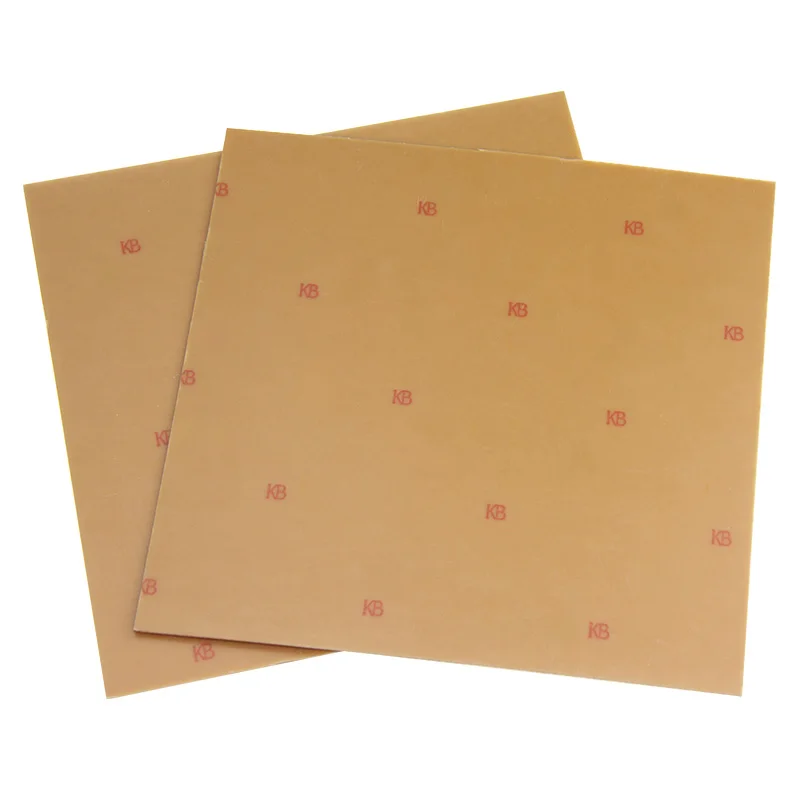

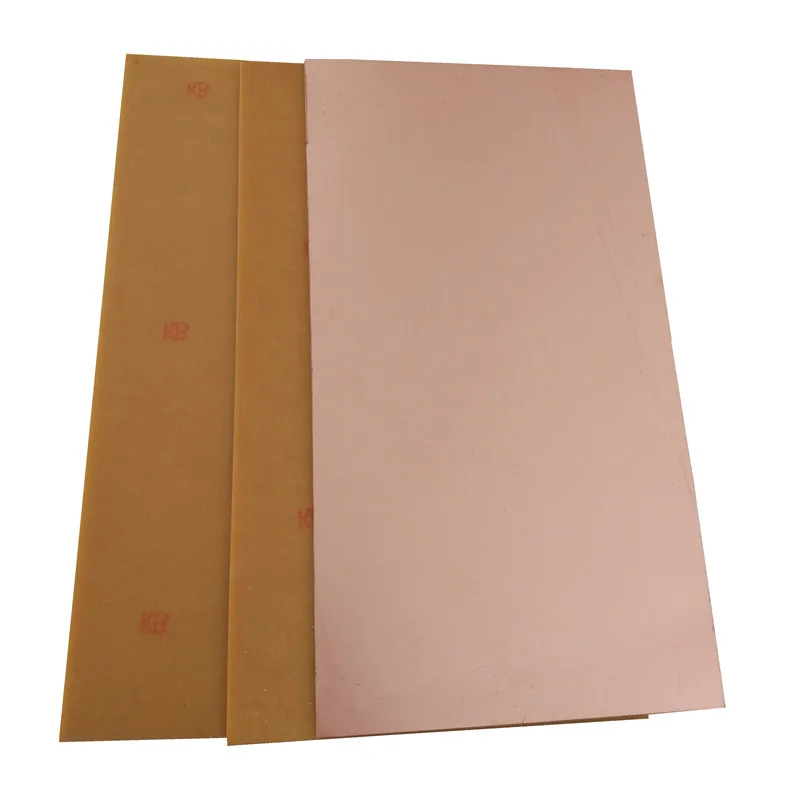

FR-1copper clad laminated sheet/CCL consist of bleached wood pulp paper, impregnated with flame retardant phenolic-epoxy resin and clad with electrolytic copper foil.It has high electrical stability, good flame retardancy, good dimension stability and smoothness, good punching ability and widely used for Hi-Fi acoustic devices, color TV sets and other electronic appliances.
Note:Different thickness copper foil in one side or double sides can be supplied. 18um,25um,35um,70um


Item Name
FR1 Copper clad laminate
Material
paper based
Size
40*48inch,41*49inch,43*49inch

Tensile strength
Excellent
Thickness
0.8mm,1mm,1.2mm,
1.4mm,1.6mm
Rated voltage
40KV
Copper Thickness
18um,25um,35um,70um
Color
yellow


Relevant product parameters


Test Item
Unit
Test Condition
Specification Value
Actual Value

surface
Grade
A
Grade A
OK

Edges
A
Grade A
OK

Panel size
mm
Length
Width
+3
+3
+2
+2

squareness
mm

Diagonals
≤3
≤2

Thickness
mm
A
1.6±0.14
1.55~1.57

Punchability
50-70℃
NO CRACK
Good

Flexural Strength
Kgf/mm2
Crosswise A
≥8
12.03
Lengthwise A
≥8
13.14

Peel Strength
Kgf/cm
A
≥1.2
1.7

Watter Absorption
%
E-24/50+D-24/23
≤2.0
0.96

Insulation resistane
Ω
C-96/20/65
≥109
≥109
3.3*1011
C-96/20/65+D-2/100
4.3*108

Surface resistance
Ω
C-96/20/65
≥1010
3.6*1011

Volume Resistivity
Ω-cm
C-96/20/65
≥106
3.5*1010

Flammability
UL94
V-0
94V-0


Cooper clad laminate

AL CCL
FR-4
FR-1
CEM-1
XPC
Base material
aluminum
fiberglass
fiberglass
paper+fiber glass
paper
Color
blue film
green film
light green，yellow
brown
yellow+white
brown
Copper foil
single or double side：18,25,35,70 micron
single side:18,25,35,70  micron
Sheet thickness
0.4-2mm

Size
1000*1200mm
500*600mm
1000*600mm
500*1200mm
40''*48'' , 41''*49'' , 43''*49''

41''*49''

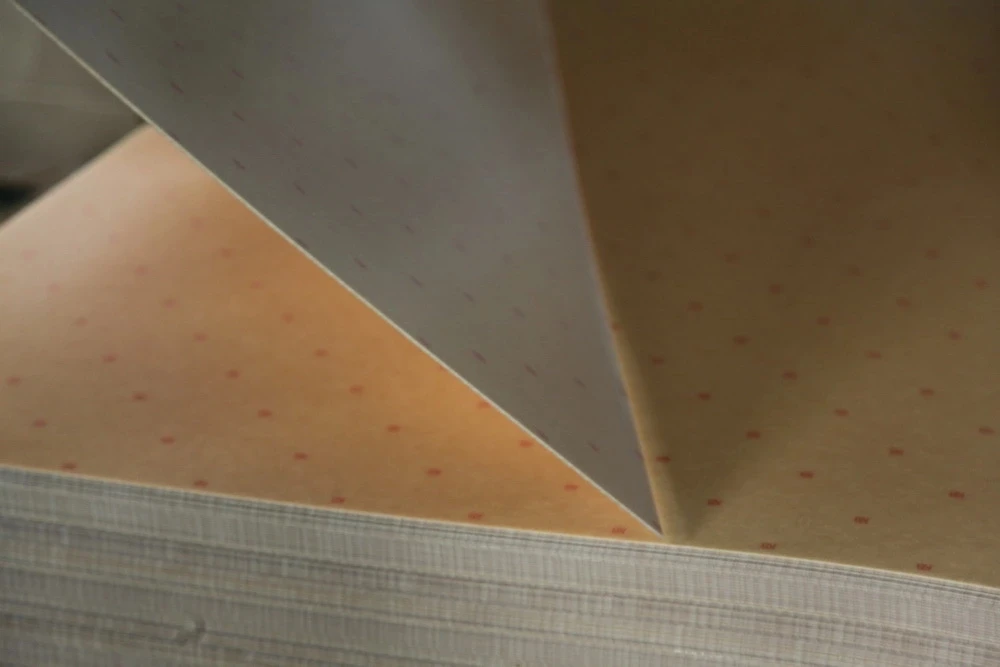

Product Photograph






Product advantage




Product display




Company Profile










Our services




FAQ


Q:What about the package of product?
A:1. Wooden pallet with carton. 2. Plastic pallet with carton. 3. Wooden wooden pallet with wooden case. 4. According to . . customer requirements.

Q:What's the payment?
A:30%TT advance , 70% after send the copy of the BL.We accept T/T,L/C, Western Union ,USD.

Q:If I need sample,what should I do?
A:It's our pleasure to send sample for you.You can send me your delivery address by email or message.We will send you . . . free sample at first time.

Q:Can you give me a discount price?
A:It is depending on the volume. The larger the volume is, the more discount you can enjoy.

Q:Why is your price a bit higher than other Chinese suppliers?
A:To meet the requirement of different customers and areas, our factory manufactures various kinds of quality for each . . . item at a wide range of price. We can offer the products of different quality levels depending on customer’s target price and quality requirement.

Q:How can you guarantee the quality of mass production is same with the sample sent to me before?
A:Our warehouse staff will leave another same sample in our company, with your company name marked on it, which our production will be based on.
