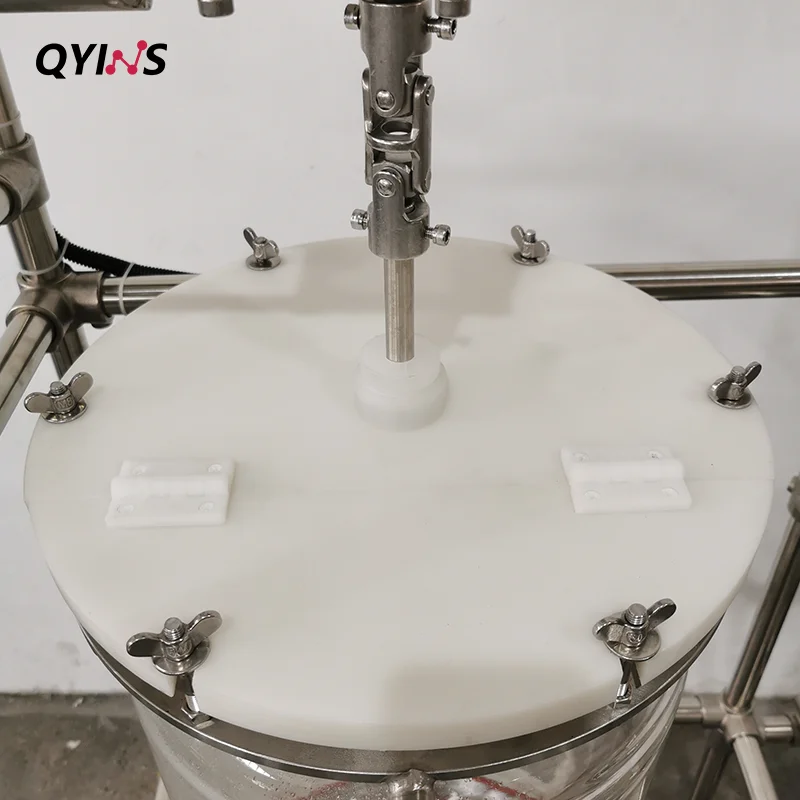

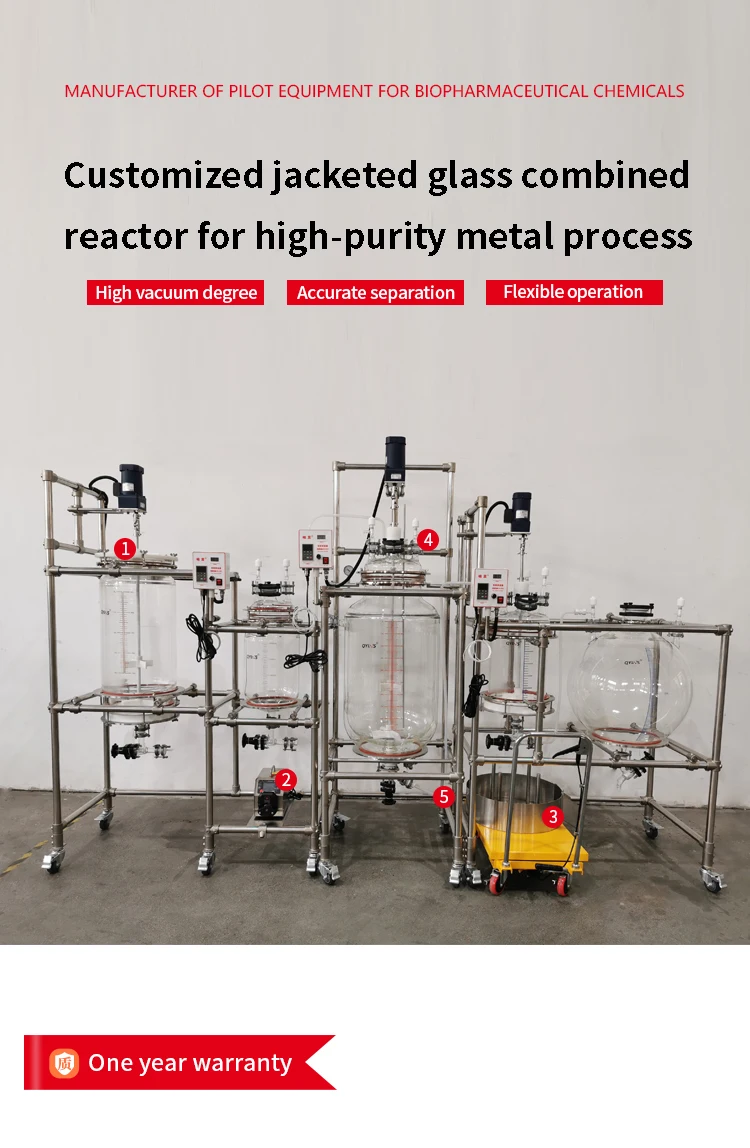

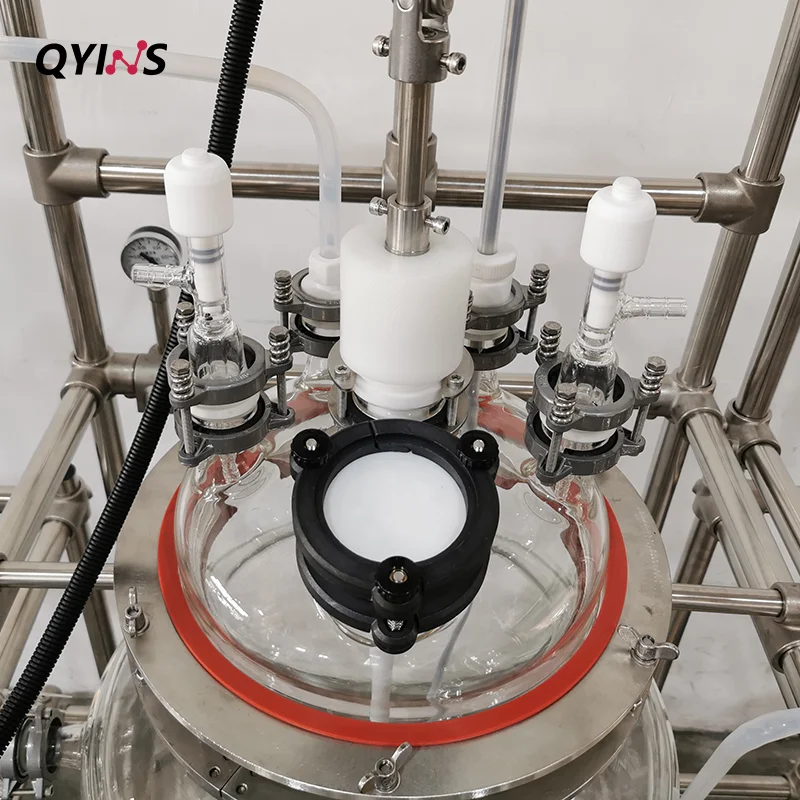

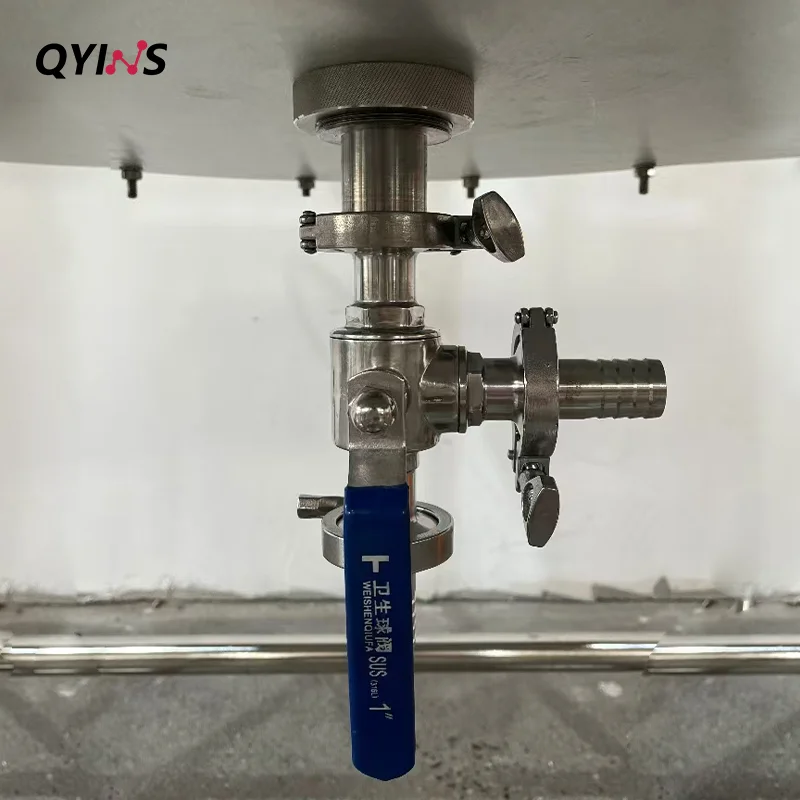

Customized jacketed glass solid liquid separation high purity metal process stirring reactor Nutsche filter reactor
- Category: >>>
- Supplier: Qiyu Industry (shanghai) Co. Ltd.
Share on (1601274838686):
Product Overview
Description
Model | QYGF-10L | QYGF-20L | QYGF-30mL | QYGF-50L | QYGF-100L | ||||
Material capacity | 10L | 20L | 30L | 50L | 100L | ||||
Jacket capacity | ≈2L | ≈5L | ≈8L | ≈15L | ≈20L | ||||
Flange diameter | 265mm | 340mm | |||||||
Kettle cover openings | 10L~20L total 6 (stirring 50 flange, temperature measuring port, liquid feed port *2, solid feed port, spare port, thread grinding port)30L-100L total 6 (mixing 60 flanges, temperature measuring port, liquid feed port *2, solid feed port, spare port, thread grinding port) | ||||||||
Kettle and cover | Flange connection | ||||||||
No-load vacuum | -0.098MPA | ||||||||
Frequency conversion governor | Digital display temperature and speed | ||||||||
Rotational speed | 0-400r/min | 0-280r/min | |||||||
Seal | Self-lubricating mechanical seal | ||||||||
Filter base plate | Modified PTFE core PE (316 stainless steel core optional) | ||||||||
Core hole diameter | 1-160μm（Optional） | ||||||||
Core plate diameter | 213mm | 275mm | |||||||
Conventional motor | 120W/1:3 | 200W/1:5 | |||||||
Explosion-proof motor | 180W/1:3 | 370W/1:5 | |||||||
Voltage(V) | Voltage can be customized according to customer requirements | ||||||||
