Algae Tubular Separator Centrifuge
US $6800
Virgin Coconut Oil Extraction Separate Tubular Centrifuge Machine VCO Separating by Centrifuge Processing
- Category: >>>
- Supplier: Liaoning Koen Machinery Co. Ltd.
Share on (1601275114686):
Product Overview
Description
Products Description
Coconut Oil Tubular Centrifuge Separator/ VCO tubular centrifugal Machine

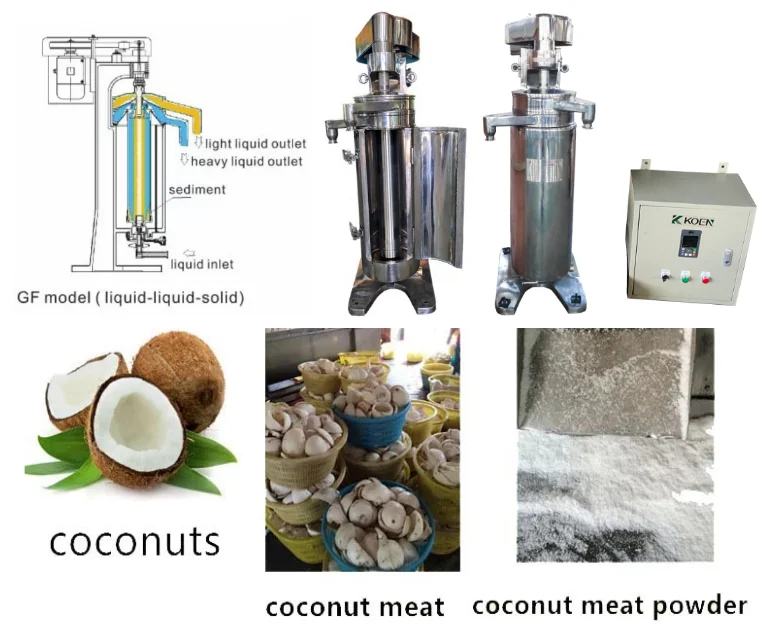

The separator consists of machine body, driving part ,bowl, liquid collecting pan and liquid-in bearing seat etc. The material is sprayed onto the bowl from the inlet on the bottom and strong centrifuge force is formed when the bowl rotates with the material and that makes the material flow upper along the wall of the bowl and then separated because of the different gravity by the centrifugal force. GF-for separation: Heavy liquid forms outer ring and light liquid forms inner ring. They flow to the top of the bowl and discharge from their respective outlet. And the little solid is settled on the wall of the bowl and discharged manually after the machine stops.
The separator is consisted of main body, driving device, bowl,collecting pan and liquid-in bearing seats. The upper of the bowl is flexible mainshaft and the lower of it is damp floating. The mainshaft is connected with a driven wheel by the coupling seat with the buffer. The power is transmitted to the driven wheel by the motor through the transmission belt and the tensioner to make the bowl rotate around its axis at an overspeed and form a strong centrifugal force field. The product sprays into the liquid inlet from the bottom and liquid is forced to flow upward along the inner wall of the bowl and then is separated into different layers according to different density.
Details Images
Product Paramenters
Model | GQ/GF75 | GQ/GF105 | GQ/GF125 | GQ150 |
Drum Diameter | 75mm | 105mm | 125mm | 150mm |
Rotating Speed of Drum | 19000rpm | 16300rpm | 15000rpm | 14000rpm |
Centrifugal force | 15200G | 15620G | 15700G | 15600G |
Capacity | 600L/H | 1200L/H | 1500L/H | 100-500L/H |
Motor | 1.5kw | 2.2KW | 3.0KW | 3.0KW |
Weight | 300kg | 500kg | 550kg | 600kg |
Dimension | 760*450*1120mm | 840*500*1600mm | 900*550*1600mm | 950*600*1600mm |
Recommend Products
Packing
Company Profile
Koen Machinery Co.,Ltd, We are the professional manufacturer of separation equipment,food machinery, liquid filling machine and packing machine. specializing in provide with the whole set of technology and equipment. we have professional technology team to design, research and development for customer according to customer’s requirements, and have high standard production process control. Our international trade department can supply the whole project service. Our main area are the food ,chemical project .
Our aim is providing you efficiently solution and superior after-service. We sincerely hope YOU are our next customers! Exported country:At present, our products have been exported to the United States, Belgium, Canada, Australia, Greece, Bolivia, Peru, Saint Lucia, Israel, Malaysia, Indonesia, Philippines, Sri Lanka, Vietnam, South Korea, India, Denmark, Russia, Georgia, Jordan, Bangladeshi, Tailand, Ethiopia, Finland, Spain, Japan, Colombia, Romania and so on more than 30 countries
Our aim is providing you efficiently solution and superior after-service. We sincerely hope YOU are our next customers! Exported country:At present, our products have been exported to the United States, Belgium, Canada, Australia, Greece, Bolivia, Peru, Saint Lucia, Israel, Malaysia, Indonesia, Philippines, Sri Lanka, Vietnam, South Korea, India, Denmark, Russia, Georgia, Jordan, Bangladeshi, Tailand, Ethiopia, Finland, Spain, Japan, Colombia, Romania and so on more than 30 countries
FAQ
Q1: Where is your factory? How can I visit there?
A1: Our factory location is Liaoyang, China.If want to visit our company , you can fly to Shenyang Taoxian Airport .
Q2: Do you have technicians for installation?
A2: We are responsible for the installation in your country, you can also arrange your staffs to our factory to learn how to
operate the machines, after purchased ,we offer English manual book and operation videos.
Q3: What's your advantages compared to your competitors?
A3: Quality and experience, as evidenced by 40 patents and over 35 years of experience.
Q4: What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc
A1: Our factory location is Liaoyang, China.If want to visit our company , you can fly to Shenyang Taoxian Airport .
Q2: Do you have technicians for installation?
A2: We are responsible for the installation in your country, you can also arrange your staffs to our factory to learn how to
operate the machines, after purchased ,we offer English manual book and operation videos.
Q3: What's your advantages compared to your competitors?
A3: Quality and experience, as evidenced by 40 patents and over 35 years of experience.
Q4: What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc
