Product Overview
Description

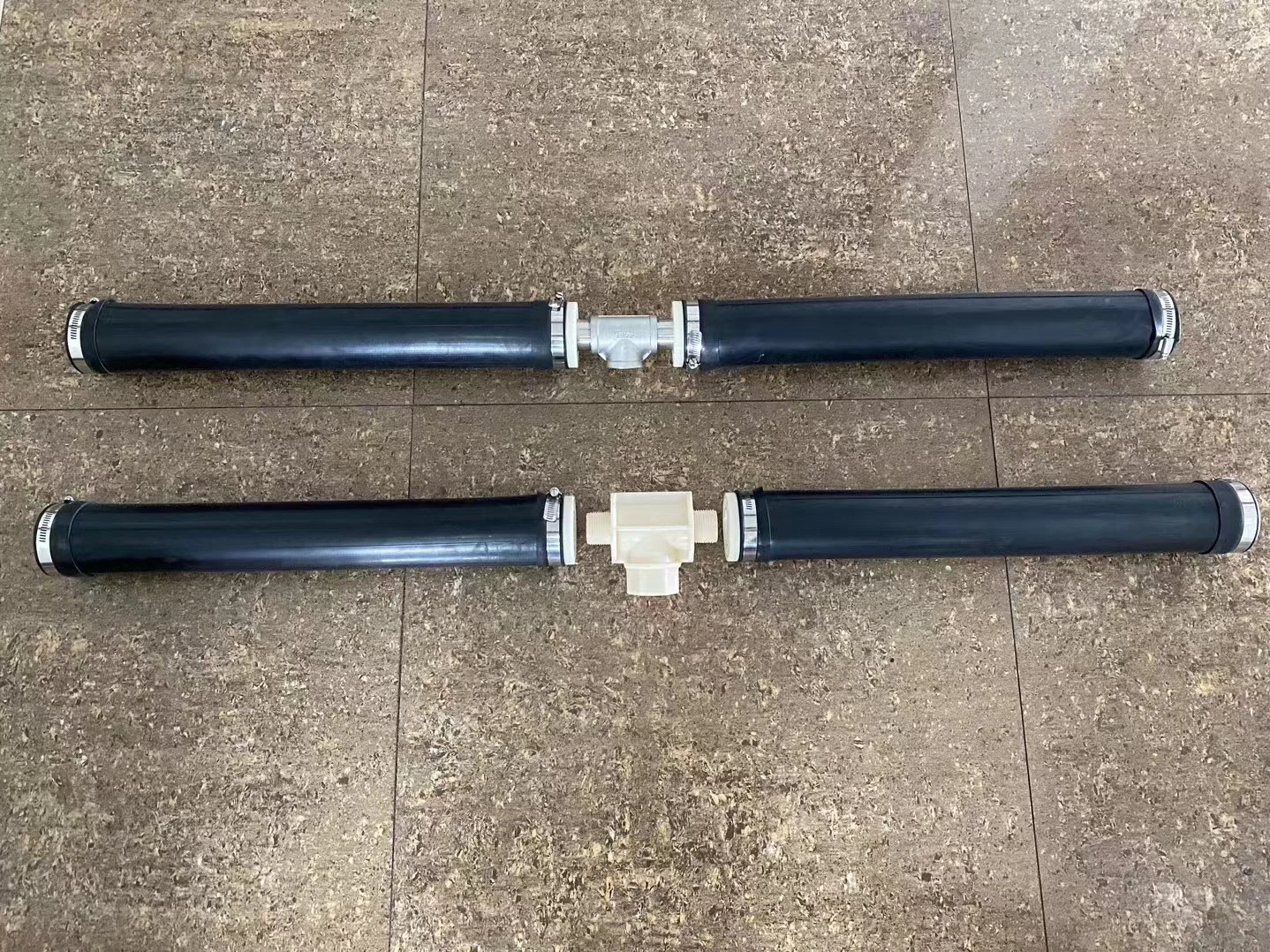

Whole Price Manufacturing Plant High Efficiency Aeration Tube Micro Bubble Diffuser
Product Introduction
Fine bubble diffuser, which is used to transfer air and with that oxygen into sewage or industrial wastewater. Oxygen is required by microorganisms in the water to break down the pollutants. Fine bubble disc diffuser series combines effective design, low installation costs, reliability and high performance in intermittent and continuous aeration processes. Special designed the slits cut opining, patterns and spacing between the slits for high oxygen transfer and longtime operation.
Standard Membrane Material:
We provide diffusers that are specially designed for a plethora of applications. The special low plasticizer EPDM is aimed at beverage production, and food and animal processing. The silicone membrane diffuser is specifically created for refining processes, petrochemicals, and the paper industry.
Anti-fouling Surface for Membrane Material:
Relatively based on the latest nano technology, the surface of the membrane materials are meant to prevent the accumulation of both biological and solid encrustations.
Reinforced Polypropylene Support Dish and Ring:
We provide tube diffusers with hoops and support pipe that are strengthened and well-protected by glass fibers for optimum chemical resistance. With this sturdy support pipe, it can endure varying temperatures and resist harmful UV rays. All tube diffusers come with built-in non-return valves to ensure safety and security of the water treatment process. This valve controls the build-up of sludge and prevents its infiltration into the aeration system, especially when the air flow is sporadic.
We provide diffusers that are specially designed for a plethora of applications. The special low plasticizer EPDM is aimed at beverage production, and food and animal processing. The silicone membrane diffuser is specifically created for refining processes, petrochemicals, and the paper industry.
Anti-fouling Surface for Membrane Material:
Relatively based on the latest nano technology, the surface of the membrane materials are meant to prevent the accumulation of both biological and solid encrustations.
Reinforced Polypropylene Support Dish and Ring:
We provide tube diffusers with hoops and support pipe that are strengthened and well-protected by glass fibers for optimum chemical resistance. With this sturdy support pipe, it can endure varying temperatures and resist harmful UV rays. All tube diffusers come with built-in non-return valves to ensure safety and security of the water treatment process. This valve controls the build-up of sludge and prevents its infiltration into the aeration system, especially when the air flow is sporadic.
1. Sealing groove. The rubber washer and the corresponding groove are designed to ensure air tightness of product. lnstead of using raw tape in the installation process, it is convenient to install, stable and reliable.
2. Spanner position. Spanner is used to replace the traditional hand-twist installation, avoid membrane damage. And installation is convenient and reliable.

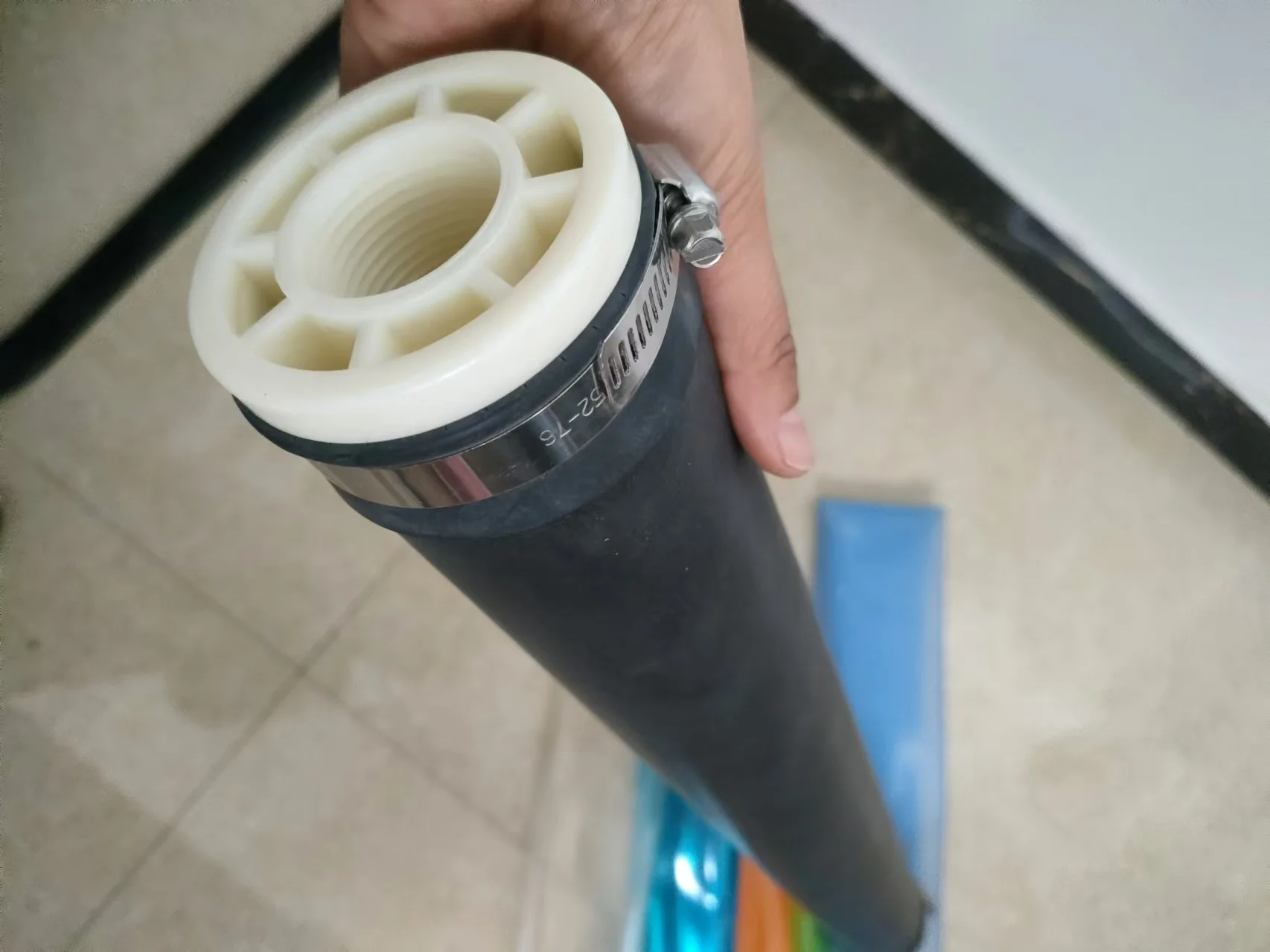

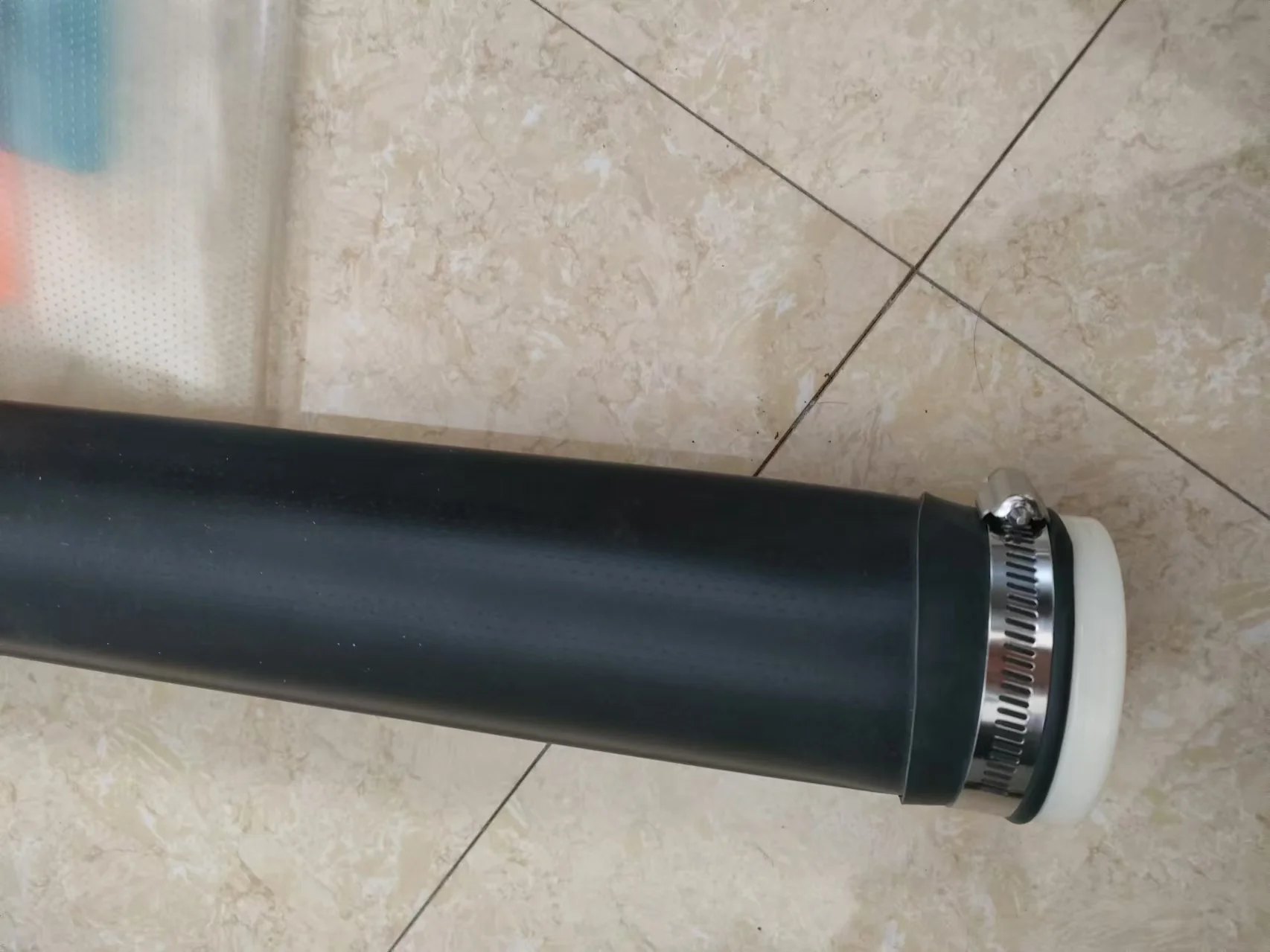

3. 304 ss material ear clamp. Product adopts single-ear pole clamp which make product bear 360 degree uniform stress. Under heat expansion and contraction as well as vibration, it can play a spring regulating effect. All single-ear clamps are 304 stainless steel material. It is more reliable in waste water.
4. Tail end design. The tail end of the aerator can be equipped with baffle part, which reserves counter weight airvents and screw holes for tail fix ation.
2. Spanner position. Spanner is used to replace the traditional hand-twist installation, avoid membrane damage. And installation is convenient and reliable.
3. 304 ss material ear clamp. Product adopts single-ear pole clamp which make product bear 360 degree uniform stress. Under heat expansion and contraction as well as vibration, it can play a spring regulating effect. All single-ear clamps are 304 stainless steel material. It is more reliable in waste water.
4. Tail end design. The tail end of the aerator can be equipped with baffle part, which reserves counter weight airvents and screw holes for tail fix ation.
Name | Fine bubble tube diffuser |
Material | EPDM membrane, ABS frame |
Color | Black |
Dimension | 65mm |

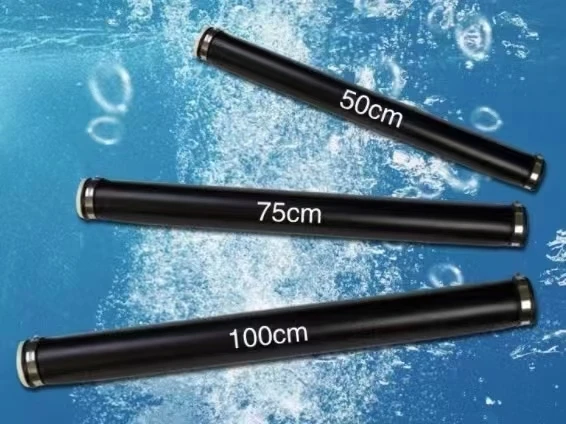

Length | 300mm, 500mm, 750mm, 1000mm |
Application | Water treatment, fish farming, shrimp farming, aquaculture |
Diameter | 65mm | 65mm | 65mm |
Length | 500mm | 750mm | 1000mm |
Membrane material | EPDM | EPDM | EPDM |
Plastic tray material | ABS | ABS | ABS |
Bubble type | Fine bubble | Fine bubble | Fine bubble |
Bubble size | 1-2mm | 1-2mm | 1-2mm |
Design Air Flow | 0.75-7.5m³/h | 1.2-12m³/h | 1.5-15m³/h |
Optimal Air Flow | 2-3.5m³/h | 3-5m³/h | 4-7m³/h |
Oxygen transfer efficiency (SOTE) | 35-50% | 35-50% | 35-50% |
Resistance loss | 1500-2500pa | 2250-3750pa | 3000-5000pa |
Hole quantity | 9500pcs | 14500pcs | 19000pcs |
Service area | 0.18-1.5㎡ | 0.28-2.25㎡ | 0.375-3㎡ |
Use temperature | 0-80℃ | 0-80℃ | 0-80℃ |
Membrane thickness | 2±0.1mm | 2±0.1mm | 2±0.1mm |
Connector | 3/4 | 3/4 | 3/4 |
Service life | 5-8years | 5-8years | 5-8years |
Feature
1, The EPDM membrane pipe is made from imported ethylene-propylene diene copolymer (EPDM) or silicon rubber, which makes the membrane anti-aging, corrosion-resisting and long service life, as long as 5 to 8 years.
2, The aerating hole is evenly formed, leading to good expandability and instant closing. During aerating work, the fine bubbles (1 – 3 mm) can be generated and the oxygenation utilization can be as high 35 – 42%.
3, The gas vent is used to distribute the gas in a quick and even way. The aerating membrane stresses evenly, which can increase the service life of the rubber diaphragm pipe and the uniformity of released bubbles and improve the aerating effect.
Application
2. Aeration of deep aeration basin.
3. Aeration for excreta and animal waste water treatment plant.
4. Aeration for denitrification/dephosphorization aerobic processes.
5. Aeration for high concentration waste water aeration basin, and aeration for regulating pond of waste water treatment plant.

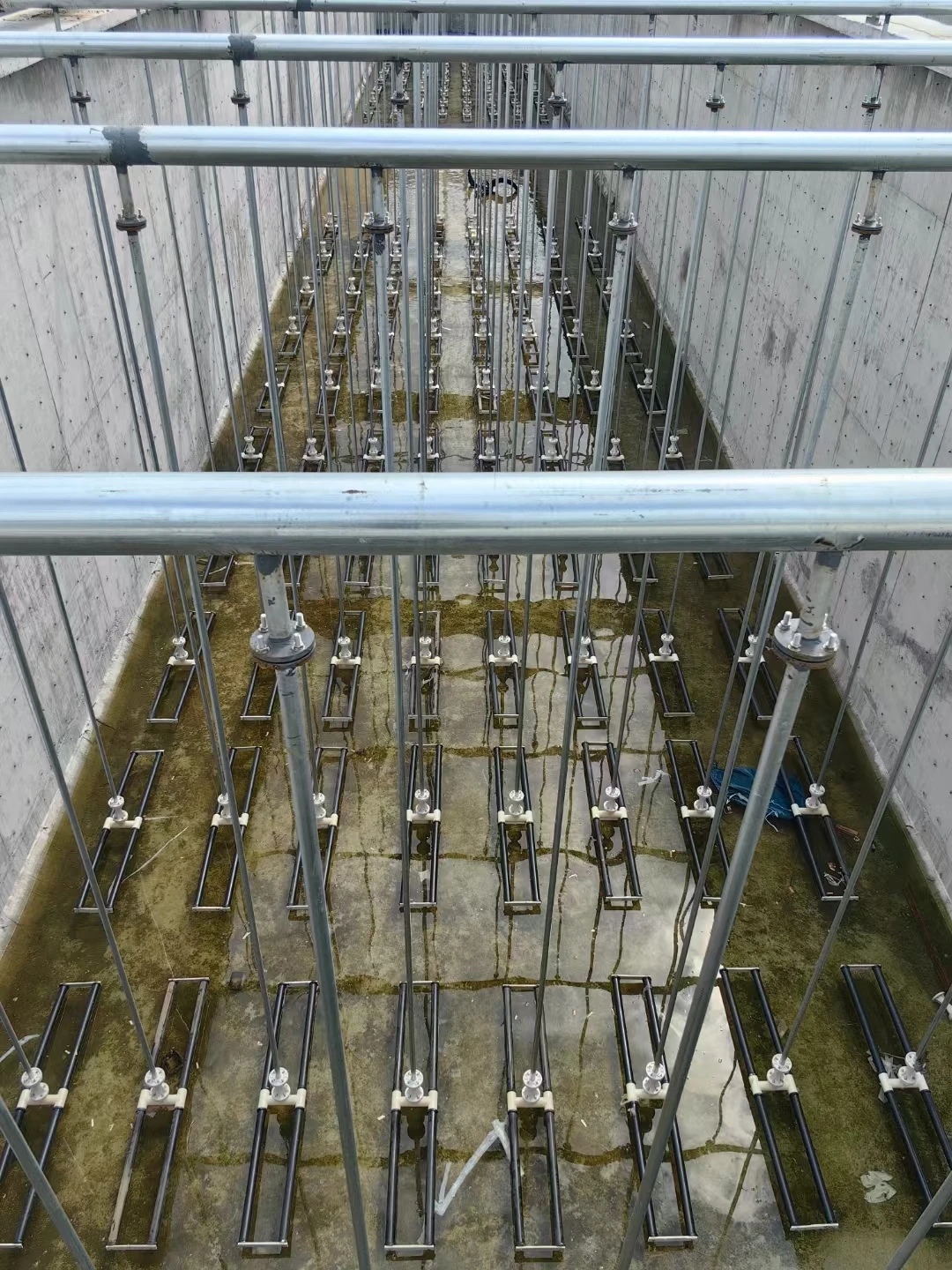

6. Aeration for SBR, MBBR reaction basin, contact oxidation pond; activated sludge aeration basin in sewage disposal plant.
* High oxygen transfer efficiency.
* High resistance to clogging.
* High resistance to corrosion.
* Wide air flow range.
* Low energy cost.
* Easy installation.
* Uniform fine bubble.
* Back flow prevention.
* Self cleaning operation.
* Intermittent operation capability.
* Slide-off prevention designed.
* High resistance to clogging.
* High resistance to corrosion.
* Wide air flow range.
* Low energy cost.
* Easy installation.
* Uniform fine bubble.
* Back flow prevention.
* Self cleaning operation.
* Intermittent operation capability.
* Slide-off prevention designed.

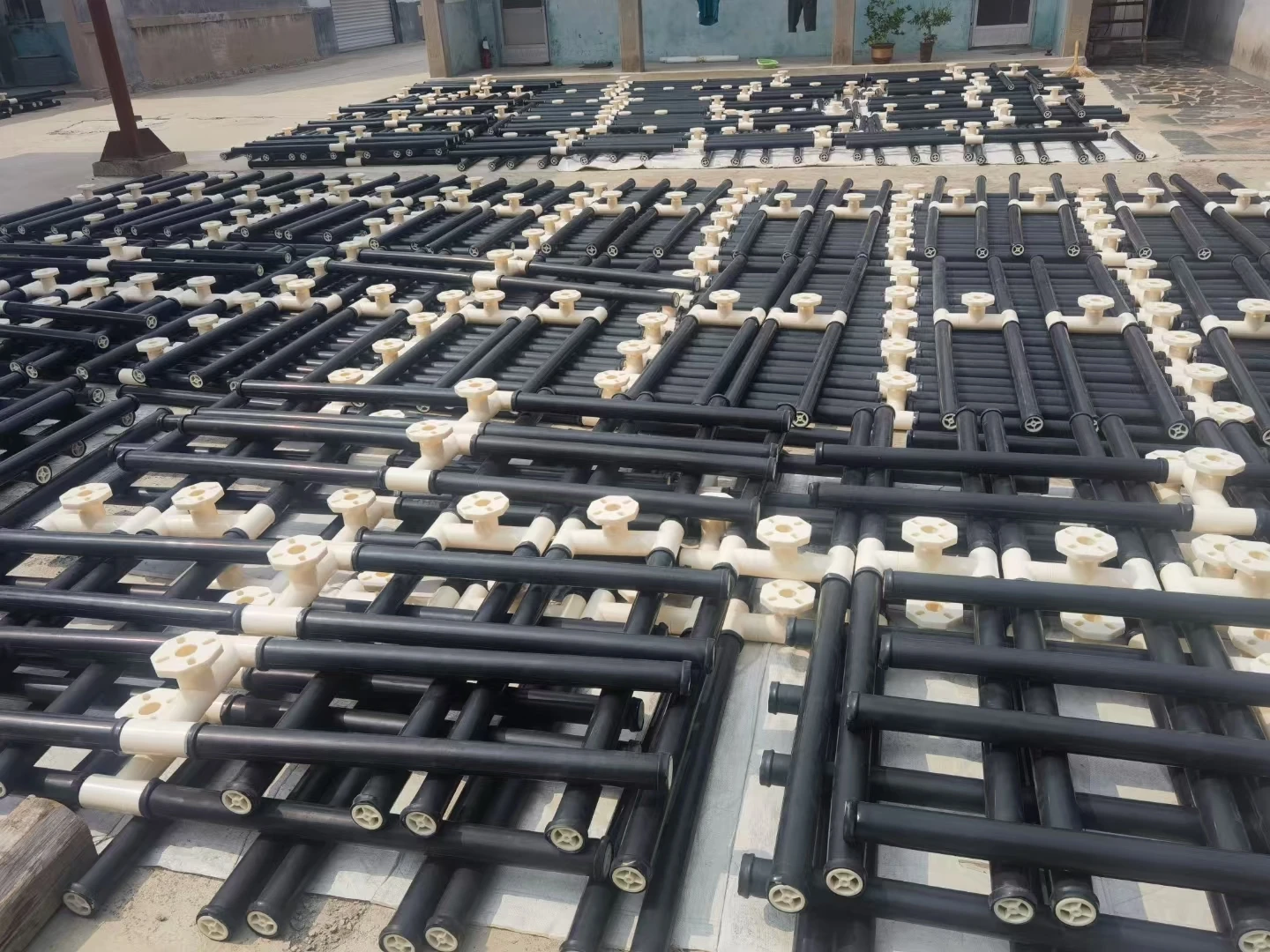

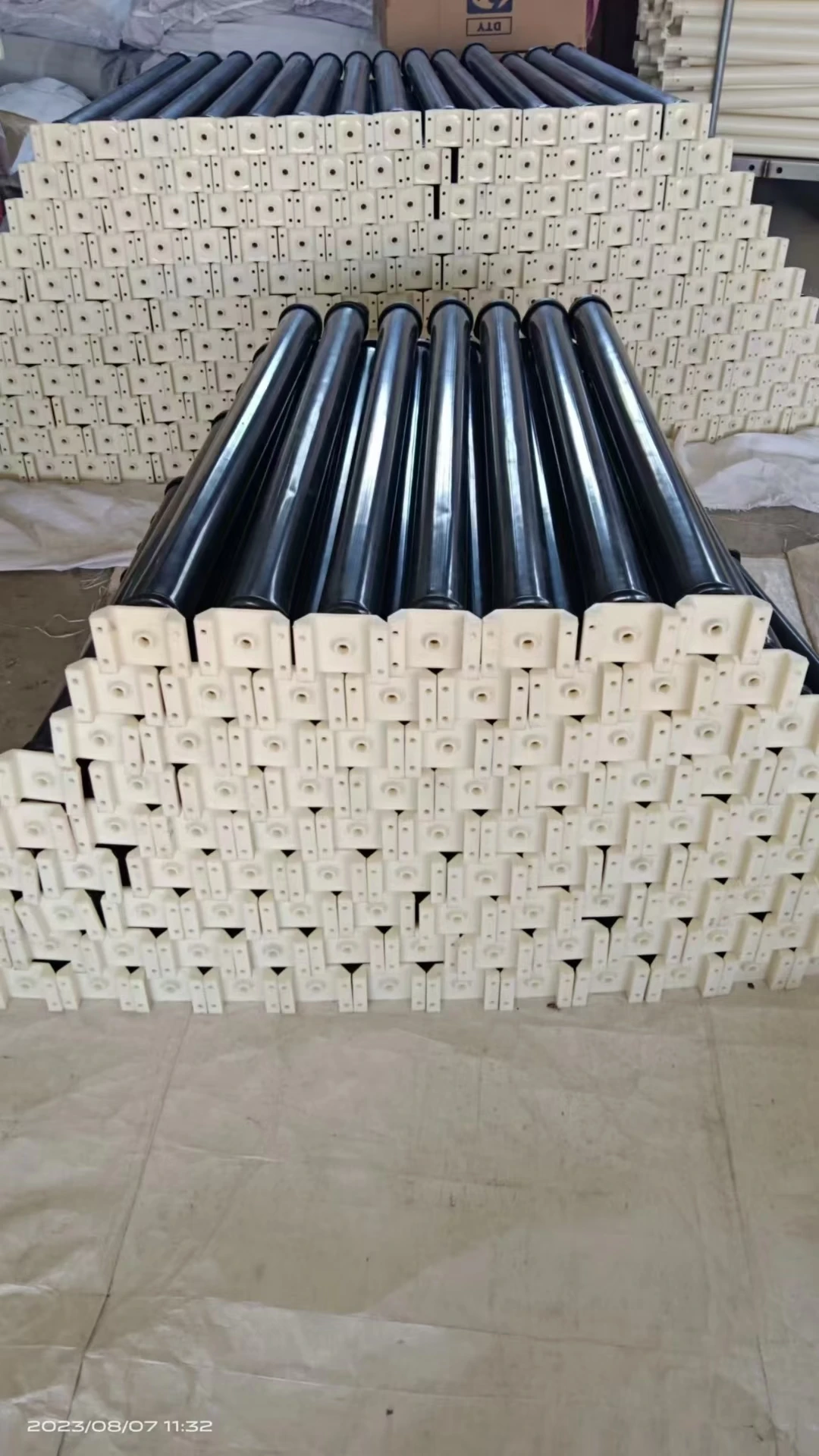

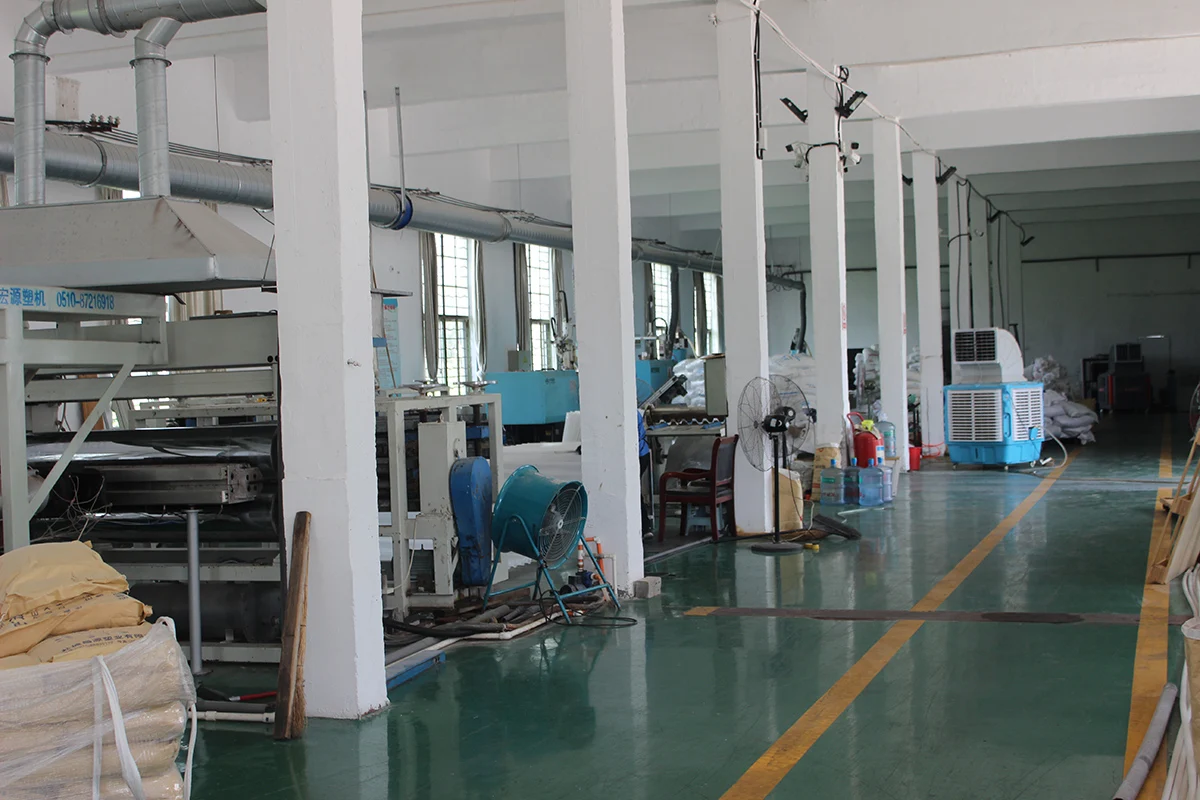

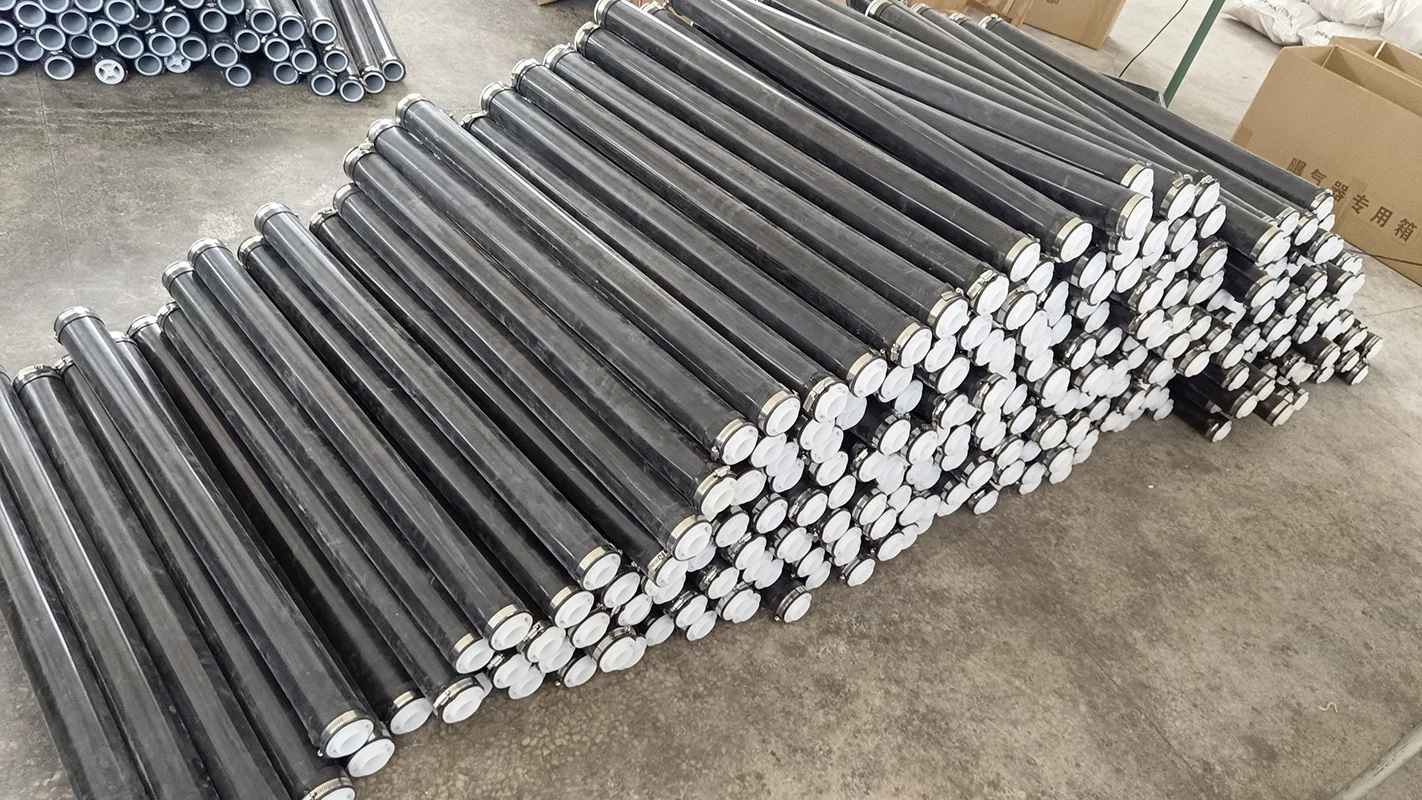

Our Factory
Package

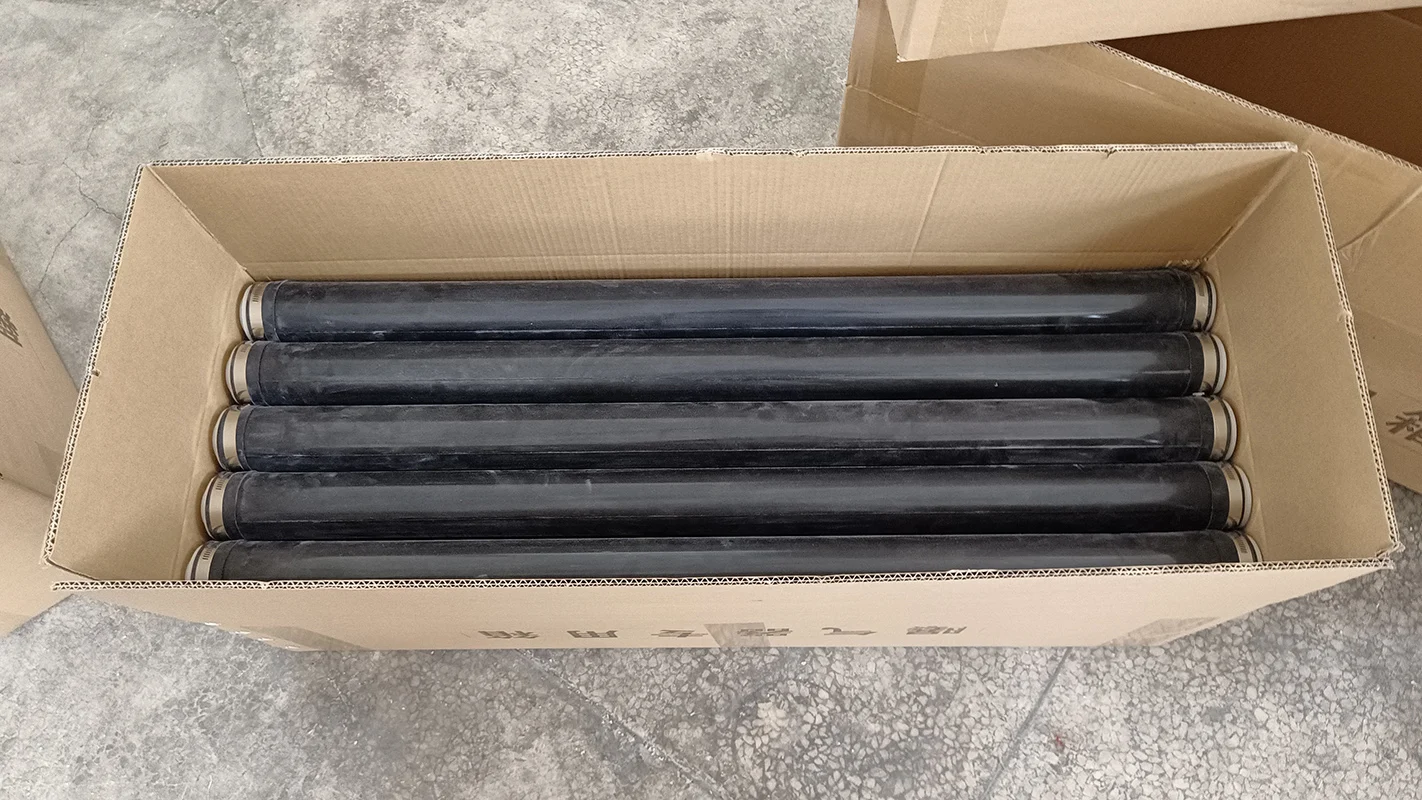

Fine bubble tube diffusers are packed with carton box.
FAQ
1. Do you have your own factory?
Yes. We have experience in manufacturing and selling of water treatment media products for more more 15 years.
2. Could I get some samples?
Yes, we would like to provide free samples.
3. Could I use my own logo or design on goods?
Yes, customized logo and design are available for mass production.
4. What is the delivery time?
One week for a sample. 15-30 days for mass production.
6. What Incoterm do you use?
EXW, FOB, CIF.
Yes. We have experience in manufacturing and selling of water treatment media products for more more 15 years.
2. Could I get some samples?
Yes, we would like to provide free samples.
3. Could I use my own logo or design on goods?
Yes, customized logo and design are available for mass production.
4. What is the delivery time?
One week for a sample. 15-30 days for mass production.
6. What Incoterm do you use?
EXW, FOB, CIF.
