Hss Bimetal Steel Strips High Speed Steel Bi metal M2 M51 Steel Strip
- Category: >>>
- Supplier: Guang Zhou Cgood Steel Co. Ltd.
Share on (1601276061721):
Product Overview
Description
Hss Bimetal Steel Strips High Speed Steel Bi-metal M2 M51 Steel Strip
We can supply back material X32, D6A steel strip and also Bimetal steel strip ( carbon steel X32, D6A topped with HSS M42/M51)
Material:
HSS M42/D6A Bimetal steel strip
HSS M42/X32 Bimetal steel strip
HSS M51/X32 Bimetal steel strip
HSS M51/D6A Bimetal steel strip
Bimetal strip for: producing hacksaw blade,power hacksaw blade,band saw blade,jig saw blade
Shape: steel coil
Technology: laser welding HSS Bimetal steel strip
Common size: 0.65x 13mm, 0.9 x 19mm, 0.9 x 27mm, 1.1 x 34mm, 1.3 x 41mm, 1.6 x 54mm, size can be customized
HSS M42/D6A Bimetal steel strip
HSS M42/X32 Bimetal steel strip
HSS M51/X32 Bimetal steel strip
HSS M51/D6A Bimetal steel strip
Bimetal strip for: producing hacksaw blade,power hacksaw blade,band saw blade,jig saw blade
Shape: steel coil
Technology: laser welding HSS Bimetal steel strip
Common size: 0.65x 13mm, 0.9 x 19mm, 0.9 x 27mm, 1.1 x 34mm, 1.3 x 41mm, 1.6 x 54mm, size can be customized
We also produce steel strip for making wood band saw blades with the following standard sizes:
1. Grade: SK5, C75S, C75Cr1, 51CrV4, SAE1095 steel strip for saw blade use
2. Size: 0.60 x 25mm, 0.60 x 30mm, 0.60 x 35mm, 0.70 x 30mm, 0.70 x 35mm, 0.70 x 40mm,
0.80 x 40mm, 0.80 x 45mm, 0.80 x 50mm, 0.90 x 50mm, 0.90 x 60mm, 1.00x 60mm, 1.00 x 70mm, 1.00 x 80mm, 1.00 x 90mm, 1.00 x100mm,1.10 x 70mm, 1.10 x 80mm, 1.10 x 90mm, 1.10 x 100mm,
1.10 x 120mm, 1.10 x 150mm, 1.20 x 120mm, 1.20 x 130mm, 1.20 x 150mm3.
2. Size: 0.60 x 25mm, 0.60 x 30mm, 0.60 x 35mm, 0.70 x 30mm, 0.70 x 35mm, 0.70 x 40mm,
0.80 x 40mm, 0.80 x 45mm, 0.80 x 50mm, 0.90 x 50mm, 0.90 x 60mm, 1.00x 60mm, 1.00 x 70mm, 1.00 x 80mm, 1.00 x 90mm, 1.00 x100mm,1.10 x 70mm, 1.10 x 80mm, 1.10 x 90mm, 1.10 x 100mm,
1.10 x 120mm, 1.10 x 150mm, 1.20 x 120mm, 1.20 x 130mm, 1.20 x 150mm3.
3. Hardness: 42-45HRC, 44-46HRC, 45-47HRC for hardened & tempered process (40-55HRC for H+T process)
4. Standard: DIN 172222
5. Certification: ISO9001, SGS, ROHS
4. Standard: DIN 172222
5. Certification: ISO9001, SGS, ROHS
Product Specification
Product Name | hardened and tempered steel strips/coils/sheet/plate cold rolled annealed steel strips/coils/sheet/plate spring steel strips/coils/sheet/plate high carbon strips/coils/sheet/plate |
Standard | EN, DIN, JIS, AISI, ASTM |
Type | Coil/Sheet/Plate/Strip |
Material Grade |
C50S, C55S, C60S, C67S, C70S, C75S, C80S, C95S, 50CrV4, 51CrV4, 75Cr1, 75Ni8, SK5, 60Si2Mn, SK85, 65G sae1045, sae1050, sae1060, sae1065, sae1070, sae1075, sae1095 C100S , CK45, CK50, CK55, CK60, CK67, CK70, CK75, 40Mn, 35CrMo 65Mn, 50#, 60#, T8, T10 Stainless steel: AISI 420, 430 Bimetal steel strip: M42, M51/D6A, X32
|
Conditions | hardened & tempered, annealed, cold rolled |
Thickness | 0.10mm to 6.00mm |
Width | 3mm to 1250mm |
Surface color | nature, blue, white, black, yellow, bright, polished |
Hardness | below 19HRC for annealed process, 29-55HRC for hardened& tempered process, 21-28HRC for cold rolled process |
Edge | slit/sheared edge, round edge, square edg |
| Application | rolling shutter door spring, band saw blades, steel springs, coil springs, masonary tools, construction tool, agricultural tools, auto parts, springs, metal parts, washers, spacers, clips, pin, inserts |
Coil weight | 30kgs - 2500kgs |
Coil ID | 300-500MM or as per request |

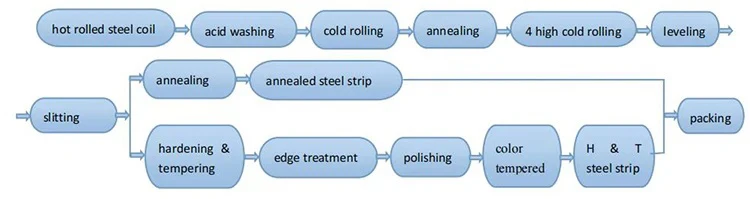

Product Procedures

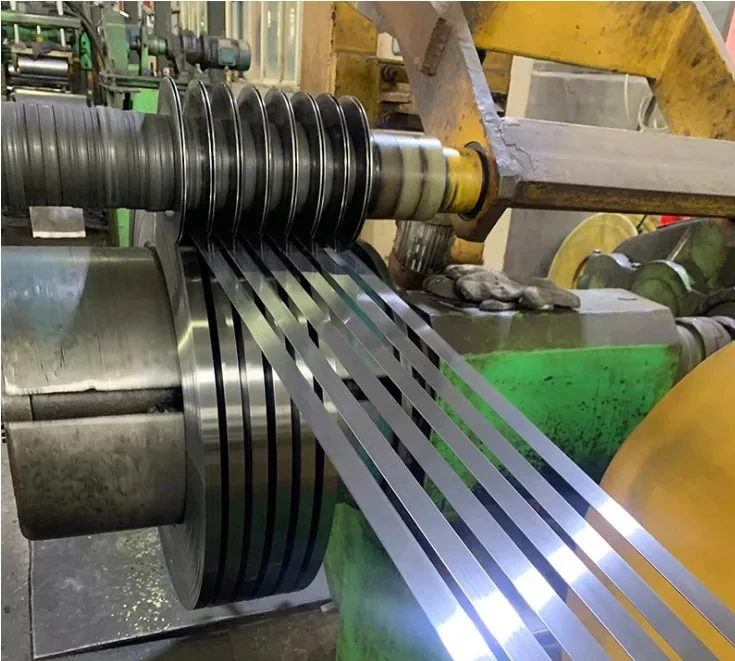

Guang Zhou Cgood Steel Co., Ltd, produces cold rolled high carbon spring steel
strips in hardened and tempered conditions and annealed conditions, can be rolled

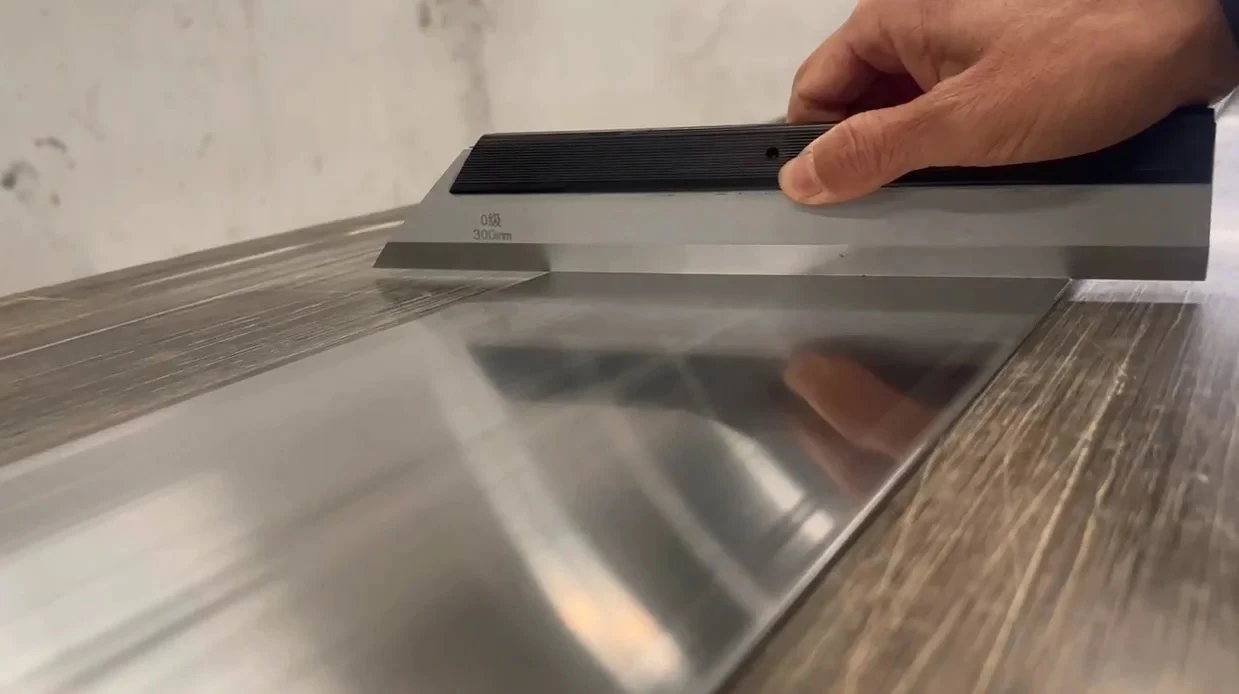

in strip, coil, sheet. With advance facilities, the quality come out perfectly in
flatness and straightness and uniform hardness. Size tolerance can be
controlled strictly.
Hardened and tempered steel strips and cold rolled annealed steel strip are
used for automobile clutches, Wood working saws, Masonry and Agricultural
tools, Gang saws blades, for marble cutting, Wood cutting Band saws blades,
Hand Saws, Cross-cut Saws, Pit Saws, Doctor Blades, for paper industries,
Leather splitting knives, Clutch plates, Brake components, Horn diaphragms,
Spring & Spring Washers, Textile and Jute mill accessories, Compressor
valve plates, Forge Hammer Belts, Drop pins for textile industries, Spiral
coil springs and circular saws, Tubes and non-ferrous metal cutting etc
We can supply blue spring steel, yellow color steel strip, polished spring steel strip,
white polished high carbon steel strips. Our factory is focus on the production of
heat treatment steel strips in hardened and tempered process and annealed
process, exporting steel strip worldwide for at least 20 years.

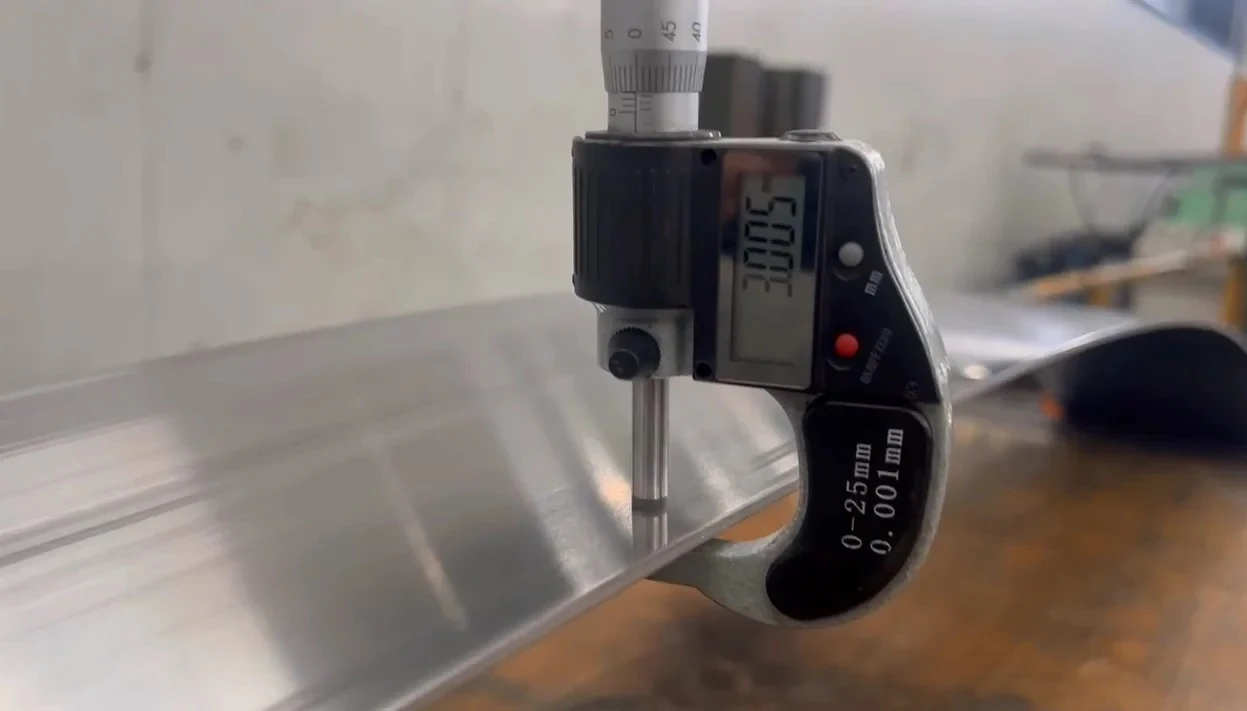

When completing the production, spring steel coils and high carbon steel are cut
pieces to test the chemial composition, hardness and size to make sure all
meeting customer request. Customer are satisfied with our quality.
We can supply spring metal sheet as well.
