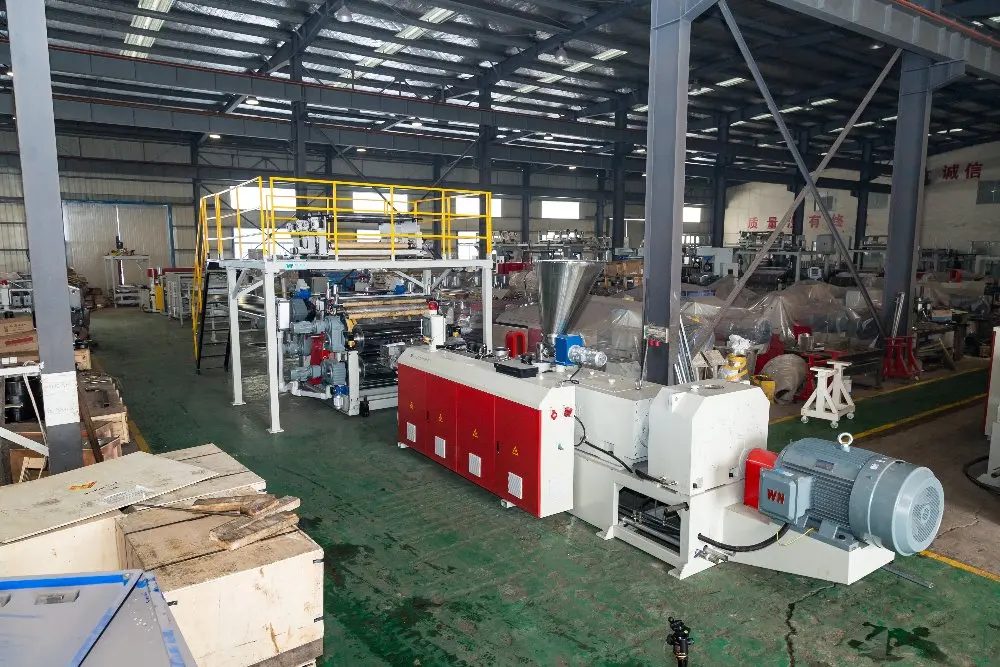

Home use Five Roller SPC LVT PVC Flooring Foam Sheet Lamination Machine
- Category: >>>
- Supplier: SKY WIN Technology Co. Ltd.
Share on (1601276200178):
Product Overview
Description
Product Description
SPC Floor Five-roller extrusion line（SPC/LVT） flooring extruder
1. The new CaCO3-PVC floor is the sessential skid resistane,anti-friction .In order to save more cost and increase the performance, we developed the PVC flooring machine line,
2. Processing principle: laminate the wear-resisting layer and color film to the extrusion sheet, the two kinds of materials are directly bonded together, good bond strength, emboss in calendering process, the effect is good .And then coated with UV paint, the effect is beautiful and vivid , registered embossing canbe added when required
2. Processing principle: laminate the wear-resisting layer and color film to the extrusion sheet, the two kinds of materials are directly bonded together, good bond strength, emboss in calendering process, the effect is good .And then coated with UV paint, the effect is beautiful and vivid , registered embossing canbe added when required
3.one step extrusion (SPC) floor equipment, is our company's "invention patent"
Item No | SWDB5-2 (92/188 conical twin screw five Roller ) |
Capacity | 500-750kg/hour |
Screw | 92/188mm |
Motor Power | 270 KW ( Siemens) |
PLC | Siemens PLC, ABB Inverter |
Lamination System | Online Lamination ( EIR System is Optional) |
Direction for use
使用说明
使用说明
.1. The new CaCO3-PVC floor is the sessential skid resistane,anti-friction .In order to save more cost and increase the performance, we developed the PVC flooring machine line.
Description of application effect
使用效果描述
使用效果描述
2. Processing principle: laminate the wear-resisting layer and color film to the extrusion sheet, the two kinds of materials are directly bonded together, good bond strength, emboss in calendering process, the effect is good .And then coated with UV paint, the effect is beautiful and vivid , registered embossing canbe added when required

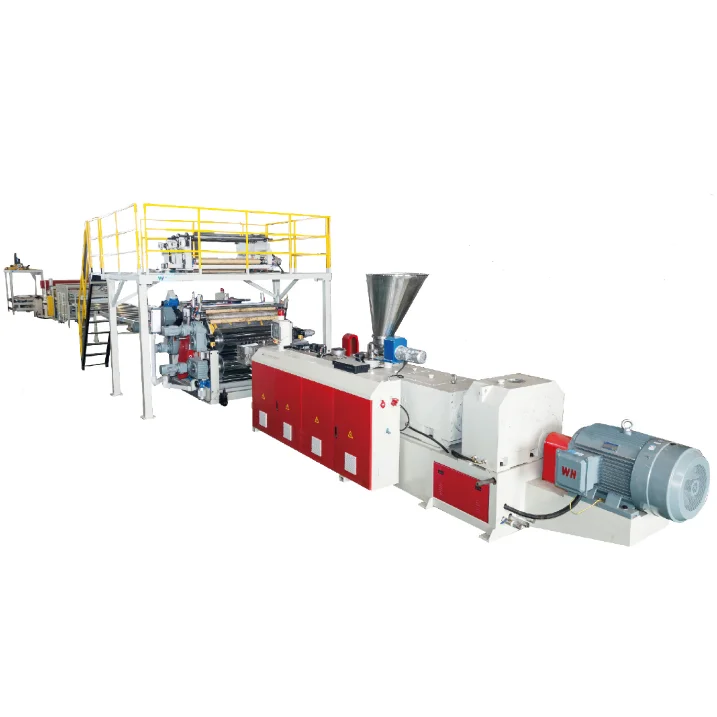

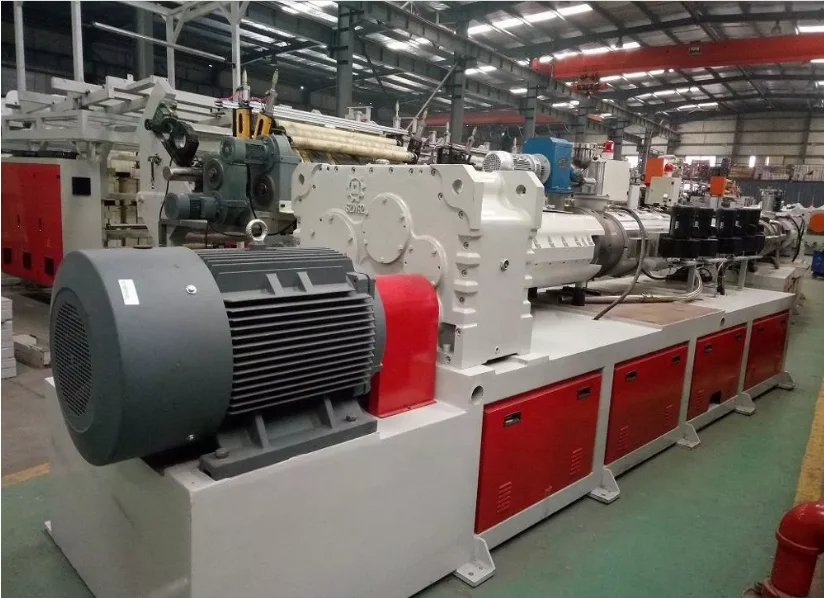

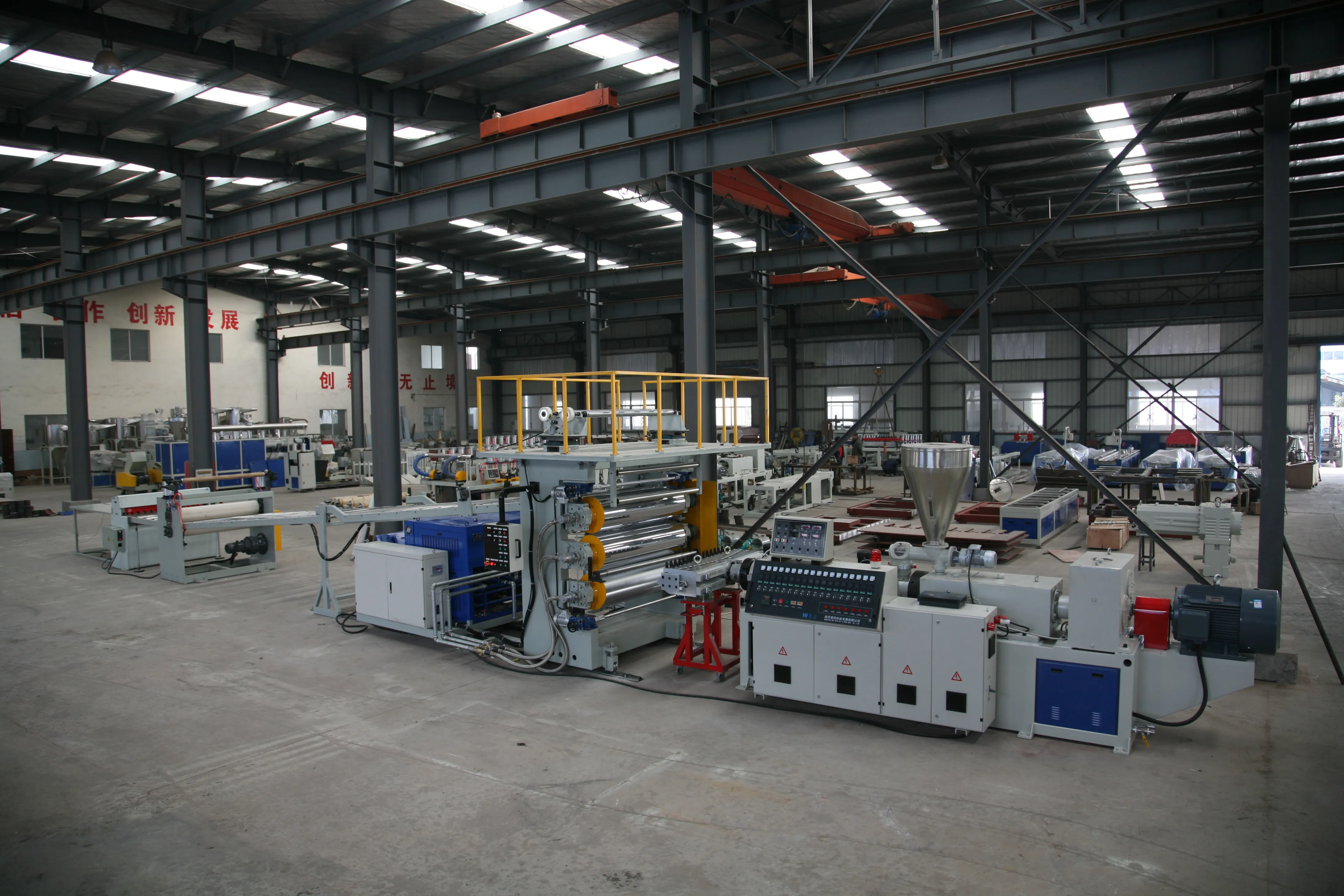

The machine Specification and Parameter
92/188mm SPC Floor conical Twin Screw Production line details parts | ||||||||||
Nr | Name | Qty | Nr | Name | Qty | |||||
1 | Conical Twin screw -92/188 | 1 set | 7 | Haul off machine | 1 set | |||||
2 | Three-roller calender | 1 set | 8 | Length calculation meter | 1 unit | |||||
3 | Lamination system | 1 unit | 9 | Embossing machine | 1 set | |||||
4 | Oil roller heating system | 1 unit | 10 | shearing machine | 1 set | |||||
5 | Cooling support shelf | 1 pair | 11 | Moving ahead and back system | 1 unit | |||||
6 | Side cutting blade | 1 set | 12 | Electric cabinet | 1 set | |||||
SPC Flooring Total Production line machines | ||||||||||
Nr | Name | Qty | Nr | Name | Qty | |||||
1 | Raw Material Powder Auto-Scales | 1set | 8 | Ixpe lamination machine | 1set | |||||
2 | High Speed Mixing Machine 1500/4500 | 1set | 9 | Automatic package machine | 1set | |||||
3 | SPC Flooring Extrusion and Lamination line | 1set | 10 | Waste SPC floor Crushing machine | 1set | |||||
4 | UV Coating machine | 1set | 11 | Waste material milling machine | 1set | |||||
5 | Multi Rip Saw | 1set | 12 | Slotting machine tools | 1set | |||||
6 | Automatic connection for Mlti Rip Saw to Slotting machine | 1set | 13 | SPC Flooring extruding Screw and Barrel | 1set | |||||
7 | Slotting machine | 1set | ||||||||

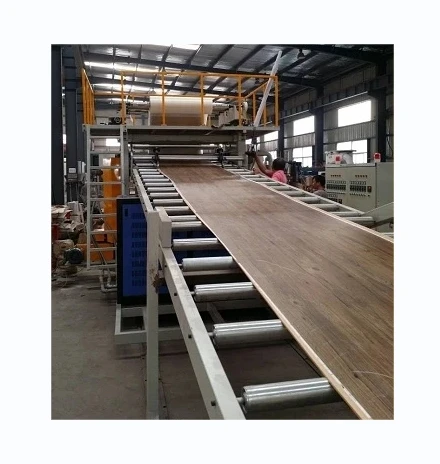

Finished Product

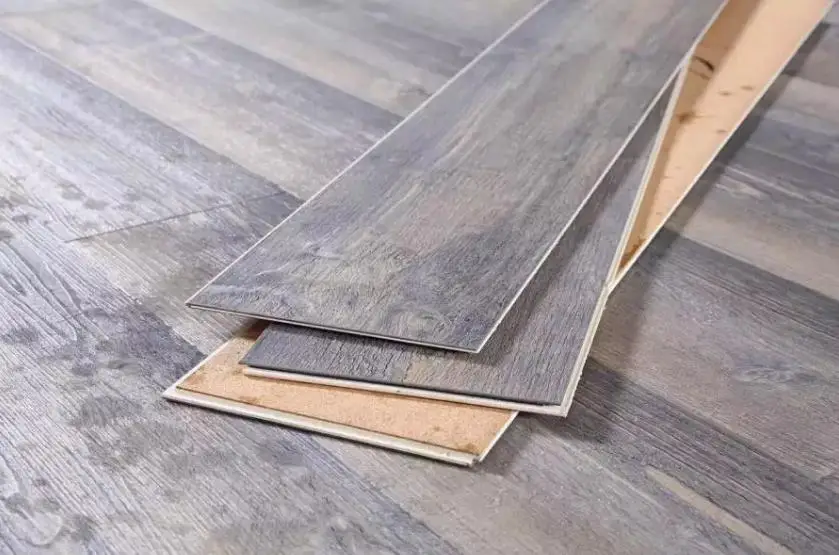

SPC FLoor details

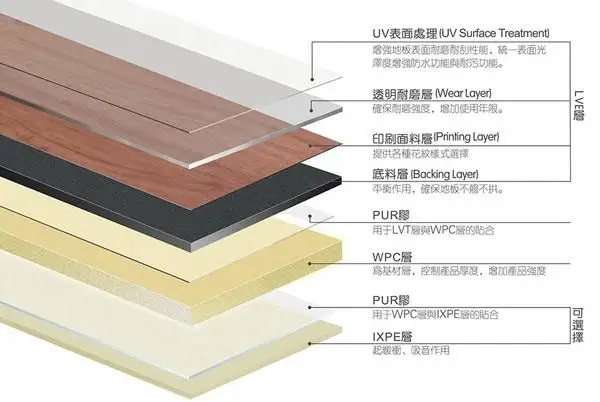

SPC Floor Construction
SPC Floor Advantage

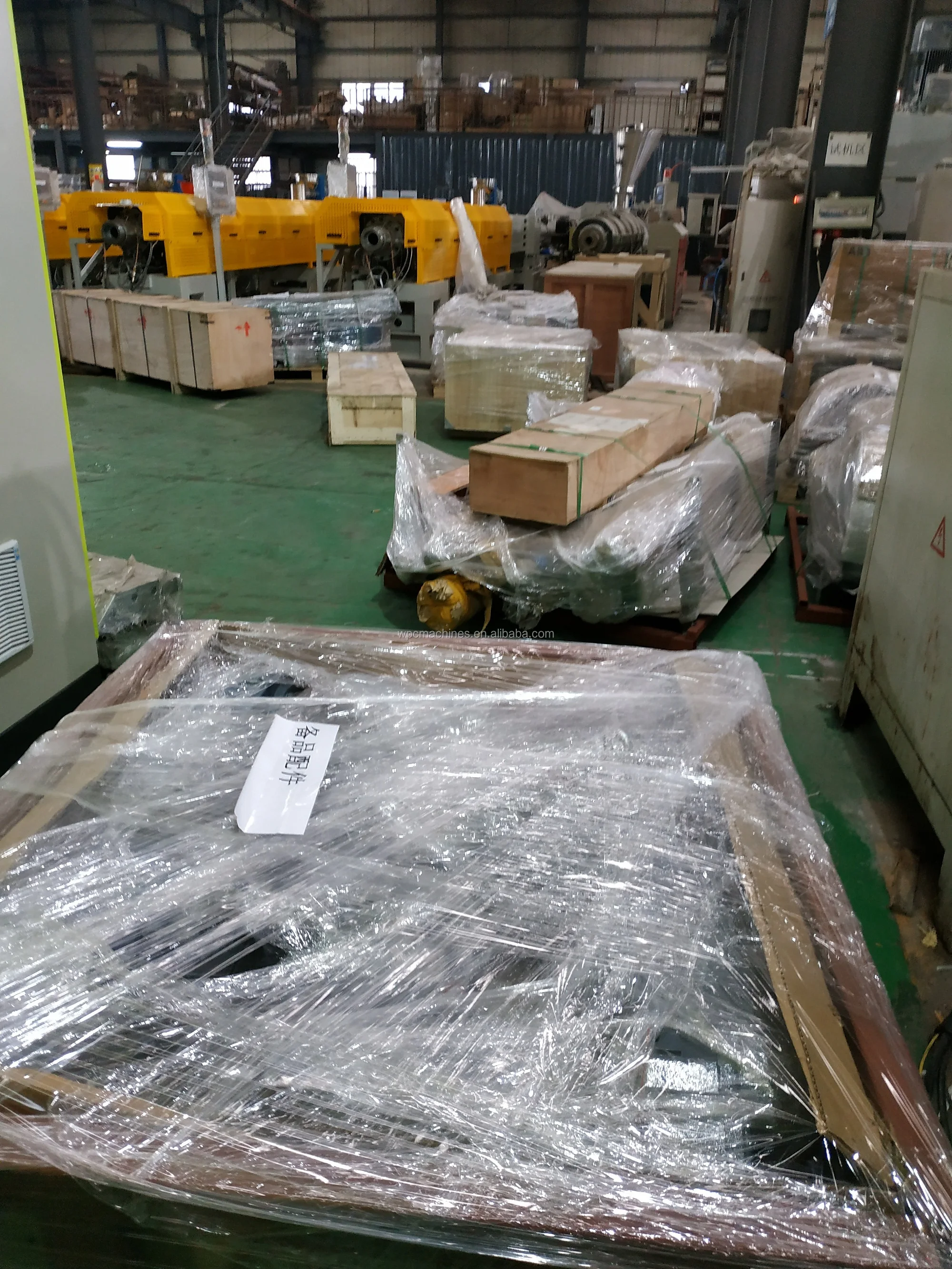

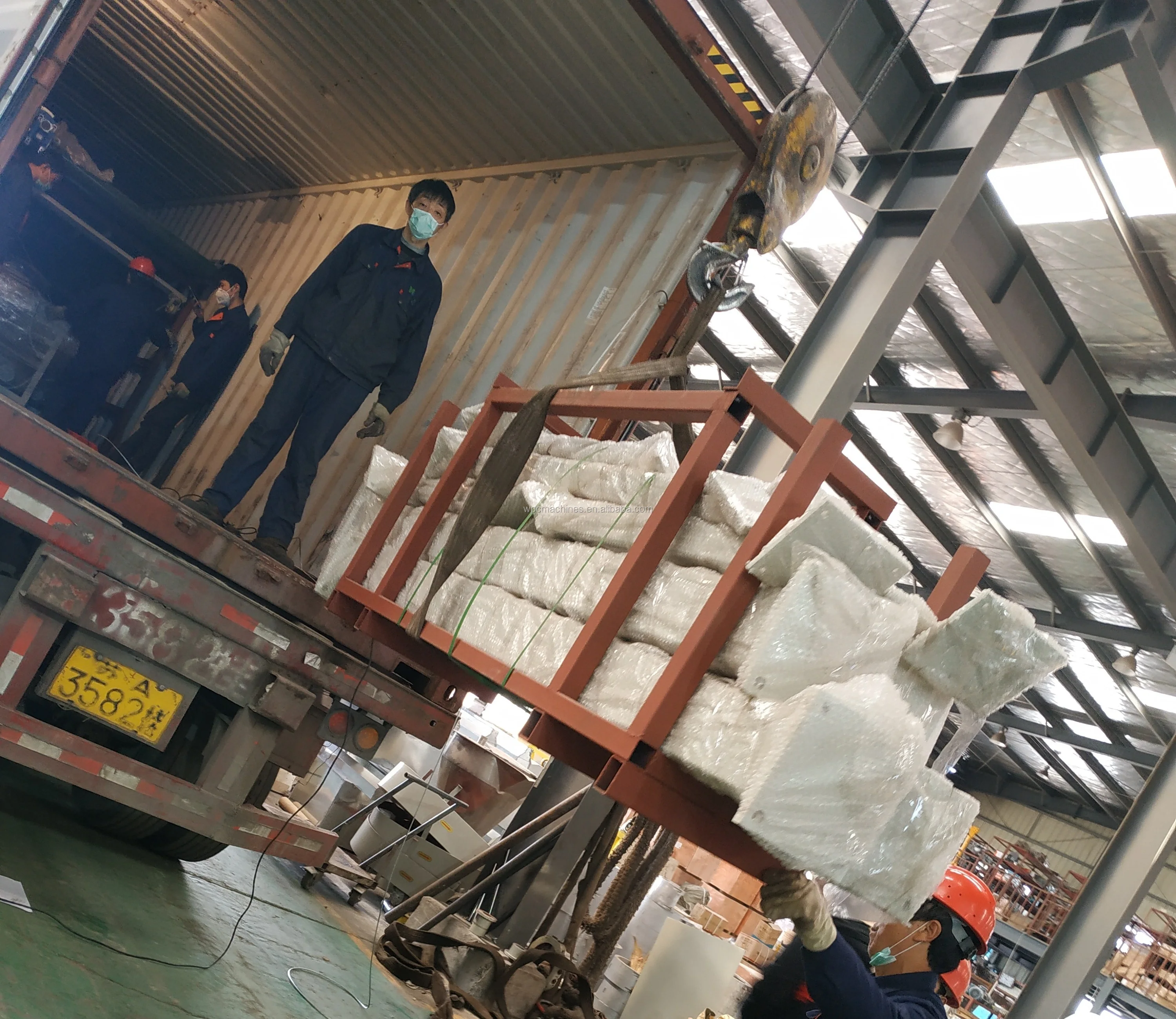

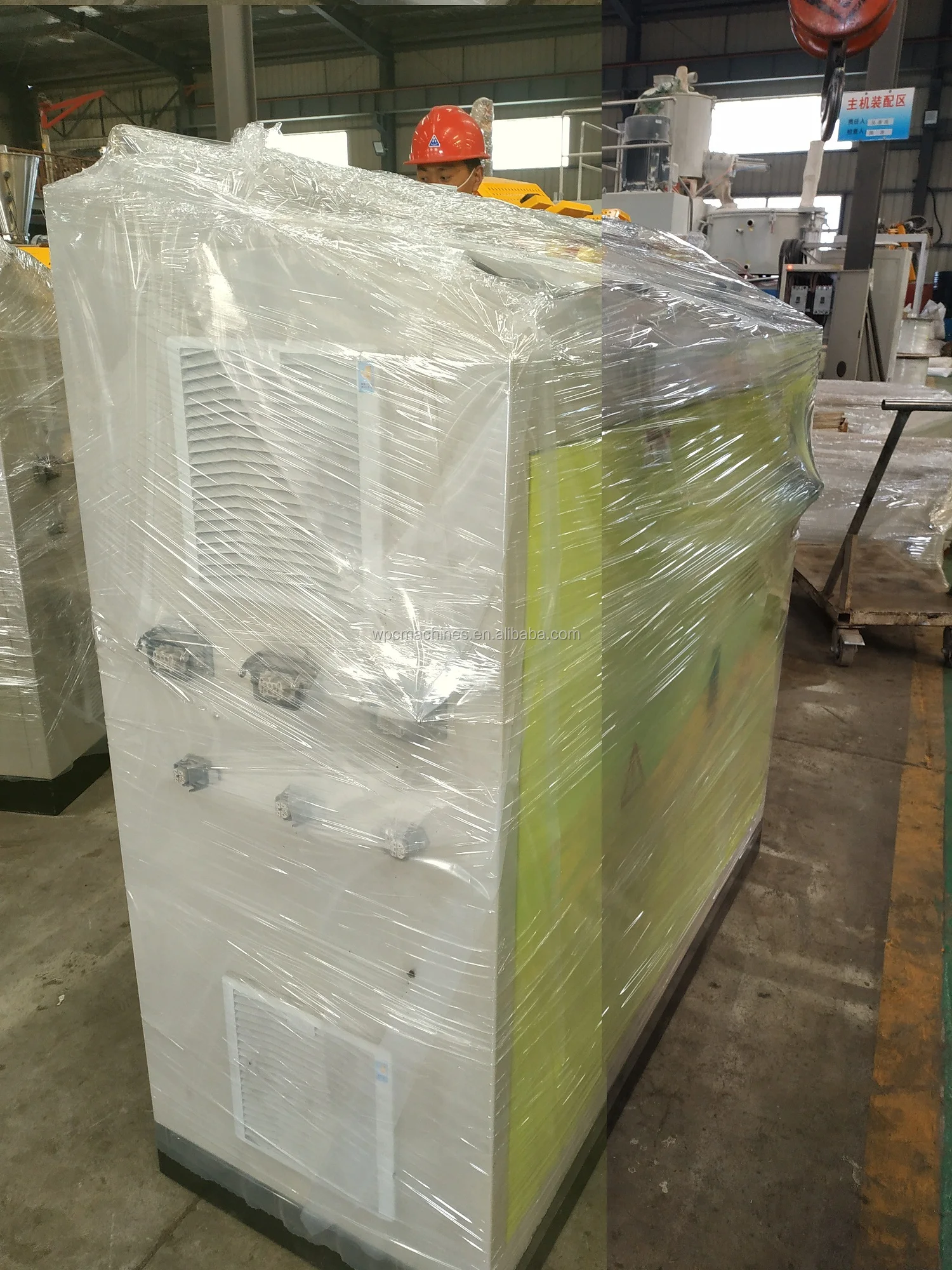

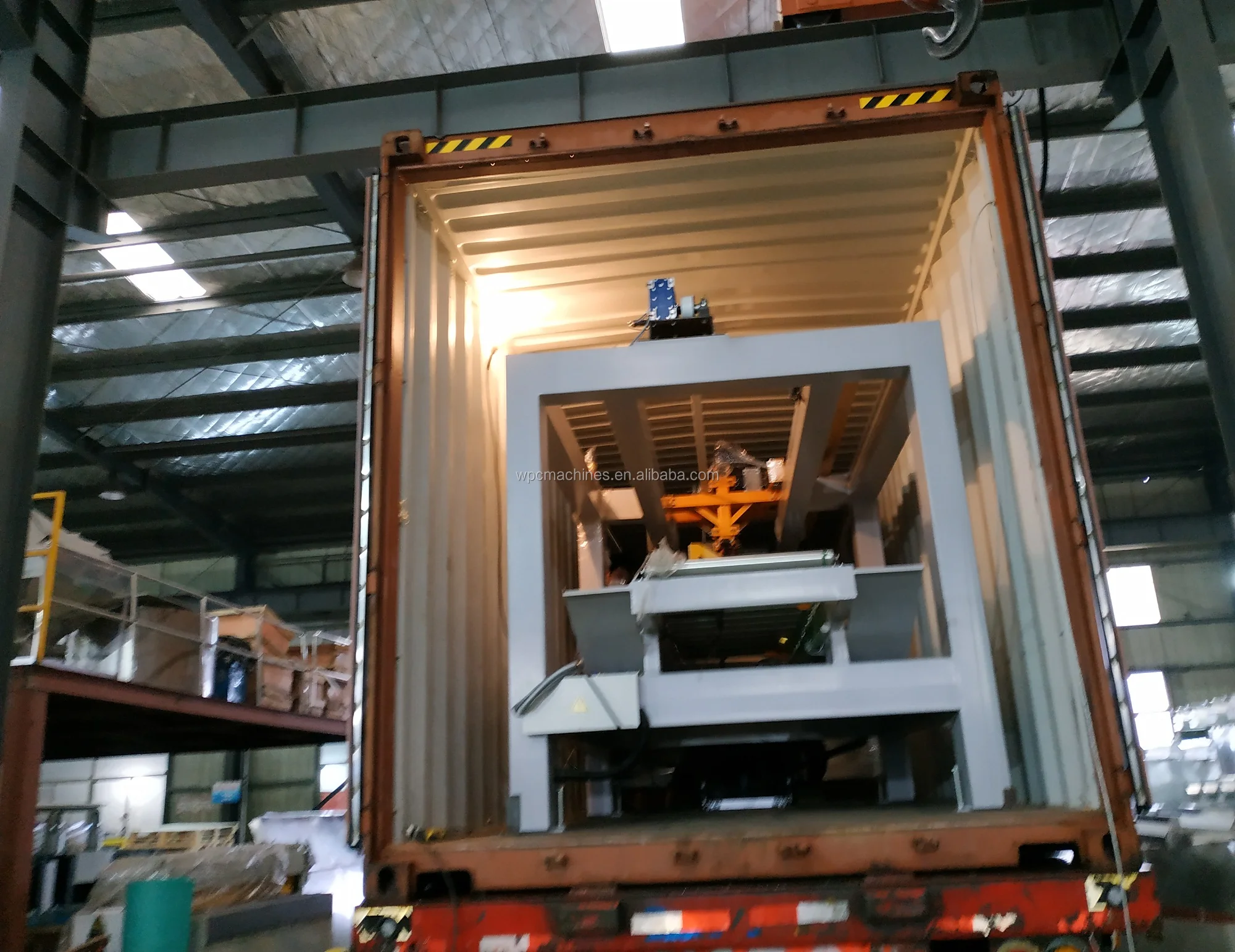

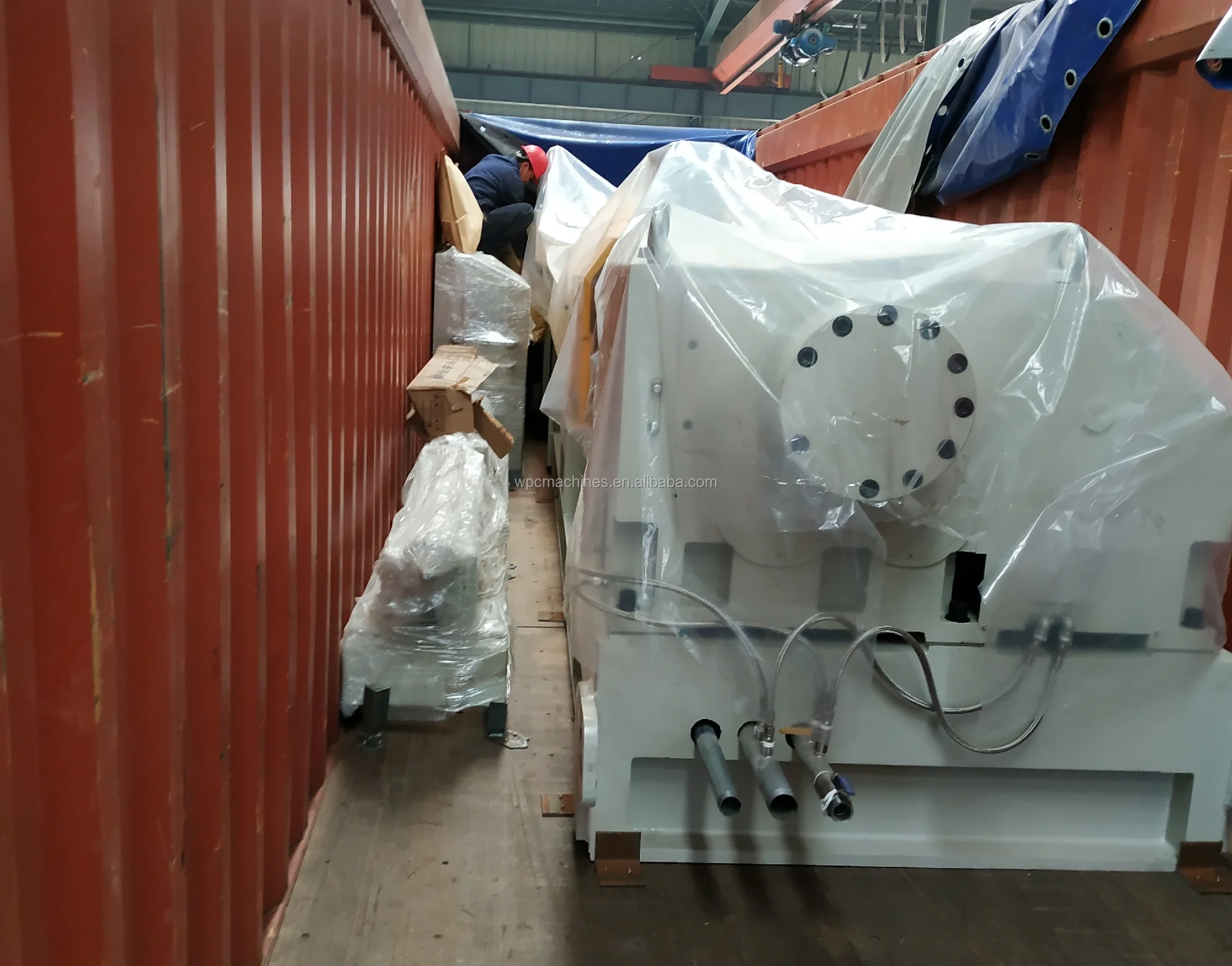

Packing&Shipping
Packaging of SPC/Stone Plastic Composite Floor Extruder/Making Machine/Production Line/Making Line

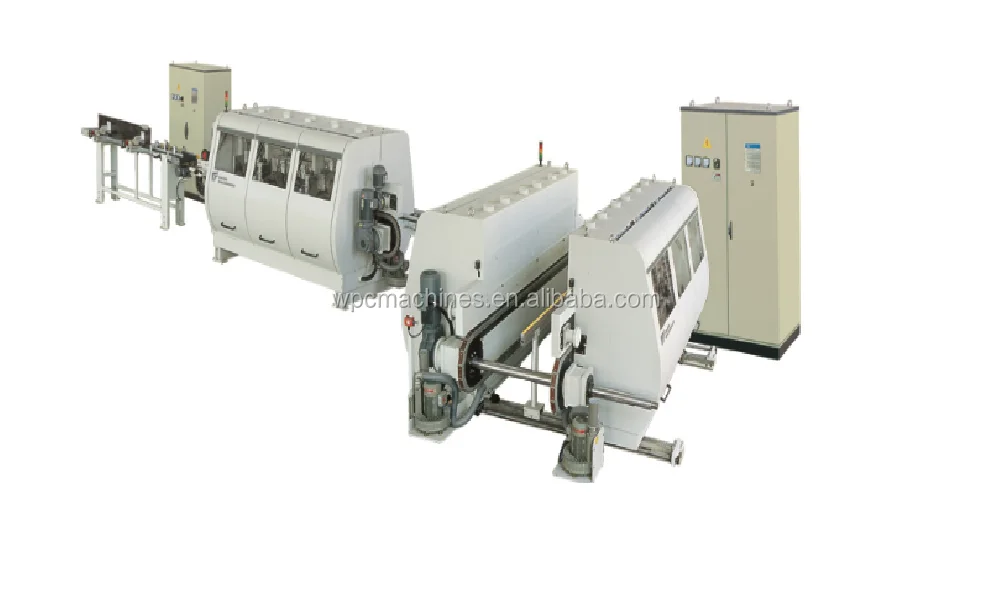

Related Products
After Sales Service
Services
1.Before order: We will provide relevant information on various technology and business consulted by customers. If clients want to visit our company, we will offer all they need for convenience.
2.During order: company designs groundsill installation chart for water, electricity and gas of equipment basing on real condition and customers’ requirements and provides detail order list and matching manufacturer for reference for customer.
After equipment arrival, our service personnel will arrive at posted locale for installation, debugging, training and technology transfer till customers can operate independently and manufactures eligible product. Service personnel have to arrive at customer’s locale in time when we provide service for client again.
After equipment arrival, our service personnel will arrive at posted locale for installation, debugging, training and technology transfer till customers can operate independently and manufactures eligible product. Service personnel have to arrive at customer’s locale in time when we provide service for client again.
3. After order: we will offer 12months after sales service freely, but our service will be life-long. if some parts are broken, we will send them by express, air or ship as soon as we can.
Company Profile

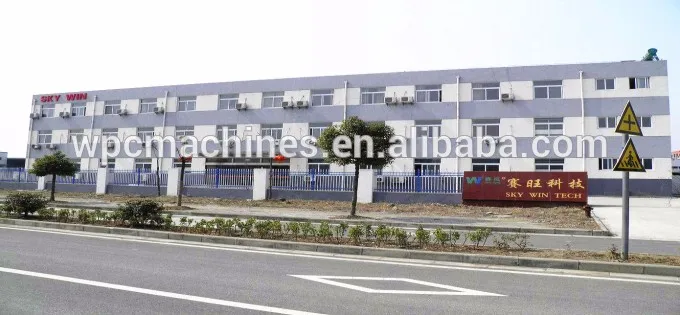

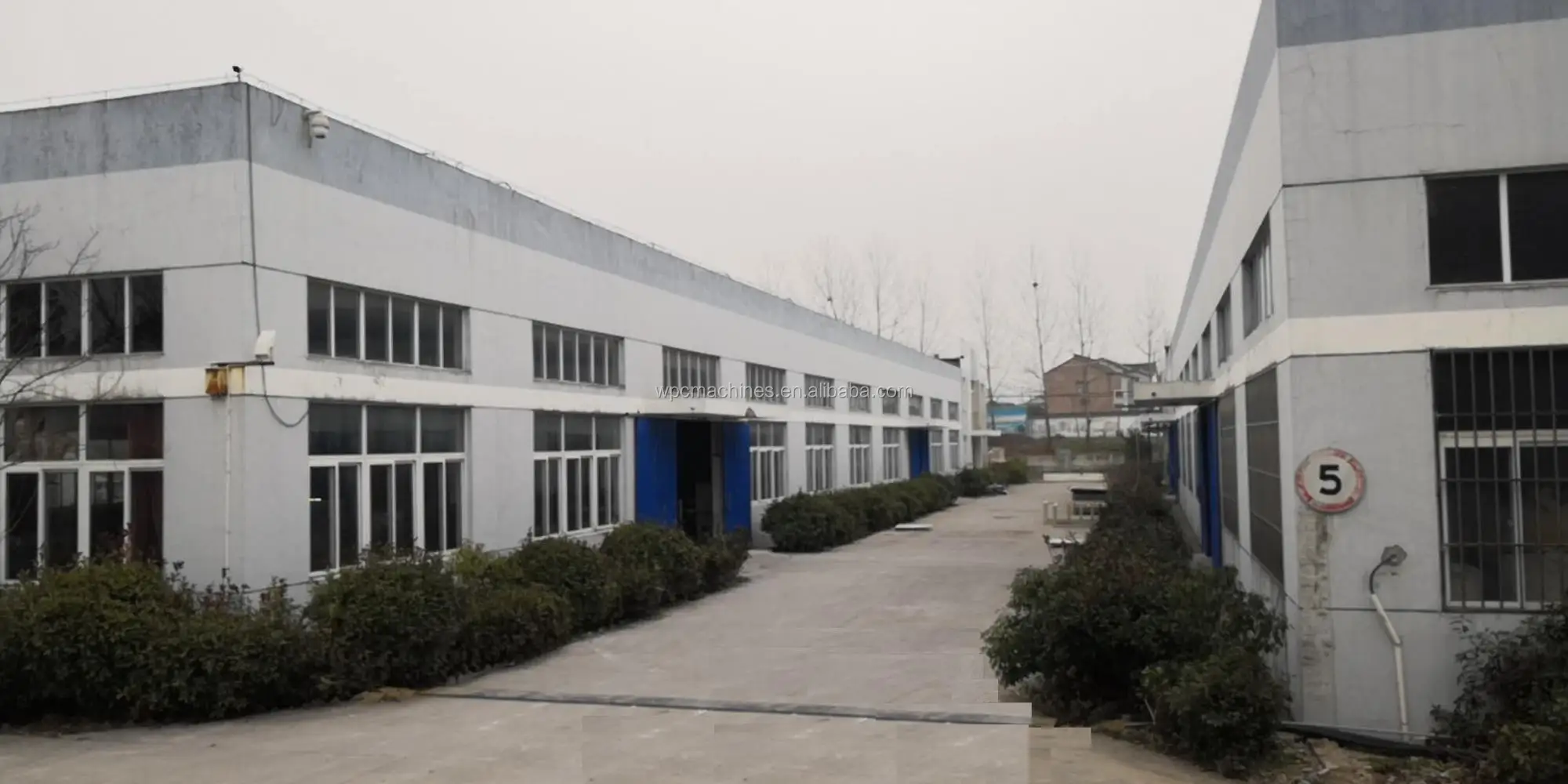

SKY WIN INTRODUCTION :
