VNH2SP30 H bridge Shield Full Bridge Stepper Motor Driver Module High Current 30A Drive Board Replaced L298
VNH2SP30 H-bridge Shield Full Bridge Stepper Motor Driver Module High Current 30A Drive Board Replaced L298
VNH2SP30 H-bridge Shield Full Bridge Stepper Motor Driver Module High Current 30A Drive Board Replaced L298
VNH2SP30 H-bridge Shield Full Bridge Stepper Motor Driver Module High Current 30A Drive Board Replaced L298
VNH2SP30 H-bridge Shield Full Bridge Stepper Motor Driver Module High Current 30A Drive Board Replaced L298

VNH2SP30 H bridge Shield Full Bridge Stepper Motor Driver Module High Current 30A Drive Board Replaced L298

Share on (1601276201593):


Price:

Quantity:


Product Overview

Description





Product Information




































Brand Name NONE
Model Number VNH2SP30
MOQ 10
Shipment Terms DHL , ARAMEX ,FEDEX
Payment Terms Trade Assurance, PayPal or T/T





Product Display

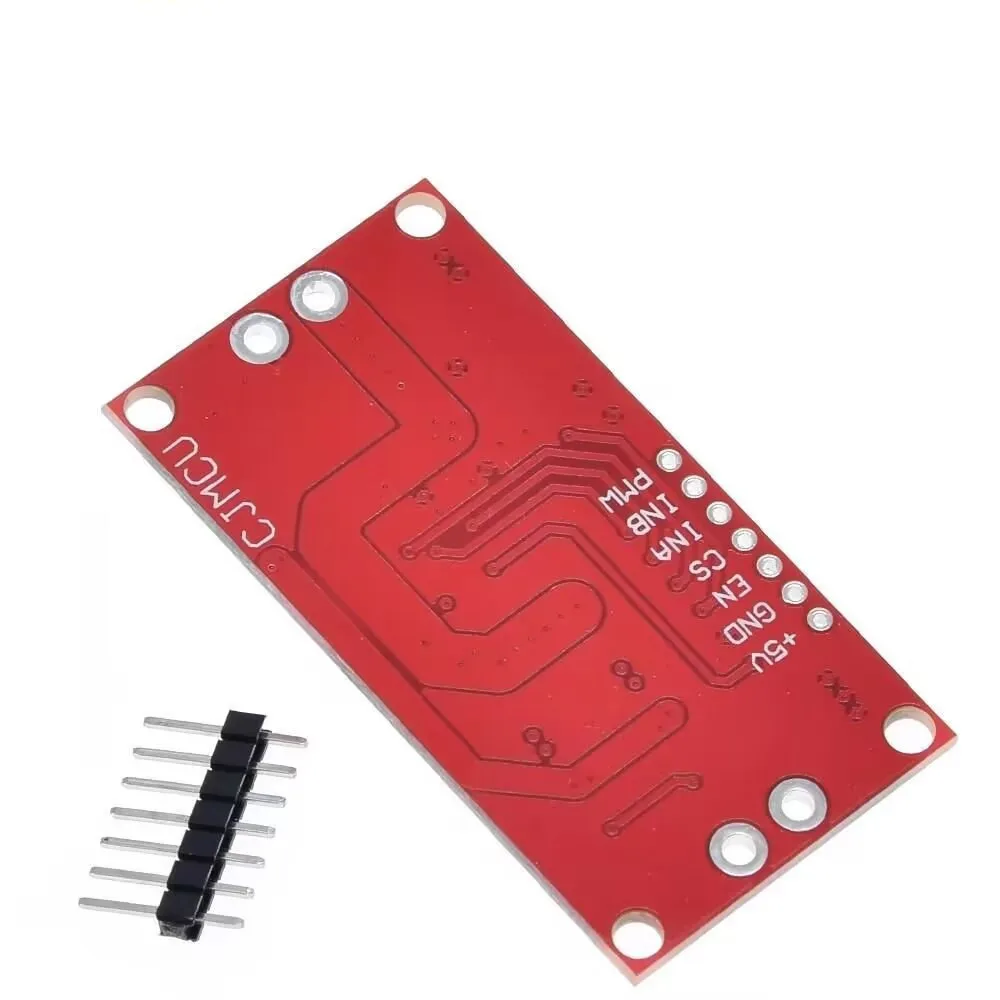

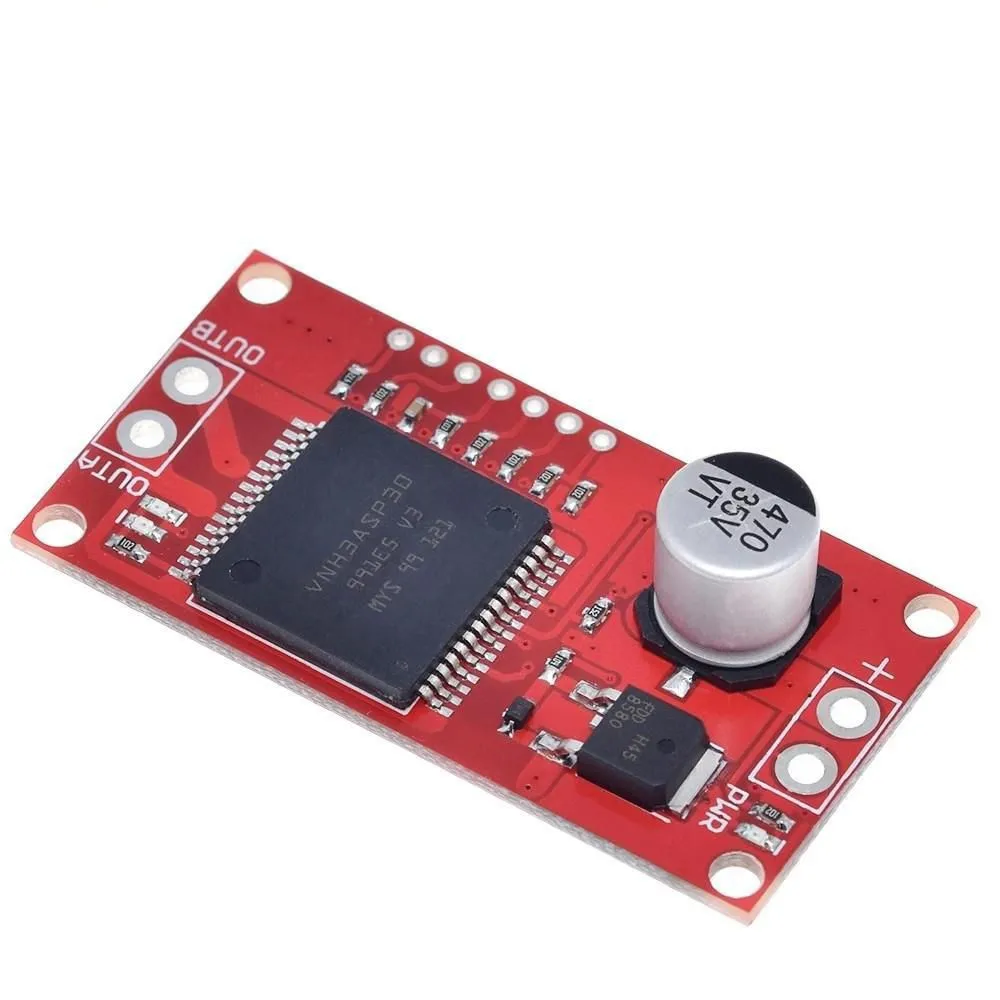

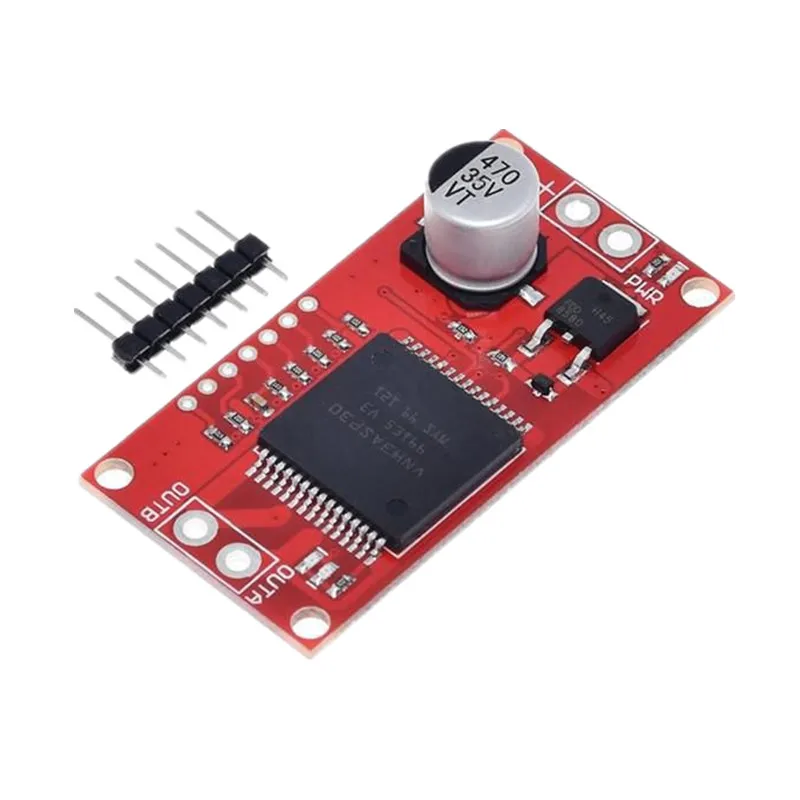

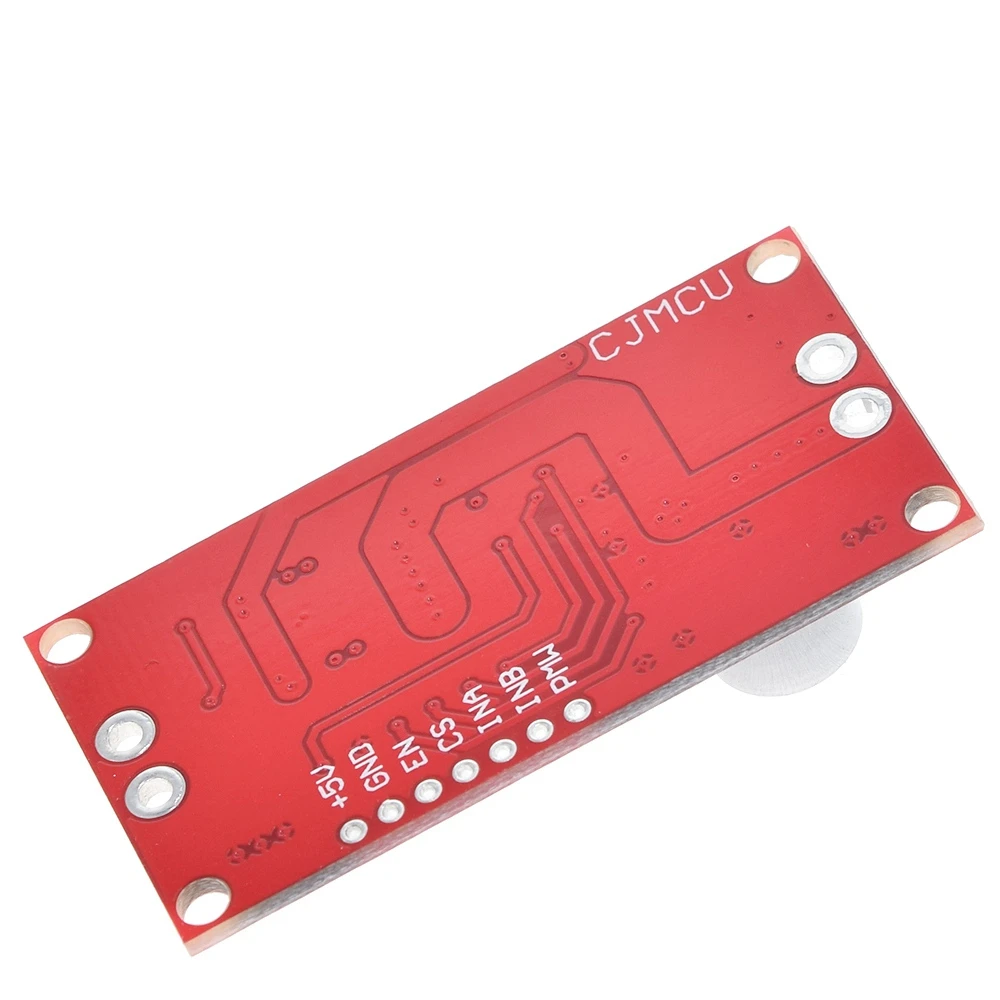

VNH2SP30-Monster Moto Shield 30A

Description:This is essentially a ramped up version of our Ardumoto motor driver shield. For this monster shield we've replaced the L298 H-bridge with a pair of VNH2SP30 full-bridge motor drivers. We've also beefed up the support circuitry so this board is capable of driving a pair of high-current motors! The VIN and motor out are pitched for our 5mm screw terminals (not included), making it easy to connect larger gauge wires.


Note:When using this board in extreme high-demand applications it may be necessary to improve thermal performance with a heat-sink or fan and to solder the wires directly to the board instead of using a screw terminal (in addition to the myriad other complications present in a high-current system) However, when using the board at currents up to 6A the chips will barely become noticeably warm.


Features:



  • Voltage max: 16V

  • Maximum current rating: 30 A

  • Practical Continuous Current: 14 A

  • Current sensing available to Arduino analog pin

  • MOSFET on-resistance: 19 mΩ (per leg)

  • Maximum PWM frequency: 20 kHz

  • Thermal Shutdown

  • Undervoltage and Overvoltage shutdown
