2 3/8 2 7/8 3 1/2Inch Water Well Drilling Rod API Thread NC40 Oilfield and Gas Well Drill Pipe For Efficient Drilling
- Category: >>>
- Supplier: Shijiazhuang Weilida Prospecting Machinery Co. Ltd.
Share on (1601276443798):
Product Overview
Description
Product Description
Our company can produce virous of oil drill pipes, mainly including API 5DP drill pipe and SY oil standard drill pipe. We can match the same grade of drill pipe joints according to customer's requirements and meets API SPEC 7-1 standard.The advanced friction welding equipments can adjust the welding parameters to the best position to ensure the quality of the welding strip;the heat treatment process of internal and external simultaneous cooling, that make the mechanical properties more uniform and stable.
Our equipments can automatically measure the length weighing automatic spray mark recording application to ensure product traceability. Advanced drill pipe upsetting and heat treatment production line are also equiped, we adopt CNC full-length heating furnace, quenching machine and tempering furnace,Advanced heat treatment processes and precise temperature control ensure the mechanical properties of the pipe. The hydraulic pressure of the pipe body ensures the straightness of the pipe body and the coaxility of the pipe body.
Our equipments can automatically measure the length weighing automatic spray mark recording application to ensure product traceability. Advanced drill pipe upsetting and heat treatment production line are also equiped, we adopt CNC full-length heating furnace, quenching machine and tempering furnace,Advanced heat treatment processes and precise temperature control ensure the mechanical properties of the pipe. The hydraulic pressure of the pipe body ensures the straightness of the pipe body and the coaxility of the pipe body.
O.D | Normal Weight | Thickness | Upsetting Type | Grade | Thread Model | Jonit Extemal Diameter | Pin thread Internal Diameter | ||
inch | mm | lb/ft | mm | mm | mm | ||||
2--3/8 | 60.32 | 6.65 | 7.11 | EU | E | NC26 | 85.7 | 44.5 | |
2--3/8 | 60.32 | 6.65 | 7.11 | EU | X,G | NC26 | 85.7 | 44.5 | |
2--7/8 | 73.02 | 10.40 | 9.19 | EU | E | NC31 | 104.8 | 54.0 | |
2--7/8 | 73.02 | 10.40 | 9.19 | EU | X,G | NC31 | 104.8 | 50.8 | |
2--7/8 | 73.02 | 10.40 | 9.19 | EU | S | NC31 | 111.1 | 41.3 | |
3--1/2 | 88.90 | 9.50 | 6.45 | EU | E | NC38 | 120.7 | 68.3 | |
3--1/2 | 88.90 | 13.30 | 9.35 | EU | E | NC38 | 120.7 | 68.3 | |
3--1/2 | 88.90 | 13.30 | 9.35 | EU | X | NC38 | 127.0 | 65.1 | |
3--1/2 | 88.90 | 13.30 | 9.35 | EU | G | NC38 | 127.0 | 61.9 | |
3--1/2 | 88.90 | 13.30 | 9.35 | EU | S | NC38 | 127.0 | 54.0 | |
3--1/2 | 88.90 | 13.50 | 11.40 | EU | E | NC38 | 127.0 | 65.1 | |
3--1/2 | 88.90 | 13.50 | 11.40 | EU | X | NC38 | 127.0 | 61.9 | |
3--1/2 | 88.90 | 13.50 | 11.40 | EU | G | NC38 | 127.0 | 54.0 | |
3--1/2 | 88.90 | 13.50 | 11.40 | EU | S | NC40 | 139.7 | 57.2 | |
4 | 101.60 | 14.00 | 8.38 | IU | E | NC40 | 133.4 | 71.4 | |
4 | 101.60 | 14.00 | 8.38 | IU | S | NC40 | 133.4 | 68.3 | |
4 | 101.60 | 14.00 | 8.38 | IU | G | NC40 | 139.7 | 61.9 | |
4 | 101.60 | 14.00 | 8.38 | IU | D | NC40 | 139.7 | 50.8 | |
4 | 101.60 | 14.00 | 8.38 | EU | E | NC46 | 152.4 | 82.6 | |
4 | 101.60 | 14.00 | 8.38 | EU | X,G | NC46 | 152.4 | 82.6 | |
4 | 101.60 | 14.00 | 8.38 | EU | S | NC46 | 152.4 | 76.2 | |
4--1/2 | 114.30 | 13.75 | 6.88 | IU | E | NC46 | 152.4 | 85.7 | |
4--1/2 | 114.30 | 13.75 | 6.88 | EU | E | NC50 | 168.3 | 95.3 | |
4--1/2 | 114.30 | 16.60 | 8.56 | EU | E | NC50 | 168.3 | 95.3 | |
4--1/2 | 114.30 | 16.60 | 8.56 | EU | X,G | NC50 | 168.3 | 95.3 | |
4--1/2 | 114.30 | 16.60 | 8.56 | EU | S | NC50 | 168.3 | 88.9 | |
4--1/2 | 114.30 | 20.00 | 10.92 | EU | E | NC50 | 168.3 | 92.1 | |
4--1/2 | 114.30 | 20.00 | 10.92 | EU | X,G | NC50 | 168.3 | 88.9 | |
4--1/2 | 114.30 | 20.00 | 10.92 | EU | S | NC50 | 168.3 | 76.2 | |
4--1/2 | 114.30 | 16.60 | 8.56 | IEU | E | NC46 | 168.3 | 82.6 | |
4--1/2 | 114.30 | 16.60 | 8.56 | IEU | X,G | NC46 | 158.8 | 76.2 | |
4--1/2 | 114.30 | 16.60 | 8.56 | IEU | S | NC46 | 158.8 | 69.9 | |
4--1/2 | 114.30 | 20.00 | 10.92 | IEU | E | NC46 | 158.8 | 76.2 | |
4--1/2 | 114.30 | 20.00 | 10.92 | IEU | X | NC46 | 158.8 | 69.9 | |
4--1/2 | 114.30 | 20.00 | 10.92 | IEU | G | NC46 | 158.8 | 63.5 | |
4--1/2 | 114.30 | 20.00 | 10.92 | IEU | S | NC46 | 158.8 | 57.2 | |
5 | 127.00 | 19.50 | 9.19 | IEU | E | NC50 | 168.3 | 95.3 | |
5 | 127.00 | 19.50 | 9.19 | IEU | X | NC50 | 168.3 | 88.9 | |
5 | 127.00 | 19.50 | 9.19 | IEU | G | NC50 | 168.3 | 82.6 | |
5 | 127.00 | 19.50 | 9.19 | IEU | S | NC50 | 168.3 | 69.9 | |
5 | 127.00 | 19.50 | 9.19 | IEU | E | 5(1/2)FH | 177.8 | 95.3 | |
5 | 127.00 | 19.50 | 9.19 | IEU | X,G | 5(1/2)FH | 177.8 | 95.3 | |
5 | 127.00 | 19.50 | 9.19 | IEU | S | 5(1/2)FH | 184.2 | 88.9 | |
5 | 127.00 | 25.60 | 12.70 | IEU | E | NC50 | 168.3 | 88.9 | |
5 | 127.00 | 25.60 | 12.70 | IEU | X | NC50 | 138.6 | 76.2 | |
5 | 127.00 | 25.60 | 12.70 | IEU | G | NC50 | 168.3 | 69.9 | |
5 | 127.00 | 25.60 | 12.70 | IEU | E | 5(1/2)FH | 177.8 | 88.9 | |
5 | 127.00 | 25.60 | 12.70 | IEU | X | 5(1/2)FH | 177.8 | 88.9 | |
5 | 127.00 | 25.60 | 12.70 | IEU | G | 5(1/2)FH | 184.2 | 88.9 | |
5 | 127.00 | 25.60 | 12.70 | IEU | S | 5(1/2)FH | 184.2 | 82.6 | |
WHAT'S MORE
We can produce Well drill pipes of different materials, lengths, diameters, and wall thicknesses, and we can also customize drill pipes ac-cording to the materials, lengths, wall thicknesses, and threads required by customers.
Our company&Factory scene
BRIEF INTRODUCTION
Shijiazhuang Weilida Prospecting Machinery Co.. Ltd. (formerly known as North Petroleum Geophysical Exploration Machinery Factory) was founded in 1988.it is located in Jinzhou City, Shijiazhuang City, an important industrial base in Hebei Province. lt has a beautiful environment and a superior geographical location, it is 5 kilometers away from the Jinzhou South Exit of Shiheng Expressway, 15 kilometers away from Xinji South High-speed Railway Station, and 50 kilometers away from Zhengding International Airport.
Our company has a modern factory area of 13,000 square meters and 80 employees. lt is one of the few domestic and international enterprises integrating drilling tool design, manufacturing, testing, domestic and foreign trade sales, We can produce GB, Gost, APl and European standards drilling tools, and can also design and manufacture special specifications of drilling tools according to customers needs.
Our company has a number of domestic advanced CNC lathes, friction welding machines, pipe end upsetting and thickening machines, and complete production equipment. The quality management system has been established in accordance with lS09001, and the professional system management personnel have conducted multiple trainings for all employees. The quality management system is in perfect and effective operation. From the signing of the order to the inspection and delivery of finished products, we use various identification methods such as labels.lettering, and spray paint, and record all data to ensure product trace-ability.We are also equipped with various specifications of thread gauges, pitch testing instruments, taper testing equipment, flaw testing equipment, hardness testing equipment, with the required physical and chemical testing equipment, and we can conduct comprehensive mechanical performance tests on drilling tools as required.
Our company has a modern factory area of 13,000 square meters and 80 employees. lt is one of the few domestic and international enterprises integrating drilling tool design, manufacturing, testing, domestic and foreign trade sales, We can produce GB, Gost, APl and European standards drilling tools, and can also design and manufacture special specifications of drilling tools according to customers needs.
Our company has a number of domestic advanced CNC lathes, friction welding machines, pipe end upsetting and thickening machines, and complete production equipment. The quality management system has been established in accordance with lS09001, and the professional system management personnel have conducted multiple trainings for all employees. The quality management system is in perfect and effective operation. From the signing of the order to the inspection and delivery of finished products, we use various identification methods such as labels.lettering, and spray paint, and record all data to ensure product trace-ability.We are also equipped with various specifications of thread gauges, pitch testing instruments, taper testing equipment, flaw testing equipment, hardness testing equipment, with the required physical and chemical testing equipment, and we can conduct comprehensive mechanical performance tests on drilling tools as required.
We always take sincere cooperation, reliable quality and high-quality service as our corporate philosophy,improve self-management level.adjust market layout, improve product technology content,and solve customer needs,so that customer can buy with confidence and use comfortably.
Process
We have established a complete traceability document, using various methods such as engraving, labeling I, and painting identification to ensure product traceability.
Quality Management
The inspector uses a thread parameter measuring instrument to conduct individual inspections on each thread. A After the thread processing is completed, each workpiece must be inspected with thread gauges and data registered.If you choose our company's products, you don't have to worry about any quality issues.
Our certification
Please trust us
Our company has been established for nearly 40 years and has absolute reliable qualifications.

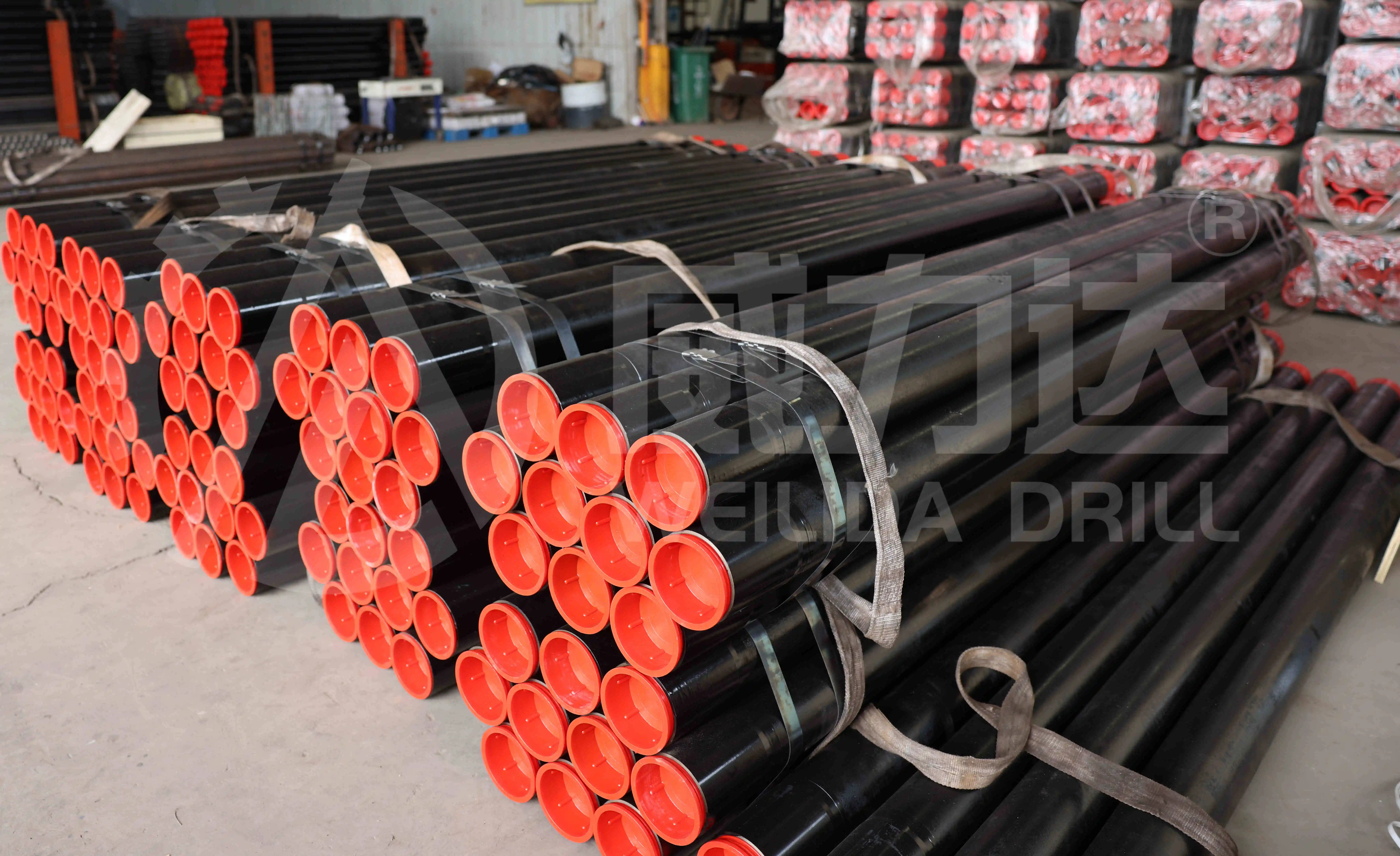

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Exhibition
FAQ
Q1. who are we?
We are based in Hebei, China, start from 2006,sell to Northern Europe(10.00%),Domestic Market(10.00%),Eastern Asia(10.00%),Mid East(10.00%),Oceania(10.00%),Africa(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South Asia(8.00%),Central America(3.00%),North America(3.00%),South America(2.00%),Southern Europe(2.00%),Western Europe(2.00%). There are total about 51-100 people in our office.
We are based in Hebei, China, start from 2006,sell to Northern Europe(10.00%),Domestic Market(10.00%),Eastern Asia(10.00%),Mid East(10.00%),Oceania(10.00%),Africa(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South Asia(8.00%),Central America(3.00%),North America(3.00%),South America(2.00%),Southern Europe(2.00%),Western Europe(2.00%). There are total about 51-100 people in our office.
Q2.Are you a manufacturer or trading company?
We are a specialized manufacturer.
Q3. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
Q4.what can you buy from us?
Drilling rig,water well drill pipe,Drill Pipe,tool joint,Oil drill pipes with different sizes.
Q5. why choose us instead of others?
Shijiazhuang Weilida Prospecting Machinery Co., Ltd., founded in 1983.Ever has 30 years experience in drilling tools .
Q3. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
Q4.what can you buy from us?
Drilling rig,water well drill pipe,Drill Pipe,tool joint,Oil drill pipes with different sizes.
Q5. why choose us instead of others?
Shijiazhuang Weilida Prospecting Machinery Co., Ltd., founded in 1983.Ever has 30 years experience in drilling tools .
Q6. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency: USD, CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese,Japanese,French,Korean
Accepted Delivery Terms: FOB；
Accepted Payment Currency: USD, CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese,Japanese,French,Korean
