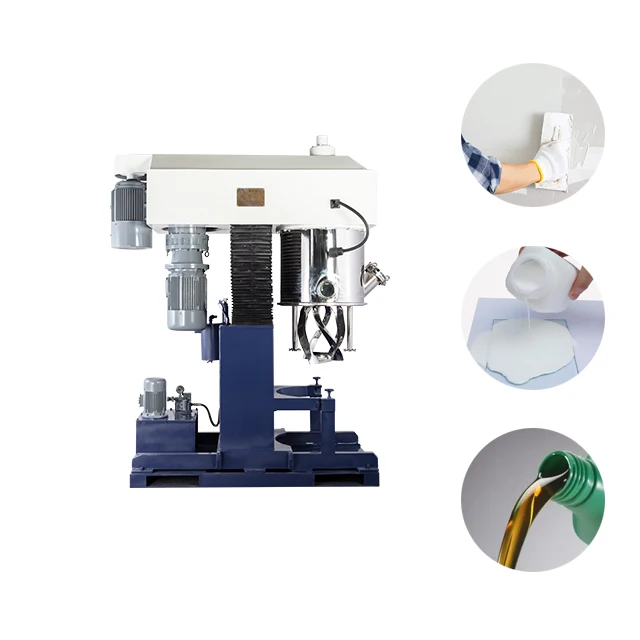

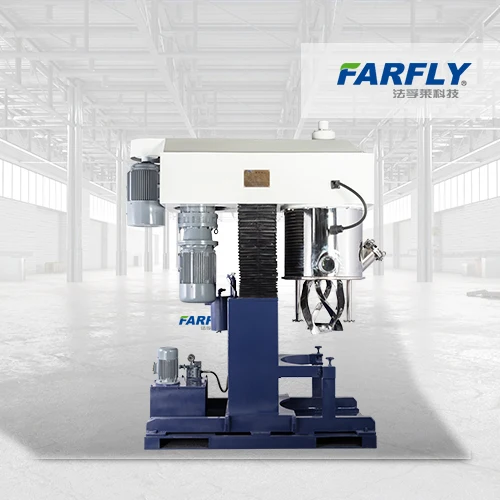

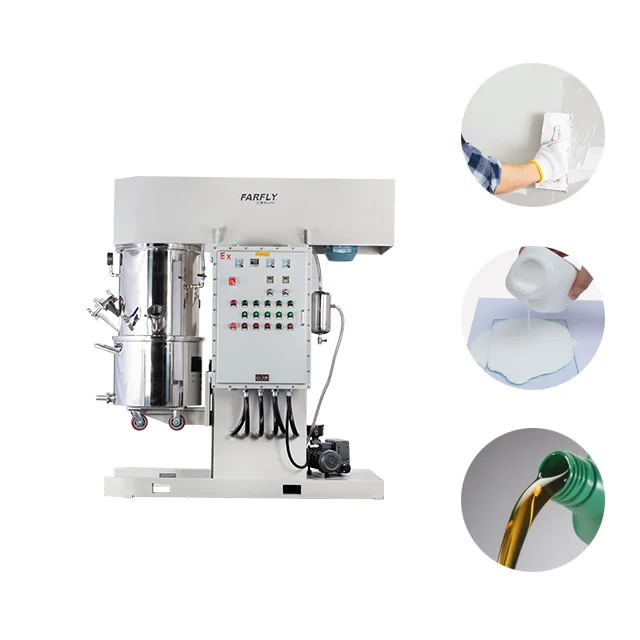

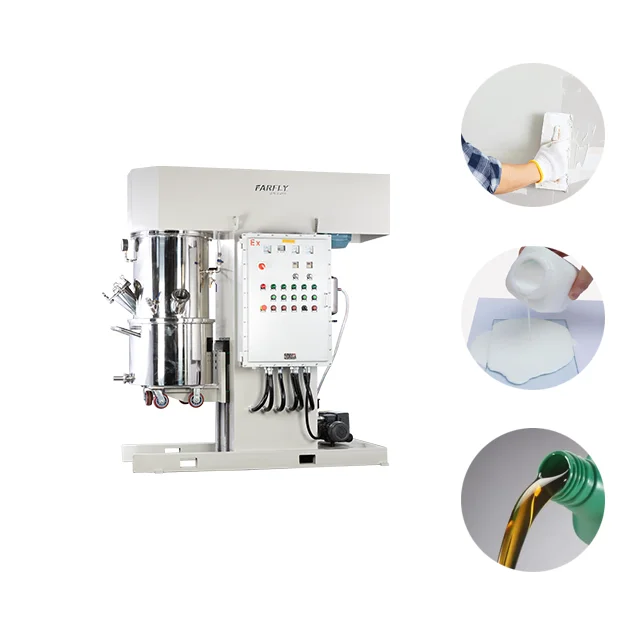

FARFLY FXDJ Double planetary mixer High speed disperser adhesive produce machine coating

Share on (1601276575538):


Price:$11,900.00 - $12,000.00

Quantity:


Product Overview

Description







Product Description
* The sitrring paddle in the kettle rotates during revolution, which makes the material flow around, so it can realize
* mixing compounding effect in a short amount of time.
* * The additoional one or two high -speed disperser in the kettle rotates during revolution, which makes the materialbe sheared and mixed efficiently, the production capacity is several time of an ordinary mixer.
* There are various blades optional such as frame, paddle and dough twisting frame for low speed blades.
* Vacuum design ensures the material is working under sealed environment.
* Heating methods for kettle is selectable, electrihc heating, steam heating, hot water or oil circulation heating,intelligent
temperature director can control temperature precisely.


Techinical Date


Type
Disperser Power (KW)
Dispersing Speed
(RPM)
Agitating Speed
(RPM)
Lifting stroke
(mm)
Vacuum (MPa)
Capacity
(L)
FXDJ-2
0.37-0.75
0-3000
0-100
220
-0.098 --0.08
2
FXDJ-5
0.75-2.2
0-3000
0-100
270
-0.098 - -0.08
5
FXDJ-100
4-11
0-3000
0-100
560
-0.098 - -0.08
100
FXDJ-200
11-22
0-2500
0-80
750
-0.098 - -0.08
200
FXDJ-500
22-45
0-1500
0-60
930
-0.098 - -0.08
500
FXDJ-1000
37-75
0-960
0-50
1100
-0.098 - -0.08
1000
