manufacturer RTK delivery robots vehicle ugv robot chassis self-driving vending vehicle Educational Unmanned robotic Chassis

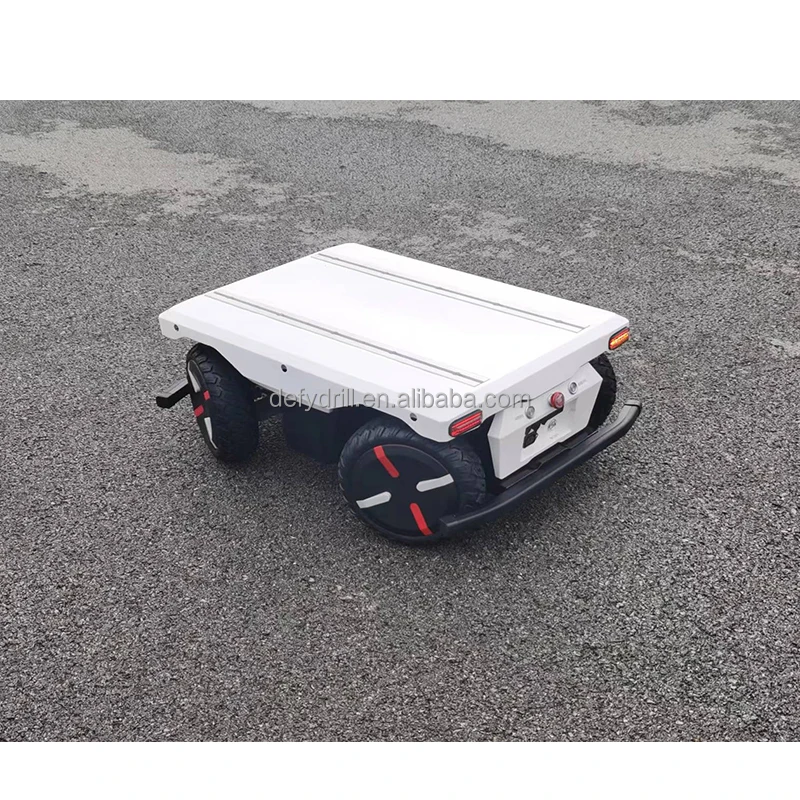

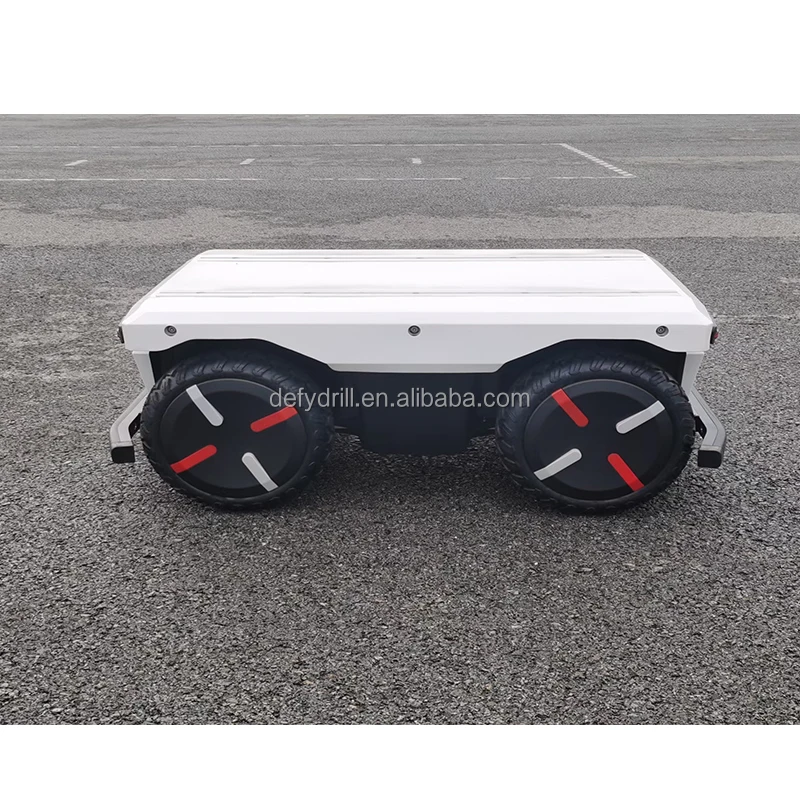

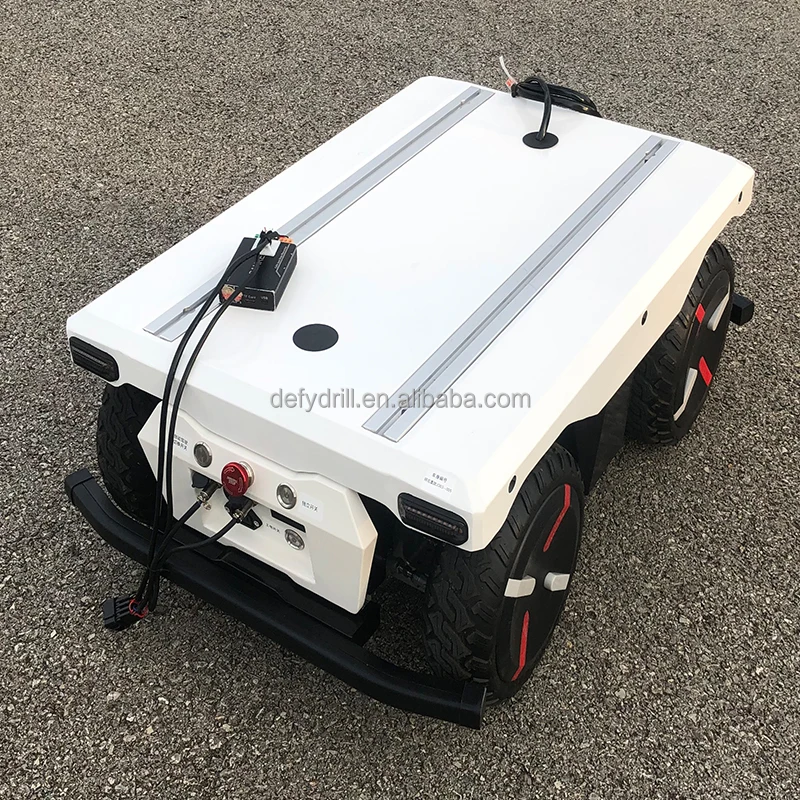

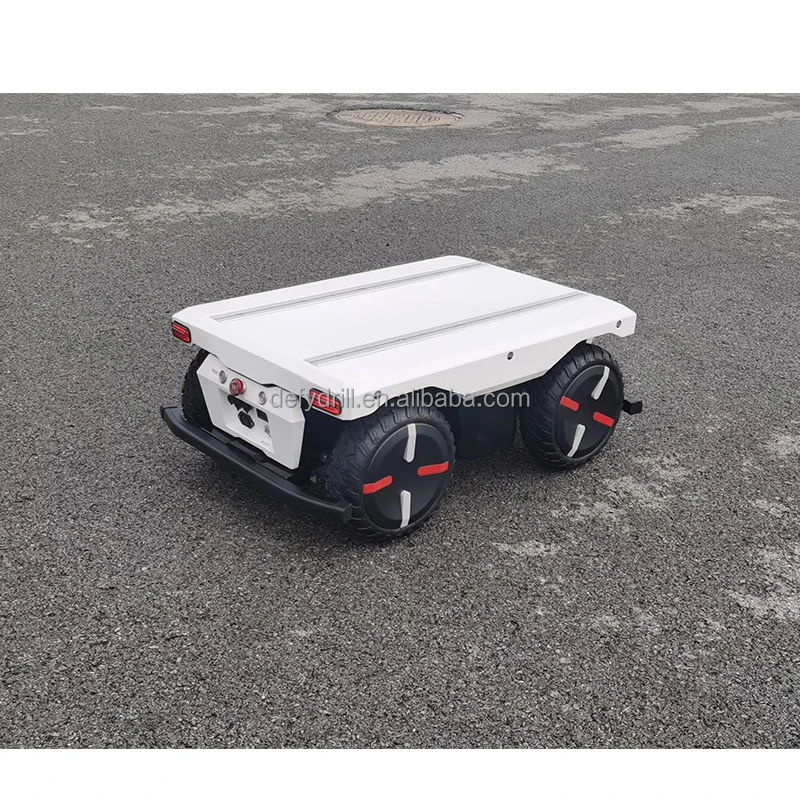

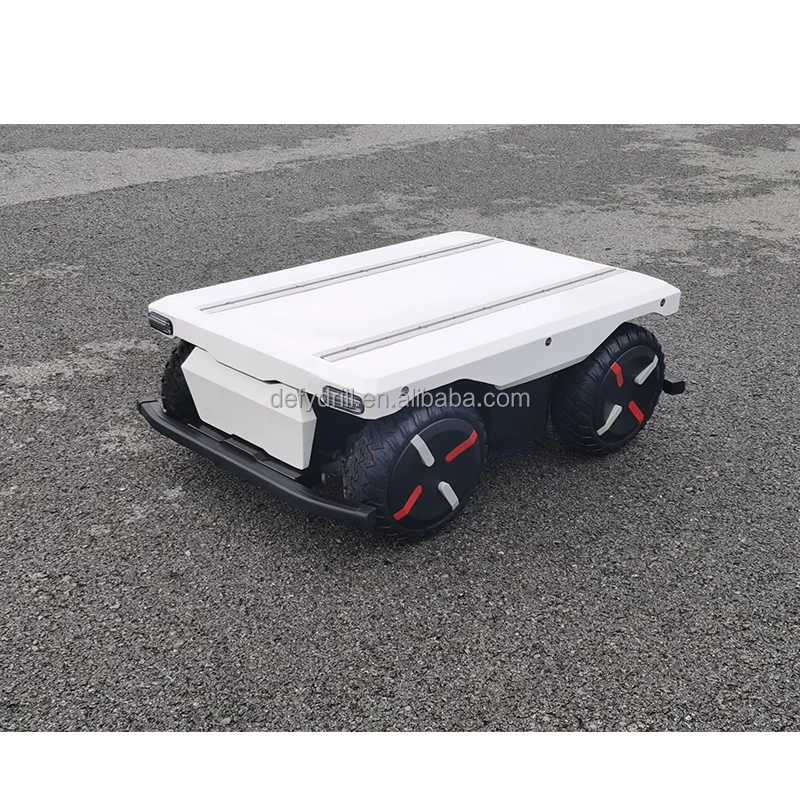

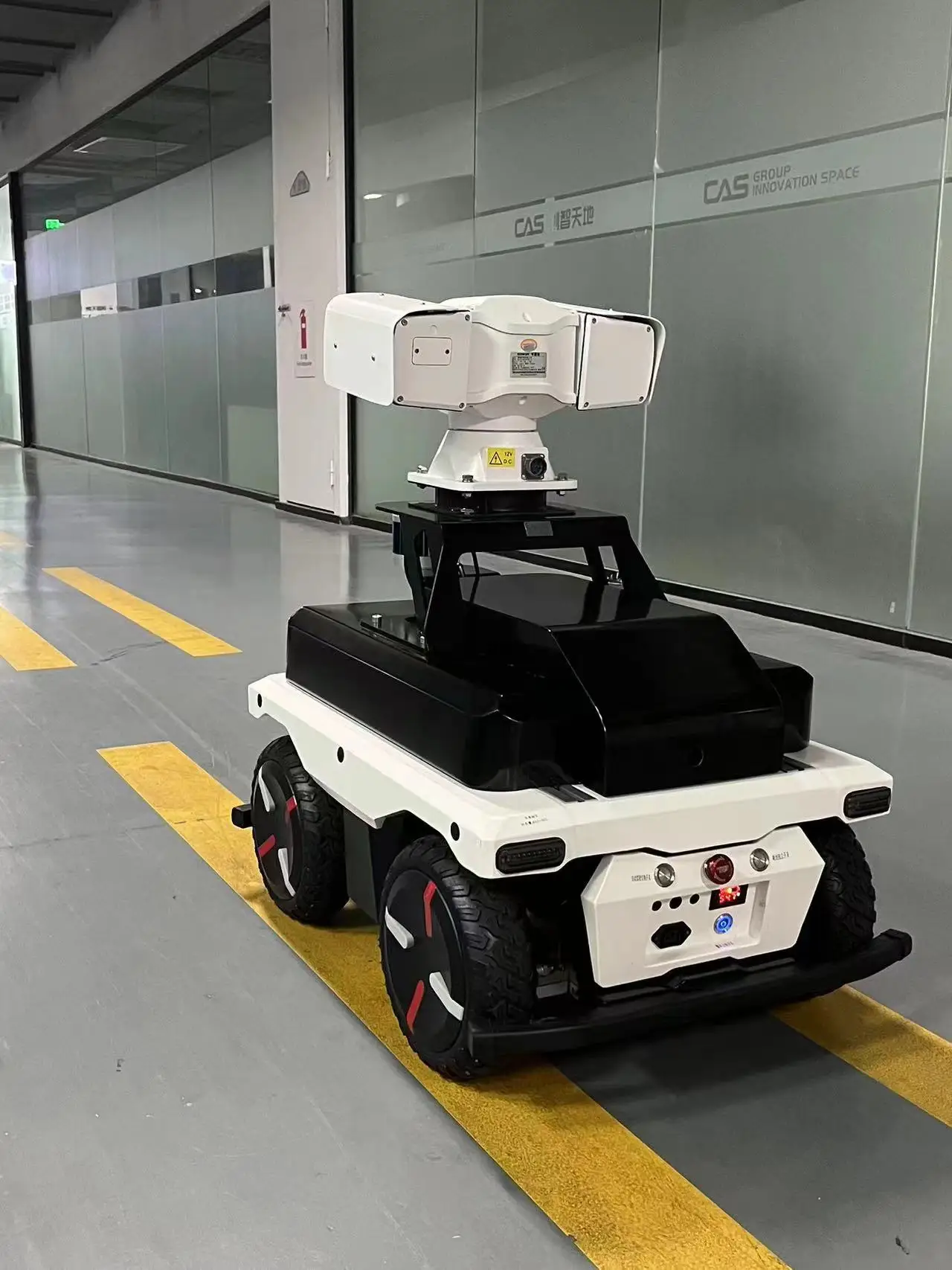

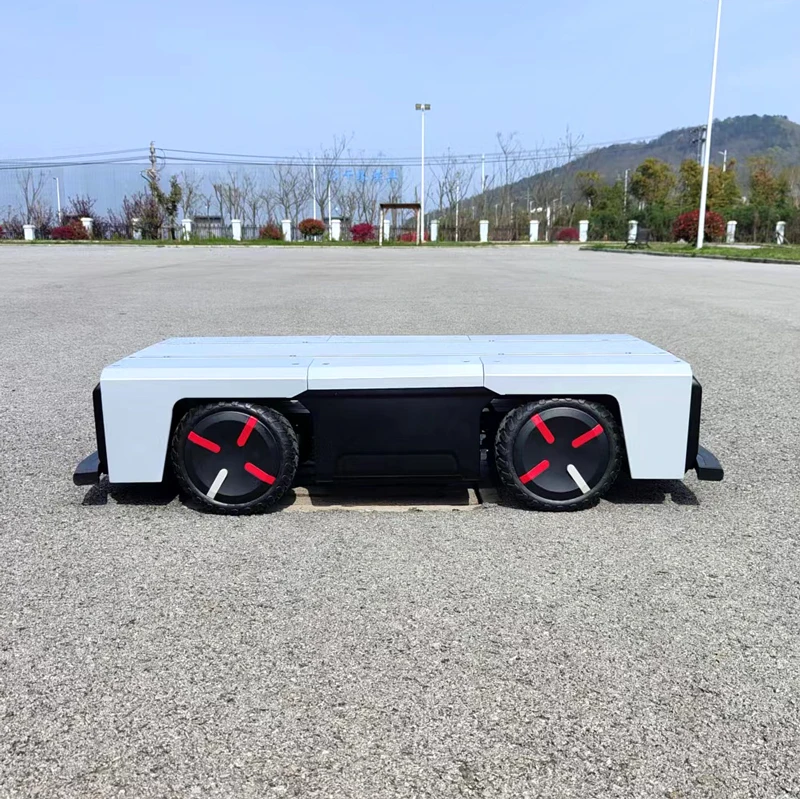

UGV-8 is a small robot chassis, that uses a lightweight, modular, intelligent design concept to create a mobile robot development platform. It has strong load capacity, stable control performance, a wide range of applications, and can be flexible movement on all kinds of

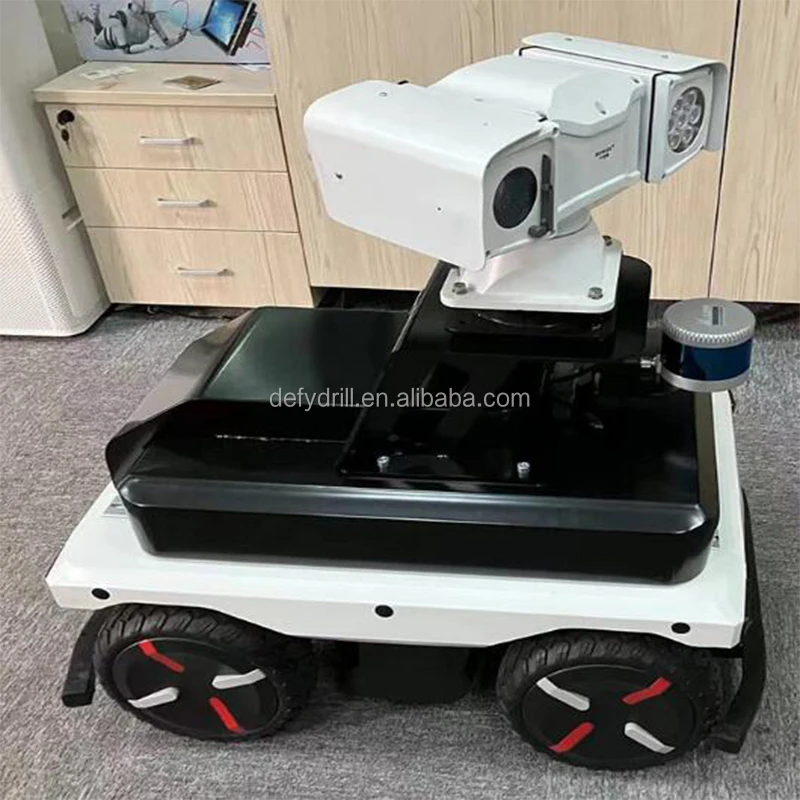

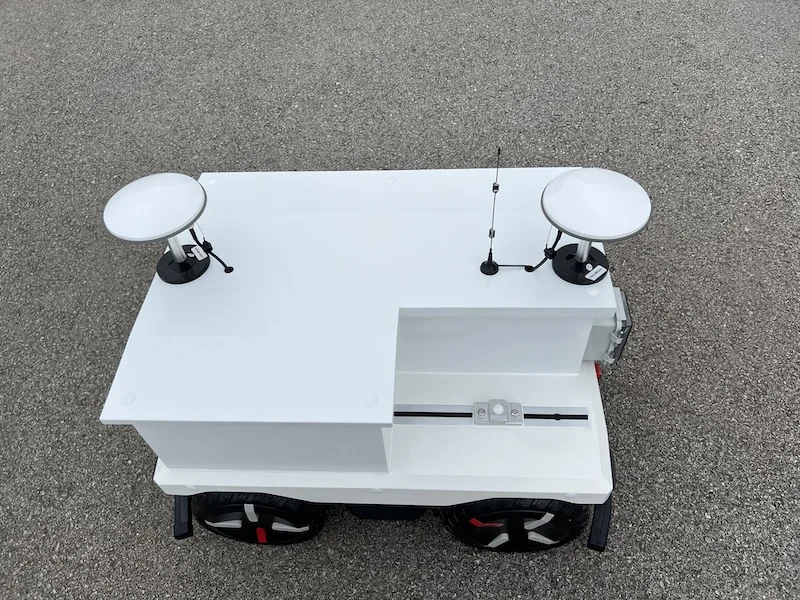

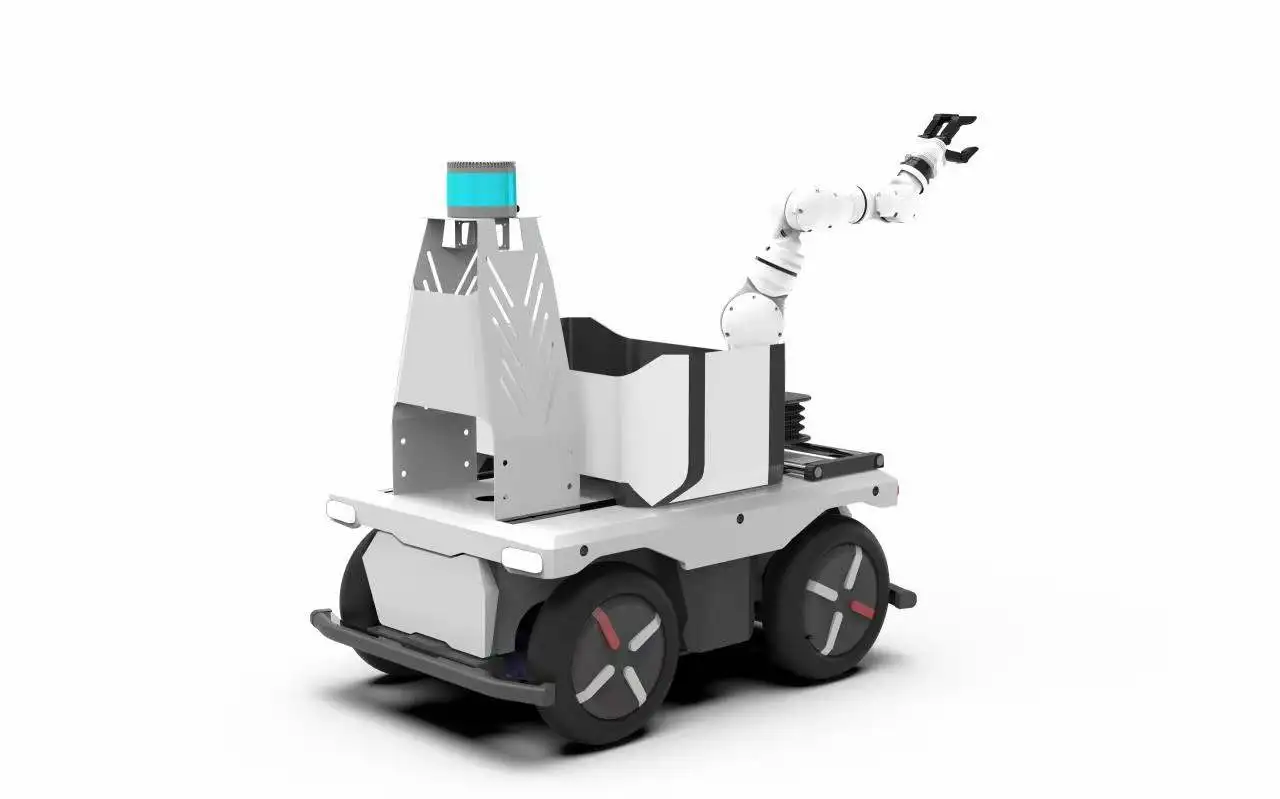

typical pavement. Stereo cameras, laser radars, GPS, IMU, manipulators,s and other equipment can choose to be installed on the chassis as an extension application and can be applied to scientific research, distribution, logistics, and other fields.






























































































































Specification of the Entire Vehicle


Item


Data


L*W*H


820*572*310mm


Min. Ground clearance


87mm


Overall weight


About 43kg


Rated load


80kg


Chassis and Performance


Item


Data


Steering


Front-wheel Differential steering


Brake form


Anti-drag braking


Tire outer diameter


266mm


Running speed


≤5km/h


Driving range


5-10km


Braking distance


0.4m


Turning radius


0.5m


Climbing angle


≤15°


Obstacle passing


8cm


Safety protection


Touch stop bar;
Emergency brake button


Electric drive


Item


Data


Motor type


Wheel hub motor (Permanent Magnet Synchronous Motor with encoder)


Motor Power


300W*4


Battery parameters


48V/20Ah battery


Battery working temperature


-10~60℃


Charger


AC220V independent charger


Charging time


≤3h (Quick charging can be customized)


Protection class


IP35 (IP66 can be customized)


Other


Communication protocol


Open underlying CAN protocol


Motion control


VCU control


Sensor type


Steering feedback sensor
Walking wheel speed sensor
Front and rear brake feedback sensor



 Advantage:


1. Simple and easy to operate.
2. High configuration core hardware.
3. The four 300W high power wheel hub motor enjoys independent driving of each wheel, so it is easily implemented by four-wheel drive.
4. Vehicle-grade drive-by-wire chassis control unit(VCU).
5. Electronic control logic design more suitable for autonomous driving needs.
6. Reading parameters, coordinating power output, intelligent body system.













Packing and Shipping






 Within 3-5 working days







































Services



1-year warranty for main parts


During this period, in case of damage or breakdown, we will repair to replace spare parts freely, while the buyer should bear overseas freight.


Spare Parts


most of our spare parts are compatible with international standards. While we offer spare parts all year round at cost price for our former clients.


Operation and Maintenance


We will offer you a detailed operation manual, ensuring you can use it perfectly.


Online support


Video technical support


Online Service


your question will be answered within 24 hours during working days, and 48 hours during holidays.
