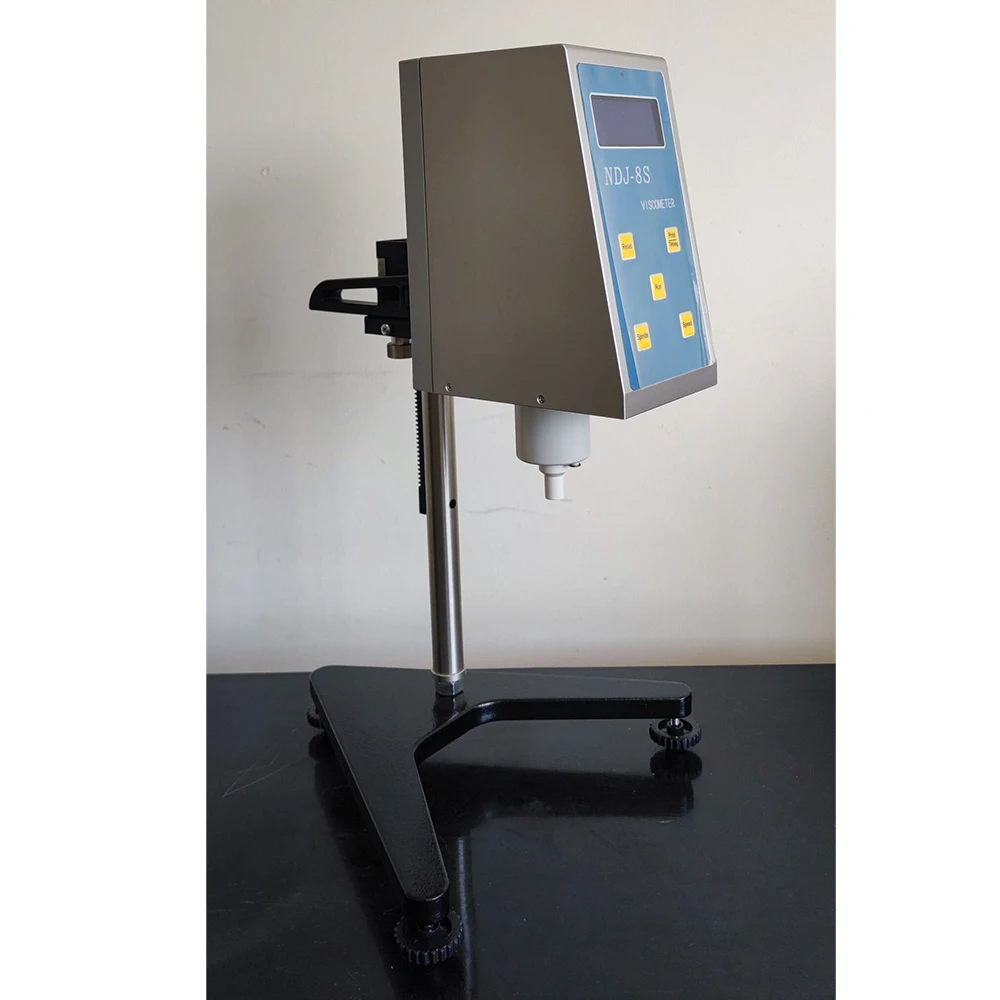

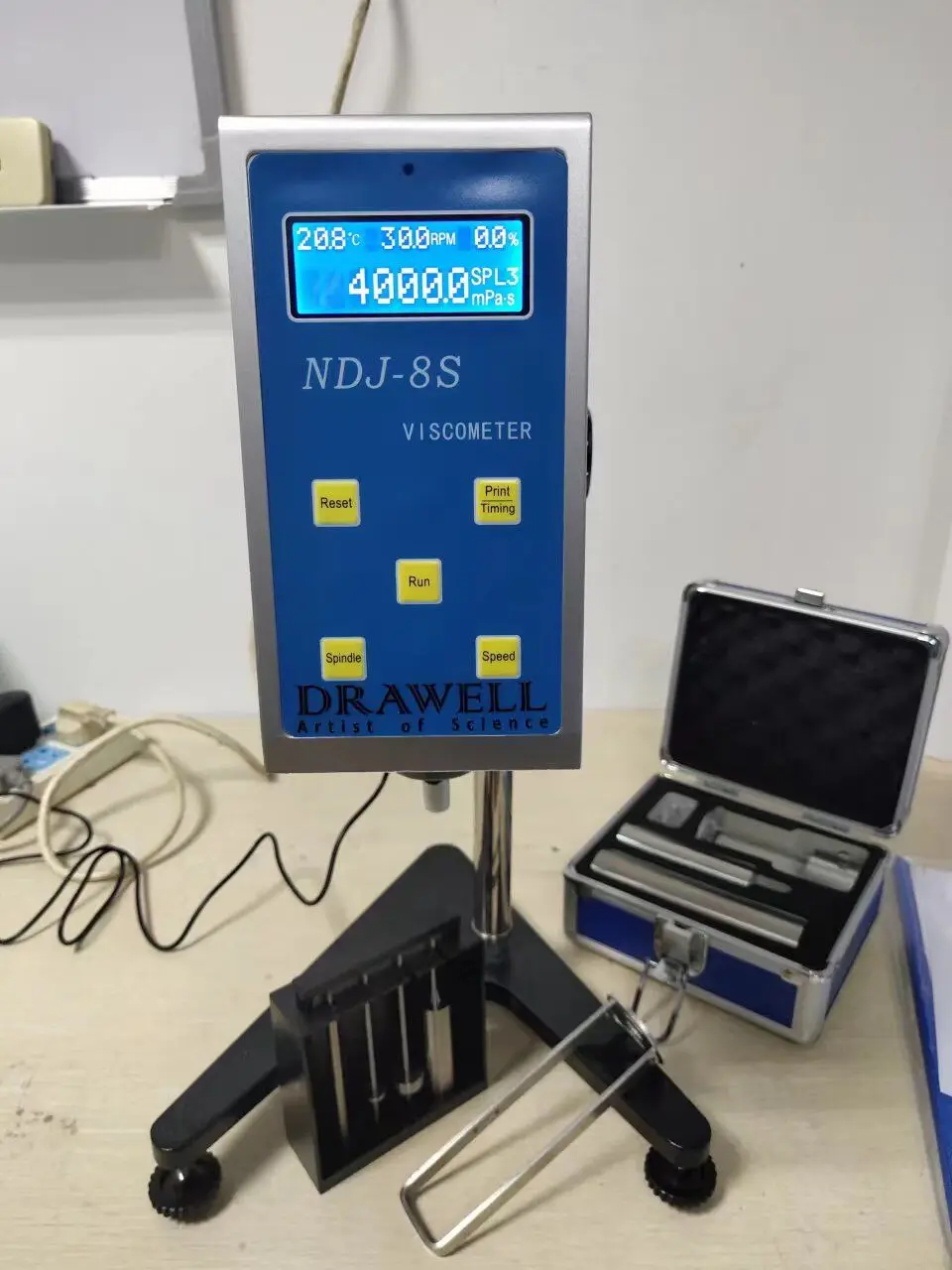

Drawell Ndj 8S Ndj 5S Viscosity Measurement Laboratory Viscometer
- Category: >>>
- Supplier: Chongqing Drawell Instrument Co. Ltd.
Share on (1601276770940):
Product Overview
Description
Type | Model | Common Parameter | Unique Parameter | |

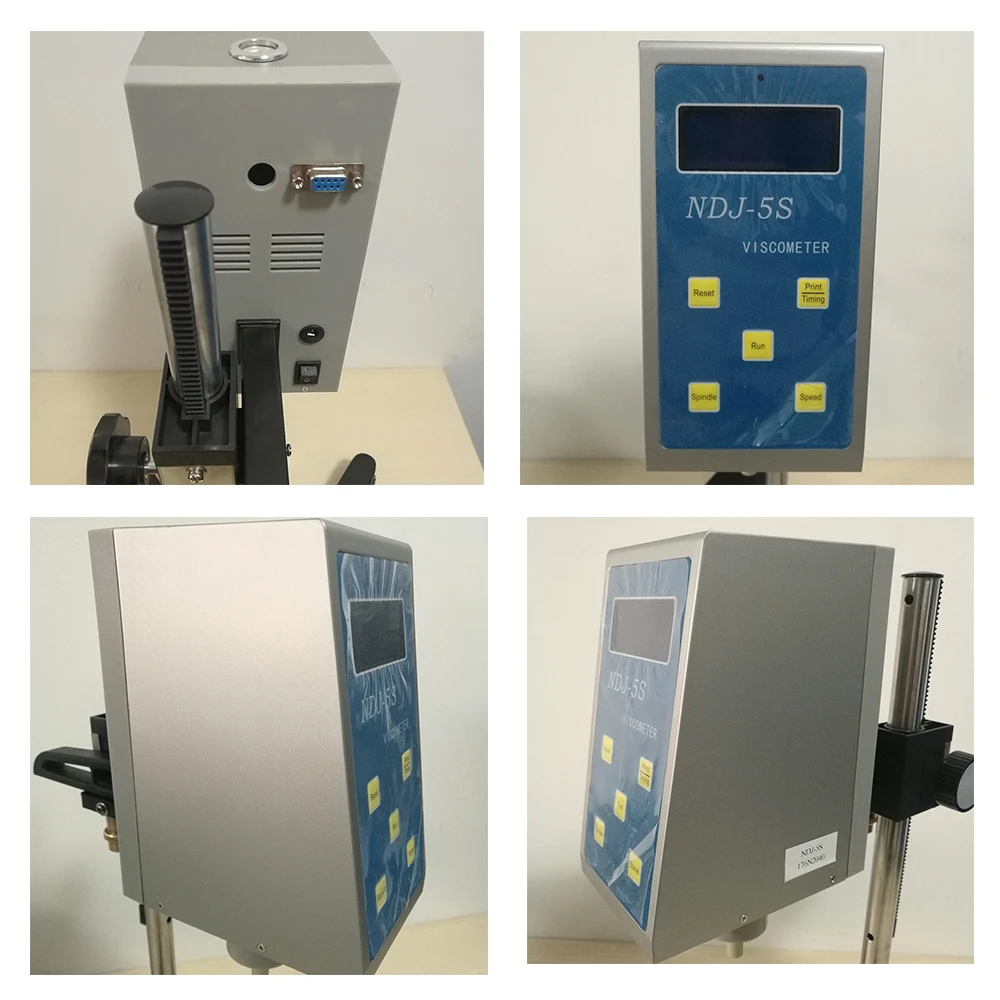

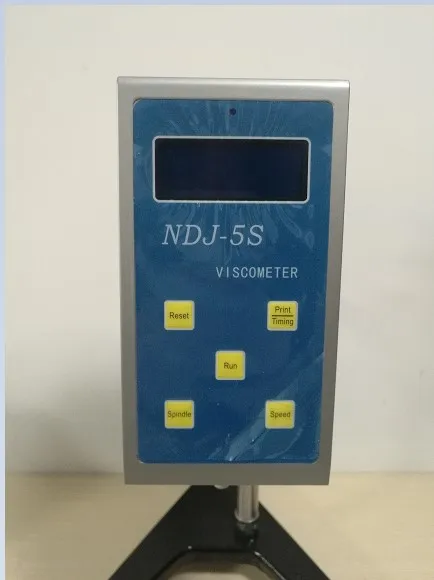

Digital Viscometer | NDJ-5S | Number of Spindles: Spindles (Code L1,L2,L3,L4) ; Accuracy : ±1%; Return Capacity : ±0.5% | Measuring Range (mPa·s): 20 - 100000；Adjustable speed:6/12/30/60 | |

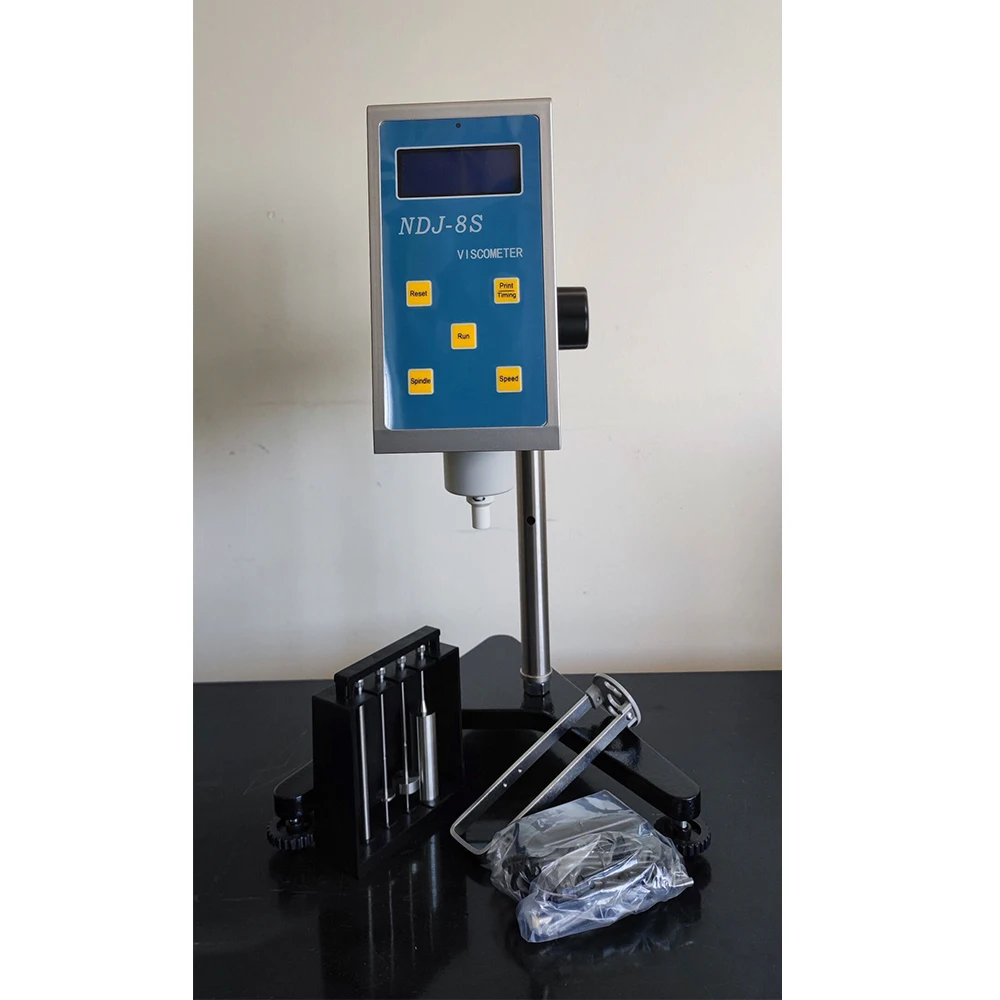

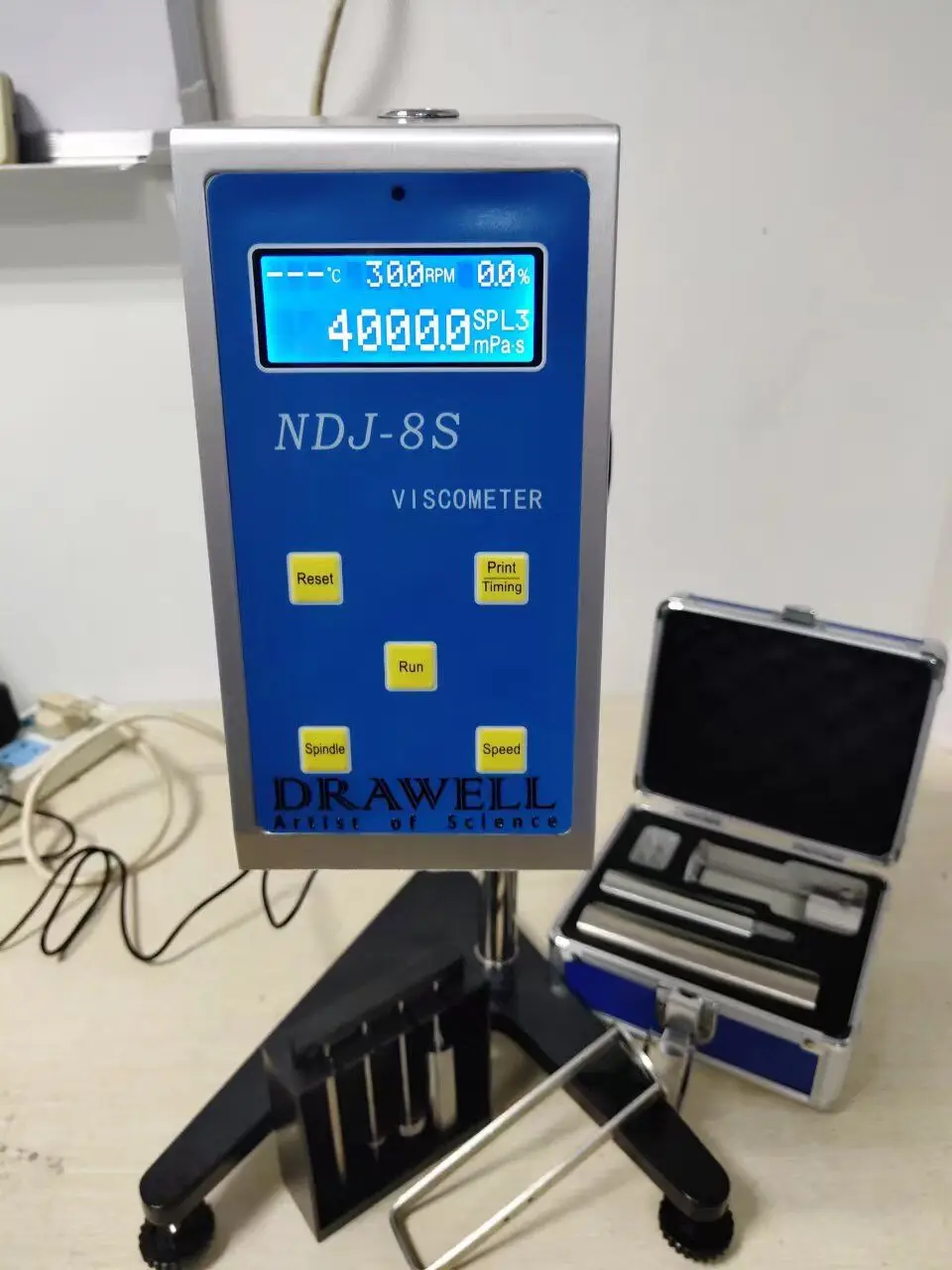

NDJ-8S | Measuring Range (mPa·s): 20-2000000； Adjustable speed: 0.3/0.6/1.5/3/6/12/30/60 | |||
LVDV-1 | Rotating Speed (RPM) : 0.1~99.9 (Stepless Gear) ; Accuracy : ±1% full scale range in use ; Return Capacity : ±0.5%; Readability : 1.when viscosity is lower than 10.0 cp : 0.01 2.when viscosity is lower than 10000 cp : 0.1 3.when viscosity is equal or higher than 10000 cp : 1 | Measuring Range(mPa·s): 12～6,000,000 ; Spindles: L1,L2,L3,L4 | ||
RVDV-1 | Measuring Range(mPa·s): 80～40,000,000 ; Spindles:R2,R3,R4,R5,R6,R7 | |||
HBDV-1 | Measuring Range(mPa·s): 640～320,000,000 ; Spindles:R2,R3,R4,R5,R6,R7 | |||
LVDV-2 | Rotating Speed: (RPM) 0.1 ～ 200(Stepless Gear) Accuracy : ±1% full scale range in use ; Return Capacity : ±0.5%; Readability: 1.when viscosity is lower than 10.0 cp : 0.01 2.when viscosity is lower than 10000 cp : 0.1 3.when viscosity is equal or higher than 10000 cp : 1 | Measuring Range(mPa·s): 6～6,000,000 ; Spindles : L1,L2,L3,L4 | ||
RVDV-2 | Measuring Range(mPa·s): 40～40,000,000 ; Spindles:R2,R3,R4,R5,R6,R7 | |||
HBDV-2 | Measuring Range(mPa·s): 320～320,000,000 Spindles:R2,R3,R4,R5,R6,R7 | |||
Optional Water Bath | RC0508 | Temperature Sensor：PT 100 Working Temp Range [℃] :RT+5～100 Display Accuracy [℃]: 0.1 Pump: Pressure Pump/Suction Pump Max Pressure [bar]: 0.2; Max Suction [bar]: 0.1 | ||
LC-1008 | Temperature Sensor: PT 100 Working Temp Range [℃] : -10～100 Cooling(10°C) [W] 300 Pump Pressure Pump/Suction Pump Max Pressure [bar] 0.2; Max Suction [bar] 0.1 | |||

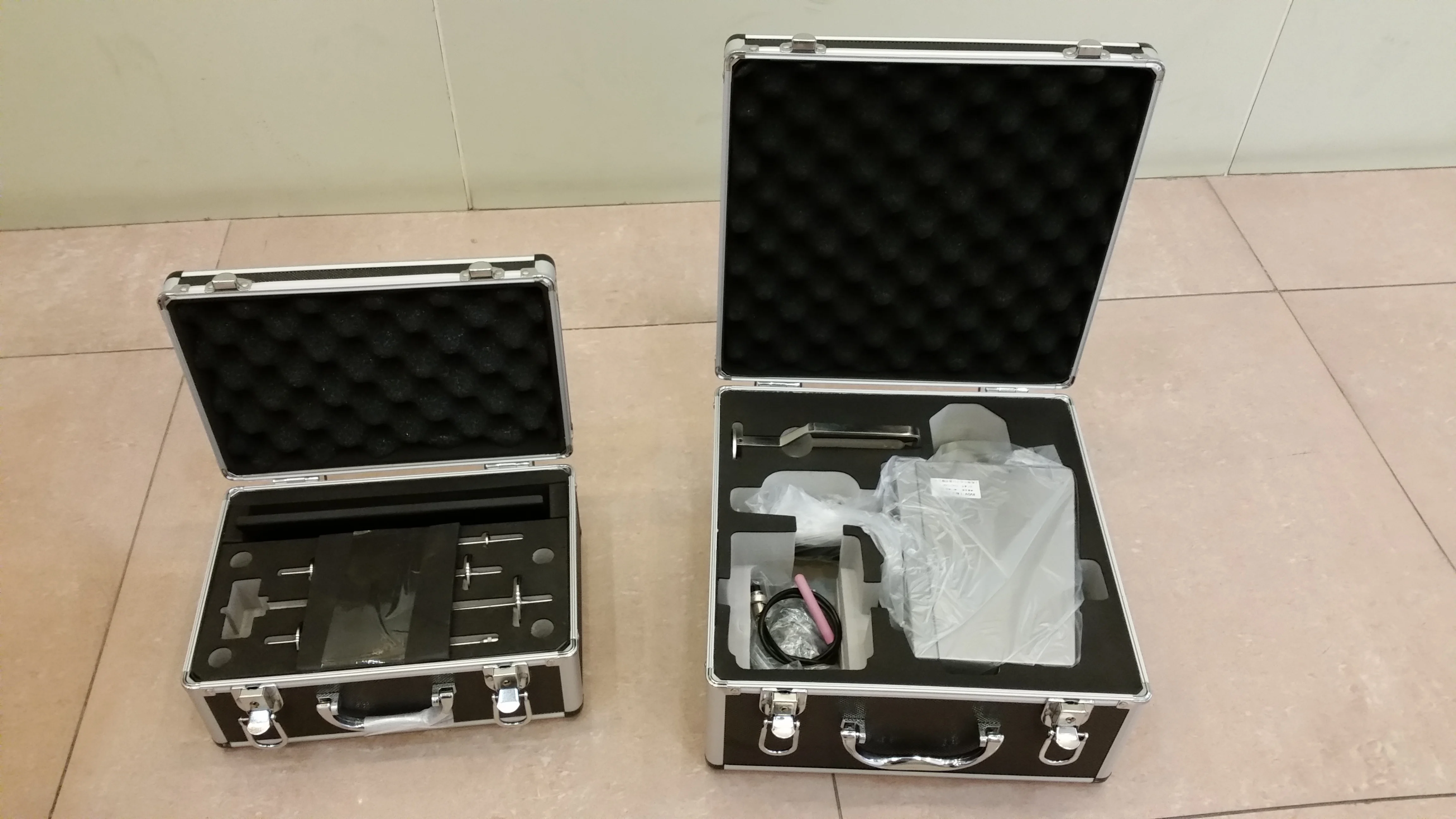

Apparatus to be equipped
. digital viscosity meter 1 pce

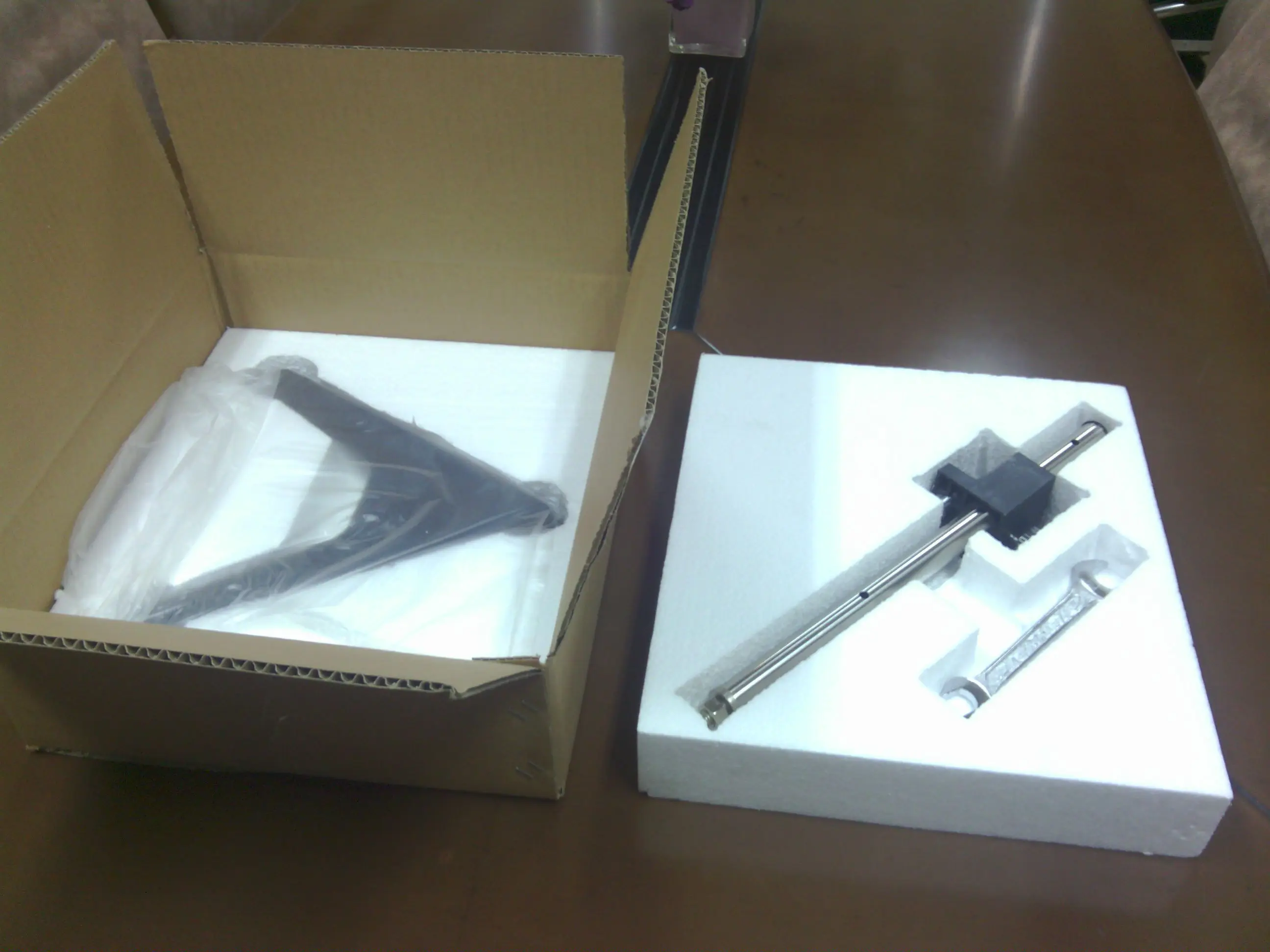

· ascending and falling rack 1 set
. standard spindle 1 set
· power adapter 1 pce
· protective frame of spindle 1 pce
· spanner 1 pce
· Seat and leveling feet 1 set
. RS232 standard output interface 1 pce
. RTD temperature probe 1 pce
Options
·Extreme low viscometer adapter (with one spindle L0)
·Small sample adapter (with spindle 21, 27, 28 and 29 each)
·Temperature-controlled heater (with spindle 21, 27, 28 and 29 each)
·Spindle L5
·Special software that can complete the function in collecting the data automatically utomatically
·DV program control download software
·Specially used printer
