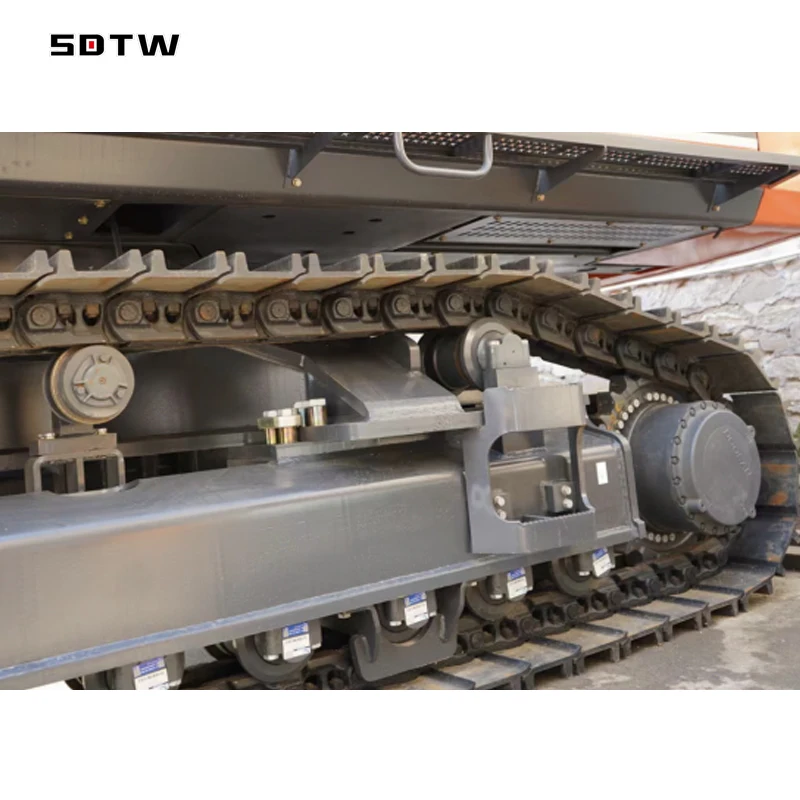

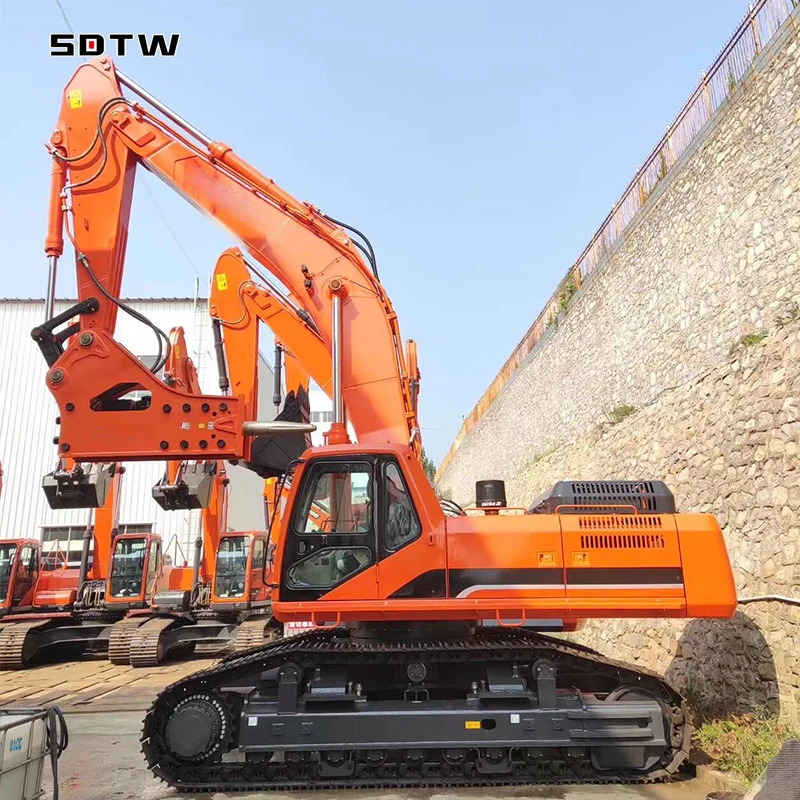

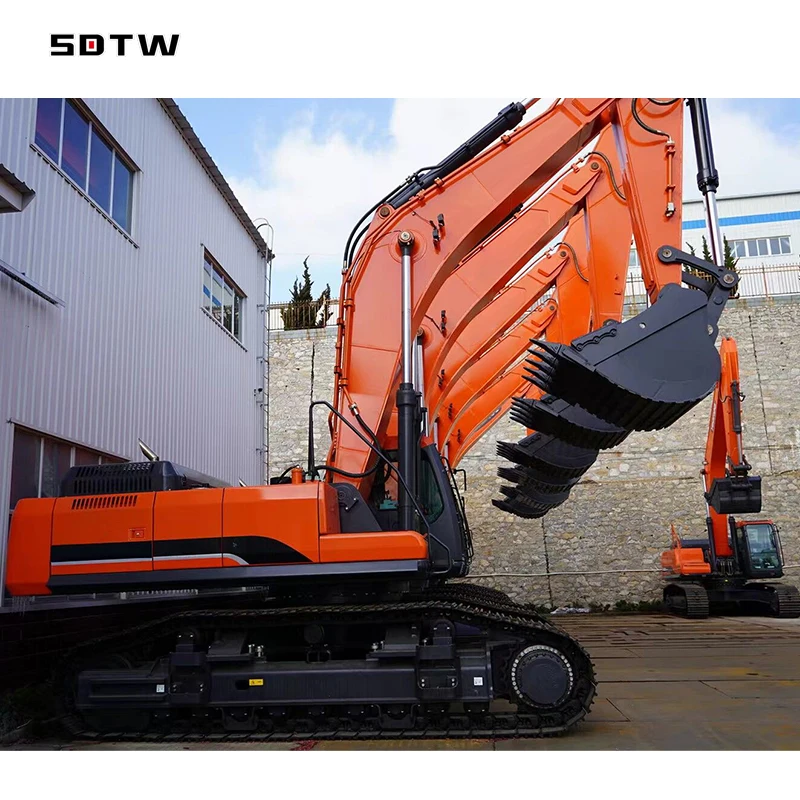

SDTW TW520 51t 3 m3 bucket Huge Mine Use Hydraulic Excavators with Doosan Engine and Import Hydraulic System
- Category: >>>
- Supplier: Shandong Tongwu Machinery Equipment Co. Ltd.
Share on (1601276794577):
Product Overview
Description
SDTW HYDRAULIC EXCAVATOR
SDTW MINI EXCAVATOR
Model | TW520 |
Total weight (T) | 51 |
Bucket capacity(m3) | 3 |
Engine model | DE12 |
Power(kw/r/min) | 245/2000 |
Volume of fuel tank (L) | 610 |
Hydraulic oil tank volume (L) | 390 |
Traveling speed (km/h). | 4.8/3.0 |
Slew speed (r/min) | 8.6 |
Gradeability(%) | 70 |
Bucket excavating force (KN) ISO | 246 |
Ground pressure(KPa) | 86 |
Overall length (mm) | 12100 |
Overall width (mm) | 3340/3900（组合式） |
Total height(Swing arm top)(mm) | 3705 |
Total height(Cab roof)(mm) | 3280 |
Counterweight ground clearance (mm) | 1460 |
Min. ground clearance (mm) | 720 |
Ground contact length of track(mm) | 4360 |
Track shoe length (mm) | 5465 |
Track gauge(mm) | 2740/3300（组合式） |
Track shoe width (mm) 800 | 3340/3900（组合式） |
Track shoe width(mm) | 600 |
Rotary table width(mm) | 3045 |
Maximum excavating height(mm) | 10940 |
Maximum unloading height(mm) | 6660 |
Maximum excavating depth(mm) | 7340 |
Maximum vertical wall excavating depth(mm) | 7790 |
Maximum excavating distance | 11700 |
Minimum turning radius(mm) | 4825 |
Maximum height at minimum turning radius(mm) | 9250 |
Distance between the center of gyration and the rear end side(mm) | 3845 |
Counterweight height(mm) | 2360 |
Ground contact length(during transportation)(mm) | 6520 |
Bucket rod length(m) | 2550 |
Length of swing arm (m) | 6560 |

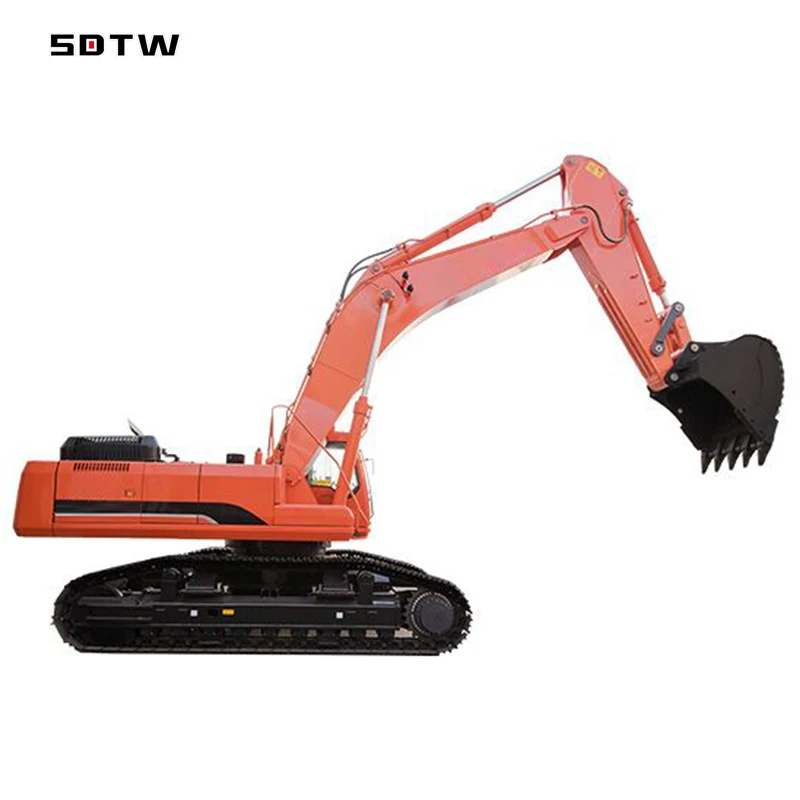

TW520 CRAWLER EXCAVATOR
Feature:
High-end first-class configuration
Cummins excellent power, fuel-saving and energy-saving
International brand main pump and main valve, word brand hydraulic components to ensure high
reliability of hydraulic system
Higher reliability and durability
Sturdy high-strength body
Reinforced movable arm, bucket bar and bucket structural parts.

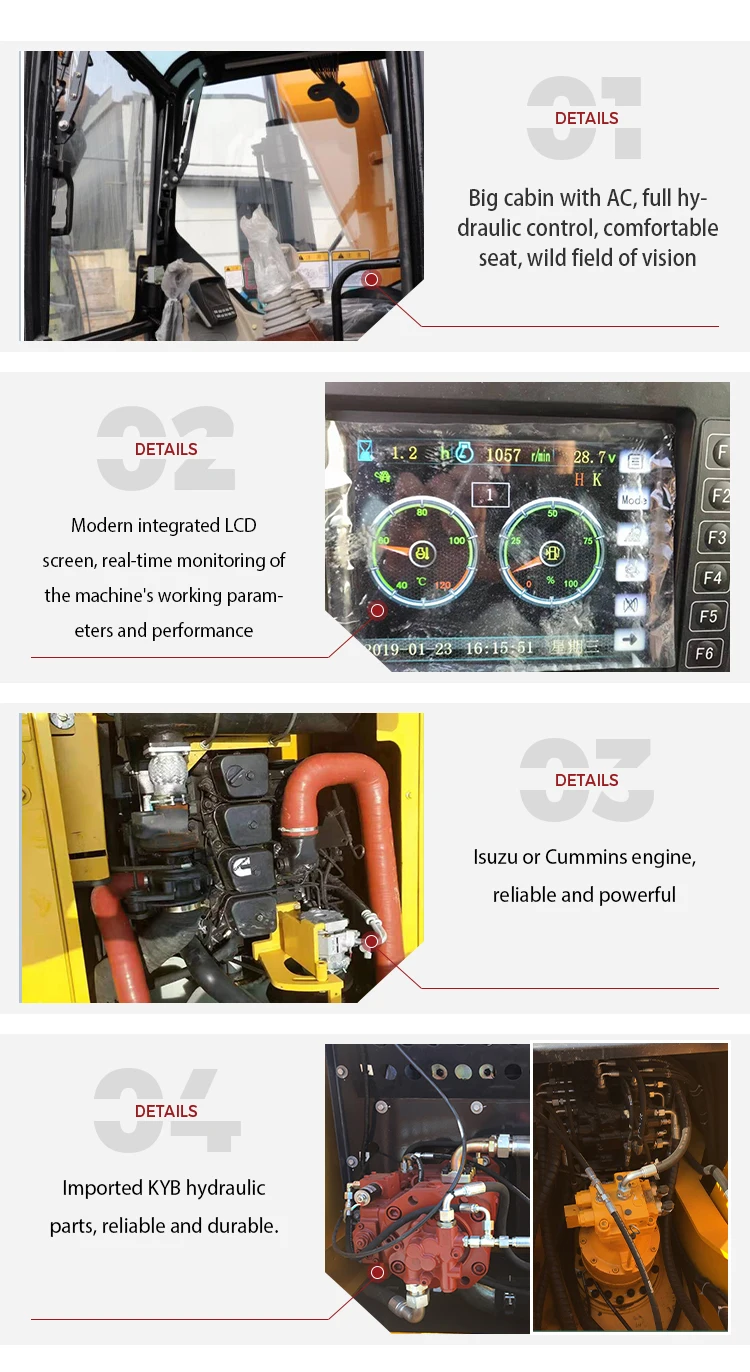

More coordinated comfort
Highly rigid new cab, quiet and comfortable
Color LCD monitor for easy monitoring and maintenance, multiple operation modes available.
Feature:
High-end first-class configuration
Cummins excellent power, fuel-saving and energy-saving
International brand main pump and main valve, word brand hydraulic components to ensure high
reliability of hydraulic system
Higher reliability and durability
Sturdy high-strength body
Reinforced movable arm, bucket bar and bucket structural parts.
More coordinated comfort
Highly rigid new cab, quiet and comfortable
Color LCD monitor for easy monitoring and maintenance, multiple operation modes available.
