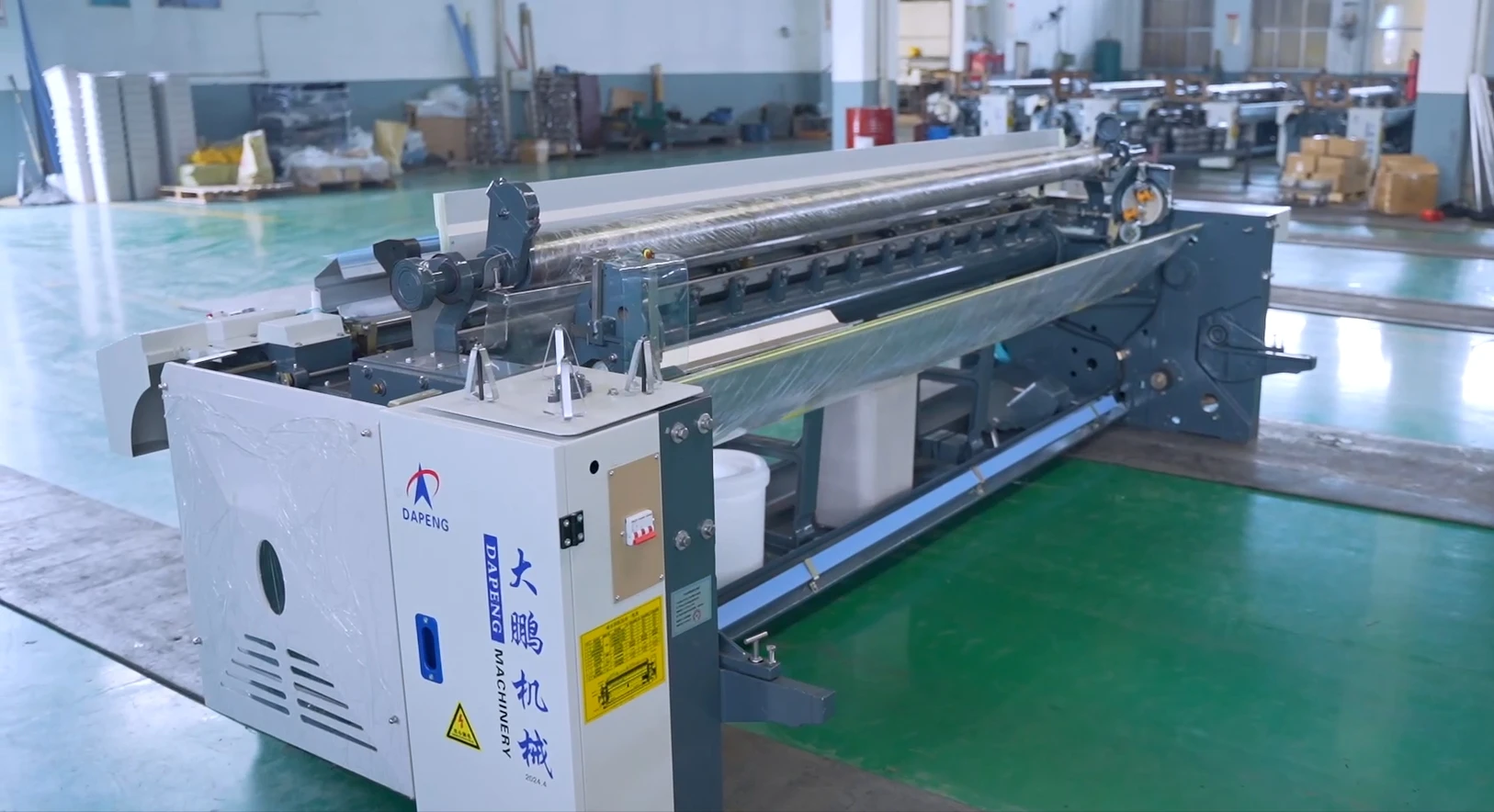

Factory Supply Heavy Duty Shuttleless Weaving Machine Water Jet Loom
- Category: >>>
- Supplier: Qingdao Dapeng Machinery Co. Ltd.
Share on (1601276879909):
Product Overview
Description
Product Introduction

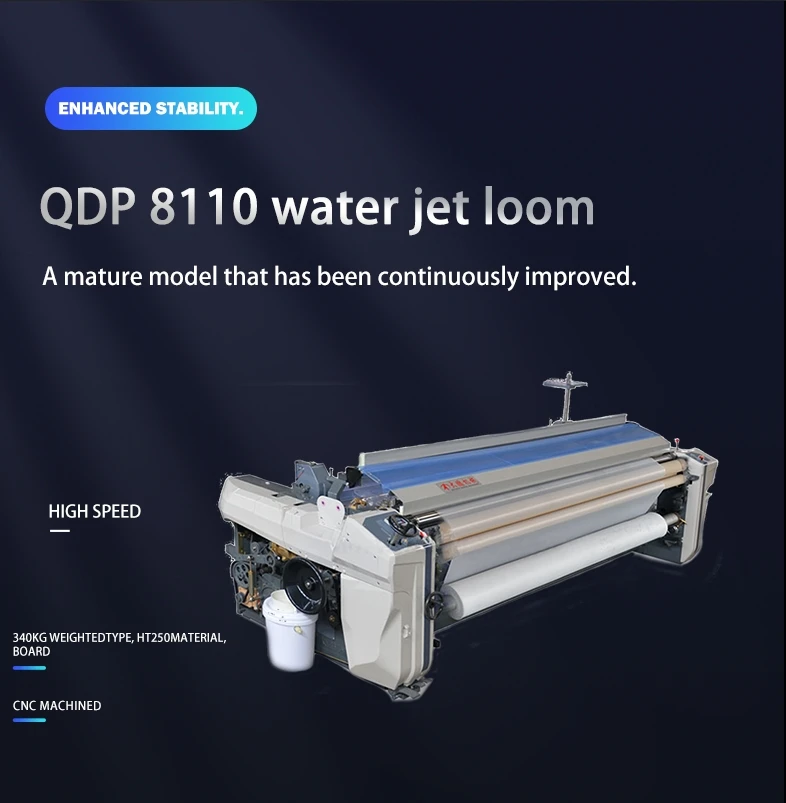

QDP 8100 water jet loom is an improved and innovative model.Use Short-stroke beating-up to adapt to high-speed weaving while reducing the damage of the reed to the fabric;
Shorten the length of the fabric from the weaving mouth to the cloth taking up the skin roller, reduce the rebound, and improve the stability of the weaving mouth;
One-piece wall panel, the frame increases the longitudinal support to improve the stability of the frame;
The eccentric rocker shaft structure is adopted to reduce the beating-up vibration1-4 color crank opening or crank 6 connecting rod configuration;
The stable rear beam tension structure is negatively relaxed;By shortening the cloth path before weaving, higher density and stable weaving is possible. From fine yarns to thick yarns, from narrow to wide, and even unbalanced weave fabrics, it is expected to correspond to a wider range of weaving products.
By shortening the nozzle pitch, the difference in the weft insertion state between the first nozzle and the second nozzle is very small, and even if the loom runs at high speed, uniform weft insertion can be achieved.
Product Advantage
High-speed stable energy-saving
intelligent control system
intelligent control system
The stable frame improves the rigidity of the frame, reduces the deformation of the frame during operation, and enhances the stability of the whole machine.

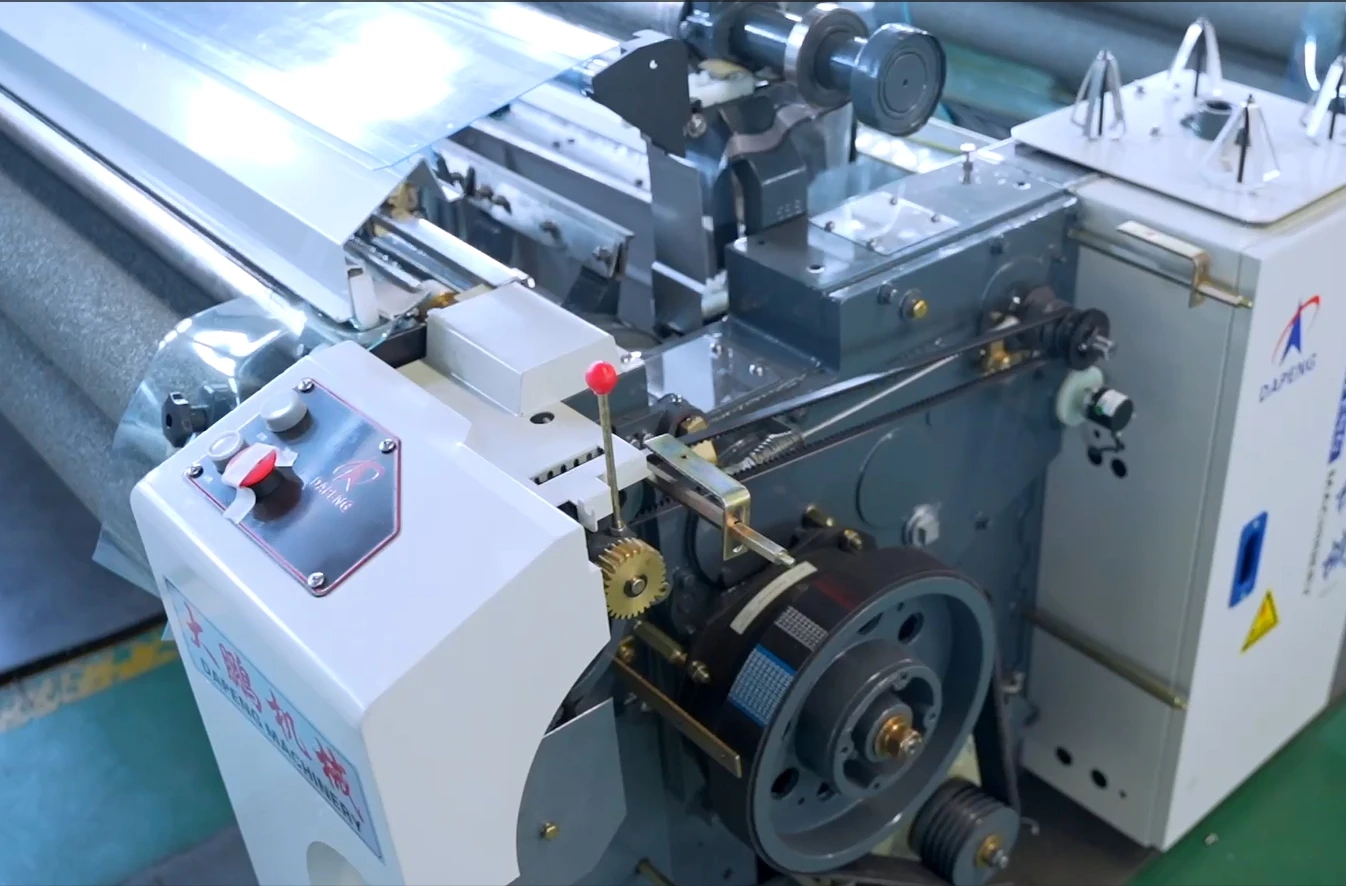

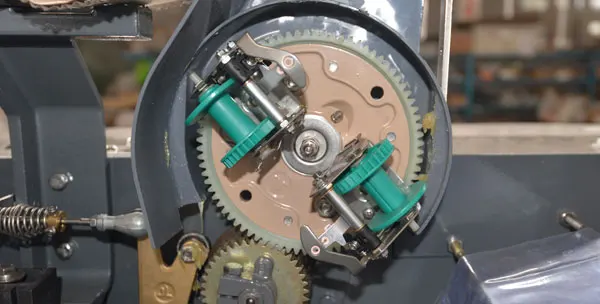

Selvedge structure of water jet loom
The selvedge form is rope-like, tight selvedge, with aluminum alloy planetary gear selvage structure, light weight, low vibration, suitable for high-speed operation.
Parts.
Japanese or Korean top brands
bearing in the industry
bearing in the industry
Machine Applications
Cotton fabrics
Linen fabric
Silk fabrics
Hydrophobic fiber
Technical Paraments
Optional width space | 135cm-340cm |
Shedding | Plain/Cam/Dobby |
Weft Insertion Rate | Rate 2280m/Min |
Heald frame | 2, 4, 6, 8 Pieces, Cam Shedding 10 Pieces Utmost |
Take-up | Electronictake-up(ETU)/ Mechanicaltake-up(MTU) |
Let-off | Electroniclet-off(ELO)/Mechanicallet-off(MLO) |
Speed | 600rpm-1000rpm |
Weft Density | 5-60 Thread/M |
Power | 2.2kw-4.5kw |
Selvage | Planetary gear type Selvage device |
Weaving range | spun:Ne100~Ne2.5 |
Beating up | "U" shaped beating up shaft |
Optional feeler | xinliao /shanhe |
Bearing | NSK/NACHI |
Motor | Qingdao Guofang motor/Red Flag Motor |
Certifications
Our Workshop

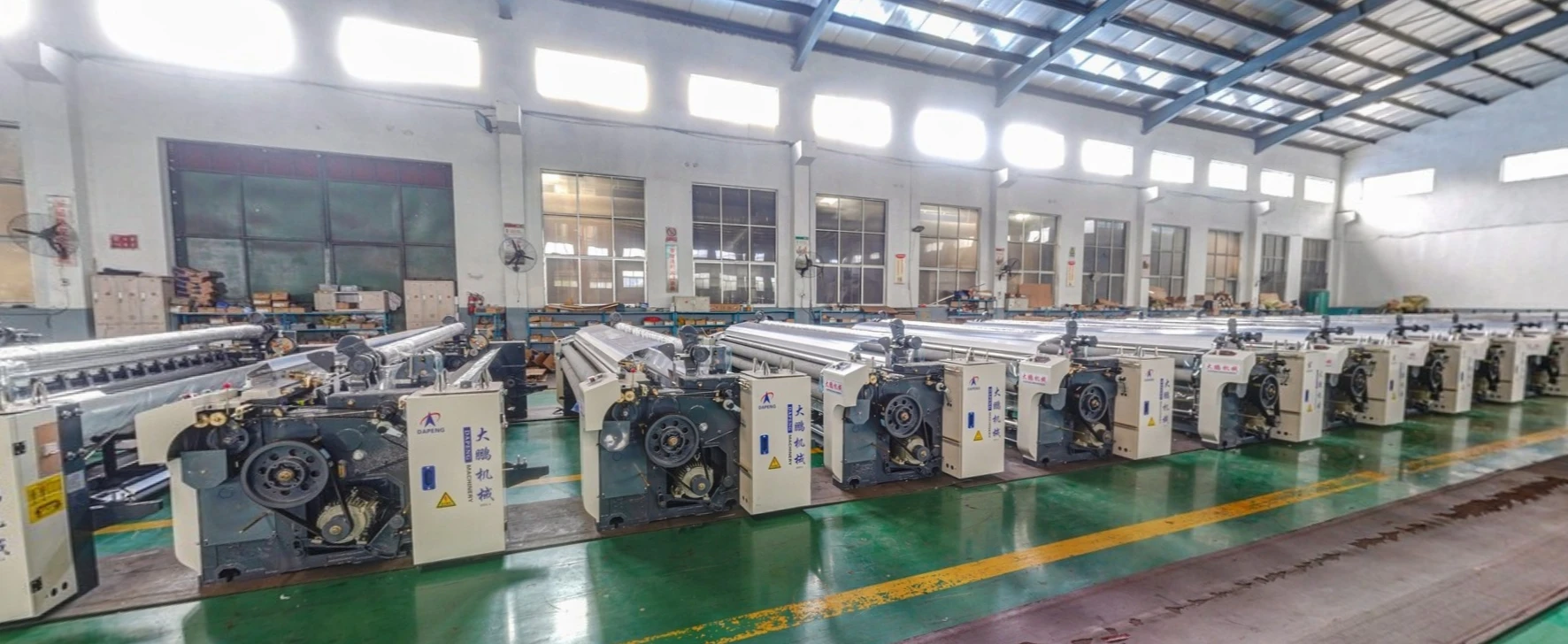

Assembly workshop
Parts workshop
CNC equipment
Spraying workshop
Payment&Shipment

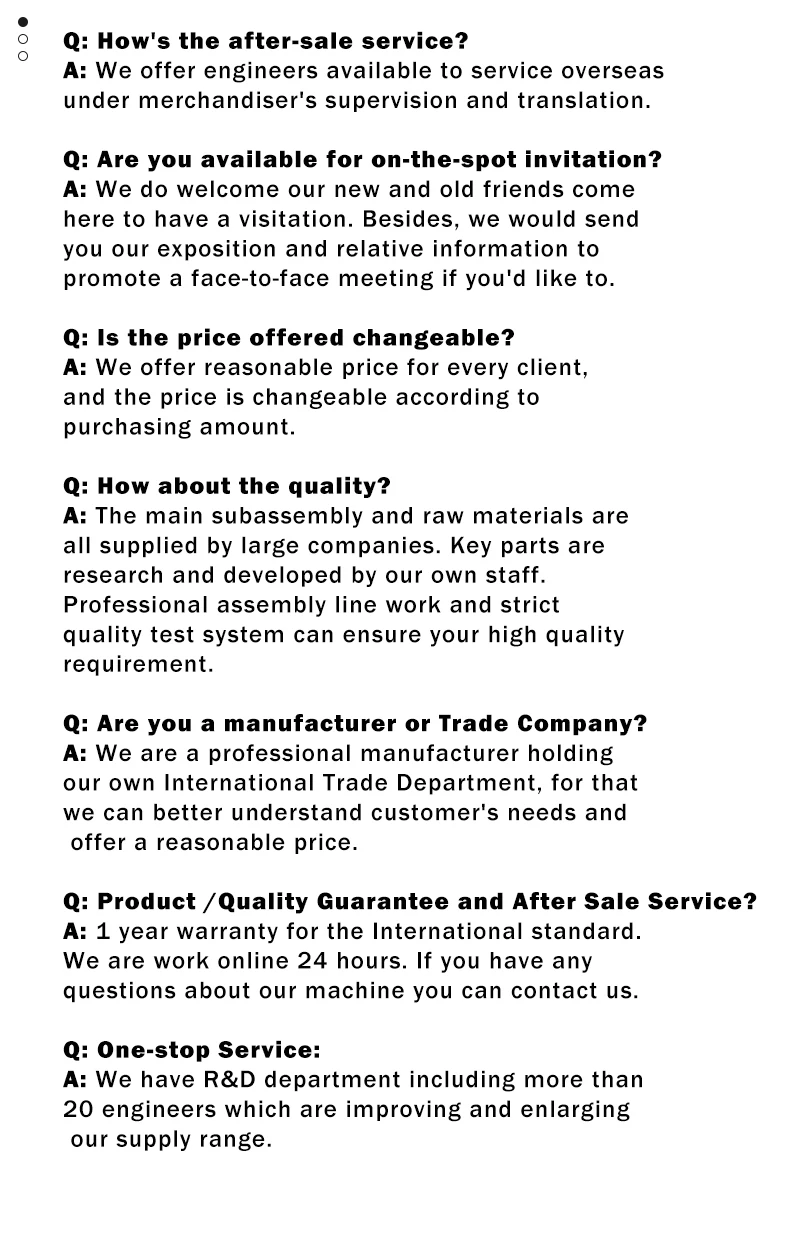

FAQ
