Products Description
official manufacturer RP602 asphalt concrete paver.
Excellent configuration
The key parts such as diesel engine, hydraulic pump, hydraulic motor, hydraulic valve, travel reducer, micro-computer controller, bearings, hydraulic pipe joints, hydraulic tube and hose, and filters are imported from European countries, ensuring the durability and reliability of the machine.
Simple maintenance
Central controlled operation features simplicity and reliability. All the operating components are installed on the instrument box, the instrument box is moveable. There are numbers on all the electrical circuits, which is convenient to check and maintain. The side cover and engine hood is easy to open, and the components that need to be maintain usually are easy to access to.The travel drive device adopts outboard cover, which is convenient to maintain.
Excellent performance
The maintenance-free crawler travel device composed of track rollers and rubber track shoes is durable, and doesn't damage the roads. The imported automatic centralized lubricating system prolongs the service life of the bearings in high-temperature positions, greatly reducing the amount of maintenance and improving the working efficiency.
Product Paramenters
Item | Unit | Parameter |
Basic Working Width | m | 2.5 |
Max Working Width | m | 6 |
Max Paving Thickness | mm | 380 |
Traveling Speed | km/h | 0~3.0 |
Paving Speed | m/min | 0~14 |
Theoretical Productivity | t/h | 400 |
Hopper Capacity | t | 13 |
Gradient Ability | % | 20 |
Smoothness | mm/3m | 3 |
Slope Leveling Tolerance | % | 0.03 |
Tamper revolution | r/min | 0~1500 |
Tamper amplitude | mm | 4 |
Engine Type | BF4M1013C(Deutz) | |
Rated power | kw | 112 |
Rated revolution | rpm | 2300 |
Overall Dimension | mm | 6230*2500*3855 |
Weight | t | 15.8~21.5 |

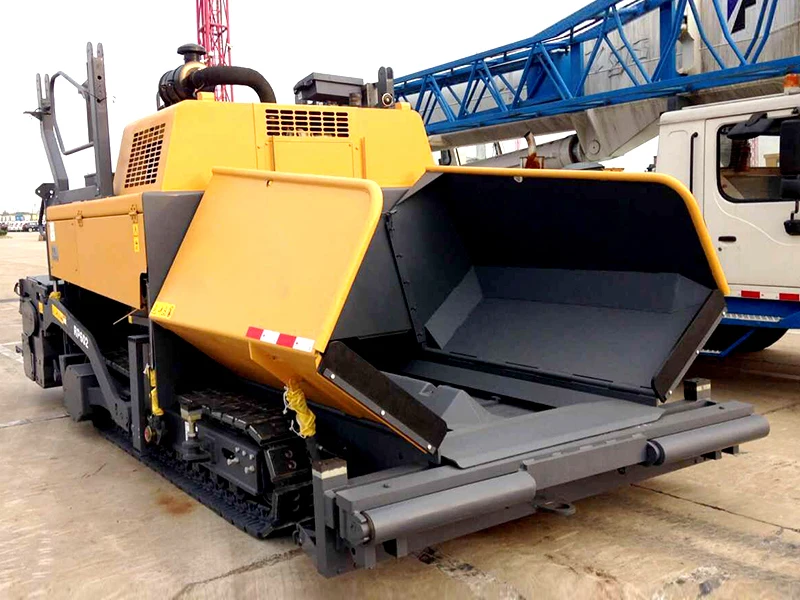

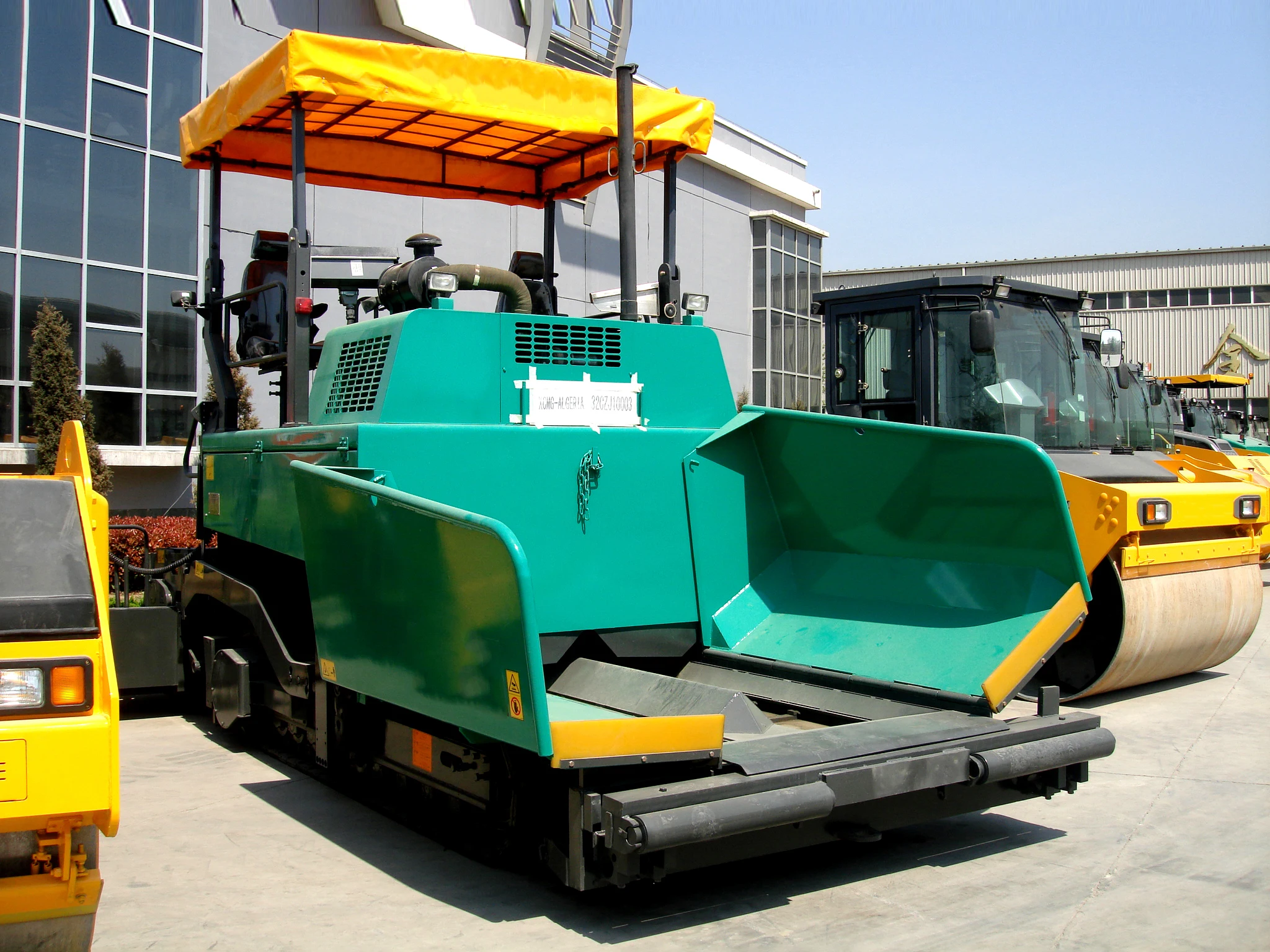

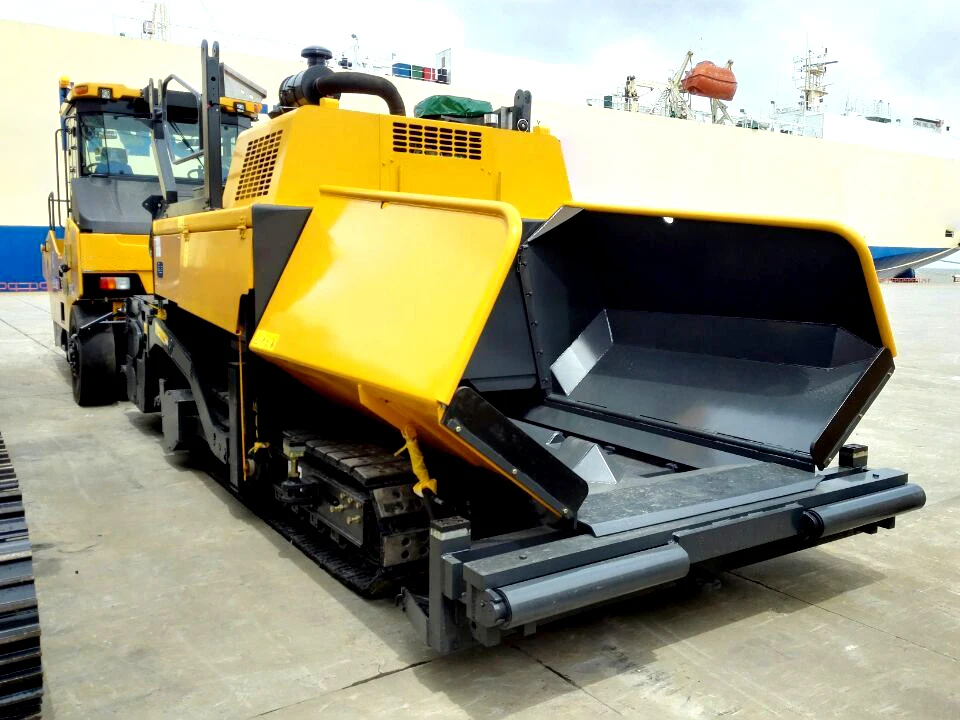

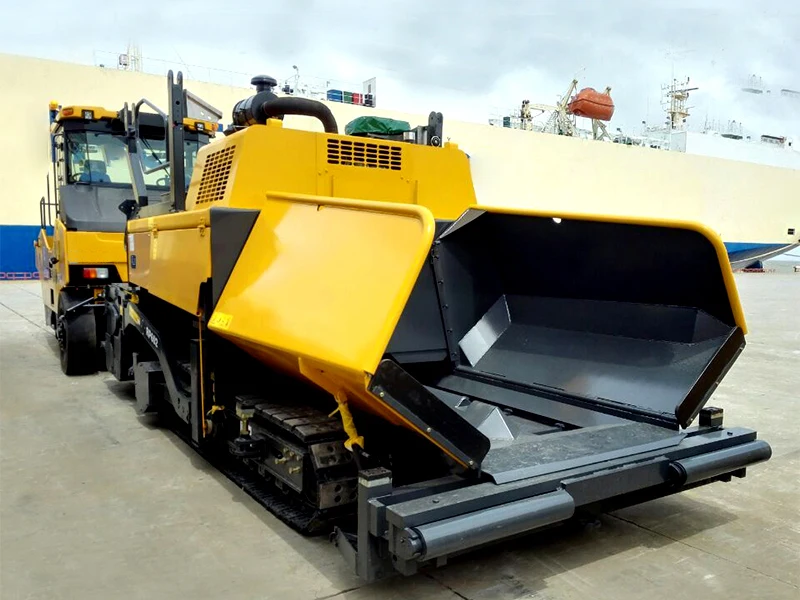

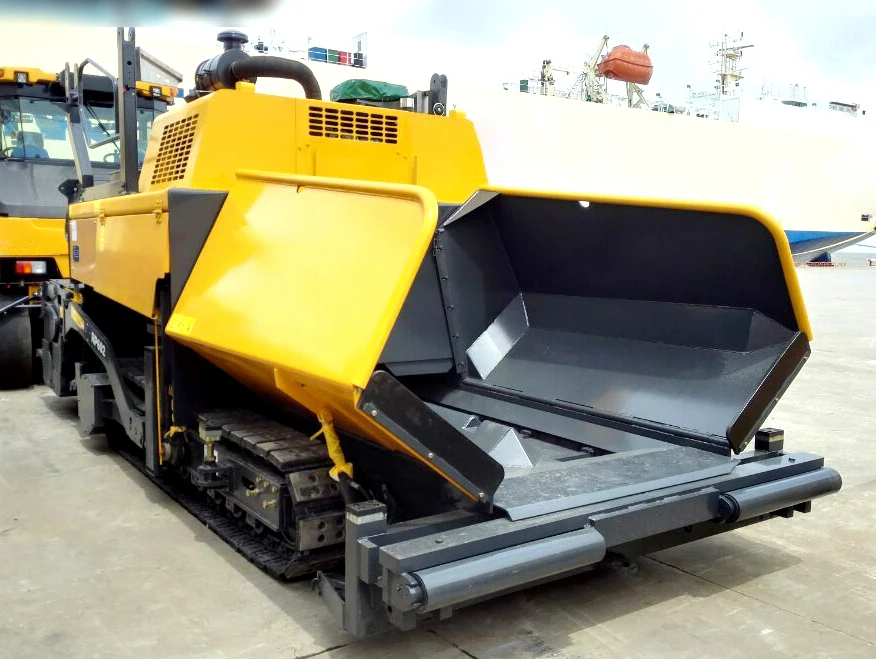

Detail Image
