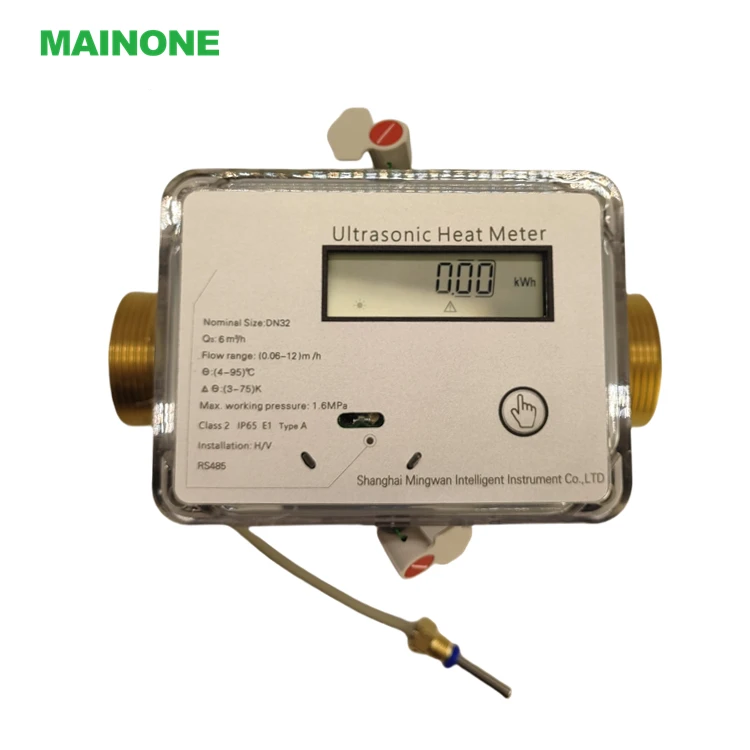

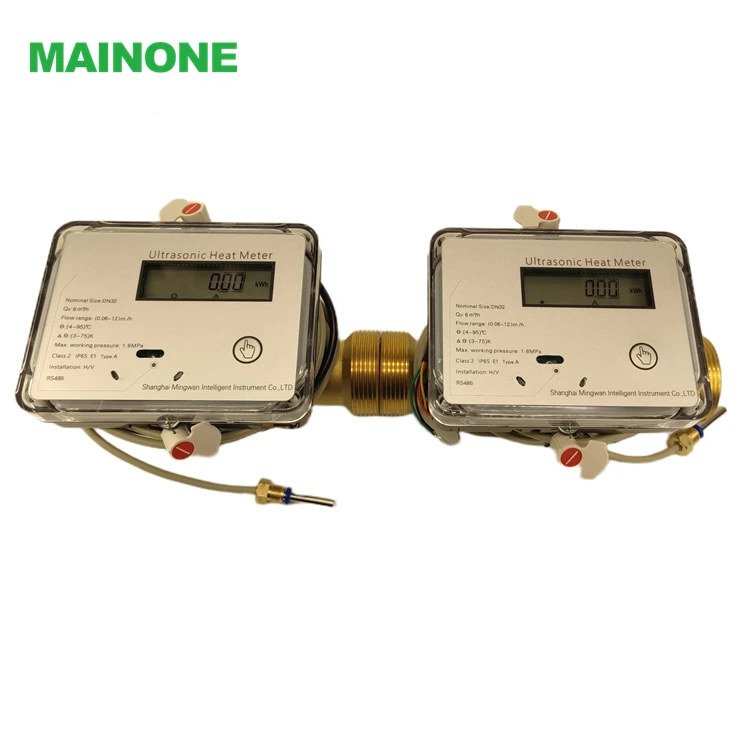

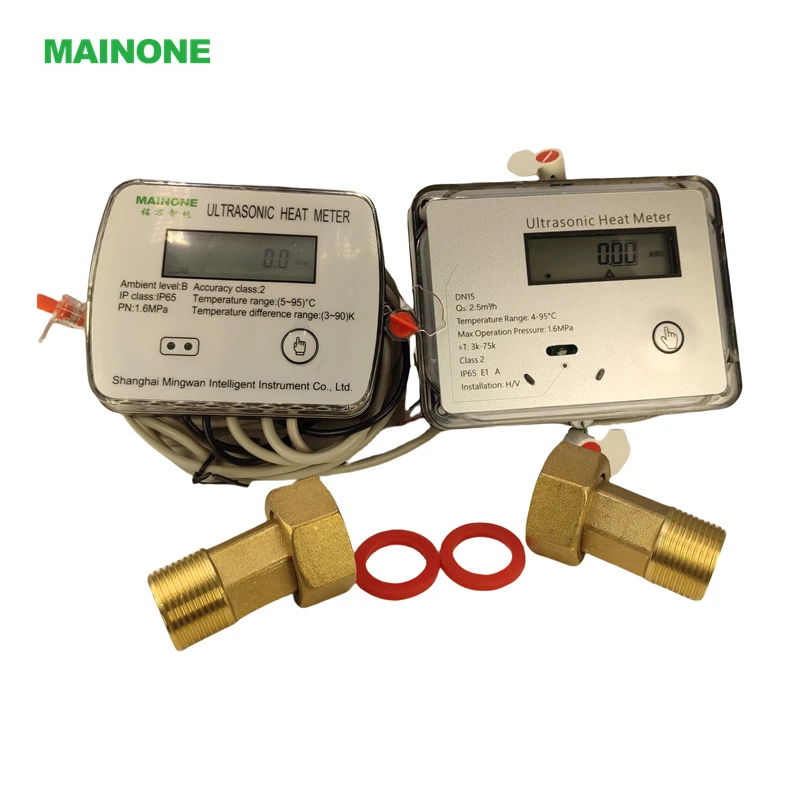

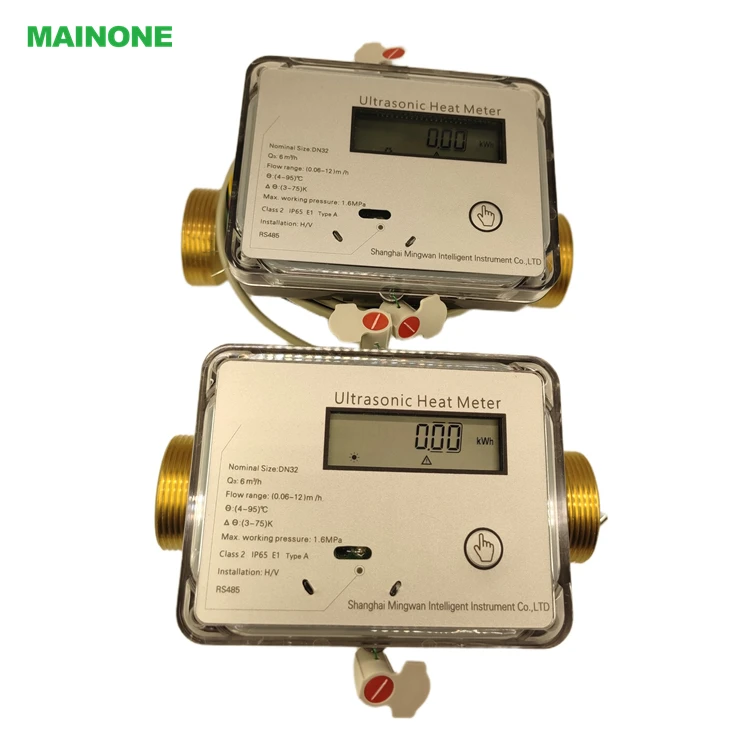

MID CE Certified High Precision Brass 32mm Ultrasonic Heat Meter Flow Meter with M BUS RS485 LoRa LoRaWAN
- Category: >>>
- Supplier: Shanghai MainOne Smart Meters Co. Ltd.
Share on (1601276937702):
Product Overview
Description
Products Description
1. Overview

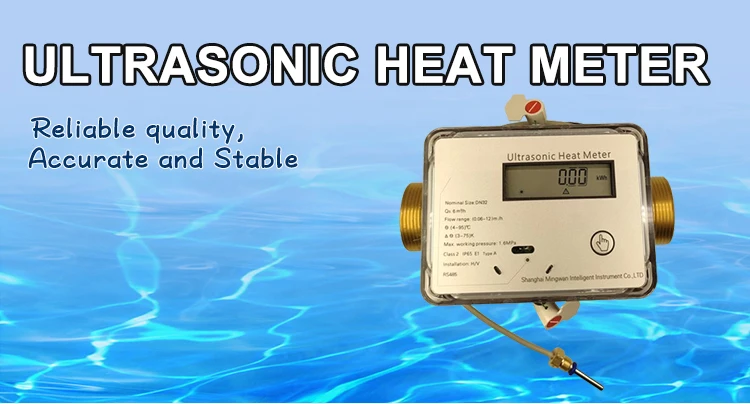

The ultrasonic heat meter is a measuring instrument based on the principle of time difference of ultrasonic propagation for flow measurement and heat accumulation calculation. It mainly consists of ultrasonic transducers, measuring pipe sections, paired temperature sensors, and an accumulator (circuit board). By driving the ultrasonic transducers with the CPU on the circuit board, it measures the time difference of ultrasonic waves traveling upstream and downstream to determine the flow rate. Then, it measures the temperatures of the inlet and return pipes with temperature sensors and finally calculates the heat released over a period of time.
This product integrates a data transmission interface, supporting data upload through the Internet of Things (IoT) to form a remote meter reading management system. Management personnel can read the data from the meter at any time, facilitating the statistics and management of users' heat consumption.
2. Product Features
(1) Suitable for both hot and cold water.
(2) Self-diagnosis function: alarms for flow sensor faults, temperature sensor open or short circuits, measurement out of range, battery low voltage, etc.
(3) Utilizes our company's patented flow measurement method (patent granted) and intelligent data error correction technology, ensuring high measurement accuracy and stability.
（4）Accuracy level: Class 2
(5) Powered by an internal lithium battery, with ultra-low power consumption, it can be used for (6+1) years or more.
(6) Equipped with an optical interface, supporting handheld infrared meter reading tools for on-site reading.
(7) High-definition wide-temperature LCD display.
(8) Optional M-BUS, 485, or wireless communication interfaces.
(9) Optional built-in IoT communication module (4G or NB-IoT) to form an IoT meter.
(10) Selectable power supply methods:
1) Internal battery power supply (default)
2) M-BUS power supply
3) External power supply (DC 7.5～24V)
(11)Ultrasonic metering, no mechanical wear and tear, with excellent reliability, stability
The ultrasonic heat meter is a measuring instrument based on the principle of time difference of ultrasonic propagation for flow measurement and heat accumulation calculation. It mainly consists of ultrasonic transducers, measuring pipe sections, paired temperature sensors, and an accumulator (circuit board). By driving the ultrasonic transducers with the CPU on the circuit board, it measures the time difference of ultrasonic waves traveling upstream and downstream to determine the flow rate. Then, it measures the temperatures of the inlet and return pipes with temperature sensors and finally calculates the heat released over a period of time.
This product integrates a data transmission interface, supporting data upload through the Internet of Things (IoT) to form a remote meter reading management system. Management personnel can read the data from the meter at any time, facilitating the statistics and management of users' heat consumption.
2. Product Features
(1) Suitable for both hot and cold water.
(2) Self-diagnosis function: alarms for flow sensor faults, temperature sensor open or short circuits, measurement out of range, battery low voltage, etc.
(3) Utilizes our company's patented flow measurement method (patent granted) and intelligent data error correction technology, ensuring high measurement accuracy and stability.
（4）Accuracy level: Class 2
(5) Powered by an internal lithium battery, with ultra-low power consumption, it can be used for (6+1) years or more.
(6) Equipped with an optical interface, supporting handheld infrared meter reading tools for on-site reading.
(7) High-definition wide-temperature LCD display.
(8) Optional M-BUS, 485, or wireless communication interfaces.
(9) Optional built-in IoT communication module (4G or NB-IoT) to form an IoT meter.
(10) Selectable power supply methods:
1) Internal battery power supply (default)
2) M-BUS power supply
3) External power supply (DC 7.5～24V)
(11)Ultrasonic metering, no mechanical wear and tear, with excellent reliability, stability
Technology parameters
Diameter | Min.Flow | Nominal Flow | Max. Flow | Length | |||
qmin（m3/h） | qp（m3/h） | qmax（m3/h） | mm | ||||
DN15 | 0.015 | 1.5 | 3 | 110 | |||
DN20 | 0.05 | 2.5 | 5 | 130 | |||
DN25 | 0.07 | 3.5 | 7 | 160 | |||
DN32 | 0.12 | 6 | 12 | 180 | |||
DN 40 | 0.2 | 10 | 20 | 200 | |||
Accuracy Class | Class 2 | ||||||
Pipe material | Brass, stainless steel | ||||||
Connection | DN20-DN40 is thread connection | ||||||
Allowable Pressure Loss | △P < 25 kPa | ||||||
Maximum Allowable Working Pressure | 1.6MPa | ||||||
Temperature Sensor | 1.5m standard two-wire PT1000 paired temperature sensor（Wire length adjustable） | ||||||
data storage | 36 months history data | ||||||
Power outage protection | After a power failure, the accumulated flow rate recorded before the power failure and the corresponding time can be saved, and the metering function will be automatically restored after the power is restored. | ||||||
Interface & Communication | Infrared、MBUS/RS-485、Pulse/LORA/LORAWAN | ||||||
Power | Multiple power supply methods: built-in battery power supply (default)+DC24V external power supply or MBUS power supply | ||||||
Protection Class | IP67/IP68 | ||||||
Ambient Class | Class A, B | ||||||
Temperature Range | （4 ～ 95）℃ | ||||||
Temperature Difference Range | （2 ～ 75）K | ||||||
Installation Method | Water inlet or return (default water inlet) | ||||||
Installation | Horizontal or Vertical | ||||||
Durability | Life Period ≥ 6 years | ||||||
Display | 8-bit LCD display | ||||||
Anti-magnetic interference | Distribution by a magnetic field with an intensity of less than 100 kA/m, no effective to the metering and remote transmission characteristics of the heat meter | ||||||
