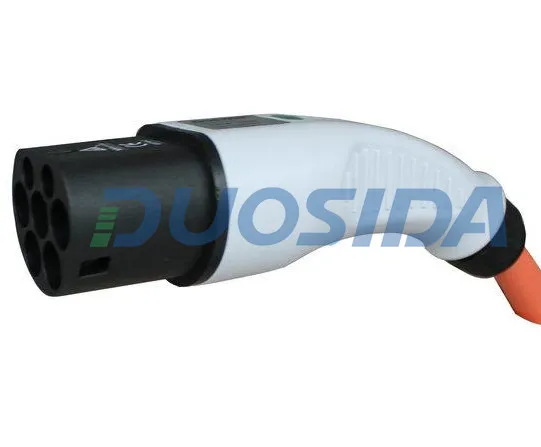

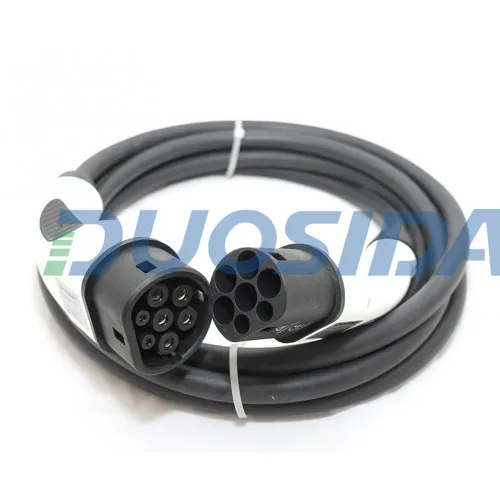

Duosida 32a EV Charging Female Plug type 2 plug

Product Overview

Description

  Dostar iec 62196 type 2 plug





Product Feature

Rated current	16A/32A/63A
Operating voltage	250V AC
Insulation resisitance	>1000M(DC500V)
Therminal temperature rise	<50K
Withstand voltage	2000V
Vibration resistance	Meet JDQ53.36.1.1-53.36.1.2 requirements
Contact impedance	0.5mMax
Mechanical life	no-load plug in/pull out >10000 times
Insertion and Extration Force	45N<F<80N
Shell material	Thermoplastic (Insulator inflammability UL94 V-0)
Contact Pin	Copper alloy, silver or nickel plating
Sealing gasket	rubber or silicon rubber
Operating temperature	-30°C~+50°C



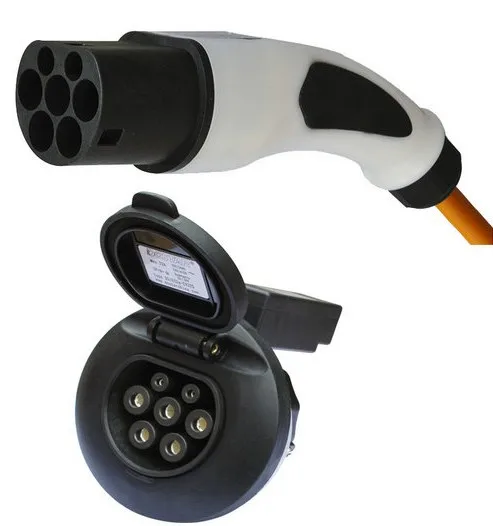

Insert arrangements and functional defination

Mark	Functional defination
1-(L1)	AC power
2-(L2)	AC power
3- (L3)	AC power
4-(N)	Netural
5-(PE)	PE
6-(CP)	Control confirmation
7-(PP)	Connection confirmation



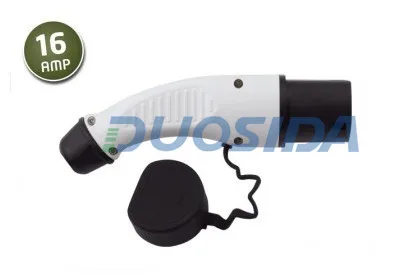

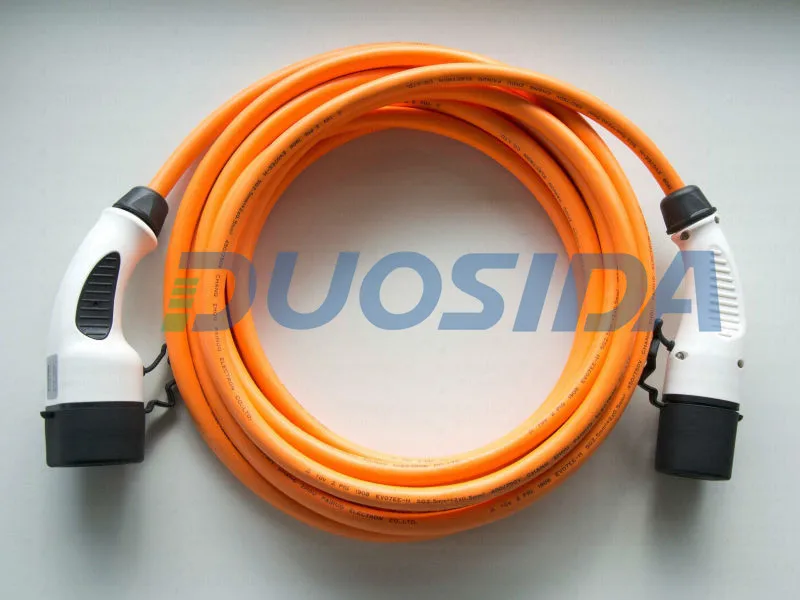

Model selection and the standard wiring

Model	Number of inserts	Cable Spec.	Remark
DSIEC2b-EV16P	7	3*2.5mm2+2*0.5mm2	The length of the cable can be customized
DSIEC2b-EV32P	7	3*6mm2+2*0.5mm2
DSIEC2b-EV63P	7	3*16mm2+2*0.5mm2



Model	Number of inserts	Cable Spec.	Remark
V2-DSS-EV16P	5	3*2.5mm2+2*0.5mm2	The length of  the cable can  be customized
V2-DSS-EV32P	5	3*6mm2+2*0.5mm2
V2-DSS-EV70P	5	2*13.3mm2+1*10mm2+2*0.5mm2
