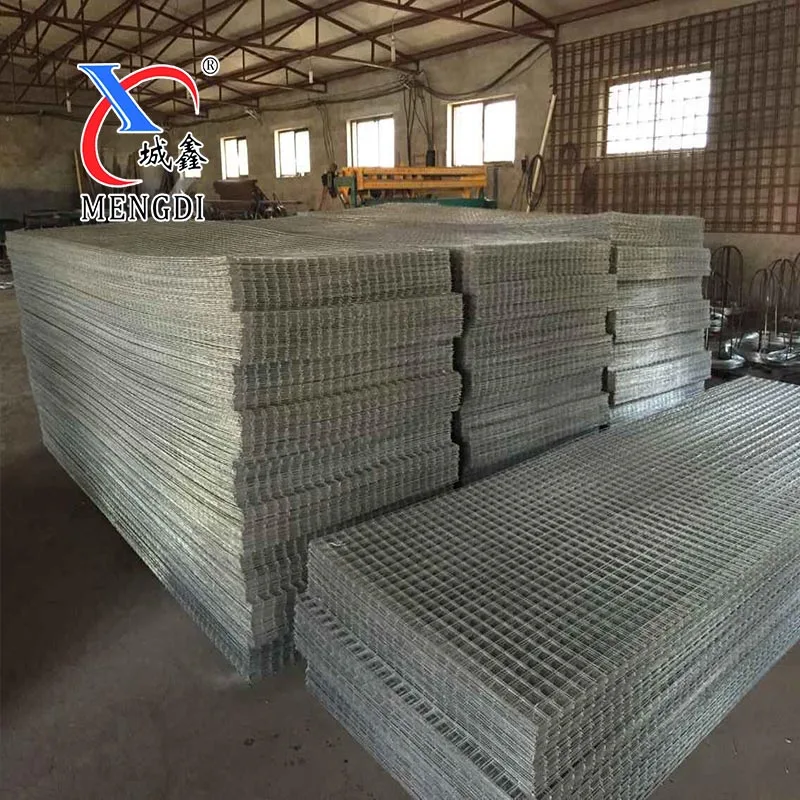

welded steel wire mesh panel for floor heating mesh/ Geothermal Mesh/Ground heating mesh panel

Product Overview

Description

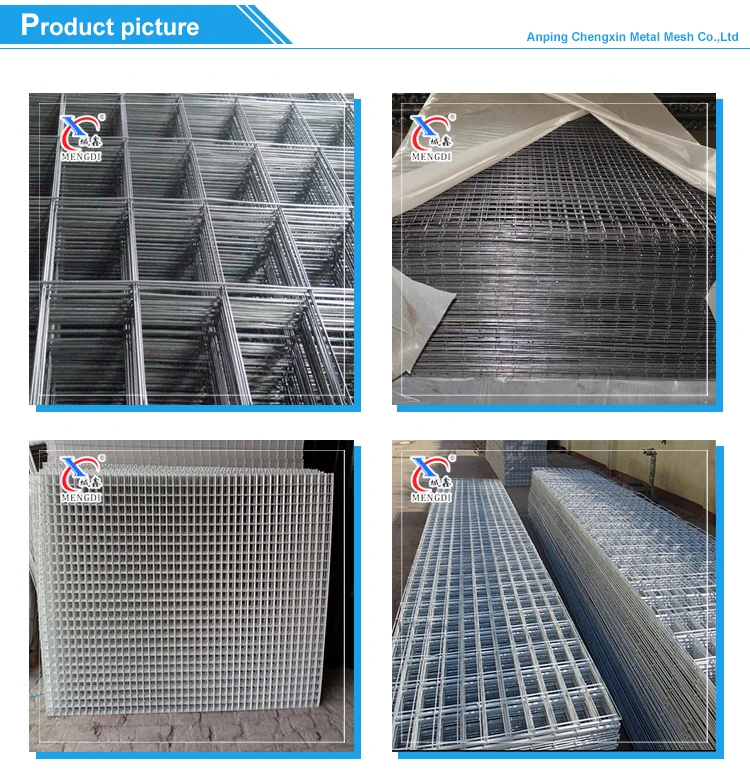

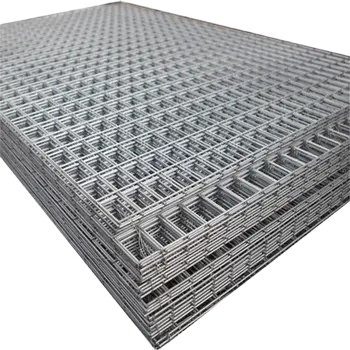

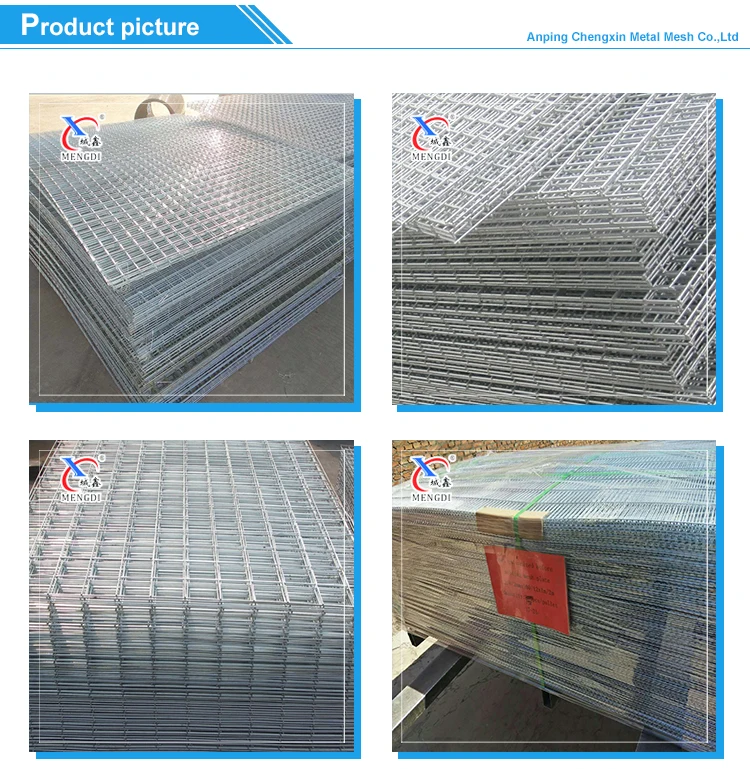

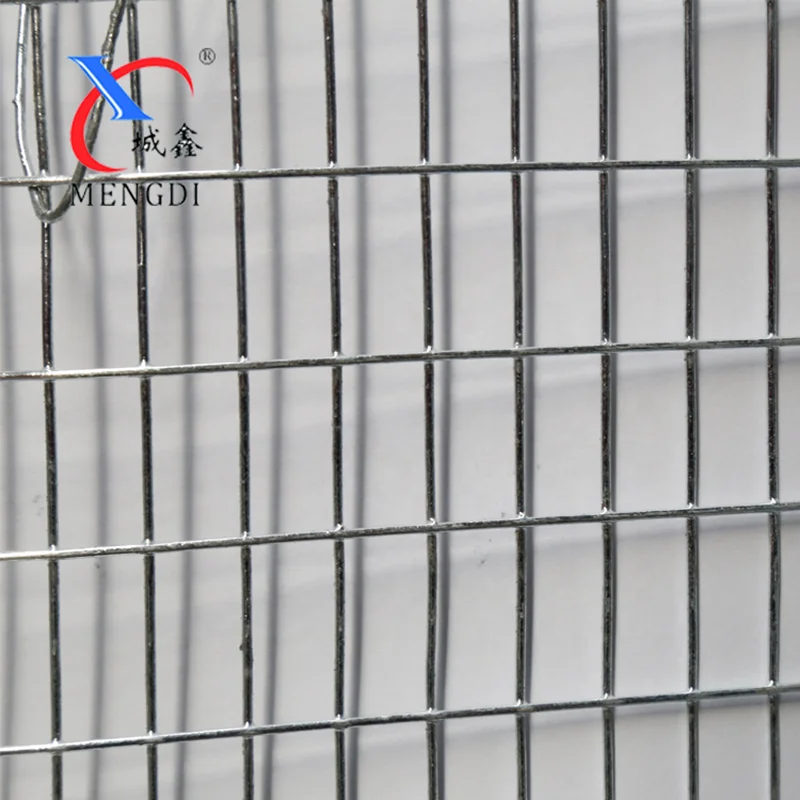

Reall factory Pre galvanised welded mesh panel

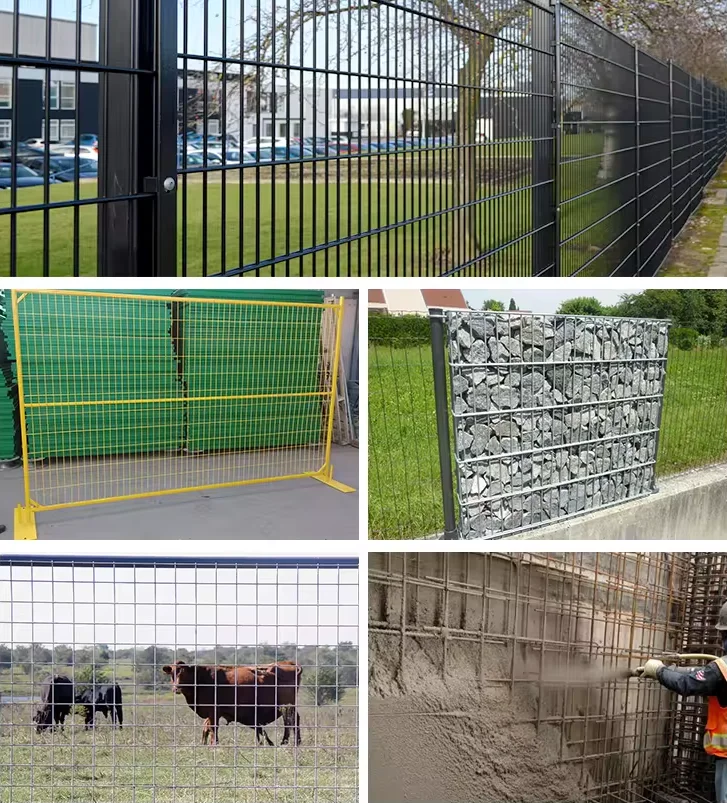

Welded wire mesh is used in Industry and Agriculture Building, Transportation and Mining for all such purposes as Poultry Houses, Egg Baskets, Runway Enclosures, Draining Rack, Fruit Drying screen, Fences, Etc.



Assortments available:

Hot Dipped Galvanized After/Before Welding;

Electro Galvanized After/Before Welding;

PVC Coating With Green, Black, Color, Etc.

Welded Mesh made of Stainless Steel Wire.





Specification List of Welded Mesh Panel
Opening		Wire diameter
Inch	mm	BWG	mm
1" × 1"	25mmx25mm	14# - 11#	2.0mm - 3mm
2" × 1"	50mmx25mm	14# - 8#	2.0mm - 4mm
2" × 2"	50mmx50mm	14# - 8#	2.0mm - 4mm
3" × 2"	75mmx50mm	14# - 6#	2.0mm - 5mm
3" × 3"	75mmx75mm	14# - 6#	2.0mm - 5mm
4" × 2"	100mmx50mm	14# - 4#	2.0mm - 6mm
4" × 4"	100mmx100mm	14# - 4#	2.0mm - 6mm
5" × 5"	125mmx125mm	14# - 4#	2.0mm - 6mm
6" × 6"	150mmx150mm	14# - 4#	2.0mm - 6mm
Note: Special specifications can be customized.
