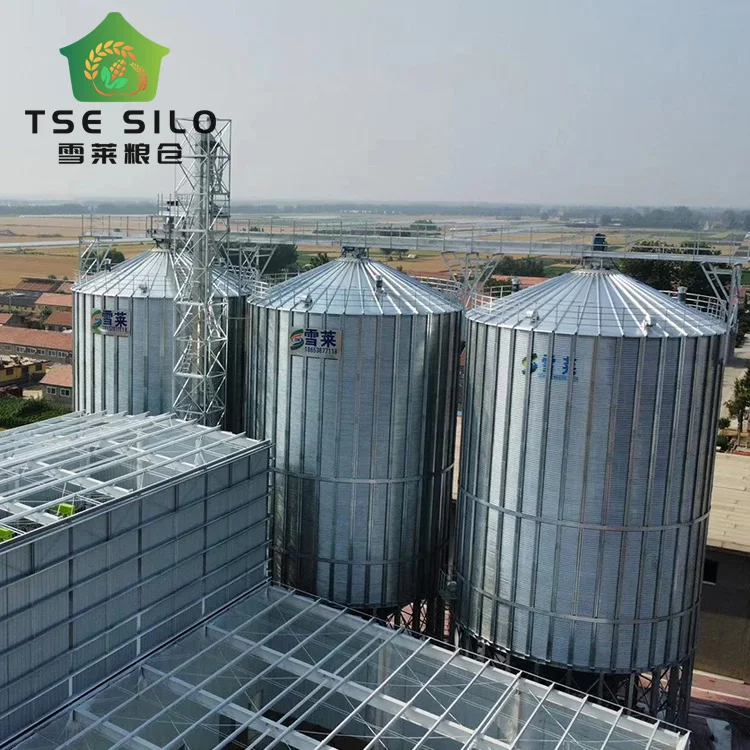

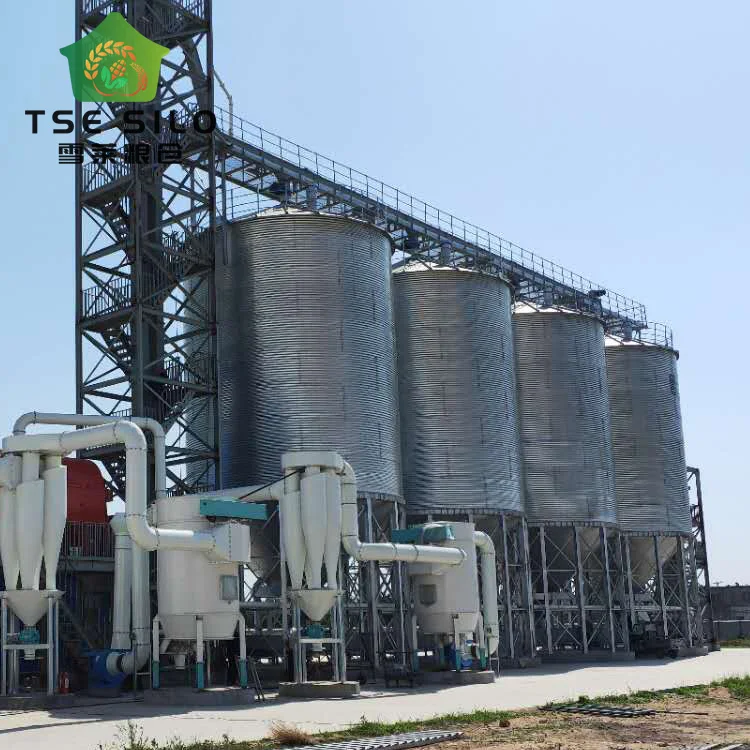

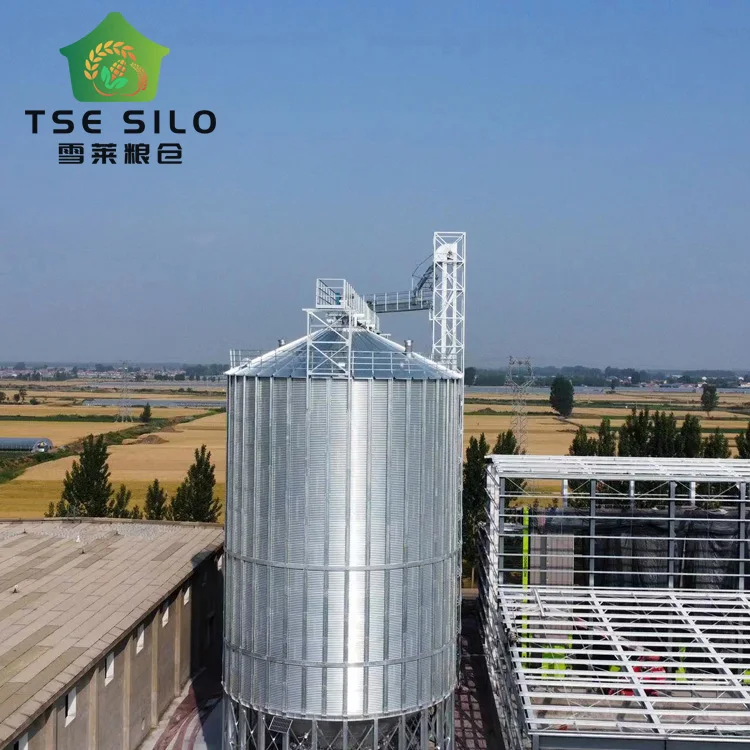

New Design Silo for Feed Mill TCZK 200T 500T 600T 700T Steel Hopper Bottom Soya Silos
- Category: >>>
- Supplier: Taian Shelley Engineering Co. Ltd.
Share on (1601277202737):
Product Overview
Description
Product Description
High Standard Silo with CE TCZK 200T 300T 400T 800T Steel Hopper Bottom Rice Silos
Durable Hopper Bottom Grain Silos for Wheat Farm

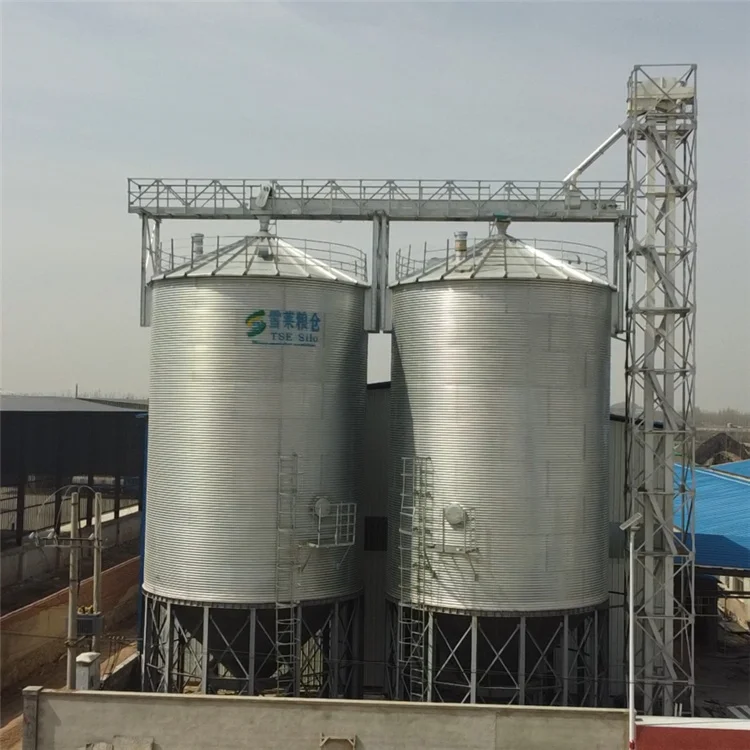

Grain silos(also called grain storage bins, grain bins) are the steel silos with a cone bottom.Assembly galvanized grain steel silos are erected on the supporting structure to make the delicate products unloading easily through gravity. Grain silos have a smooth wall hopper transition with no steps or flanges to offer the cleanest product discharge from the silo. The stored products inside the silo are isolated from the ground, thereby preventing humidity and allowing the interconnection of silos through tapes, facilitating perfect extraction or dosage.
The hopper, rings and support steel are made of hot-dip galvanized steel sheet. All TSE Grain Silos in hot-dip galvanized hopper cone for grain storage are designed in accordance D-4097 or ASTM D-3299 standards for elevated cone heads. According to the stored grain products and storing situations, the hopper or cone angles are commonly designed at 45º and 60º. The structure of hopper silo depends on the type of products to be stored. In generally, free flowing products pellet products like corn, wheat, soybean and feed pellets require the hopper bottom silo with a 45° angle while powder or other material which is hard to flow fits 60° cone bottom silo storage.
The hopper, rings and support steel are made of hot-dip galvanized steel sheet. All TSE Grain Silos in hot-dip galvanized hopper cone for grain storage are designed in accordance D-4097 or ASTM D-3299 standards for elevated cone heads. According to the stored grain products and storing situations, the hopper or cone angles are commonly designed at 45º and 60º. The structure of hopper silo depends on the type of products to be stored. In generally, free flowing products pellet products like corn, wheat, soybean and feed pellets require the hopper bottom silo with a 45° angle while powder or other material which is hard to flow fits 60° cone bottom silo storage.

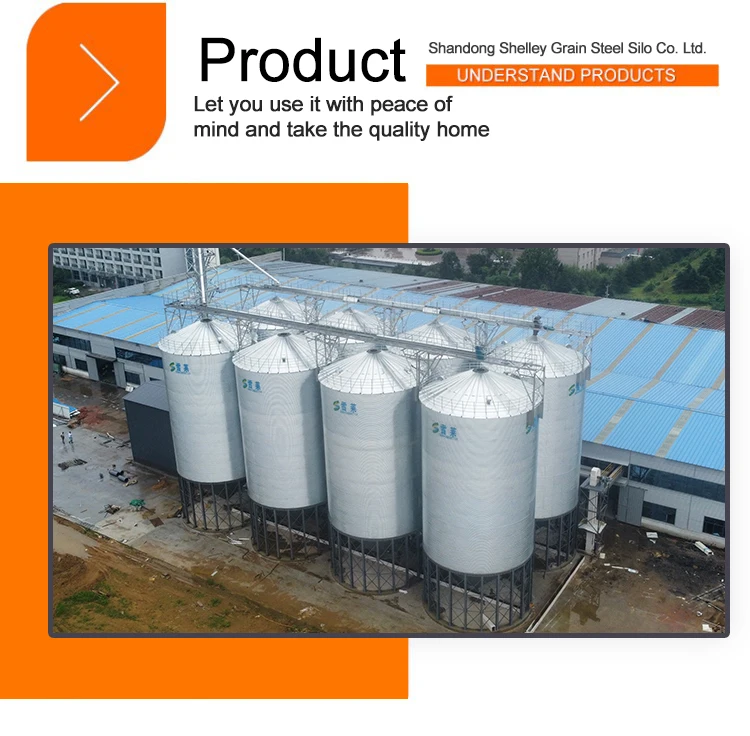

Product -- Let you use it with peace of mind and take the quality home
25º Sealed Roof
The special trapezoidal geometry of roof gives high strength and stiffness. The professional sealed technology enables tight connection of roof with the sidewall and keeps stored products from moisture.
Cylindrical Body
Shelley Brand hopper bottom silos are made with body sheets and stiffeners, manufactured with structural galvanized steel S350GD
of high elastic tolerance and the coating equivalent to 600 g/m2 of zinc.
Shelley Brand hopper bottom silos are made with body sheets and stiffeners, manufactured with structural galvanized steel S350GD
of high elastic tolerance and the coating equivalent to 600 g/m2 of zinc.
Galvanized Bottom
The cone bottom made with galvanized steel provides strength to support the silo and keep longer life span up to 28 years. 45º hopper is easy to unload delicate materials like feed pellets and other products.
The cone bottom made with galvanized steel provides strength to support the silo and keep longer life span up to 28 years. 45º hopper is easy to unload delicate materials like feed pellets and other products.
Specifications of TSE Assembly Galvanized Grain Silos hopper cone(45° TCZK Series ）
The volume of Shelley Brand hopper Bottom Storage Silo ranges from 20m³ to 1,875m³. The following is part of the specifications.
Model | Volume | Eave Height(m) | Total Height(M) | Weight(Ton) |
TCZK08210 | 708 | 16.22 | 18.29 | 16.18 |
TCZK09011 | 960 | 17.79 | 20.07 | 25.5 |
TCZK10013 | 1360 | 20.47 | 22.97 | 30.766 |
TCZK11012 | 1536 | 19.79 | 22.5 | 35.5 |

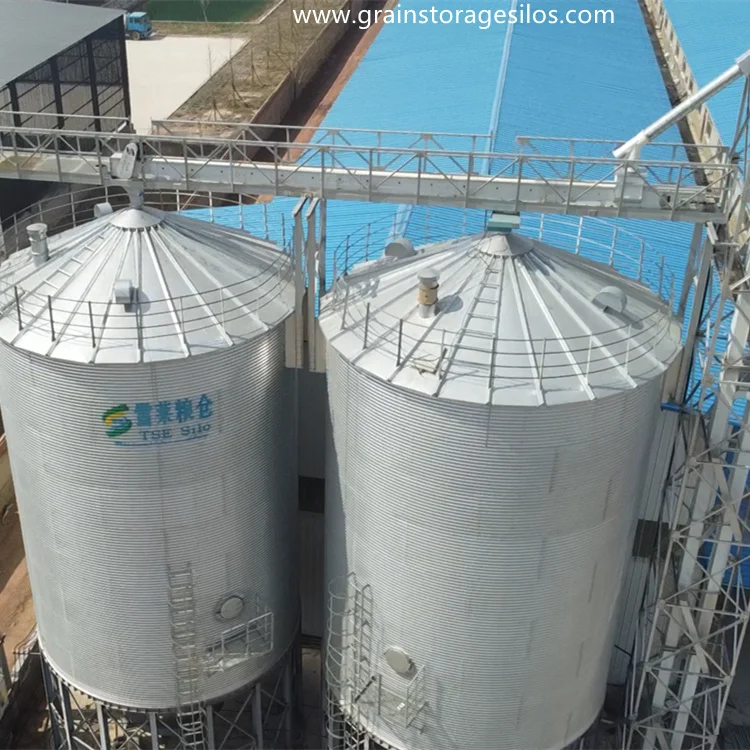

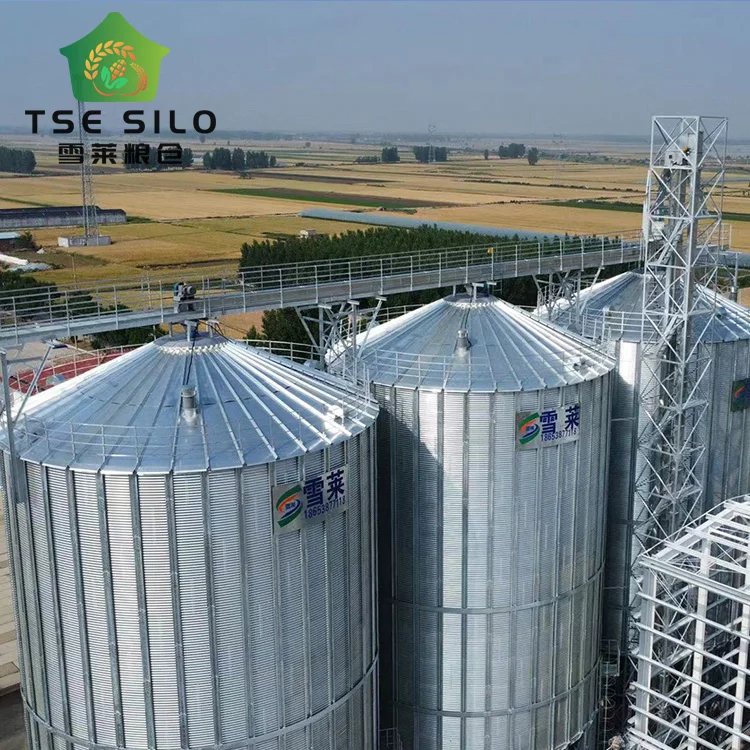

25º Sealed Roof for grain storage silo
The special trapezoidal geometry of roof gives high strength and stiffness. The professional sealed technology enables tight connection of roof with the sidewall and keeps stored products from moisture.
Grain storage silo Cylindrical Body
Shelley Brand hopper bottom silos are made with body sheets and stiffeners, manufactured with structural galvanized steel S350GD of high elastic tolerance and the coating equivalent to 600 g/m2 of zinc.

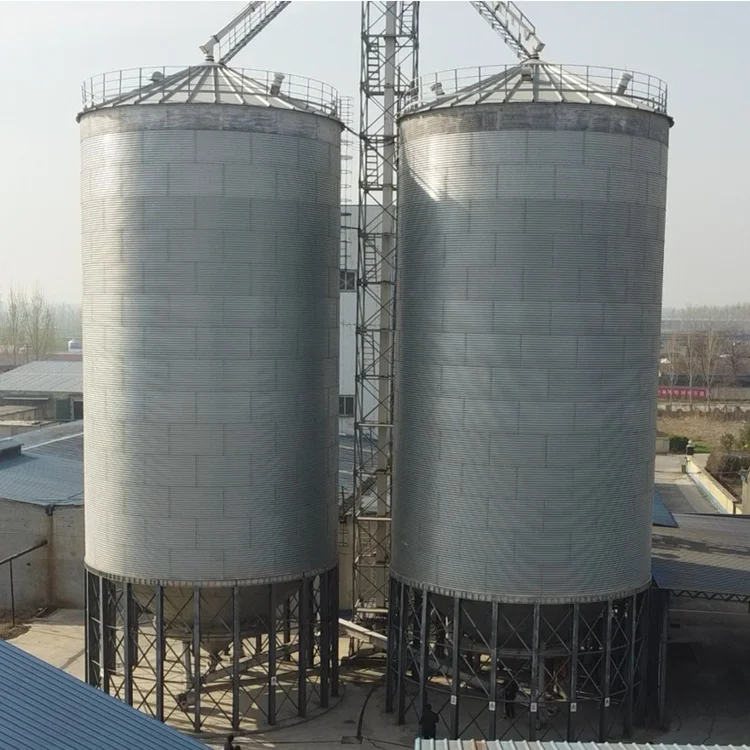

Galvanized Grain steel hopper bottom
Galvanized Grain steel hopper bottom Silos are widely used in poultry farm, rice mill, flour mill, soybean-oil mill, animal feed mill plant and brewery plant.
Assembly galvanized Grain Silos
Assembly galvanized Grain Silos are widely applied for the storage of grains (sunflower seeds, soy, maize, sorghum, rice, industrial products and other products, etc) and feed pellets for animal, poultry and fish that require special storage conditions.
Escort for your grain storage security!
Professional manufacture of your choice at ease. The quality of the product is visible

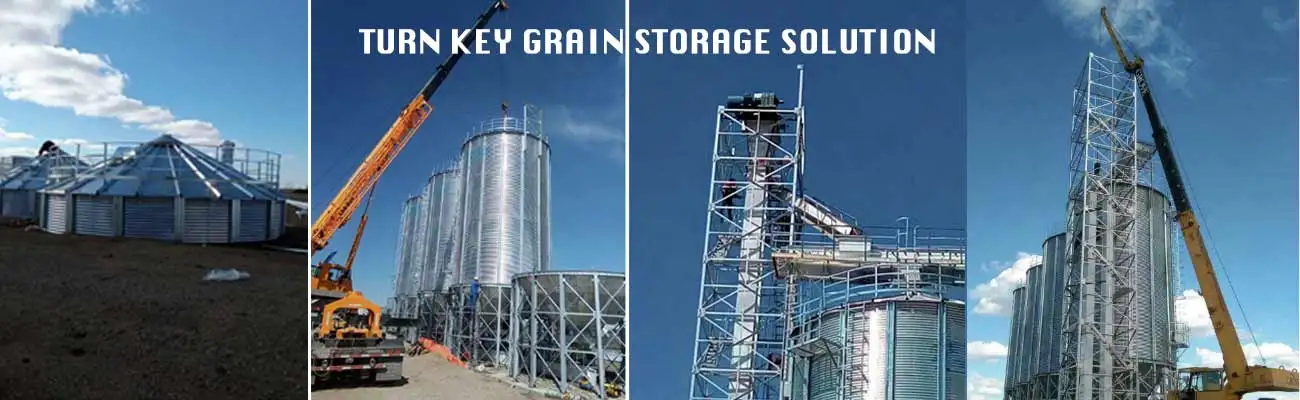

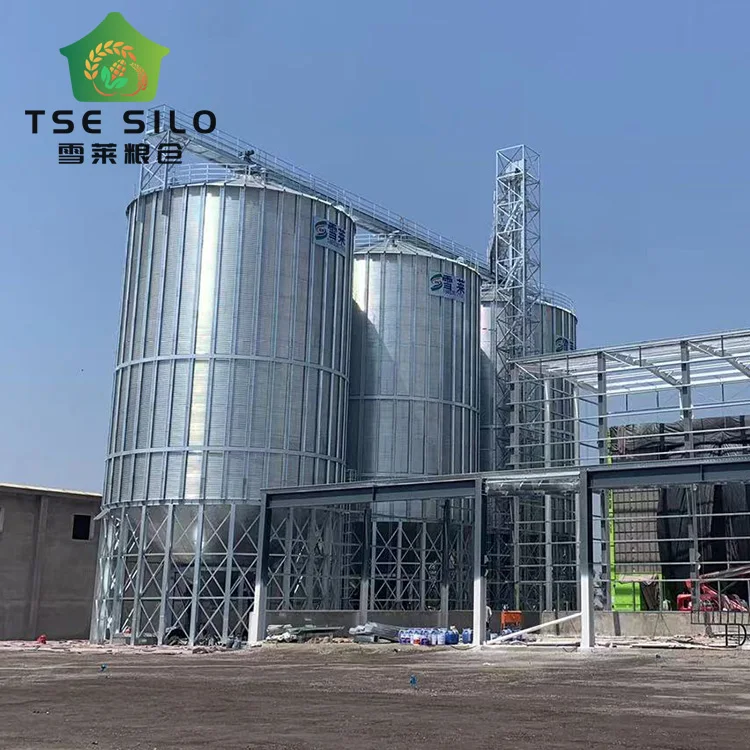

TSE Grain Silos Installation
TSE have professional installation teams,and can supply TURN-KEY silo solution for you!
Grain Silos in hot-dip galvanized hopper cone (also called grain storage bins) are the efficient and economical facilities to handle your grains, which offer protection from outside insects and other affects as well as provide handling management conveniently. Shelley Engineering is the professional steel grain silos designer and manufacturer dedicated in supplying turn key grain storage and handling solutions to worldwide customers. We have more than 30 talented grain storage solutions experts and 9,000 square meters state-of-the-art factory. Our innovative, high-quality flat bottom silos, hopper bottom silos, powder silos, feed silos, bucket elevators, dust collectors and grain storage control system are integrated as a system to satisfy your grain storage requirements.
All of our steel silos can be designed and installed with heat retaining layer to meet your special insulated grain storage demands. Product innovation, quality assurance and customer satisfaction are our long term commitment to worldwide customers. We had been provided grain storage silos, solutions and services for over 50 countries since our foundation by Shelley Jin in 2007.
Hope to become your partners.
All of our steel silos can be designed and installed with heat retaining layer to meet your special insulated grain storage demands. Product innovation, quality assurance and customer satisfaction are our long term commitment to worldwide customers. We had been provided grain storage silos, solutions and services for over 50 countries since our foundation by Shelley Jin in 2007.
Hope to become your partners.

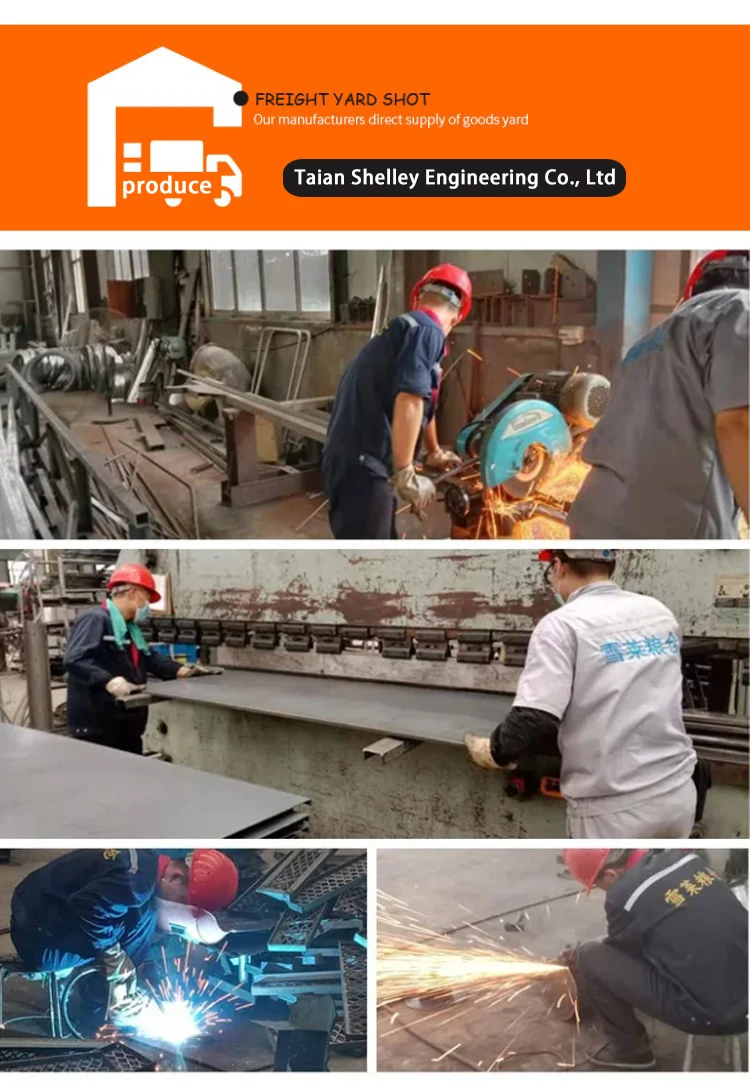

TSE Workshop
TSE has own real factory,and trained workers, so we can guarantee quality and lead time for our customers.Welcome to your visiting.

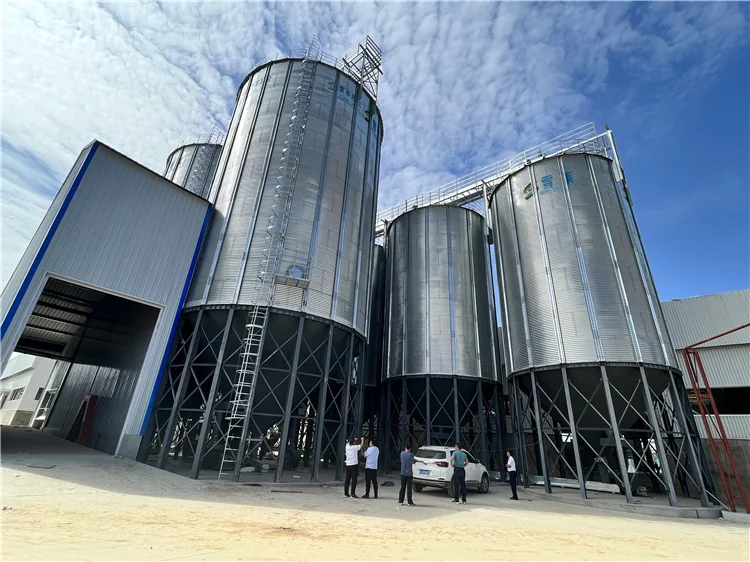

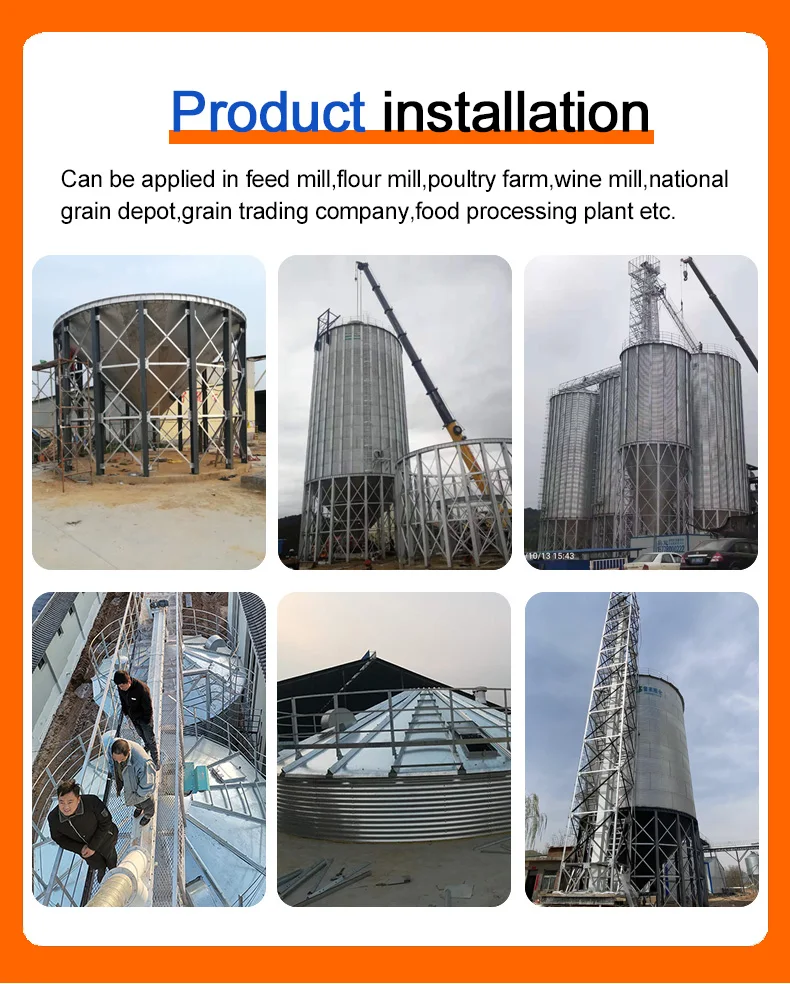

Product Installation
We have professional installation engineers who are on-site to guide the installation and solve your worries.

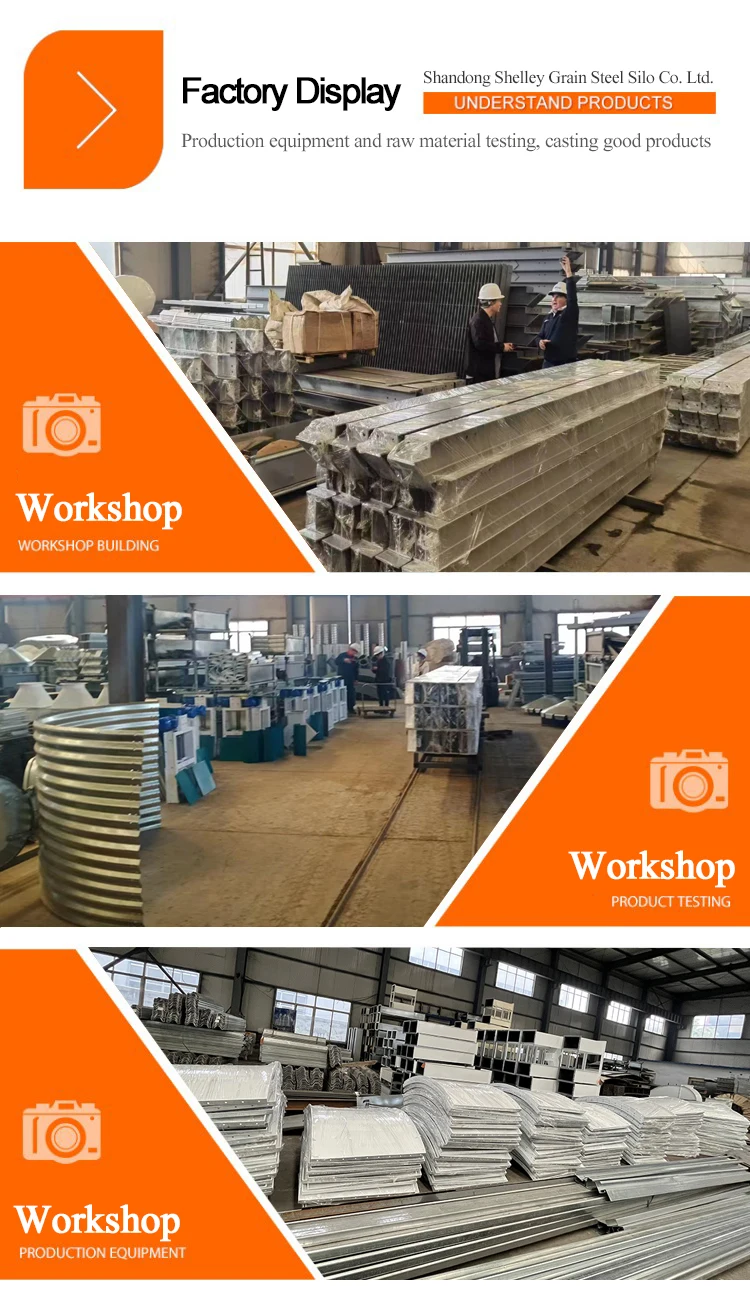

Factory Display
Shelley has its own factory and only produces the most reliable silos for customers.

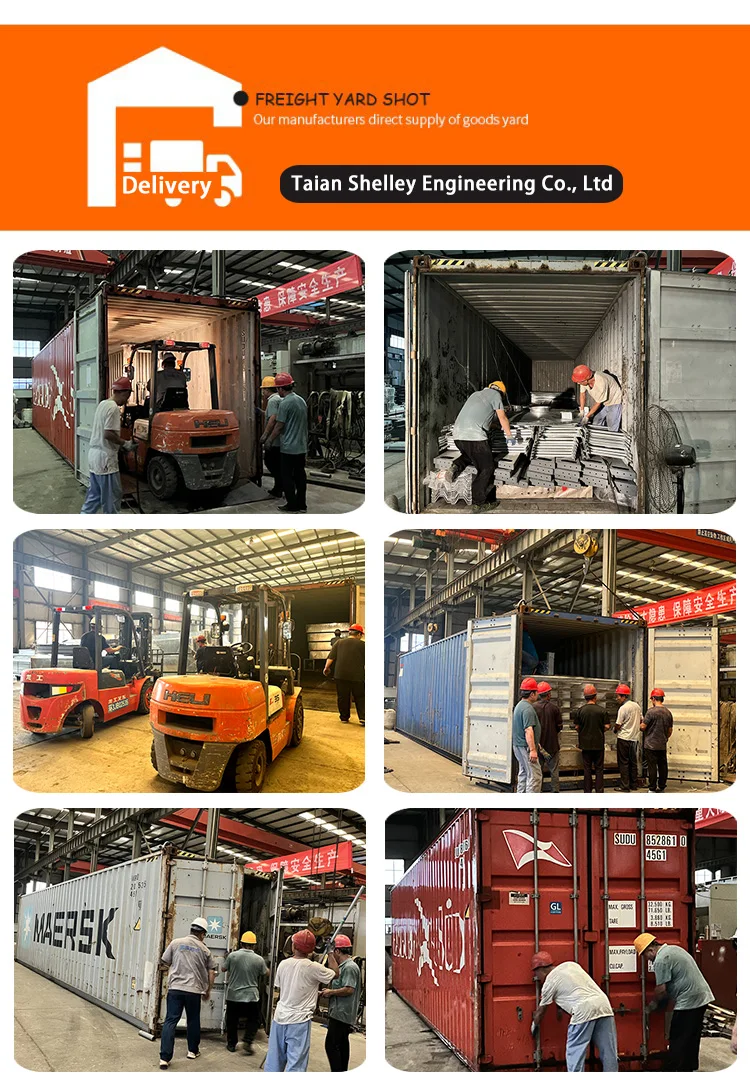

TSE Package Area
PE film will be widely used, and some accessories will be packaged in cardboard or wooden boxes according to product or customerrequirements. Trucks, containers, or railways are available for you to choose from!

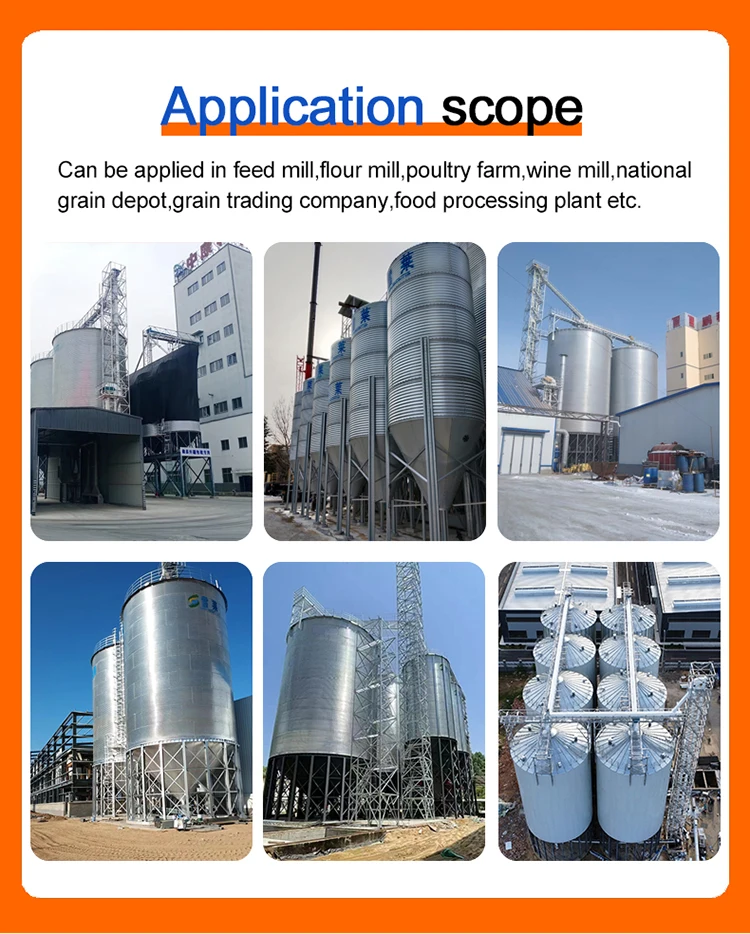

Application Scope
Can be applied in feed mill,flour mill,poultry farm,wine mill,national grain depot,grain trading company,food processing plant etc.
