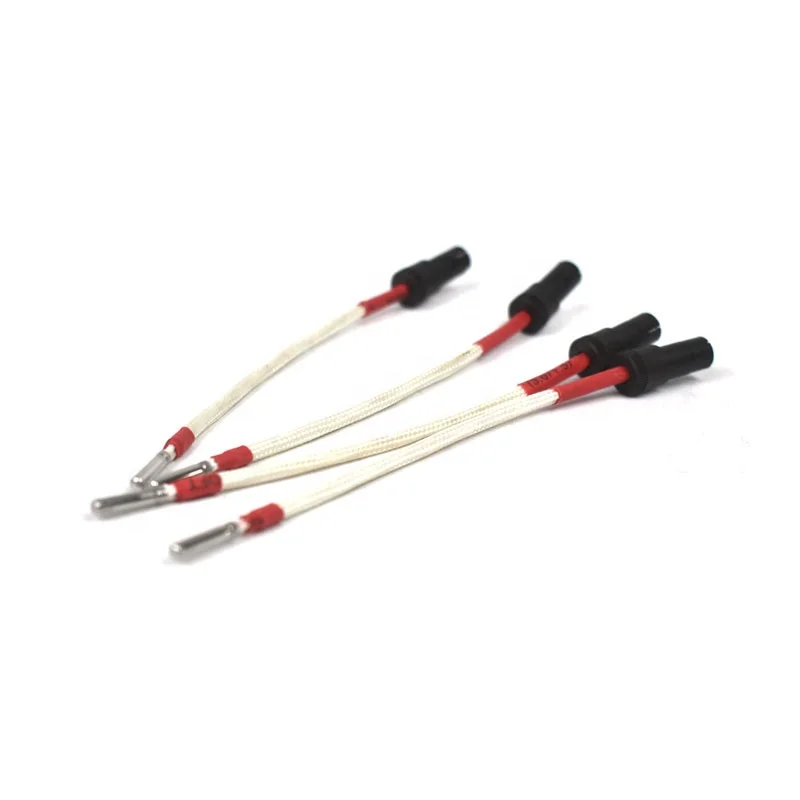

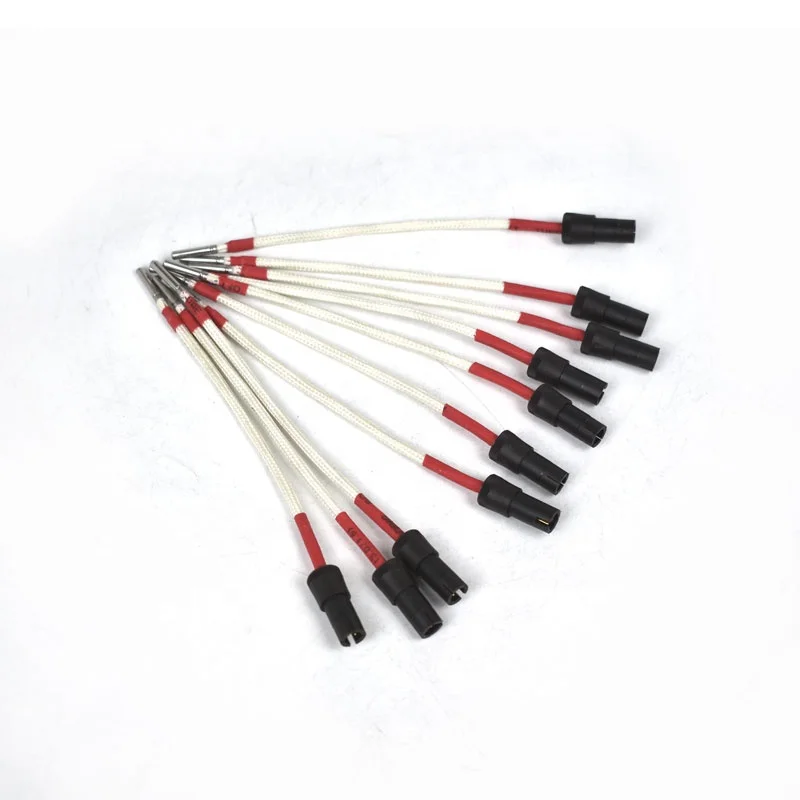

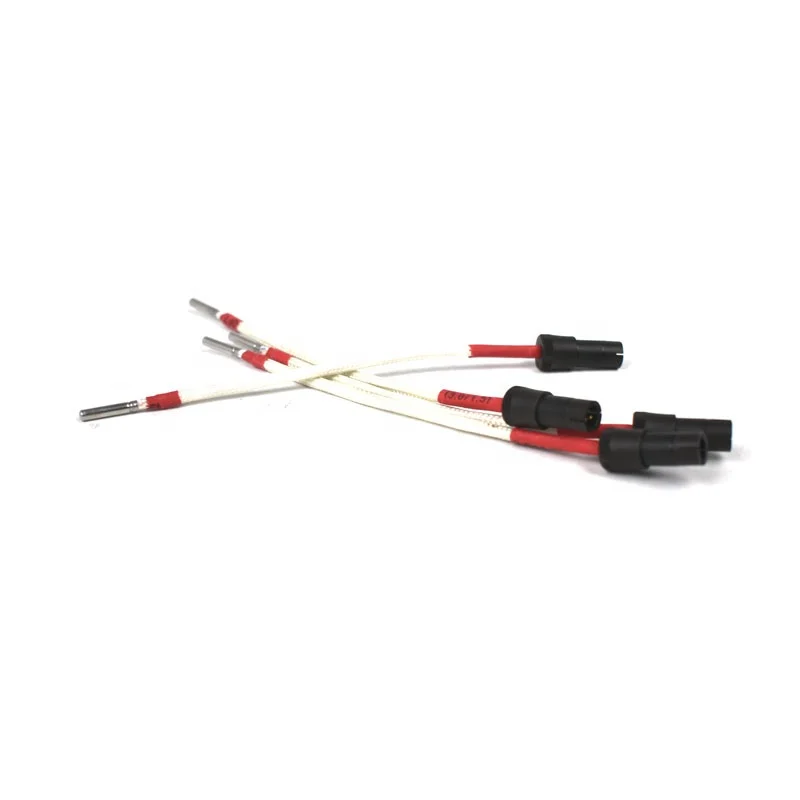

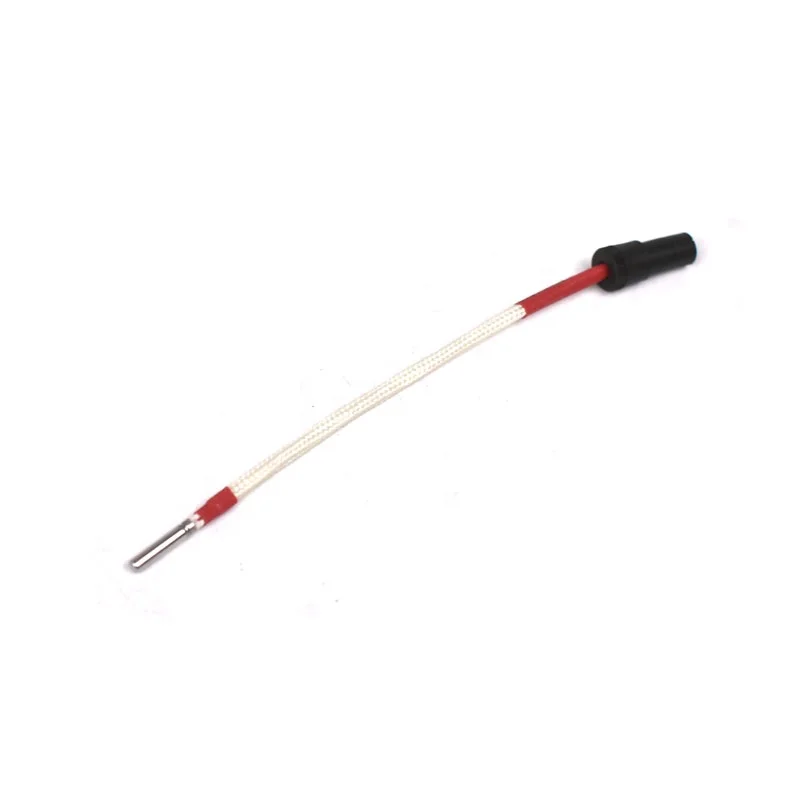

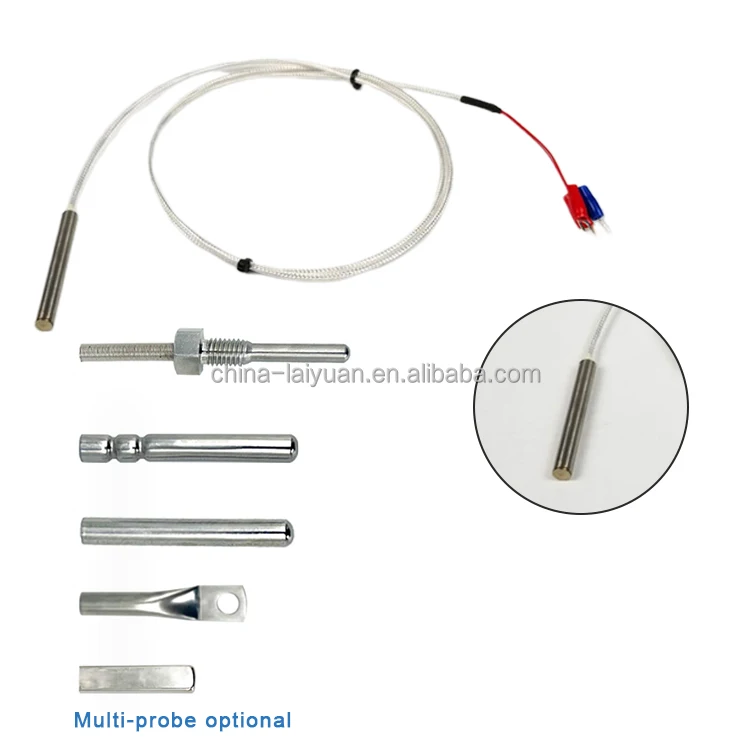

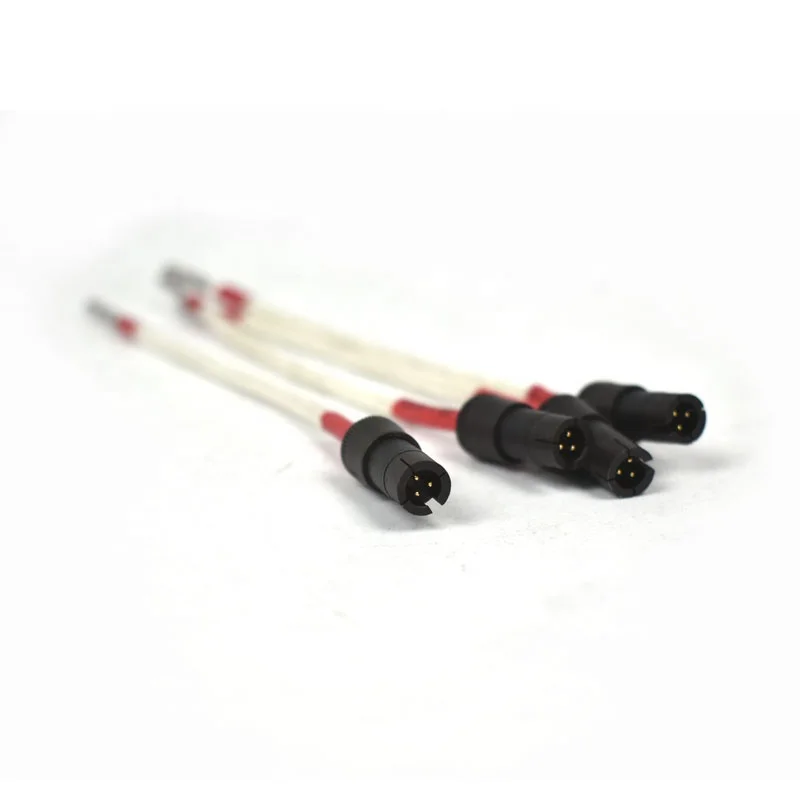

Laiyuan Diameter 3mm Class A Stainless Steel Pt100 Probe Thermocouple Rtd Sensor With 3 Pin Male Cable Connector
- Category: >>>
- Supplier: Yancheng Laiyuan Electric Equipment Co. Ltd.
Share on (1601277209404):
Product Overview
Description
Recommend Products
Product Model | RDO-314.5-PT100 |
Type | PT100 |
Probe Diameter | 3*14.5MM |
Temperature Range | 0-400C |
Net Weight | 0.01KG |
Material | Class A Stainless Steel 304 |
Products Description
RTD sensors are temperature sensors that change resistance with temperature.
They do not produce an output by themselves, but measure the resistance of the sensor by means of an electronic device (indicator), e.g., the resistance value is fixed at an ambient temperature of 0 degrees (the standard ohmic value of PT100 is 100Ω), and the resistance increases as the temperature rises.
There are various types of RTD sensors, commonly used are Pt100, Pt200,Pt500,Pt1000.
They do not produce an output by themselves, but measure the resistance of the sensor by means of an electronic device (indicator), e.g., the resistance value is fixed at an ambient temperature of 0 degrees (the standard ohmic value of PT100 is 100Ω), and the resistance increases as the temperature rises.
There are various types of RTD sensors, commonly used are Pt100, Pt200,Pt500,Pt1000.
Pt100 is usually divided into two-wire system, three-wire system and four-wire system.
General short-distance choice of two-wire connection, three-wire connection in the distance choice, the requirements of high precision, close to the choice of four-wire connection. If the accuracy requirement is general, the use of three-wire is economic, stable and practical choice.Product Parameters

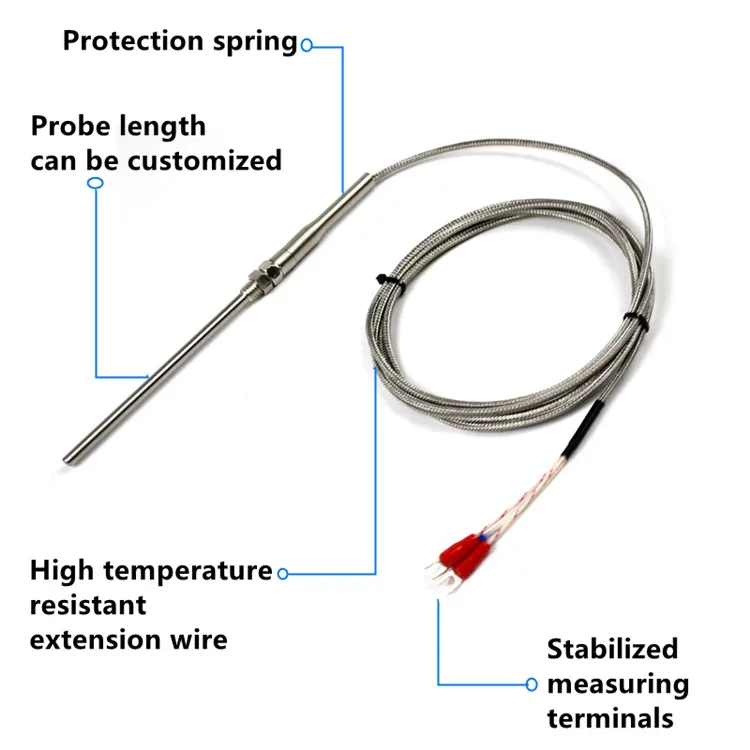

Product Name | RTD Thermocouple Temperature Sensor | ||||||
Model | PT100/PT200/PT1000 | ||||||
Accuracy | Class B/Class A | ||||||
Wire Length | 0.5m/1m/2m/3m/Customized | ||||||
Wire Material | 3 Wire Teflon shield silver plated copper wire (waterproof silicone rubber/glass fiber optional) | ||||||
Probe Length | 50mm/100mm/150mm/200mm/250mm/300mm/400mm/500mm/ (5mm-10m) | ||||||
Probe Material | 304 stainless steel (316 optional)/GH3030/SUS310S | ||||||
Min. Probe Diameter | 2mm | ||||||
Temp Range | -50℃~+450℃/-50℃~+600℃ | ||||||
Accuracy | ±1.5C | ||||||
Structure | General/Armored | ||||||

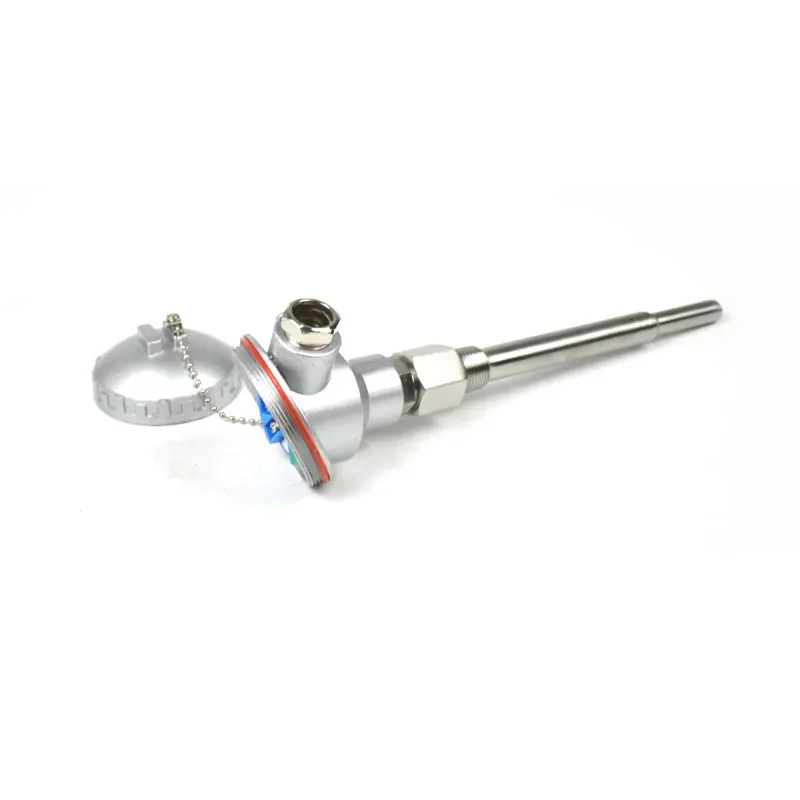

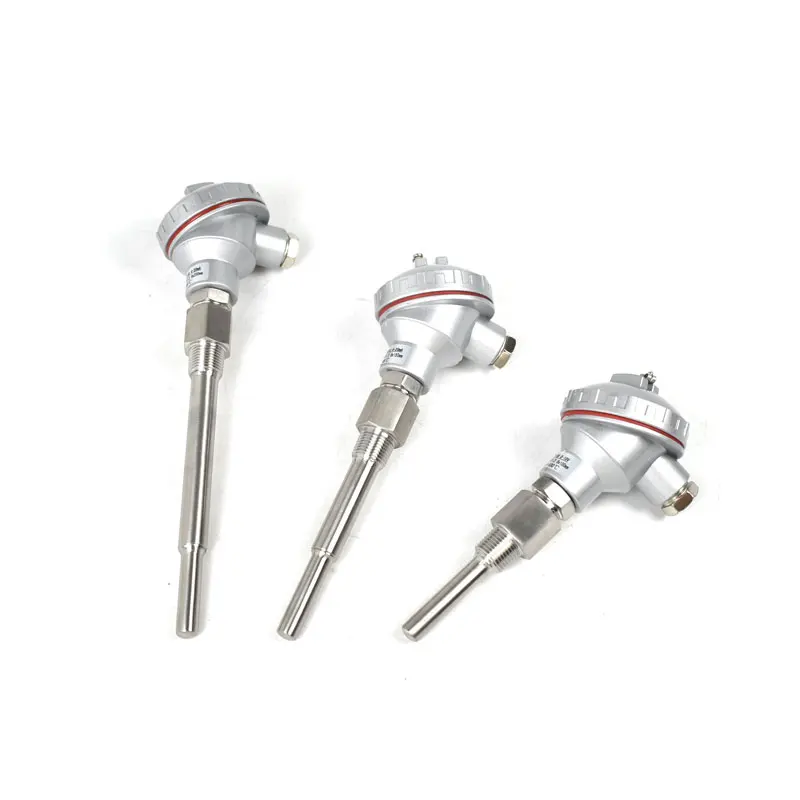

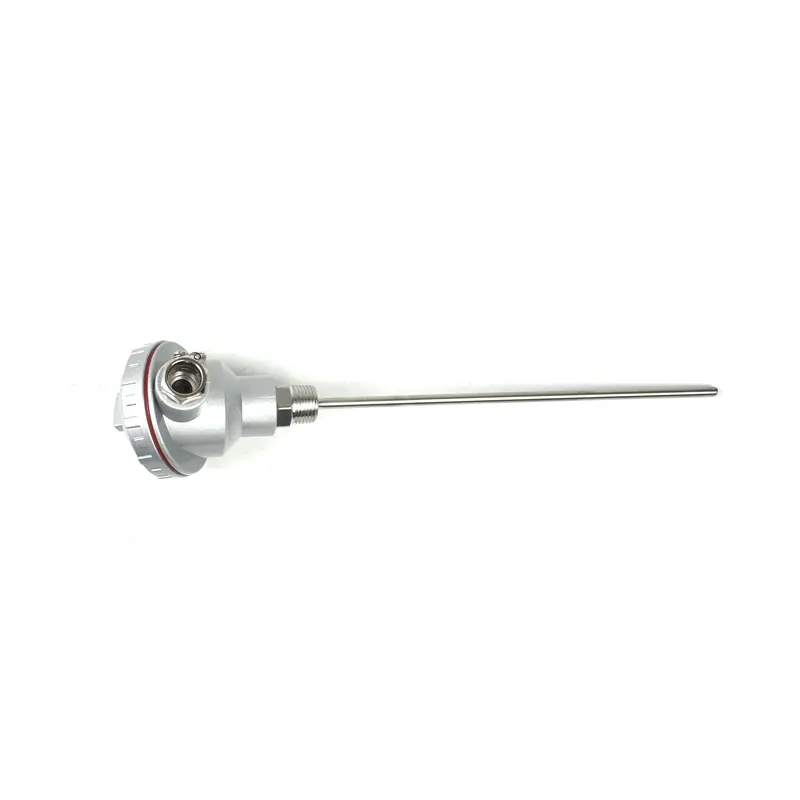

Connection | Lead Wire/Thermocouple Head | ||||||
Wiring terminal | 2 wire ,3 wire ,4 wire | ||||||
Terminals | U type Terminals , mini connectors Pin Terminals | ||||||
Product Features
1. Broad application temperature range:-50℃-450℃ or -200-800℃.
2. Fast response, reliability, accuracy, stability, interchangeability.
3. Exceptional endurance to shock and vibration.
4. High temperature resistance, flexible, anti-corrosion, long service life.
2. Fast response, reliability, accuracy, stability, interchangeability.
3. Exceptional endurance to shock and vibration.
4. High temperature resistance, flexible, anti-corrosion, long service life.

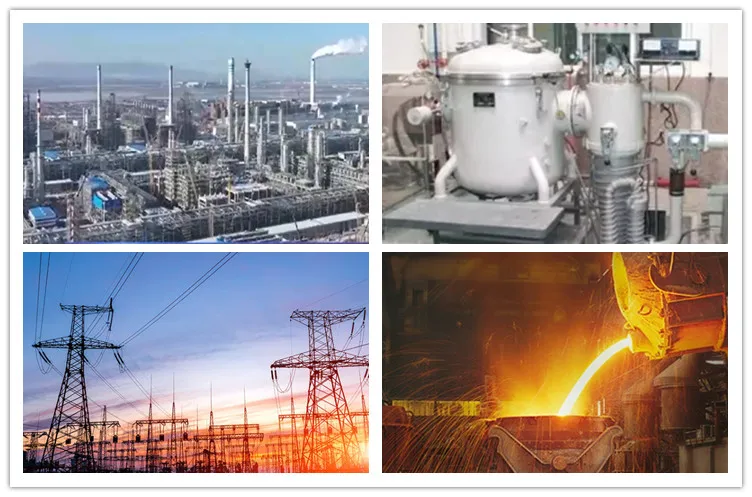

Applications of PT100 Rtd Temperature Sensor
1. Widely Used In Science and Industry
2. Temperature Measurement for kilns
3. Gas Turbine Exhaust Application
4. Industrial boilers, petrochemical, exhaust gas monitoring and food processing.
2. Temperature Measurement for kilns
3. Gas Turbine Exhaust Application
4. Industrial boilers, petrochemical, exhaust gas monitoring and food processing.

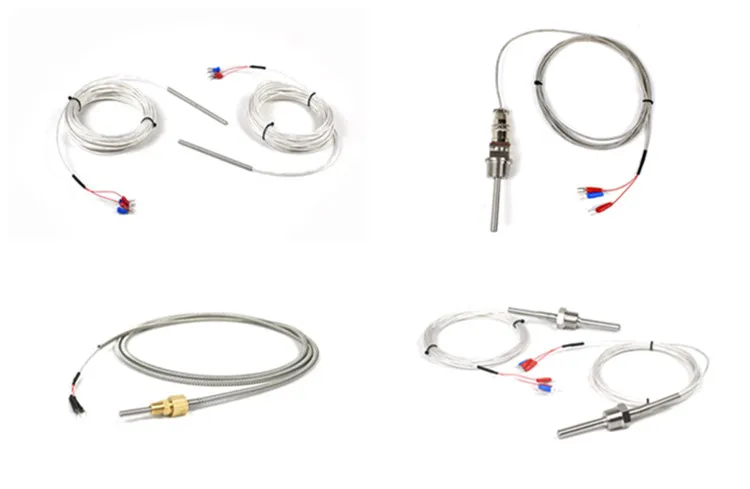

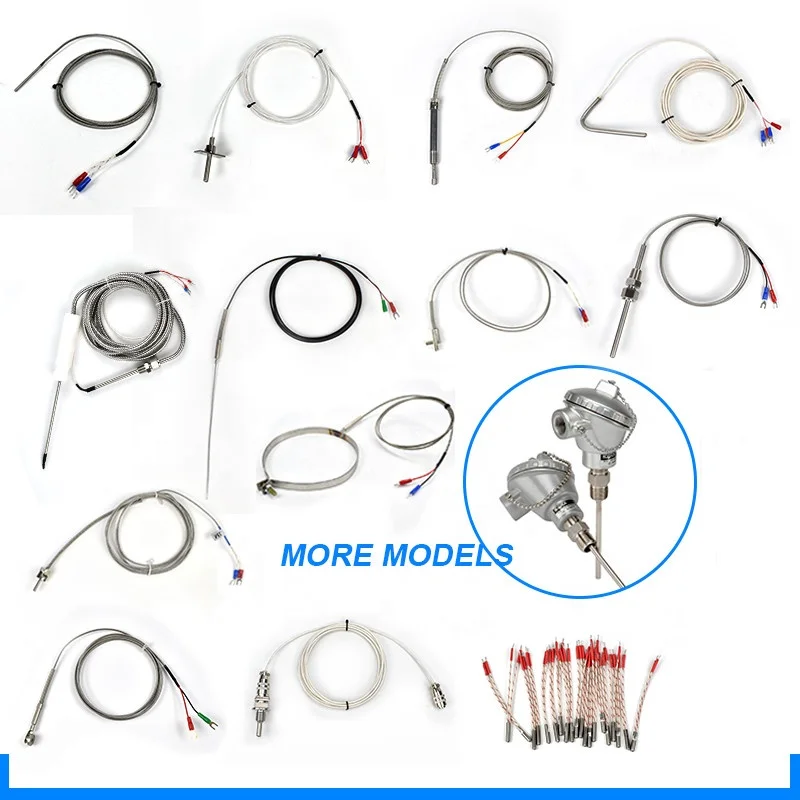

Related Products

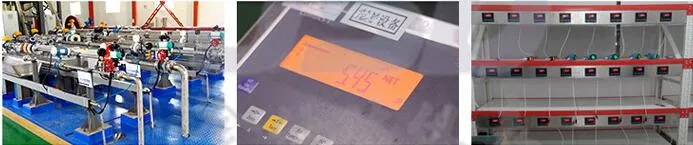

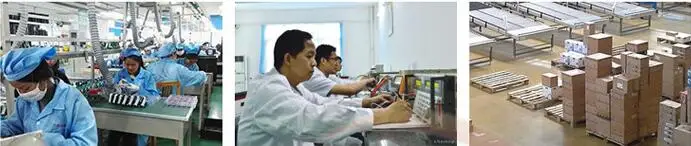

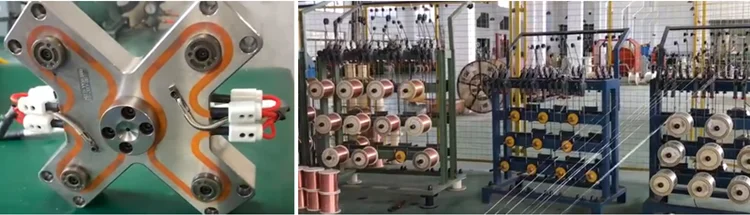

Production and Processing

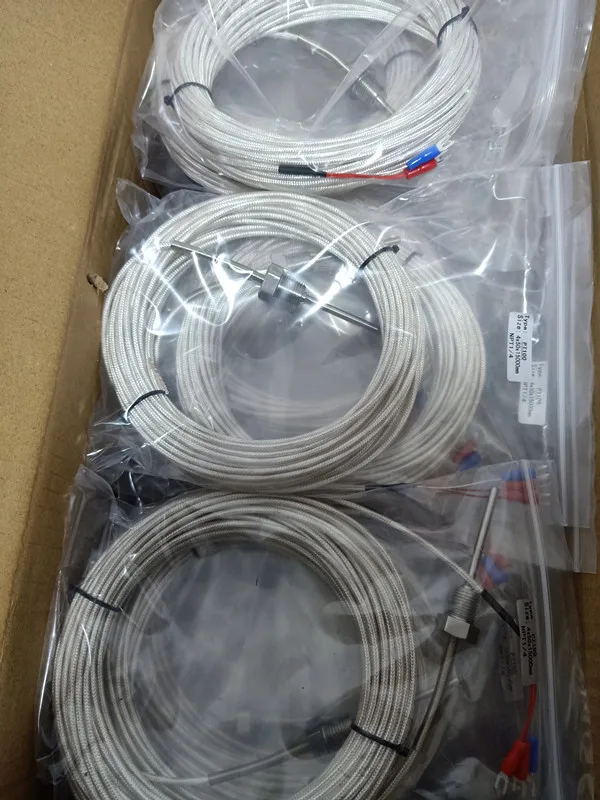

Packing and Delivery
About Packaging
1. Inner anti-collision broken plastic,outer wooden case or carton box.
2. If your packages need to be customized, please contact us for communication.
