band saw machine GHS4235 cnc band saw metal band sawing machine
- Category: >>>
- Supplier: Shandong Gsk Cnc Equipment Co. Ltd.
Share on (1601277520434):
Product Overview
Description

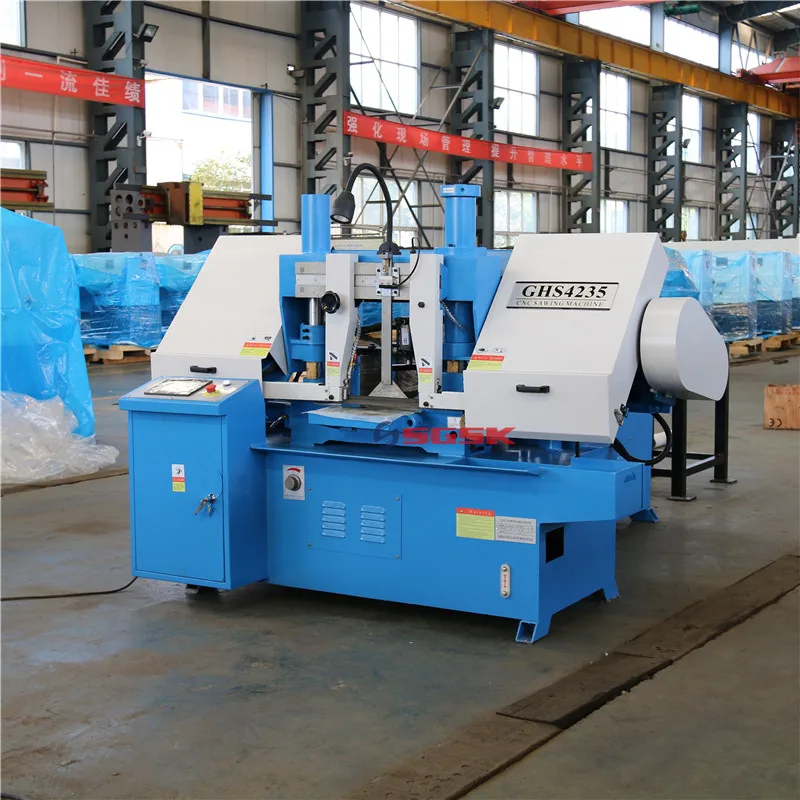

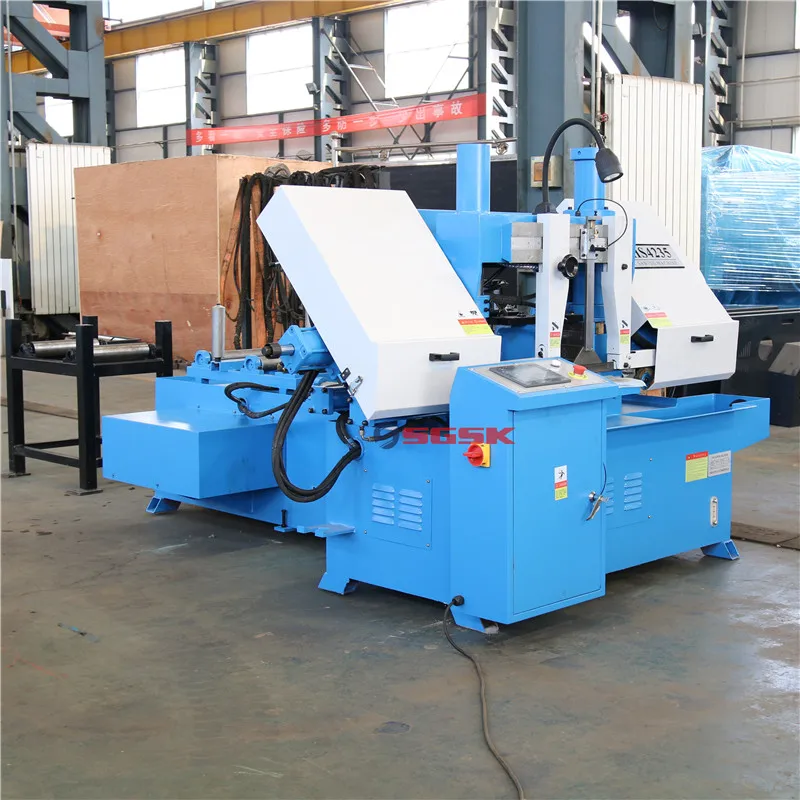

band saw machine GHS4235 cnc band saw metal band sawing machine
Products Description
Details Images
Product Paramenters
Features:
The main performance characteristics：

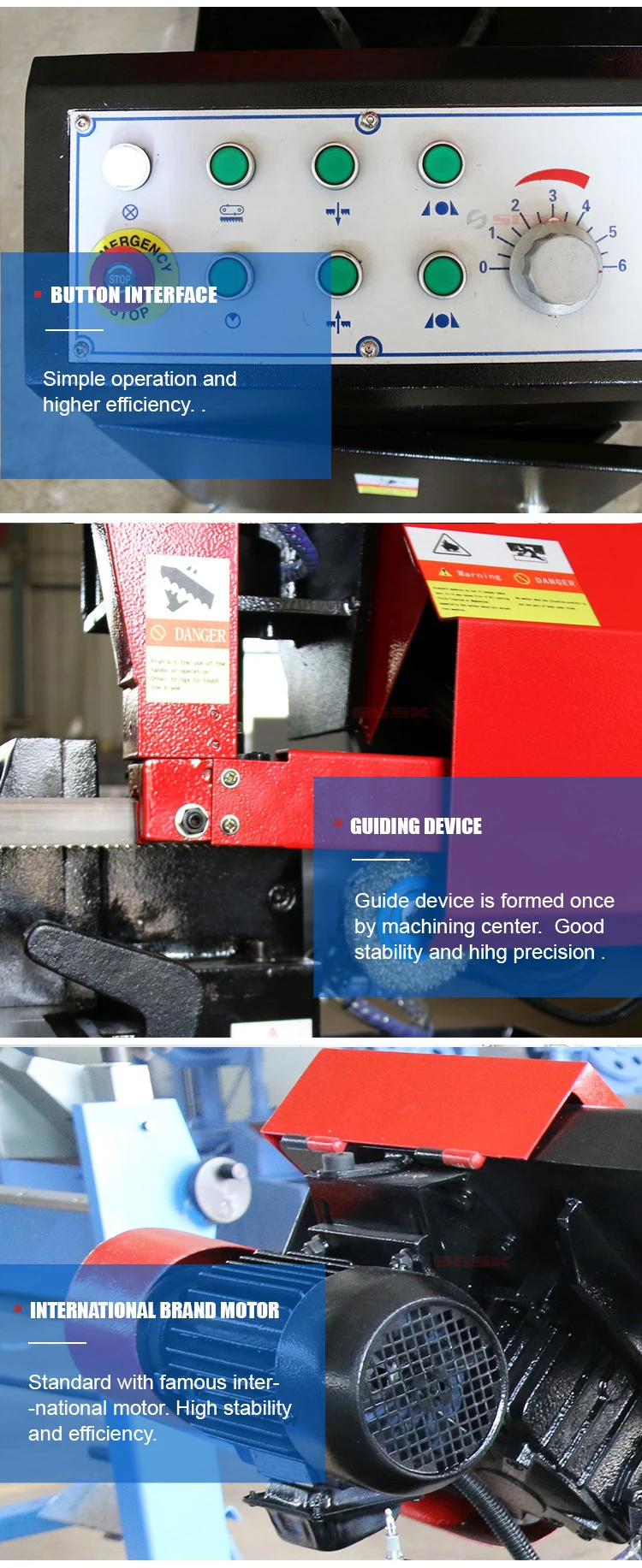

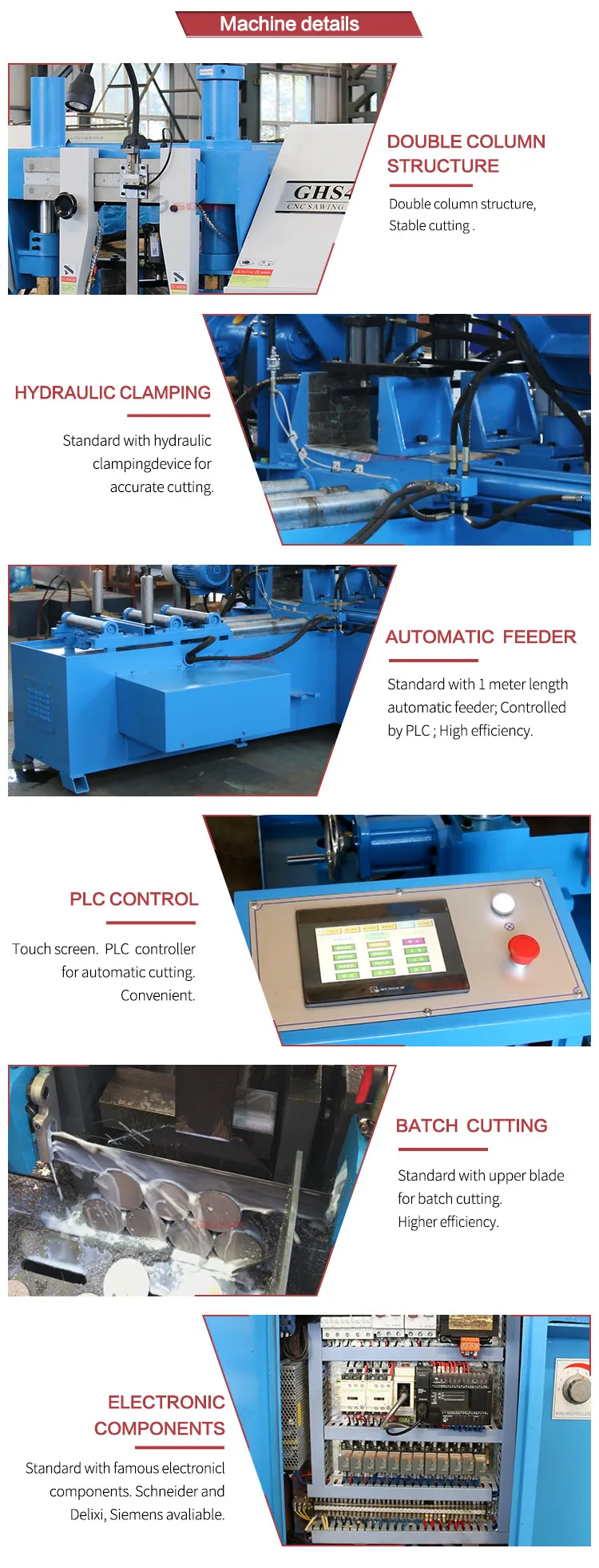

1. Button type control panel, sawing mode change flexible, manual and automatic combination;
2. PLC controller, complete automatic sawing process, feeding length 0-500mm;
3. Double upright column structure, vertical lift, high stability;
4. Cutting speed hydraulic control, stepless regulation speed，
5. Stable performance, high efficiency, suitable for bulk material sawing.
Application：
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is
very extensive.
1. Button type control panel, sawing mode change flexible, manual and automatic combination;
2. PLC controller, complete automatic sawing process, feeding length 0-500mm;
3. Double upright column structure, vertical lift, high stability;
4. Cutting speed hydraulic control, stepless regulation speed，
5. Stable performance, high efficiency, suitable for bulk material sawing.
Application：
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is
very extensive.
Product main technical specifications:
SPECIFICATIONS | Units | GHS4220 | GHS4228 | GHS4230 | GHS4235 |
Cutting circular | mm | 200 | 280 | 300 | 350 |
Cutting rectangular | mm | 200*200 | 280*280 | 300*300 | 350*350 |
Blade speed | m/min | 27、45、69 | 27、45、69 | 27、45、69 | 27、45、69 |
Blade size | mm | 2800*27*0.9 | 3505*27*0.9 | 3505*27*0.9 | 4115*34*1.1 |
Main motor power | kw | 1.5 | 3 | 3 | 4 |
Hydraulic motor power | kw | 0.75 | 0.75 | 0.75 | 0.75 |
Cooling pump power | w | 40 | 40 | 40 | 40 |
Work clamping method | Hydraulic automatic | Hydraulic automatic | Hydraulic automatic | Hydraulic automatic | |
Main transmission structure | Turbo transmission | Turbo transmission | Turbo transmission | Turbo transmission | |
Feeder type | Hydraulic automatic | Hydraulic automatic | Hydraulic automatic | Hydraulic automatic | |
Machine weight | kg | 1200 | 1400 | 1500 | 1600 |

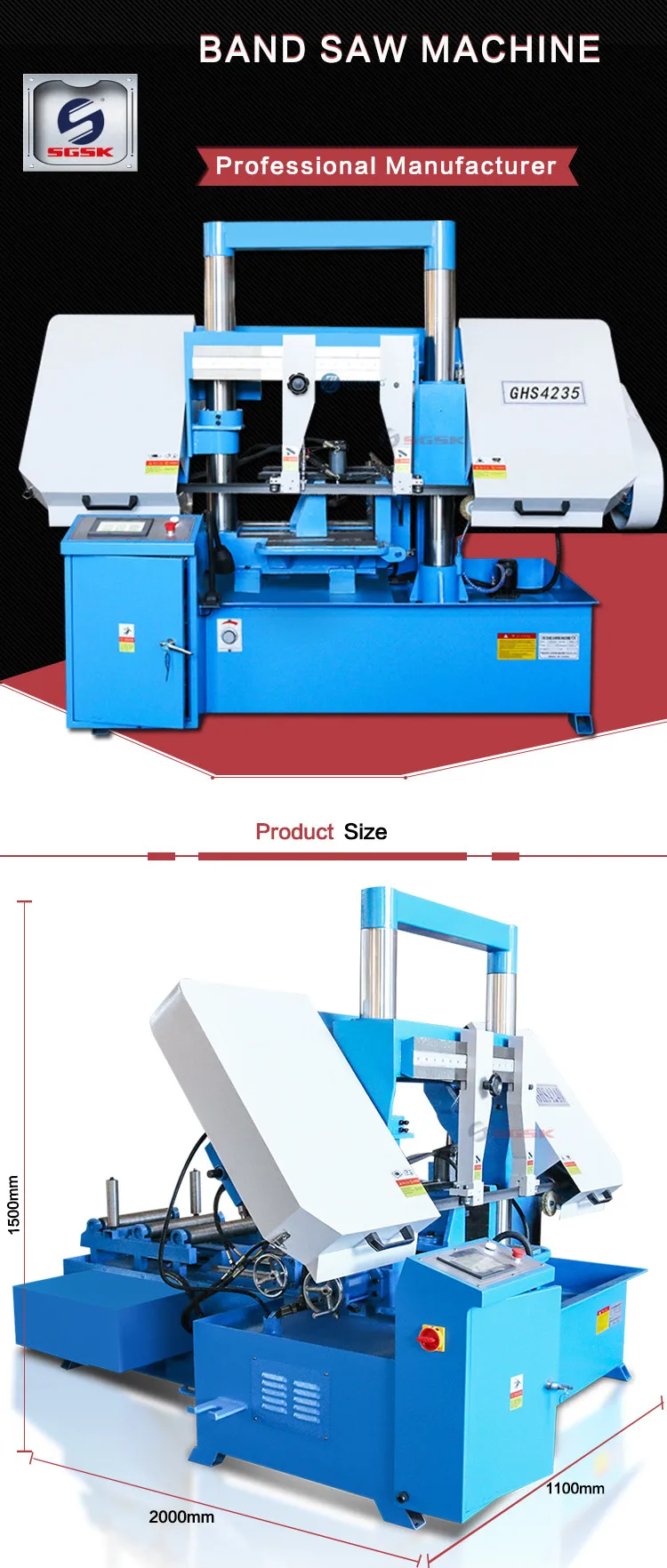

Overall dimensions(L*W*H) | mm | 1300*2100*1250 | 1800*2350*1500 | 1800*2350*1500 | 2000*2350*1600 |
Recommend Products
Company Profile
FAQ
1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is 18 months.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
7.. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
A: MOQ is one set, and warranty is 18 months.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
7.. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
