Tianshan Horizontal Band Sawing Machine GB4230X Angle 90 And 45 Reclining Cutting Band Saw Machine
- Category: >>>
- Supplier: Jinan Tianshun Cnc Equipment Co. Ltd.Jinan Ltd.
Share on (1601362672671):
Product Overview
Description
Products Description
The GZ4260 horizontal band saw machine is a sawing equipment that uses a metal saw blade as a cutting tool and is used to cut metal materials. It is mainly used for square materials of ferrous metals. It can also be used to cut round materials and various profiles, and can also be used to cut non-ferrous metals and non-metallic materials. Because the band saw has a narrow kerf and high cutting efficiency, it consumes less energy and wastes less material. High-efficiency cutting equipment with significant energy saving and material saving effects, it is the most ideal equipment for large and medium-sized enterprises to cut materials in large quantities.
1. The main drive of this machine tool adopts worm gear box speed change. The feed adopts hydraulic transmission, and the workpiece clamping adopts manual and hydraulic mixed clamping. It has the characteristics of compact structure, convenient operation and maintenance.
2. This product is brand new equipment (including all purchased hydraulic, electrical and other components), with reasonable structure, reliability, durability, stability and easy operation.
3. Absorb advanced technology at home and abroad, and optimize the design based on actual use and experience in designing sawing machines to make it have a high technical content.
4. Product design, manufacturing, and selection of accessories should comply with national industrial standards and international electrical standards, and all measurement units should adopt the International System of Units.
5. Fully consider the convenience and space for maintenance to improve the maintainability of the sawing machine.
2. This product is brand new equipment (including all purchased hydraulic, electrical and other components), with reasonable structure, reliability, durability, stability and easy operation.
3. Absorb advanced technology at home and abroad, and optimize the design based on actual use and experience in designing sawing machines to make it have a high technical content.
4. Product design, manufacturing, and selection of accessories should comply with national industrial standards and international electrical standards, and all measurement units should adopt the International System of Units.
5. Fully consider the convenience and space for maintenance to improve the maintainability of the sawing machine.
Main features and functions of machine tools:
1. Through the cooperation of mechanics, electricity and hydraulics, the machine tool has the functions of automatic clamping, automatic knife feeding, and the automatic and rapid raising of the saw frame (i.e. knife retraction) after cutting.
2. The machine tool feed speed can be adjusted steplessly within a given range.
3. The cutting tool uses an imported, thin bimetallic band saw blade. Therefore, the incision is narrow, the consumables are less, and the power required is small. It is an efficient cutting equipment with significant material and energy saving.
1. Through the cooperation of mechanics, electricity and hydraulics, the machine tool has the functions of automatic clamping, automatic knife feeding, and the automatic and rapid raising of the saw frame (i.e. knife retraction) after cutting.
2. The machine tool feed speed can be adjusted steplessly within a given range.
3. The cutting tool uses an imported, thin bimetallic band saw blade. Therefore, the incision is narrow, the consumables are less, and the power required is small. It is an efficient cutting equipment with significant material and energy saving.

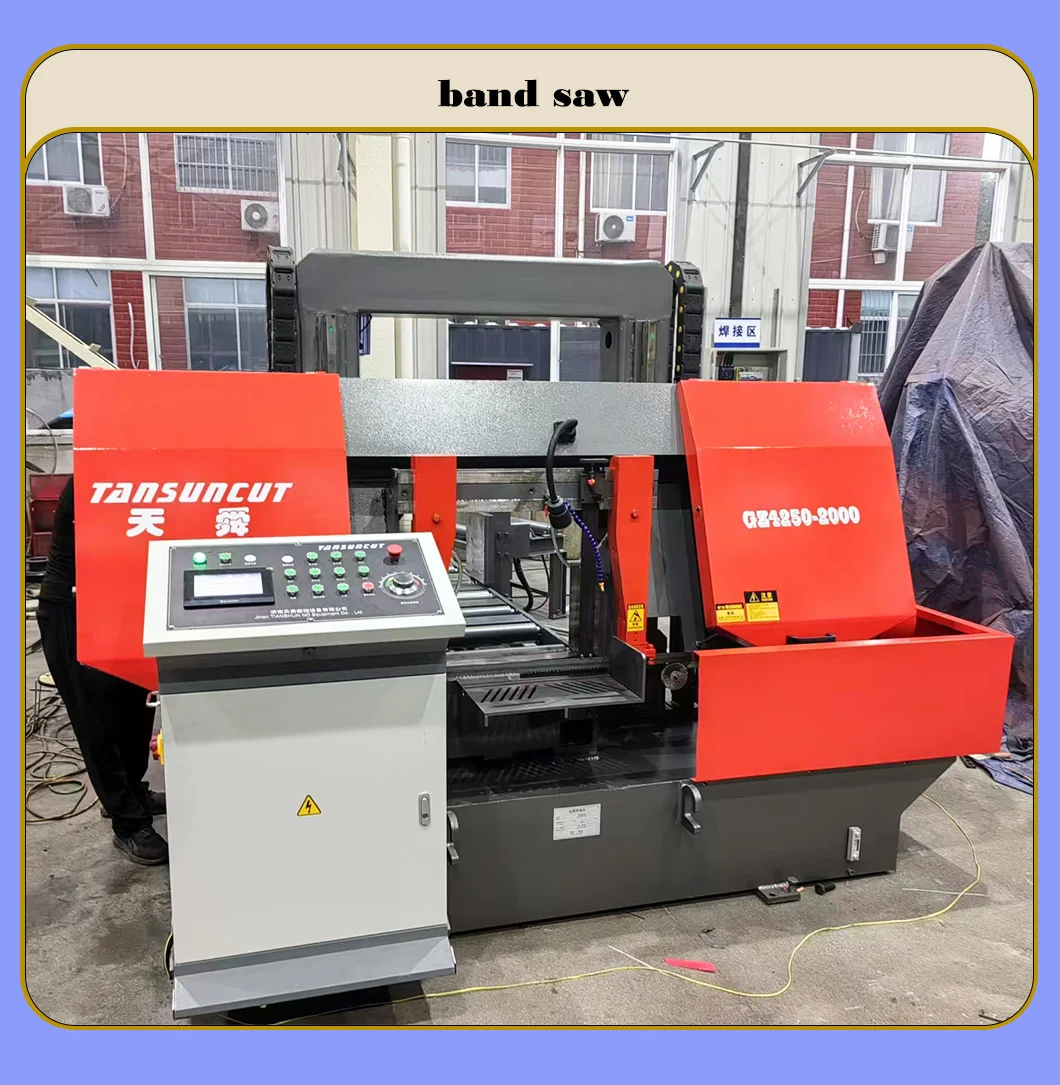

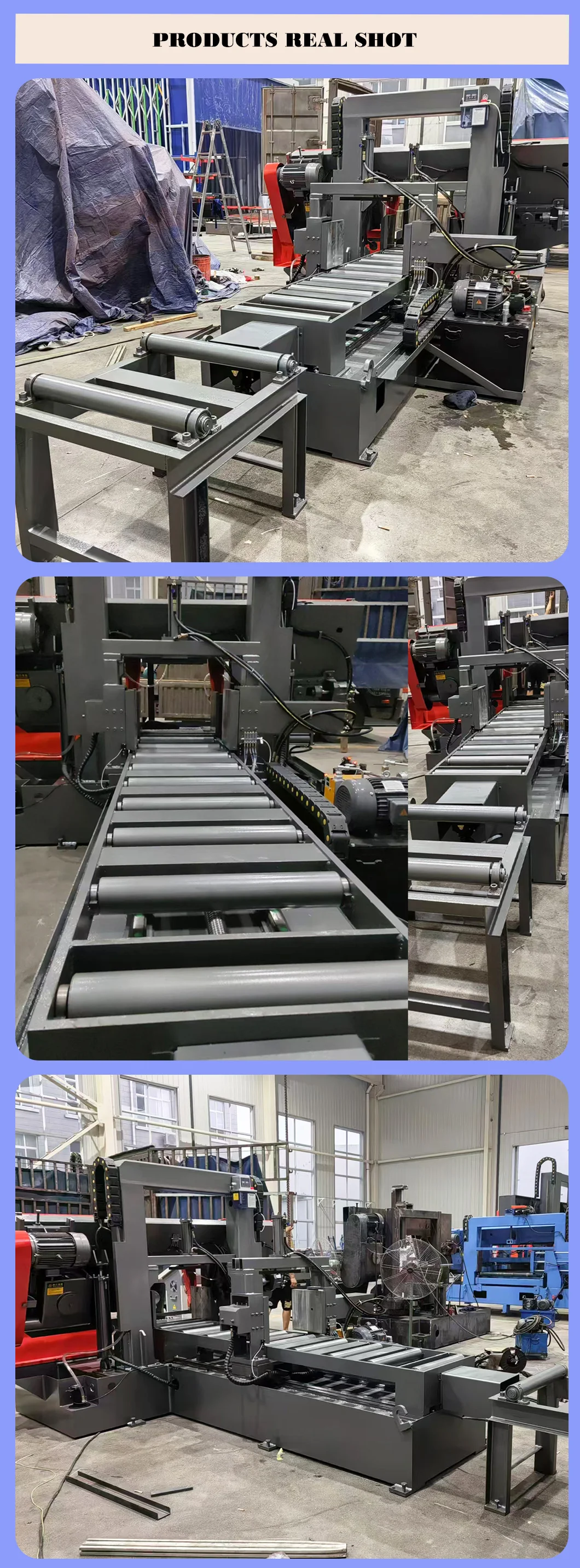

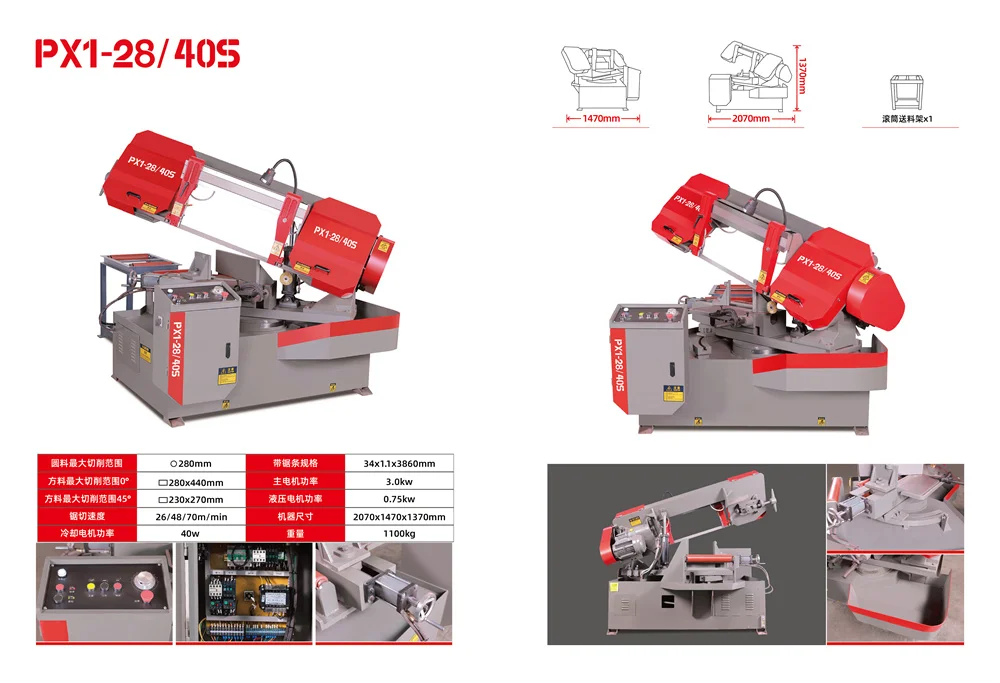

Products Real Shot

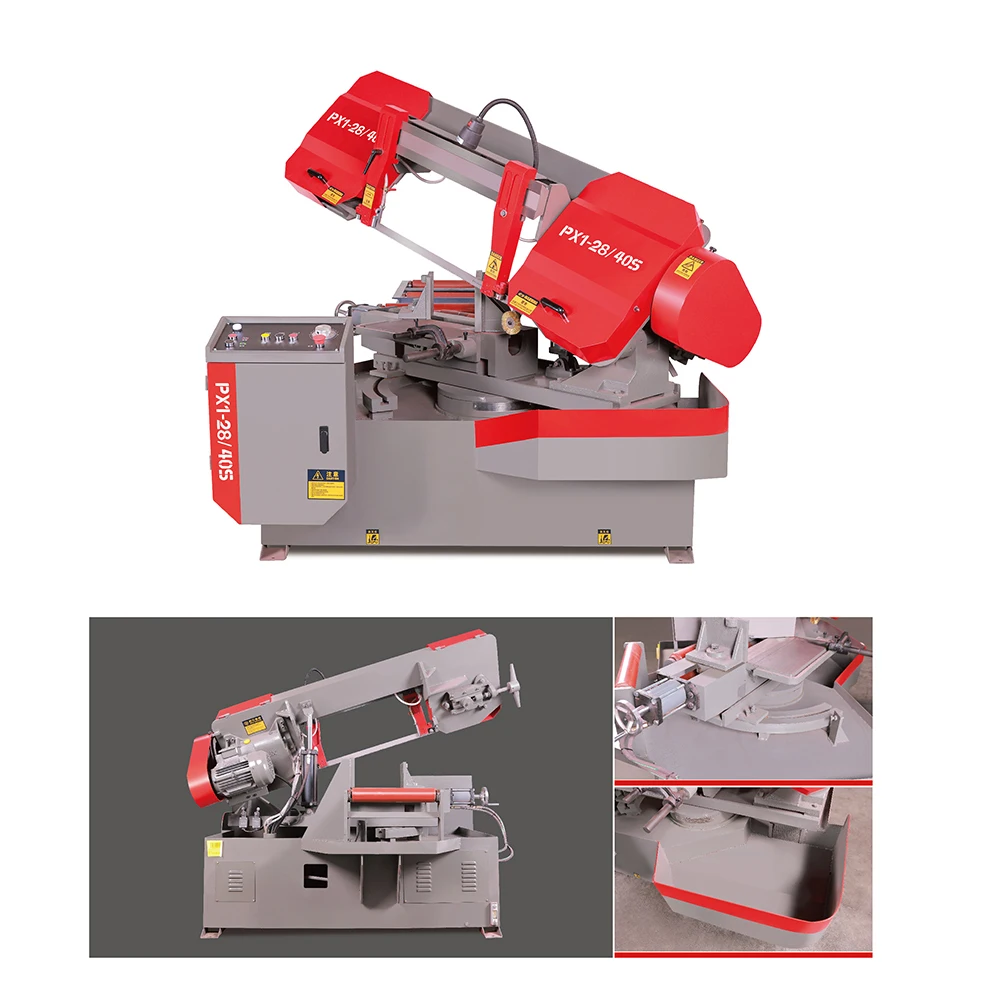

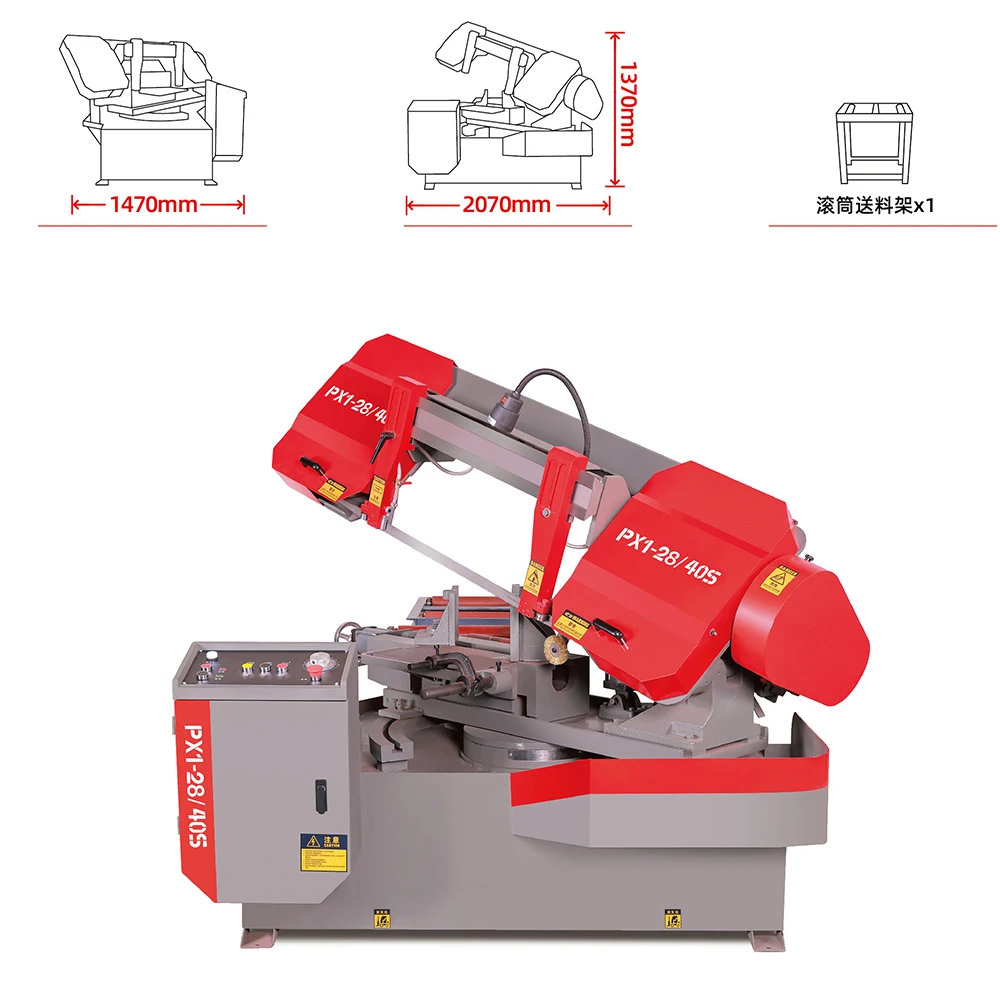

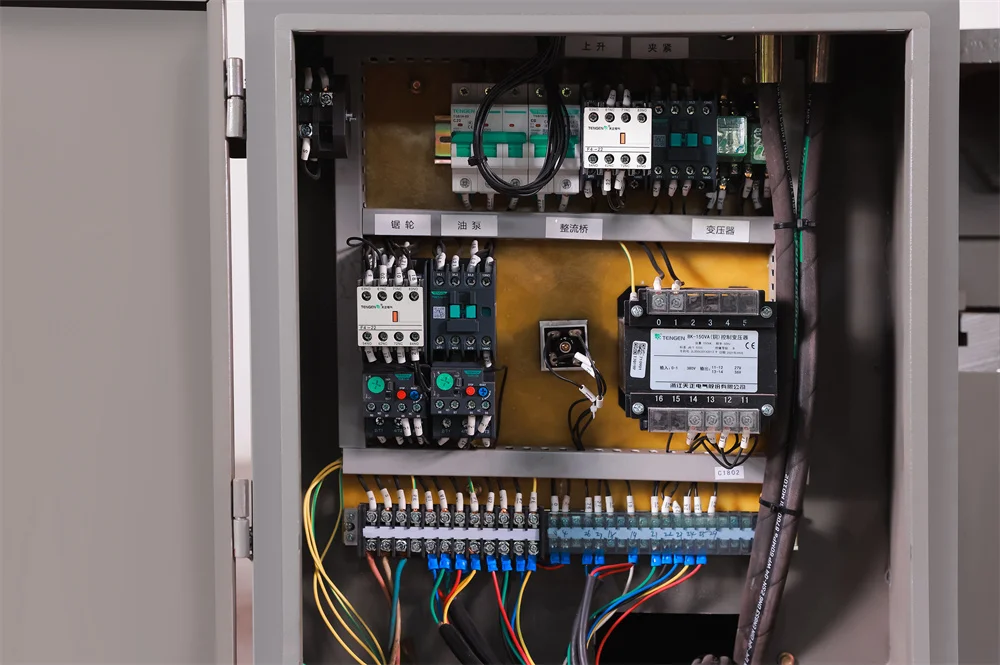

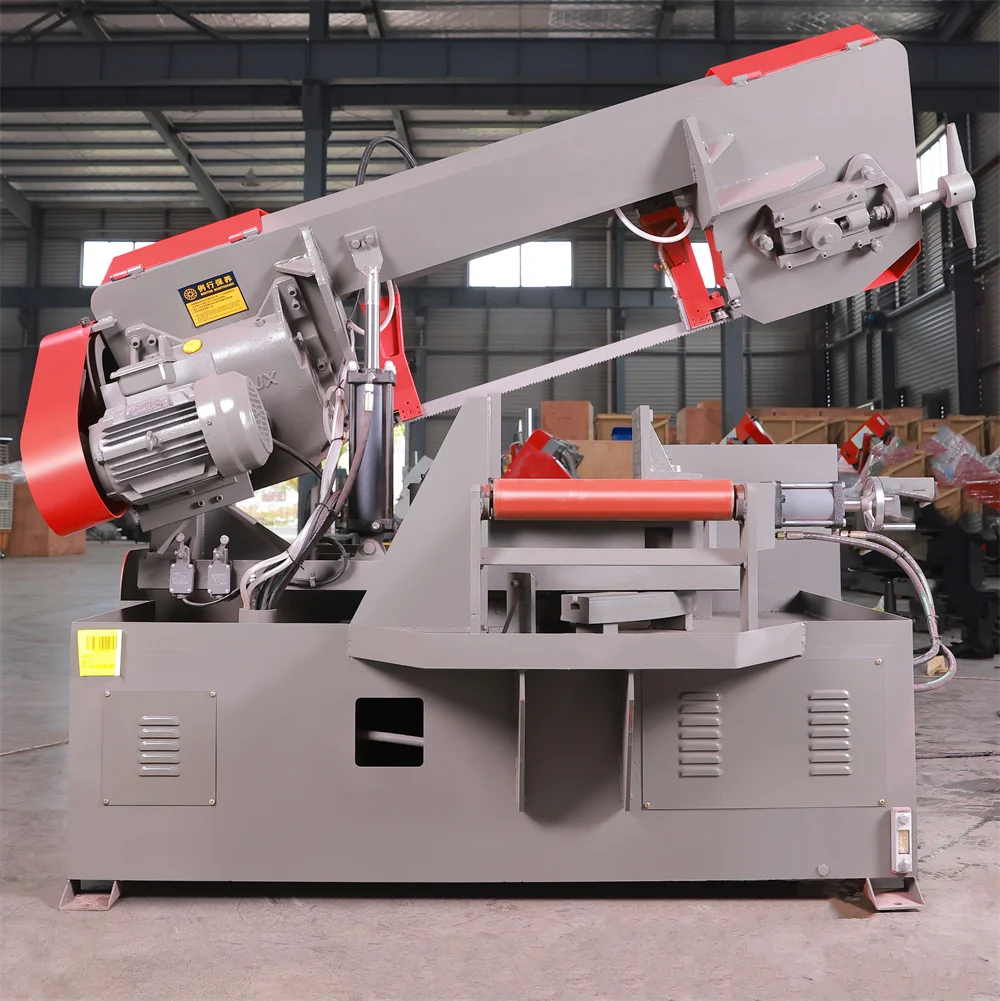

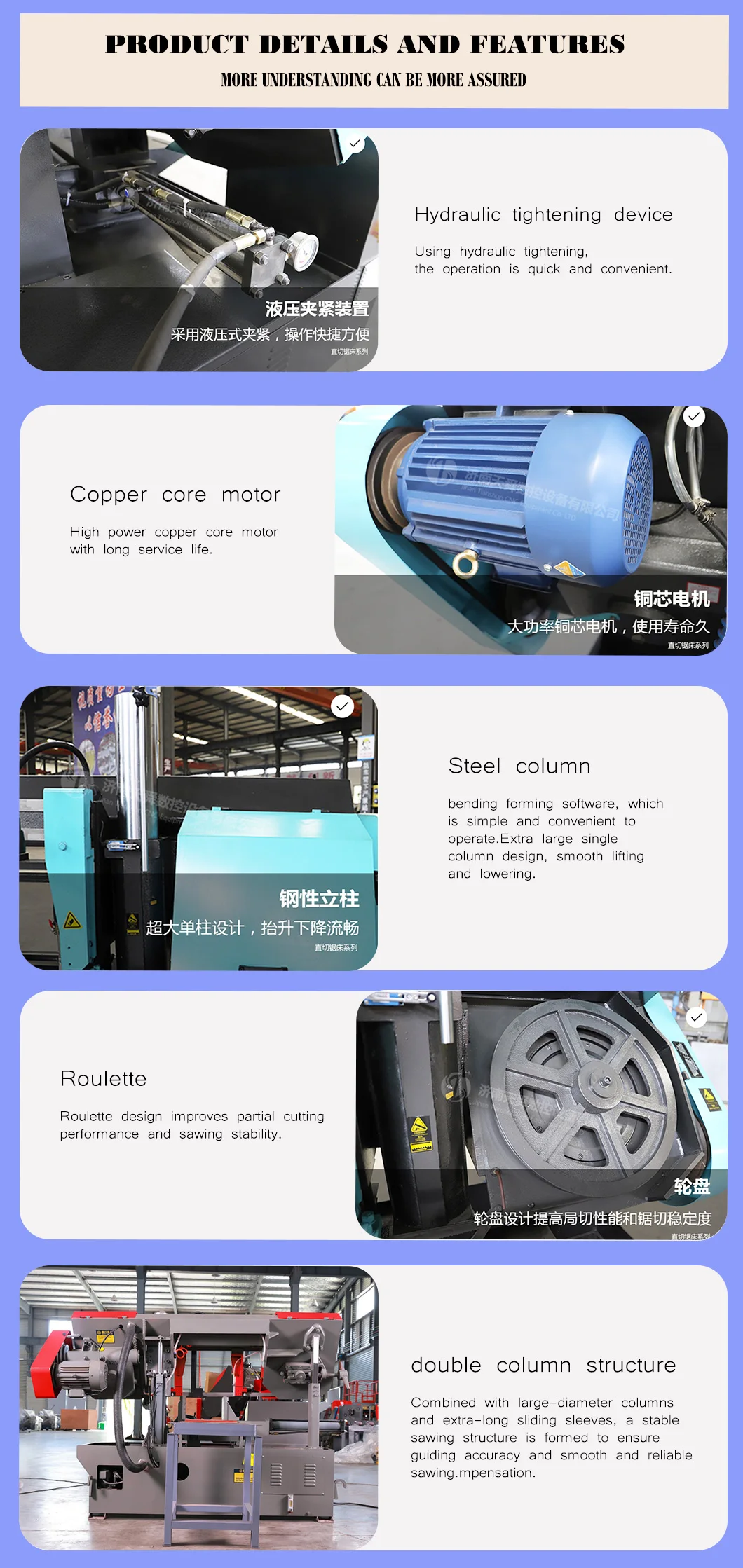

Details Images
Product Paramenters
NO. | Project name | Technical parameters and specifications |
1 | Maximum sawing range (mm) | ● ● 600 ■600×600 |
2 | Sawing speed | Stepless speed regulation |
3 | Band saw blade specifications (length*width*thickness) | 6020*41*1.3 mm |
4 | Feed speed | Hydraulic stepless speed regulation |
5 | Main motor power | 5.5kw |
6 | Hydraulic motor power | 1.5VP20kw |
7 | Cooling motor power | 0.09kw |
8 | Saw band linear speed | 40/60/80 |
9 | Main transmission mode | Worm gear drive |
10 | Clamping method | Hydraulic clamping |
11 | Saw band tensioning method | Manual tensioning |
12 | Sawdust cleaning method | wire brush |
13 | Host dimensions (LxWxH) | About 2800×1500×2100 mm |

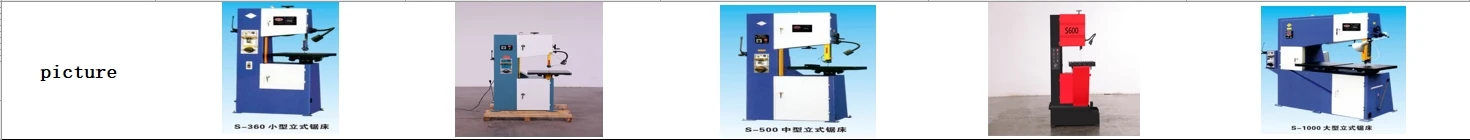

model | S-360 | S-400 | S-500 | S-600 | S-1000 |
Maximum Cutting Capacity（mm) | 350 | 400 | 500 | 590 | 1000 |
Maximum Working Height（mm) | 230 | 320 | 320 | 320 | 320 |
Table Size（mm) | 430*500 | 500*600 | 580*700 | 580*700 | 500*600*2 |
Blade Length（mm) | 2780 | 3360 | 3930 | 4300 | 4700 |
Blade Width（mm) | 3-13mm | 3-16mm | 5-19mm | 5-19mm | 3-16mm |
Worktable Tilt Angle | Front and Back：10° Left and Right：15° | Front and Back：10°Left and Right：15° | Front and Back：10°Left and Right：15° | Front and Back：10°Left and Right：15° | Fixed on the left/10°degrees back and forth 15°degrees left and right |
Main Motor 4p 8p Gearbox Power | 1HP/-/1HP | 3.2HP/2HP/1HP | 3.2HP/2HP/1HP | 3.2HP/2HP/1HP | 3.2HP/2HP/1HP |
Band Saw Speed 50HZ（m/min） | 31.51.76.127 | 27.43.65.108 53.85.127.212 | 34.54.81.134 66.106.159.265 | 40.64.95.158 78.125.188.314 | 27.43.65.108 53.85.127.212 |
Welding Power | 1.2kva | 2.0kva | 5.0kva | 5.0kva | 2.0kva |
Welding Capacity | 3-13mm | 3-16mm | 5-19mm | 5-19mm | 3-16mm |
Machine Weight | 270KG | 430KG | 600KG | 650KG | 650KG |
Machine Dimensions Length Width Height | 930×660×1590 | 1130×850×1830 | 1280×970×2020 | 1380×970×2130 | 2140×910×1880 |
model | S-360 | S-500 | S-500A | S-500A | S-600A |
Maximum Cutting Capacity（mm) | 350mm | 505mm | 500 mm | 500 mm | 590 mm |
Maximum Working Height（mm) | 220mm | 320mm | 320mm | 365mm | 320 mm |
Table Size（mm) | 500x560mm | 560x620mm | 670×730mm | 700×800 mm | 670×730mm |
Blade Length（mm) | 2780mm | 3930mm | 4040mm | 4040mm | 4300mm |
Blade Width（mm) | 3-13mm | 5-19mm | 5-19mm | 5-25mm | 5-25mm |
Worktable Tilt Angle | 0° Left and Right：5° | 0° Left and Right：5° | Left and Right：15° | 0 | Left and Right：15° |
Main Motor 4p 8p Gearbox Power | 1HP/-/1HP | 3.2HP/2HP/1HP | 3HP/Variable Frequency Speed Control | 3HP/Variable Frequency Speed Control | 3HP/Variable Frequency Speed Control |
Band Saw Speed 50HZ（m/min） | 31.51.76.127 | 34.54.81.134 66.106.159.265 | 20-480m (60-600m) | 20-480m (60-600m) | 20-480m (60-600m) |
Welding Power | 1.2kva | 2.0kva | 5.0kva | 5.0kva | 5.0kva |
Welding Capacity | 3-13mm | 5-19mm | 5-19mm | 5-19mm | 5-19mm |
Machine Weight | 285KG | 620KG | 650KG | 800KG | 750KG |
Machine Dimensions Length Width Height | 960×580×1590 | 1280×800×2020 | 1270×1210×2040 | 1270×1430×2040 | 1360×1260×2070 |
Packaging & Shipping

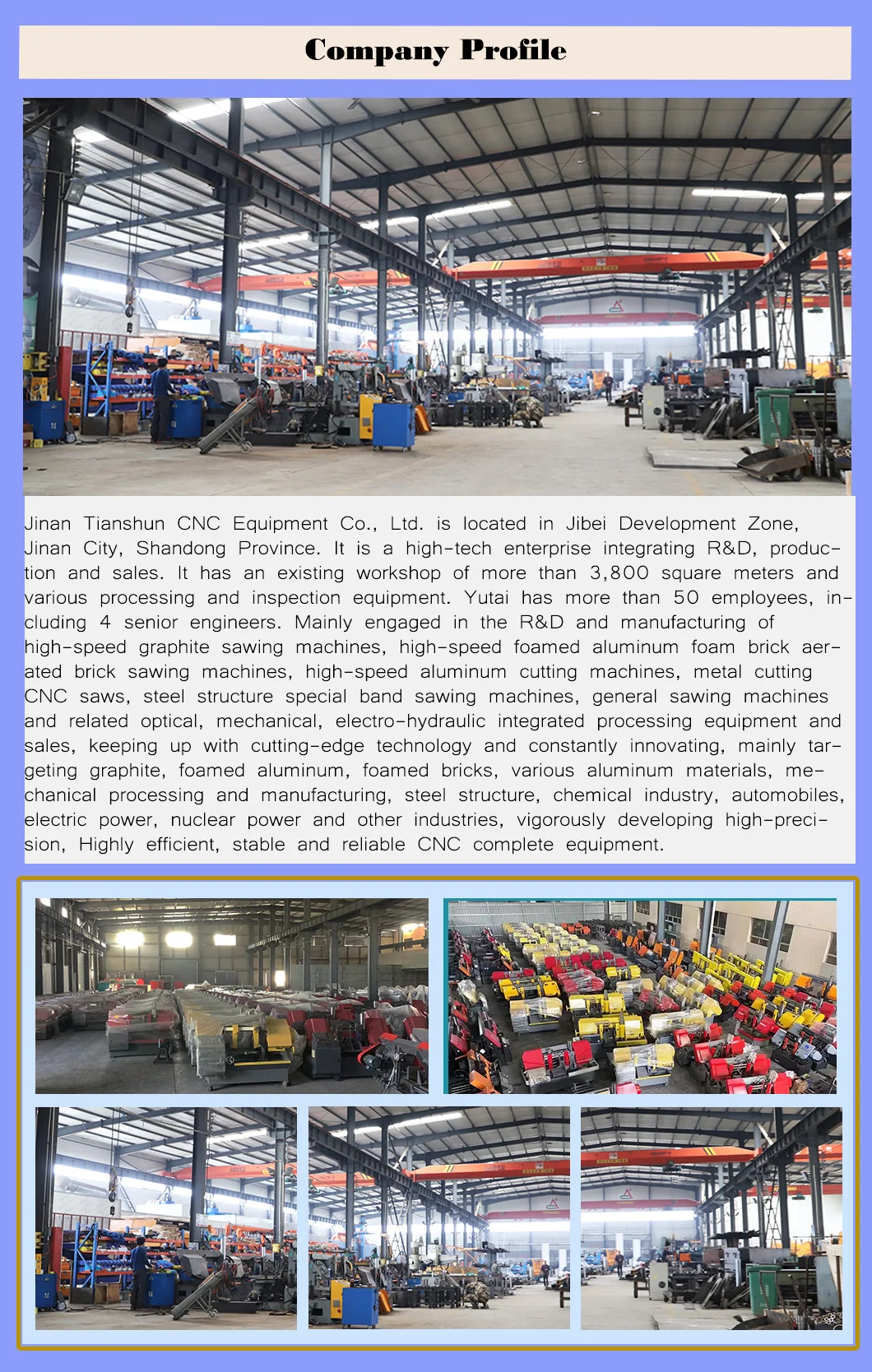

Company Profile

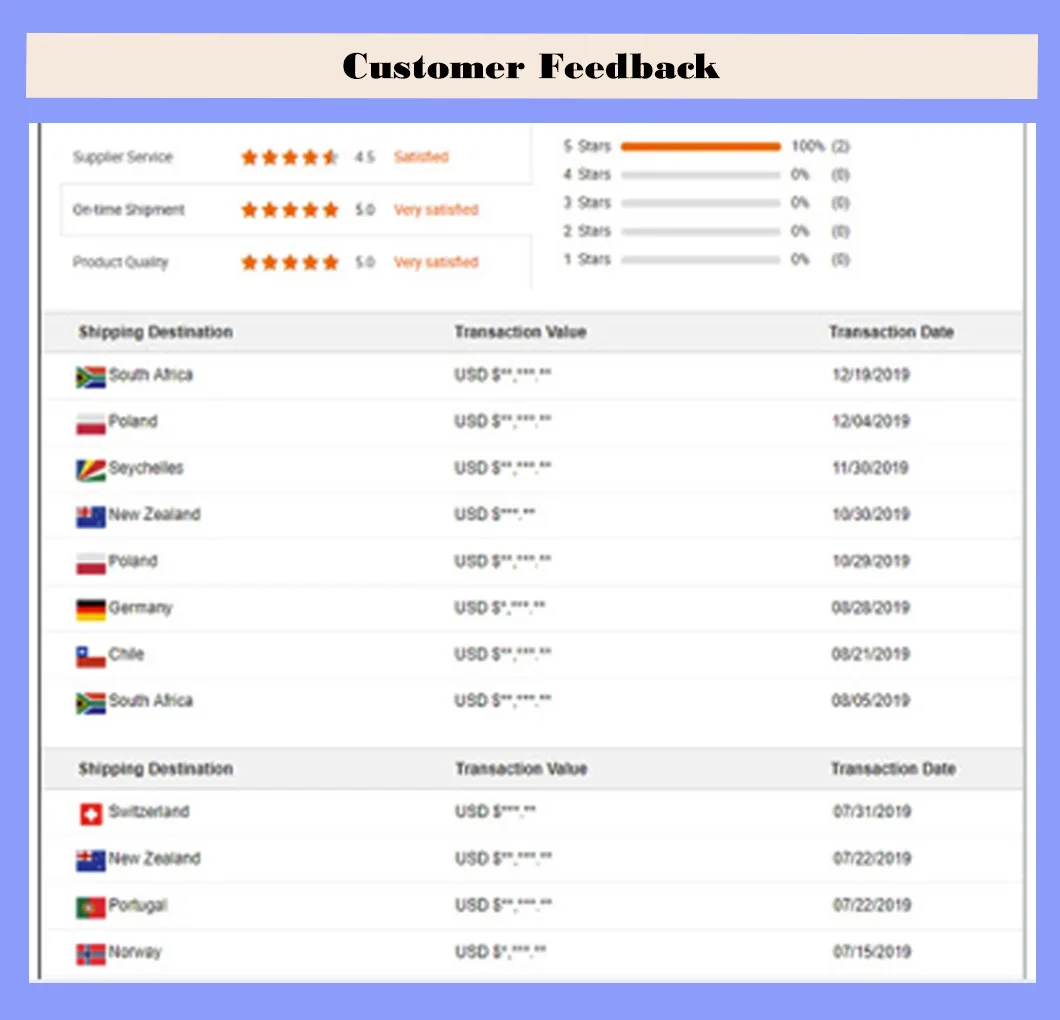

Customer Feedback & Certificates
