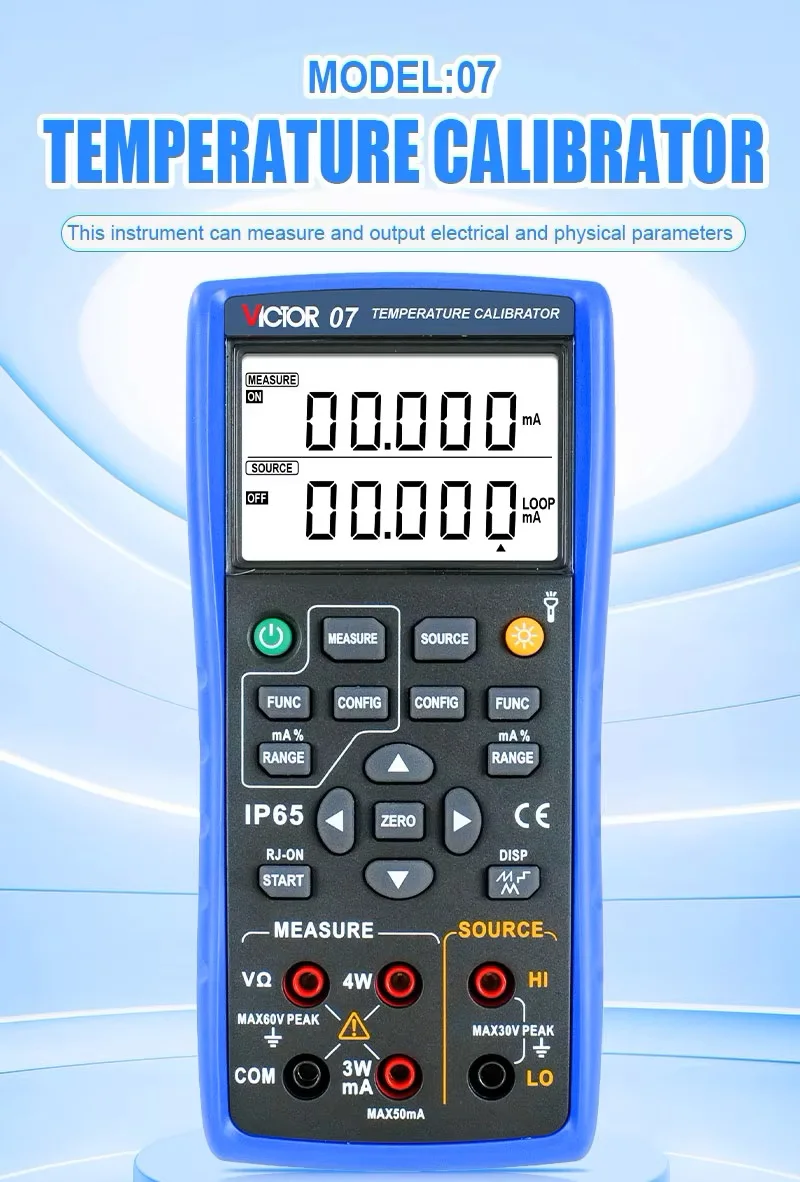

Model No.

07

Measurement function

Range

Resolution

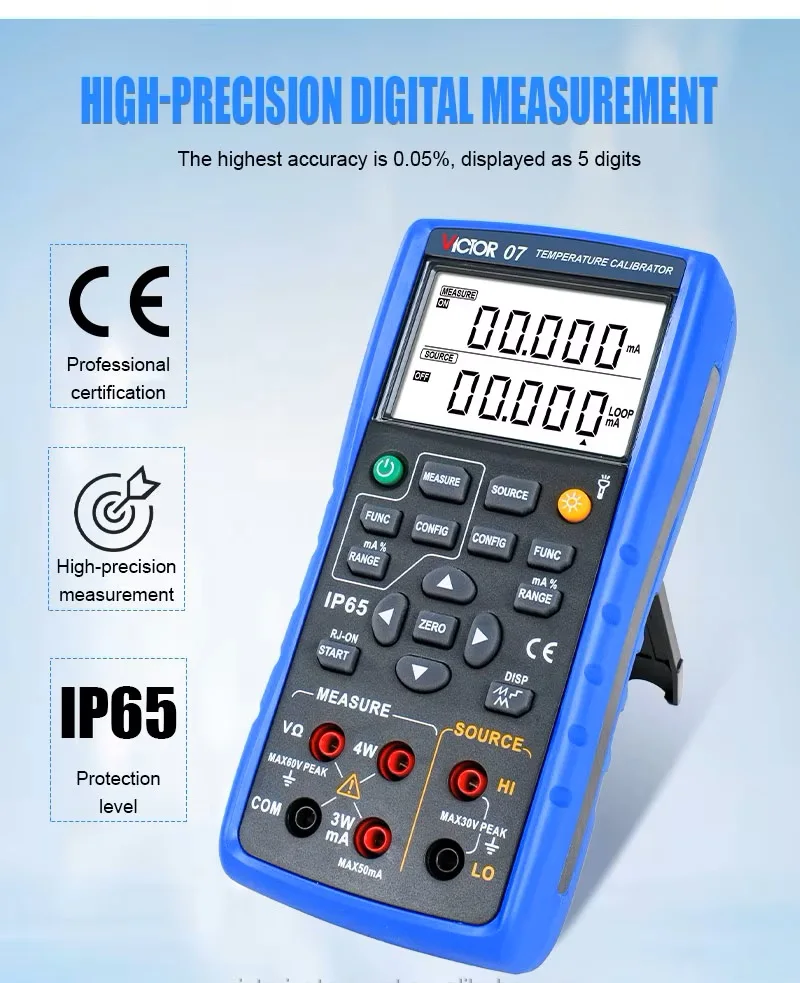

Basic accuracy

DC voltage

100mV, 1V, 35V

0.01mV, 0.1mV, 1mV

0.05%+0.03mV

Resistance

(2W, 3W, 4W)

500Ω, 5KΩ

0.01Ω, 0.1Ω

0.05%+0.2Ω

DC current

30mA

0.001mA

0.02%+4uA

Thermocouple

E, K, J, T, N, R, S, B, A, C, D

0.1°C, 1°C

0.7°C

RTD

(2W, 3W, 4W)

Cu50, Pt100, Pt200, Pt500, Pt1000

0.1°C

0.3°C

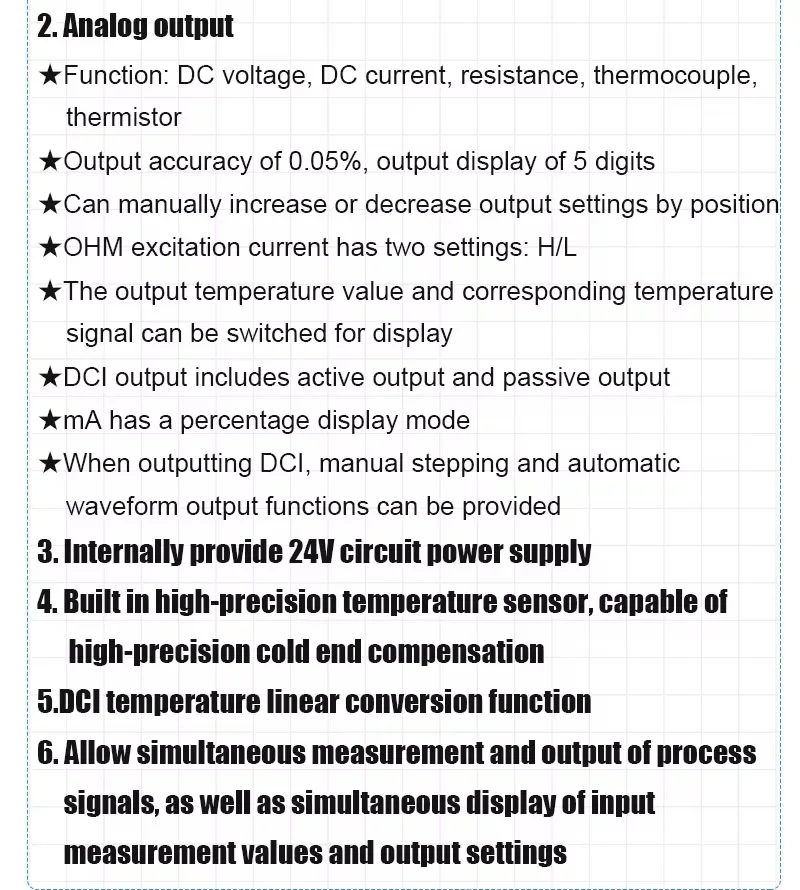

Output (source) function

DC voltage

100mV, 1V, 10V

0.01mV, 0.1mV, 1mV

0.05%+0.03mV

Resistance

400Ω, 4000Ω

0.1Ω, 1Ω

0.05%+0.2Ω

DC current

20mA

0.001mA

0.05%+4uA

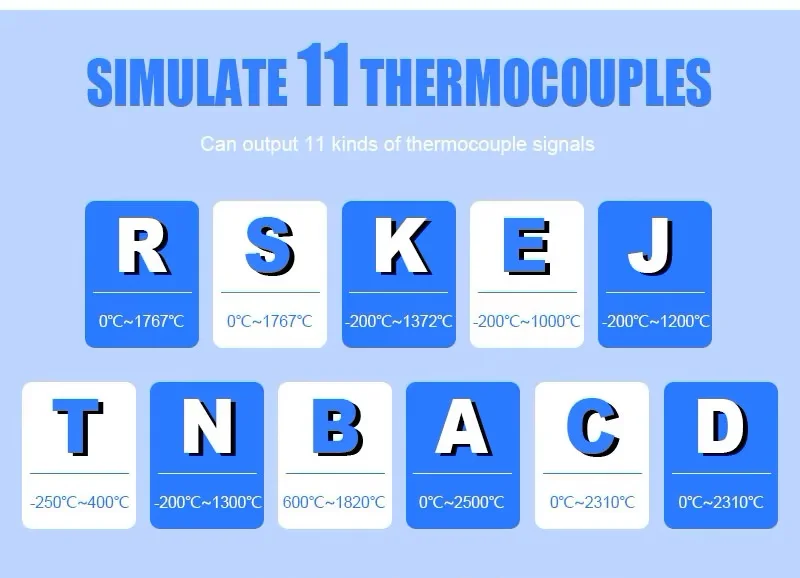

Thermocouple

E, K, J, T, N, R, S, B, A, C, D

0.1°C, 1°C

0.7°C

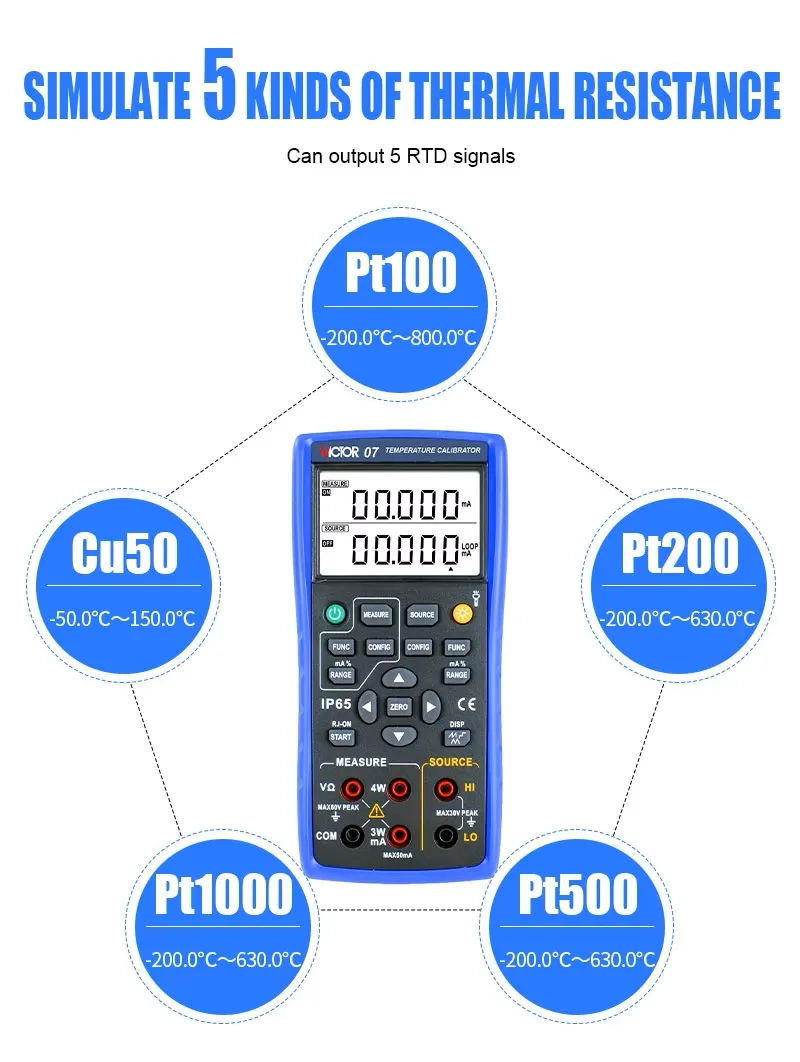

RTD

Pt100, Pt200, Pt500, Pt1000, Cu50

0.1°C

0.3°C

Features

Simulating transmitter

√

25%, 100% step output

√

Automatic ramp

√

Automatic step

√

Display current and % of span

√

The 24V loop power supply and measuring the current

√

°C/ °F conversion

√

Auto Power-off

√

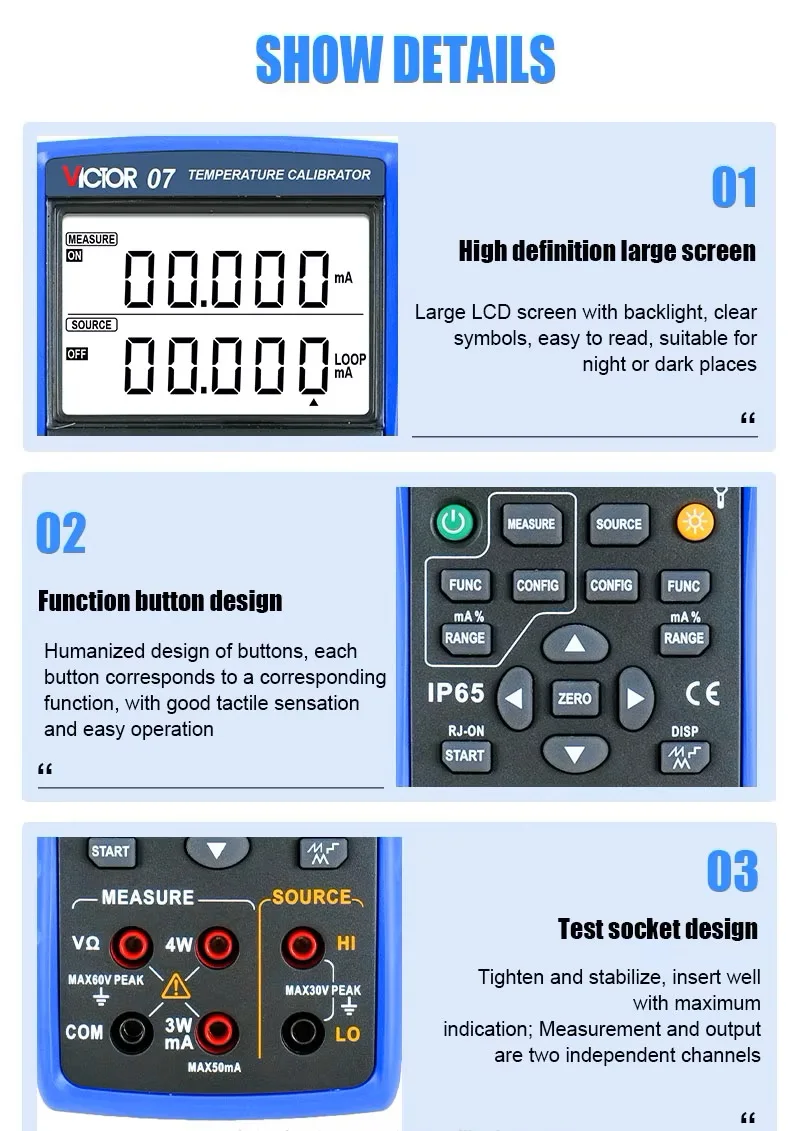

Backlight

√

General Information

Power supply

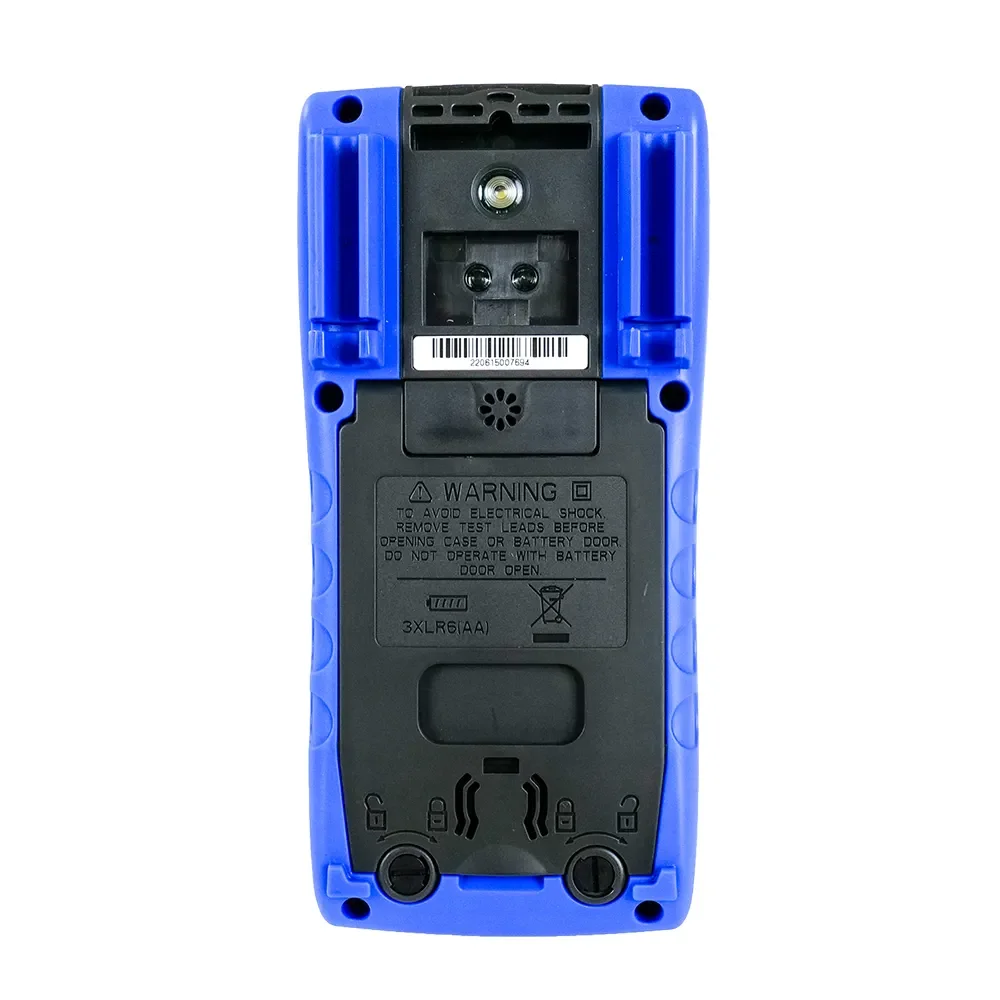

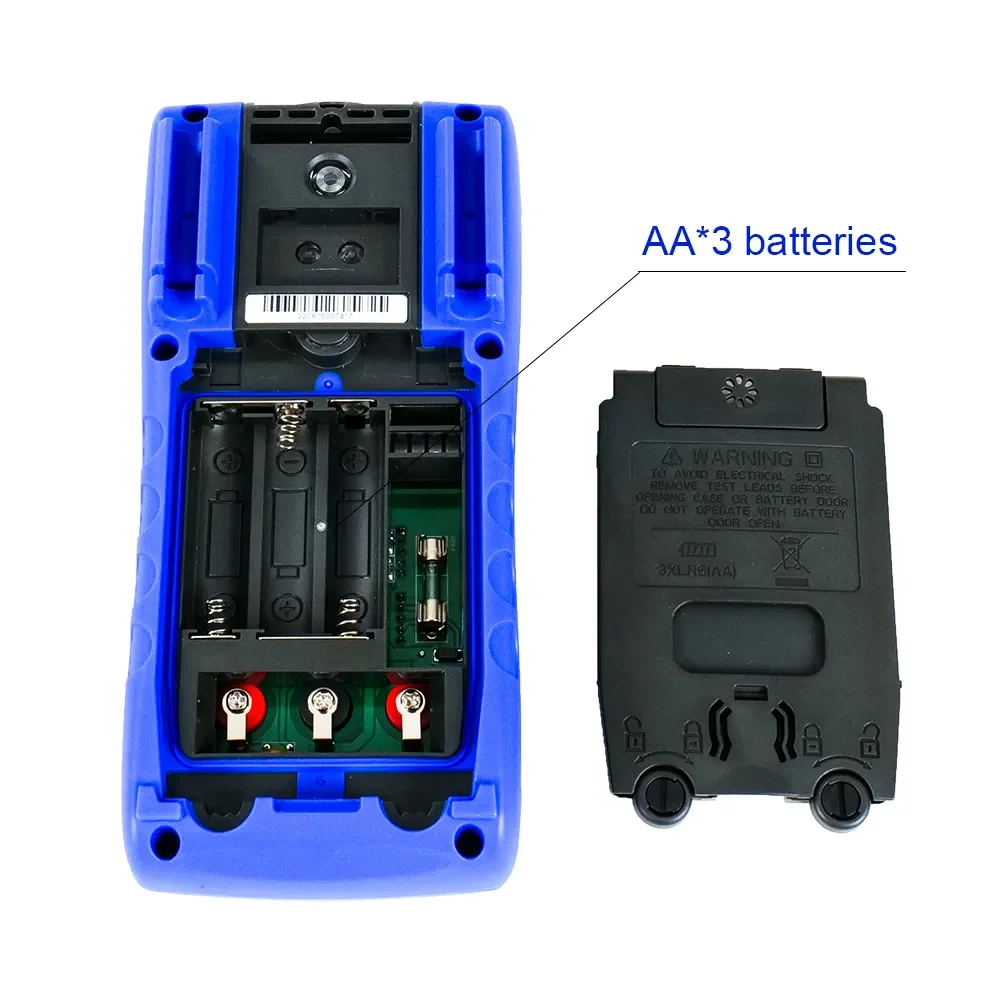

3xAA batteries

Product size

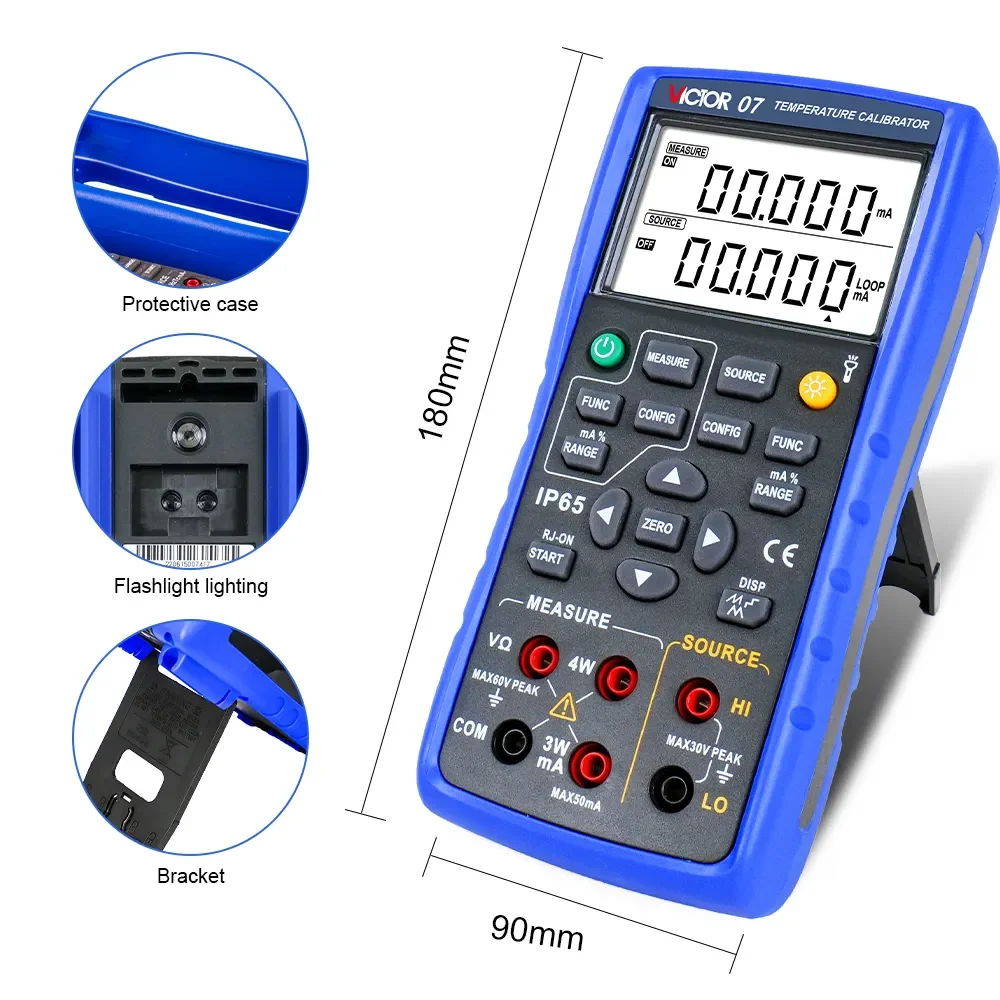

180×90×52

Product weight

About 1kg

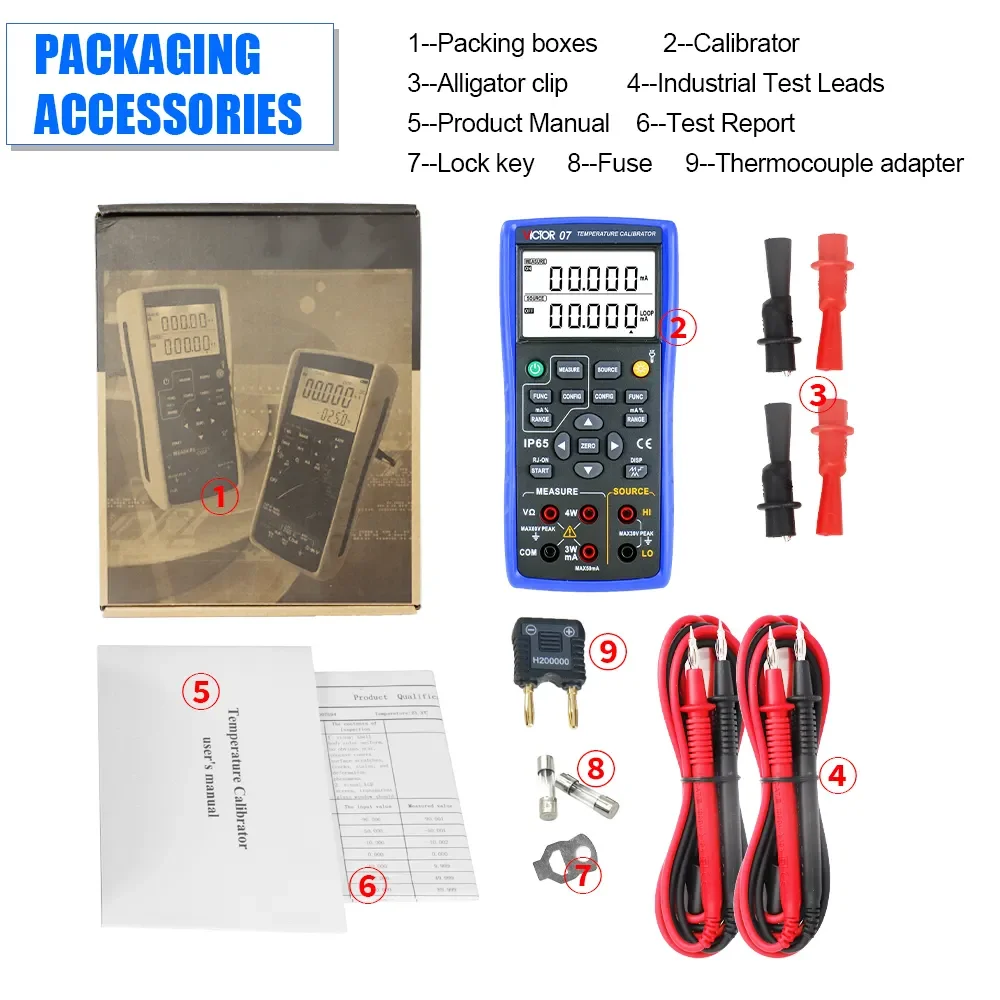

Standard accessories

Test leads, manual, alligator clips, fuse, lock key, thermocouple adapter, test report
