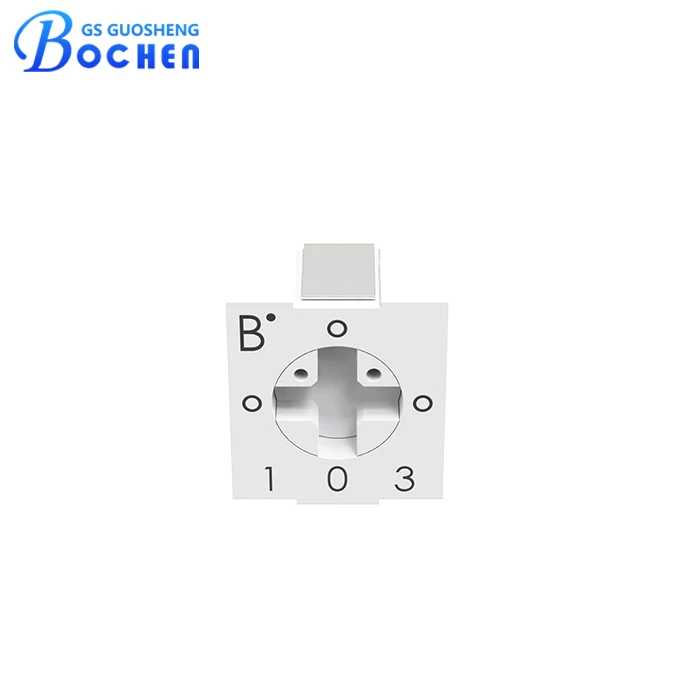

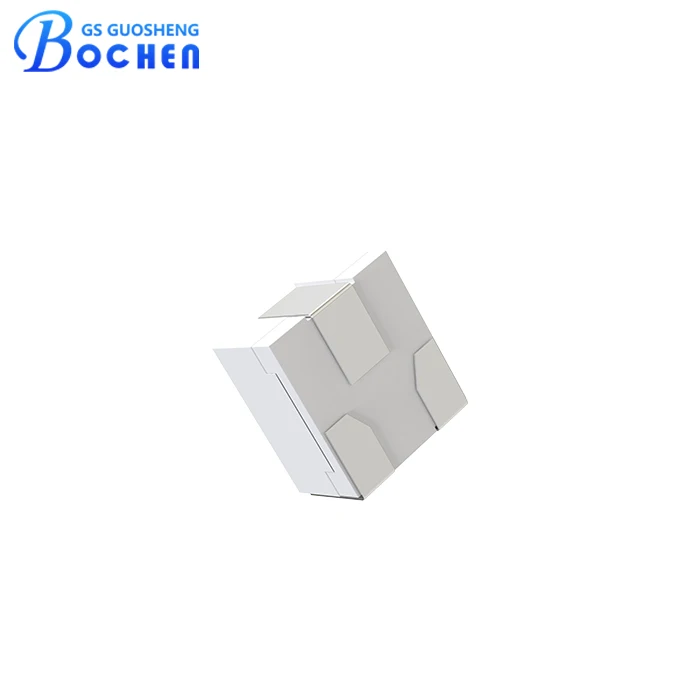

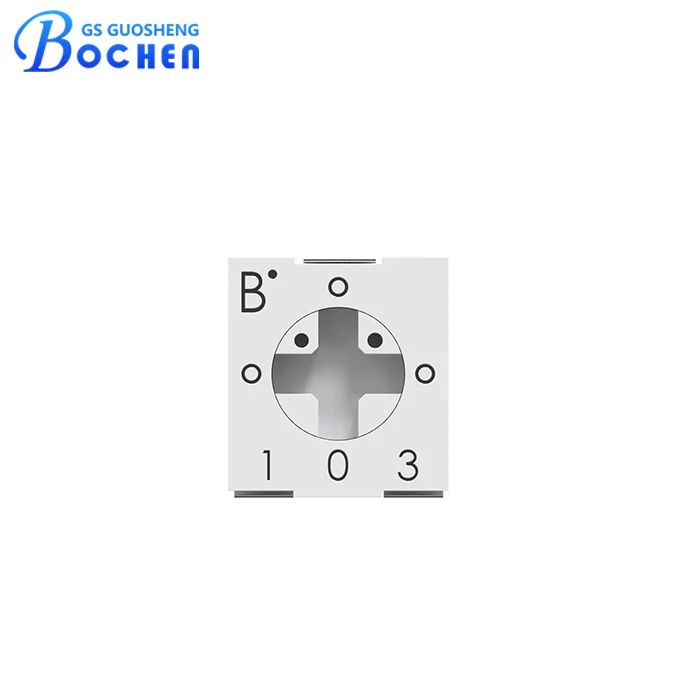

3313J 0.125W 100K Ohms 3mm Single Turn Square Cermet Trimmer Potentiometer

Product Overview

Description

3313J 0.125W 100K Ohms 3mm Single Turn Square Cermet Trimmer Potentiometer





Quick Detail:



• Adjustable resistance for precise control.
• Compact design for space-saving applications.
• Durable construction for reliable performance.
• Easy installation with standard pin spacing.
• Wide range of selectable resistance values.
• Versatile applications in audio, consumer electronics, and industrial controls.





Description:



The 3313J 3mm square cermet trimmer potentiometer is an electronic component widely used for adjustable resistance in various applications. It features a compact and durable design, allowing for precise control over resistance levels. With its versatile range of selectable resistance values, it finds applications in audio equipment, consumer electronics, and industrial controls. The 3313J cermet trimmer potentiometer provides smooth and reliable operation, making it a popular choice for accurate resistance adjustments in electronic circuits.





Specification:



Electrical Characteristics	Nominal Resistance Range	50Ω~2MΩ
	Resistance Tolerance	±10%; ±20%
	Terminal Resistance	≤±1% R or 3Ω
	Contact Resistance Variation (CRV)	≤3%R or 3Ω
	Insulation Resistance	500 Vdc. 100 MΩ Min.
	Withstand Voltage	101.3KPa, 500 Vac; 8.5KPa, 250 Vac
	Dielectric Strength Sea Level	500 Vac(1 Min.)
	Electrical Travel	220°
Environment Characteristics	Weld Heat Resistance	250℃, 10 Secs.
	Rated Power(300 volts max.)	70℃, 0.125W; 125℃, 0W
	Temperature Range	-55°C ~ + 125°C
	Temperature Coefficient	±250, ±100 ppm /°C
	Temperature Variation	ΔR≤±3%R, Δ(Uab/Uac)≤±1%
	Collision	20G, ΔR≤±1%R, Δ(Uab/Uac)≤±1%
	Vibration	100G, ΔR≤±1%R, Δ(Uab/Uac)≤±2%
	Electrical Endurance At 70°C	1000 hours @ 70℃ Rated Power; ΔR≤±3%R
	Rotational Life	100 Cycles, ΔR≤±3%R
Physical Characteristics	Total Mechanical Travel	250°
	Starting Torque	≤25 mN.m
	Clutch Torque	≤35 mN.m

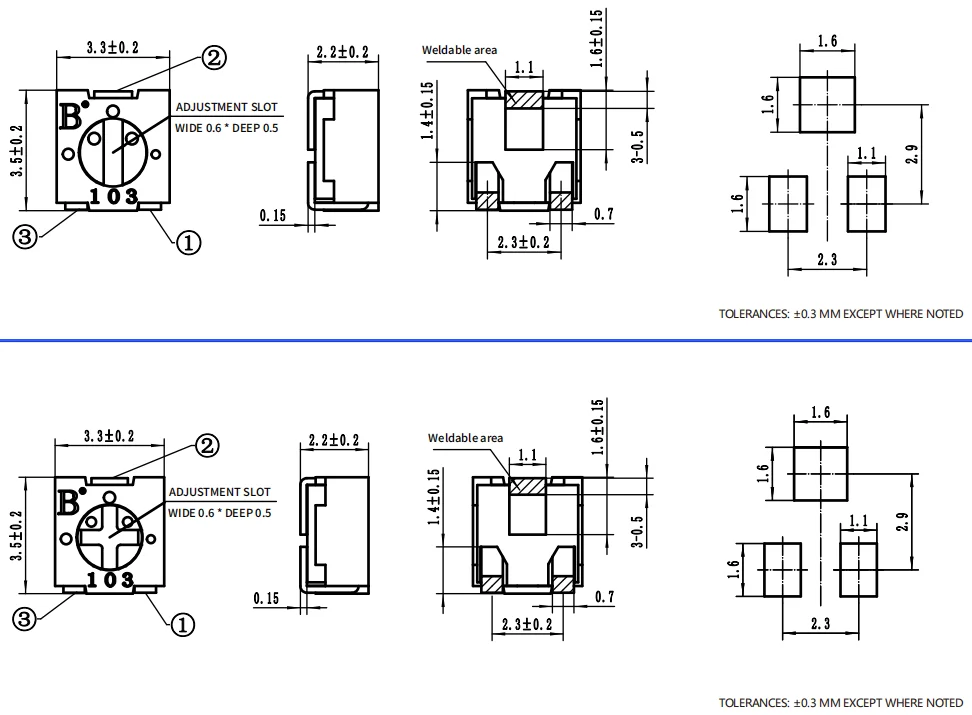

Dimension:



Two terminal styles

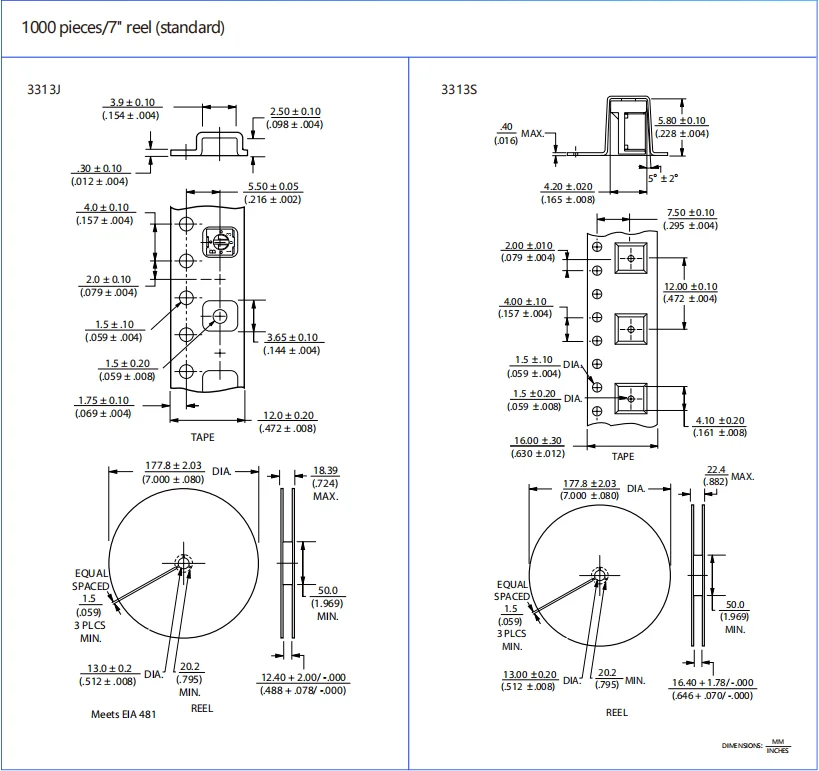

Packaging:



Packaging specification: 1000 pieces per tray (7 inches).







Application:



• Audio equipment.
• Consumer electronics.
• Industrial controls.
• Power supplies.
• Measurement and testing instruments.
• Robotics and automation.
• Automotive electronics.
• Telecommunications.





Advantage:



• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM&ODM available.
