CE EPA Home Farm Kubota Engine 1.7Ton 2Ton 3.5Ton Cabin Small Crawler Digger Micro Bagger Mini Excavator
- Category: >>>
- Supplier: Hunan Weone Technology Co. Ltd.Hunan Ltd.
Share on (1601279007289):
Product Overview
Description
Product Overview
COMPACT DIMENSIONSEXTENDING UNDERCARRIAGE
SAFETY FRAME
SIMPLE CONTROL
SEASY MAINTENANCE
VERSATILITY
SAFETY FRAME
SIMPLE CONTROL
SEASY MAINTENANCE
VERSATILITY

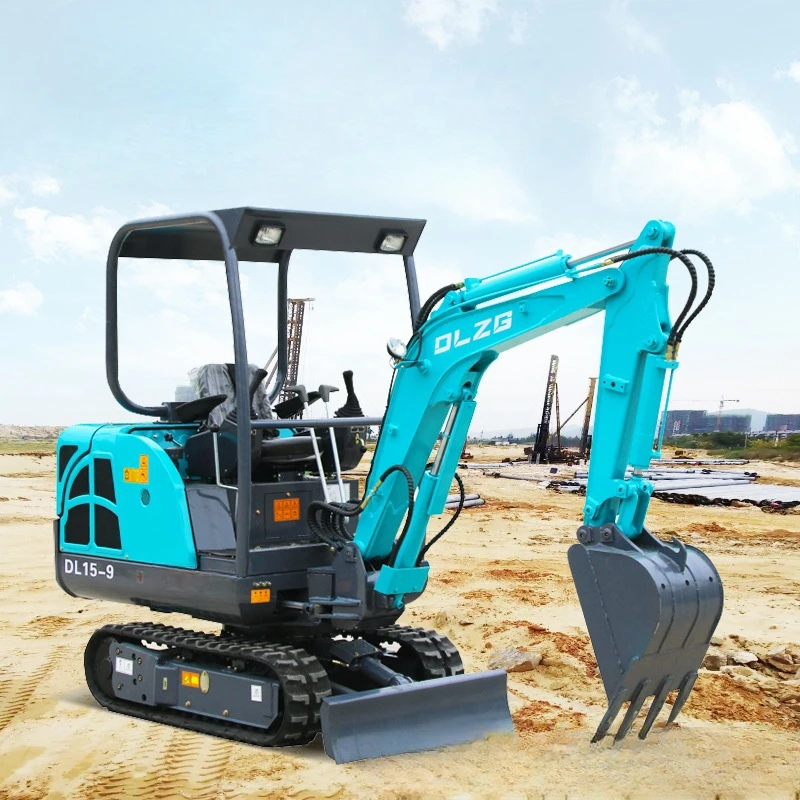

This Mini Excavator delivers power and performance in a compact size to help you work in the tightest applications. Its ability to
fit through a narrow doorway makes it an excellent machine for indoor demolition work.
fit through a narrow doorway makes it an excellent machine for indoor demolition work.
PRODUCT SPECIFICATIONS
Main size specification | ||
Overall length | 3685mm | |
Total height | 2120mm | |
Overall width | 980mm | |
Track width | 230mm | |
Platform radius | 1175mm | |
Track length | 1410mm | |
Wheel track | 1065mm | |
Height above ground | 200mm | |
Total height of boom end | 1230mm | |
Platform outside width | 1020mm | |
Height of platform from ground | 495mm | |
Performance parameter | ||
Engine power | 13.6kw/2200rpm 14.8kw/2200rpm | |
Working pressure | 16MPa | |
Main pump | 2x17.6+6.6L/Min | |
Maximum digging force | 10.5KN | |
Gradient | 30° | |
Ground specific voltage | 23.6Kpa | |
Travel speed | 2km/h | |
Maximum traction | 9KN | |
Platform turning speed | 10rpm/Min | |
Machine weight | 1603kg | |
Bucket capacity ground | 0.07m³ | |
Scope of operation | ||
Maximum excavation height | 3300mm | |
Maximum excavation height | 1980mm | |
Maximum digging depth | 2080mm | |
Maximum excavation radius | 3760mm | |
Maximum surface horizontal excavation distance | 3700mm | |
Excavation radius of maximum excavation height | 2450mm | |
Minimum radius of turn | 1660mm | |
PRODUCT CONFIGURATION

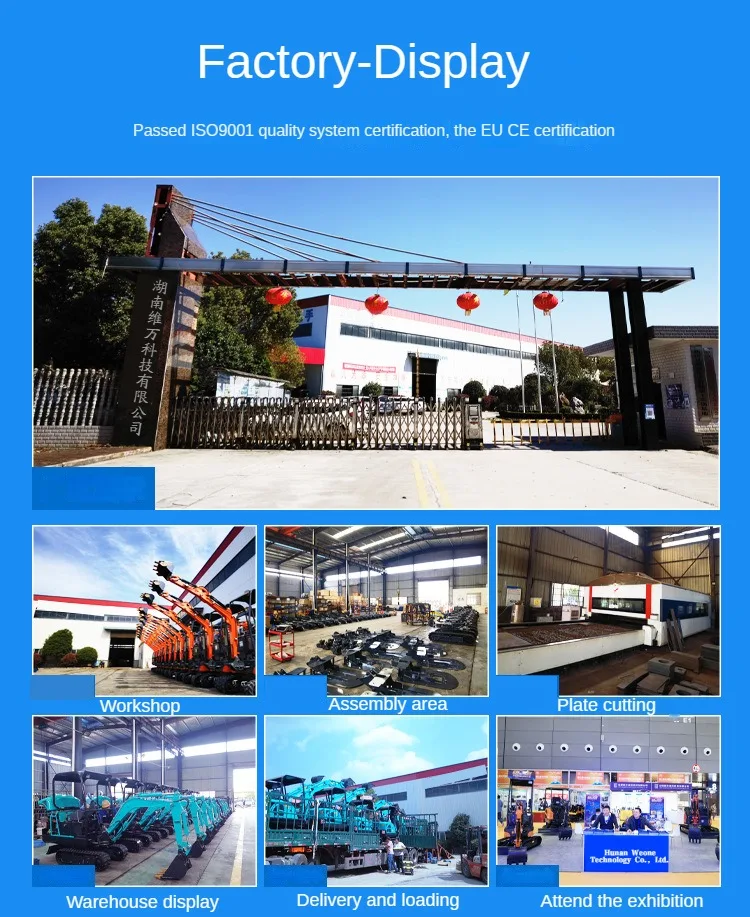

Company Profile

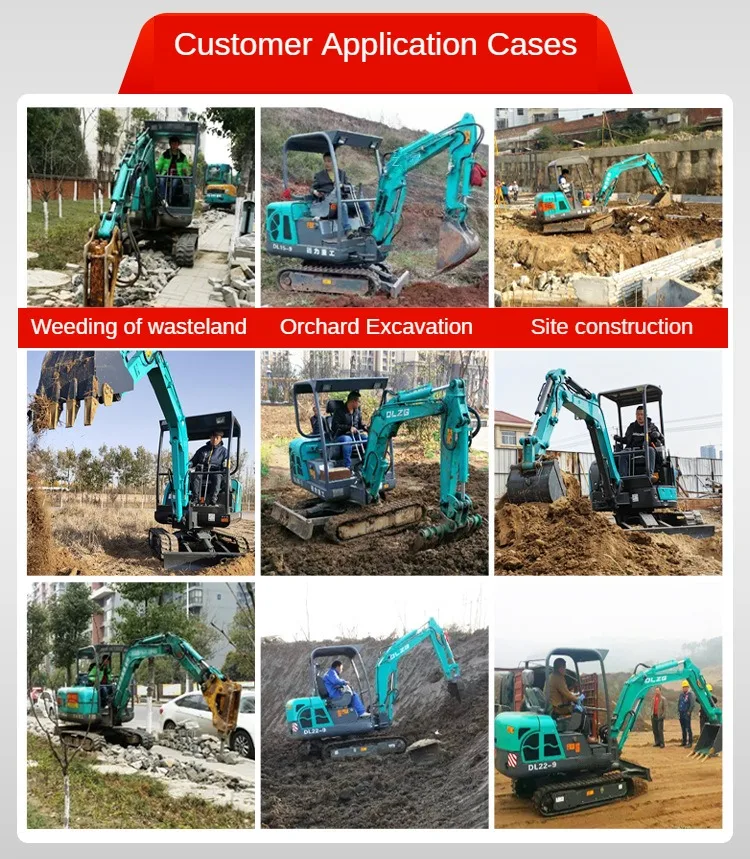

Successful Project
FAQ
1.Can the factory support mass production? Can I purchase a customized sample first?
A:Yes friends,we support mass production. And can support customization (one piece is fine),
A:Yes friends,we support mass production. And can support customization (one piece is fine),
but it cannot provide free prototypes
2.Can it be transported to my door? I want to get my favorite mini excavator soon?
A:Of course, my friend, but if your family is located very close to the port, we suggest that you can go directly to the port to transport your goods, so you can save a lot of money! If the distance is long, you can find an inland transportation company by yourself, and we can communicate with him; we can also find an agency for you, but the toll will be very high (not recommended)
During transportation, we will not charge any intermediate fees and additional service fees other than freight.
2.Can it be transported to my door? I want to get my favorite mini excavator soon?
A:Of course, my friend, but if your family is located very close to the port, we suggest that you can go directly to the port to transport your goods, so you can save a lot of money! If the distance is long, you can find an inland transportation company by yourself, and we can communicate with him; we can also find an agency for you, but the toll will be very high (not recommended)
During transportation, we will not charge any intermediate fees and additional service fees other than freight.
We just want you to get your favorite mini excavator earlier.
3.How can I guarantee after-sales after I buy it?
A:Our machine has a one-year/1000H work warranty period.
3.How can I guarantee after-sales after I buy it?
A:Our machine has a one-year/1000H work warranty period.
During this time, if there is any problem with the machine itself, we will repair it for you free of charge, but if it is man-made damage, we will Not responsible for the maintenance of the machine.
