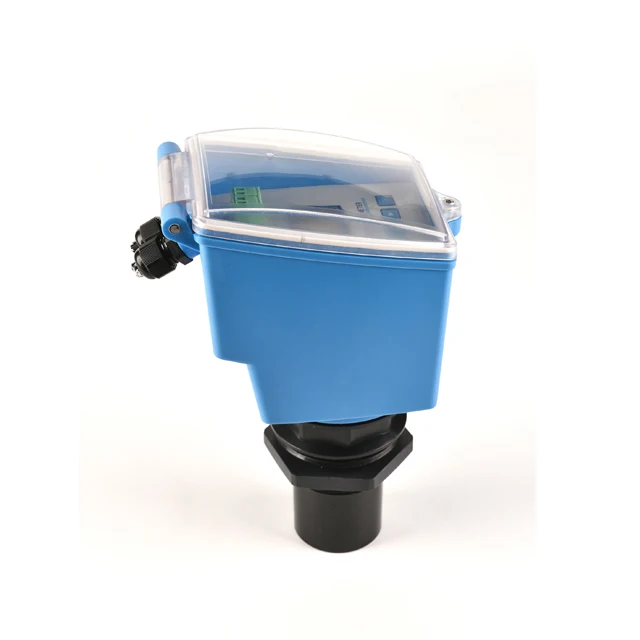

Taijia high frequency water level gauge digital portable level meter
- Category: >>>
- Supplier: Dalian Taijia Technology Co. Ltd.
Share on (1601279023971):
Product Overview
Description
Product Description

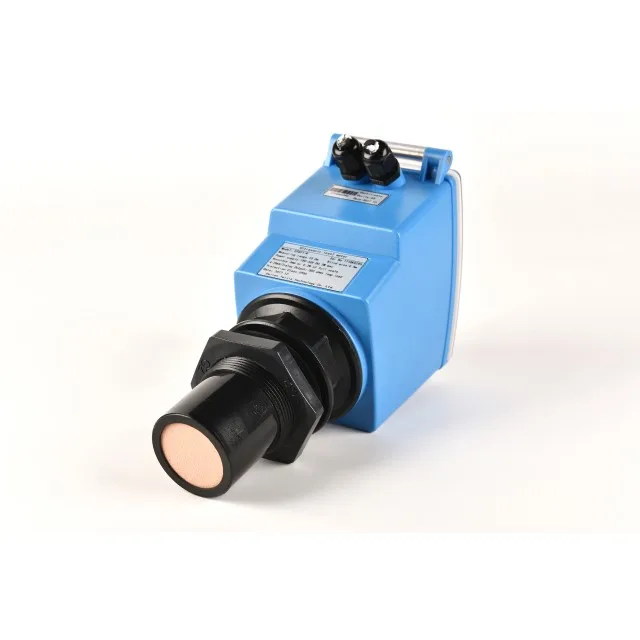

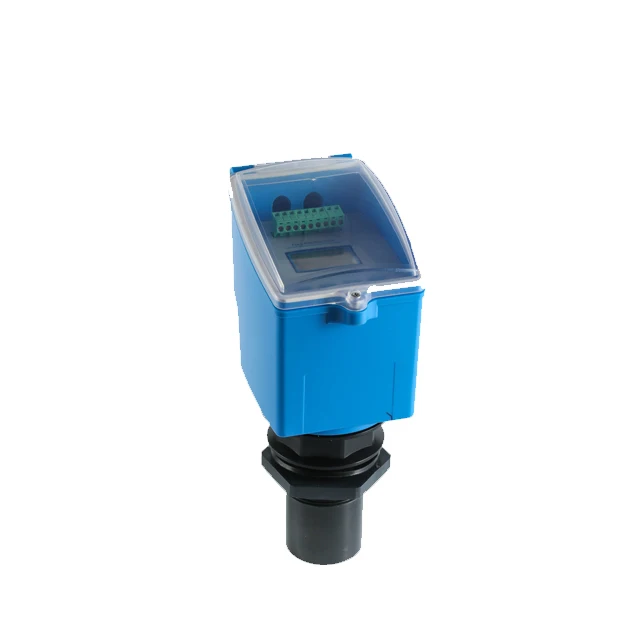

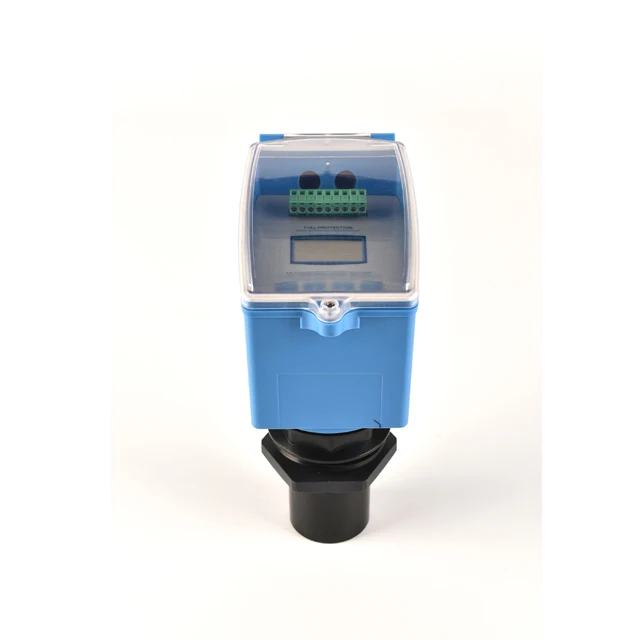

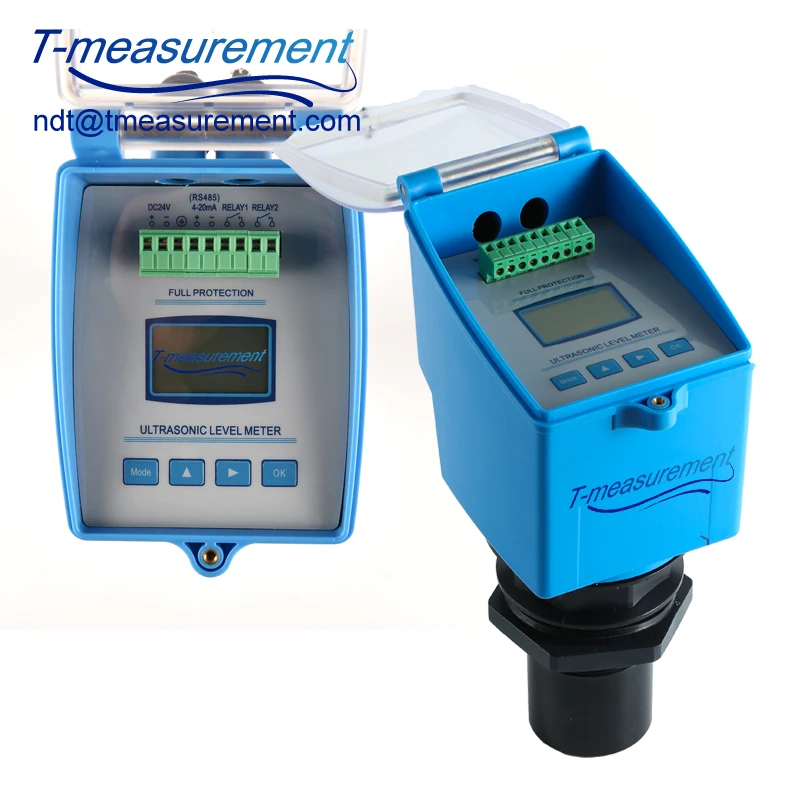

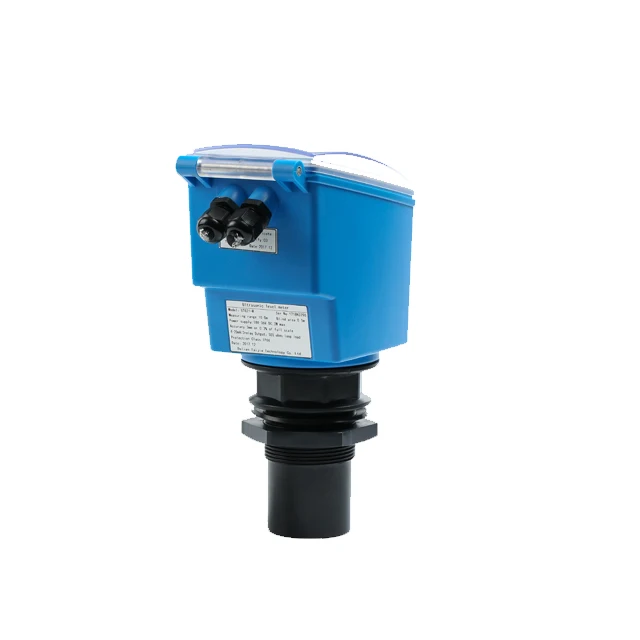

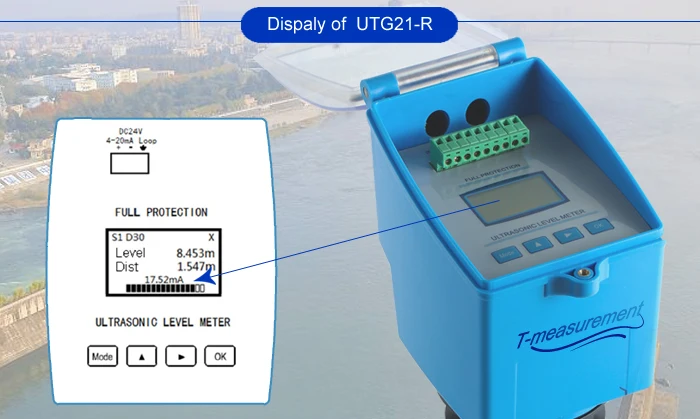

Introductions for UTG21-R ultrasonic level transmitter
The UTG21-R ultrasonic level meter is used for Non-contact measurement of liquid, paste and granule material level.
The UTG21-R ultrasonic level meter is used for Non-contact measurement of liquid, paste and granule material level.
Specification
Measurement range | 0～5m, 0～10m, 0～15m, 0～20m |
Block distance | 0.35～0.6m |
Precision | ±0.3%FS* (standard conditions *) |
Resolution | ±2mm |
Supply voltage | DC12～36V / AC 85~264V |
Maximum current output | 50mA~100mA |
Ripple wave requirement | Less than ±200mV |
Simulated current | Load 500Ω |
Digital output interface | Rs485 / ModBus-RTU |
Process interface | G1 1/2” or G2” |
Electrical interface | PG11 or M20×1.5 |
Transmitter | ABS or Aluminum alloy |
Probe Material | Ordinary waterproof ABS / anti-corrosion ETFE |
Flange Material | Ordinary waterproof ABS/ anti-corrosionETFE |
Waterproof grade | IP65 |
Environment temperature | -20℃～+60℃. Liquid crystal display is limited if it is lower than -20℃. If outdoor instrument is exposed to sunlight directly, add ultraviolet-proof protective cover. |
Process temperature | -40℃～+90℃, high-temperature probe shall be used in case of over 70℃. |
Process pressure | 0.8～3bar or 0.08～0.3Mbar abs / below 3000 |
Application
Related Product
UTG21-H ultrasonic level transmitter
UTG21-H ultrasonic level gauge built-in temperature compensation, power adaptive, using a number of self developed patented technology, with a new signal processing technology, which greatly improves the measurement accuracy of the instrument, the interference echo was significantly suppressed Features.
UTG21-PY ultrasonic level transmitter
UTG21-PY includes several proprietary technologies, is safe and clean, with high precision and long service life, stable and reliable, and convenient to install and maintain, and is applicable to various fields of acid, alkali, salt, anticorrosion, and high temperature. The meter’s all input and output lines must be with such protection functions as lightning protection and short circuit prevention.
