Factory industrial pc fanless intel CPU HD VGA 6 RJ45 6 USB DC 12V RS232 485 DB9 COM embedded industrial computer linux
- Category: >>>
- Supplier: Yentek (shenzhen) Technology Co. Ltd.
Share on (1601279550827):
Product Overview
Description
Order information
Products Description
Model | C5750Z-L4 V1.1 | ||
Chassis | Material/structure | All Aluminium Alloy Fanless | |
Colour | Iron grey + silver front and rear panels | ||
Size (LWH) | 174mm*148mm*57mm | ||
Weight (bare net) | 1.35KG | ||
Installation | Desktop/Embedded | ||

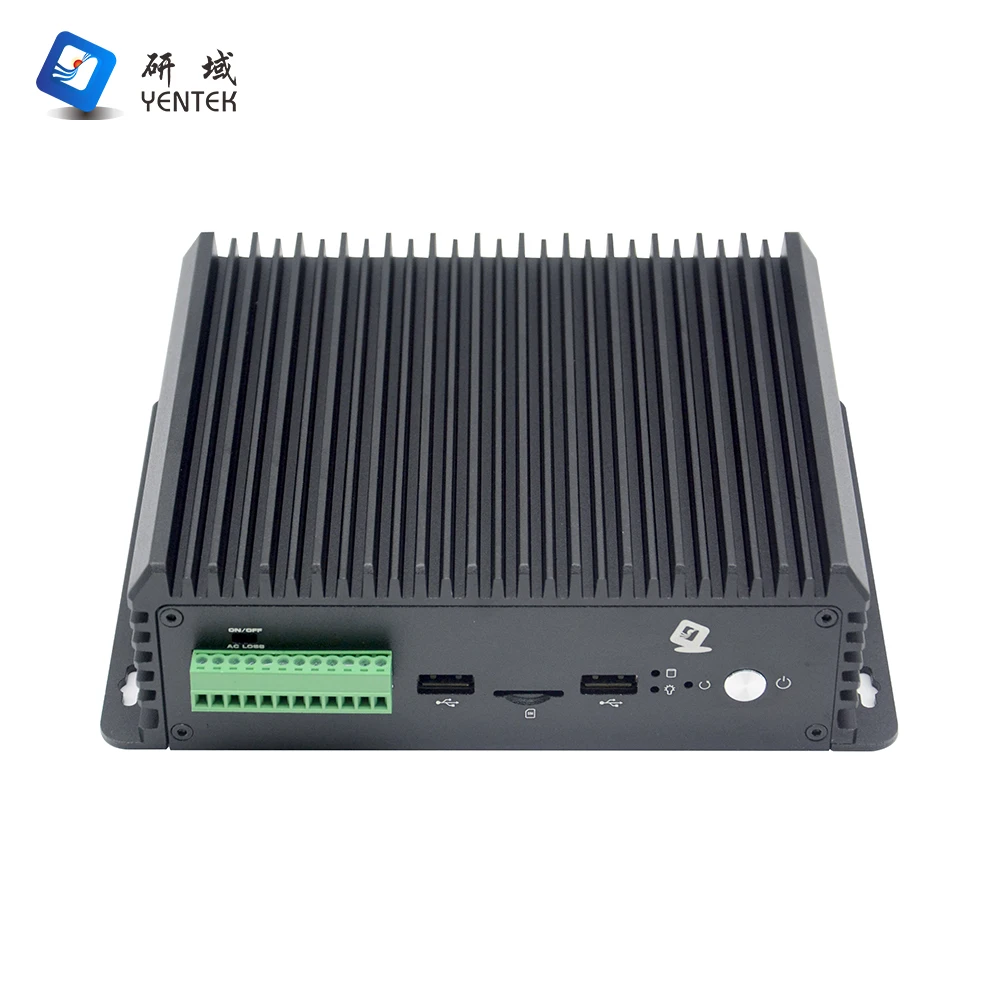

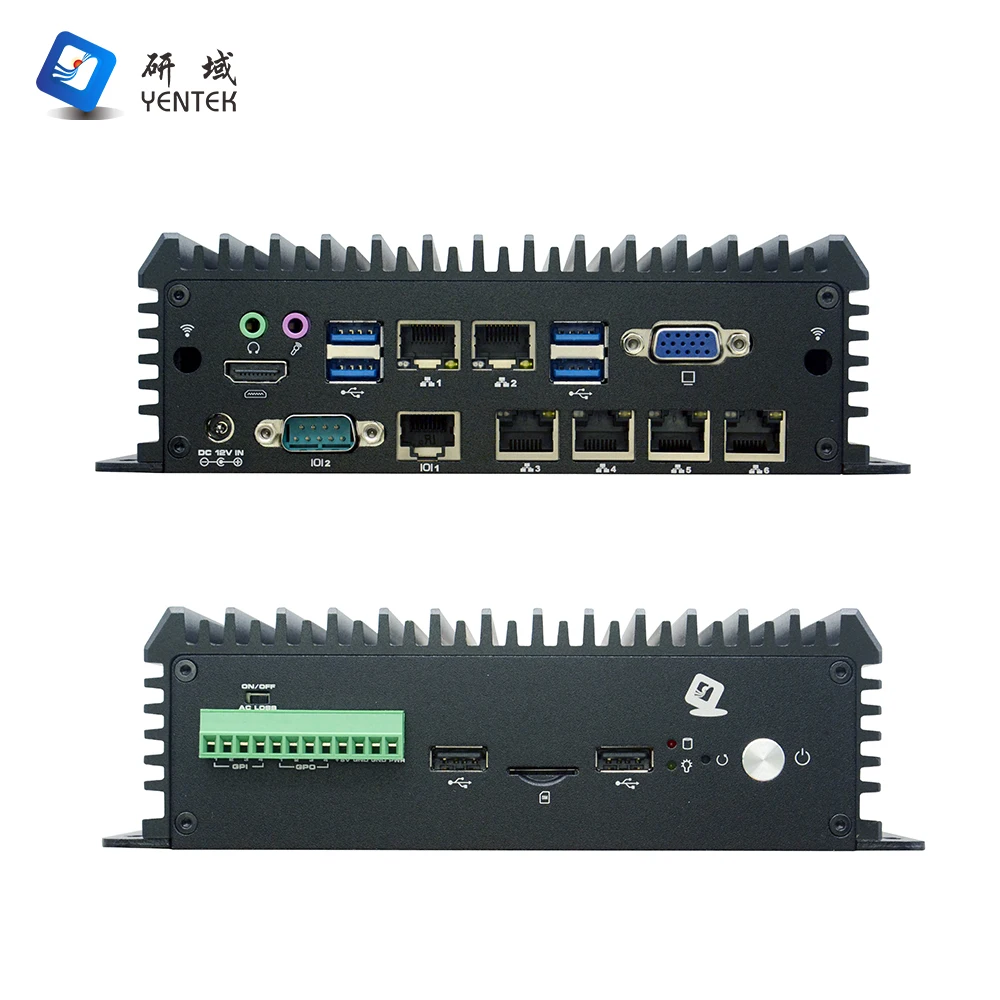

Front Panel Connectors | POWER | 1*Power Switch, 1*Reboot Switch, 1*ACLOSS (Power On Codec Switch) | |
LED | 1*Power Indicator, 1*Hard Drive Indicator | ||
USB | 2*USB2.0, 1*USB2.0 built-in | ||
SIM | 1*SIM standard card slot | ||
Phoenix Terminal | 1*12P (including four in four out GPIO/power switch signal/5V/GND) | ||

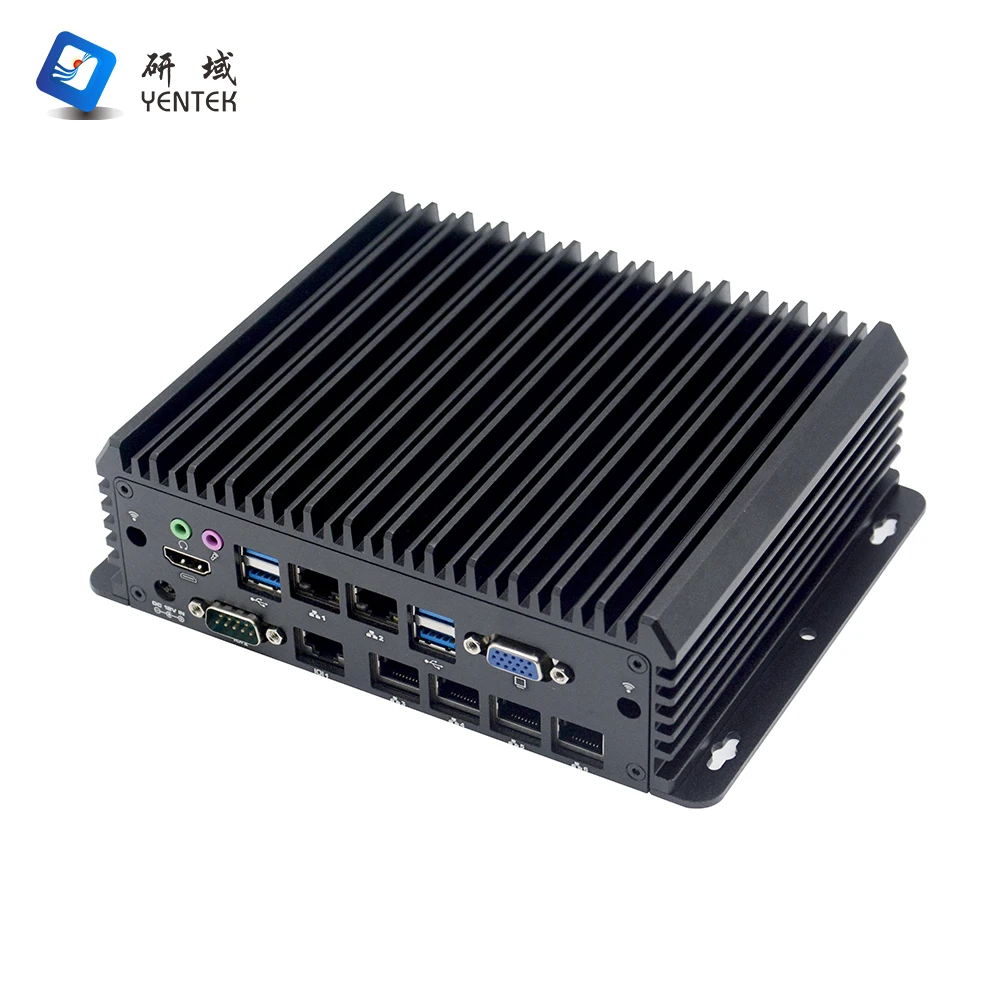

Rear Panel Connectors | Display Interface | 1*VGA, 1*HDMI1.4 | |
LAN | 6*RJ45 Gigabit Ethernet card | ||
USB | 4*USB (USB2.0/3.0 number according to the motherboard) | ||
COM | 1*RS232/485 DB9 serial port, 1*RJ45 serial port | ||
Audio | 1*Line out, 1*MIC | ||
Power supply | 1*DC12V power input | ||
Storage | SATA | 1*2.5 inch hard drive bay | |
MSATA | 1*MSATA | ||
Expansion | MINIPCIE | 1*MiniPCIE, support 4G/WiFi | |
Power Requirements | Power Supply Type | External Power Adapter | |
Voltage Input | DC 12V | ||
Power Output | AC TO DC, 60W and above (depending on specific equipment) | ||
Environment | Operating Temperature | -10℃～50℃ | |
Storage Temperature | -20℃～70℃ | ||
Relative Humidity | 5%-95% relative humidity, non-condensing | ||
Operating Vibration | 0.5g rms/5-500HZ/random/operating | ||
Recommend Products
Company Profile
FAQ
Q1: Can you put my brand name (logo) on these products or provide customized solutions?
A: Yes, we can support OEM/ODM service, the process of customization is following:
* Provide your specific requirement.
* Our engineer draws the design draft.
* You confirm the design draft.
* We start produce it.
Q2: What is the Minimum Order Quantity (MOQ)?
A: We can sell one piece of sample for your test.
Q3: What is the lead time of your products?
A: 3 working days for few samples, 15 working days for a large quantity.
Q4: Will it be ok to run the device 24 hours a day and 7 days a week, just like a desktop PC? Will it be overheated?
A: There's no problem with running the device 24/7. l've done it for about a month and have had no problems. Just set your monitor
to sleep when you're not using the computer.
Q5: What is the quality control in your factory?
A: Quality is our top priority. We have IQC (Incoming Quality Control), production inspection, reliability testing, out-going
inspection and after sales data analysis etc..
Q6: What's the warranty of your products?
A: Non-artificial damage, 1 years warranty. The second year and the third year, we can repair it free, but we will only charge the
actual costs of the parts that needs to be replaced.
Q7: Are you a factory or trading company?
A: We are a professional consumer electronics manufacturer which located in Shenzhen, China.
Q8: If we come to China, can you arrange the visiting to your factory?
A: We warmly welcome and look forward to your visiting to our factory at any time.
A: Yes, we can support OEM/ODM service, the process of customization is following:
* Provide your specific requirement.
* Our engineer draws the design draft.
* You confirm the design draft.
* We start produce it.
Q2: What is the Minimum Order Quantity (MOQ)?
A: We can sell one piece of sample for your test.
Q3: What is the lead time of your products?
A: 3 working days for few samples, 15 working days for a large quantity.
Q4: Will it be ok to run the device 24 hours a day and 7 days a week, just like a desktop PC? Will it be overheated?
A: There's no problem with running the device 24/7. l've done it for about a month and have had no problems. Just set your monitor
to sleep when you're not using the computer.
Q5: What is the quality control in your factory?
A: Quality is our top priority. We have IQC (Incoming Quality Control), production inspection, reliability testing, out-going
inspection and after sales data analysis etc..
Q6: What's the warranty of your products?
A: Non-artificial damage, 1 years warranty. The second year and the third year, we can repair it free, but we will only charge the
actual costs of the parts that needs to be replaced.
Q7: Are you a factory or trading company?
A: We are a professional consumer electronics manufacturer which located in Shenzhen, China.
Q8: If we come to China, can you arrange the visiting to your factory?
A: We warmly welcome and look forward to your visiting to our factory at any time.
