Electrical Wire Flexible Corrugated Cable Protection conduit Plastic Tube making extruder machinery with CE ISO
- Category: >>>
- Supplier: Qingdao Fullwin Machinery Co. Ltd.
Share on (1601279864289):
Product Overview
Description
Product Description
Plastic Pp Pe Eva Single Wall Corrugated Pipe Shisha Hookah Conduit Hose Pipe single screw extruder Extrusion Making Machine
Wired Air Conditioning Outlets PA6 PP Electrician Flexible Corrugated Plastic Pipe Conduit Ripple Hoses making extruder line
electrical conduit flexible hose PP PE Single Wall Corrugated Pipe Making Machine With Metal Wire Steel
PVC PP PE Plastic single wall Electric corrugated pipe production plant PE Disposable Washable Hookah Shisha Hose Machine line
shisha hookah machines plastic extruders PP PE One Time Use Portable Tobacco Shisha Hookah Hose Making Machine
shisha hookah machines plastic single screw extruders PP PE 16-40mm PVC conduit pipe manufacturing machine
High speed single wall corrugated pipe making machinery for electrical wire conduit pipe tube
Fullwin plastic single-wall corrugated pipe production line developed by our company adopts gears to run moulds and templates so as to realize water circulating cooling air of the products,which ensures high-speed molding,even corrugation,smooth inner and outer pipe wall.These corrugated pipes are especially used as wires of up-market cars,cable protection pipe,water smoking pipe and so on.
Production speed :20-30m/min.
Final Product & Application
Specification

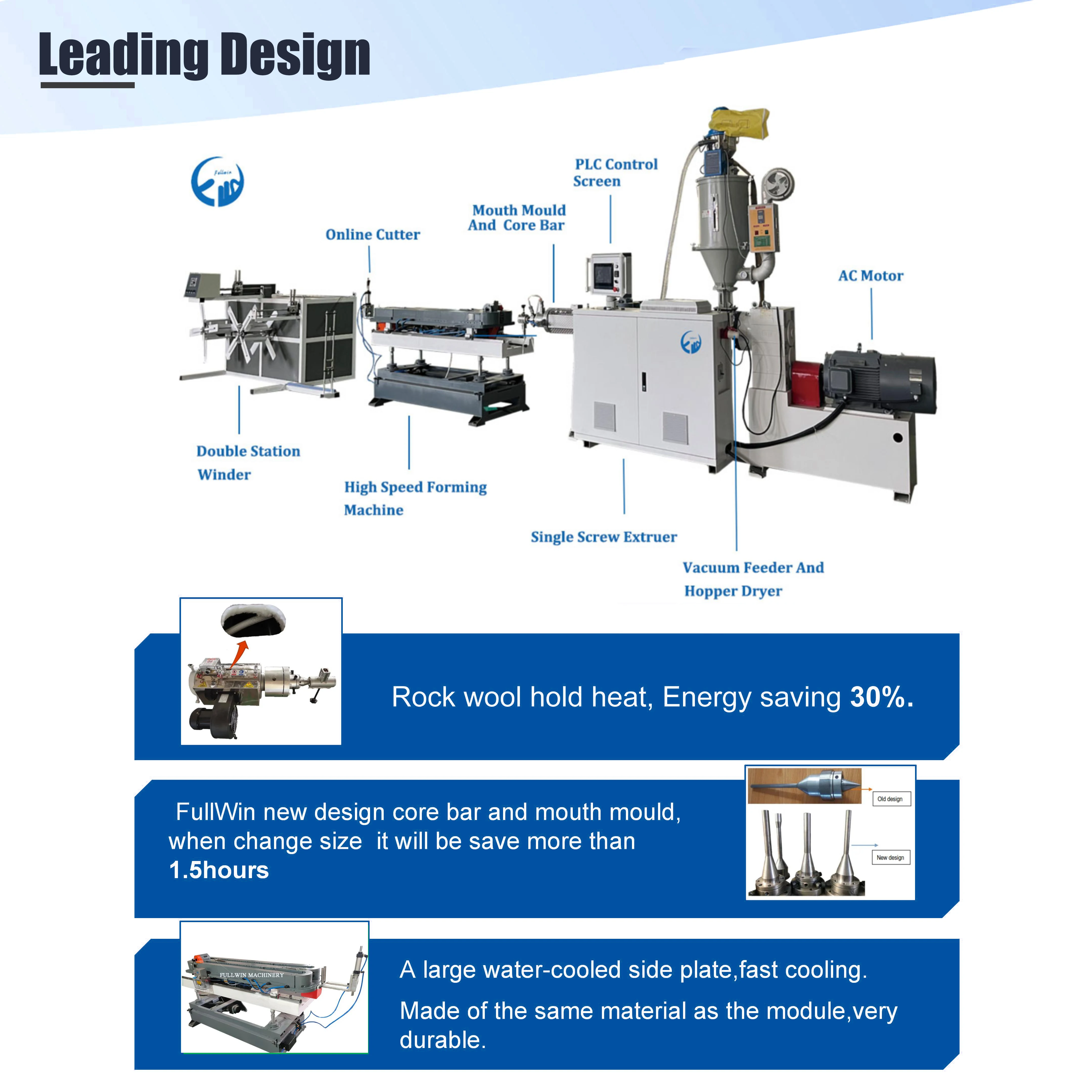

NO | Name | Qty |
1 | Vacuum feeder and hopper dryer | 1set |
2 | SJ65/30 Single Screw Extruder | 1set |
3 | New Design Die head | 1set |
4 | Mouth mould、core bar、gas nose and pull rod | 1set |
5 | Corrugated pipe forming mould | 1set |
6 | High speed forming machine | 1set |
7 | Double station winding machine | 1set |
SJ65/30 Single screw extruder
1.High plasticization rate,uniform melt and continuous production stability. High performance gearbox reducer.long life and low noise.For PVC powder raw material market widely use double screw extruder. but FULLWIN design single screw barrel suitable for PVC powder material,PVC granule material and PP PE EVA granule.Use one machine can cover all these materials.it can help customer save the machine cost.
2.Customer can choose PLC control system and Manual control panel according to their usage habits.
Die head with energy saving heating ring
The rock wool in the heating ring and die head can hold heat,then save about 30%electrical costs for customer.
Fullwin new design,the core bar and mouth mould fit together,when change size,no like the old design change the core bar and mouth separately,it will be save more than 1hour for the clean the waste material.
Forming machine and Forming mould
High speed forming speed:20-30 m/min.
The forming machine plate and high speed forming mould use 38CrMoAIA material,has high hardness, high wear resistance.and the forming mould can carve customer logo,can choose double cavity or three cavity in one set mould,when change the size,just up and down forming machine,no need put out all set mould. it can save more long time for customer.
Forming machine adjustment:manual control left and right,Electric control up and down.
Automatic wiring device,balance the speed match rewinding speed,help winding machine adjust the speed,when the pipe production slow,will stop rewinding,prevent pipe too tight disconnect.
Main Product
Single-wall Corrugated Pipe Machine
Production speed :20-35m/min Pipe Diameter :12-50mm
Application :
shisha hookah pipe,electric conduit pipe, construction material etc
Shrinkable Pipe Machine
FullWin Vacuum design more Higher precision.
Application:Air conditioning,washing machine drain pipe,toys and water pipes
Application:Air conditioning,washing machine drain pipe,toys and water pipes
Double Wall Corrugated Pipe Machine
Application:Air fresh system,water pipe ,vacuum pipe.The products are air-cooled,which ensures high-speed molding,even corrugation, smooth inner and outer wall,and good position of the closing line etc.
PVC/WPC Board Machine
Advantages：PVC WPC board have waterproof,fireproof,moth-proof,non-deformation etc.
Widely used in bedroom , bathroom , kitchen , vila , residential , hotel , school , hospital decoration etc.
Widely used in bedroom , bathroom , kitchen , vila , residential , hotel , school , hospital decoration etc.
PE/PP/WPC Profile Machine
The molded products have a wood-like look and feel. Widely used in outdoor decking floor,railings,walking trails, outdoor tables and chairs, and pallets. flooring and other decorative materials etc.
PVC/WPC Profile Machine
Mainly used for window profiles, electric trunking, grating panels,wall panel and ceiling panel etc decoration material.Customized according to different profile sections and molds
PP Hollow Corrugated Sheet Machine
Thickness: 1.6mm-18mm.
Width: 915-1800mm.
The size error is small, can nail, can gouge, corrosion resistance, flame retardant strong and many other advantages.
The size error is small, can nail, can gouge, corrosion resistance, flame retardant strong and many other advantages.
PP Building Template Board Machine
PP hollow building formwork is one of the new construction materials that can replace steel formwork and bamboo glue formwork.
PVC/CPVC Pipe Machine
Diameter:12mm-630mm
Mainly used for agricultural water supply and drainage, construction water supply and drainage ， electric power conduit pipe
PP/PE/HDPE/PPR Pipe Machine
Diameter : 315-630mm 630-1200mm
Can be used to produce PPR hot and cold water pipes,PP/PE/HDPE pipes, silicon core tubes.
Can be used to produce PPR hot and cold water pipes,PP/PE/HDPE pipes, silicon core tubes.
PVC Fiber Reinforce Hose Machine
For pressure or corrosive gas and liquid transportation,widely used in achinery, petroleum,chemical industry, agricultural irrigation,construction,civil and other fields.
PVC Suction Hose Machine
The hose has compression resistance, corrosion resistance, negative pressure resistance, bending resistance,suitable for the transportation of gas, liquid, powder particles.Mainly used in I
industry, agriculture, construction and irrigation and other fields.
Company profile
FULLWIN PLASTIC MACHINERY CO., LTD
Our factory is located in the beautiful Qingdao city, focus on plastic extrusion manufacturers. Our company has gathered first-class scientific research talents from all over the country. At present, has successfully developed a number of plastic machinery production lines and supporting equipment, including single-wall corrugated pipe production line, double-wall corrugated pipe production line, PVC, PP water supply pipe production line, profile and sheet production line, etc. Among them, the corrugated production line has obtained a number of invention patents.
Our Service
-After all machines are delivered to customer’s factory; Buyer is responsible for all preparation work, e.g. electricity supply,water supply, labors and cranes, etc.
- Fullwin will prepare for visa application for their engineers, who are responsible for guide of machine installation and testing at the Buyer’s factory.
- The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for each engineer.
- Engineer will give free training lessons to labors in buyer’s factory.
- If buyer doesn’t request installation and commissioning by Seller’s engineer in 4 months since date of bill of lading, which to be accounted all the machines has been successfully tested by buyer.
- Fullwin will prepare for visa application for their engineers, who are responsible for guide of machine installation and testing at the Buyer’s factory.
- The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for each engineer.
- Engineer will give free training lessons to labors in buyer’s factory.
- If buyer doesn’t request installation and commissioning by Seller’s engineer in 4 months since date of bill of lading, which to be accounted all the machines has been successfully tested by buyer.
FAQ
1. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.What can you buy from us?
Single Wall Corrugated Pipe Machine,Double Wall Corrugated Pipe Machine,PVC/ PP Water Supply Pipe Machine,WPC/PVC Profile and Sheet Profile Machine,PVC Fiber Reinforced Pipe Machine
3.Why should you buy from us not from other suppliers?
1.Advanced production technology with design capability. 2.Reasonable price with good quality and best delivey time 3.Our sales team will give prompt feedback within 24 hours . 4.Profession after sales service system
4. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish, Russian
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.What can you buy from us?
Single Wall Corrugated Pipe Machine,Double Wall Corrugated Pipe Machine,PVC/ PP Water Supply Pipe Machine,WPC/PVC Profile and Sheet Profile Machine,PVC Fiber Reinforced Pipe Machine
3.Why should you buy from us not from other suppliers?
1.Advanced production technology with design capability. 2.Reasonable price with good quality and best delivey time 3.Our sales team will give prompt feedback within 24 hours . 4.Profession after sales service system
4. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish, Russian
