Products Description
Concrete Pump 24X-4Z
* Energy Saving: Self-adaptive variable power distribution control technology
* High-Efficiency: Good site adaptability (one side support)
* High-Reliability: 8 years or 400,000 m³ without crack, making it equivalent to European standard.
* Intelligence: Full self-diagnosis before, after and during pumping to ensure working safely.
* Easy maintenance: Advanced easy-maintenance technologies, making maintenance time reduced by 50-75%.

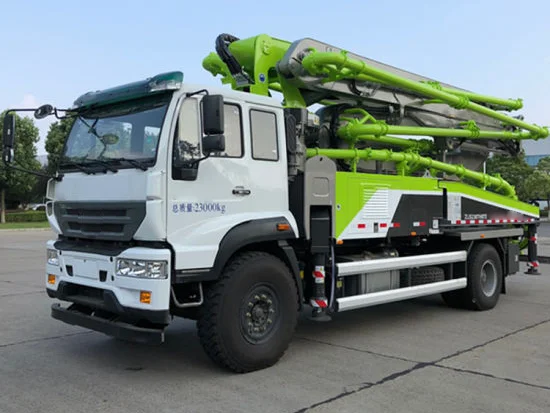

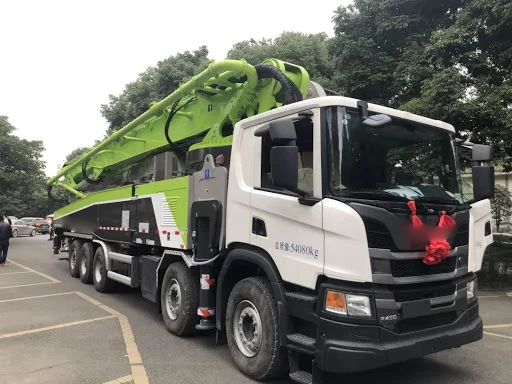

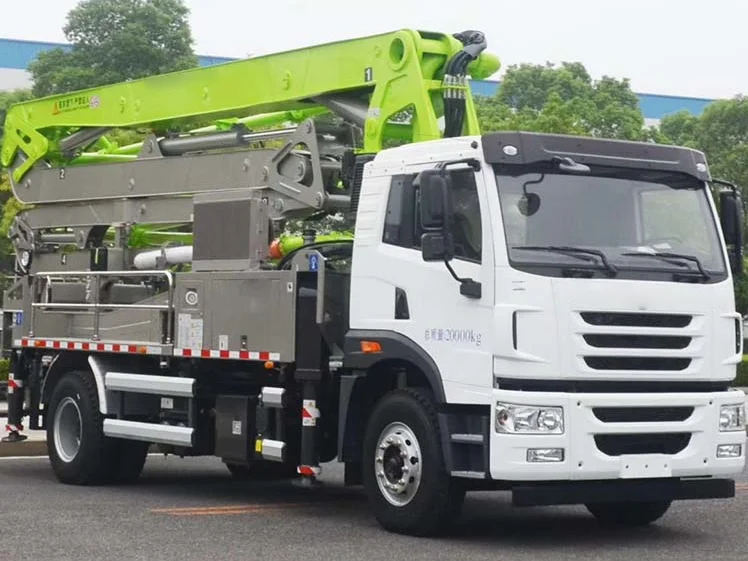

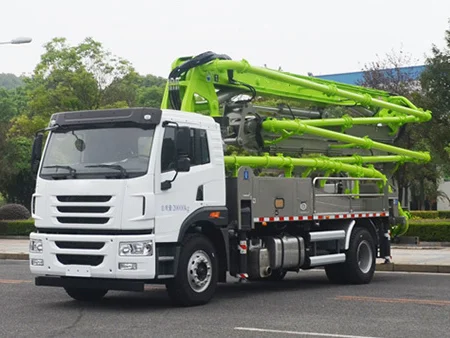

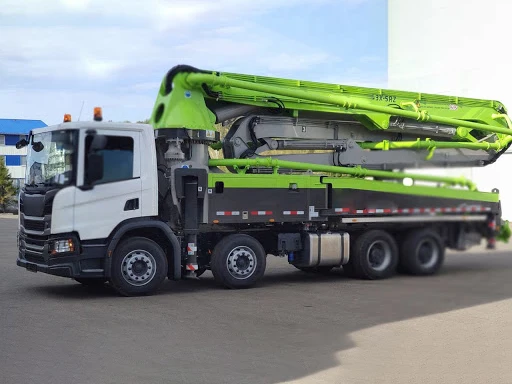

Details Images
Product Parameters
Maximum vertical reach | 23.2m |
Maximum horizontal reach | 19.7m |
Maximum depth reach | 13.8m |
Minimum unfolding height | 4.8m |
Section numbers | 4 |
Boom type | Z |
Pipeline diameter | 125mm |
Maximum theorical output | 100/60m3/h |
Maximum theorical pressure on concrete | 60/100bar |
Concrete cylinders (diam. × stroke) | 230mm x 1650mm |
Hydraulic circuit | Open |
