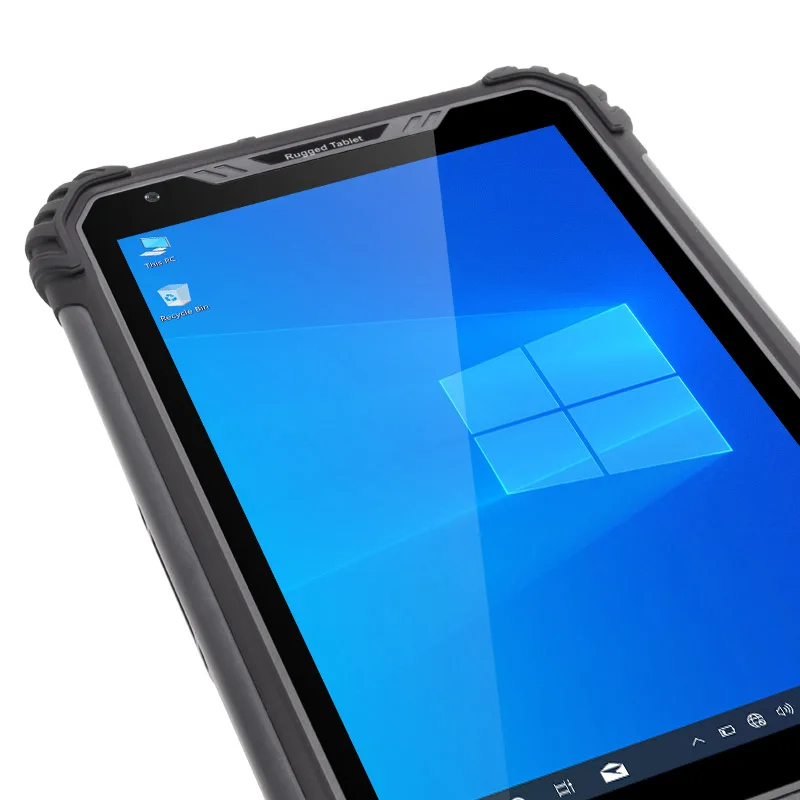

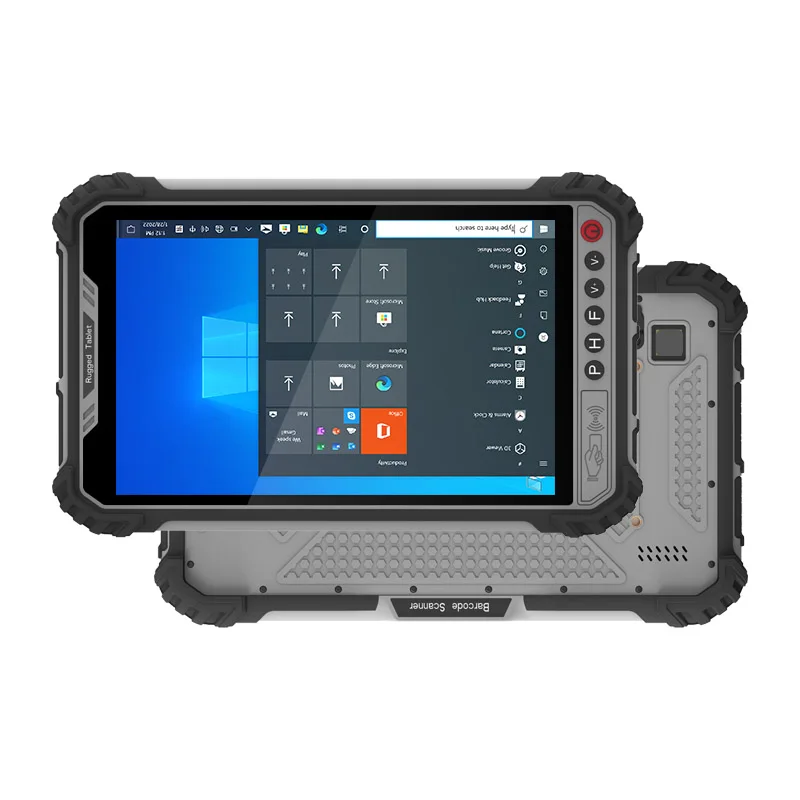

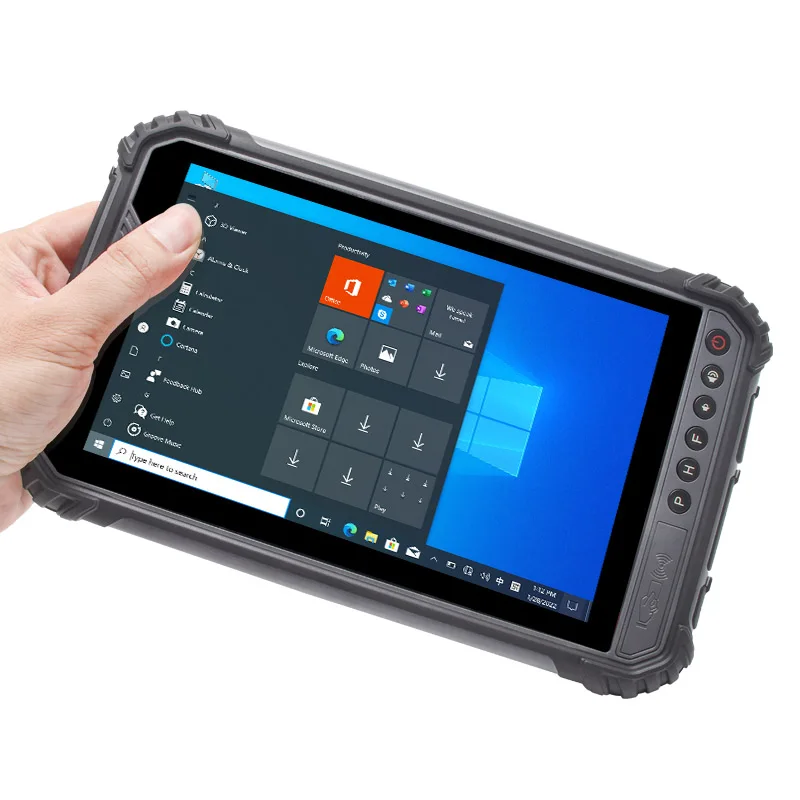

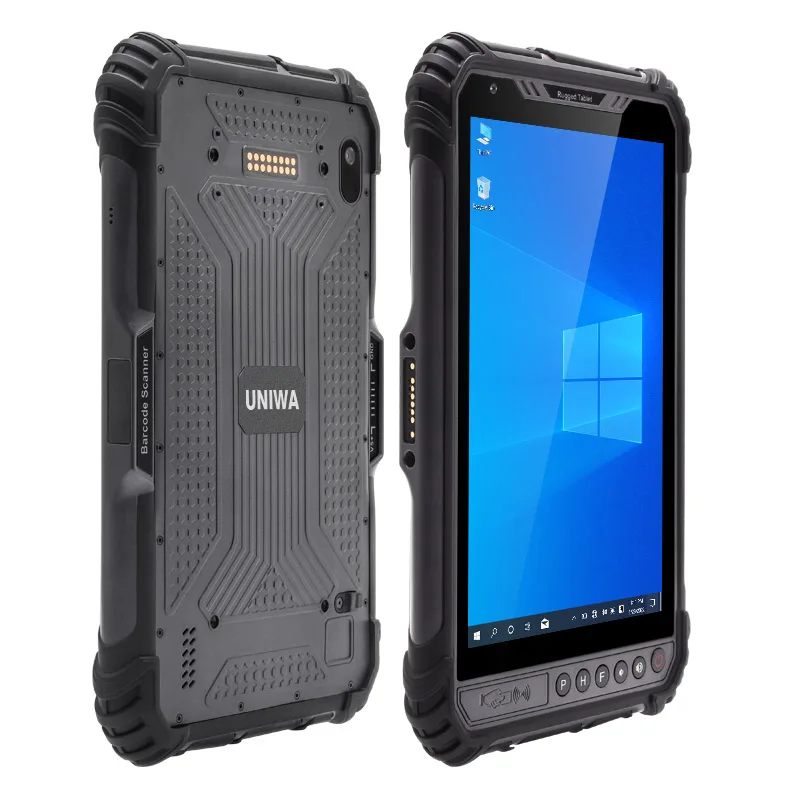

WinPad W801 8 Inch Dual Core PDA Intel I5 256GB PC 4G LTE Windows 10 Industrial Rugged Tablet 8GB RAM i5 Windows Tablet PC
- Category: >>>
- Supplier: Shenzhen Connectech Technology Co. Ltd.
Share on (1601279935852):
Product Overview
Description
WinPad W801 8 Inches PDA Intel I5 PC 256GB 4G LTE Industrial Windows 10 Rugged Tablet
1) IP65 Waterproof
2) Intel i5 Processor
3) 8 Inch FHD Touch Screen
4) 8GB RAM+256GB ROM
5) Windows 10 Operation System
6) Built-in 7.6V/5000mAh Battery
7) Support 4G LTE Network
8) Front NFC Reader
9) Support GPS/BDS/GLONASS Navigation
10) RJ45/RS232/Pogo Pin
1) IP65 Waterproof
2) Intel i5 Processor
3) 8 Inch FHD Touch Screen
4) 8GB RAM+256GB ROM
5) Windows 10 Operation System
6) Built-in 7.6V/5000mAh Battery
7) Support 4G LTE Network
8) Front NFC Reader
9) Support GPS/BDS/GLONASS Navigation
10) RJ45/RS232/Pogo Pin
Product Description
Model No. | WinPad W801 | |
Operating system | Windows 10 Home (Windows 10 pro/IOT version optional) | |
Dimension | 234*144*16.8mm | |
Weight | 800g | |
Material | ABS + PU | |
Color | Dark gray | |
Language | Multi-language | |
HARDWARE | ||
Display | 8.0 inch IPS G+G capacitive screen, 1920*1200px, 450 nits | |
Processor | Intel I5-8200Y dual-core, up to 1.3GHz | |
RAM | 8GB RAM | |
ROM | 256GB ROM, support TF card extension up to 1TB maximally | |
Camera | Double cameras: 13MP rear camera, 5MP front camera | |
Battery | Built-in 7.6V/5000mAh lithium polymer battery | |
Sensor | Gravity sensor, light sensor | |
Speaker | *1, 8Ω, 1.5W | |
Mic | *1, sensitivity: -32±2d, output impedance: 2.2kΩ | |
Buttons | Power Buttons, Volume+/-, P key, F key, H key | |
NETWORK & CONNECTIVITY | ||
Bands | 2G: GSM 850/900/1800/1900MHz | |
3G: WCDMA B1/B2/B4/B5/B8 | ||
4G: FDD-LTE B1/B2/B3/B4/B5/B7/B8/B28, TDD-LTE B40 | ||
WiFi | IEEE 802.11a/b/g/n/ac, support 2.4G&5G dual-band WiFi | |
BT | V4.2 | |
NFC | Front NFC, ISO/IEC14443, ISO/IEC15693, MIFARE, Felica, reading distance:3-5cm | |
GNSS | Support GPS, BDS, GLONASS | |
I/O INTERFACES | ||
USB Type-A 3.0 | *1 | |
∮4.0mm DC-IN port | *1 | |
HD-MI Type A | *1 | |
3.5mm earphone port | *1 | |
RS232 | Support | |
RJ45 port | *1, 10/100/1000M | |
16PIN Pogo pin(Back) | USB2.0*1+UART TTL*1 | |
8PIN Pogo pin (Bottom) | USB2.0*1+UART TTL*1+Charging | |
Multimedia | ||
Image format | BMP, JPG, GIF, PNG | |
Video format | MEPG 1/2/4, H.263/H.264, RMVB, WMV/VC-1, MVC, AVS, MJPEG. (UP TO 1080P) | |
Audio format | MP3, WMA, WAV, OGG, FLAC, ALAC, APE, AAC, AC-3, DTS (need license) | |
OPTIONAL | ||
Fingerprint Module AFM60 | Fingerprint capacity: 500 | |
Recognition time: <0.45 seconds | ||
Identification method: 1:N recognition or 1:1 authentication | ||
2D barcode scanner | N3680 | |
High-precision GPS TAU1201 | 0.25-1 meter positioning, support BDS, GPS, GLONASS; Capture Sensitivity: -158 dBm; Cold Start Time: 24 seconds, Hot Start Time: 1 second | |
UHF RFID | Built-in (European/American Standard): Output power: 18-26 dBm; receiving sensitivity < -70dBm; card reading distance: 2-3 meters | |
External (European/American standard): Output power: 18-26 dBm; receiving sensitivity < -70dBm; card reading distance: 4-5 meters | ||
RELIABILITY | ||
Waterproof | IP65, MIL-STD-810G （IP67 optional) | |
Drop-proof | 1.2m | |
Temperature range | Operating: -20℃~60℃ Storage: -25℃~80℃ | |
ACCESSORIES | ||
Power adaptor (12V/3A) | *1 | |
Charging cable | *1 | |

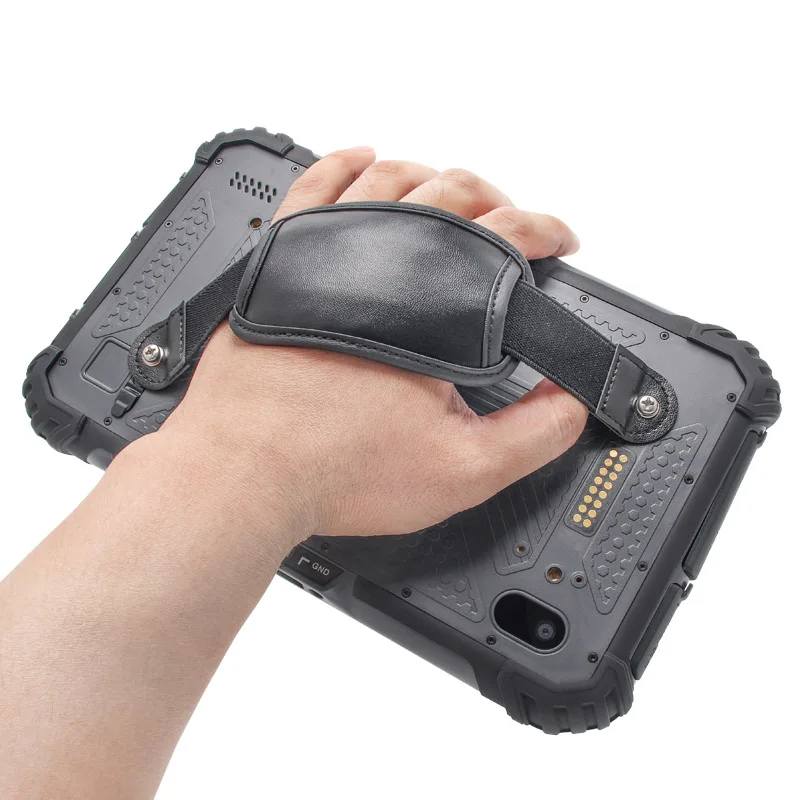

Hand strap | *1 | |
Protective film | *1 | |
