  • Protable lifter 9.2m 10.4m 12m high end aluminum material single mast telescopic aluminum lift
Protable lifter 9.2m 10.4m 12m high end aluminum material single mast telescopic aluminum lift
Protable lifter 9.2m 10.4m 12m high end aluminum material single mast telescopic aluminum lift
Protable lifter 9.2m 10.4m 12m high end aluminum material single mast telescopic aluminum lift
Protable lifter 9.2m 10.4m 12m high end aluminum material single mast telescopic aluminum lift
Protable lifter 9.2m 10.4m 12m high end aluminum material single mast telescopic aluminum lift
Protable lifter 9.2m 10.4m 12m high end aluminum material single mast telescopic aluminum lift
Protable lifter 9.2m 10.4m 12m high end aluminum material single mast telescopic aluminum lift

Protable lifter 9.2m 10.4m 12m high end aluminum material single mast telescopic aluminum lift

Share on (1601280193908):


Price:$2,099.00 - $2,399.00

Quantity:


Product Overview

Description



Contact Us




Product Description

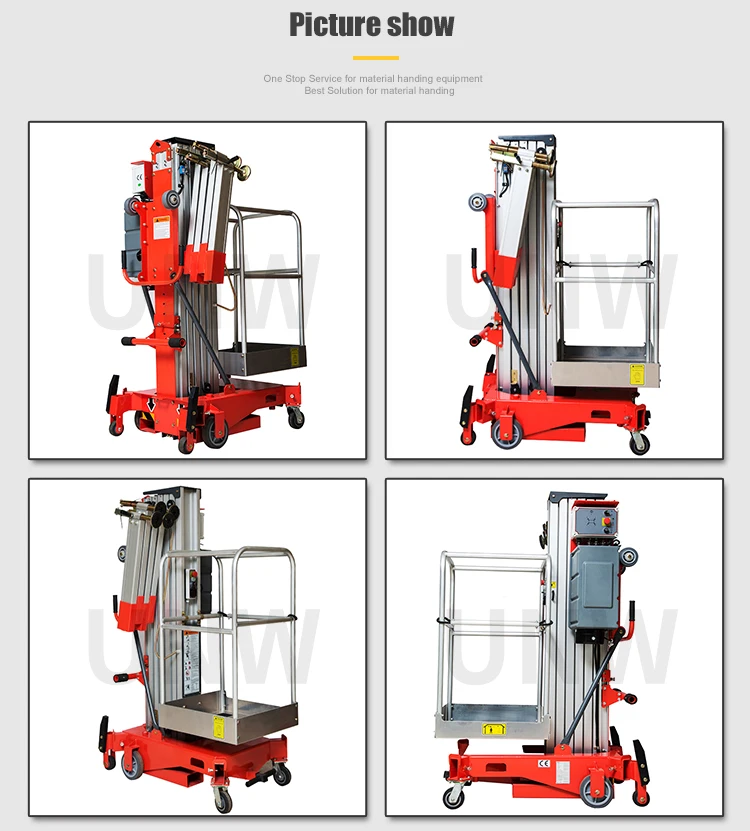

High End Single Mast Aluminum Lifter Platform

Unid Aluminum Lift Platform is famous for its light weight and high lift. It is made of aluminum alloy, so the weight of the product is very light. Operator can move it around easily. There are 2 up-down control panels, one is on side of the body and the other is on platform. Its simple structure makes it much easier to operate, extremely low failure rate has gained customers' good grace.




Advantages And Features:
1. Four Outrigger Interlock function
2. Deadman switch function,high safety when operation
3. AC power on platform for electric tools usage
4. Cylinder Holding Valve: anti-explosion function
5. Standard forklift hole for easy loading
6. Equipped with side wheels and handle for easy loading to truck by one person


Specification


Model No.
AWP-H7
AWP-H8
AWP-H10
AWP-H11
AWP-H12
AWP-H14
Max Platform Height
4.7m
6.2m
7.8m
9.2m
10.4m
12m
Max Working Height
6.7m
8.2m
10m
11.2m
12.4m
14m
Loading capacity
150kg
150kg
150kg
150kg
136kg
120kg
Platform Size
0.67*0.66m
Occupants
One person
Outrigger coverage
1.7*1.7m
1.7*1.7m
1.7*1.7m
1.8*1.8m
1.9*1.8m
2*1.9m
Weight(AC)
330KG
350KG
370KG
390KG
420KG
490kg
Overall Size
1.24*0.78*1.99m
1.36*0.78*1.99m
1.4*0.78*1.99m
1.46*0.81*2.78m
Lifting Motor-AC Power
0.75Kw


Details

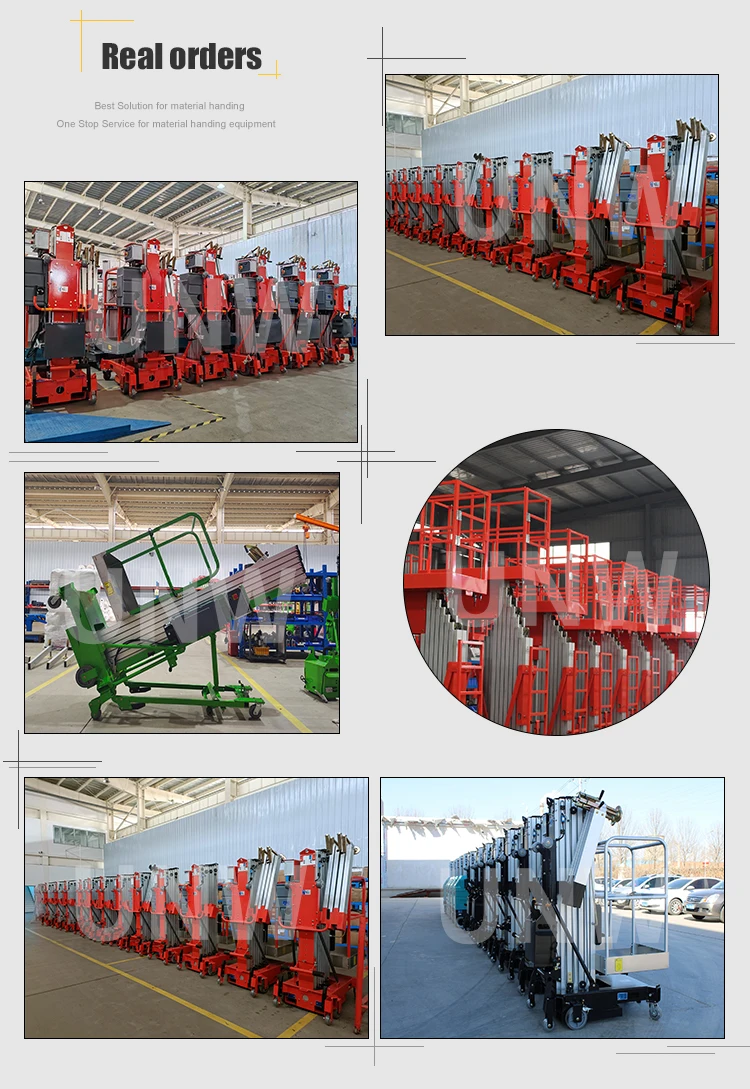

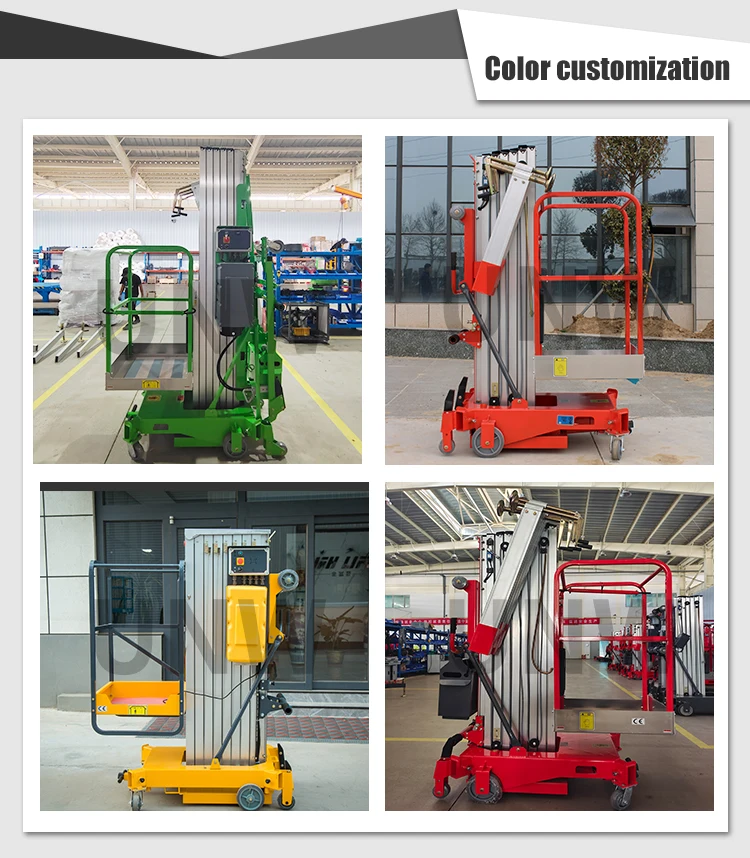

Real orders&Customized Color

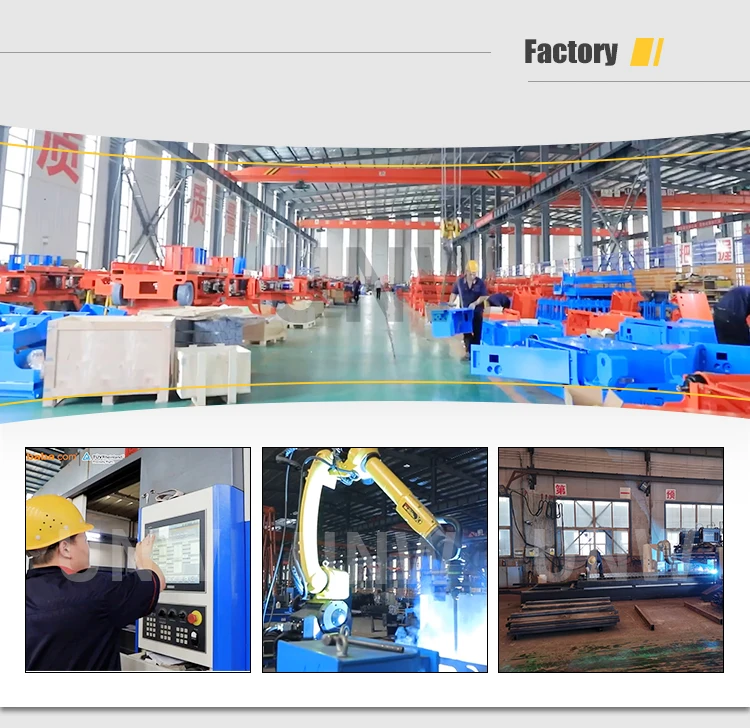

Company Profile


Shandong Unid Intelligent Technology Co., Ltd. is a leading manufacturer of hydraulic lifting equipment and Aerial Work lift Platform with more than 10-years-experience, including Intelligent glazing robot, suction cups vacuum glass lifters, sandwich panels vacuum lifters, metal sheet vacuum lifters and other single-circuit and dual-circuit vacuum lifters.

We always keep ”To make Construction easier，safer and more efficient" in Mind, Serving for customers mainly from Europe, North America, South America and so on.

Certificate: CE, ROHS, SGS, ISO etc.
Welcome to visit us and negotiate business.
Dealers and Wholesalers are especially welcomed and we will give special discounts.
